Model LG UP970 – Common Parts & Diagrams
Diagram 0

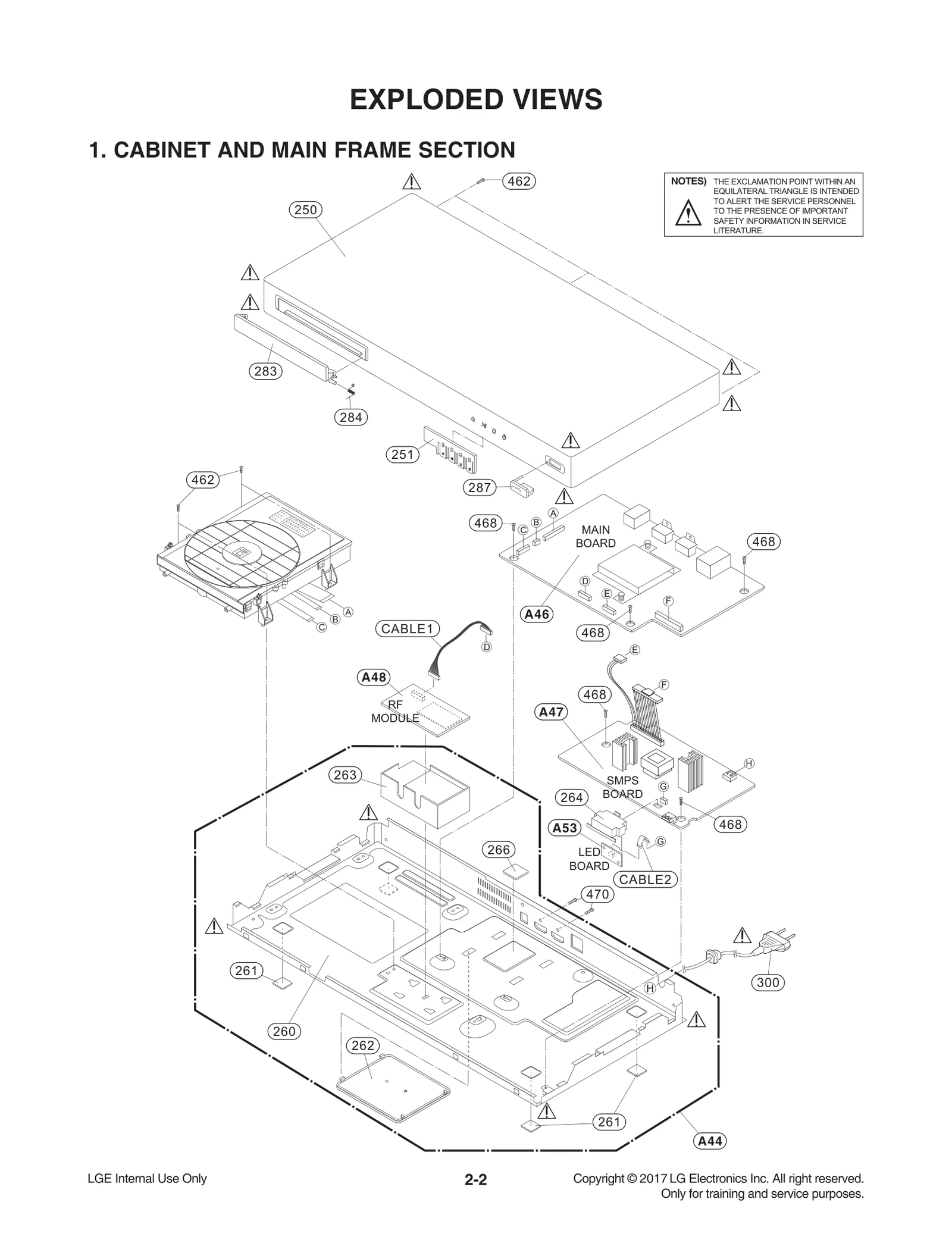

Diagram 1

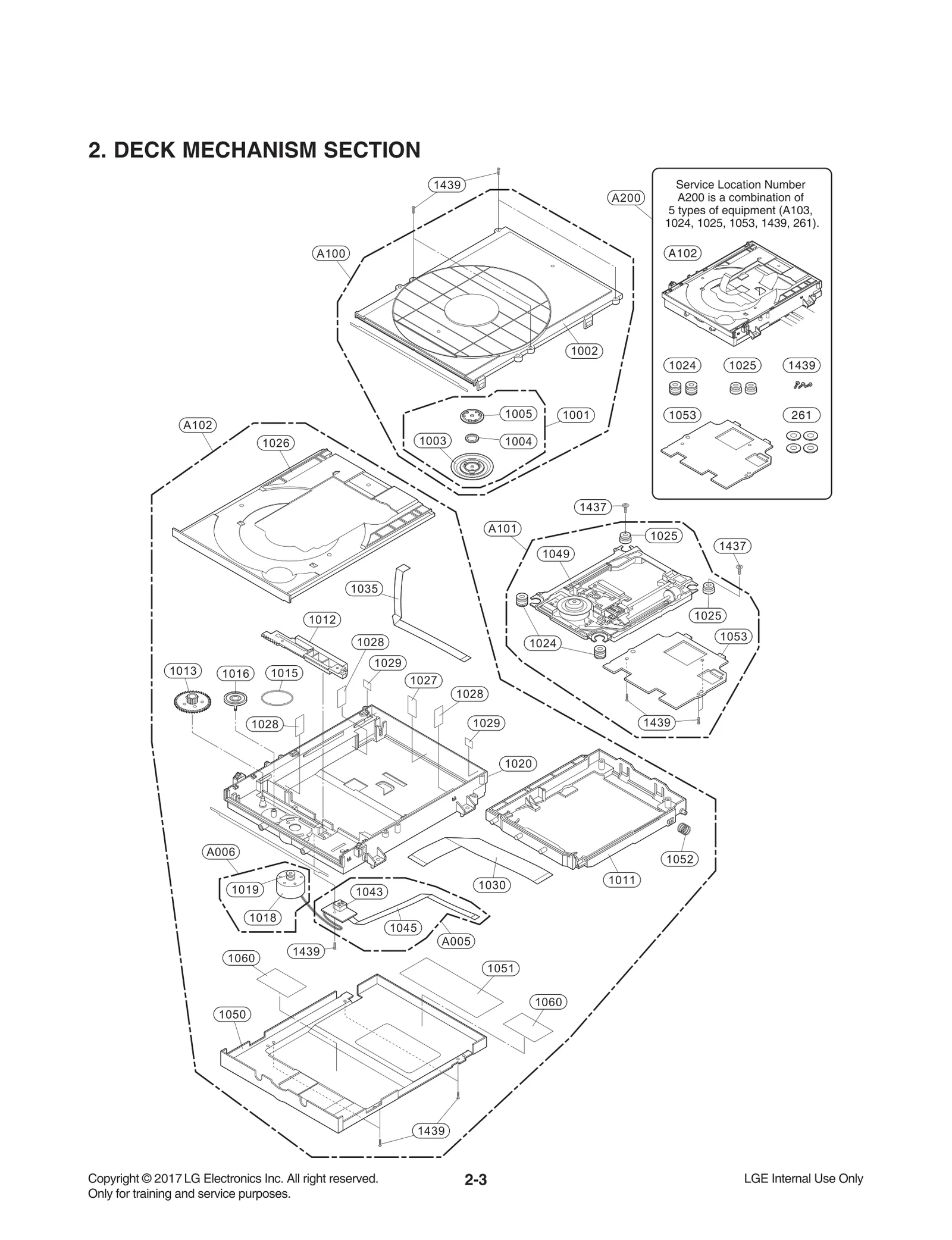

Diagram 2

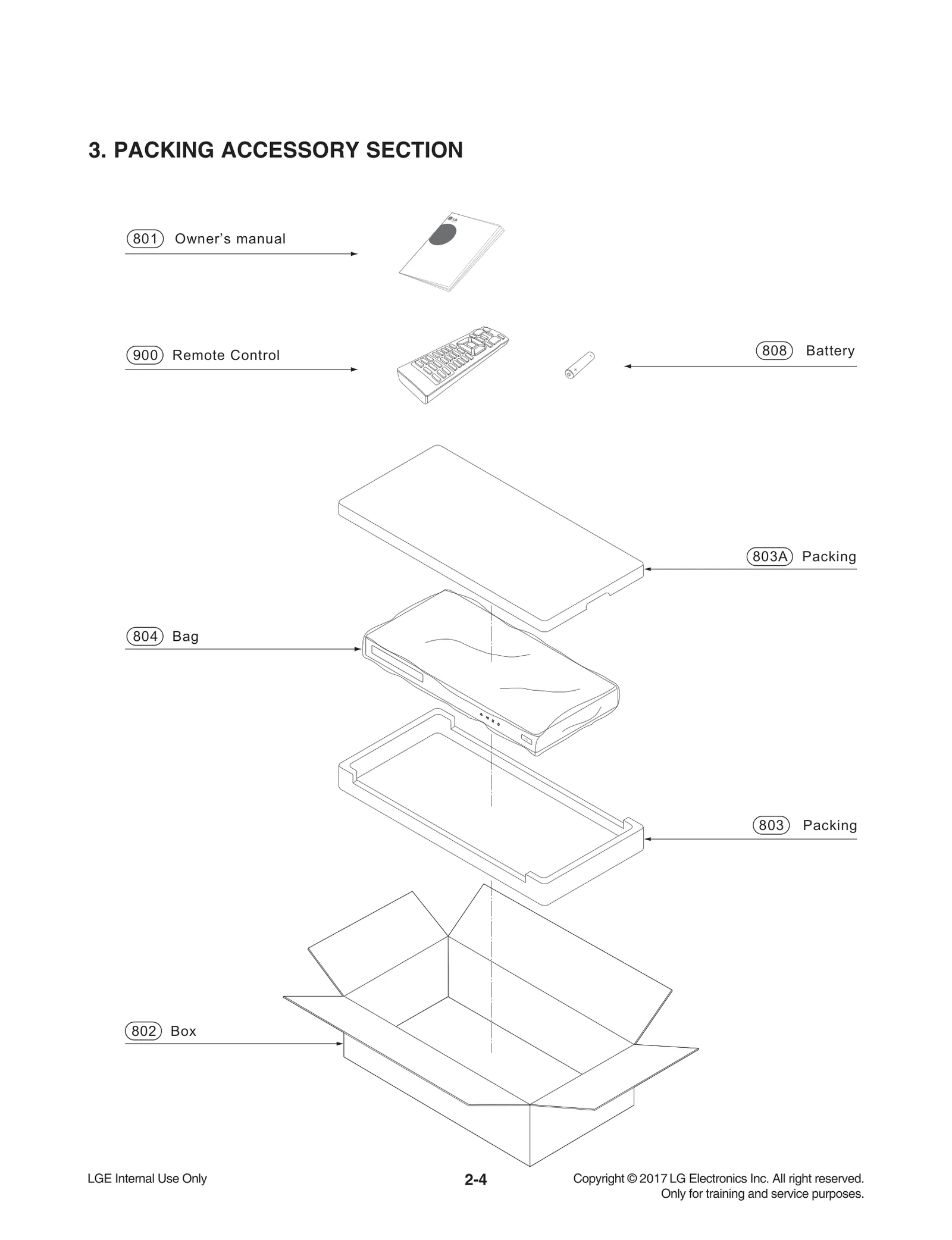

Diagram 3
Common parts from model LG UP970
-
Sheet LGE MHK65808502 Contact Us For Availability
250
Case LGE MBN64663904 Contact Us For Availability
251
Button LGE MBG66246601 Contact Us For Availability
260
Chassis LGE MBS63805904 Contact Us For Availability
261
Foot LGE MDP63026803 Contact Us For Availability
262
Cover LGE MCK67389501 Contact Us For Availability
263
Holder LGE MEG65020801 Contact Us For Availability
264
Holder LGE MEG65020901 Contact Us For Availability
266
Damper LGE MCQ62096408 Contact Us For Availability
283
Door LGE MCV63873901 Contact Us For Availability
284
Spring LGE MHY63124701 Contact Us For Availability
287
Cover LGE MCK69395001 Contact Us For Availability
300
Power Cord,Attach LGE EAD62501535 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77539702 Contact Us For Availability
802
Box,Master LGE MAY67829413 Contact Us For Availability
803
Packing LGE MFZ65377201 Contact Us For Availability
803A
Packing LGE MFZ65377202 Contact Us For Availability
804
Bag LGE MAF62209401 Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
1001
Clamp Assembly LGE ACA73589401 Contact Us For Availability
1002
Cover LGE MCK69432401 Contact Us For Availability
1003
Clamp LGE MBU63585501 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB35231201 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM64504201 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1024
Damper LGE MCQ68986002 Contact Us For Availability
1025
Damper LGE MCQ68966602 Contact Us For Availability
1026
Tray LGE MJS62671802 Contact Us For Availability
1027
Sheet LGE MHK65808501 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD36091013 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62039801 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ63001101 Contact Us For Availability
1050
Cover LGE MCK69430801 Contact Us For Availability
1051
Sheet LGE MHK65808503 Contact Us For Availability
1052
Spring LGE MHY64884001 Contact Us For Availability
1053
Bracket LGE MAZ65527701 Contact Us For Availability
1060
Sheet LGE MHK65808504 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR83858301 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A44
Frame Assembly LGE ADV76089910 Contact Us For Availability
A46
BPR Total Assembly LGE EBU64392001 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR84231701 Contact Us For Availability
A53
BPR Total Assembly LGE EBU64502101 Contact Us For Availability
A100
Cover Assembly LGE ACQ90288201 Contact Us For Availability
A101
Bracket Assembly LGE ABA76688301 Contact Us For Availability
A102
Base Assembly LGE AAN76508901 Contact Us For Availability
C6A2
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C101
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C101
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C103
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C108
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C109
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C110
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C118
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C121
CAPACITOR LGE 624-087B Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C243
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C247
Capacitor,Ceramic,Chip LGE 0CH1823F562 Contact Us For Availability
C257
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C270
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C282
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C297
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C368
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
C517
Capacitor,Ceramic,Chip LGE ECCH0017601 Contact Us For Availability
C817
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C820
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C865
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CABLE1
Harness,Single LGE EAD62632403 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62228008 Contact Us For Availability
CE101
Capacitor,AL,Radial LGE EAE63203307 Contact Us For Availability
CE102
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
CE105
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
CN101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630R-FB10F Contact Us For Availability
CN103
Harness,Single LGE EAD42218230 Contact Us For Availability
CN701
Connector,Wafer LGE EAG58732904 Contact Us For Availability
CN721
Connector,HDMI LGE EAG62611206 Contact Us For Availability
CN802
Connector,FFC/FPC/PIC LGE EAG38938703 Contact Us For Availability
CN860
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN861
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
CN902
Connector,Wafer LGE 6602T25008B Contact Us For Availability
CN1001
Connector,FFC/FPC/PIC LGE 6630R-FB06F Contact Us For Availability
D101
Diode,Bridge LGE EAH31952001 Contact Us For Availability
D102
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D103
Diode,Switching LGE EAH61853601 Contact Us For Availability
D104
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D105
Diode,Schottky LGE EAH62232801 Contact Us For Availability
D301
Diode,Zener LGE EAH63493501 Contact Us For Availability
D703
Diode,TVS LGE EAH62735601 Contact Us For Availability
D720
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D724
Diode,TVS LGE EAH62892601 Contact Us For Availability
D728
Diode,TVS LGE EAH63292901 Contact Us For Availability
DECK Assembly
Base Assembly LGE AAN76548601 Contact Us For Availability
Deck Assy
Sheet LGE MHK65808506 Contact Us For Availability
F102
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
F103
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL101
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
FL102
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL704
Filter,Common Mode LGE 6200J000159 Contact Us For Availability
IC101
IC,Power Driver LGE EAN63427501 Contact Us For Availability
IC102
IC,Voltage Regulator LGE EAN63767601 Contact Us For Availability
IC205
IC,DC,DC Converter LGE EAN64588401 Contact Us For Availability
IC207
IC,DC,DC Converter LGE EAN64387401 Contact Us For Availability
IC208
IC,LDO Voltage Regulator LGE EAN64166801 Contact Us For Availability
IC211
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC213
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC302A
S/W,System Program LGE SAA38932502 Contact Us For Availability
IC402A
S/W,System Program LGE SAA38932501 Contact Us For Availability
IC501
IC,Video Processors LGE EAN64546601 Contact Us For Availability
IC604
IC,DDR3 SDRAM LGE EAN64129001 Contact Us For Availability
IC604
IC,DDR3 SDRAM LGE EAN64393501 Contact Us For Availability
IC801
IC,Video Processors LGE EAN64546701 Contact Us For Availability
IC860
IC,Motor Driver LGE EAN64585801 Contact Us For Availability
JK101
Connector,USB LGE EAG63217801 Contact Us For Availability
JK701
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK720
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
L212
Inductor,Wire Wound,Chip LGE EAP62506415 Contact Us For Availability
L214
Inductor,Wire Wound,Chip LGE EAP62586002 Contact Us For Availability
L216
Filter,Bead LGE EAM38769505 Contact Us For Availability
L802
Filter,Bead LGE EAM62151101 Contact Us For Availability
L805
Filter,Bead LGE EAM62155402 Contact Us For Availability
LED1001
LED,Chip LGE EAV61492201 Contact Us For Availability
Q101
FET LGE EBK63613301 Contact Us For Availability
Q101
FET LGE EBK62212301 Contact Us For Availability
Q301
FET LGE EBK62072501 Contact Us For Availability
Q1001
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
R2P1
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R3A1
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R4B2
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R103
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
R111
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R113
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R114
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R117
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R118
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R122
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R124
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R127
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R128
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R129
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R132
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R134
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R214
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R221
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R242
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R245
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R250
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R253
Resistor,Chip LGE 0RJ1103C478 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ8062C478 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R305
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R332
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R423
Resistor,Chip LGE EBC60934301 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R436
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R444
Resistor,Chip LGE EBC61155501 Contact Us For Availability
R536
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R644
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R649
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R686
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R720
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R737
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R1001
RESISTOR,METAL GLAZE LGE 0RJ2000C477 Contact Us For Availability
R1002
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
RC101
Receiver Module LGE EAV58012902 Contact Us For Availability
SE101
Photo,Coupler LGE EAV59176001 Contact Us For Availability
SE101
Photo,Coupler LGE EAV61473101 Contact Us For Availability
SW104
Switch,Tact LGE EBF52268801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ62890002 Contact Us For Availability
TH101
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH101
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
U102
Heat Sink LGE MED61841604 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
X401
Crystal LGE EAW62583501 Contact Us For Availability
X801
Crystal LGE EAW61903501 Contact Us For Availability
ZD101
Diode,Zener LGE EAH61533801 Contact Us For Availability
ZD102
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD401
Diode,Zener LGE EAH63493401 Contact Us For Availability
× ![]()
Login and Registration Form
