Model Whirlpool UF16F FREEZER – Common Parts & Diagrams

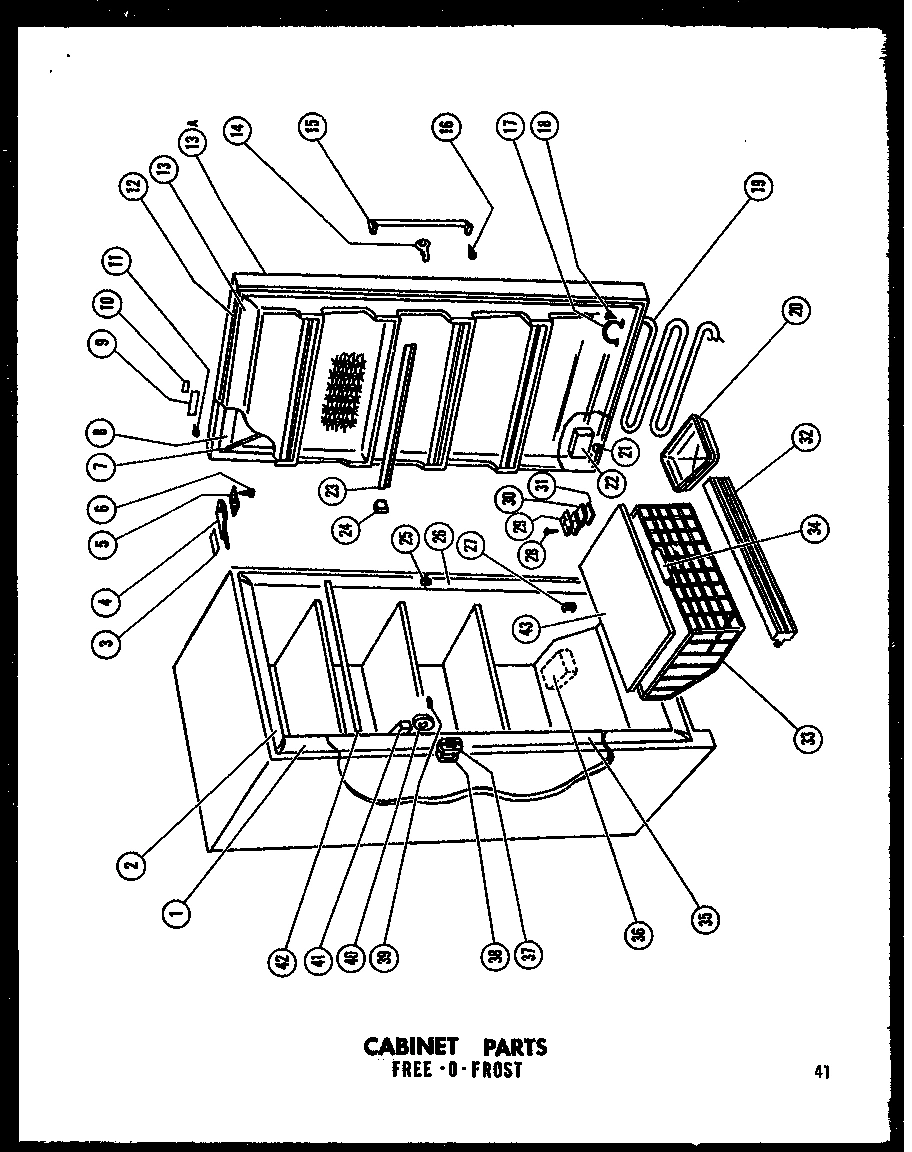

01 - CABINET PARTS

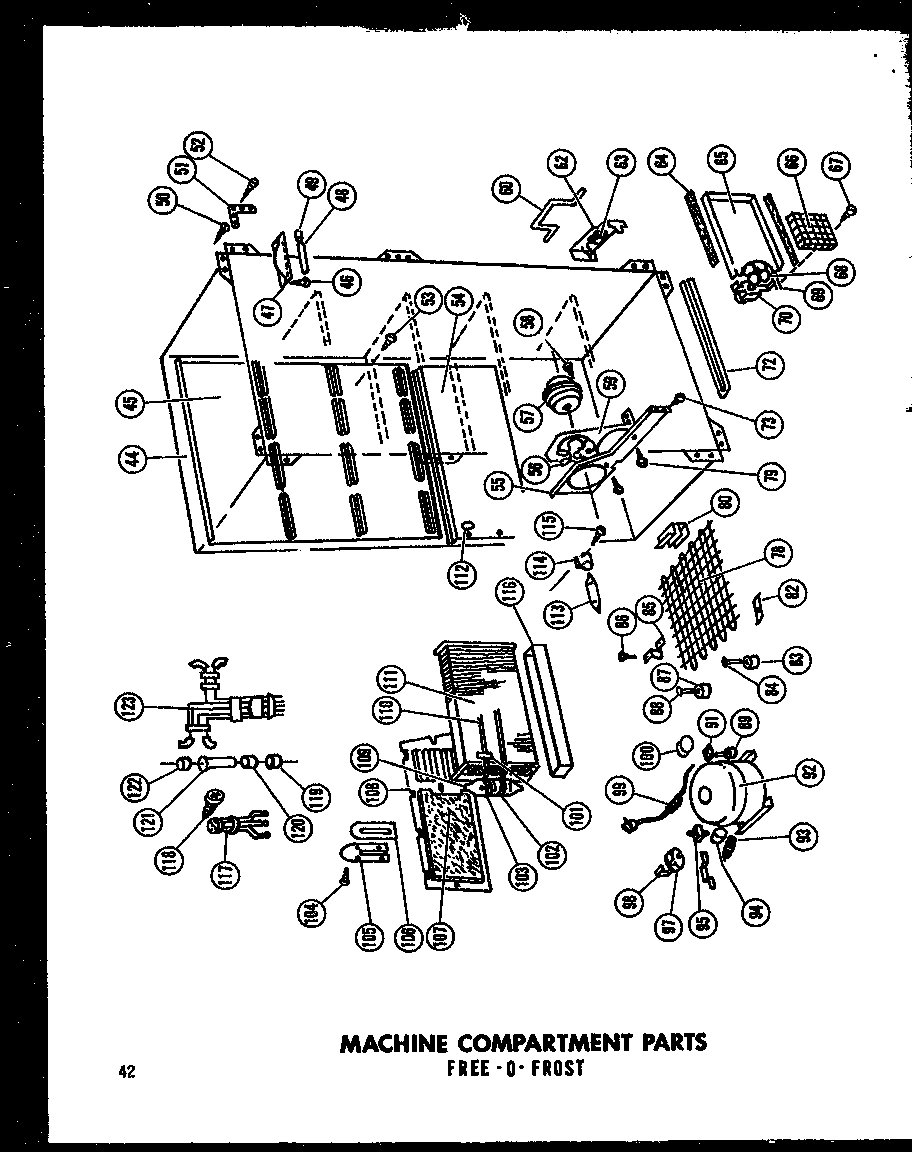

02 - MACHINE COMPARTMENT PARTS
Common parts from model Whirlpool UF16F FREEZER
1
BREAKER FRAME WPL D3914002 Contact Us For Availability
2
BREAKER FRAME WPL D3710305 Contact Us For Availability
4
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
4
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
5
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
6
SCREW WPL M0247058 Contact Us For Availability
7
TIE ROD WPL B0569802 Contact Us For Availability
8
INSULATION WPL B0566703 Contact Us For Availability
8
INSULATION WPL B0573901 Contact Us For Availability
9
ESCUTCHEON WPL C3577601 Contact Us For Availability
10
NAMEPLATE WPL C3578004 Contact Us For Availability
11
STUD WPL M0550001 Contact Us For Availability
12
GASKET, DOOR WPL D3880402 Contact Us For Availability
13
INNER DR PANEL WPL D3913404 Contact Us For Availability
13
DOOR W-UF16F WPL D7017016 Contact Us For Availability
13
OUTER DOOR SHELL, COPPERTONE WPL D7017017 Contact Us For Availability
13
DOOR A-UF16FA WPL D7017018 Contact Us For Availability
14
INSULATION, LOCK WPL B0576001 Contact Us For Availability
14
LOCK ASSEMBLY WPL C3571301 Contact Us For Availability
14
WASHER-LOCK WPL C3571303 Contact Us For Availability
14
NUT WPL C3571304 Contact Us For Availability
14
LOCK LEVER WPL C3571306 Contact Us For Availability
14
LOCKWASHER WPL C3571307 Contact Us For Availability
14
SCREW WPL C3571308 Contact Us For Availability
14
WASHER WPL M0274016 Contact Us For Availability
15
HANDLE, DOOR WPL D3890301 Contact Us For Availability
16
SCREW WPL M0248231 Contact Us For Availability
19
WIRING HARNESS WPL C3643801 Contact Us For Availability
20
DRAIN PAN WPL C3523101 Contact Us For Availability
21
VENT ASSY WPL A3101901 Contact Us For Availability
22
INSULATION WPL A3126701 Contact Us For Availability
22
BLOCK WPL C3565101 Contact Us For Availability
23
PACKAGE RETAINER WPL D3976703 Contact Us For Availability
24
SUPPORT WPL D3976805 Contact Us For Availability
24
SUPPORT WPL D3976806 Contact Us For Availability
25
GROMMET, PLASTIC WPL A3161801 Contact Us For Availability
25
SWITCH WPL B0592002 Contact Us For Availability
25
BRACKET WPL B5654203 Contact Us For Availability
25
PLUNGER, LT SWITCH WPL B5654301 Contact Us For Availability
26
BR FRAME WPL D3914005 Contact Us For Availability
27
GLIDE BASKET WPL B0543101 Contact Us For Availability
28
SCREW WPL M0246159 Contact Us For Availability
29
SHIM WPL A3015201 Contact Us For Availability
29
SHIM WPL A3015202 Contact Us For Availability
30
FLAT BEARING (BOTTOM HINGE) WPL B0539807 Contact Us For Availability
31
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
31
HINGE, BOTTOM WPL C3566701 Contact Us For Availability
32
TOE PLATE OR GRILLE WPL C3563607 Contact Us For Availability
33
BASKET WPL D3853307 Contact Us For Availability
34
HANDLE WPL B0571801 Contact Us For Availability
35
INSULATION BATT, BACK WPL B0534906 Contact Us For Availability
35
INSULATION BATT, BOTTOM WPL B0535003 Contact Us For Availability
35
INSULATION BATT, TOP WPL B0535213 Contact Us For Availability
35
INSULATION FT. K WPL B0572828 Contact Us For Availability
35
INSULATION BATT, SIDES WPL B0572903 Contact Us For Availability
36
INSULATION WPL A3130001 Contact Us For Availability
37
STRIKE LOCK WPL B0570101 Contact Us For Availability
39
RIVET PLASTIC WPL A3032601 Contact Us For Availability
40
KNOB, CONTROL WPL C3577902 Contact Us For Availability
41
CONTROL WPL B0543811 Contact Us For Availability
42
TRIM, SHELF WPL B0560001 Contact Us For Availability
43
SHELF, BOTTOM WPL D3777801 Contact Us For Availability
44
LINER ASSY WPL D7051071 Contact Us For Availability
45
LINER BACK, UPPER WPL D7020001 Contact Us For Availability
46
SCREW WPL M0217516 Contact Us For Availability
47
LIGHT HOUSING WPL C3540301 Contact Us For Availability
48
LIGHT BULB WPL A0318001 Contact Us For Availability
49
SOCKET WPL B0542702 Contact Us For Availability
50
TAP STRIP WPL A3013201 Contact Us For Availability
51
LINER GUSSET WPL C3523801 Contact Us For Availability
52
SCREW WPL M0250531 Contact Us For Availability
55
FAN SHROUD WPL D3768501 Contact Us For Availability
56
FAN BLADE WPL B0487801 Contact Us For Availability
58
SEMS FASTNER WPL M0255116 Contact Us For Availability
59
BRACKET WPL C3505801 Contact Us For Availability
60
WATER TRAP WPL D3775201 Contact Us For Availability
62
BRACKET WPL C3565001 Contact Us For Availability
63
TIMER WPL C3565502 Contact Us For Availability
64
GASKET WPL A4076001 Contact Us For Availability
65
INLET PLATE, AIR WPL D3786702 Contact Us For Availability
66
GRILLE WPL C3561101 Contact Us For Availability
68
FAN BLADE WPL B0535401 Contact Us For Availability
69
BRACKET, MOTOR WPL C3536201 Contact Us For Availability
70
MOTOR KIT WPL C3565605 Contact Us For Availability
72
HEATER WPL B0562209 Contact Us For Availability
78
CONDENSER ASEMBLY WPL D3884201 Contact Us For Availability
79
SCREW-SM WPL M0241118 Contact Us For Availability
80
SPACER WPL B0544101 Contact Us For Availability
83
SPACER, 2-5/16`` X 1-1/2`` WPL A3013908 Contact Us For Availability
84
SEMS FASTNER WPL M0257037 Contact Us For Availability
85
CLIP-COND WPL A3054501 Contact Us For Availability
87
SPACER WPL A3013909 Contact Us For Availability
88
SEMS FASTNER WPL M0257039 Contact Us For Availability
89
GROMMET K WPL A3026101 Contact Us For Availability
91
CLIP WPL M0111001 Contact Us For Availability
92
COMPRESSSOR WPL D3871701 Contact Us For Availability
92
COMPRESSOR WPL D3971901 Contact Us For Availability
93
SPRING K WPL A3043601 Contact Us For Availability
94
OVERLOAD WPL C3552901 Contact Us For Availability
95
RELAY WPL C3553401 Contact Us For Availability
97
TERMINAL COVER WPL B0551801 Contact Us For Availability
98
STRAP K WPL A3041801 Contact Us For Availability
99
WIRING HARNESS, CABINET WPL D7076401 Contact Us For Availability
99
WIRING HARNESS,LINER WPL D7111401 Contact Us For Availability
100
THERMOSTAT WPL B0556907 Contact Us For Availability
101
SPACER BLOCK WPL A3030701 Contact Us For Availability
103
CLAMP WPL M0103101 Contact Us For Availability
104
SCREW WPL M0216532 Contact Us For Availability
105
COVER PLATE WPL A0382902 Contact Us For Availability
105
COVER PLATE WPL A0382903 Contact Us For Availability
105
COVER PLATE -G WPL A0382904 Contact Us For Availability
106
GASKET WPL A0382801 Contact Us For Availability
107
INSULATION, COMPARTMENT BACK WPL B0570301 Contact Us For Availability
108
BACK WPL C3574406 Contact Us For Availability
109
ACCUMULATOR WPL B0553001 Contact Us For Availability
110
HEATER WPL C3566401 Contact Us For Availability
111
COIL WPL D3897301 Contact Us For Availability
115
CLAMP WPL M0102315 Contact Us For Availability
116
DRIP TRAY TO EVAPORATOR WPL D3770801 Contact Us For Availability
NI
SPRING CLIP WPL B0544001 Contact Us For Availability
NI
WPL M0243037 WPL M0243037 Contact Us For Availability
NI
STRIKE PAD WPL D3913901 Contact Us For Availability
NI
x$x WIRE TIE WPL A0300301 Contact Us For Availability
NI
BUMPER, GRILLE WPL A3031202 Contact Us For Availability
NI
TAP STRIP WPL A3061401 Contact Us For Availability
NI
SHIM WPL A3063201 Contact Us For Availability
NI
SHIM WPL A3063202 Contact Us For Availability
NI
STRIKE, LIGHT SWITCH WPL A3163002 Contact Us For Availability
NI
INSULATION,SOUND WPL B0488902 Contact Us For Availability
NI
INSULATION,SOUND WPL B0489001 Contact Us For Availability
NI
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
NI
WIRE, BOTTOM HINGE WPL B5646005 Contact Us For Availability
NI
SUPPORT BLOCK WPL C3524701 Contact Us For Availability
NI
C WPL M0112601 Contact Us For Availability
NI
WPL M0202528 WPL M0202528 Contact Us For Availability
NI
SCREW WPL M0211530 Contact Us For Availability
NI
WPL M0230834 WPL M0230834 Contact Us For Availability
NI
WPL M0241018 WPL M0241018 Contact Us For Availability
NI
WPL M0274027 WPL M0274027 Contact Us For Availability
NI
DRAIN BAFFLE, EVAPORATOR WPL B0540501 Contact Us For Availability
NI
SCREW WPL M0202642 Contact Us For Availability
NI
WASHER WPL M0272605 Contact Us For Availability
NI
WPL M0286003 WPL M0286003 Contact Us For Availability
NI
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
NI
WELD PIN WPL A0365901 Contact Us For Availability
NI
GASKET-PER FT WPL A3030315 Contact Us For Availability
NI
CLAMP, HEATER WPL B0527601 Contact Us For Availability
NI
OUTLET,ACC WPL B0538001 Contact Us For Availability
NI
SPUD, DISCHARGE WPL B0569601 Contact Us For Availability
NI
HEAT EXCHANGER WPL C3570601 Contact Us For Availability
NI
TIE STRIP WPL D3913801 Contact Us For Availability
NI
LOWER MULLION WPL D7101501 Contact Us For Availability
NI
CLAMP, DRAIN GROMMET WPL M0103001 Contact Us For Availability
NI
CLIP K WPL M0110501 Contact Us For Availability
NI
CLIP A WPL M0113601 Contact Us For Availability
NI
SCREW WPL M0207943 Contact Us For Availability
NI
SCREW WPL M0211519 Contact Us For Availability
NI
SCREW WPL M0211532 Contact Us For Availability
NI
SCREW WPL M0227527 Contact Us For Availability
NI
WASHER K WPL M0274015 Contact Us For Availability
NI
WPL M0281204 WPL M0281204 Contact Us For Availability
NI
WPL M0287014 WPL M0287014 Contact Us For Availability
NI
WPL M0287105 WPL M0287105 Contact Us For Availability
NI
WPL M0287206 WPL M0287206 Contact Us For Availability
NI
WPL M0321401 WPL M0321401 Contact Us For Availability
NI
WPL M0500102 WPL M0500102 Contact Us For Availability
NI
WPL M0585203 WPL M0585203 Contact Us For Availability
NI
WPL YA0381501 WPL YA0381501 Contact Us For Availability
× ![]()
