Model Whirlpool UF12W-C FREEZER – Common Parts & Diagrams

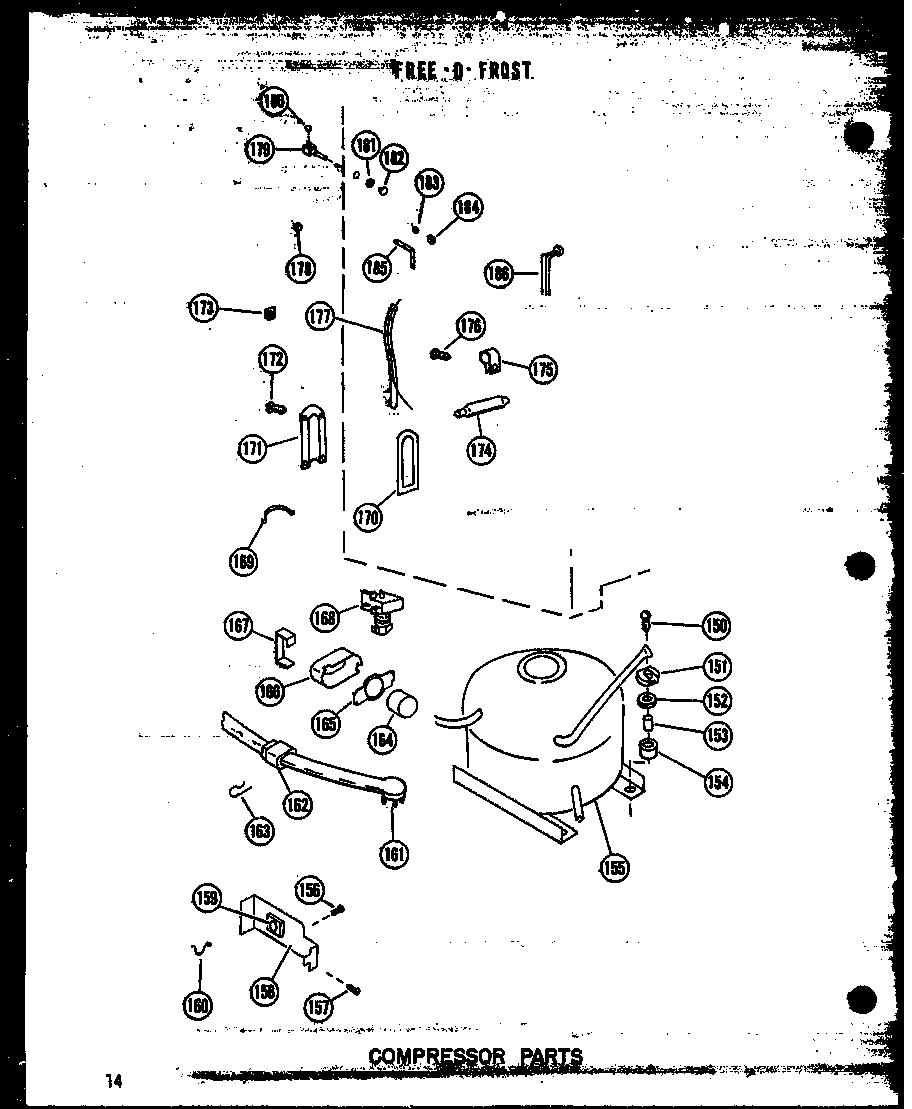

01 - COMPRESSOR PARTS

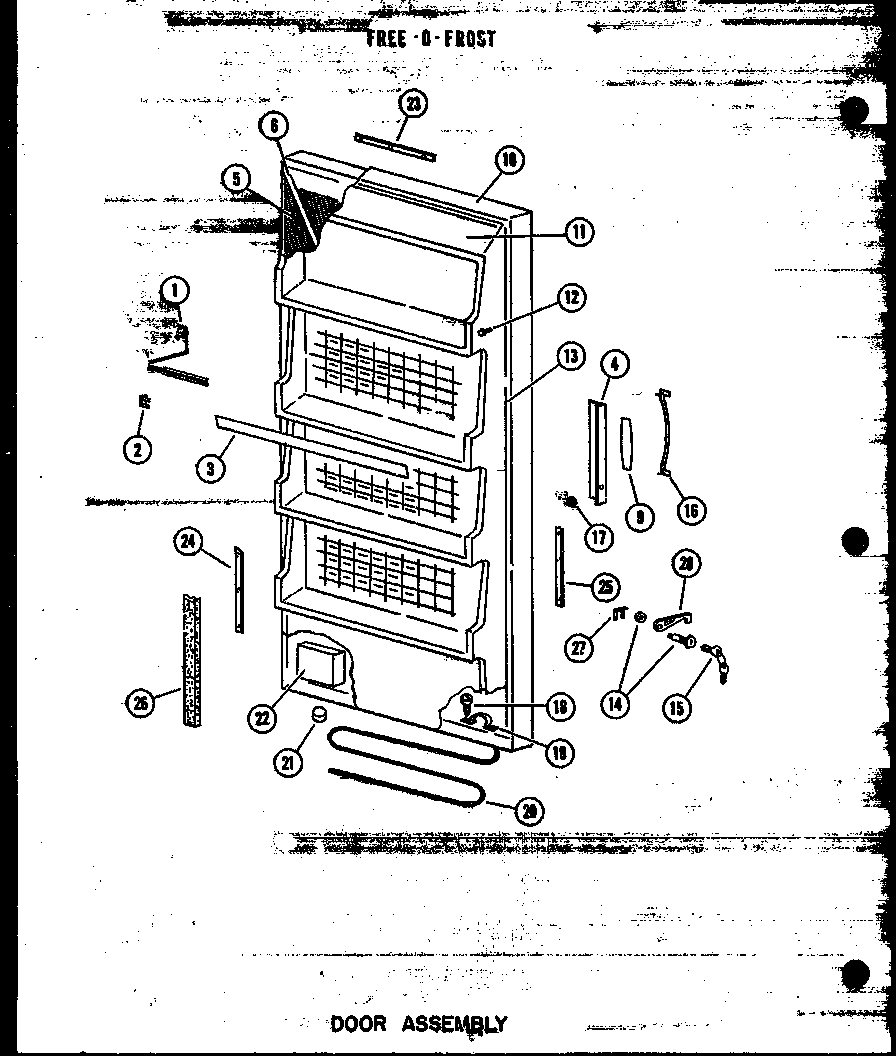

02 - DOOR ASSY

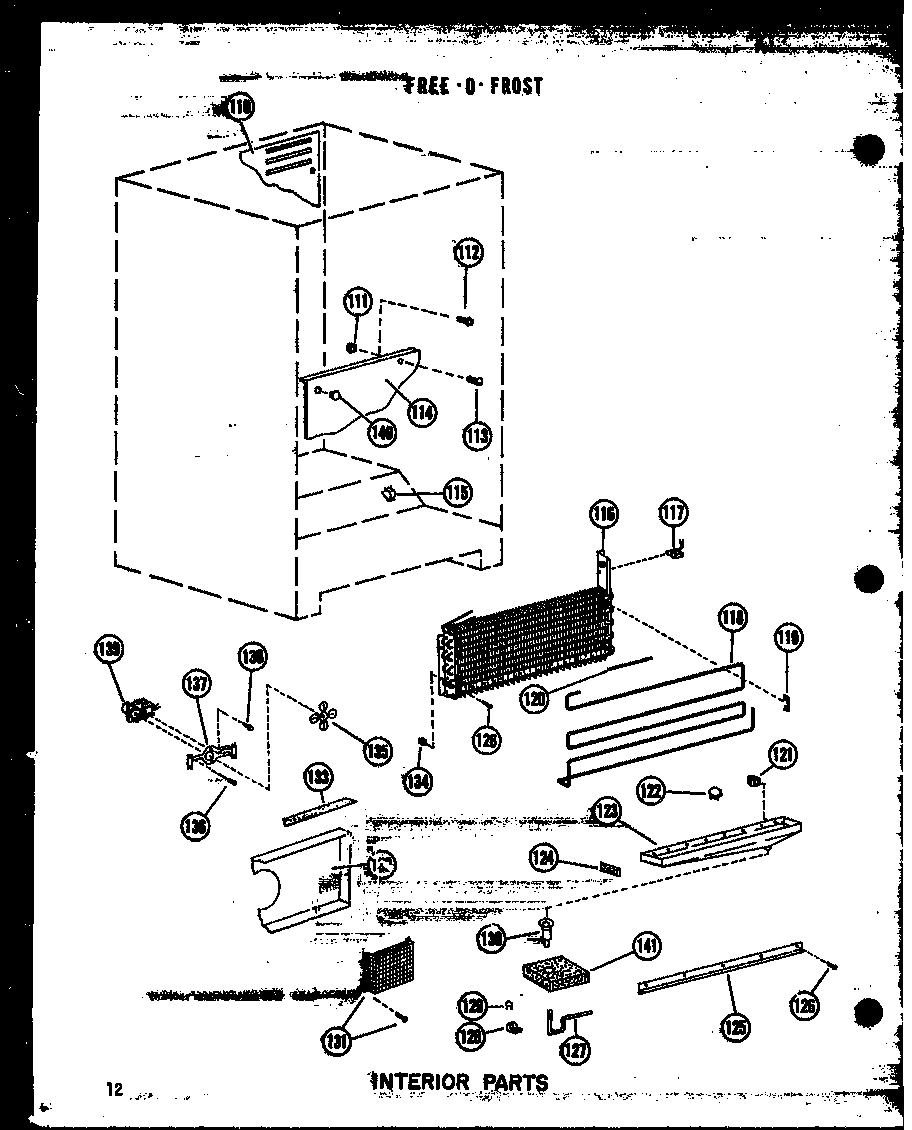

05 - INTERIOR PARTS

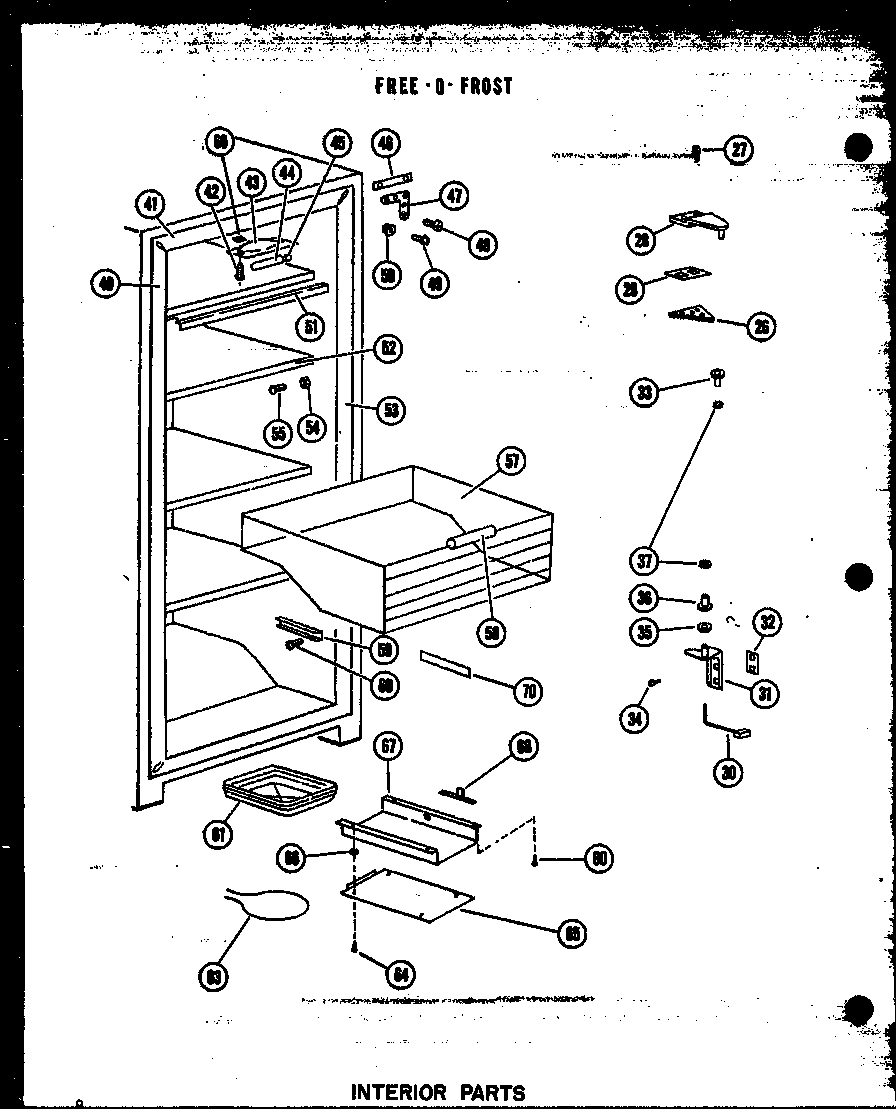

03 - INTERIOR PARTS

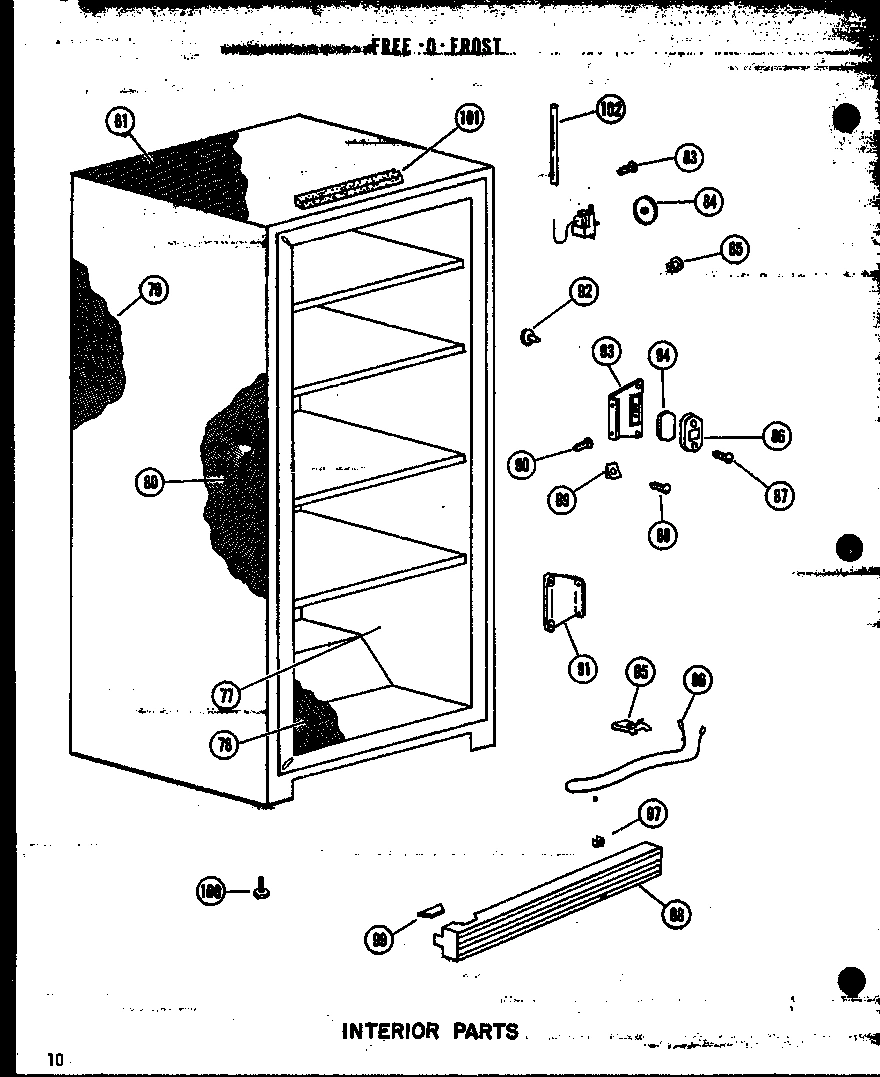

04 - INTERIOR PARTS
Common parts from model Whirlpool UF12W-C FREEZER
1
RETAINER WPL C3683101 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
RETAINER WPL B5632008 Contact Us For Availability
4
PAD-HANDLE WPL D7162501 Contact Us For Availability
5
INSULATION, BATT FILLER WPL B0523820 Contact Us For Availability
5
INSULATION WPL B0565607 Contact Us For Availability
5
INSULATION WPL B0568903 Contact Us For Availability
6
TIE RODS WPL B0569801 Contact Us For Availability
9
NAMEPLATE WPL C3682705 Contact Us For Availability
10
DOOR W-UF12K WPL D7017025 Contact Us For Availability
10
DOOR C-UF12K WPL D7017026 Contact Us For Availability
10
DOOR A-UF12K WPL D7017027 Contact Us For Availability
10
DOOR G-UF12K WPL D7017028 Contact Us For Availability
11
INNER DOOR PANEL WPL D7159301 Contact Us For Availability
13
GASKET, DOOR WPL D7158701 Contact Us For Availability
14
BARREL LOCK K WPL B5688002 Contact Us For Availability
14
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
15
KEY K WPL A3199101 Contact Us For Availability
16
HANDLE WPL D7096001 Contact Us For Availability
17
NUT WPL M0289801 Contact Us For Availability
18
SEMS FASTNER WPL M0243037 Contact Us For Availability
19
SPRING CLIP WPL B0544001 Contact Us For Availability
20
WIRING HARNESS WPL C3643801 Contact Us For Availability
21
VENT ASSY WPL A3101901 Contact Us For Availability
22
BLOCK-AIR VENT WPL C3684701 Contact Us For Availability
23
RETAINER-GASKET WPL D7158601 Contact Us For Availability
24
RETAINER-GASKET WPL D7158602 Contact Us For Availability
25
RETAINER-GASKET WPL D7158603 Contact Us For Availability
26
TAP STRIP WPL A3139701 Contact Us For Availability
27
CLIP K WPL A3199001 Contact Us For Availability
28
BOLT K WPL C3682301 Contact Us For Availability
28
HINGE-TOP WPL B5687801 Contact Us For Availability
29
SHIM WPL A3143701 Contact Us For Availability
29
SHIM WPL A3143702 Contact Us For Availability
29
SHIM, TOP HINGE .064 WPL A3143703 Contact Us For Availability
30
HINGE WIRE WPL C3685701 Contact Us For Availability
31
HINGE WPL C3682102 Contact Us For Availability
32
SHIM WPL A3061901 Contact Us For Availability
32
SHIM WPL A3061902 Contact Us For Availability
33
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
34
SCREW WPL M0246159 Contact Us For Availability
35
WASHER K WPL M0274013 Contact Us For Availability
36
FLAT BEARING (BOTTOM HINGE) WPL B0539807 Contact Us For Availability
37
WASHER WPL M0274027 Contact Us For Availability
40
BREAKER FRAME WPL D7158802 Contact Us For Availability
41
BREAKER FRAME WPL D3710305 Contact Us For Availability
46
TAP STRIP WPL A3013202 Contact Us For Availability
47
LINER GUSSET WPL C3523802 Contact Us For Availability
48
SCREW WPL M0250531 Contact Us For Availability
49
SEMS FASTNER WPL M0252047 Contact Us For Availability
50
GROMMET WPL A0381801 Contact Us For Availability
50
GROMMET WPL A0381802 Contact Us For Availability
51
TRIM WPL B5688802 Contact Us For Availability
52
GROMMET, SCREW WPL M0580001 Contact Us For Availability
52
SHELF WPL D7170301 Contact Us For Availability
52
SHELF WPL D7170302 Contact Us For Availability
53
BREAKER FRAME WPL D3914006 Contact Us For Availability
54
NUT A WPL M0281204 Contact Us For Availability
55
SCREW WPL M0207943 Contact Us For Availability
57
TRIVET-WIRE WPL B5699901 Contact Us For Availability
61
DRAIN PAN WPL C3523101 Contact Us For Availability
63
HEATER WPL D7173901 Contact Us For Availability
64
SCREW WPL M0230015 Contact Us For Availability
65
HEATER SHIELD WPL C3686801 Contact Us For Availability
66
WASHER WPL M0270301 Contact Us For Availability
67
SUPPORT WPL D7170701 Contact Us For Availability
68
CLIP WPL C3687201 Contact Us For Availability
69
SPEED NUT WPL M0288010 Contact Us For Availability
70
TAP STRIP-GLIDE WPL B5695201 Contact Us For Availability
77
x$x LINER & TUB ASSY WPL N6025907 Contact Us For Availability
78
INSULATION BATT, BOTTOM WPL B0535004 Contact Us For Availability
79
INSULATION BATT, BACK WPL B0534907 Contact Us For Availability
80
INSULATION BATT, SIDES WPL B0572904 Contact Us For Availability
81
INSULATION BATT, TOP WPL B0535212 Contact Us For Availability
82
CONTROL, TEMPERATURE WPL B0543813 Contact Us For Availability
83
SCREW WPL M0202528 Contact Us For Availability
84
KNOB, CONTROL WPL C3577902 Contact Us For Availability
85
RIVET PLASTIC WPL A3032601 Contact Us For Availability
86
STRIKE LOCK WPL B0570101 Contact Us For Availability
87
SCREW WPL M0230834 Contact Us For Availability
89
SPEED NUT WPL M0288107 Contact Us For Availability
91
TIE STRIP WPL D3913801 Contact Us For Availability
92
SWITCH WPL C3689701 Contact Us For Availability
93
STRIKE PAD WPL D3913901 Contact Us For Availability
94
SHIM WPL A3063201 Contact Us For Availability
94
SHIM WPL A3063202 Contact Us For Availability
95
CLIP WPL M0110502 Contact Us For Availability
96
HEATER WPL C3684901 Contact Us For Availability
97
CLIP, GRILLE WPL M0117301 Contact Us For Availability
98
GRILLE-TOE WPL D7070202 Contact Us For Availability
99
GRILLE-TOE WPL B5641301 Contact Us For Availability
100
GLIDER BOLT WPL M0266510 Contact Us For Availability
101
INSULATION FT. K WPL B0572828 Contact Us For Availability
102
TUBE-CONTROL GUIDE WPL A0322808 Contact Us For Availability
110
PLATE-PLENUM WPL D7170801 Contact Us For Availability
111
NUT WPL M0287105 Contact Us For Availability
114
EVAP COVER WPL D7169406 Contact Us For Availability
115
CLIP WPL M0110801 Contact Us For Availability
116
EVPORATOR WPL D7183901 Contact Us For Availability
117
THERMOSTAT K WPL C3686604 Contact Us For Availability
118
HEATER-EVAP WPL D7185801 Contact Us For Availability
119
CLIP WPL A3030702 Contact Us For Availability
119
CLIP WPL M0110301 Contact Us For Availability
120
CONTROL WELL WPL A3205801 Contact Us For Availability
123
DRIP TRAY WPL D7168902 Contact Us For Availability
124
GASKET WPL A3207001 Contact Us For Availability
125
CLAMP WPL B5686801 Contact Us For Availability
127
DRAIN TUBE WPL C3686901 Contact Us For Availability
128
CLAMP WPL M0102314 Contact Us For Availability
129
CLAMP, DRAIN GROMMET WPL M0103001 Contact Us For Availability
130
CONDENSATE OUT WPL B0527101 Contact Us For Availability
131
GRILLE WPL C3561101 Contact Us For Availability
132
PLATE-AIR INLET WPL D7169101 Contact Us For Availability
133
GASKET-PER FT WPL A3030329 Contact Us For Availability
134
GROMMET WPL M0580003 Contact Us For Availability
135
FAN BLADE WPL B5622101 Contact Us For Availability
137
BRACKET WPL C3681602 Contact Us For Availability
138
SCREW WPL M0202642 Contact Us For Availability
138
WASHER WPL M0272605 Contact Us For Availability
139
MTR EVAP FAN, 3050 RPM, 115 V. WPL C3690103 Contact Us For Availability
140
PLUG WPL A3026301 Contact Us For Availability
140
PLUG BUTTON WPL A3205101 Contact Us For Availability
141
SUPPORT BLOCK WPL C3524701 Contact Us For Availability
150
SCREW WPL M0250561 Contact Us For Availability
152
WASHER, FLAT STEEL, COND. FAN WPL M0270523 Contact Us For Availability
153
GROMMET SLEEVE K WPL A4002901 Contact Us For Availability
154
GROMMET K WPL A4002702 Contact Us For Availability
155
COMPRESSOR AE1410A WPL C3667102 Contact Us For Availability
156
SCREW,TC WPL M0230017 Contact Us For Availability
158
BRACKET, TIMER WPL C3647901 Contact Us For Availability
159
TIMER WPL D7004107 Contact Us For Availability
160
TIE WPL M0321401 Contact Us For Availability
161
WIRING HARNESS WPL D7186102 Contact Us For Availability
162
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
164
OVERLOAD WPL C3689103 Contact Us For Availability
165
SPRING K WPL A3043601 Contact Us For Availability
166
COVER K WPL B0559501 Contact Us For Availability
167
STRAP K WPL A3041801 Contact Us For Availability
168
RELAY WPL C3689201 Contact Us For Availability
169
WALL SPACER WPL A3032901 Contact Us For Availability
170
GASKET WPL A0382801 Contact Us For Availability
171
COVER PLATE WPL A0382902 Contact Us For Availability
171
COVER PLATE WPL A0382903 Contact Us For Availability
171
COVER PLATE -G WPL A0382904 Contact Us For Availability
171
COVER PLATE-L WPL A0382905 Contact Us For Availability
173
CLIP WPL M0113402 Contact Us For Availability
175
CLAMP WPL M0102315 Contact Us For Availability
177
HEAT EXCHANGER WPL D7196001 Contact Us For Availability
178
PLUG WPL A0353901 Contact Us For Availability
183
PLUG, BUTTON (WHT) WPL M0310701 Contact Us For Availability
184
CAP WPL B5636301 Contact Us For Availability
185
TAP PLATE,I.M. WPL B5639801 Contact Us For Availability
186
WIRING HARNESS WPL D7185701 Contact Us For Availability
× ![]()
