Model LG UE12A33B – Common Parts & Diagrams

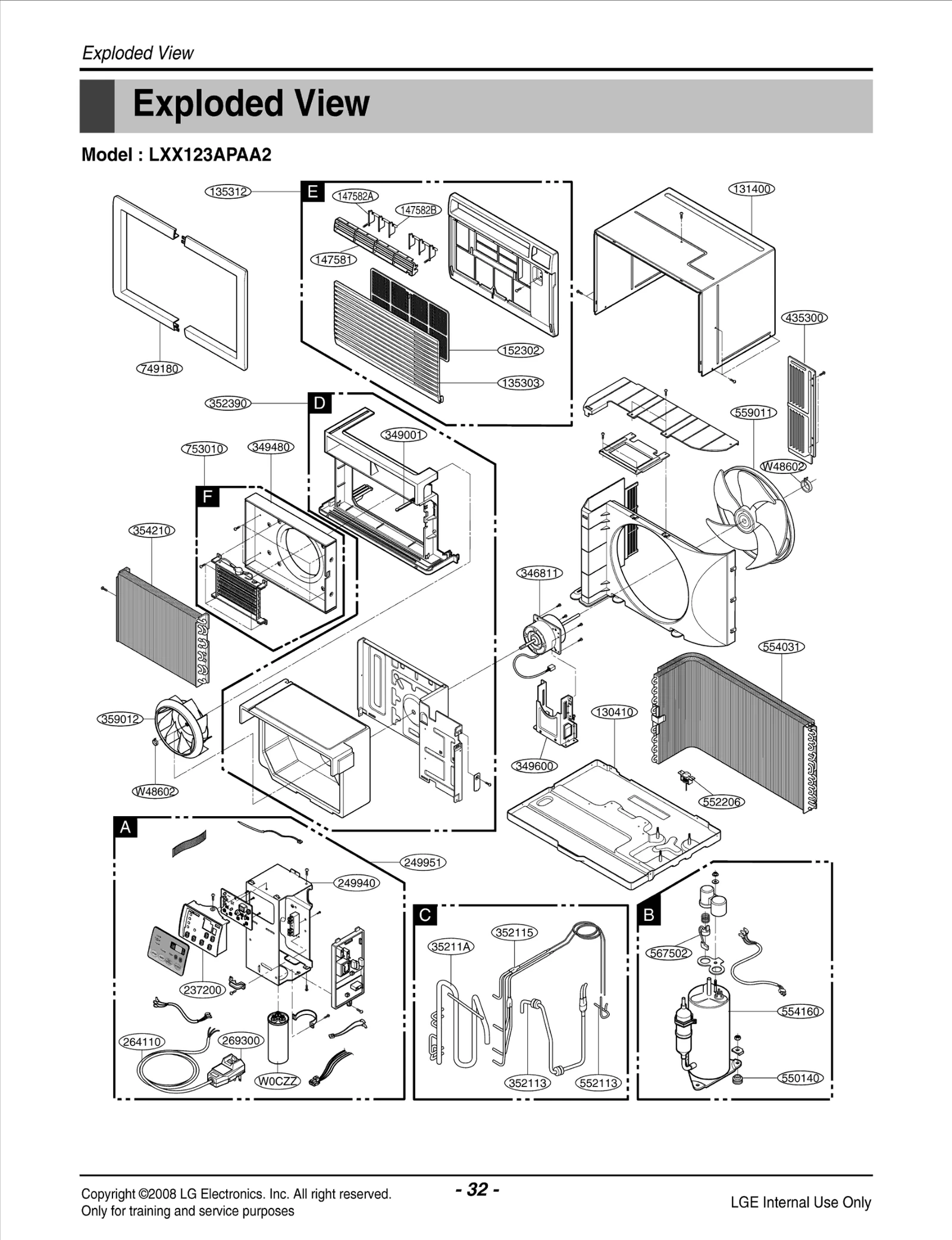

Diagram 0
Common parts from model LG UE12A33B
147582B
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A20089A Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A20018B Contact Us For Availability
249951
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20408H Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20048L Contact Us For Availability
269300
THERMOSTAT ASSY LGE 2H01127D Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20041M Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20001A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024E Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A10002F Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071J Contact Us For Availability
435300
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A20560L Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20040H Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKHK2AA Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
753010
HEATER ASSY,ELECTRIC LGE 5301A20011A Contact Us For Availability
W0CZZ
CAPACITOR LGE 6120AR2359E Contact Us For Availability
× ![]()
