Model LG UE12A33A THROUGH THE WALL AC – Common Parts & Diagrams

Common parts from model LG UE12A33A THROUGH THE WALL AC

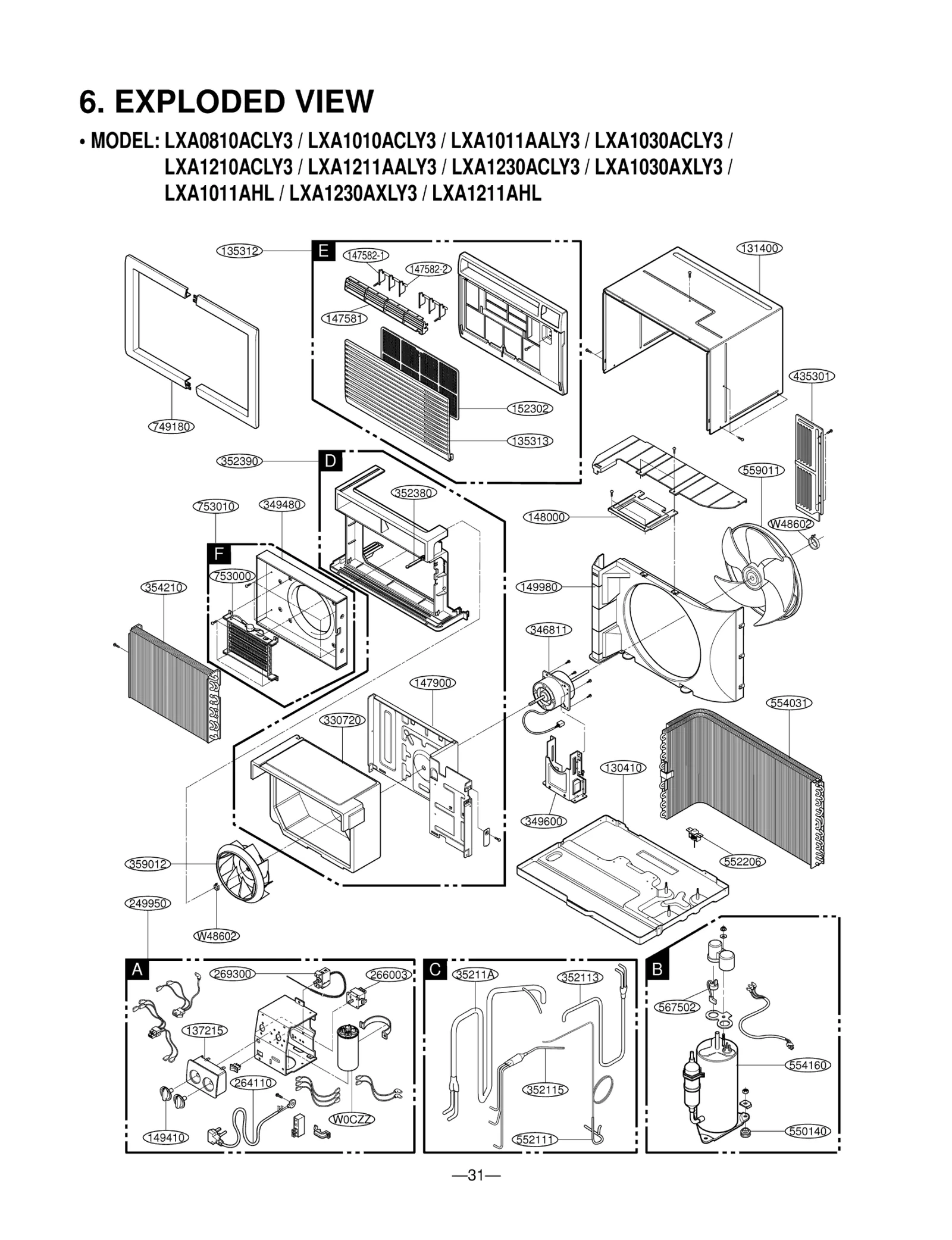

Diagram 0

Print

• This Diagram
• All Diagrams

147900

BARRIER,SINGLE LGE 4790A20024B Contact Us For Availability

View on Model

148000

4800A30002A LG Air Conditioner Support Backorder LGE 4800A30002A View Details $5.63

View on Model

149410

KNOB ASSY LGE 4941A30005B Contact Us For Availability

View on Model

149980

4998A10007B LG Shroud Assembly Backorder LGE 4998A10007B View Details $30.97

View on Model

152302

FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability

View on Model

249950

CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20131V Contact Us For Availability

View on Model

264110

2H00677U LG Power Cord Backorder LGE 2H00677U View Details $81.09

View on Model

266003

2H00598F LG Rotary Switch Backorder LGE 2H00598F View Details $30.97

View on Model

269300

2H01127D LG Thermostat Backorder LGE 2H01127D View Details $37.13

View on Model

330720

SCROLL LGE 3072A20003B Contact Us For Availability

View on Model

346811

MOTOR ASSEMBLY,SINGLE LGE 4681A20041C Contact Us For Availability

View on Model

349480

4948A10006A LG Orifice Backorder LGE 4948A10006A View Details $19.35

View on Model

349600

4960A20008A LG Motor Bracket Backorder LGE 4960A20008A View Details $19.35

View on Model

352113

TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30588A Contact Us For Availability

View on Model

352115

TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20904A Contact Us For Availability

View on Model

352380

5238A20005B LG Air Guide Backorder LGE 5238A20005B View Details $87.70

View on Model

352390

AIR GUIDE ASSEMBLY LGE 5239A10002F Contact Us For Availability

View on Model

354210

EVAPORATOR ASSY,FIRST LGE 5421A20060A Contact Us For Availability

View on Model

359012

5900A20009B LG Turbo Fan Backorder LGE 5900A20009B View Details $48.13

View on Model

435301

GRILLE,REAR LGE 3530A30002A Contact Us For Availability

View on Model

550140

4H00982E LG Compressor Damper In Stock LGE 4H00982E View Details $3.64

View on Model

552111

TUBE ASSEMBLY,CAPILLARY LGE 5211A20214K Contact Us For Availability

View on Model

552206

5220A30006A LG Drain Valve Backorder LGE 5220A30006A View Details $48.13

View on Model

554031

CONDENSER ASSEMBLY,BENT LGE 5403A20040H Contact Us For Availability

View on Model

554160

COMPRESSOR SET LGE 2520UKHK2CA Contact Us For Availability

View on Model

559011

FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability

View on Model

567502

6750U-L058A LG Overload Protector Backorder LGE 6750U-L058A View Details $15.11

View on Model

749180

4918A20001A LG Frame Backorder LGE 4918A20001A View Details $19.35

View on Model

753000

5300A20003A LG Electric Heater Backorder LGE 5300A20003A View Details $155.17

View on Model

753010

HEATER ASSY,ELECTRIC LGE 5301A20011A Contact Us For Availability

View on Model

W0CZZ

CAPACITOR LGE 6120AR2359E Contact Us For Availability

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.64

View on Model

×
