Model LG UE08A13B TTW – Common Parts & Diagrams

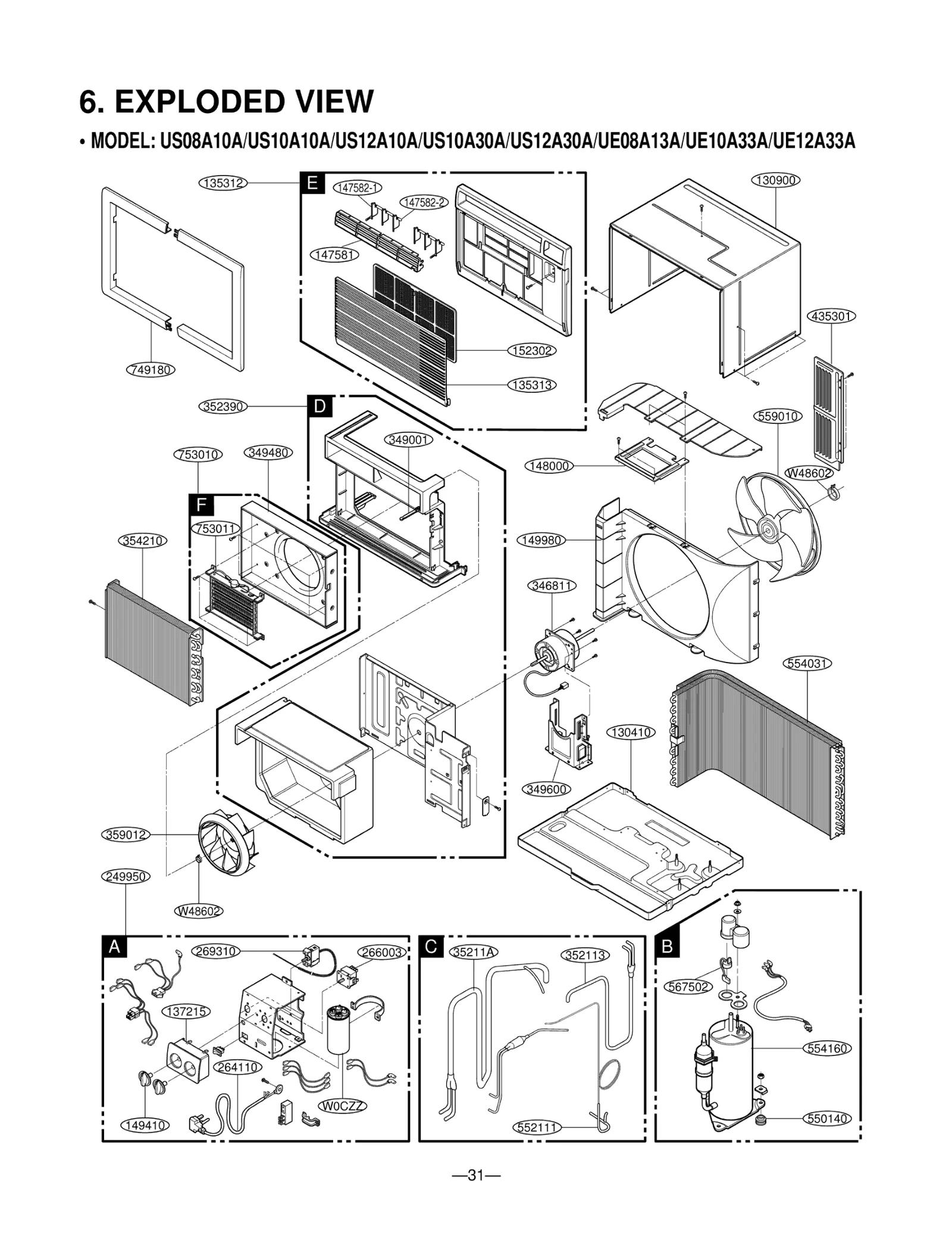

Diagram 0
Common parts from model LG UE08A13B TTW
147582-1
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
149410
KNOB ASSY LGE 4941A30005B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20408G Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20048F Contact Us For Availability
266003
SWITCH ROTARY_2H00598E IS NOT A VALID ALTERNA LGE 2H00598F Contact Us For Availability
269310
THERMOSTAT ASSY LGE 2H01127D Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20044H Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20001A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A30588G Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A10002F Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071E Contact Us For Availability
435301
GRILLE,REAR LGE 3530A30007A Contact Us For Availability
552111
Tube Assembly,Capillary LGE 5211A20214R Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20040R Contact Us For Availability
554160
COMPRESSOR LGE 5416A90007D Contact Us For Availability
559010
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
567502
O.L.P LGE 6750A30001N Contact Us For Availability
753010
HEATER ASSY,ELECTRIC LGE 5301A20011B Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20007L Contact Us For Availability
× ![]()
