Model Whirlpool UD358 DISHWASHER – Common Parts & Diagrams

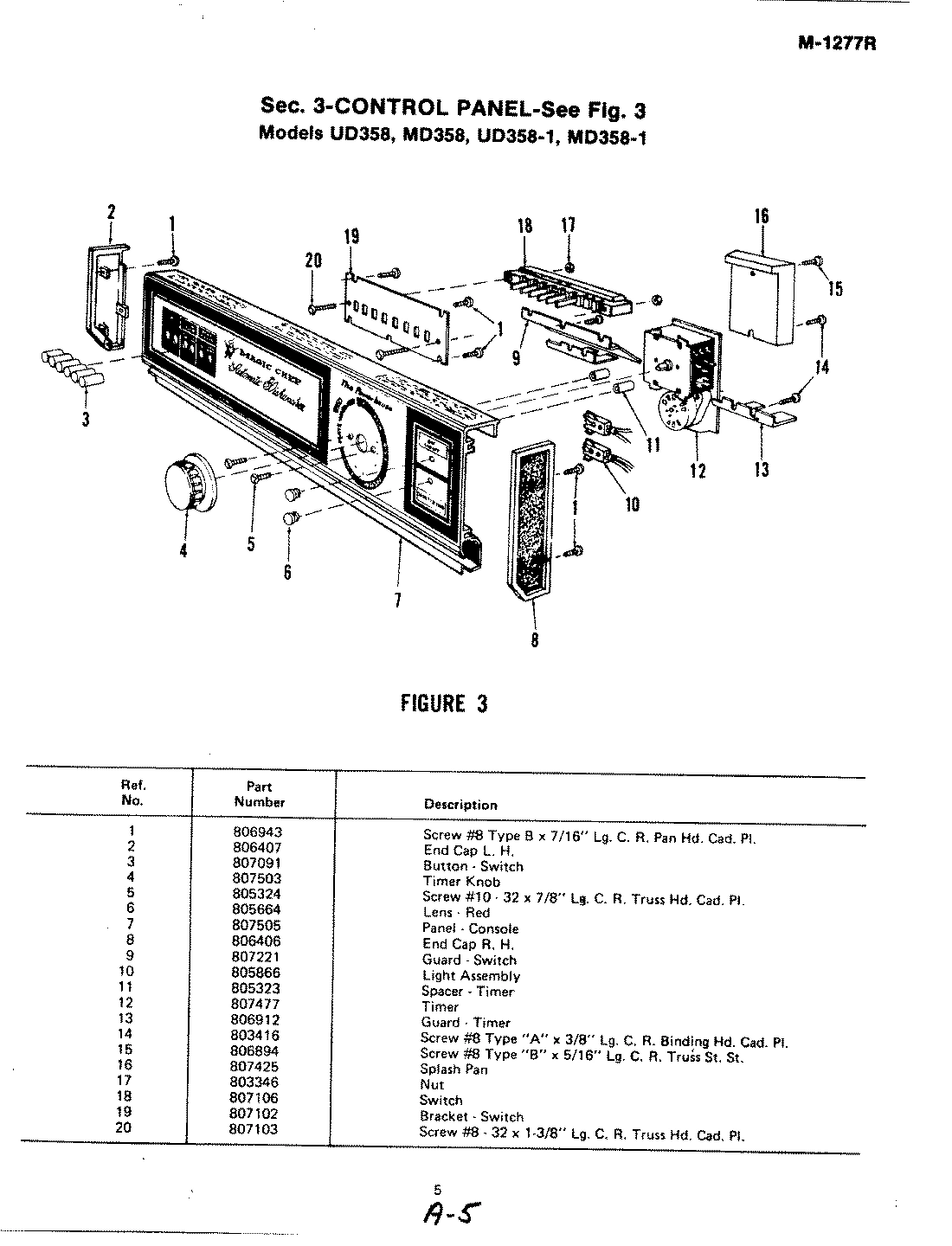

01 - CONTROL PANEL (UD358, UD358-1)

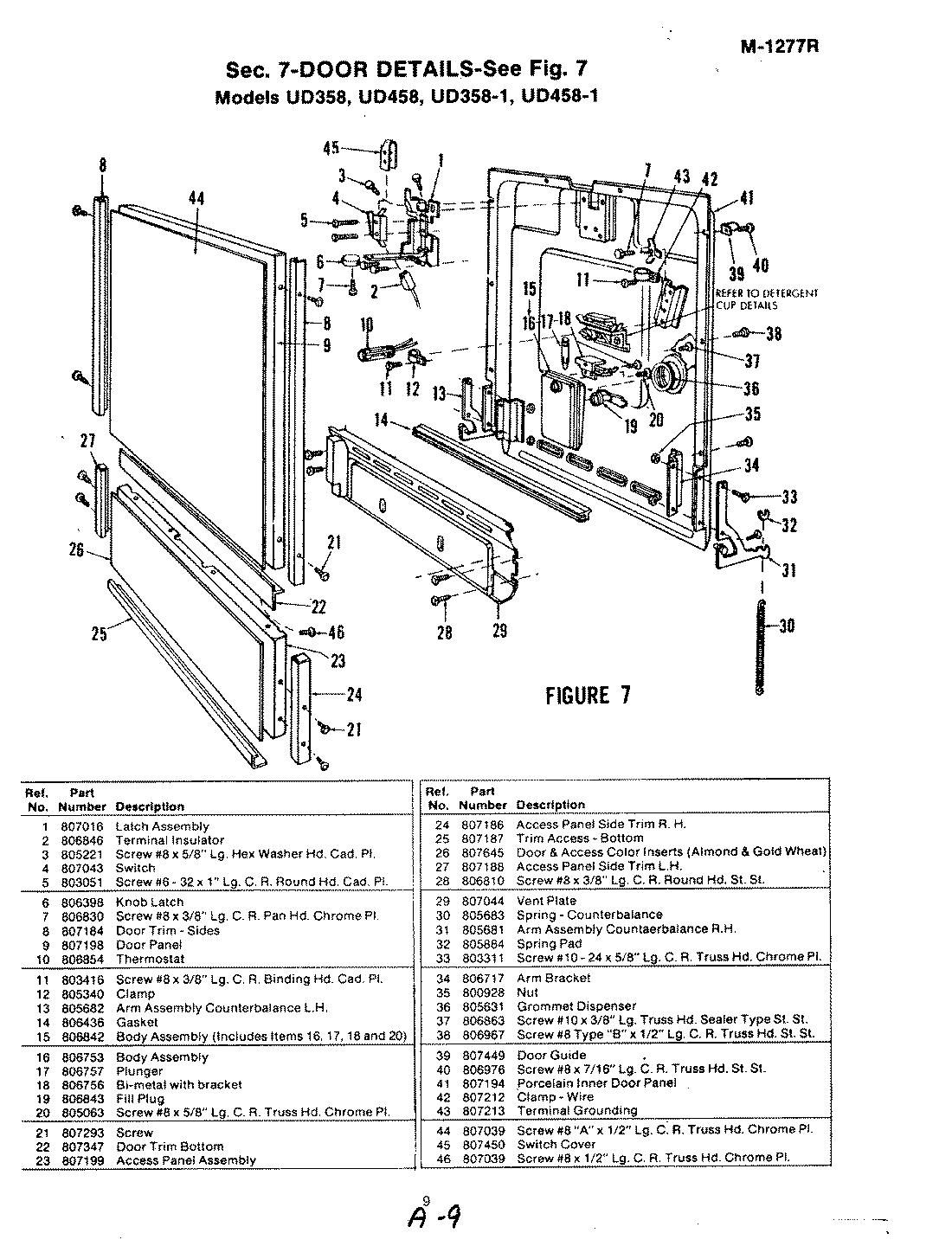

03 - DOOR DETAILS

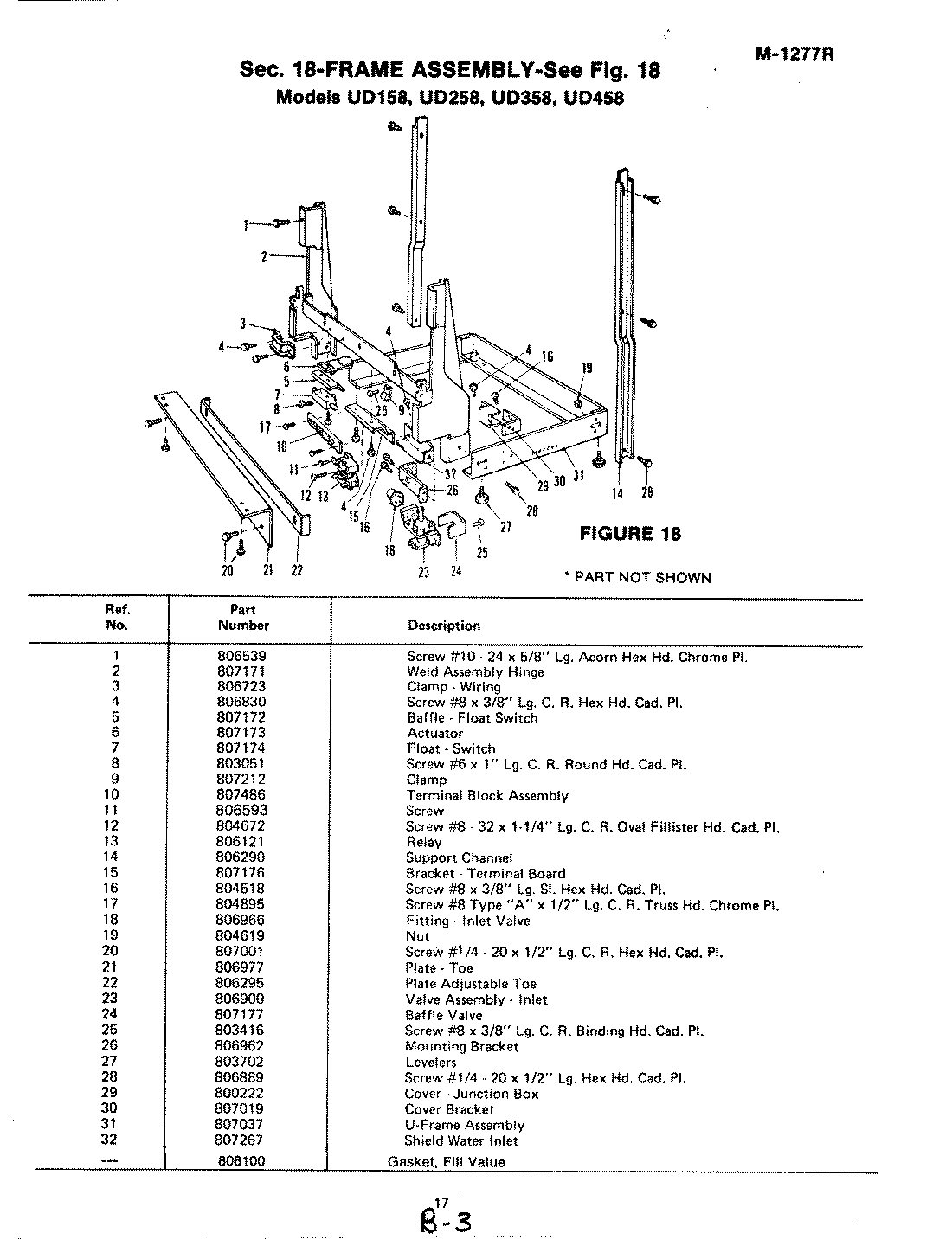

04 - FRAME ASSEMBLY (UD358)

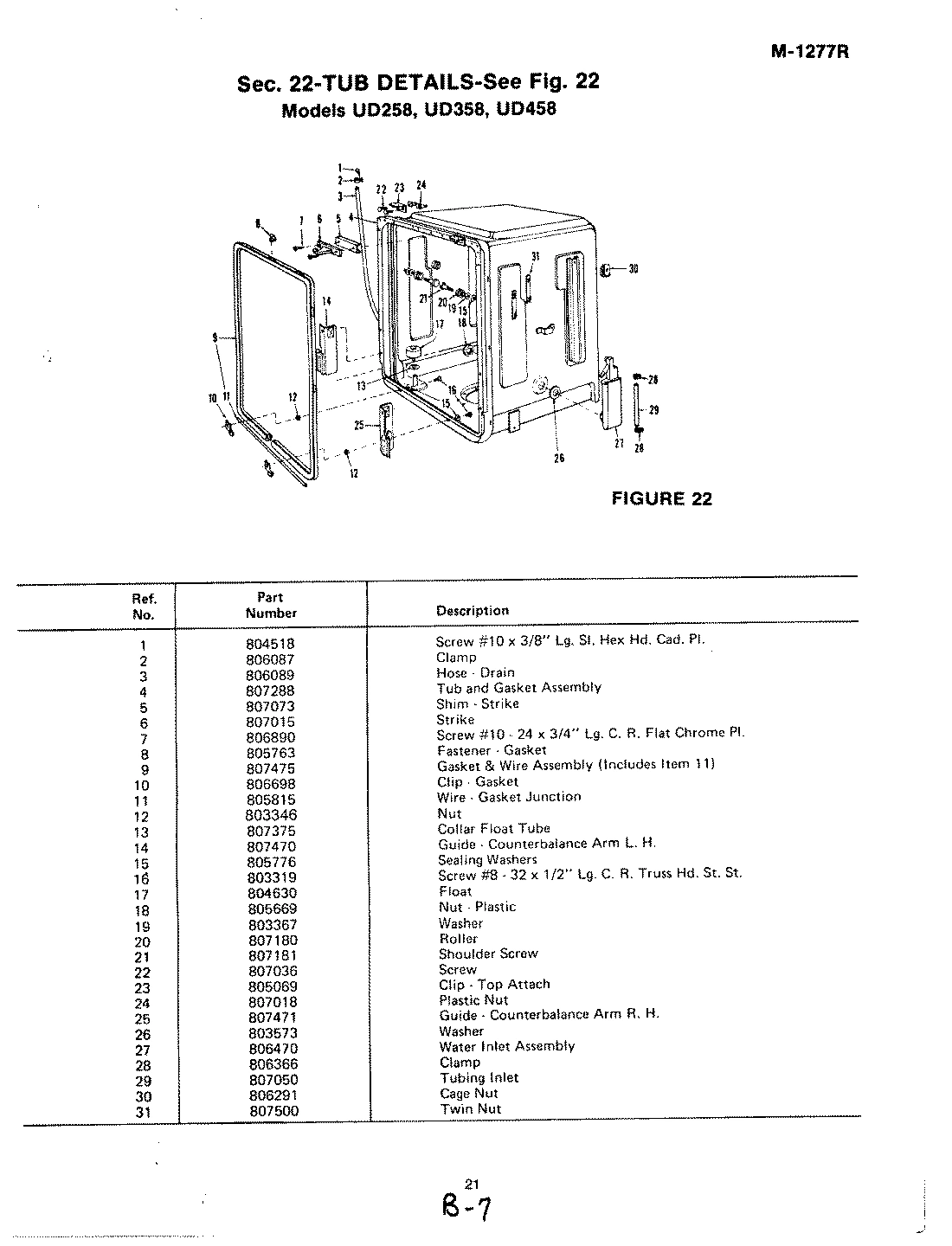

06 - TUB (UD358)

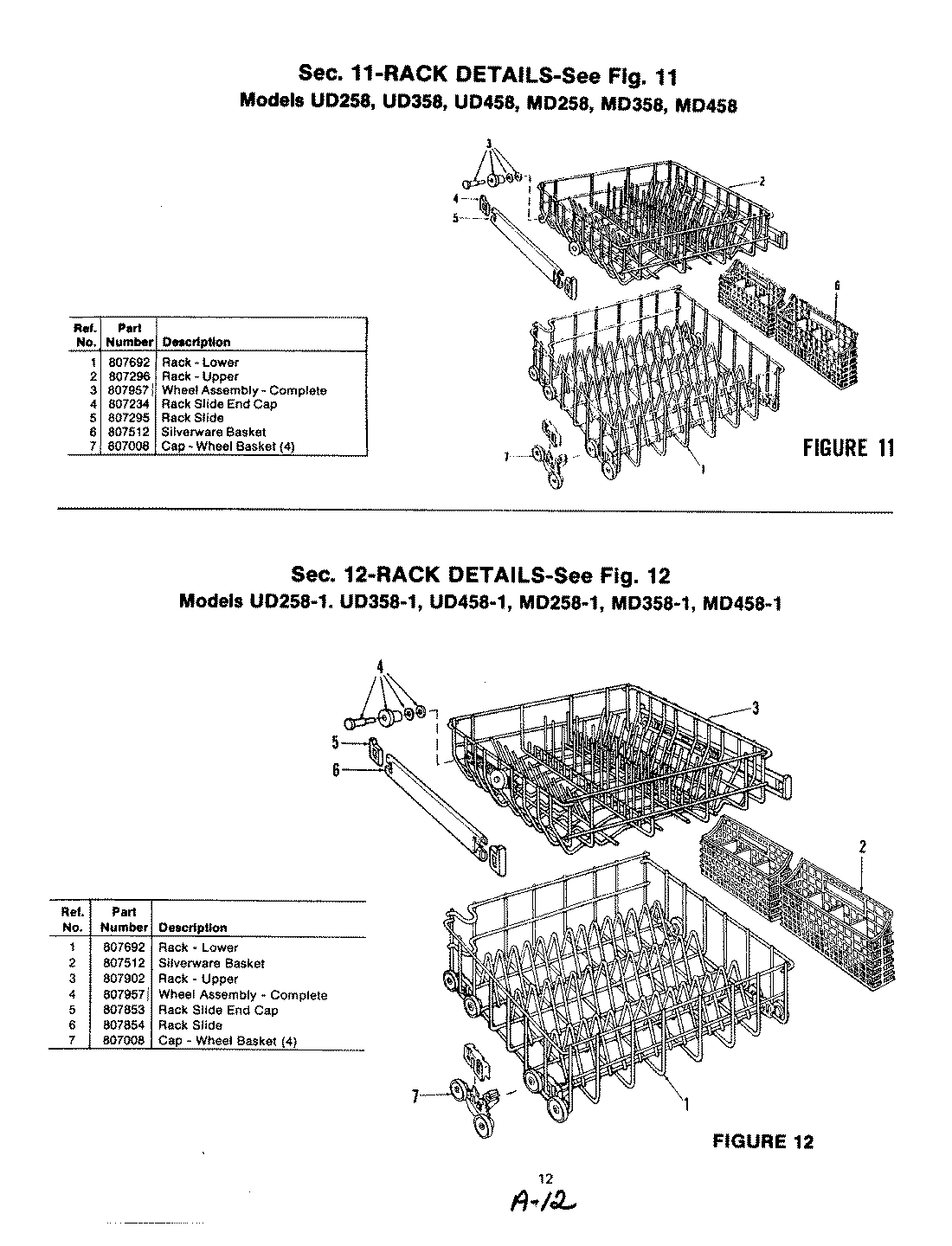

05 - RACK (UD358, MD358)

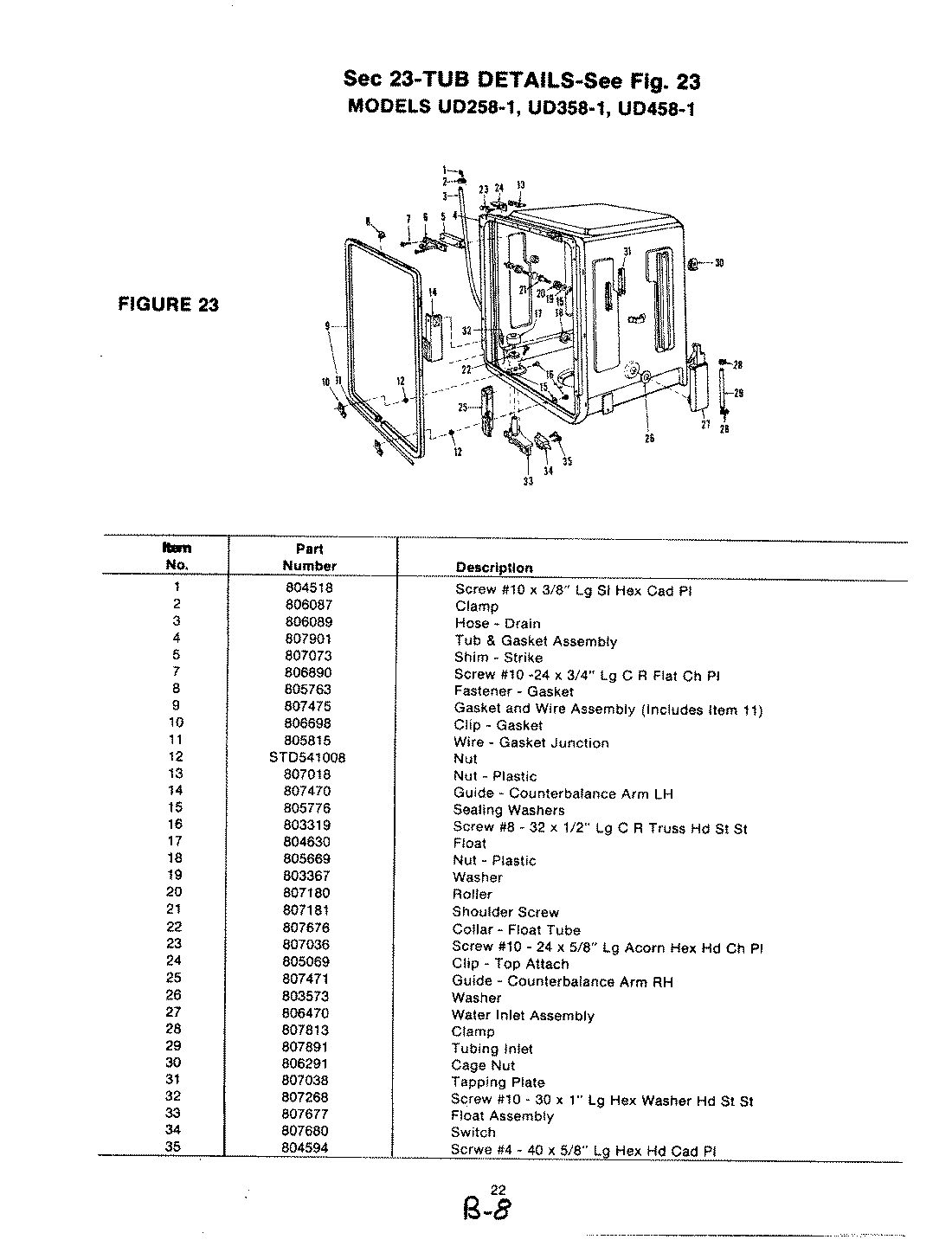

07 - TUB (UD358-1)

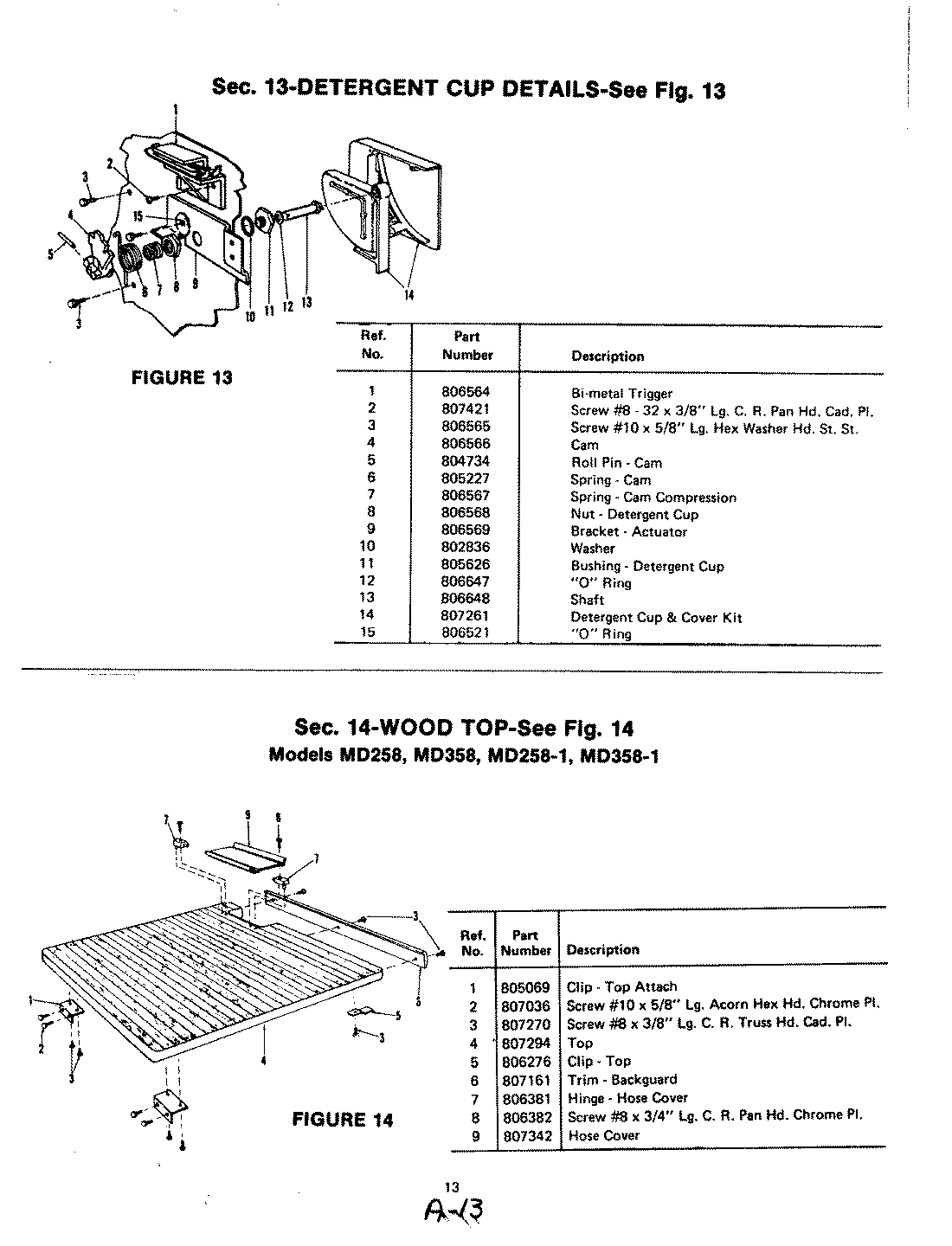

02 - DETERGENT CUP
Common parts from model Whirlpool UD358 DISHWASHER
1
SCREW WPL 806943 Contact Us For Availability
1
LATCH ASM WPL 807016 Contact Us For Availability
1
SCREW WPL 806539 Contact Us For Availability
1
SCREW WPL 804518 Contact Us For Availability
1
LOWER RACK WPL 807692 Contact Us For Availability
1
TRIGGER WPL 806564 Contact Us For Availability
2
LH END CAP WPL 806407 Contact Us For Availability
2
INSULATOR WPL 806846 Contact Us For Availability
2
HINGE WPL 807171 Contact Us For Availability
2
CLAMP WPL 806087 Contact Us For Availability
2
UPPER RACK WPL 807296 Contact Us For Availability
3
PUSH BUTTON WPL 807091 Contact Us For Availability
3
CLAMP WPL 806723 Contact Us For Availability
3
DRAIN HOSE WPL 806089 Contact Us For Availability
3
WHEEL ASM WPL 807957 Contact Us For Availability
3
SCREW WPL 806565 Contact Us For Availability
4
KNOB WPL 807503 Contact Us For Availability
4
SWITCH WPL 807043 Contact Us For Availability
4
SCREW WPL 806830 Contact Us For Availability
4
TUB & GASKET WPL 807288 Contact Us For Availability
4
END CAP WPL 807234 Contact Us For Availability
4
TUB WPL 807901 Contact Us For Availability
4
CAM WPL 806566 Contact Us For Availability
5
SCREW WPL 805324 Contact Us For Availability
5
BRACKET WPL 807172 Contact Us For Availability
5
STRIKE SHIM WPL 807073 Contact Us For Availability
5
RACK SLIDE WPL 807295 Contact Us For Availability
5
ROLLPIN WPL 804734 Contact Us For Availability
6
RED LENS WPL 805664 Contact Us For Availability
6
LATCH KNOB WPL 806398 Contact Us For Availability
6
ACTUATOR WPL 807173 Contact Us For Availability
6
STRIKE WPL 807015 Contact Us For Availability
6
SILVRWR BASKET WPL 807512 Contact Us For Availability
6
SPRING WPL 805227 Contact Us For Availability
7
CONTROL PANEL WPL 807505 Contact Us For Availability
7
FLOAT SWITCH WPL 807174 Contact Us For Availability
7
WHEEL ASM WPL 807008 Contact Us For Availability
7
SPRING WPL 806567 Contact Us For Availability
8
RH END CAP WPL 806406 Contact Us For Availability
8
SCREW WPL 803051 Contact Us For Availability
8
SUB 808026 WPL 807184 Contact Us For Availability
8
CLIP KIT (TUB GASKET) WPL 805763 Contact Us For Availability
8
NUT WPL 806568 Contact Us For Availability
9
SWITCH GUARD WPL 807221 Contact Us For Availability
9
PANEL WPL 807198 Contact Us For Availability
9
CLAMP WPL 807212 Contact Us For Availability
9
SUB 808071 WPL 807475 Contact Us For Availability
9
BRACKET WPL 806569 Contact Us For Availability
10
LIGHT ASM WPL 805866 Contact Us For Availability
10
THERMOSTAT WPL 806854 Contact Us For Availability
10
TERMINAL BLOCK WPL 807486 Contact Us For Availability
10
CLIP WPL 806698 Contact Us For Availability
10
GASKET WPL 802836 Contact Us For Availability
11
SPACER WPL 805323 Contact Us For Availability
11
GASKET WIRE WPL 805815 Contact Us For Availability
11
BUSHING WPL 805626 Contact Us For Availability
12
TIMER WPL 807477 Contact Us For Availability
12
NUT WPL 803346 Contact Us For Availability
12
CLAMP WPL 805340 Contact Us For Availability
12
SCREW WPL 804672 Contact Us For Availability
12
PLASTIC NUT WPL 807018 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
13
BTM DOOR TRIM WPL 806912 Contact Us For Availability
13
LH ARM WPL 805682 Contact Us For Availability
13
SUB 805255 WPL 806121 Contact Us For Availability
13
COLLAR WPL 807375 Contact Us For Availability
13
LH GUIDE WPL 807470 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
14
VENT GASKET WPL 806436 Contact Us For Availability
14
CHANNEL WPL 806290 Contact Us For Availability
14
SEALER WPL 805776 Contact Us For Availability
14
DETRG CUP KIT WPL 807261 Contact Us For Availability
15
SCREW WPL 806894 Contact Us For Availability
15
DISP BODY ASM WPL 806842 Contact Us For Availability
15
BRACKET WPL 807176 Contact Us For Availability
15
O RING WPL 806521 Contact Us For Availability
16
SPLASH PAN WPL 807425 Contact Us For Availability
16
DISPENSER WPL 806753 Contact Us For Availability
16
FLOAT WPL 804630 Contact Us For Availability
17
PLUNGER WPL 806757 Contact Us For Availability
17
SCREW WPL 804895 Contact Us For Availability
17
NUT WPL 805669 Contact Us For Availability
18
SWITCH & BUTTON WPL 807106 Contact Us For Availability
18
BRACKET WPL 806756 Contact Us For Availability
18
VLV FITTING WPL 806966 Contact Us For Availability
18
WASHER WPL 803367 Contact Us For Availability
19
BRACKET WPL 807102 Contact Us For Availability
19
FILL PLUG WPL 806843 Contact Us For Availability
19
ROLLER WPL 807180 Contact Us For Availability
20
SCREW WPL 807103 Contact Us For Availability
20
SCREW WPL 807001 Contact Us For Availability
20
SCREW WPL 807181 Contact Us For Availability
21
TOE PLATE WPL 806977 Contact Us For Availability
21
COLLAR WPL 807676 Contact Us For Availability
22
DOOR TRIM WPL 807347 Contact Us For Availability
22
TOE PLATE WPL 806295 Contact Us For Availability
22
SCREW WPL 807036 Contact Us For Availability
23
PANEL WPL 807199 Contact Us For Availability
23
INLET VALVE WPL 806900 Contact Us For Availability
23
CLIP WPL 805069 Contact Us For Availability
24
RH SIDE TRIM WPL 807186 Contact Us For Availability
24
BAFFLE WPL 807177 Contact Us For Availability
24
RH GUIDE WPL 807471 Contact Us For Availability
25
SCREW WPL 803416 Contact Us For Availability
25
SUB 808027 WPL 807187 Contact Us For Availability
25
WASHER WPL 803573 Contact Us For Availability
26
INSERT, DOOR PANEL WPL 807645 Contact Us For Availability
26
BRACKET WPL 806962 Contact Us For Availability
26
WATER INLET WPL 806470 Contact Us For Availability
27
LH SIDE TRIM WPL 807188 Contact Us For Availability
27
LEVELER WPL 803702 Contact Us For Availability
27
CLAMP WPL 807813 Contact Us For Availability
28
SCREW WPL 806810 Contact Us For Availability
28
SCREW WPL 806889 Contact Us For Availability
28
CODE J WPL 806366 Contact Us For Availability
28
INLET TUBE WPL 807891 Contact Us For Availability
29
VENT PLATE WPL 807044 Contact Us For Availability
29
TERMINAL COVER WPL 800222 Contact Us For Availability
29
TUBING INLET WPL 807050 Contact Us For Availability
29
CAGE NUT WPL 806291 Contact Us For Availability
30
DOOR SPRING WPL 805683 Contact Us For Availability
30
BRACKET WPL 807019 Contact Us For Availability
30
TAPPING PLATE WPL 807038 Contact Us For Availability
31
RH ARM WPL 805681 Contact Us For Availability
31
U FRAME WPL 807037 Contact Us For Availability
31
TWIN NUT WPL 807500 Contact Us For Availability
31
SCREW WPL 807268 Contact Us For Availability
32
SPRING PAD WPL 805884 Contact Us For Availability
32
GASKET WPL 806100 Contact Us For Availability
32
SHIELD WPL 807267 Contact Us For Availability
32
FLOAT ASM WPL 807677 Contact Us For Availability
33
SCREW WPL 803311 Contact Us For Availability
33
FLOAT SWITCH WPL 807680 Contact Us For Availability
34
ARM BRACKET WPL 806717 Contact Us For Availability
34
BOLT WPL 804594 Contact Us For Availability
35
NUT WPL 800928 Contact Us For Availability
36
GROMMET WPL 805631 Contact Us For Availability
37
SCREW WPL 806863 Contact Us For Availability
38
SCREW WPL 806967 Contact Us For Availability
39
DOOR GUIDE WPL 807449 Contact Us For Availability
40
SCREW WPL 806976 Contact Us For Availability
41
INNER PANEL WPL 807194 Contact Us For Availability
43
GROUND TERMINAL WPL 807213 Contact Us For Availability
45
SWITCH COVER WPL 807450 Contact Us For Availability
46
SCREW WPL 807039 Contact Us For Availability
× ![]()
