Model Whirlpool UD158 DISHWASHER – Common Parts & Diagrams

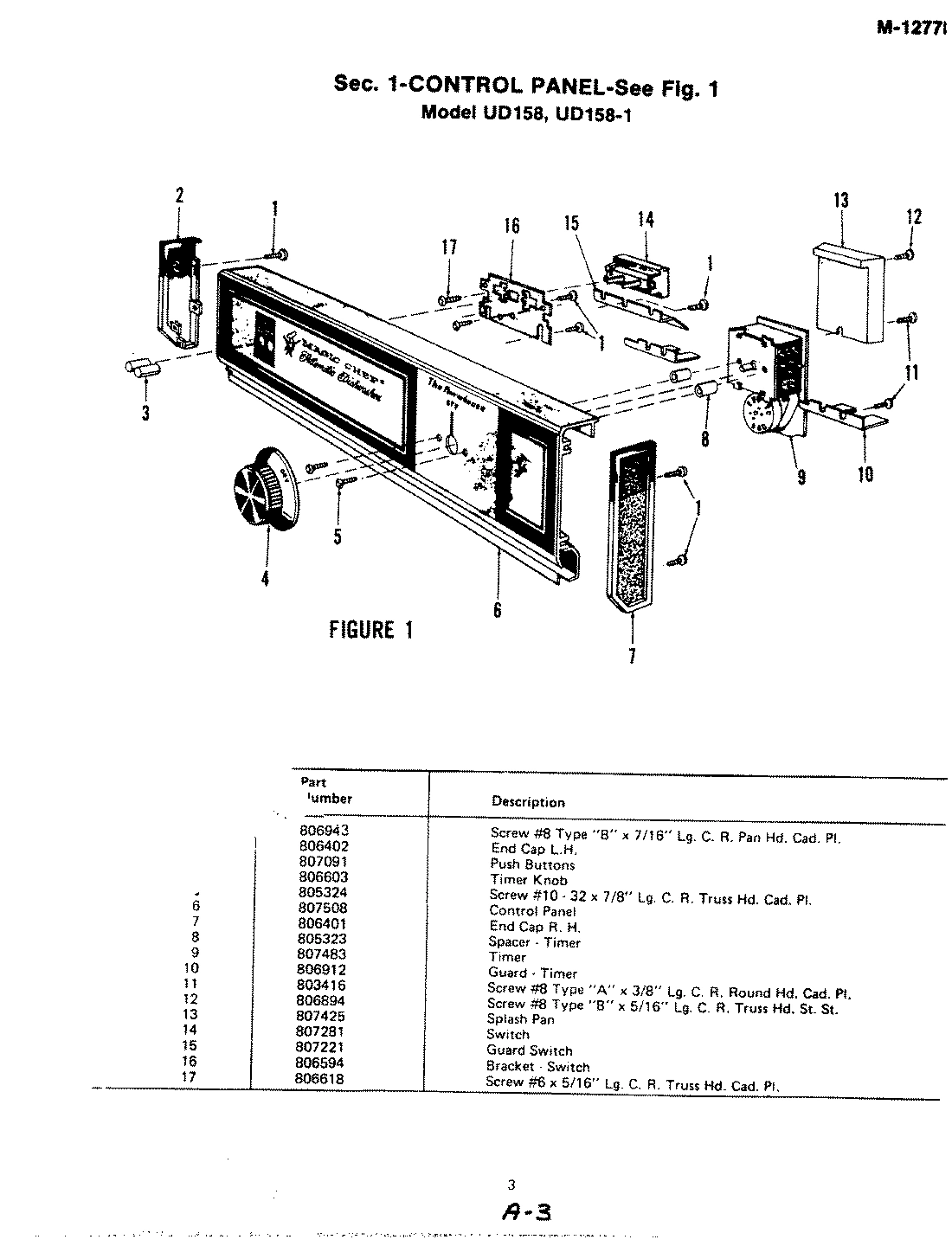

01 - CONTROL PANEL (UD158)

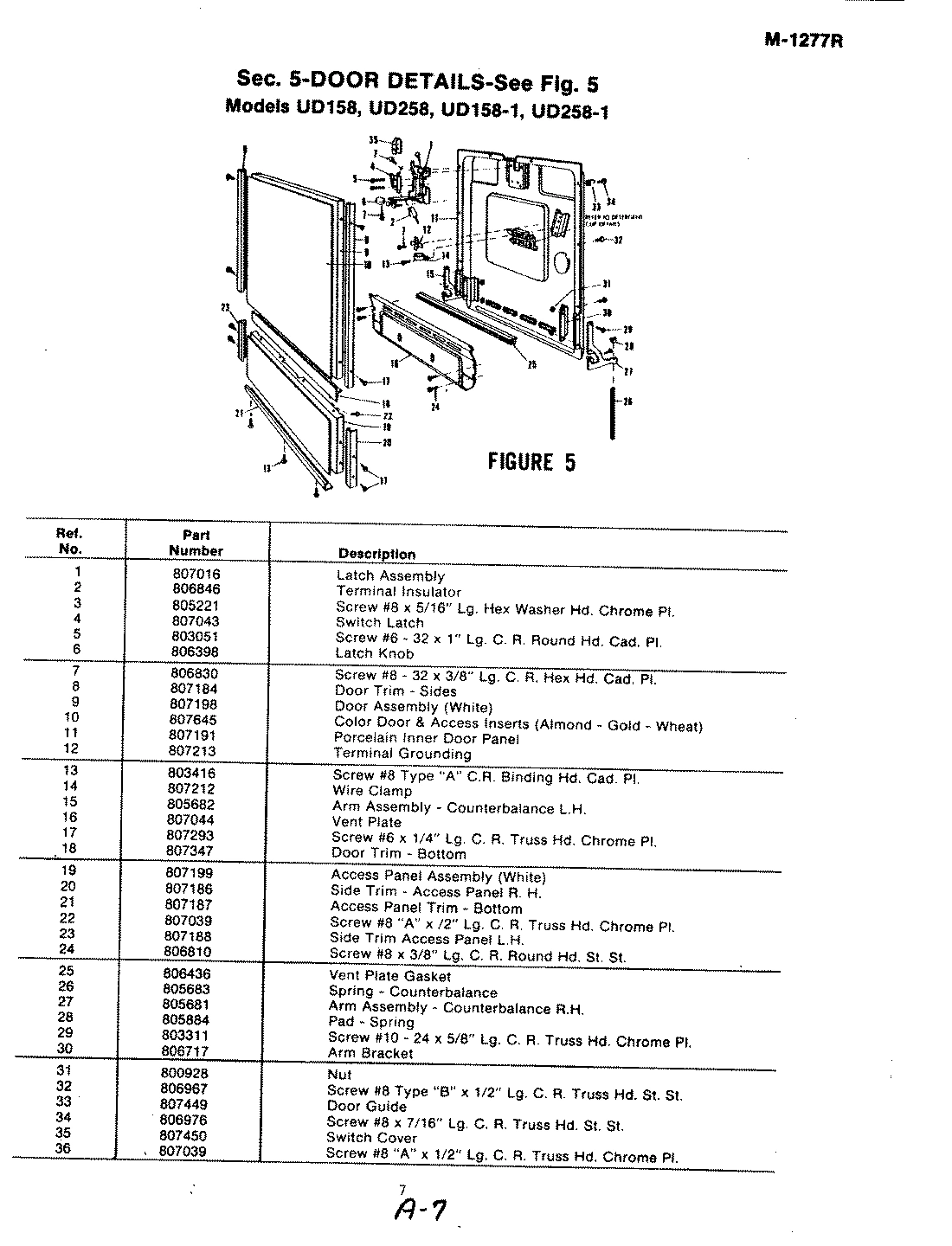

03 - DOOR DETAILS

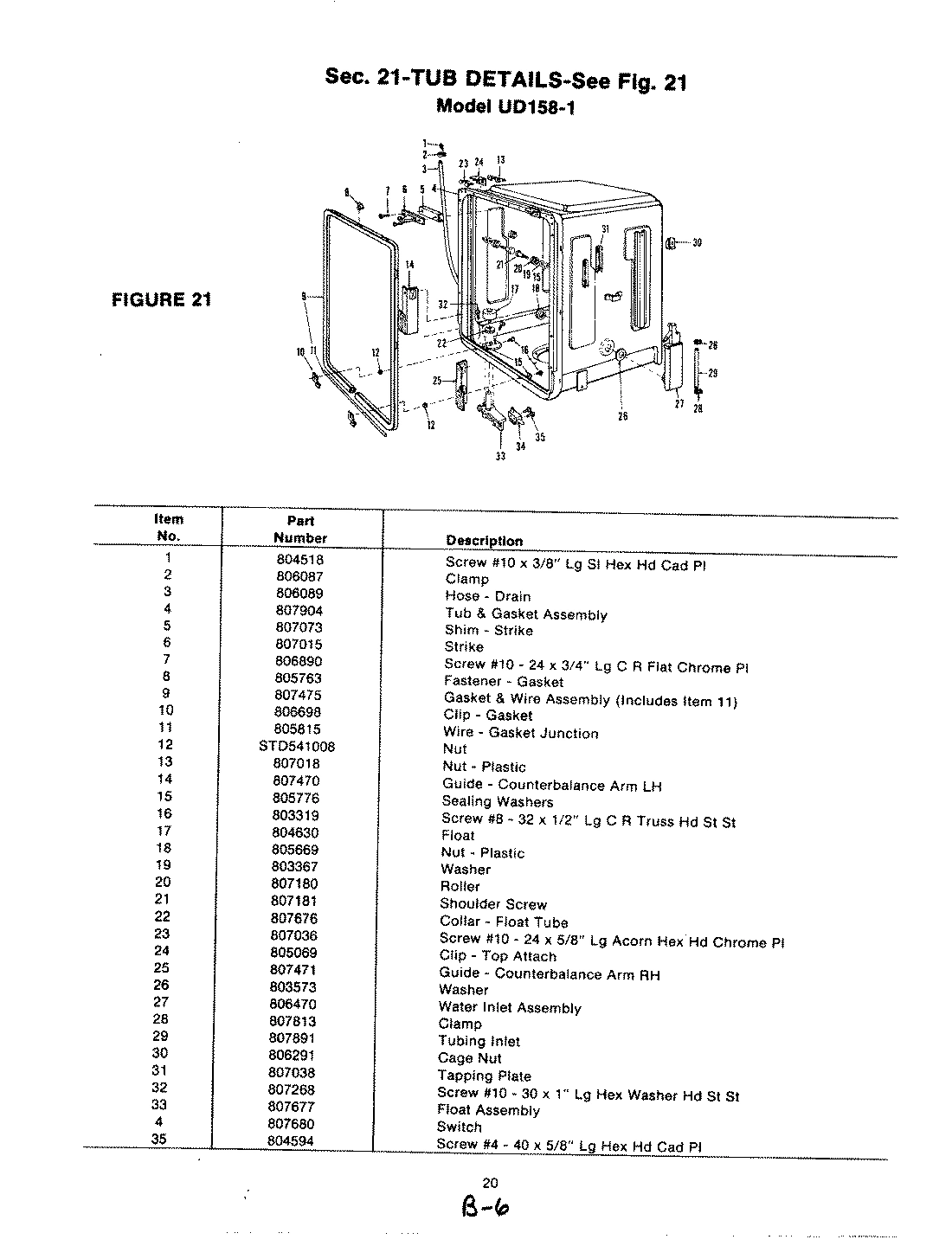

10 - TUB (UD158-1)

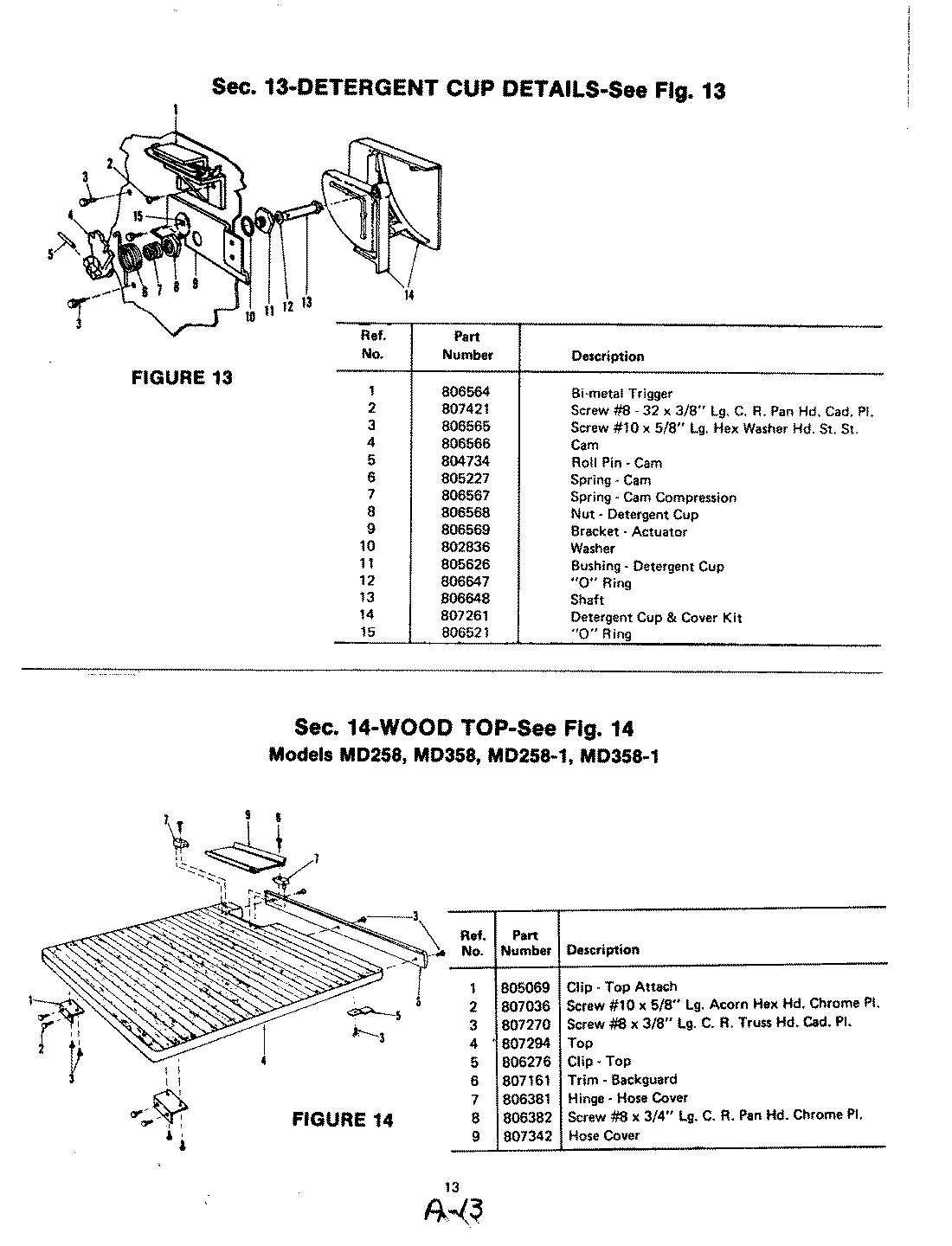

02 - DETERGENT CUP

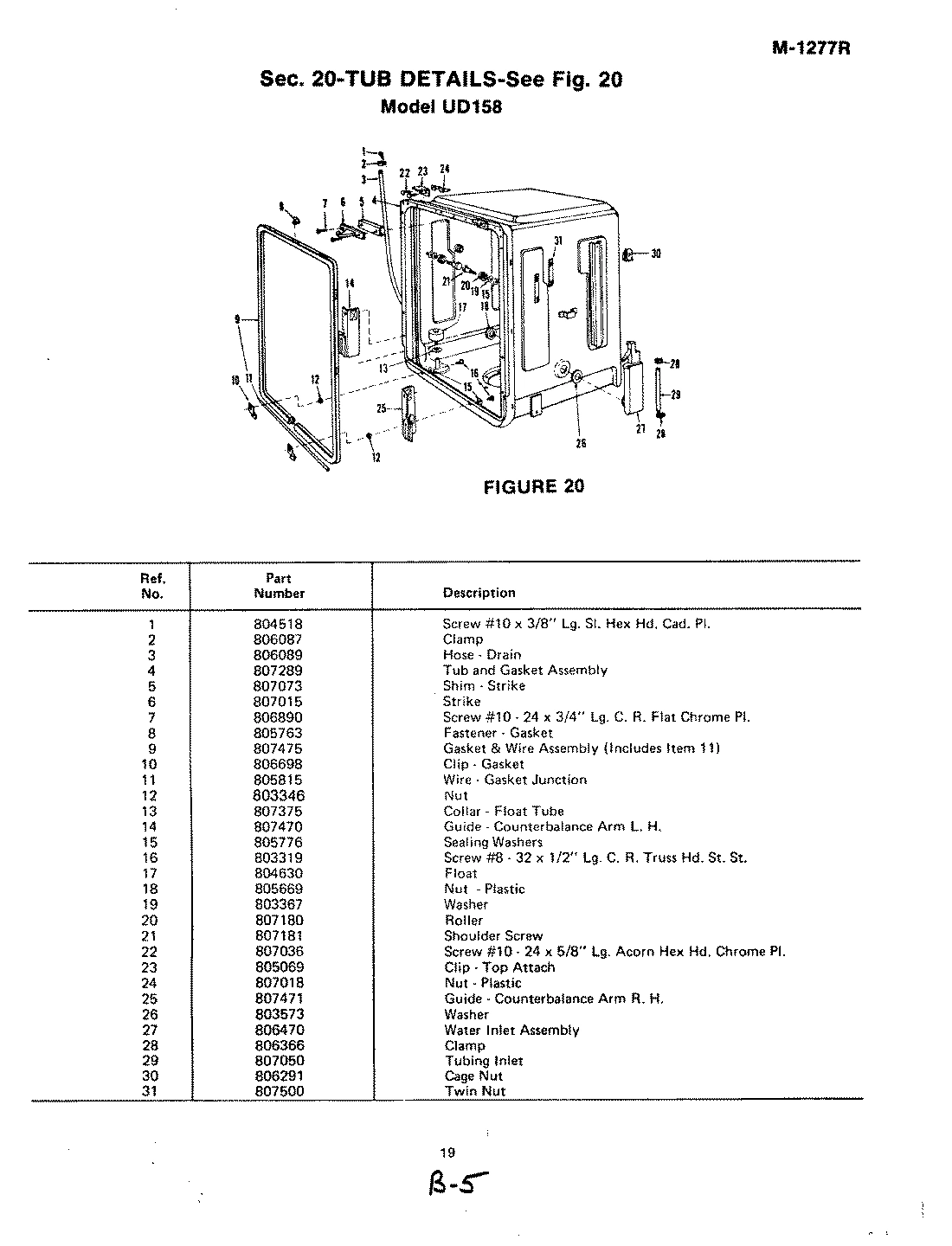

09 - TUB

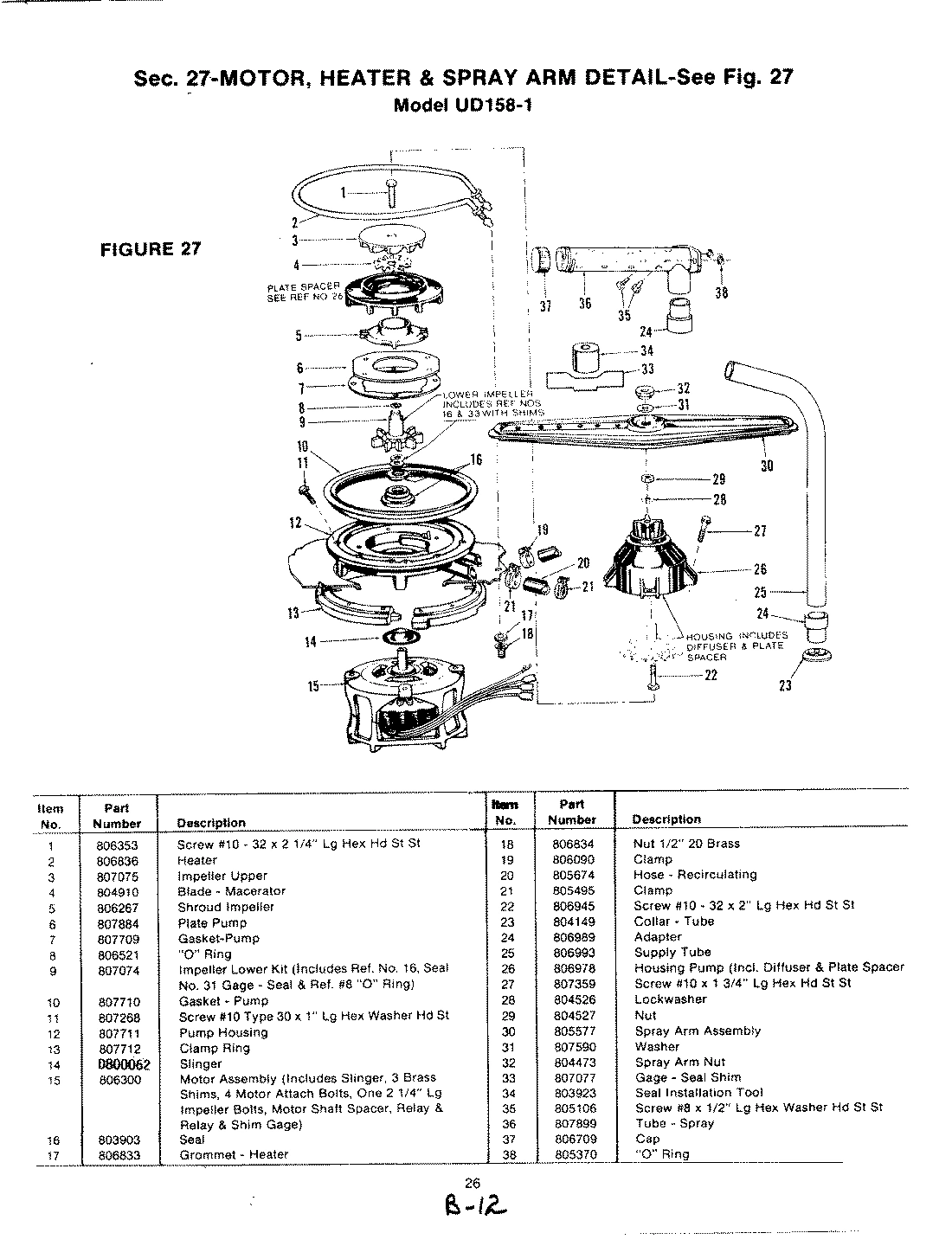

06 - HEATER & SPRAY ARM DETAIL (UD158-1)

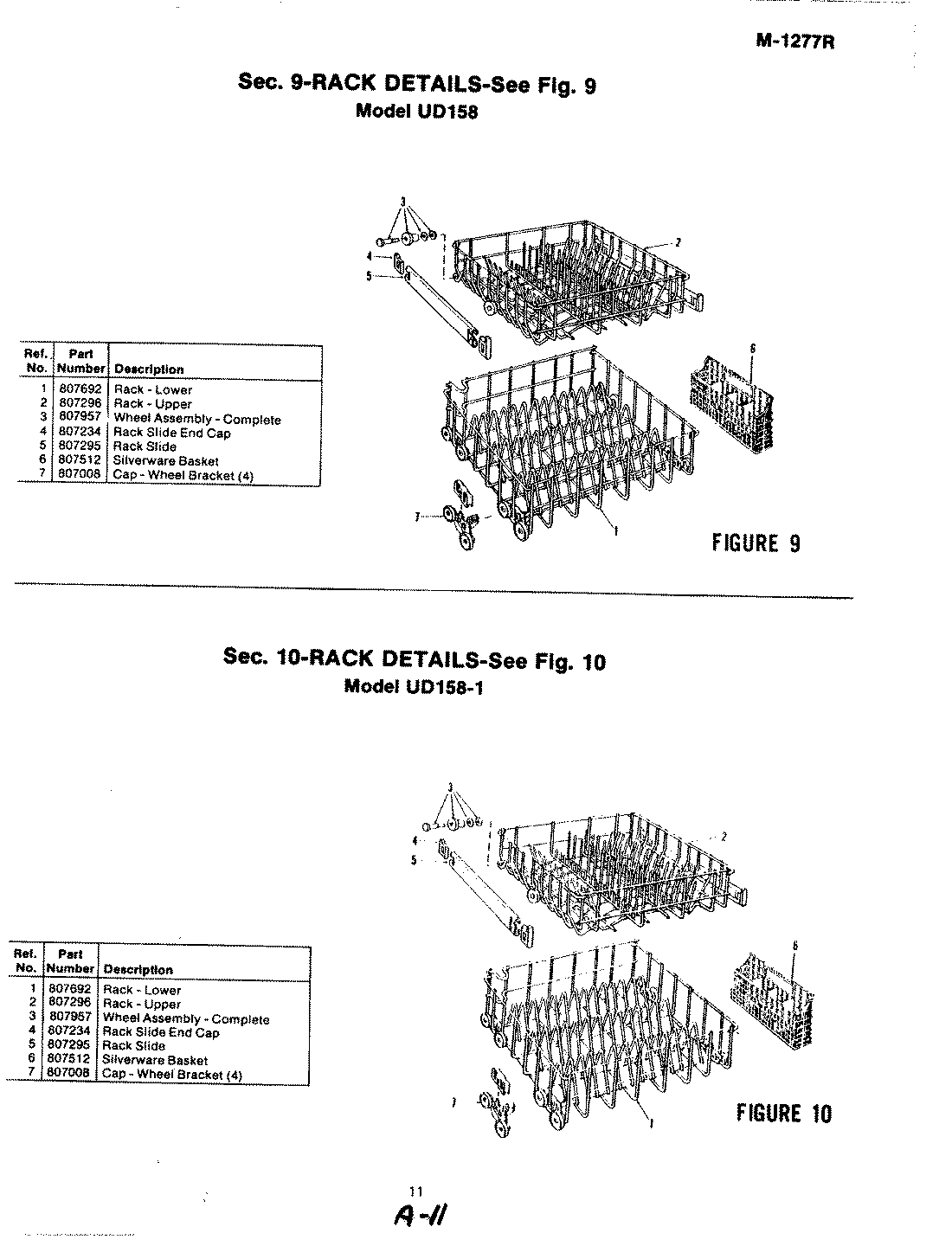

08 - RACK (UD158)

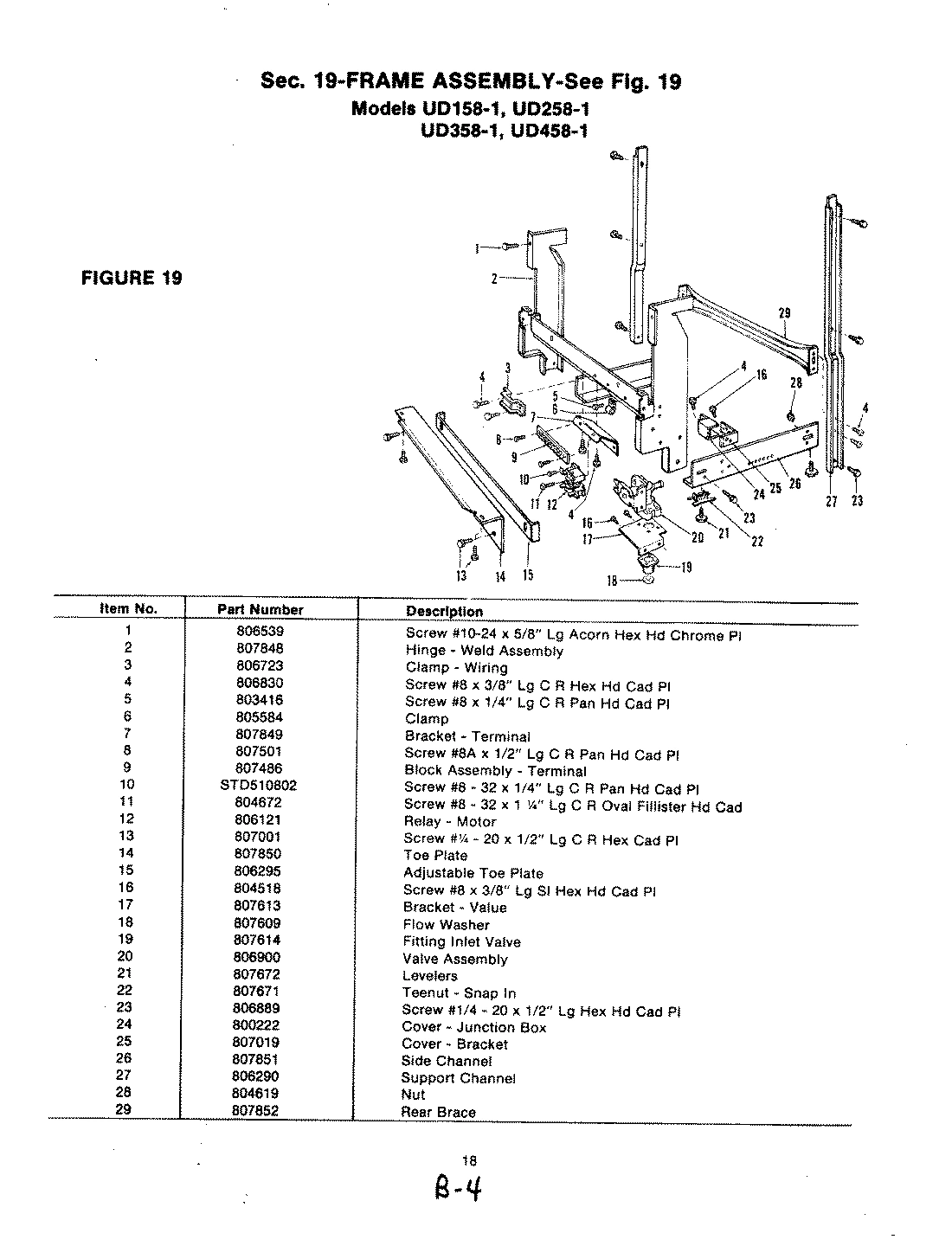

05 - FRAME ASSEMBLY (UD158-1,UD258-1)

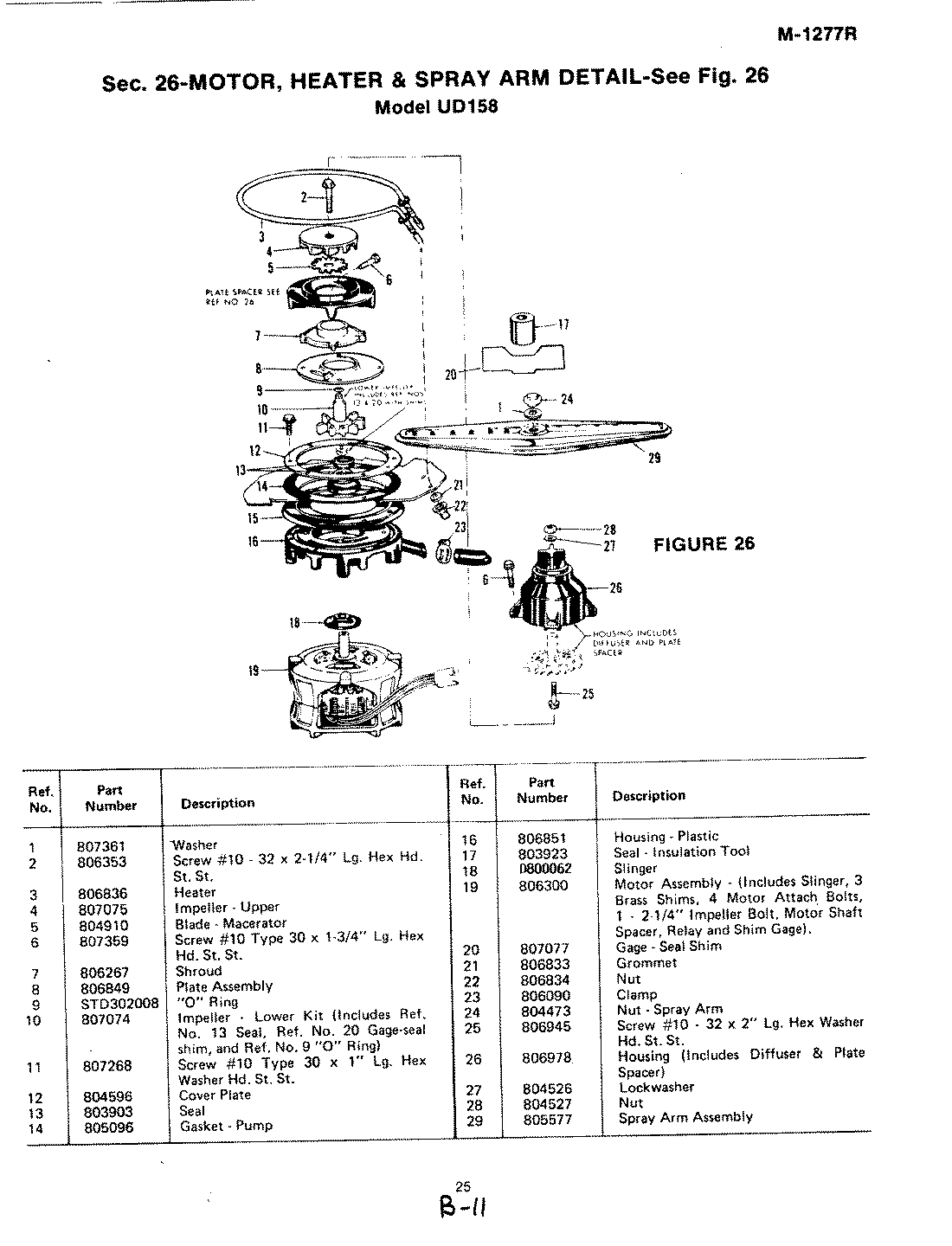

07 - MOTOR, HEATER & SPRAY ARM

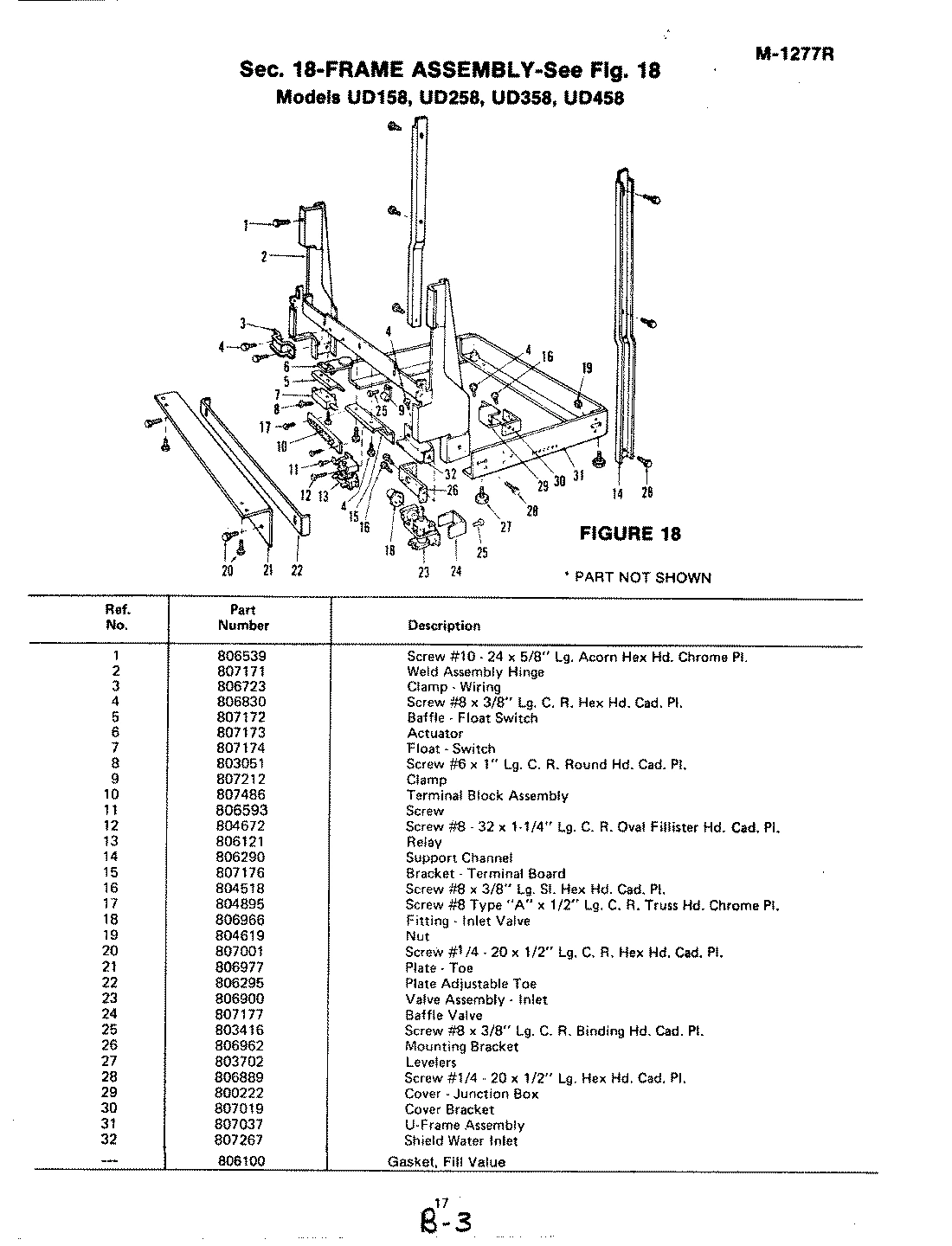

04 - FRAME ASSEMBLY (UD158, UD258)
Common parts from model Whirlpool UD158 DISHWASHER
1
SCREW WPL 806943 Contact Us For Availability
1
LATCH ASM WPL 807016 Contact Us For Availability
1
TRIGGER WPL 806564 Contact Us For Availability
1
LOWER RACK WPL 807692 Contact Us For Availability
1
WASHER WPL 807361 Contact Us For Availability
1
SCREW WPL 806539 Contact Us For Availability
2
LH END CAP WPL 806402 Contact Us For Availability
2
INSULATOR WPL 806846 Contact Us For Availability
2
CLAMP WPL 806087 Contact Us For Availability
2
UPPER RACK WPL 807296 Contact Us For Availability
2
HINGE WPL 807848 Contact Us For Availability
2
SCREW WPL 806353 Contact Us For Availability
2
HINGE WPL 807171 Contact Us For Availability
3
PUSH BUTTON WPL 807091 Contact Us For Availability
3
DRAIN HOSE WPL 806089 Contact Us For Availability
3
SCREW WPL 806565 Contact Us For Availability
3
HEATER KIT WPL 806836 Contact Us For Availability
3
WHEEL ASM WPL 807957 Contact Us For Availability
3
CLAMP WPL 806723 Contact Us For Availability
4
TIMER KNOB WPL 806603 Contact Us For Availability
4
SWITCH WPL 807043 Contact Us For Availability
4
SCREW WPL 806830 Contact Us For Availability
4
TUB WPL 807904 Contact Us For Availability
4
CAM WPL 806566 Contact Us For Availability
4
TUB & GASKET ASS WPL 807289 Contact Us For Availability
4
IMPELLER WPL 807075 Contact Us For Availability
4
END CAP WPL 807234 Contact Us For Availability
5
SCREW WPL 805324 Contact Us For Availability
5
STRIKE SHIM WPL 807073 Contact Us For Availability
5
ROLLPIN WPL 804734 Contact Us For Availability
5
MACERATOR BLADE WPL 804910 Contact Us For Availability
5
RACK SLIDE WPL 807295 Contact Us For Availability
5
BRACKET WPL 807172 Contact Us For Availability
6
CONTROL PANEL WPL 807508 Contact Us For Availability
6
LATCH KNOB WPL 806398 Contact Us For Availability
6
STRIKE WPL 807015 Contact Us For Availability
6
SPRING WPL 805227 Contact Us For Availability
6
PUMP PLATE WPL 807884 Contact Us For Availability
6
SCREW WPL 807359 Contact Us For Availability
6
SILVRWR BASKET WPL 807512 Contact Us For Availability
6
ACTUATOR WPL 807173 Contact Us For Availability
7
RH END CAP WPL 806401 Contact Us For Availability
7
SPRING WPL 806567 Contact Us For Availability
7
SHROUD WPL 806267 Contact Us For Availability
7
GASKET WPL 807709 Contact Us For Availability
7
WHEEL ASM WPL 807008 Contact Us For Availability
7
BRACKET WPL 807849 Contact Us For Availability
7
FLOAT SWITCH WPL 807174 Contact Us For Availability
8
SPACER WPL 805323 Contact Us For Availability
8
SCREW WPL 803051 Contact Us For Availability
8
SUB 808026 WPL 807184 Contact Us For Availability
8
CLIP KIT (TUB GASKET) WPL 805763 Contact Us For Availability
8
NUT WPL 806568 Contact Us For Availability
8
O RING WPL 806521 Contact Us For Availability
8
SCREW WPL 807501 Contact Us For Availability
8
PLATE WPL 806849 Contact Us For Availability
9
TIMER WPL 807483 Contact Us For Availability
9
PANEL WPL 807198 Contact Us For Availability
9
CLAMP WPL 807212 Contact Us For Availability
9
SUB 808071 WPL 807475 Contact Us For Availability
9
BRACKET WPL 806569 Contact Us For Availability
9
SUB 808042 WPL 807074 Contact Us For Availability
10
BTM DOOR TRIM WPL 806912 Contact Us For Availability
10
INSERT, DOOR PANEL WPL 807645 Contact Us For Availability
10
CLIP WPL 806698 Contact Us For Availability
10
SCREW WPL 807268 Contact Us For Availability
10
GASKET WPL 802836 Contact Us For Availability
10
PUMP GASKET WPL 807710 Contact Us For Availability
10
TERMINAL BLOCK WPL 807486 Contact Us For Availability
11
INNER PANEL WPL 807191 Contact Us For Availability
11
GASKET WIRE WPL 805815 Contact Us For Availability
11
BUSHING WPL 805626 Contact Us For Availability
11
COVER PLATE WPL 804596 Contact Us For Availability
12
SCREW WPL 806894 Contact Us For Availability
12
GROUND TERMINAL WPL 807213 Contact Us For Availability
12
O-RING WPL 806647 Contact Us For Availability
12
NUT WPL 803346 Contact Us For Availability
12
PUMP HOUSING WPL 807711 Contact Us For Availability
12
SCREW WPL 804672 Contact Us For Availability
12
PANEL WPL 806906 Contact Us For Availability
13
SPLASH PAN WPL 807425 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
COLLAR WPL 807375 Contact Us For Availability
13
CLAMP RING WPL 807712 Contact Us For Availability
13
SUB 805255 WPL 806121 Contact Us For Availability
13
TOE PLATE WPL 807850 Contact Us For Availability
13
PUMP GASKET WPL 805096 Contact Us For Availability
14
SWITCH WPL 807281 Contact Us For Availability
14
LH GUIDE WPL 807470 Contact Us For Availability
14
DETRG CUP KIT WPL 807261 Contact Us For Availability
14
CHANNEL WPL 806290 Contact Us For Availability
14
PUMP HOUSING WPL 806851 Contact Us For Availability
15
SWITCH GUARD WPL 807221 Contact Us For Availability
15
LH ARM WPL 805682 Contact Us For Availability
15
SEALER WPL 805776 Contact Us For Availability
15
SEAL TOOL WPL 803923 Contact Us For Availability
15
BRACKET WPL 807176 Contact Us For Availability
16
SWITCH BRACKET WPL 806594 Contact Us For Availability
16
VENT PLATE WPL 807044 Contact Us For Availability
16
SCREW WPL 804518 Contact Us For Availability
16
SLINGER WPL D800062 Contact Us For Availability
16
GASKET WPL 803903 Contact Us For Availability
16
VALVE BRACKET WPL 807613 Contact Us For Availability
17
SCREW WPL 806618 Contact Us For Availability
17
FLOAT WPL 804630 Contact Us For Availability
17
MOTOR WPL 806300 Contact Us For Availability
17
FLOW WASHER WPL 807609 Contact Us For Availability
17
SCREW WPL 804895 Contact Us For Availability
18
DOOR TRIM WPL 807347 Contact Us For Availability
18
NUT WPL 805669 Contact Us For Availability
18
SHIM GAUGE WPL 807077 Contact Us For Availability
18
VALVE FITTING WPL 807614 Contact Us For Availability
18
VLV FITTING WPL 806966 Contact Us For Availability
19
PANEL WPL 807199 Contact Us For Availability
19
WASHER WPL 803367 Contact Us For Availability
19
GROMMET WPL 806833 Contact Us For Availability
20
RH SIDE TRIM WPL 807186 Contact Us For Availability
20
ROLLER WPL 807180 Contact Us For Availability
20
NUT WPL 806834 Contact Us For Availability
20
HOSE WPL 805674 Contact Us For Availability
20
SCREW WPL 807001 Contact Us For Availability
20
LEVELER WPL 807672 Contact Us For Availability
21
SUB 808027 WPL 807187 Contact Us For Availability
21
SCREW WPL 807181 Contact Us For Availability
21
COLLAR WPL 807676 Contact Us For Availability
21
CLAMP WPL 806090 Contact Us For Availability
21
CLAMP WPL 805495 Contact Us For Availability
21
TEENUT WPL 807671 Contact Us For Availability
21
TOE PLATE WPL 806977 Contact Us For Availability
22
SCREW WPL 807036 Contact Us For Availability
22
NUT WPL 804473 Contact Us For Availability
22
TOE PLATE WPL 806295 Contact Us For Availability
23
CONTROL PANEL WPL 807088 Contact Us For Availability
23
CLIP WPL 805069 Contact Us For Availability
23
SCREW WPL 806945 Contact Us For Availability
23
COLLAR WPL 804149 Contact Us For Availability
23
INLET VALVE WPL 806900 Contact Us For Availability
24
SCREW WPL 806810 Contact Us For Availability
24
PLASTIC NUT WPL 807018 Contact Us For Availability
24
ADAPTOR WPL 806989 Contact Us For Availability
24
PUMPHOUSING KIT WPL 806978 Contact Us For Availability
24
LH SIDE TRIM WPL 807188 Contact Us For Availability
25
SCREW WPL 803416 Contact Us For Availability
25
VENT GASKET WPL 806436 Contact Us For Availability
25
RH GUIDE WPL 807471 Contact Us For Availability
25
SUPPLY TUBE WPL 806993 Contact Us For Availability
25
LOCKWASHER WPL 804526 Contact Us For Availability
25
SIDE CHANNEL WPL 807851 Contact Us For Availability
26
DOOR SPRING WPL 805683 Contact Us For Availability
26
WASHER WPL 803573 Contact Us For Availability
26
NUT WPL 804527 Contact Us For Availability
26
BRACKET WPL 806962 Contact Us For Availability
27
RH ARM WPL 805681 Contact Us For Availability
27
WATER INLET WPL 806470 Contact Us For Availability
27
CLAMP WPL 807813 Contact Us For Availability
27
LWR SPRAY ARM WPL 805577 Contact Us For Availability
27
DRIVE PLATE WPL 803802 Contact Us For Availability
28
SPRING PAD WPL 805884 Contact Us For Availability
28
INLET TUBE WPL 807891 Contact Us For Availability
28
CODE J WPL 806366 Contact Us For Availability
28
SCREW WPL 806889 Contact Us For Availability
28
REAR BRACE WPL 807852 Contact Us For Availability
29
SCREW WPL 803311 Contact Us For Availability
29
TUBING INLET WPL 807050 Contact Us For Availability
29
TERMINAL COVER WPL 800222 Contact Us For Availability
30
ARM BRACKET WPL 806717 Contact Us For Availability
30
CAGE NUT WPL 806291 Contact Us For Availability
30
TAPPING PLATE WPL 807038 Contact Us For Availability
30
BRACKET WPL 807019 Contact Us For Availability
31
NUT WPL 800928 Contact Us For Availability
31
TWIN NUT WPL 807500 Contact Us For Availability
31
WASHER WPL 807590 Contact Us For Availability
31
U FRAME WPL 807037 Contact Us For Availability
32
SCREW WPL 806967 Contact Us For Availability
32
FLOAT ASM WPL 807677 Contact Us For Availability
32
GASKET WPL 806100 Contact Us For Availability
32
SHIELD WPL 807267 Contact Us For Availability
33
DOOR GUIDE WPL 807449 Contact Us For Availability
33
FLOAT SWITCH WPL 807680 Contact Us For Availability
34
SCREW WPL 806976 Contact Us For Availability
34
BOLT WPL 804594 Contact Us For Availability
35
SWITCH COVER WPL 807450 Contact Us For Availability
36
SPRAY TUBE WPL 807899 Contact Us For Availability
37
CAP WPL 806709 Contact Us For Availability
38
O RING WPL 805370 Contact Us For Availability
NI
SCREW WPL 807039 Contact Us For Availability
× ![]()
