Model Unimac UC40VN2 Washer – Common Parts & Diagrams
Decals
Control Panel Decals and Controls - PN, SN and VN Models

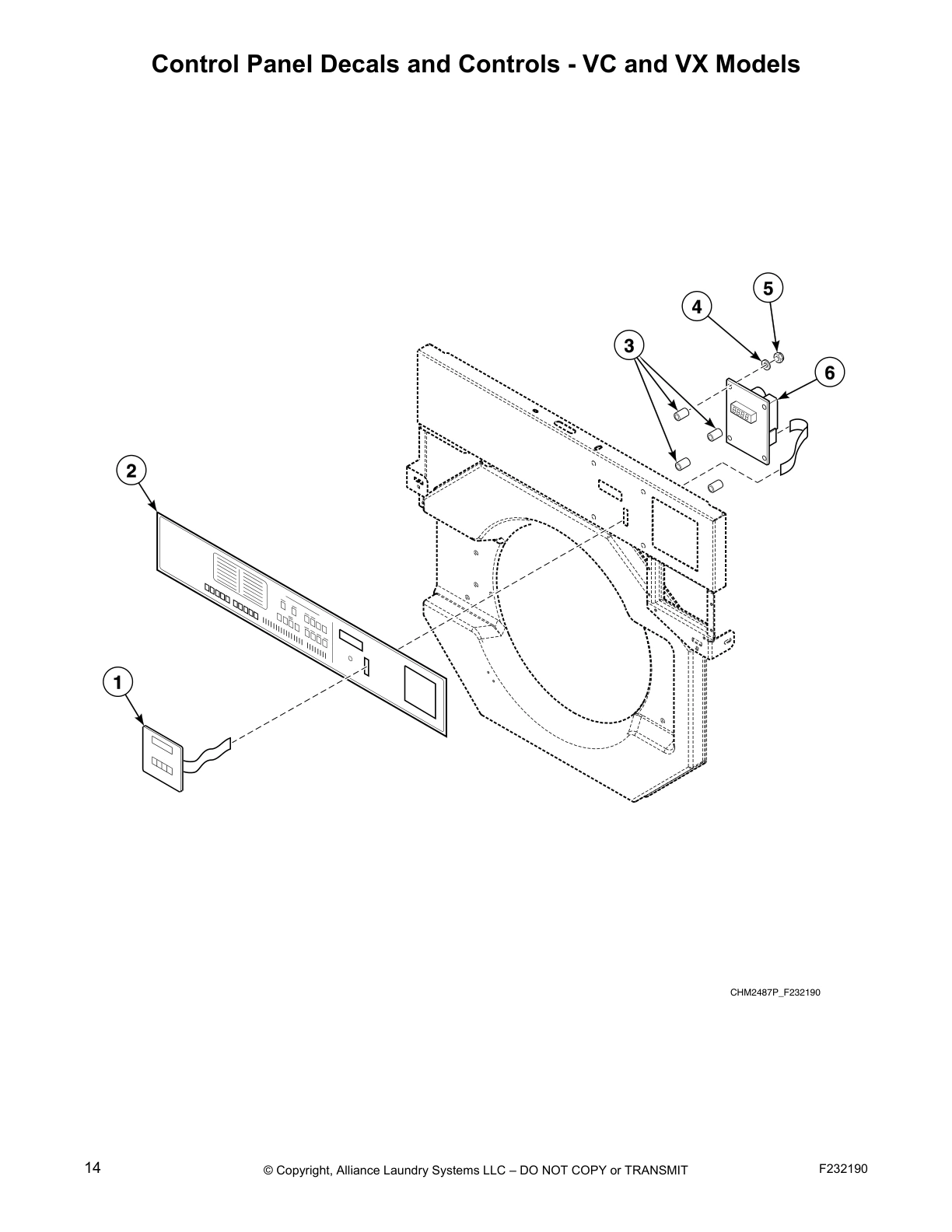

Control Panel Decals and Controls - VC and VX Models

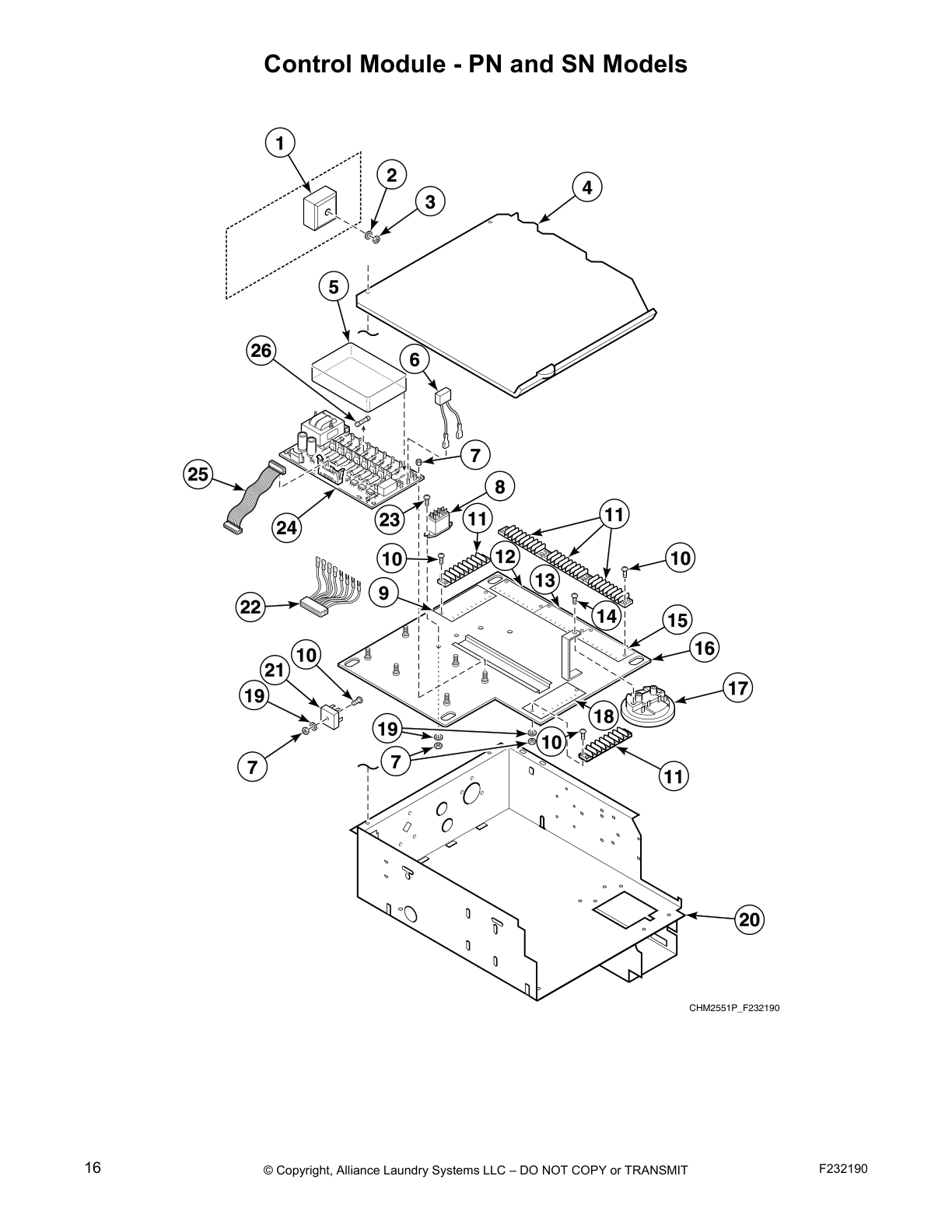

Control Module - PN and SN Models

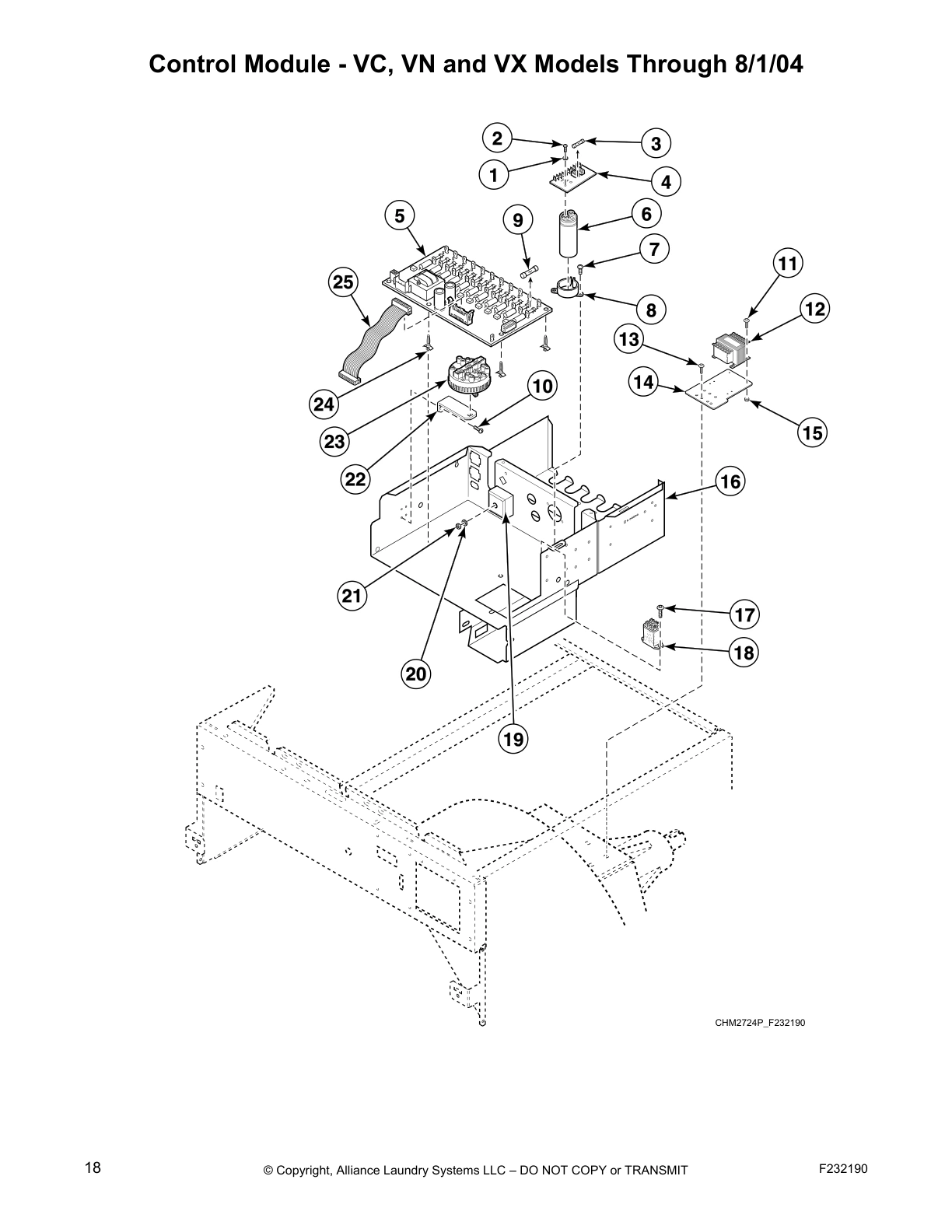

Control Module - VC, VN and VX Models Through 8/1/04

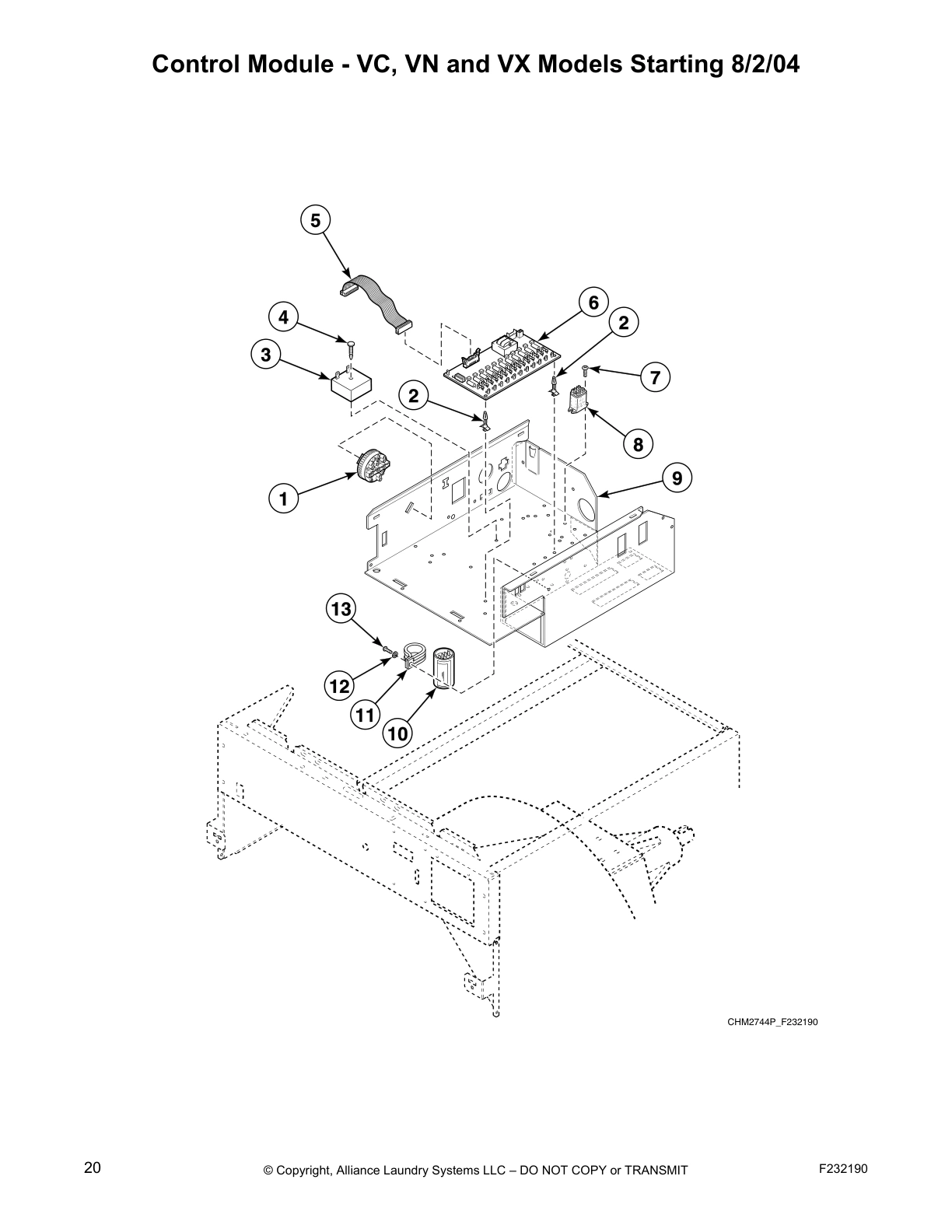

Control Module - VC, VN and VX Models Starting 8/2/04

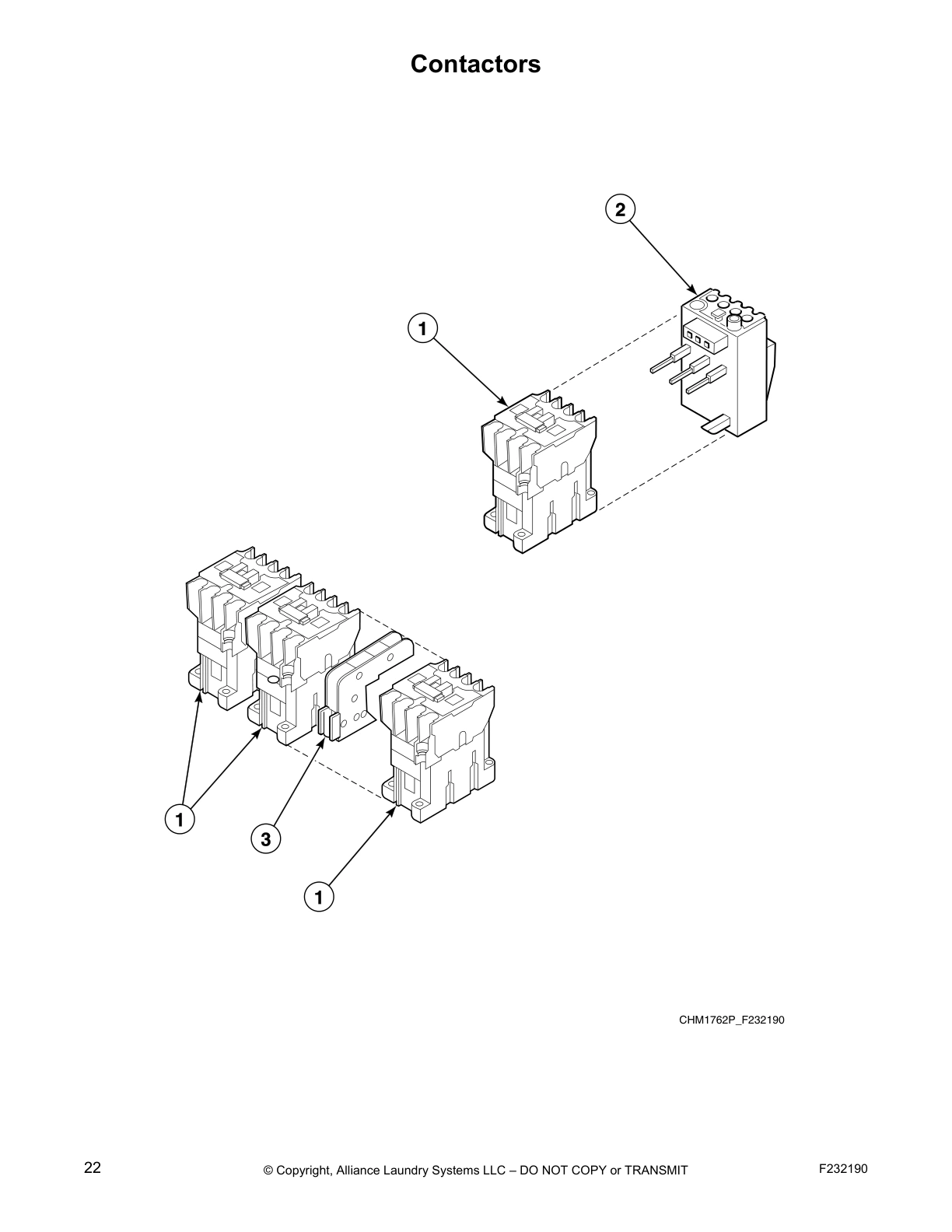

Contactors

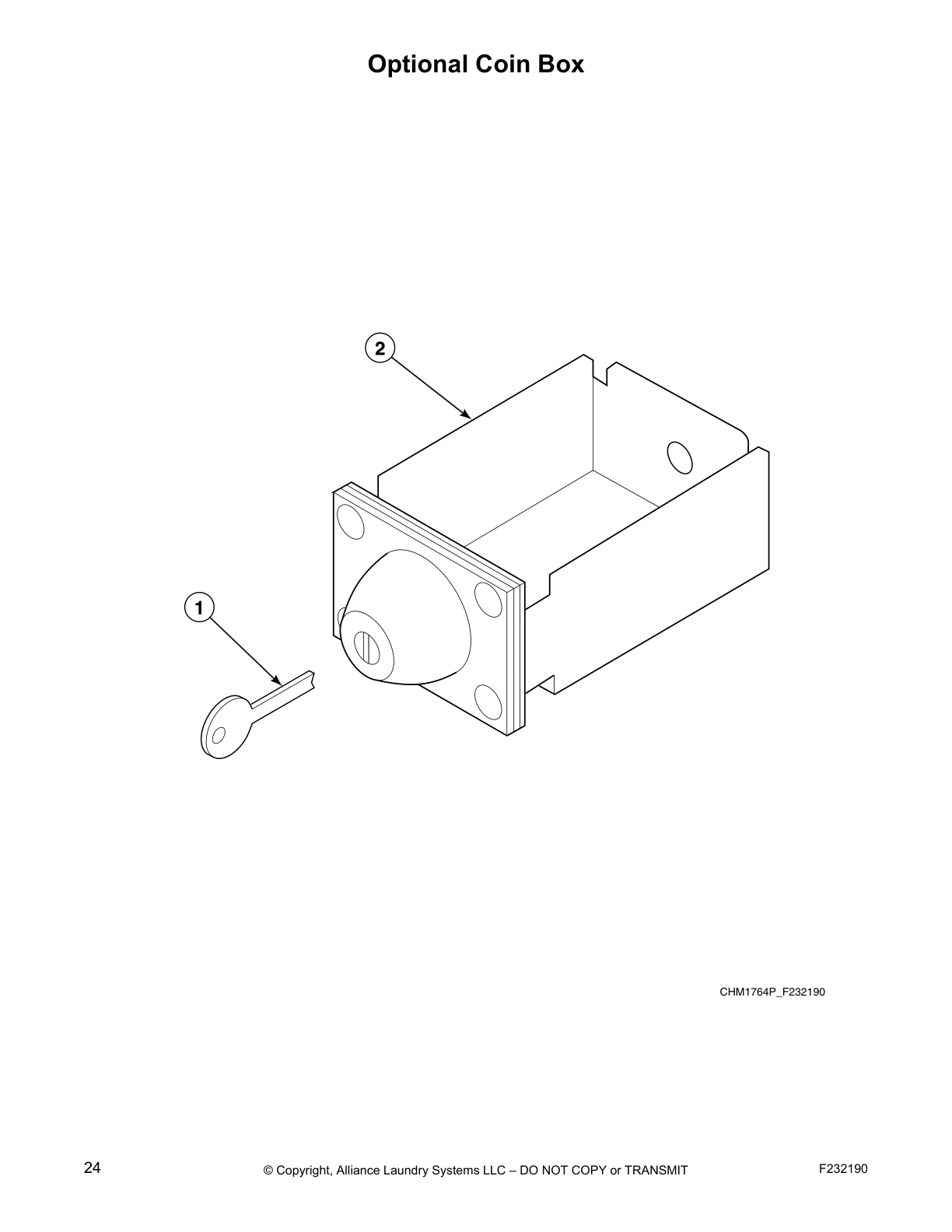

Optional Coin Box

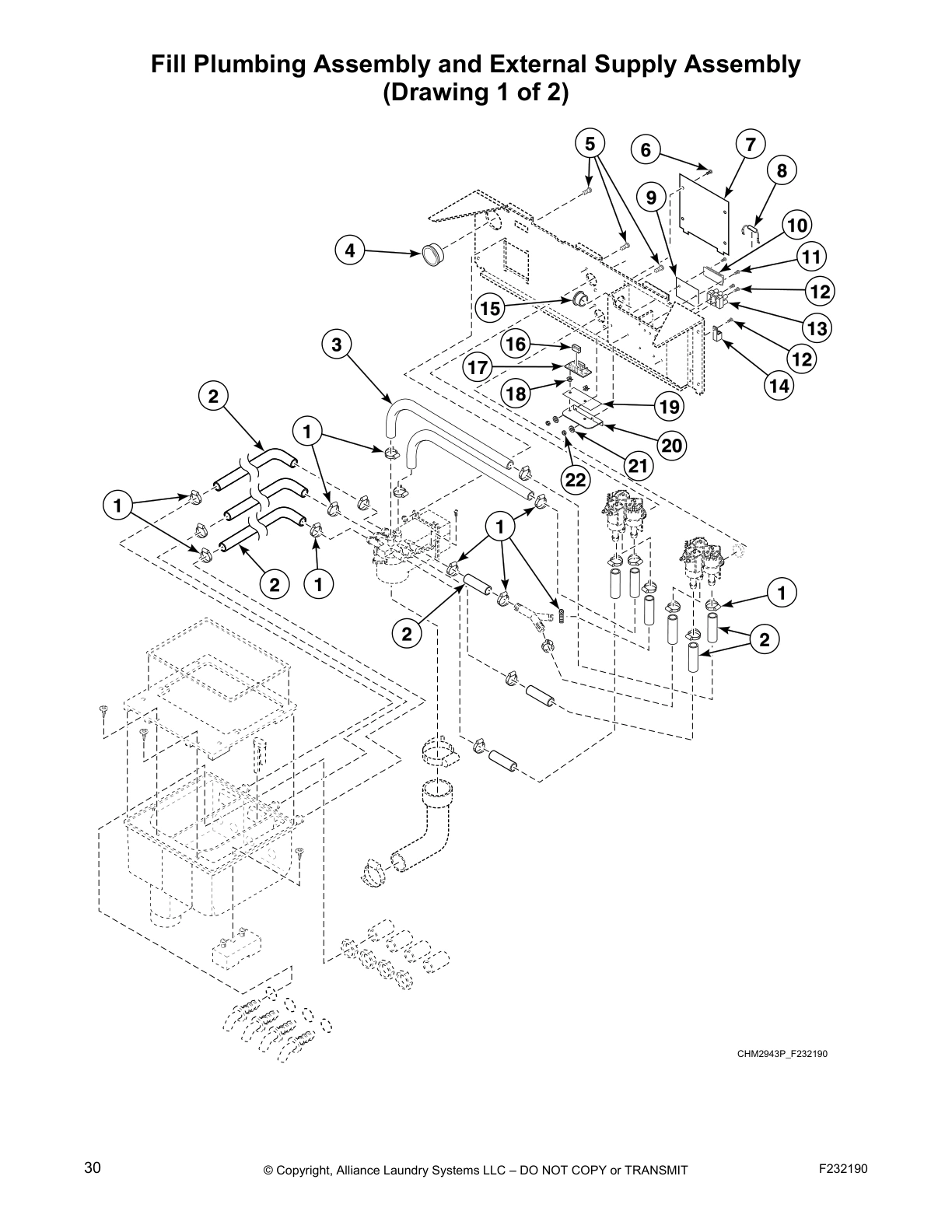

Fill Plumbing Assembly and External Supply Assembly
(Drawing 1 of 2)

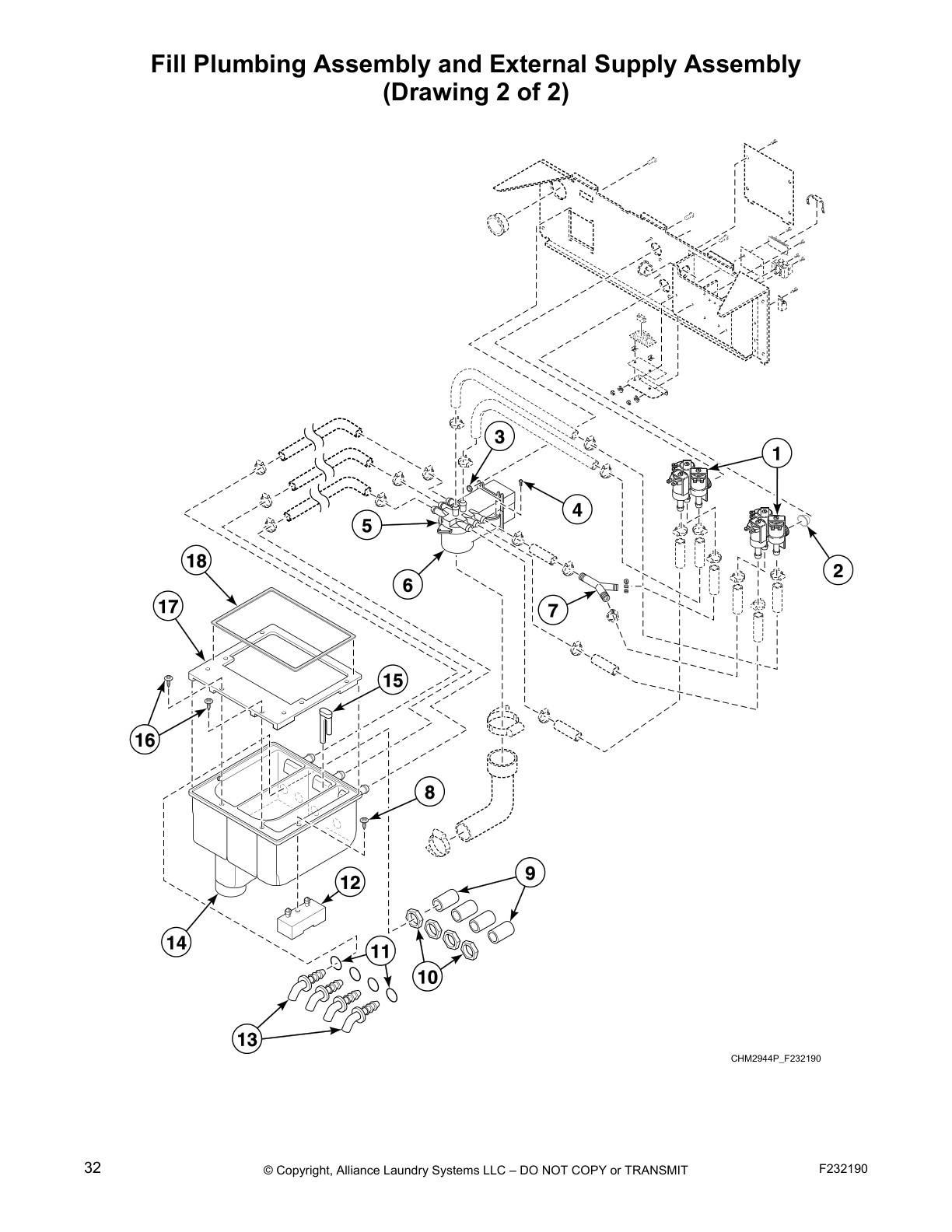

Fill Plumbing Assembly and External Supply Assembly
(Drawing 2 of 2)

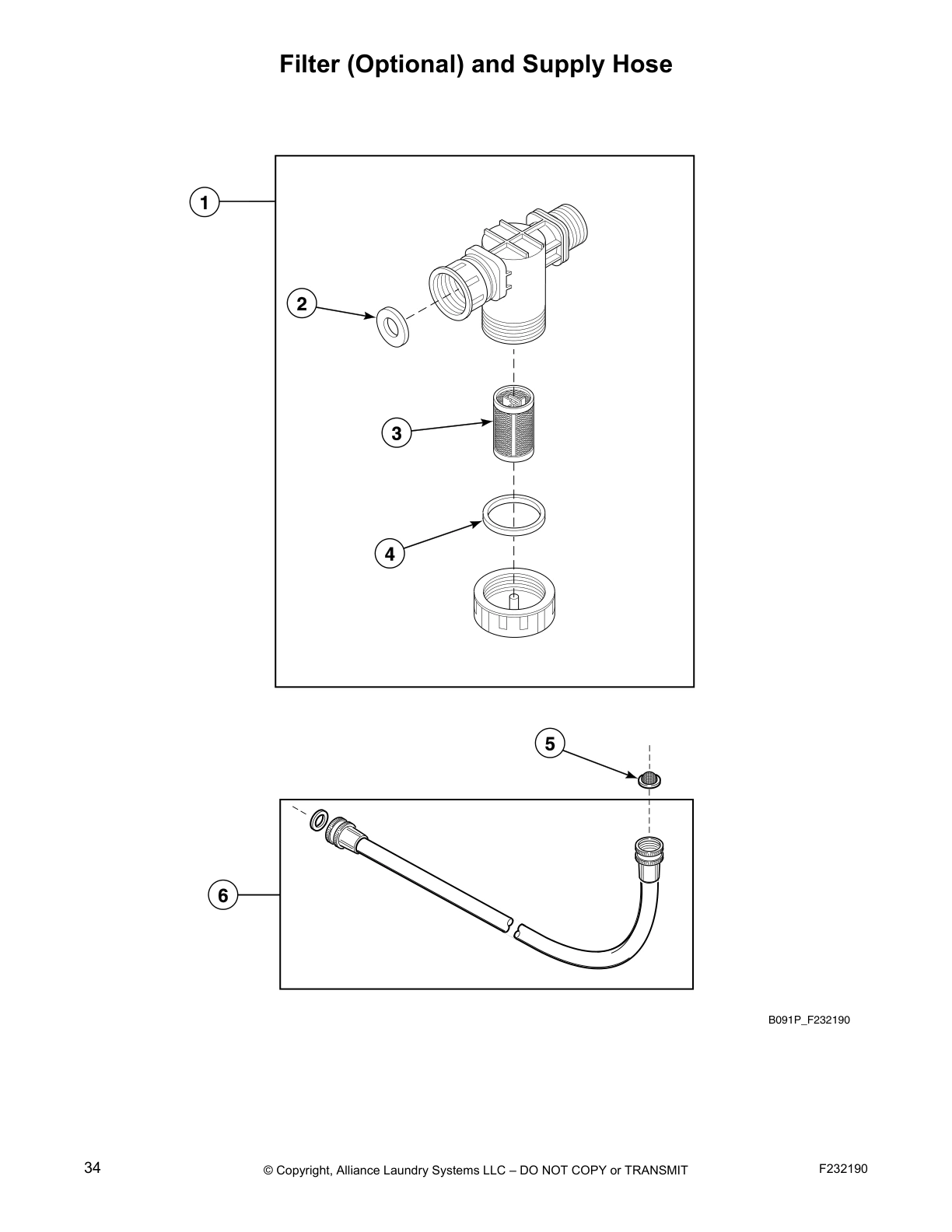

Filter (Optional) and Supply Hose

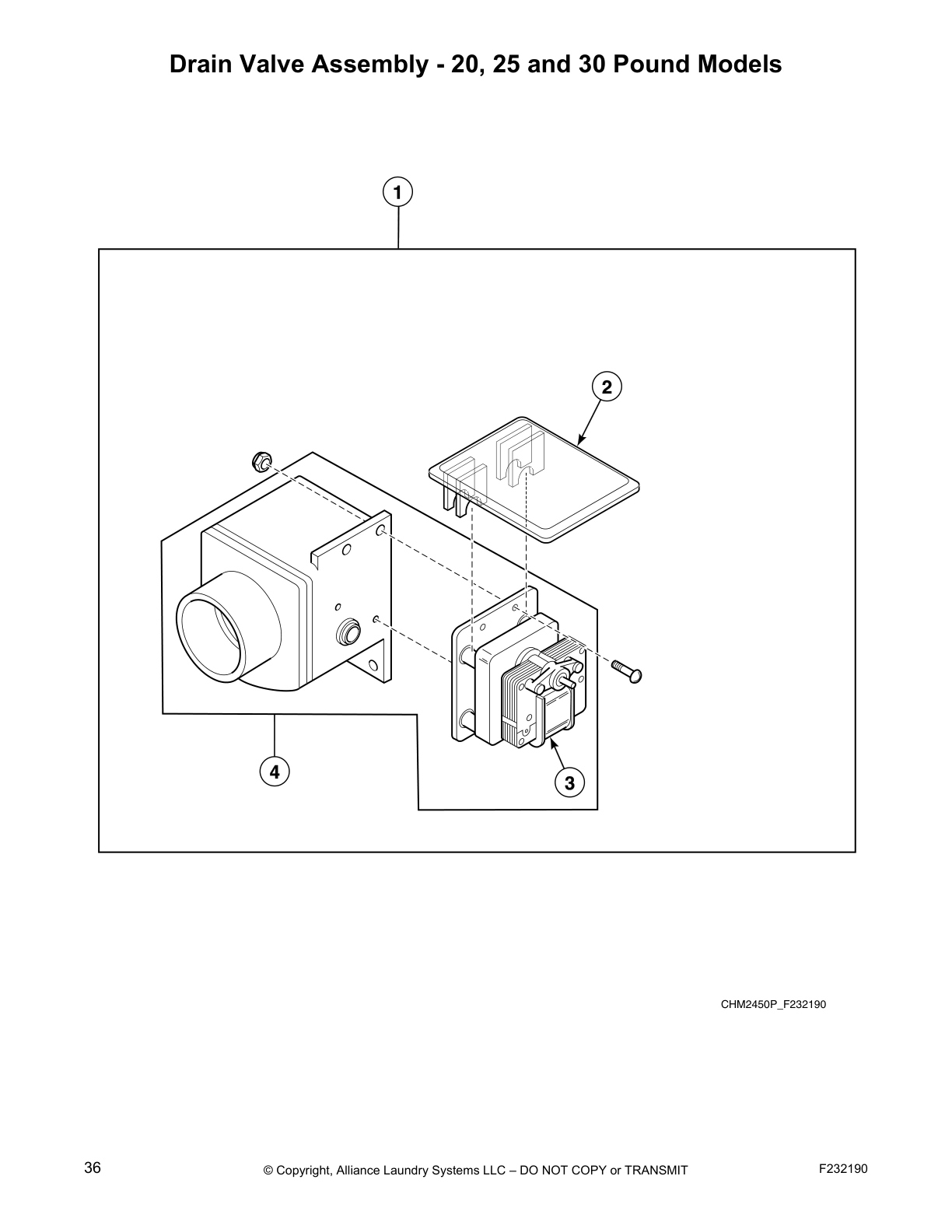

Drain Valve Assembly - 20, 25 and 30 Pound Models

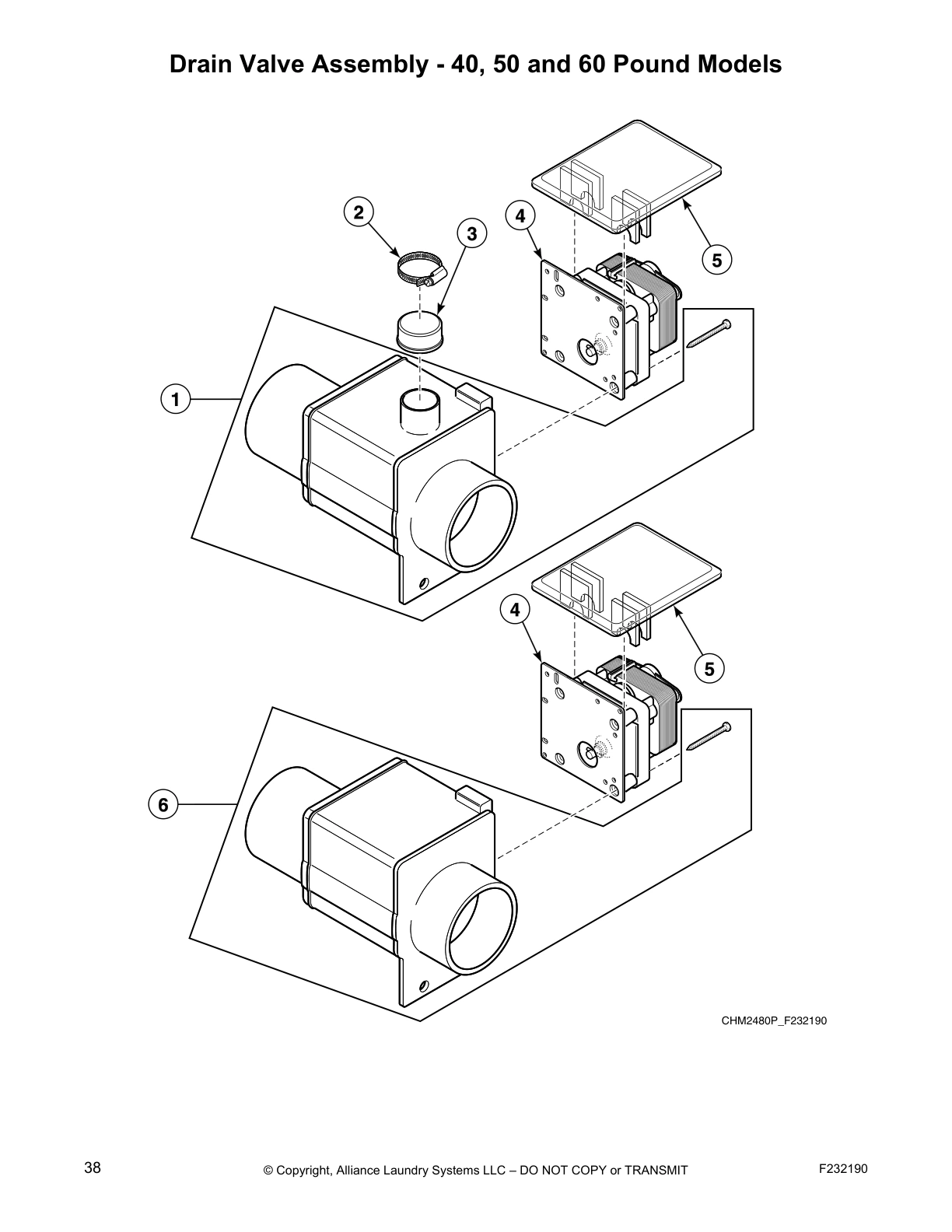

Drain Valve Assembly - 40, 50 and 60 Pound Models

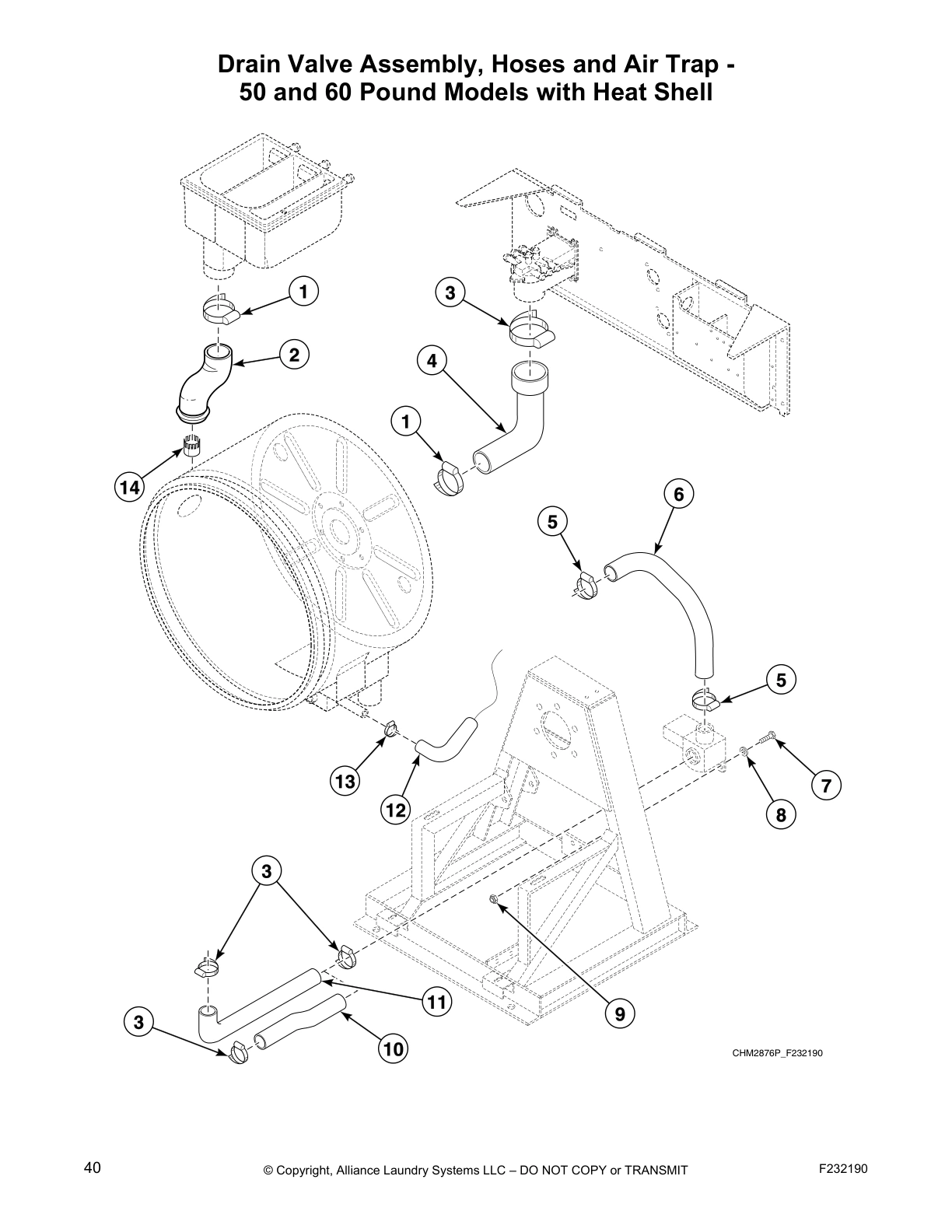

Drain Valve Assembly, Hoses and Air Trap -
50 and 60 Pound Models with Heat Shell

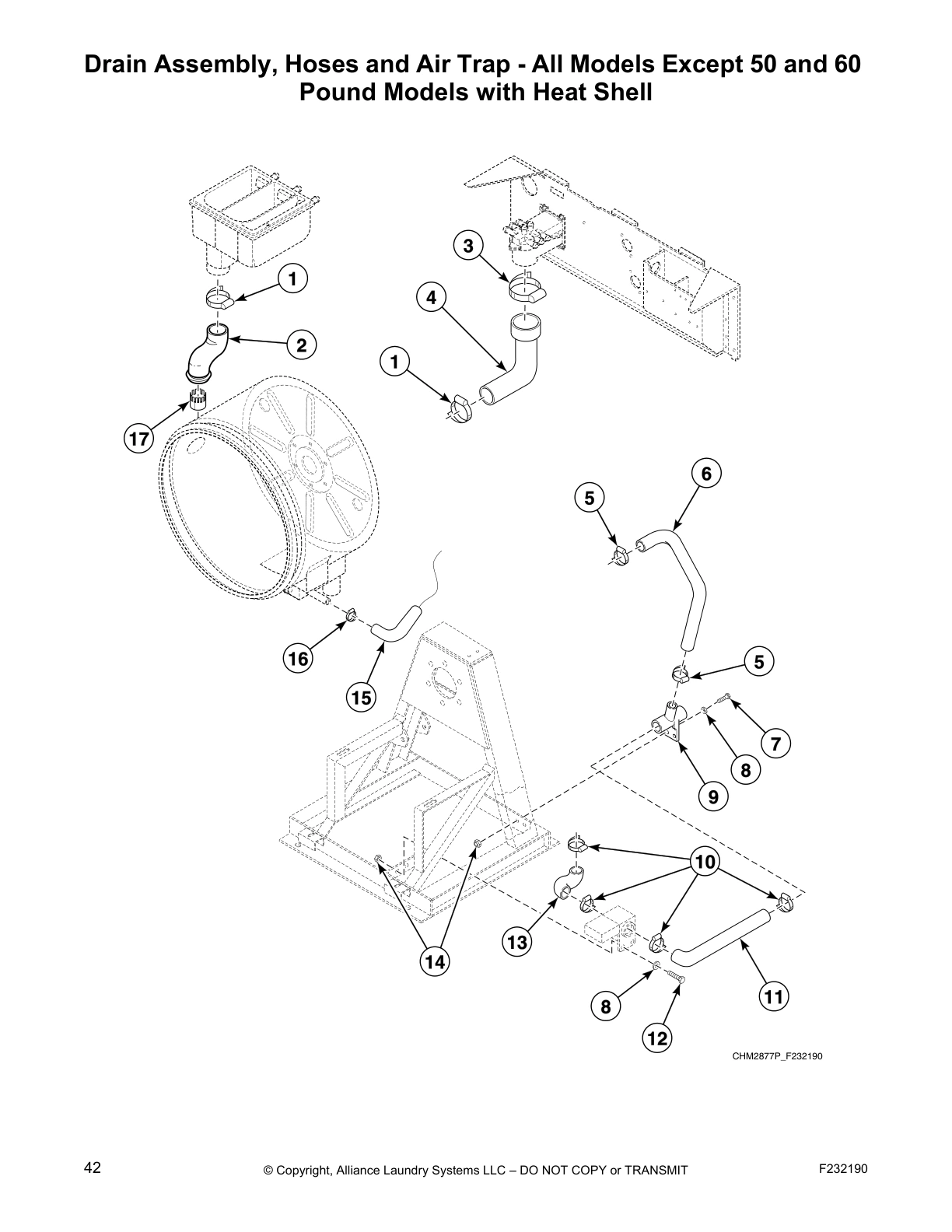

Drain Assembly, Hoses and Air Trap - All Models Except 50 and 60
Pound Models with Heat Shell

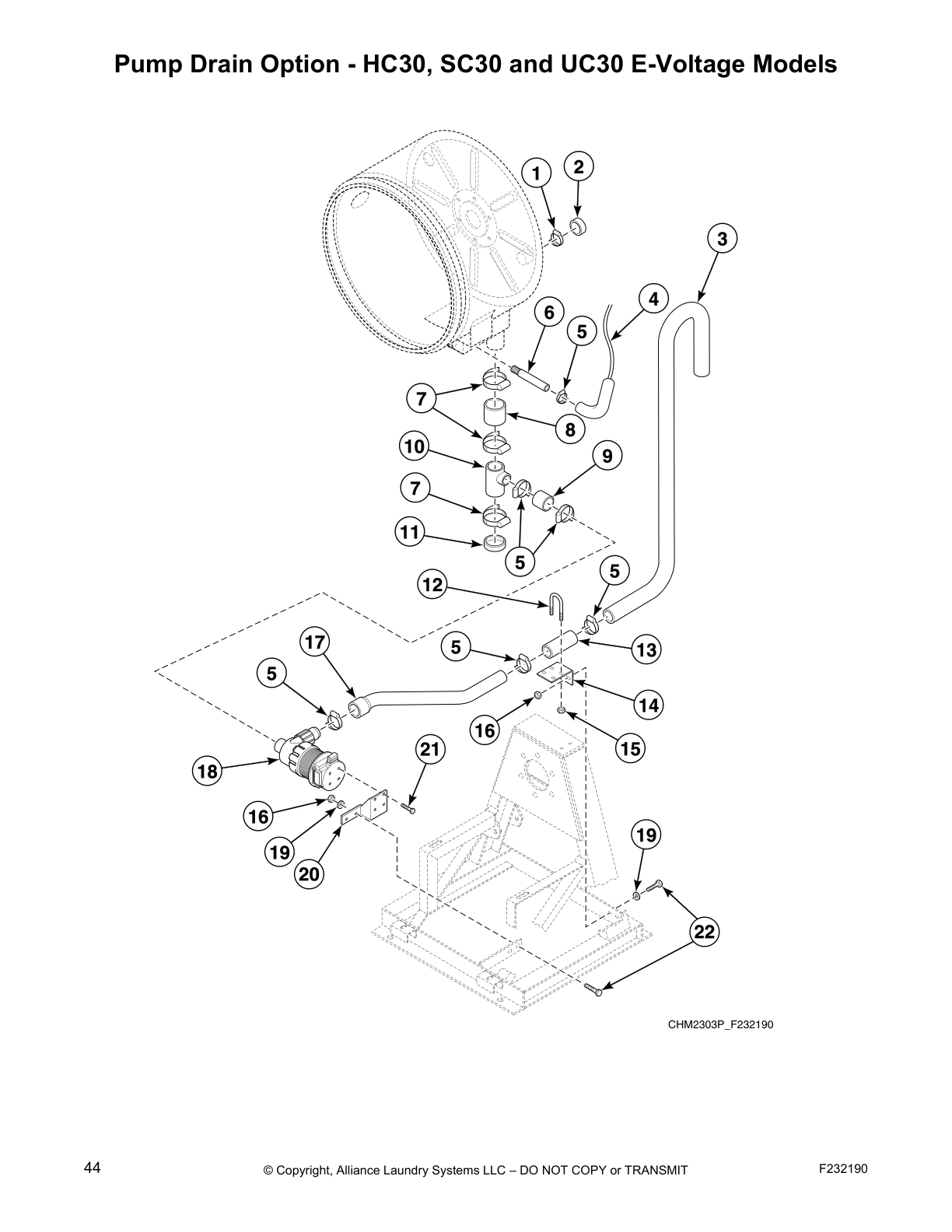

Pump Drain Option - HC30, SC30 and UC30 E-Voltage Models

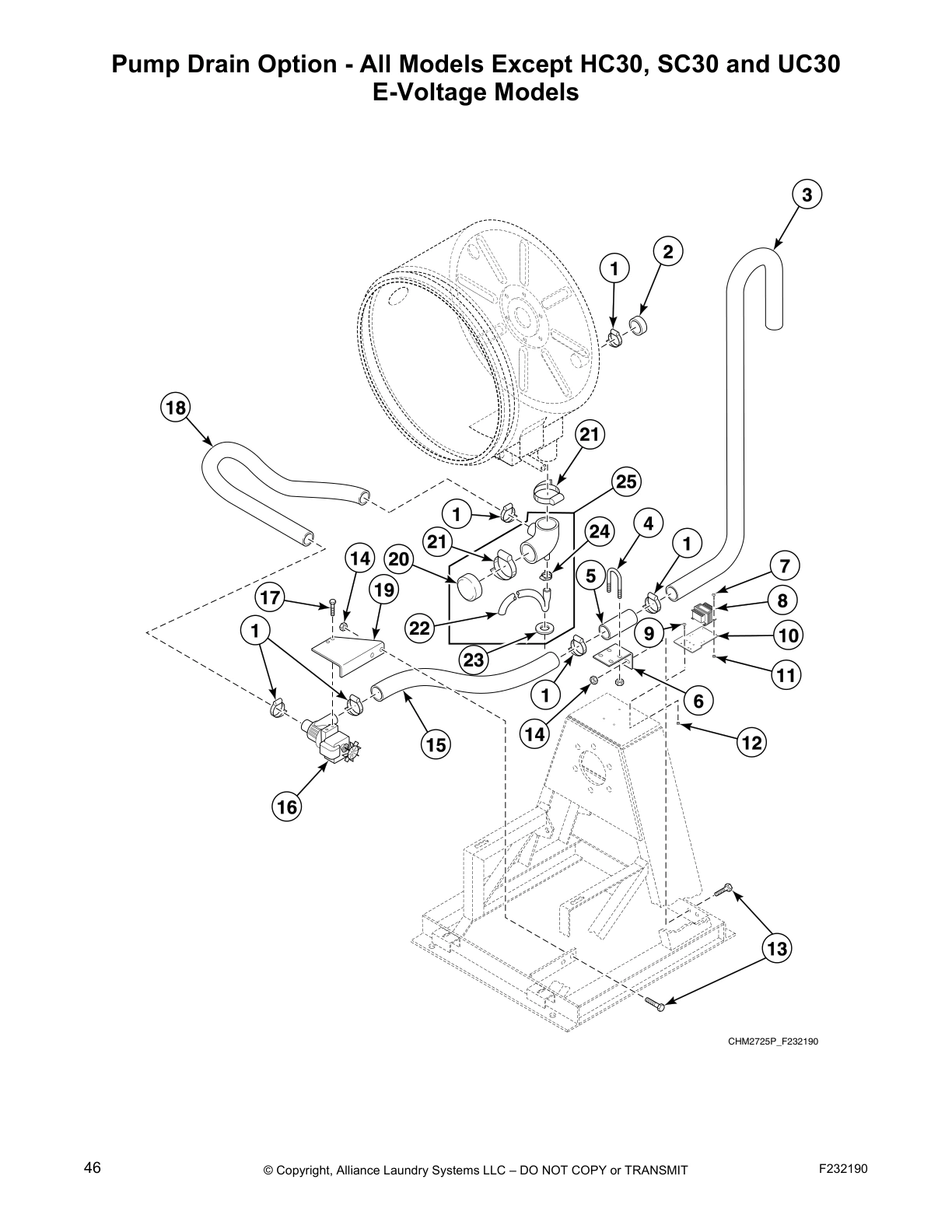

Pump Drain Option - All Models Except HC30, SC30 and UC30
E-Voltage Models

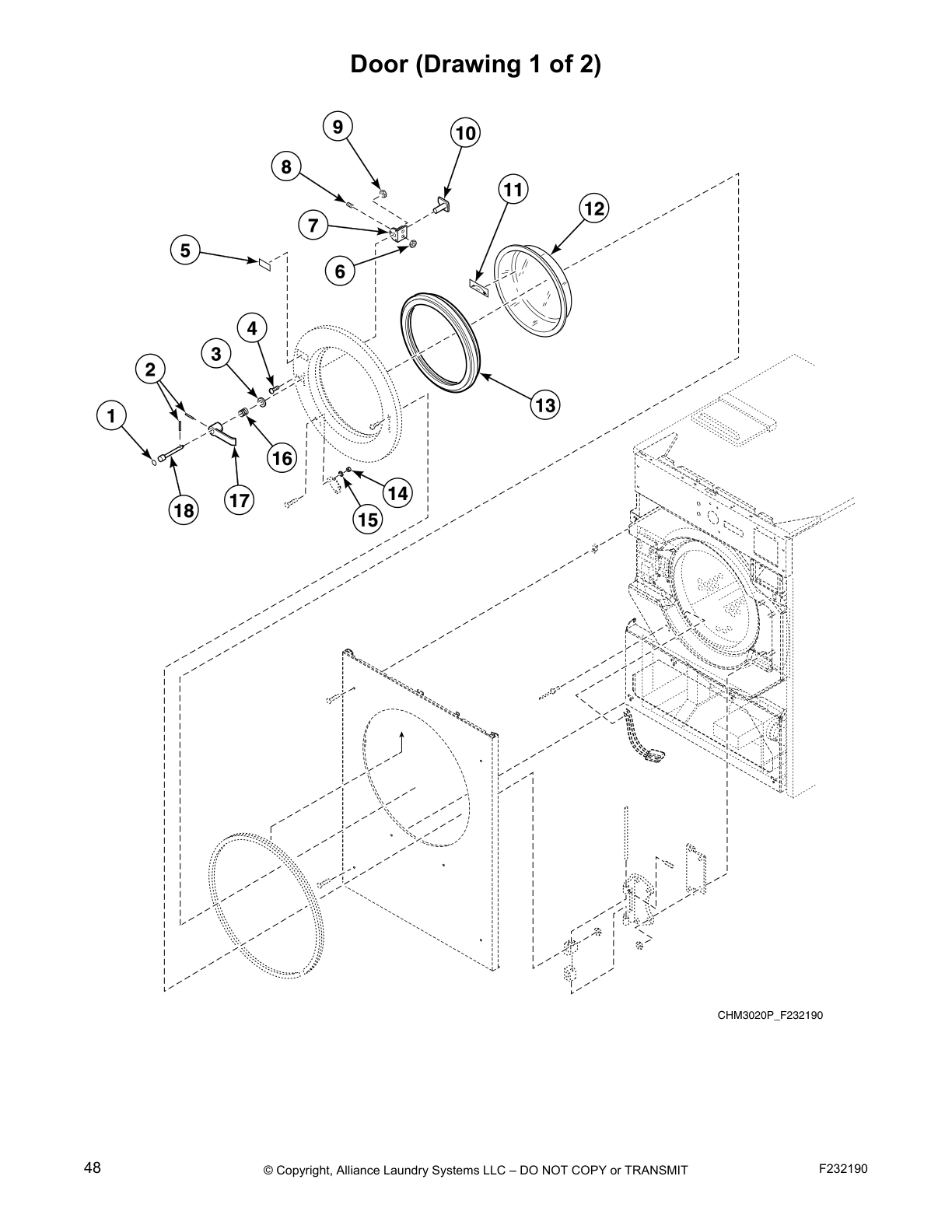

Door (Drawing 1 of 2)

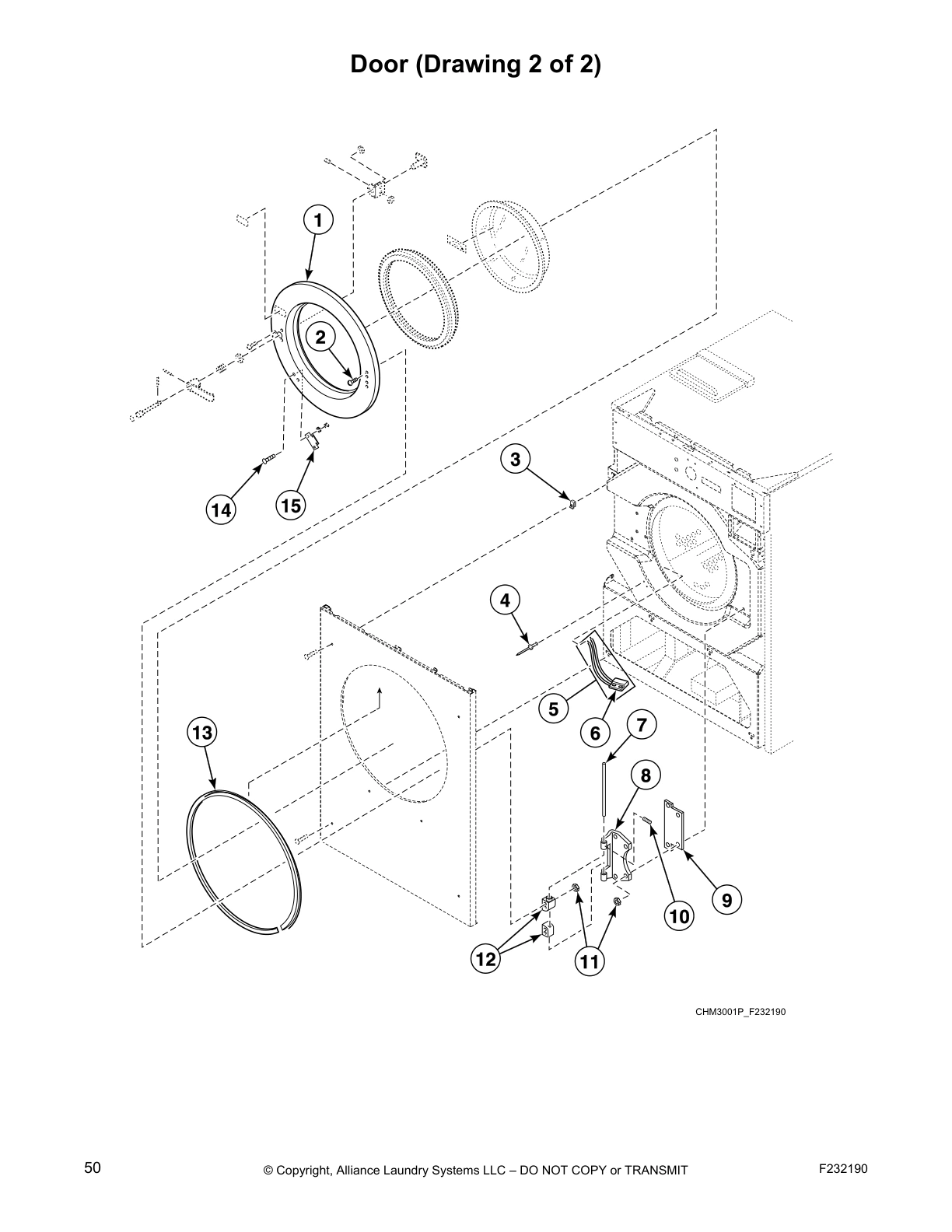

Door (Drawing 2 of 2)

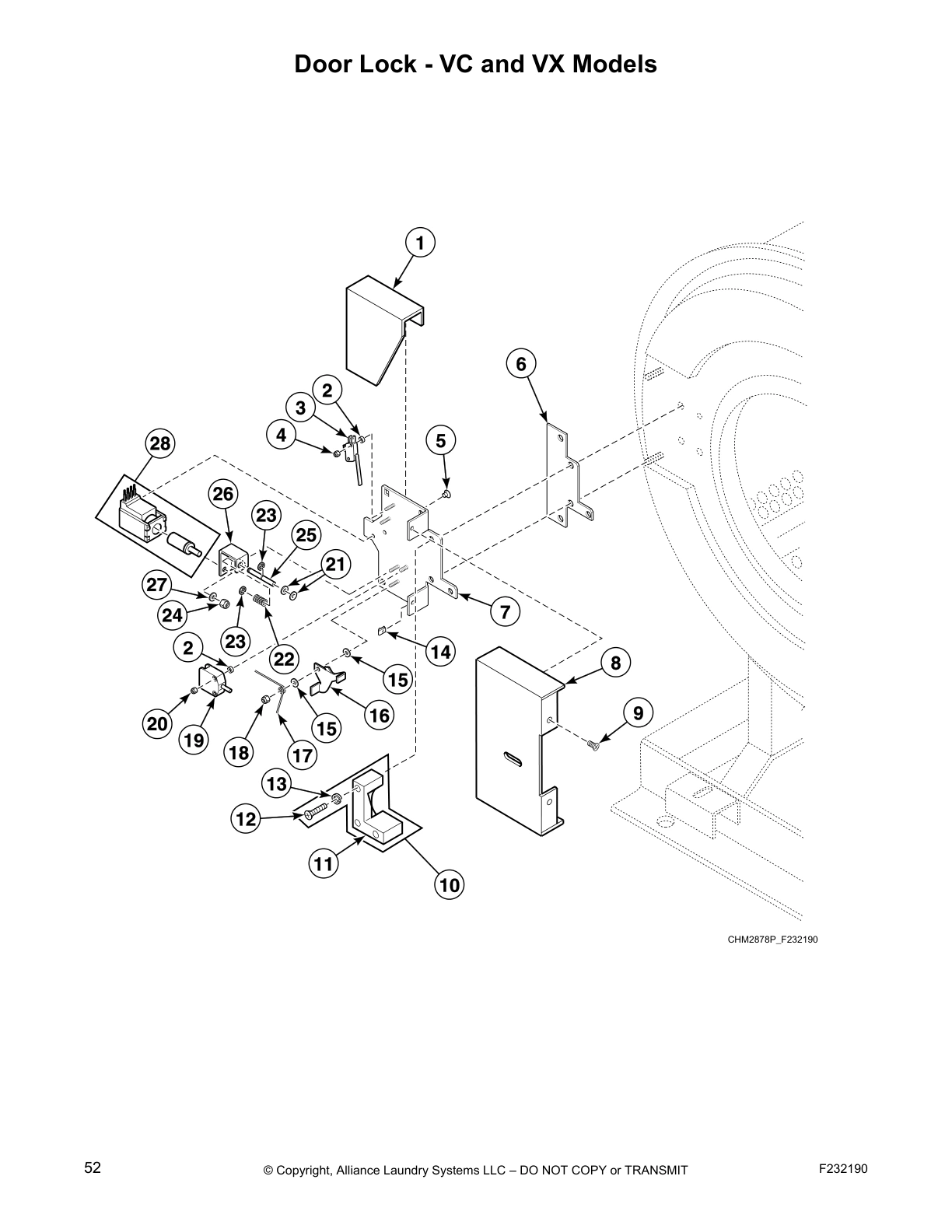

Door Lock - VC and VX Models

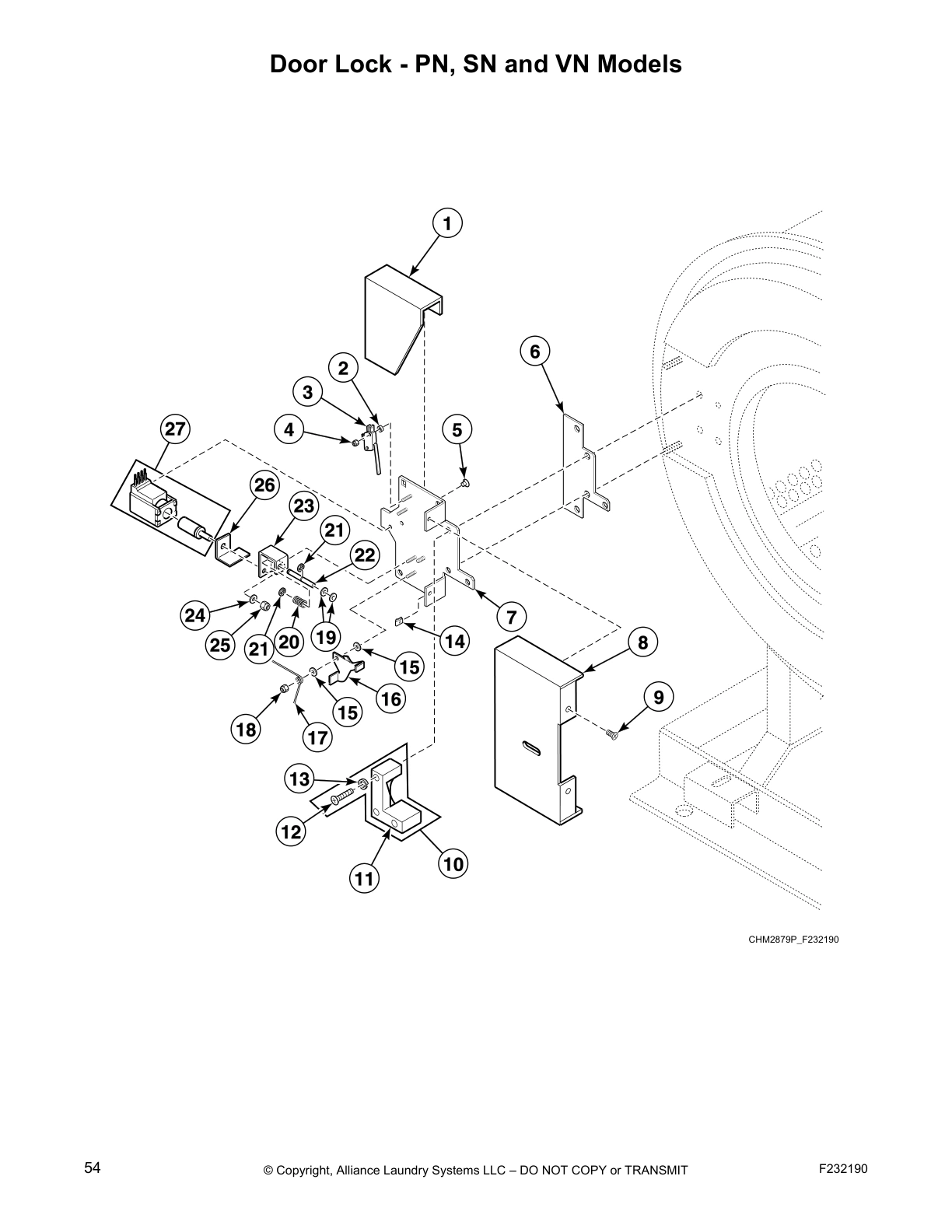

Door Lock - PN, SN and VN Models

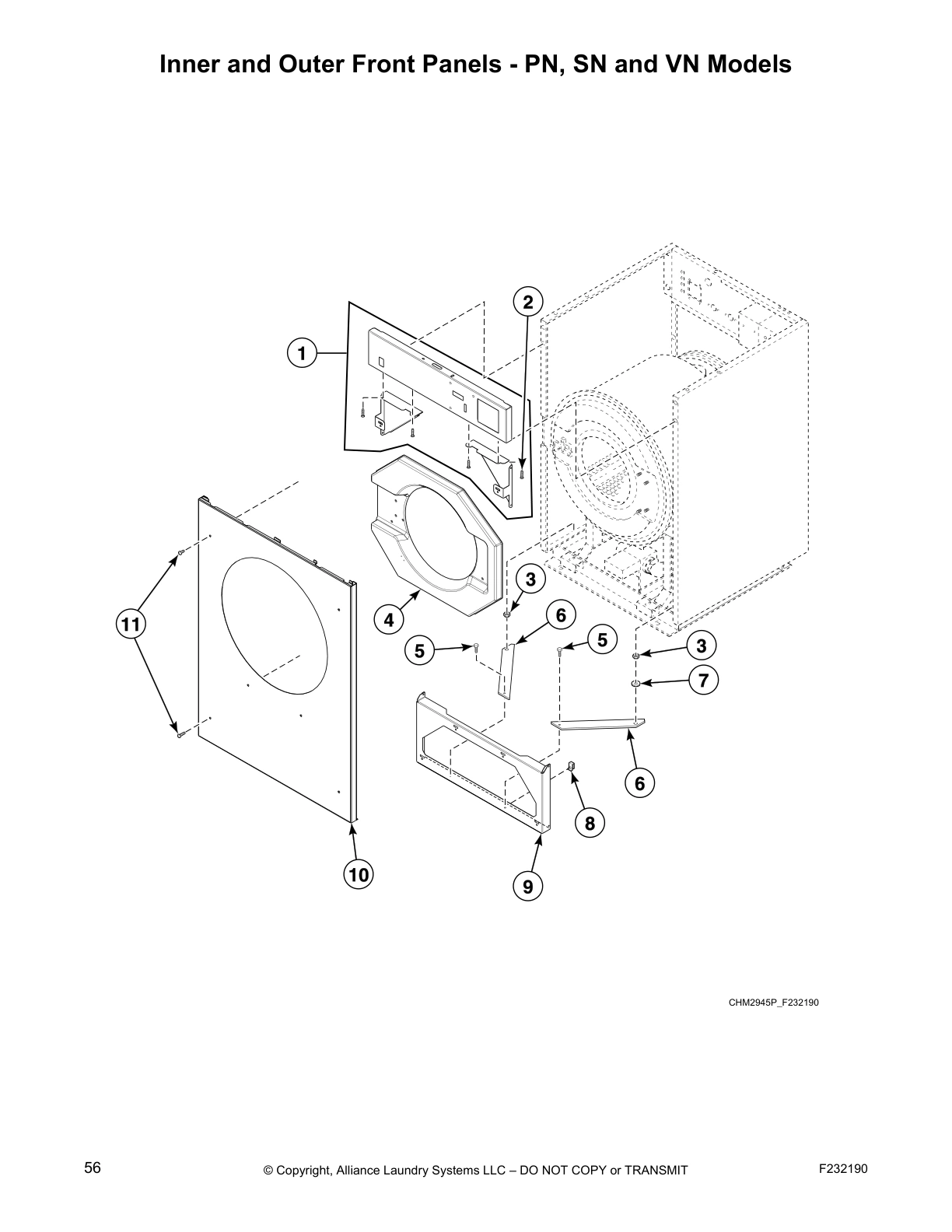

Inner and Outer Front Panels - PN, SN and VN Models

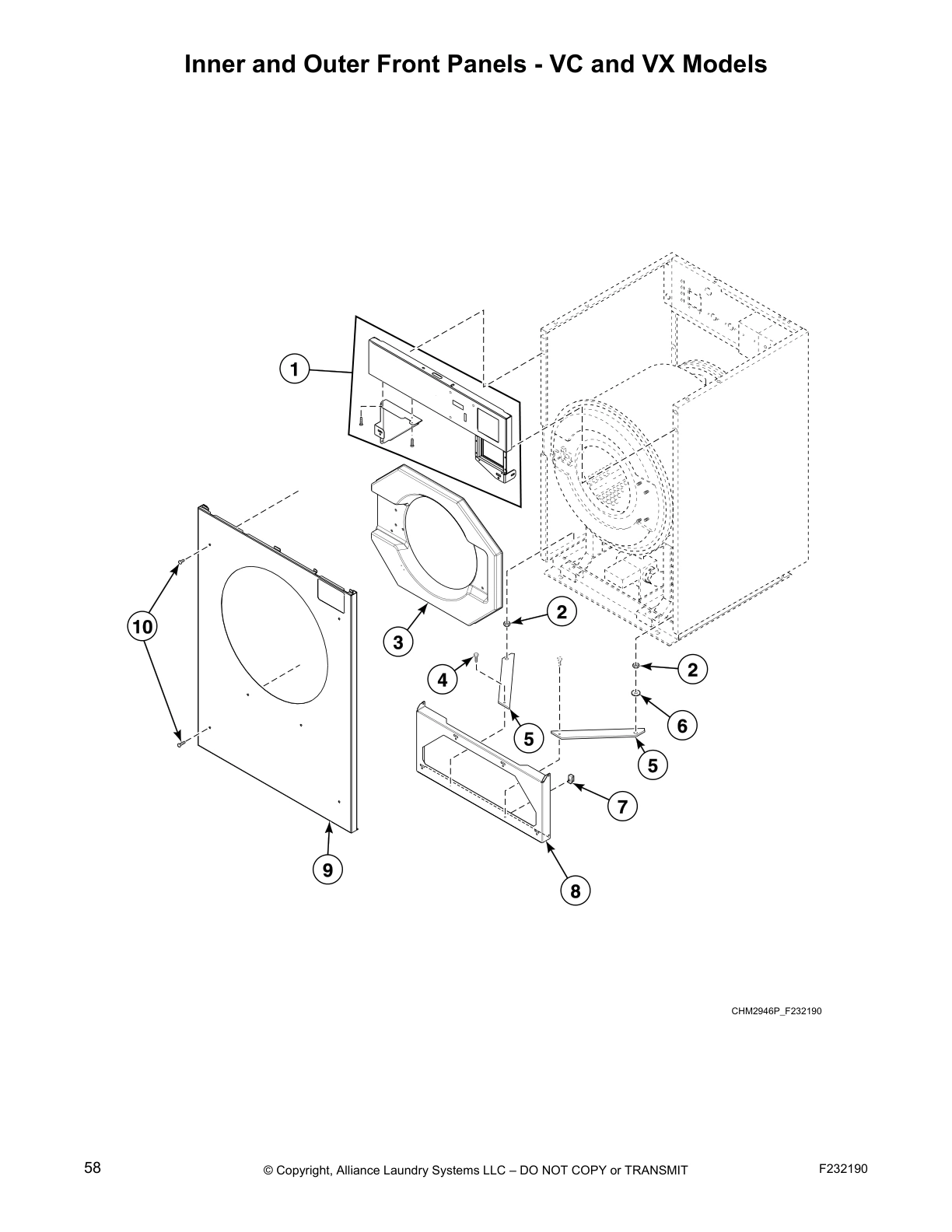

Inner and Outer Front Panels - VC and VX Models

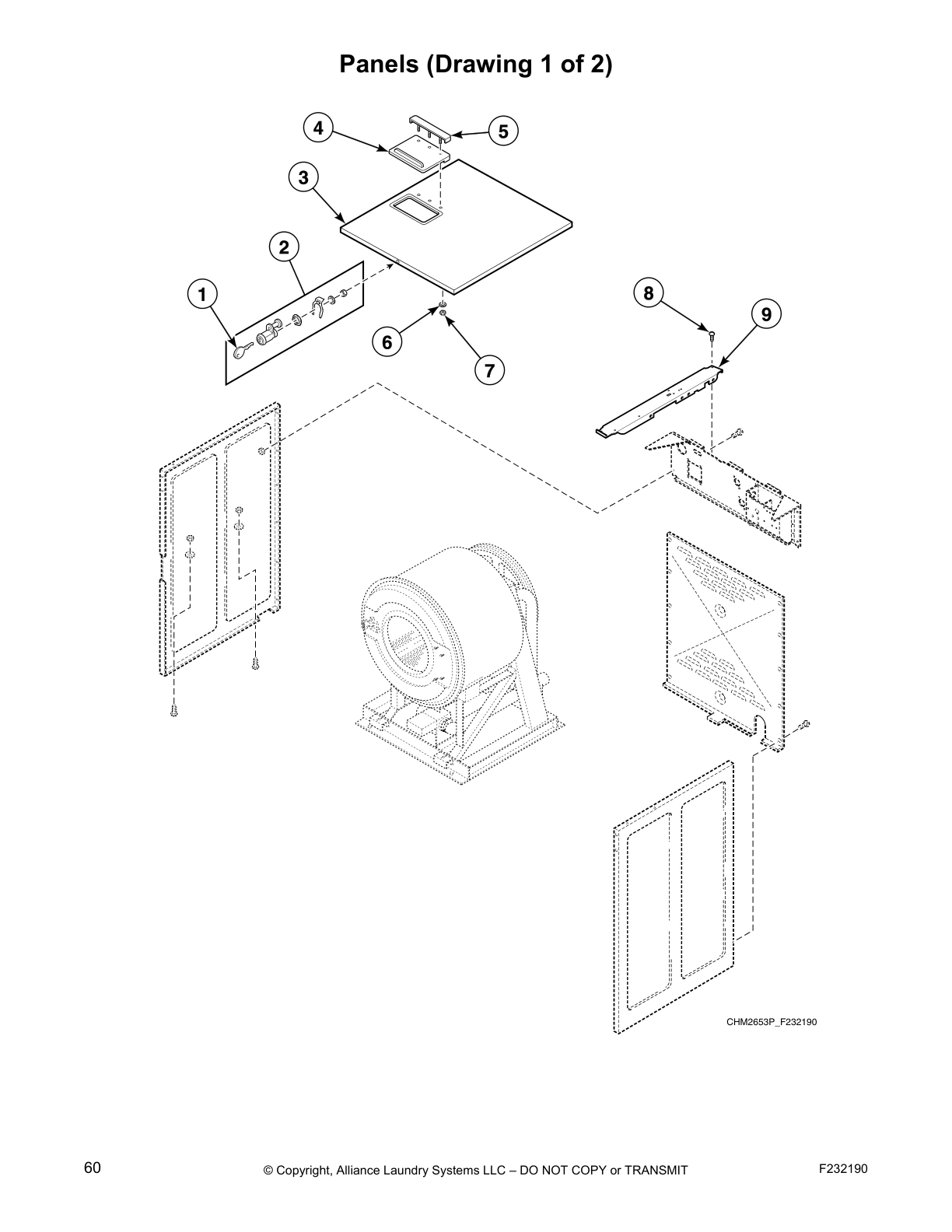

Panels (Drawing 1 of 2)

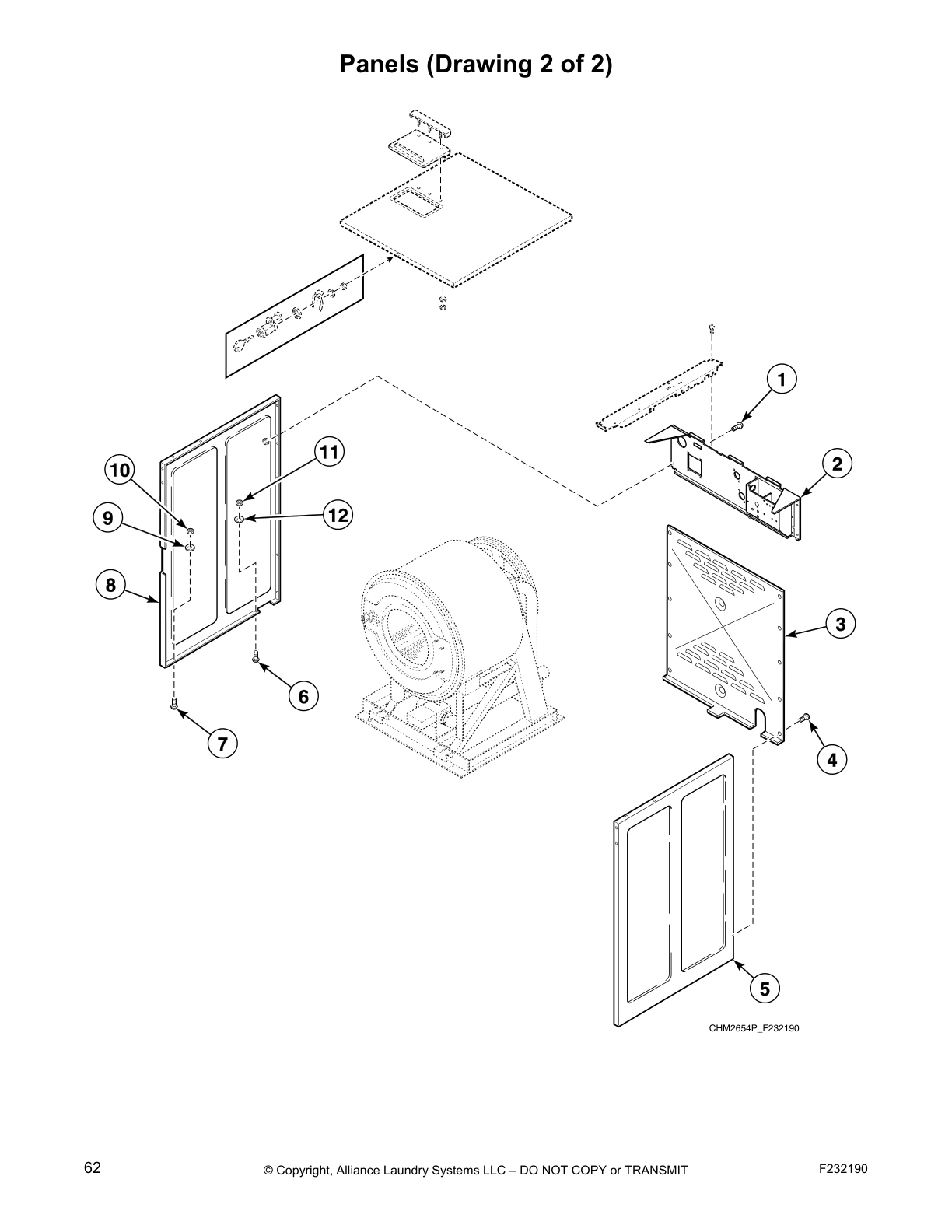

Panels (Drawing 2 of 2)

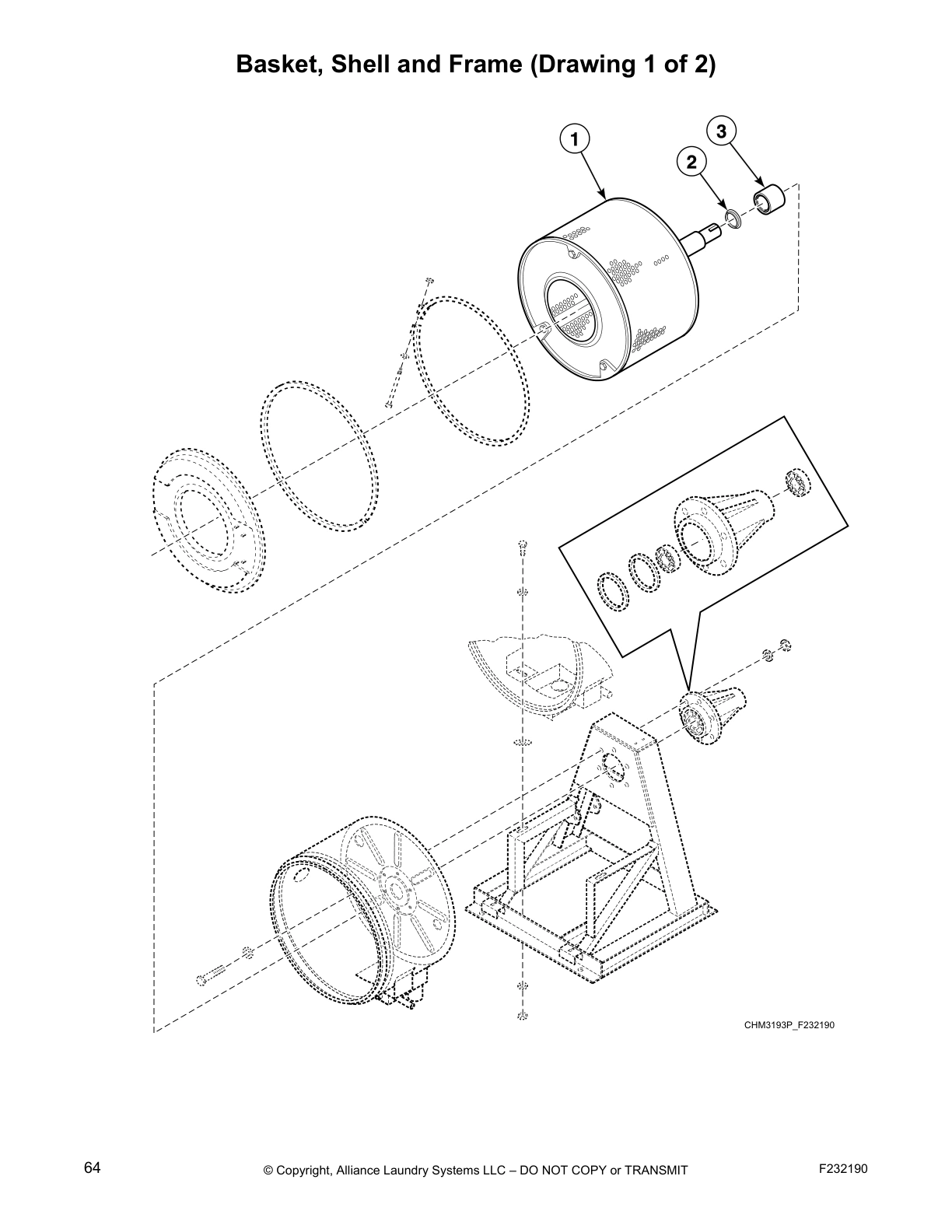

Basket, Shell and Frame (Drawing 1 of 2)

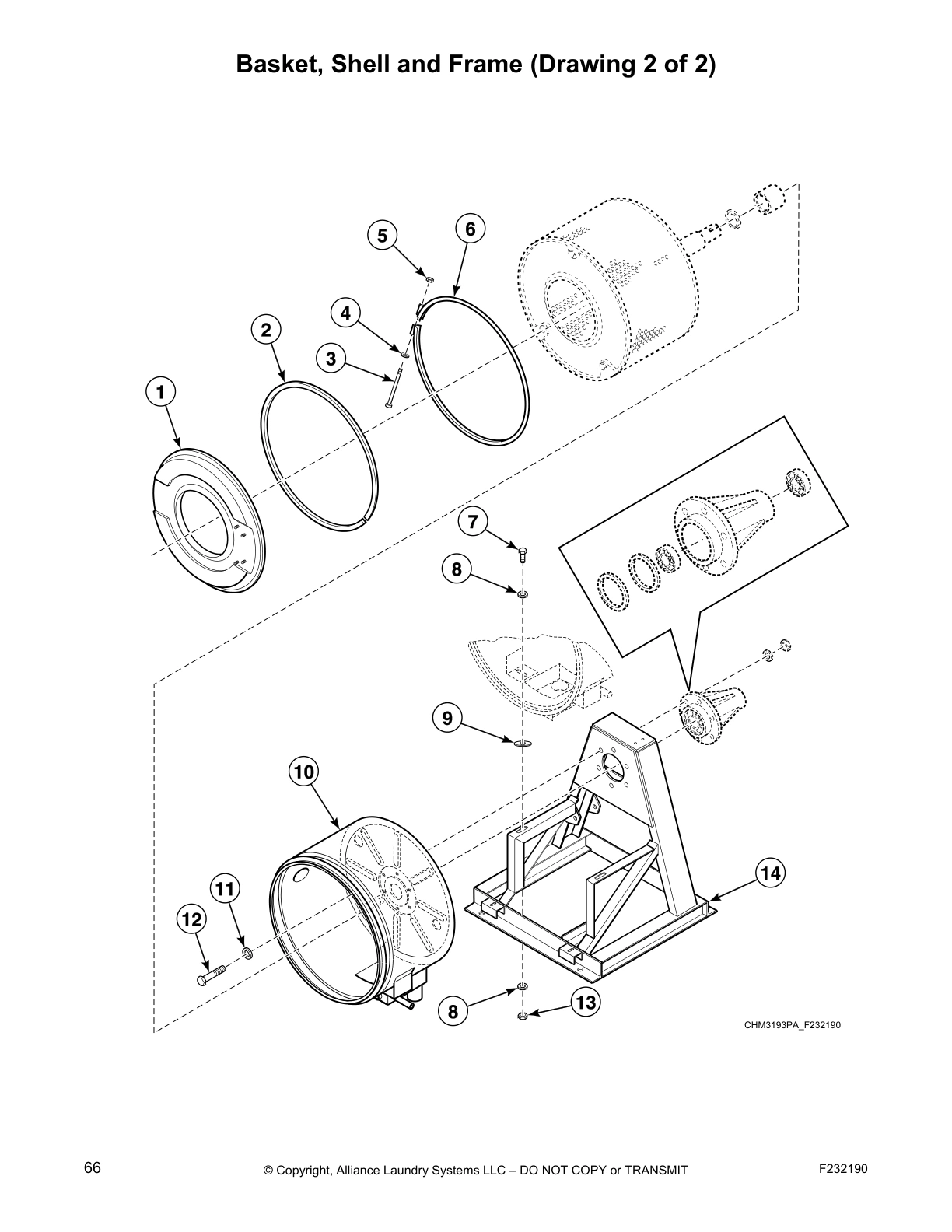

Basket, Shell and Frame (Drawing 2 of 2)

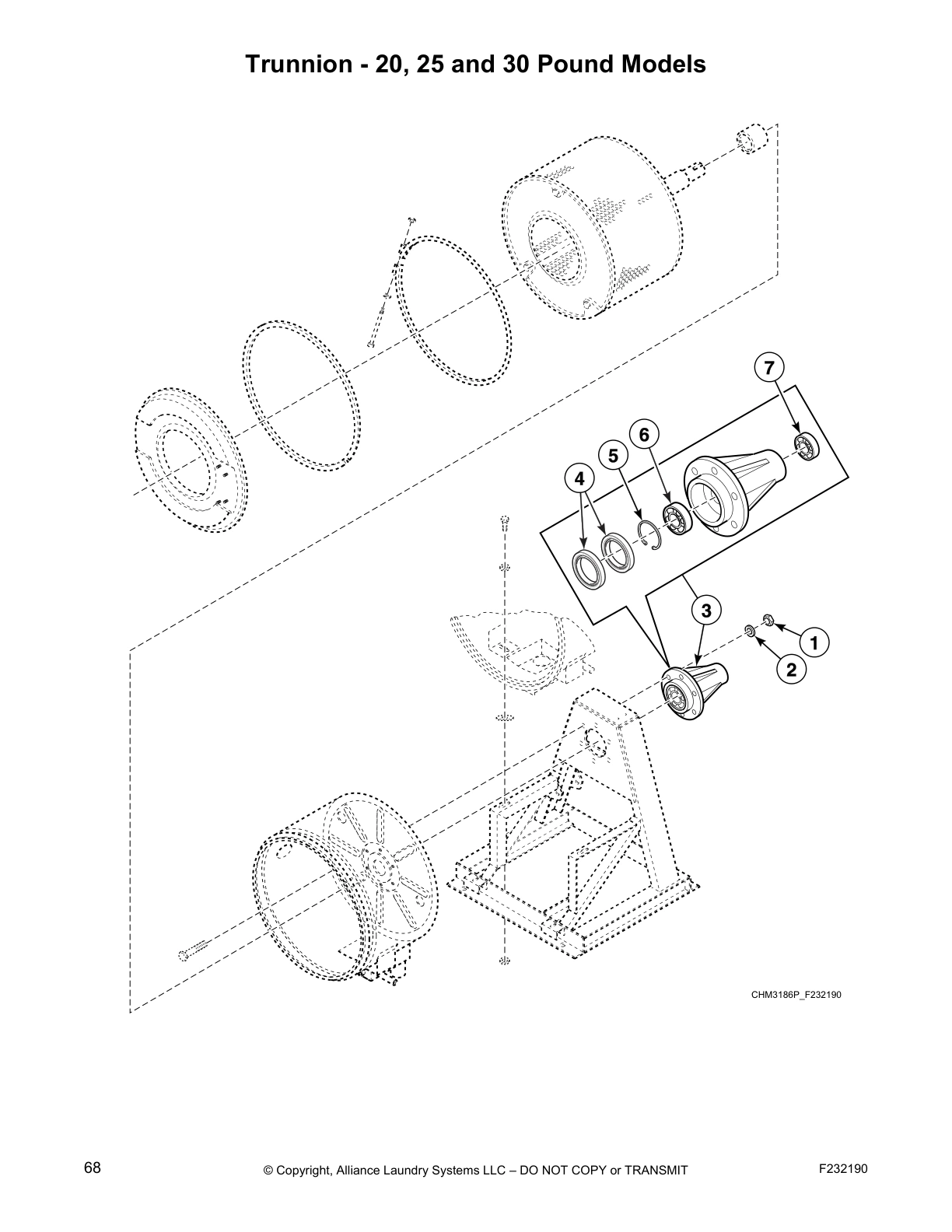

Trunnion - 20, 25 and 30 Pound Models
Trunnion - 40, 50 and 60 Pound Models

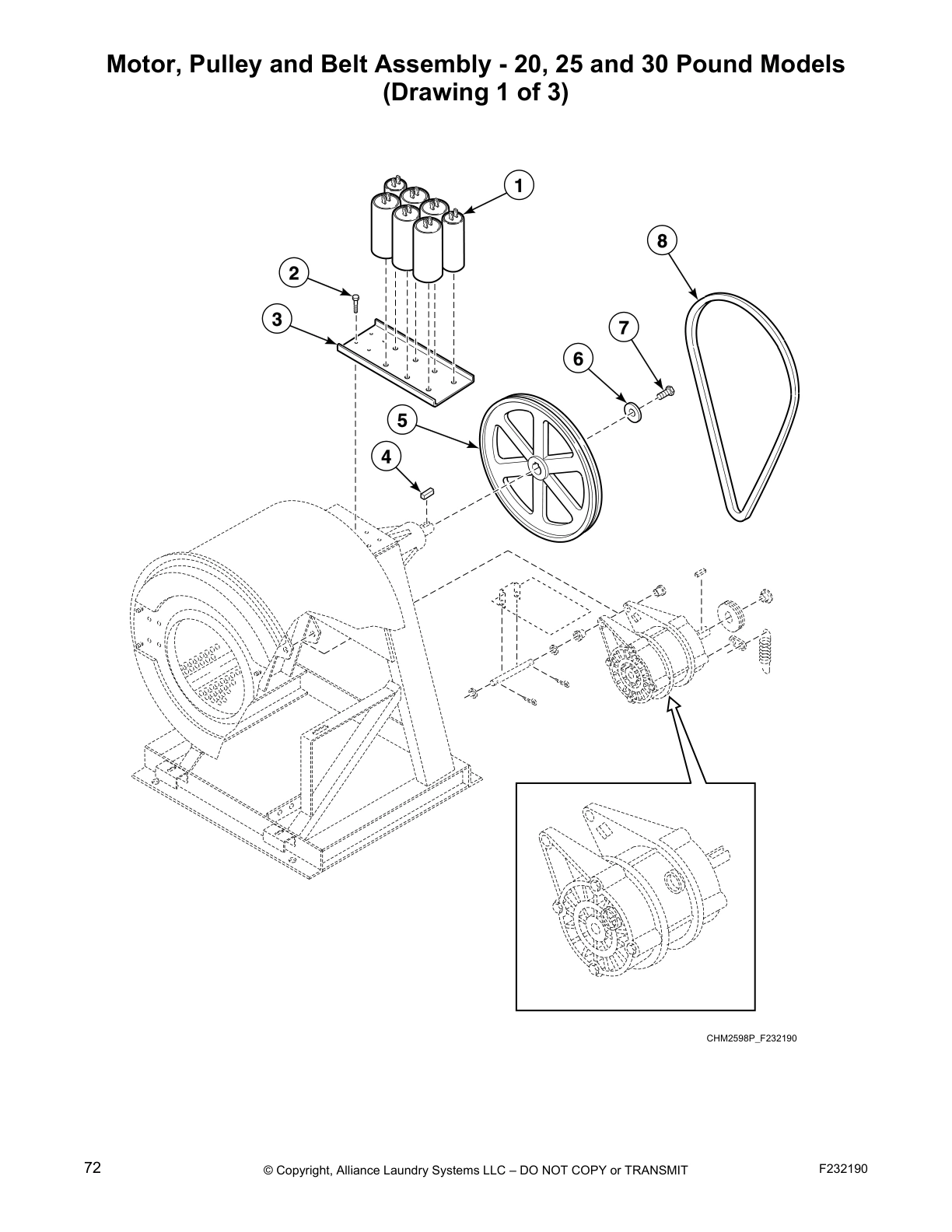

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 1 of 3)

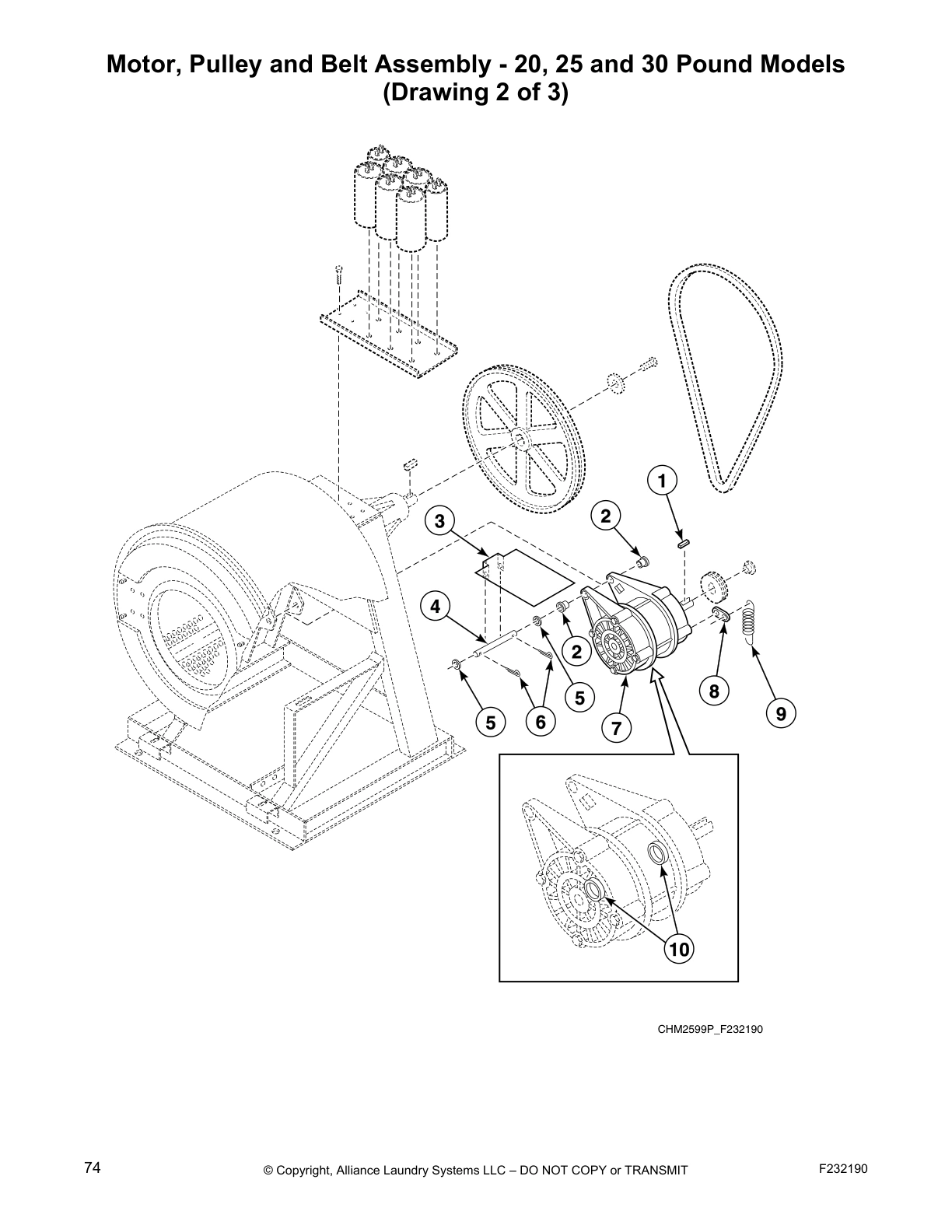

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 2 of 3)

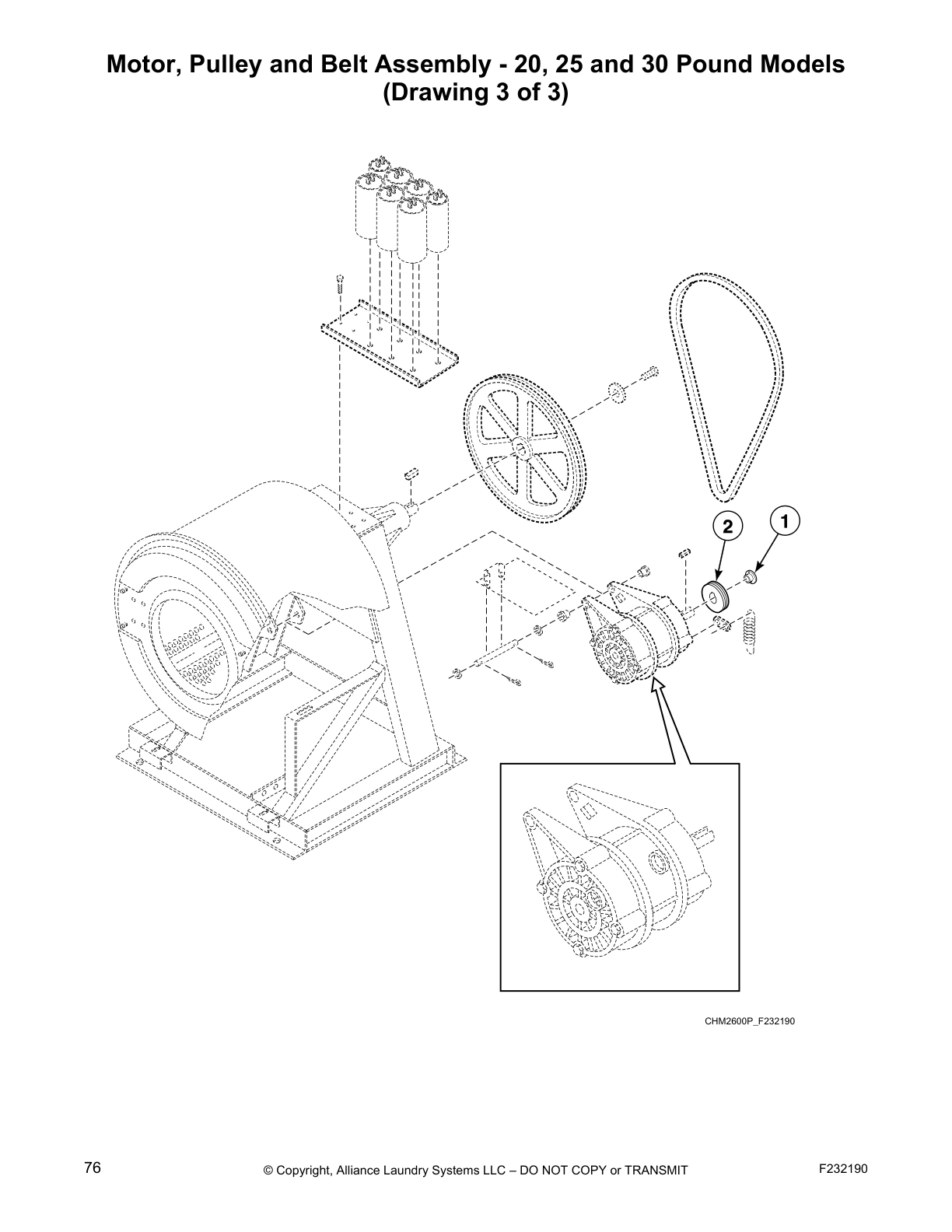

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 3 of 3)

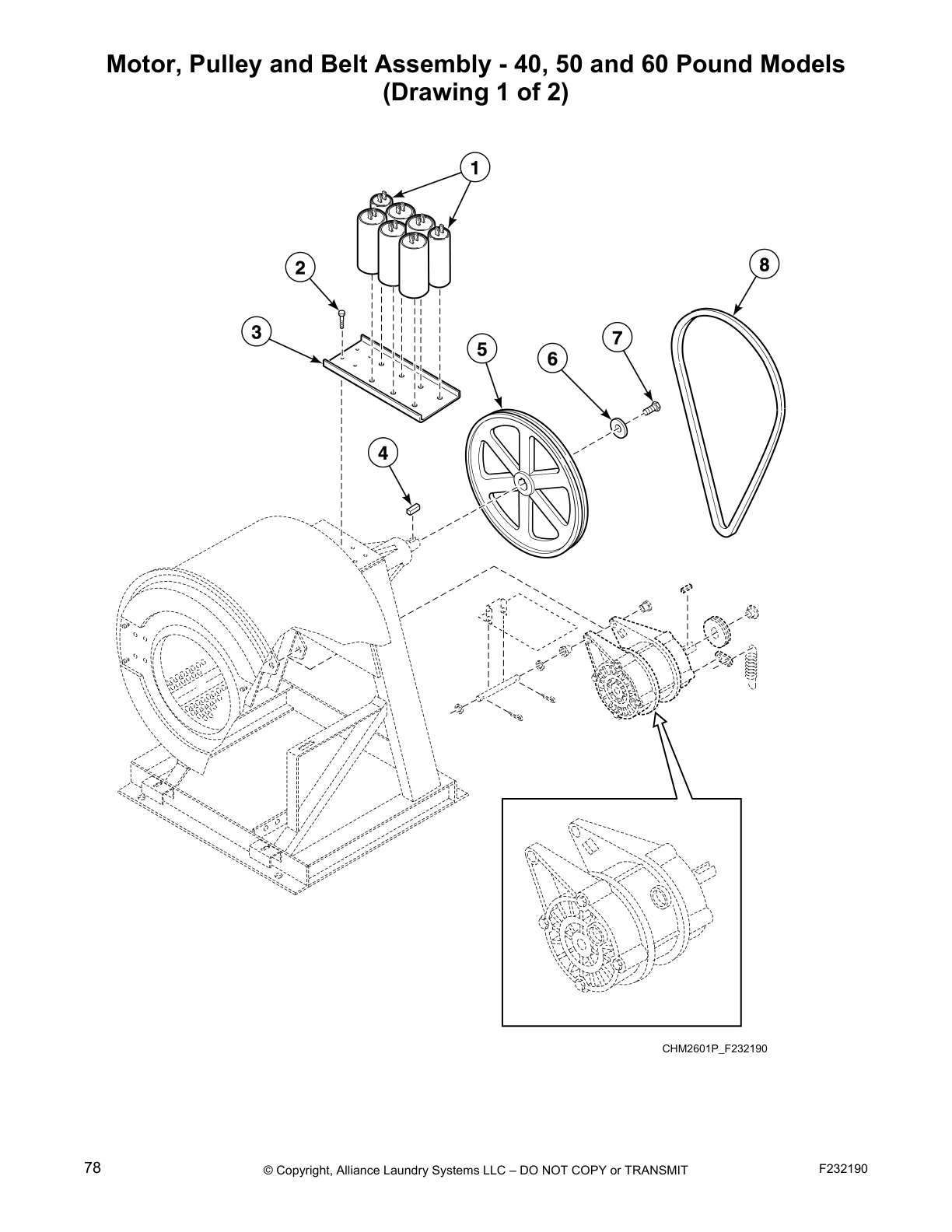

Motor, Pulley and Belt Assembly - 40, 50 and 60 Pound Models
(Drawing 1 of 2)

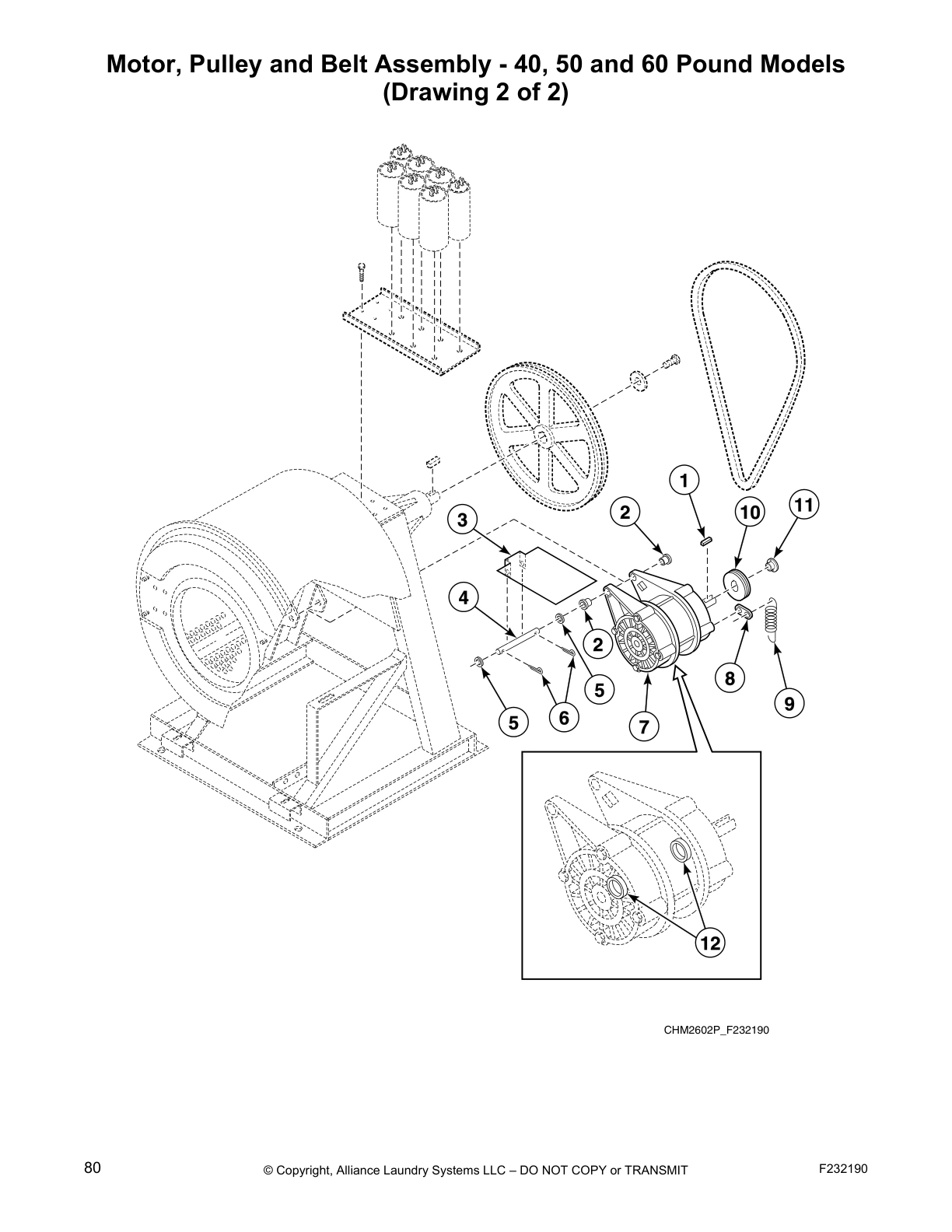

Motor, Pulley and Belt Assembly - 40, 50 and 60 Pound Models
(Drawing 2 of 2)

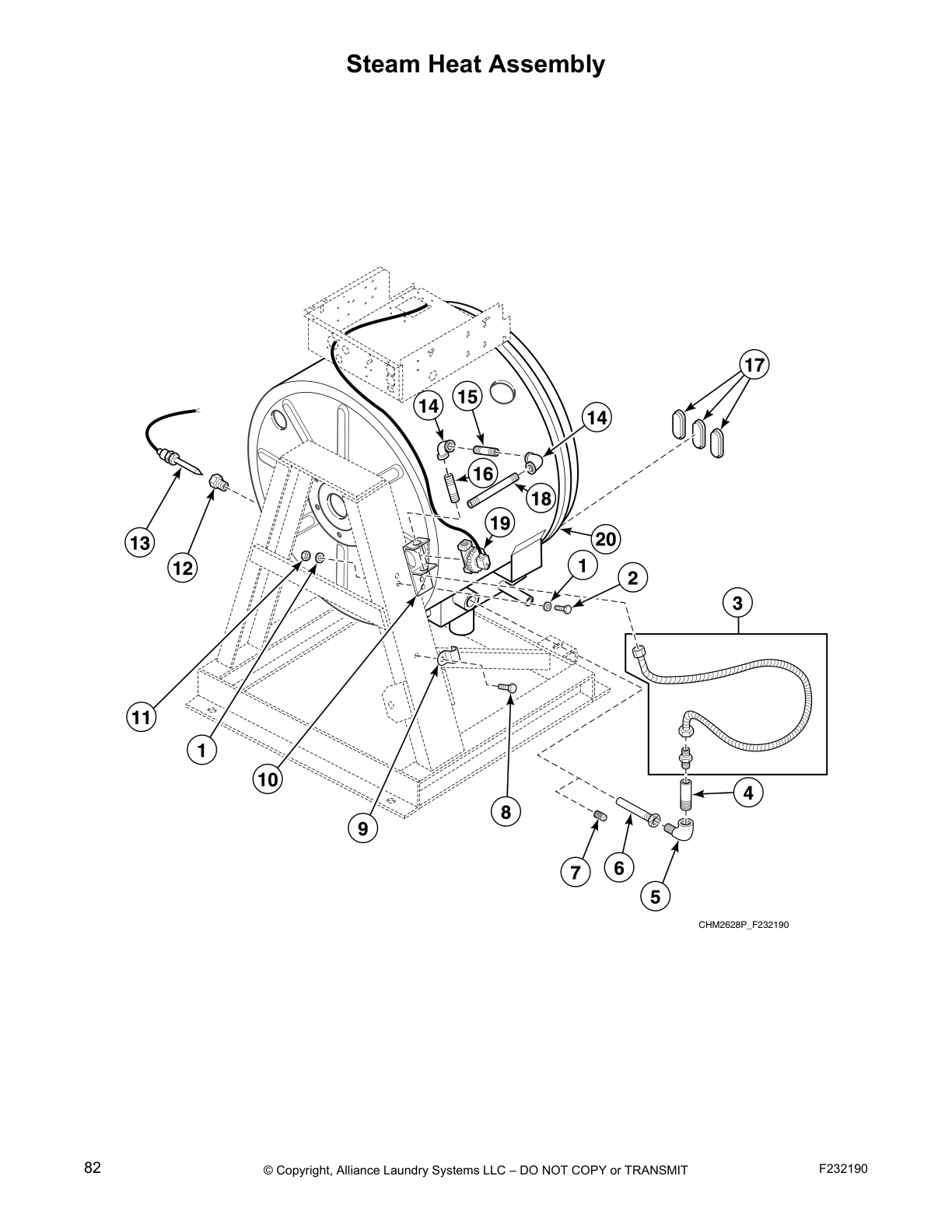

Steam Heat Assembly

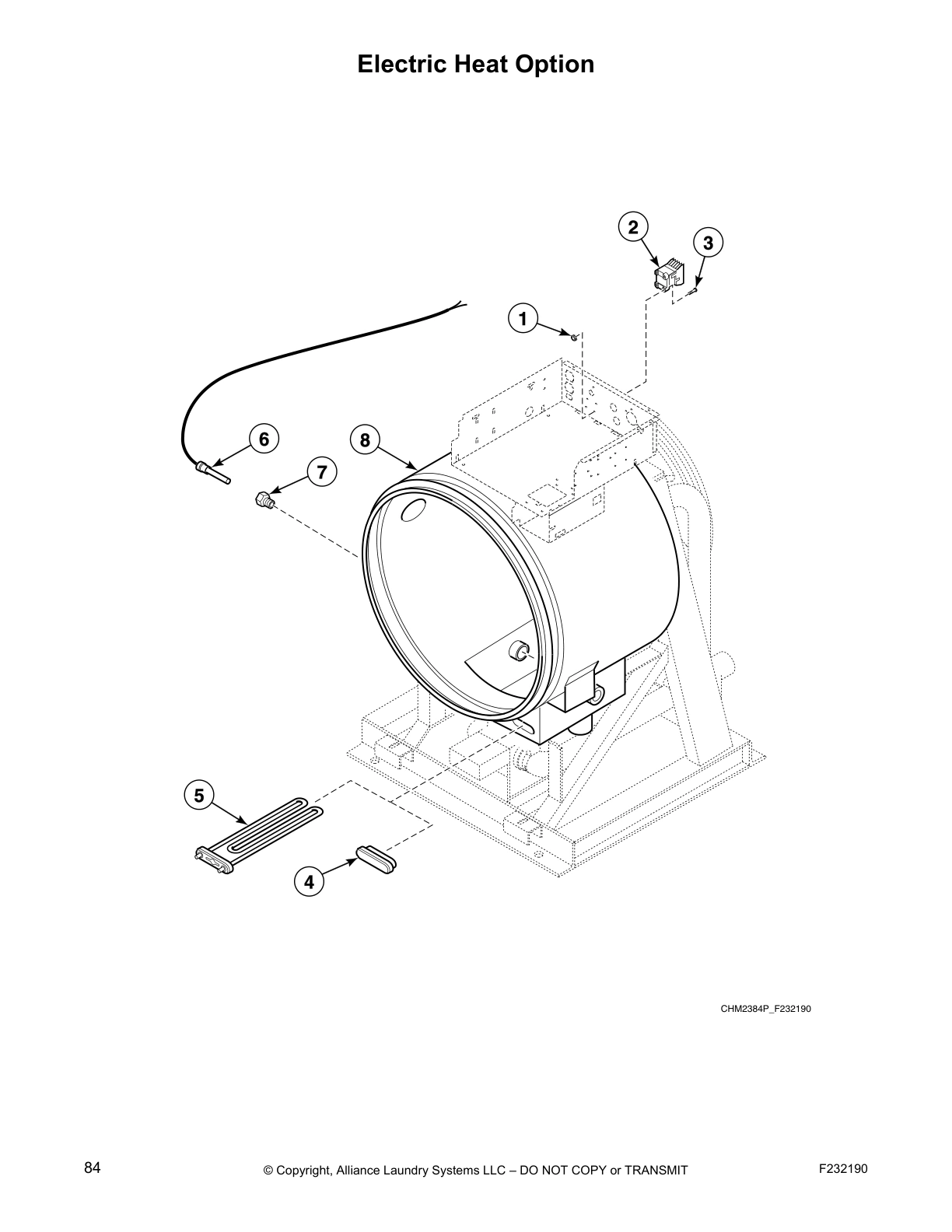

Electric Heat Option

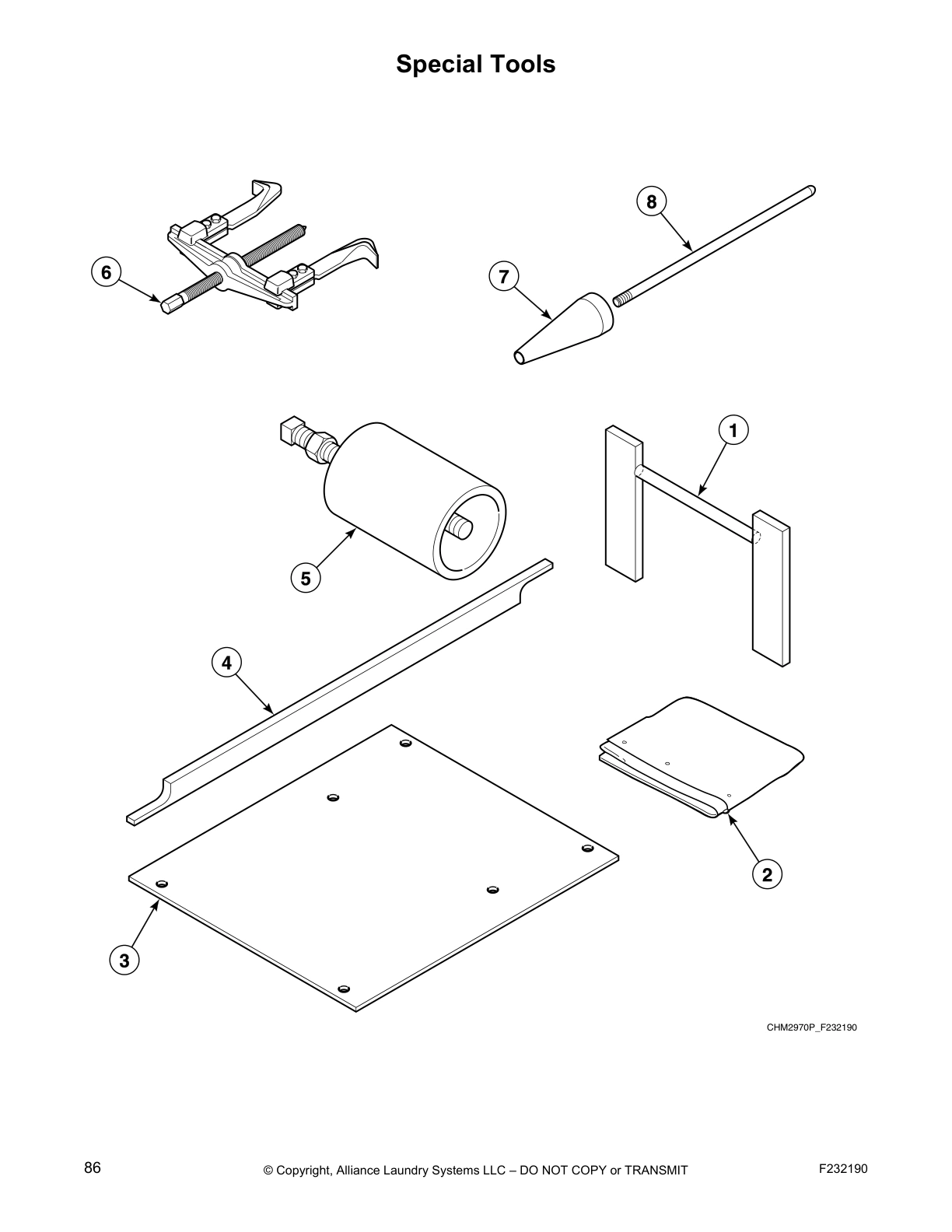

Special Tools
Common parts from model Unimac UC40VN2 Washer
Basket Tool Kit SPQ F8312003P Contact Us For Availability
SPQ F0150329-00 SPQ F0150329-00 Contact Us For Availability
SPQ F200108P SPQ F200108P Contact Us For Availability
SPQ F430948 SPQ F430948 Contact Us For Availability
SPQ F602533 SPQ F602533 Contact Us For Availability
SPQ F370117 SPQ F370117 Contact Us For Availability
SPQ F231376-5 SPQ F231376-5 Contact Us For Availability
SPQ F015033000 SPQ F015033000 Contact Us For Availability
SPQ F0430268-00 SPQ F0430268-00 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
SPQ F380972P SPQ F380972P Contact Us For Availability
SPQ F200166402 SPQ F200166402 Contact Us For Availability
SPQ F200136801 SPQ F200136801 Contact Us For Availability
SPQ F8155901P SPQ F8155901P Contact Us For Availability
SPQ F430100 SPQ F430100 Contact Us For Availability
Clip SPQ F0798912-00 Contact Us For Availability
SPQ F421936 SPQ F421936 Contact Us For Availability
Shell Weldment SPQ F0360210-00 Contact Us For Availability
1
Pressfit Upgrade Kit SPQ F938P3 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Nut SPQ F430231 Contact Us For Availability
1
3-Way Valve SPQ F0381769-00P Contact Us For Availability
1
Hose Clamp SPQ F200215 Contact Us For Availability
1
Washer SPQ F430317 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Control Panel Assembly SPQ F0636810-01 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Screw SPQ F430925 Contact Us For Availability
1
Shell Front Assembly SPQ F0636283-00P Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Capacitor SPQ F370224P Contact Us For Availability
1
Key SPQ F430802 Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Overload Contactor SPQ F330175P Contact Us For Availability
2
Screw SPQ F8071701 Contact Us For Availability
2
Capacitor SPQ F370218P Contact Us For Availability
2
Coin Box SPQ F160421 Contact Us For Availability
2
Fuse Holder SPQ F0140798-00P Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Supply Dispenser Hose SPQ F150419 Contact Us For Availability
2
Plug SPQ F609694 Contact Us For Availability
2
Pushbutton Rod SPQ F150225 Contact Us For Availability
2
Blind Rivet SPQ F430969 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F431901 Contact Us For Availability
2
Nut SPQ F430137 Contact Us For Availability
2
Valve Panel Assembly SPQ F0636524-03 Contact Us For Availability
2
Basket Assembly SPQ F8391701P Contact Us For Availability
2
Shell Front Gasket Kit SPQ F200195300 Contact Us For Availability
2
Washer SPQ F431131 Contact Us For Availability
2
Shell Weldment SPQ F430108 Contact Us For Availability
2
Bushing SPQ F100124 Contact Us For Availability
2
Contactor SPQ F330178P Contact Us For Availability
3
Door Lock Kit SPQ F0300131-00P Contact Us For Availability
3
Screw SPQ F8411901 Contact Us For Availability
3
Bezel Gasket SPQ F730168 Contact Us For Availability
3
Fuse Holder Bracket SPQ F350115 Contact Us For Availability
3
U-Bolt Clamp
Includes nuts SPQ F200217 Contact Us For Availability
3
Spring Pin SPQ F320300 Contact Us For Availability
3
Top Cover Assembly SPQ F063664000P Contact Us For Availability
3
Rear Panel SPQ F0636524-01 Contact Us For Availability
3
Excluder Seal SPQ F8337001 Contact Us For Availability
3
Screw SPQ F0636108-00 Contact Us For Availability
3
Trunnion Kit SPQ F747003 Contact Us For Availability
3
Motor Bearing SPQ F200186100 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F0637047-00 Contact Us For Availability
4
Door Lock Assembly SPQ F200203200 Contact Us For Availability
4
Triple Lip Seal SPQ F8203802 Contact Us For Availability
4
Washer SPQ F792000 Contact Us For Availability
4
Screw SPQ F431222 Contact Us For Availability
4
Washer SPQ F0350312-10 Contact Us For Availability
4
Strainer SPQ F200202201P Contact Us For Availability
4
SPQ F020014200 SPQ F020014200 Contact Us For Availability
4
Pipe SPQ F150343 Contact Us For Availability
4
Magnetic Switch SPQ J1111905 Contact Us For Availability
4
Cabinet Corner Stiffener SPQ F8659101 Contact Us For Availability
4
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
4
Right Side Panel SPQ F0636220-00P Contact Us For Availability
4
Trunnion Kit SPQ F747002 Contact Us For Availability
4
Capacitor Mounting Bracket SPQ F8411801 Contact Us For Availability
4
Motor Support Bushing SPQ F200280700 Contact Us For Availability
4
Steam Injector Tube Assemb SPQ F410300 Contact Us For Availability
5
Nut SPQ F180506 Contact Us For Availability
5
Side Panel SPQ F430174 Contact Us For Availability
5
Vacuum Breaker Top SPQ F602374 Contact Us For Availability
5
Drain Valve Kit SPQ F380933P Contact Us For Availability
5
Overflow Hose SPQ F150321 Contact Us For Availability
5
Pump Drain Rear Connecting Bracket SPQ F200401P Contact Us For Availability
5
Push Red Button Decal SPQ F431916 Contact Us For Availability
5
Rod SPQ F8245101 Contact Us For Availability
5
Door Lock Assembly SPQ F430225 Contact Us For Availability
5
Washer SPQ F200168900 Contact Us For Availability
5
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
5
Shell Band Kit SPQ F430518 Contact Us For Availability
5
Triple Lip Seal SPQ F8203803 Contact Us For Availability
5
Motor Drip Shield SPQ F200216900 Contact Us For Availability
5
Plug SPQ F200153P Contact Us For Availability
5
Screw SPQ F330182 Contact Us For Availability
6
Bearing SPQ F100108 Contact Us For Availability
6
Vacuum Breaker Assembly SPQ F150390 Contact Us For Availability
6
Water Hose SPQ F231271 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
Transformer
PN and SN models starting 7/2/04 SPQ F603827-1 Contact Us For Availability
6
Door Spacer SPQ F8535601 Contact Us For Availability
6
Door Hinge SPQ F200321200 Contact Us For Availability
6
SPQ F430977 SPQ F430977 Contact Us For Availability
6
Washer SPQ F431147 Contact Us For Availability
6
Left Side Panel SPQ F8155701P Contact Us For Availability
6
Pulley SPQ F200033500 Contact Us For Availability
6
Motor Support Rod SPQ F603059 Contact Us For Availability
6
SPQ F8368201 SPQ F8368201 Contact Us For Availability
6
Heating Element Plug SPQ F330179P Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
Bearing SPQ F100123P Contact Us For Availability
7
Input Power Connection Box Cover SPQ F0200244-00 Contact Us For Availability
7
Drain Tee SPQ F0200238-00 Contact Us For Availability
7
Transformer
VC and VX models SPQ F604147 Contact Us For Availability
7
Washer SPQ 901690 Contact Us For Availability
7
Screw SPQ F230661 Contact Us For Availability
7
Door Hinge Shim Kit SPQ F0340723-00 Contact Us For Availability
7
SPQ F8059701 SPQ F8059701 Contact Us For Availability
7
SPQ F0635981-00P SPQ F0635981-00P Contact Us For Availability
7
Bearing SPQ F8337801 Contact Us For Availability
7
Washer SPQ F430801 Contact Us For Availability
7
SPQ F200202600 SPQ F200202600 Contact Us For Availability
7
Heating Element SPQ F330180P Contact Us For Availability
7
Basket Guide Cone Tool SPQ 397P4 Contact Us For Availability
8
Resistor SPQ F633512 Contact Us For Availability
8
Temperature Probe SPQ F430916 Contact Us For Availability
8
Y Connector SPQ F0150503-00 Contact Us For Availability
8
PN and SN models B Y-voltage SPQ F430910 Contact Us For Availability
8
SPQ F431041 SPQ F431041 Contact Us For Availability
8
Door Assembly SPQ F602813-3 Contact Us For Availability
8
SPQ F8066701 SPQ F8066701 Contact Us For Availability
8
SPQ F0636217-00 SPQ F0636217-00 Contact Us For Availability
8
SPQ F8537803 SPQ F8537803 Contact Us For Availability
8
Cotter Pin SPQ F430401 Contact Us For Availability
8
Belt SPQ F280197 Contact Us For Availability
8
SPQ F430115 SPQ F430115 Contact Us For Availability
8
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
9
SPQ F150398 SPQ F150398 Contact Us For Availability
9
SPQ F430107 SPQ F430107 Contact Us For Availability
9
PN and SN models through 7/ H-voltage SPQ F360156P Contact Us For Availability
9
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
9
SPQ F190216P SPQ F190216P Contact Us For Availability
9
SPQ F603003 SPQ F603003 Contact Us For Availability
9
Cabinet Brace SPQ F0636218-00 Contact Us For Availability
9
SPQ F430942 SPQ F430942 Contact Us For Availability
9
Motor SPQ F8597801P Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Terminal SPQ F140766 Contact Us For Availability
10
Nut SPQ F0381766-00P Contact Us For Availability
10
Hose Clamp SPQ F0200239-00 Contact Us For Availability
10
Transformer Mounting Bracket SPQ F200167700 Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Screw SPQ F430536 Contact Us For Availability
10
Front Panel SPQ F8200502P Contact Us For Availability
10
Nut SPQ F431024 Contact Us For Availability
10
Shell Weldment SPQ F063597402P Contact Us For Availability
10
Pulley SPQ F280105P Contact Us For Availability
10
Steam Bracket Assembly SPQ F601186 Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
O-Ring SPQ F0381765-00P Contact Us For Availability
11
Nut SPQ F430215 Contact Us For Availability
11
Rear Drain Hose SPQ F200185300 Contact Us For Availability
11
Spin Rotation Decal SPQ F230914 Contact Us For Availability
11
Washer SPQ F430233 Contact Us For Availability
11
Washer SPQ F200195402 Contact Us For Availability
11
Sheave SPQ F0280385-00 Contact Us For Availability
12
Door Mount SPQ F150271 Contact Us For Availability
12
Power Distribution Block SPQ F430903 Contact Us For Availability
12
Supply Dispenser Standoff SPQ F0381750-00P Contact Us For Availability
12
Drain Hose SPQ F430103 Contact Us For Availability
12
Screw SPQ F430217 Contact Us For Availability
12
Counterclockwise Spin Rotation Decal SPQ F230693 Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Valve Panel Sub-Assembly SPQ M405535 Contact Us For Availability
12
Sheave SPQ F280225P Contact Us For Availability
13
Injection Nozzle SPQ F0381738-00P Contact Us For Availability
13
Input Power Block SPQ M413865 Contact Us For Availability
13
Screw SPQ F200185200 Contact Us For Availability
13
Door Glass SPQ F8485401P Contact Us For Availability
13
Trim SPQ F8679201P Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Nut SPQ F430987 Contact Us For Availability
14
Pump
220 Volt/60 Hertz SPQ F270119P Contact Us For Availability
14
Door Gasket SPQ F170124 Contact Us For Availability
14
Input Block SPQ F140748 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Injection Nozzle Kit SPQ F0381737-00P Contact Us For Availability
14
Front Drain Hose SPQ F0200240-00 Contact Us For Availability
14
Elbow SPQ 70079601 Contact Us For Availability
15
Bolt SPQ F8390801 Contact Us For Availability
15
Input Terminal Block SPQ F0140799-00 Contact Us For Availability
15
Supply Dispenser Assembly SPQ F0381736-00P Contact Us For Availability
15
Nut SPQ F017012402 Contact Us For Availability
15
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
15
Nipple SPQ F420708 Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Pump
220 Volt/50 Hertz SPQ F200000900P Contact Us For Availability
16
Ground Terminal Lug SPQ F0140795-00 Contact Us For Availability
16
Washer SPQ F431022 Contact Us For Availability
16
Pipe Nipple SPQ 70435601 Contact Us For Availability
17
Spacer SPQ F310110 Contact Us For Availability
17
Door Lock Spring SPQ F431113 Contact Us For Availability
17
Snap Bushing SPQ F140747 Contact Us For Availability
17
Supply Dispenser Baffle SPQ F200222 Contact Us For Availability
17
Pump Drain Trap Mounting Bracket SPQ F270104P Contact Us For Availability
18
Grommet SPQ F140746 Contact Us For Availability
18
Screw SPQ F0150504-00 Contact Us For Availability
18
Door Lock Pin Release Spring SPQ F430232 Contact Us For Availability
18
Door Handle SPQ F310125 Contact Us For Availability
18
DIN Valve Kit SPQ 70214101 Contact Us For Availability
19
Fuse SPQ F140755 Contact Us For Availability
19
Overflow Plug SPQ F430519 Contact Us For Availability
19
Screw SPQ F8521601 Contact Us For Availability
20
Standoff SPQ F140734 Contact Us For Availability
20
Hose Clamp
No. 40 SPQ F150352 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F310137 Contact Us For Availability
21
External Supply Fuse Decal SPQ F140938 Contact Us For Availability
21
Tubing SPQ F150443 Contact Us For Availability
21
Door Lock Retainer Latch SPQ F310205 Contact Us For Availability
22
Vacuum Breaker Hose SPQ F170615 Contact Us For Availability
22
Washer SPQ F200213 Contact Us For Availability
22
Door Release Solenoid SPQ F431231 Contact Us For Availability
23
Hose Clamp SPQ F606192-5 Contact Us For Availability
23
Door Lock Solenoid SPQ F150455 Contact Us For Availability
24
Door Lock Microswitch SPQ F431017 Contact Us For Availability
25
Ribbon Cable SPQ F8134602P Contact Us For Availability
25
Door Lock Plate Shim SPQ F431123 Contact Us For Availability
26
Door Lock Plate Assembly SPQ F0636103-00 Contact Us For Availability
27
Door Lock Assembly Cover SPQ F300128P Contact Us For Availability
NI
SPQ F200166302 SPQ F200166302 Contact Us For Availability
NI
SPQ F603031 SPQ F603031 Contact Us For Availability
NI
SPQ F037044860-2 SPQ F037044860-2 Contact Us For Availability
NI
SPQ F160420 SPQ F160420 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ F200139500 SPQ F200139500 Contact Us For Availability
NI
SPQ F370116 SPQ F370116 Contact Us For Availability
NI
SPQ F231376-6 SPQ F231376-6 Contact Us For Availability
NI
SPQ F231376-2 SPQ F231376-2 Contact Us For Availability
NI
SPQ F231376-1 SPQ F231376-1 Contact Us For Availability
NI
SPQ F430177 SPQ F430177 Contact Us For Availability
NI
SPQ F422808 SPQ F422808 Contact Us For Availability
NI
SPQ F190303 SPQ F190303 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
Drain Valve Cover SPQ F380943P Contact Us For Availability
NI
SPQ F200133600 SPQ F200133600 Contact Us For Availability
NI
Drain Motor SPQ F8577201 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
SPQ F200131000P SPQ F200131000P Contact Us For Availability
NI
SPQ F060390105 SPQ F060390105 Contact Us For Availability
NI
SPQ F0798839-01 SPQ F0798839-01 Contact Us For Availability
NI
SPQ F200136800P SPQ F200136800P Contact Us For Availability
NI
SPQ F0798839-00 SPQ F0798839-00 Contact Us For Availability
NI
SPQ F0635982-00P SPQ F0635982-00P Contact Us For Availability
NI
SPQ F0430348-00 SPQ F0430348-00 Contact Us For Availability
NI
Shaft Seal Sleeve SPQ F8312006P Contact Us For Availability
NI
Shaft Seal Sleeve Kit SPQ F8312005P Contact Us For Availability
NI
SPQ F8343906P SPQ F8343906P Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
SPQ F430303 SPQ F430303 Contact Us For Availability
NI
Extension Spring SPQ F601515 Contact Us For Availability
NI
SPQ F310124 SPQ F310124 Contact Us For Availability
NI
SPQ F431115 SPQ F431115 Contact Us For Availability
NI
SPQ F280342 SPQ F280342 Contact Us For Availability
NI
SPQ F280341 SPQ F280341 Contact Us For Availability
NI
Motor Retrofit Kit SPQ F8597502P Contact Us For Availability
NI
SPQ F8196202 SPQ F8196202 Contact Us For Availability
NI
SPQ F370606P SPQ F370606P Contact Us For Availability
NI
Reducer Bushing SPQ F360202 Contact Us For Availability
NI
SPQ F8196204 SPQ F8196204 Contact Us For Availability
× ![]()
