Model Unimac UC35MD3 Washer – Common Parts & Diagrams
Decals
Control Module - MC, MD, MH, MN, MV and MX Models
(Drawing 1 of 2)

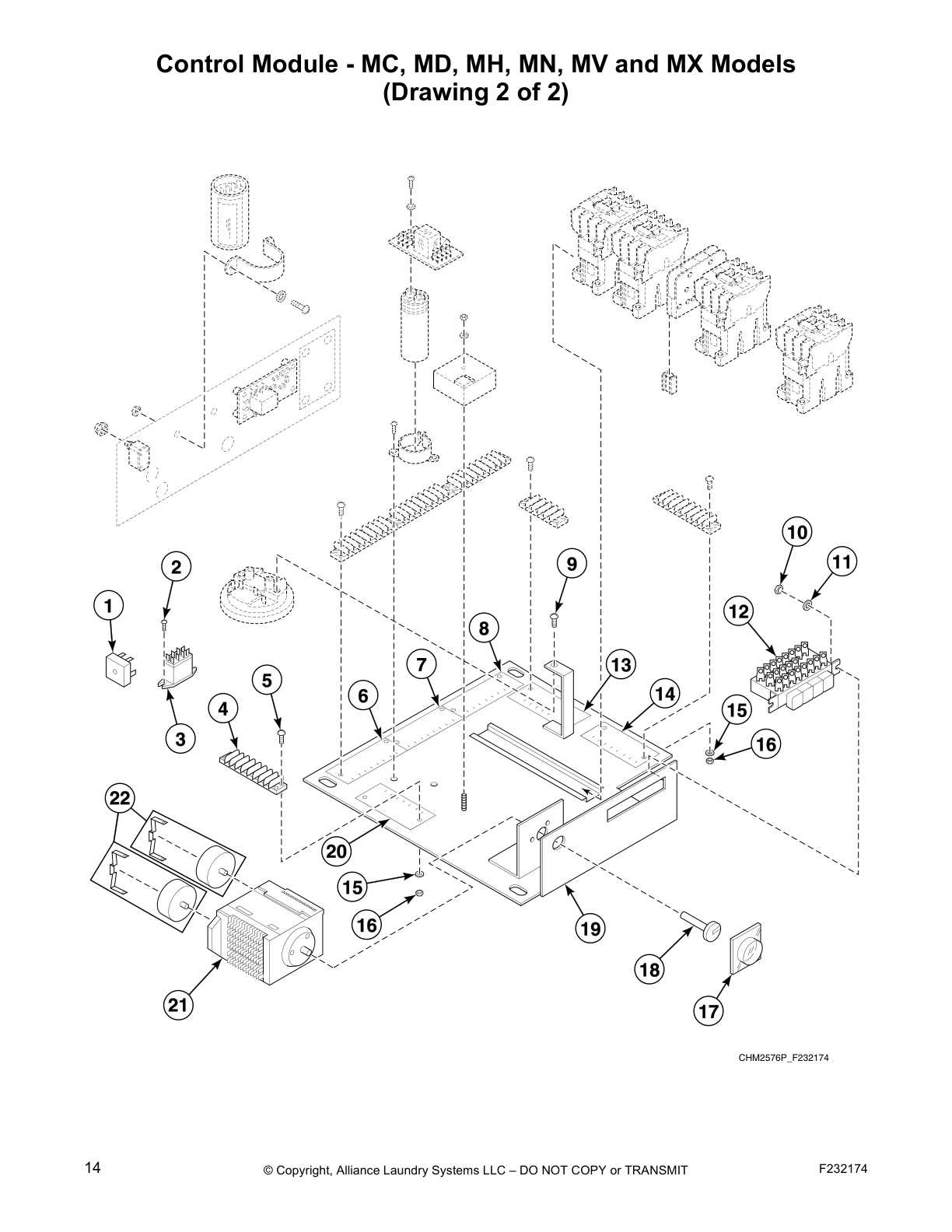

Control Module - MC, MD, MH, MN, MV and MX Models
(Drawing 2 of 2)

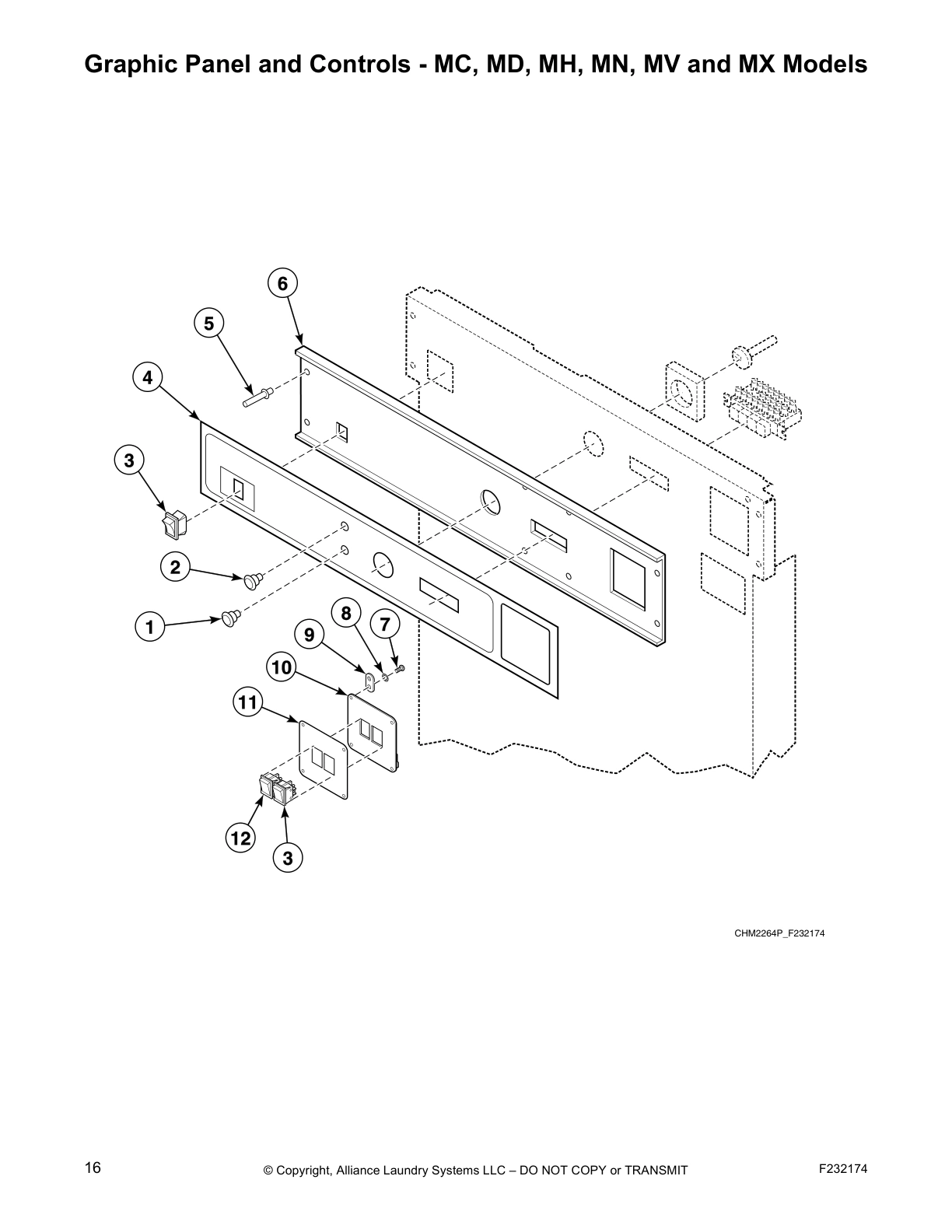

Graphic Panel and Controls - MC, MD, MH, MN, MV and MX Models

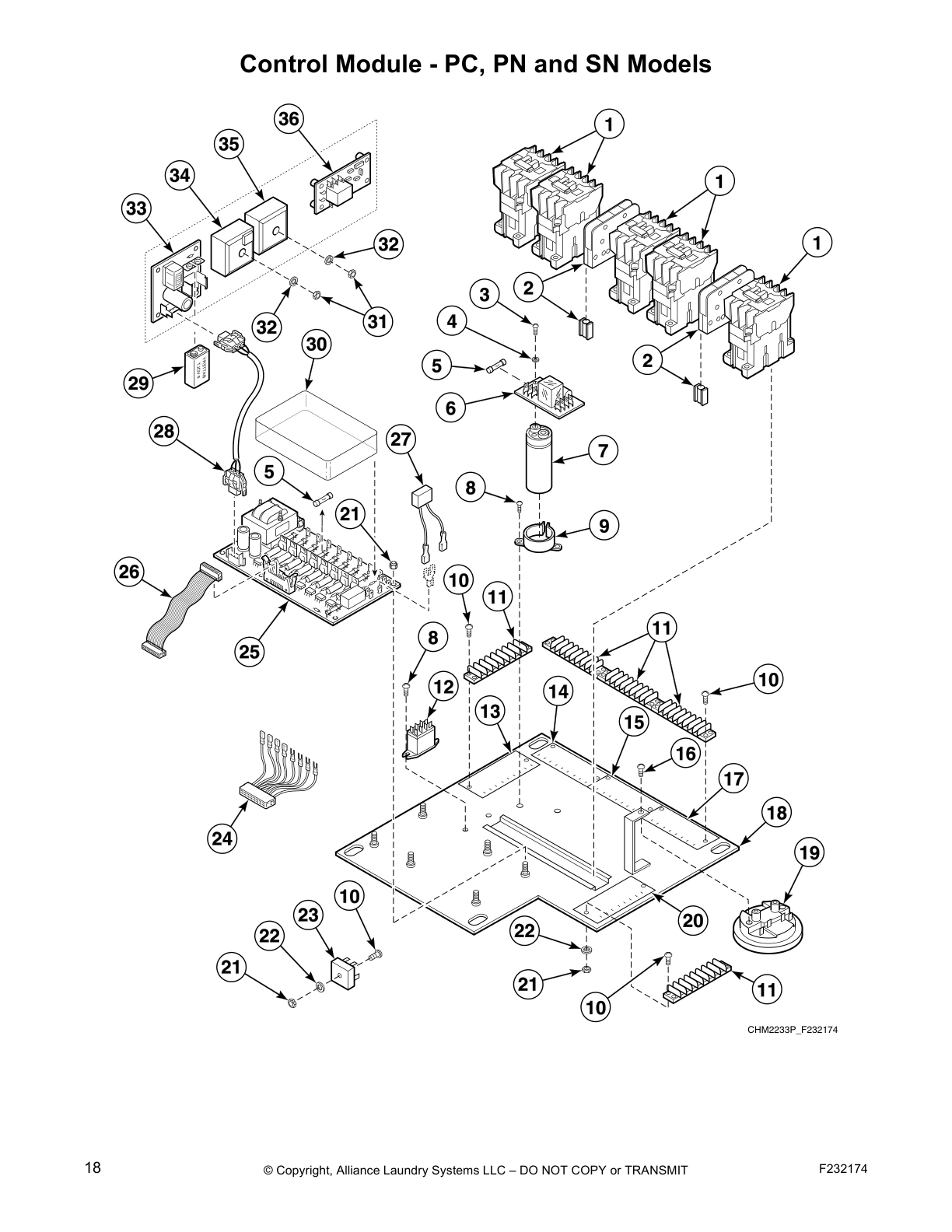

Control Module - PC, PN and SN Models

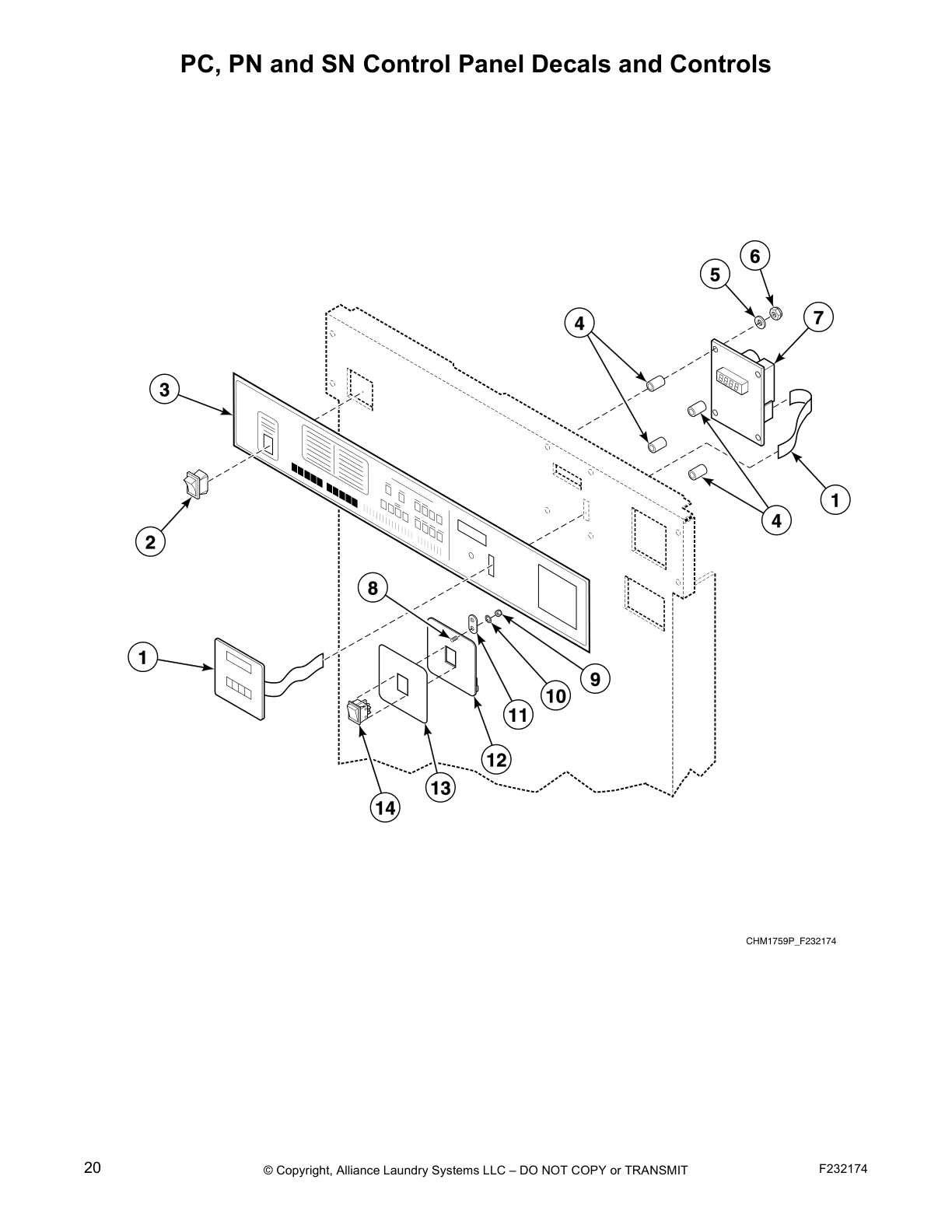

PC, PN and SN Control Panel Decals and Controls
Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 1 of 4)

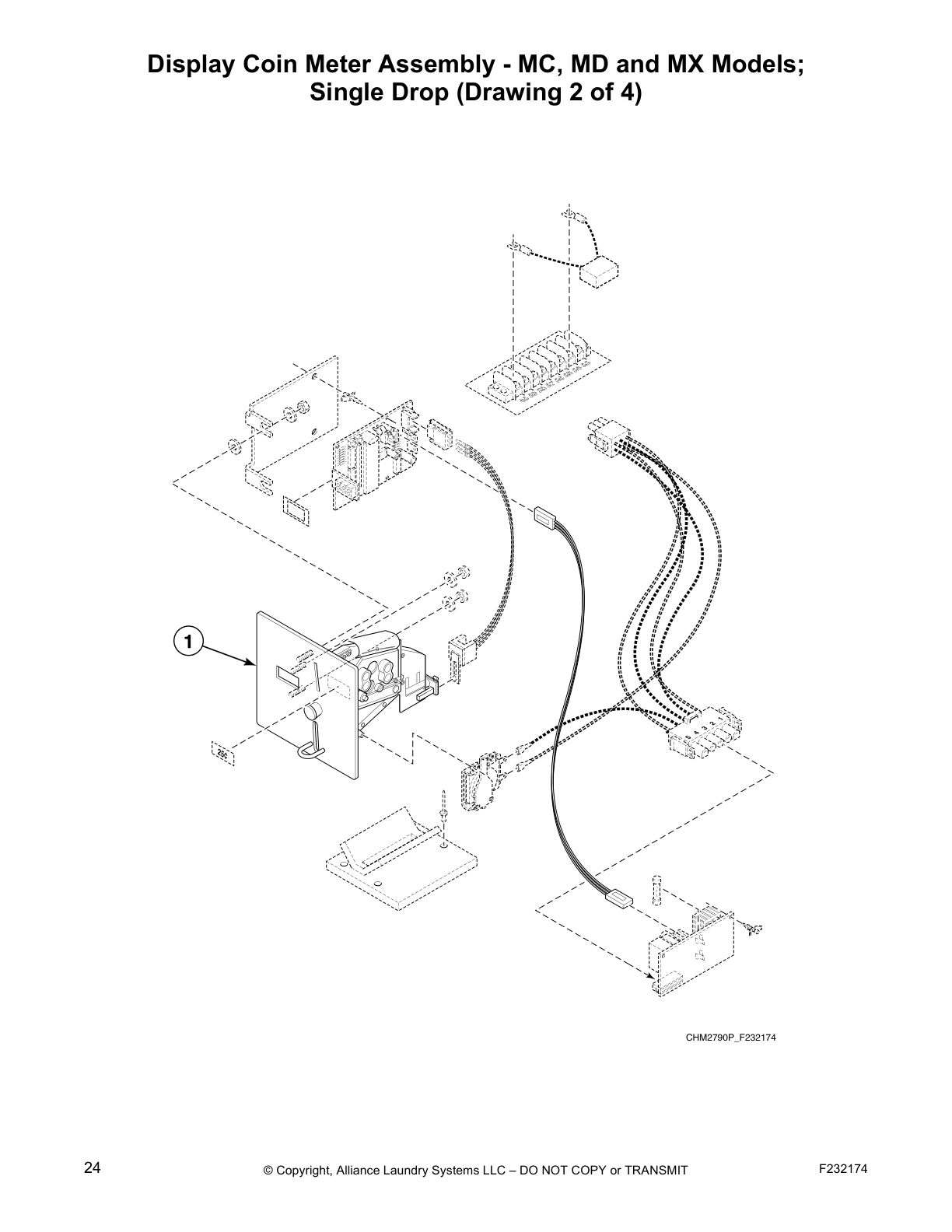

Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 2 of 4)

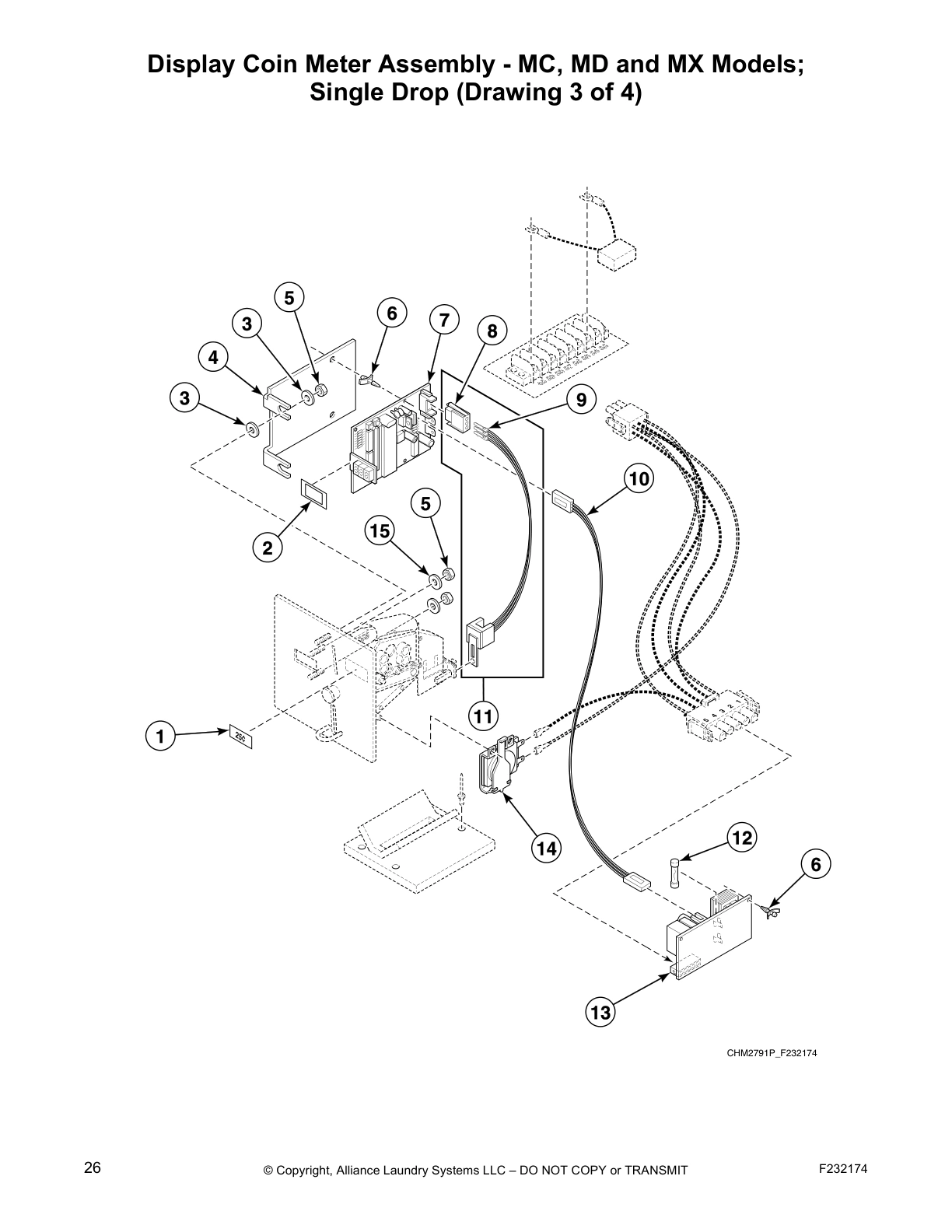

Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 3 of 4)

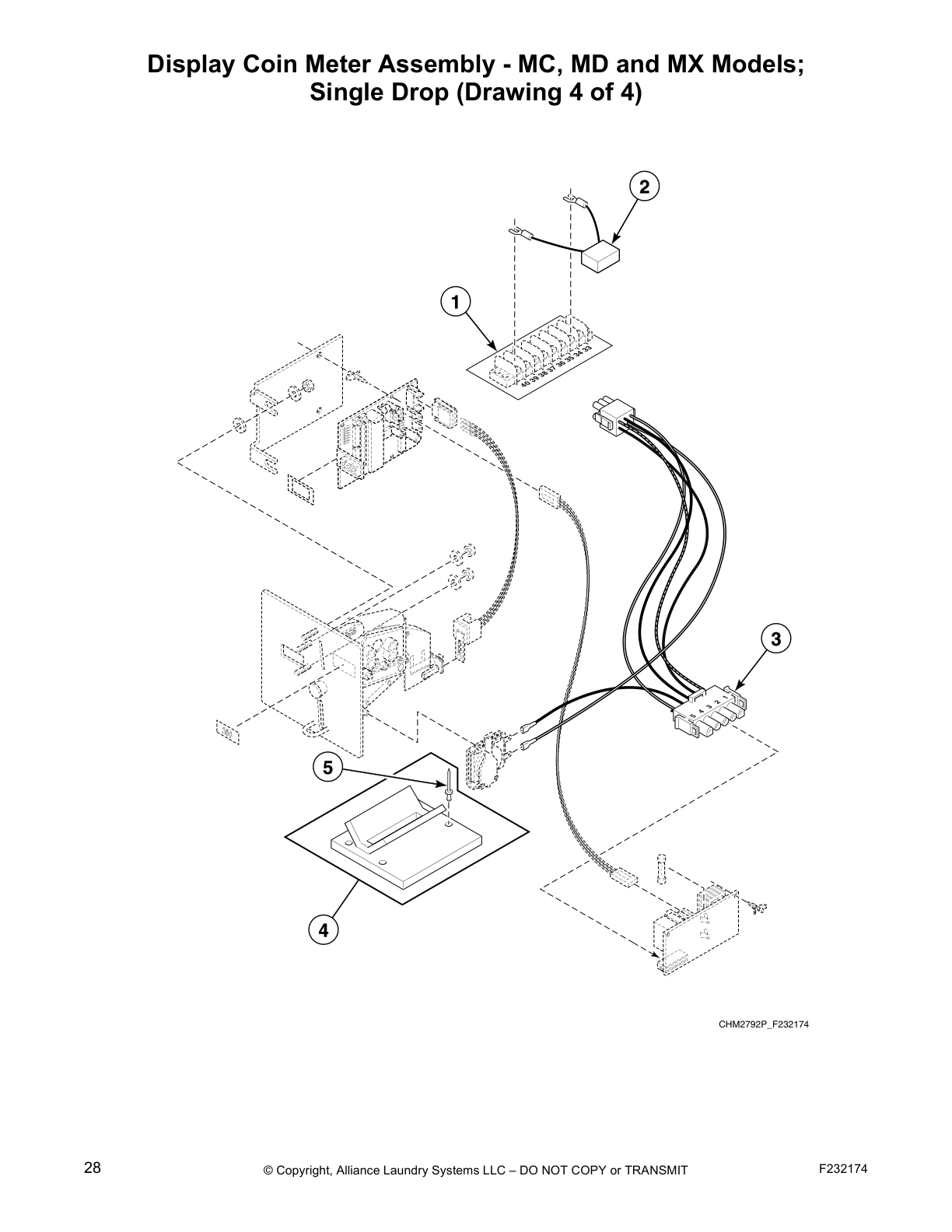

Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 4 of 4)

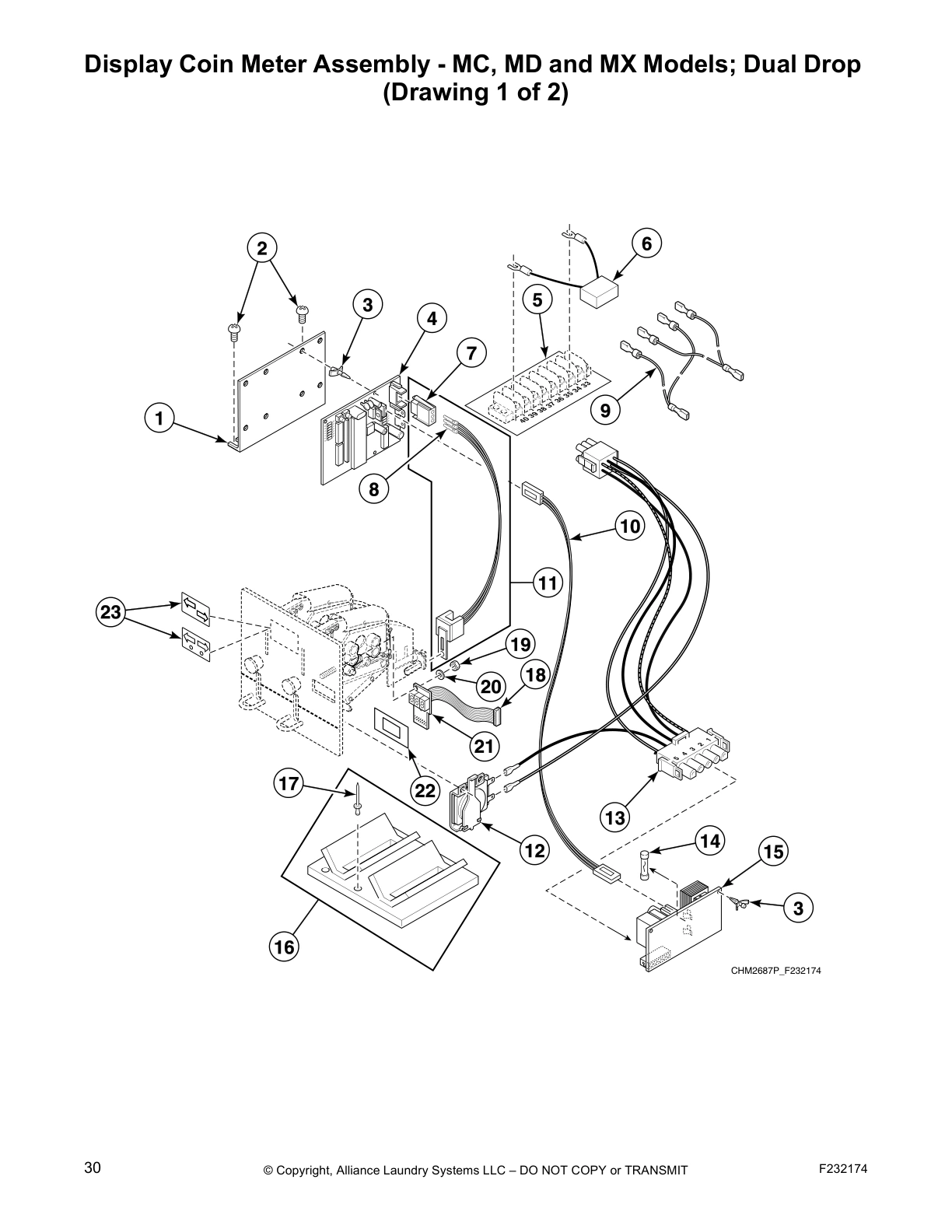

Display Coin Meter Assembly - MC, MD and MX Models; Dual Drop
(Drawing 1 of 2)
Display Coin Meter Assembly - MC, MD and MX Models; Dual Drop
(Drawing 2 of 2)
W2000 Coin Meter Assembly - MC, MD and MX Models;
Single Drop

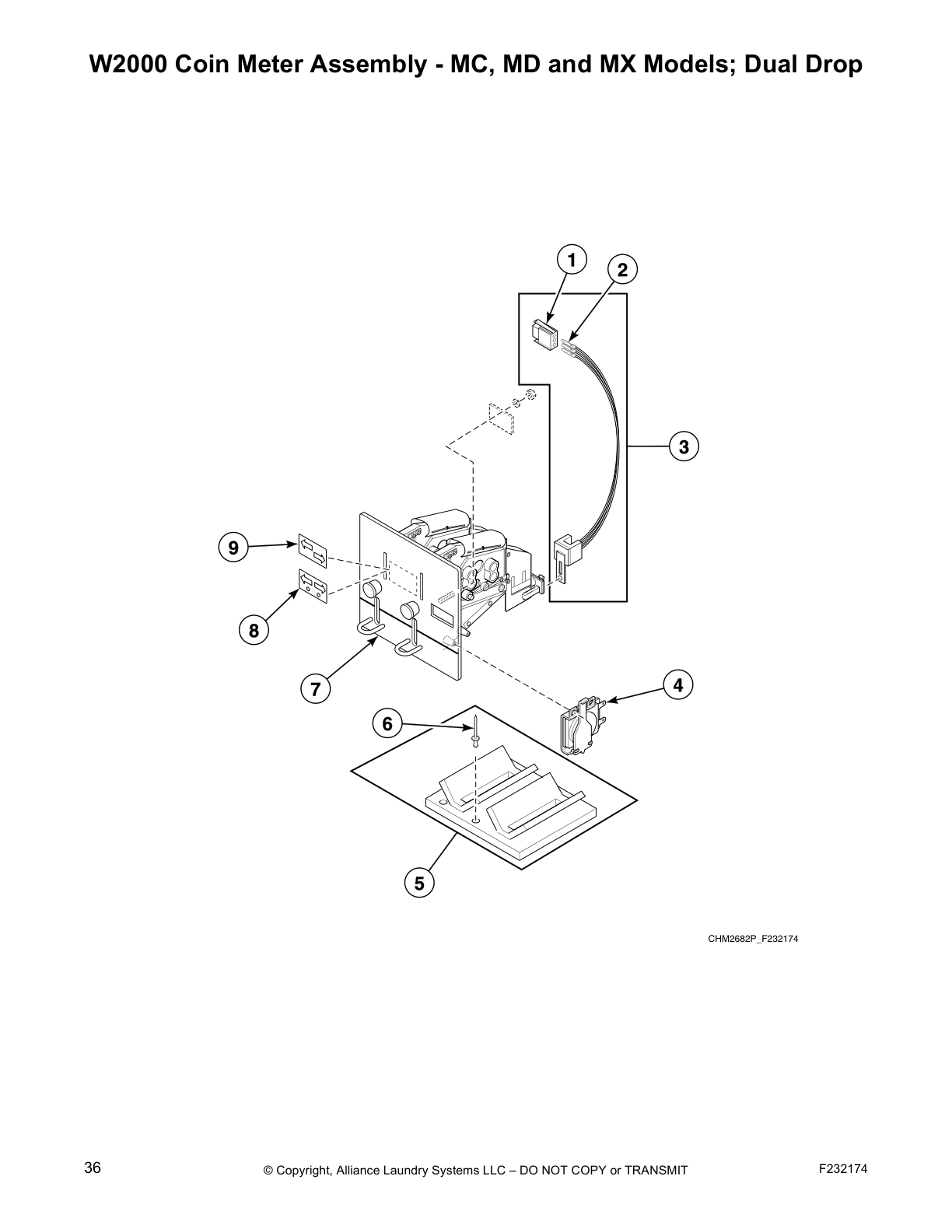

W2000 Coin Meter Assembly - MC, MD and MX Models; Dual Drop

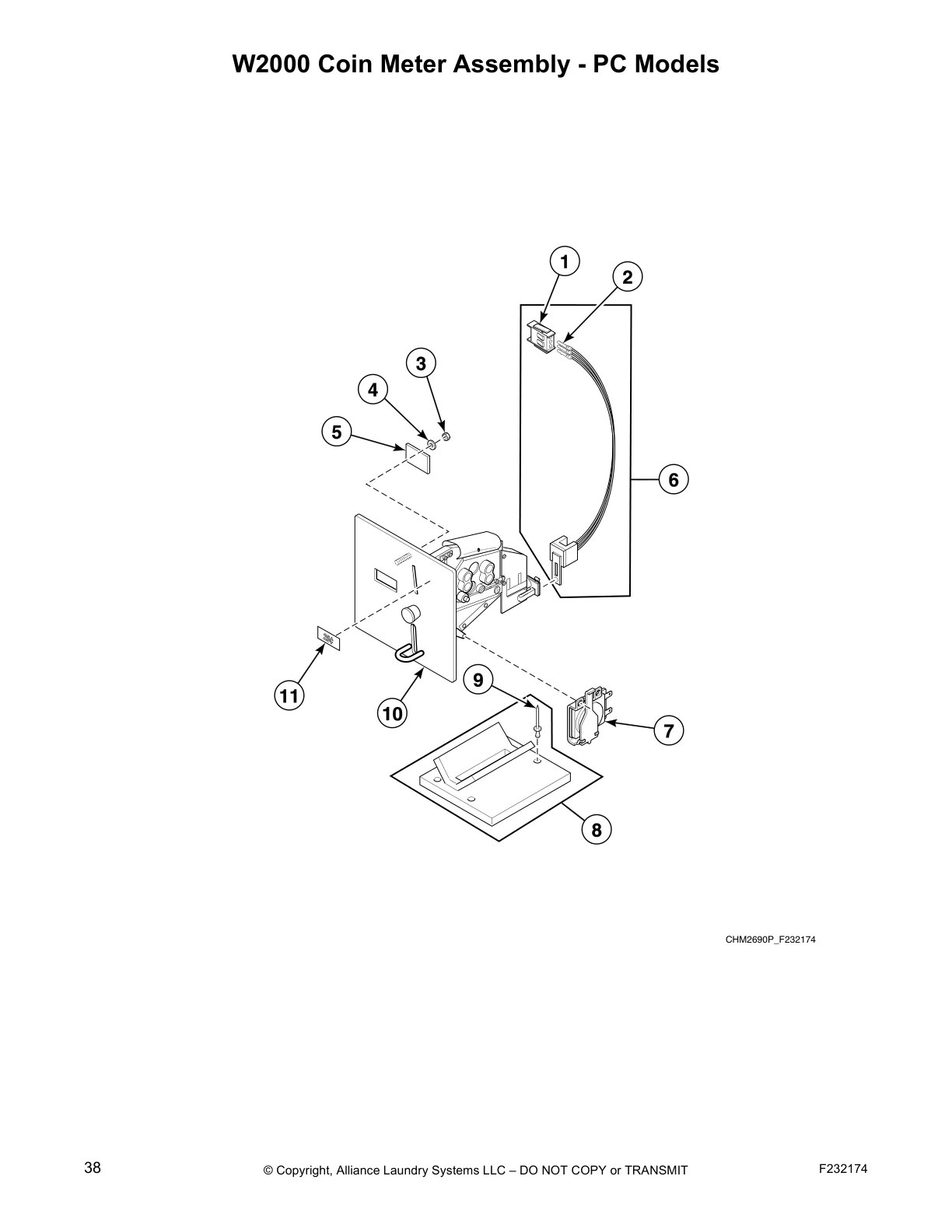

W2000 Coin Meter Assembly - PC Models

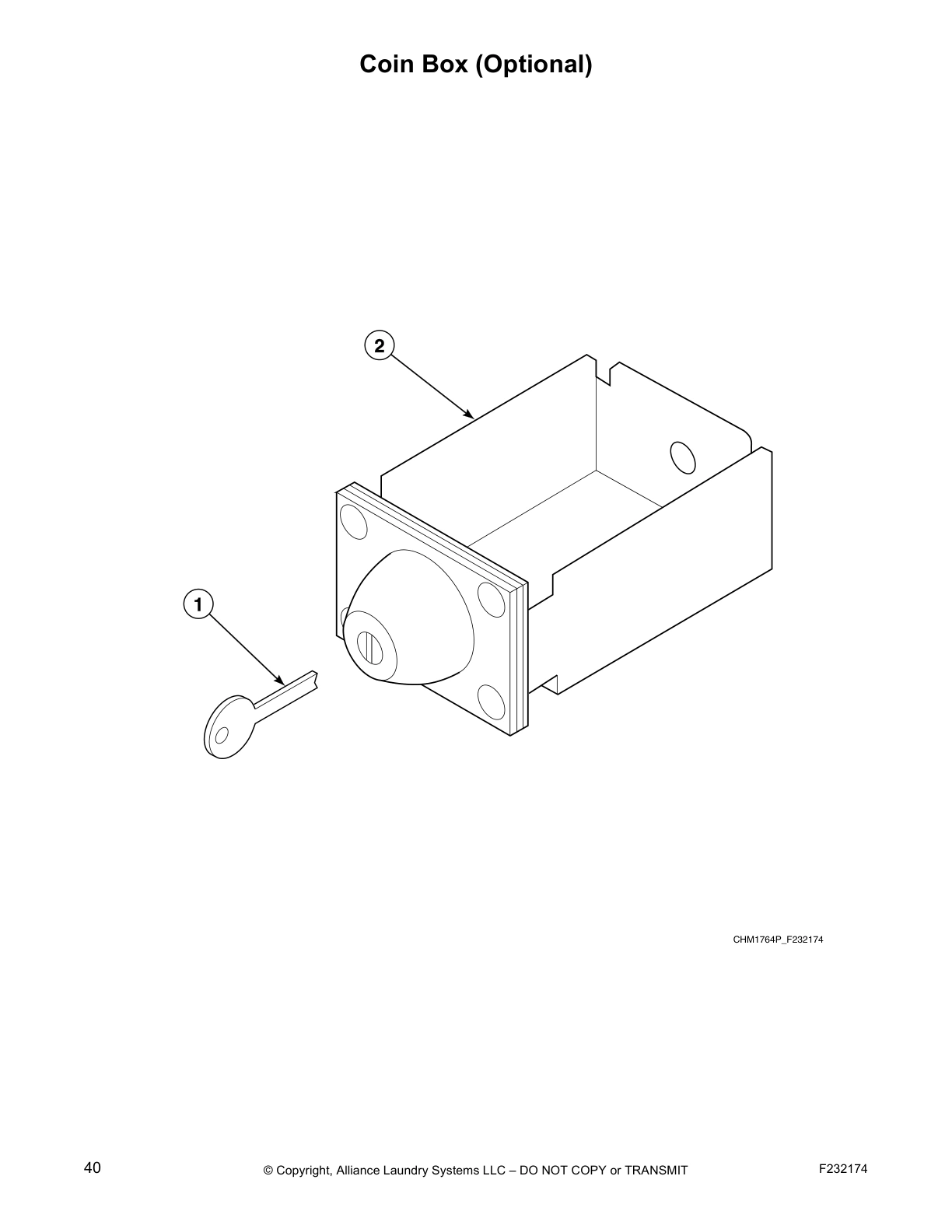

Coin Box (Optional)

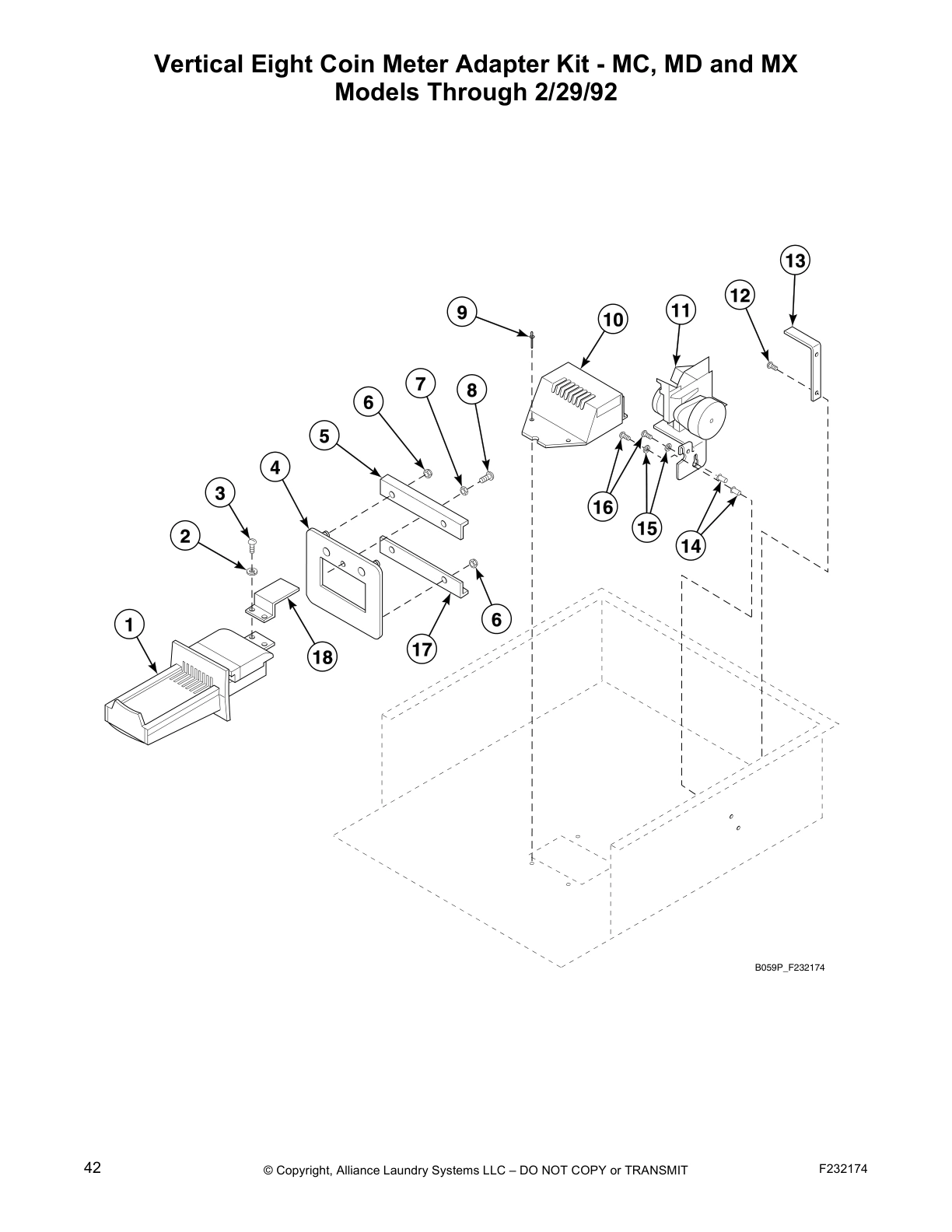

Vertical Eight Coin Meter Adapter Kit - MC, MD and MX
Models Through 2/29/92

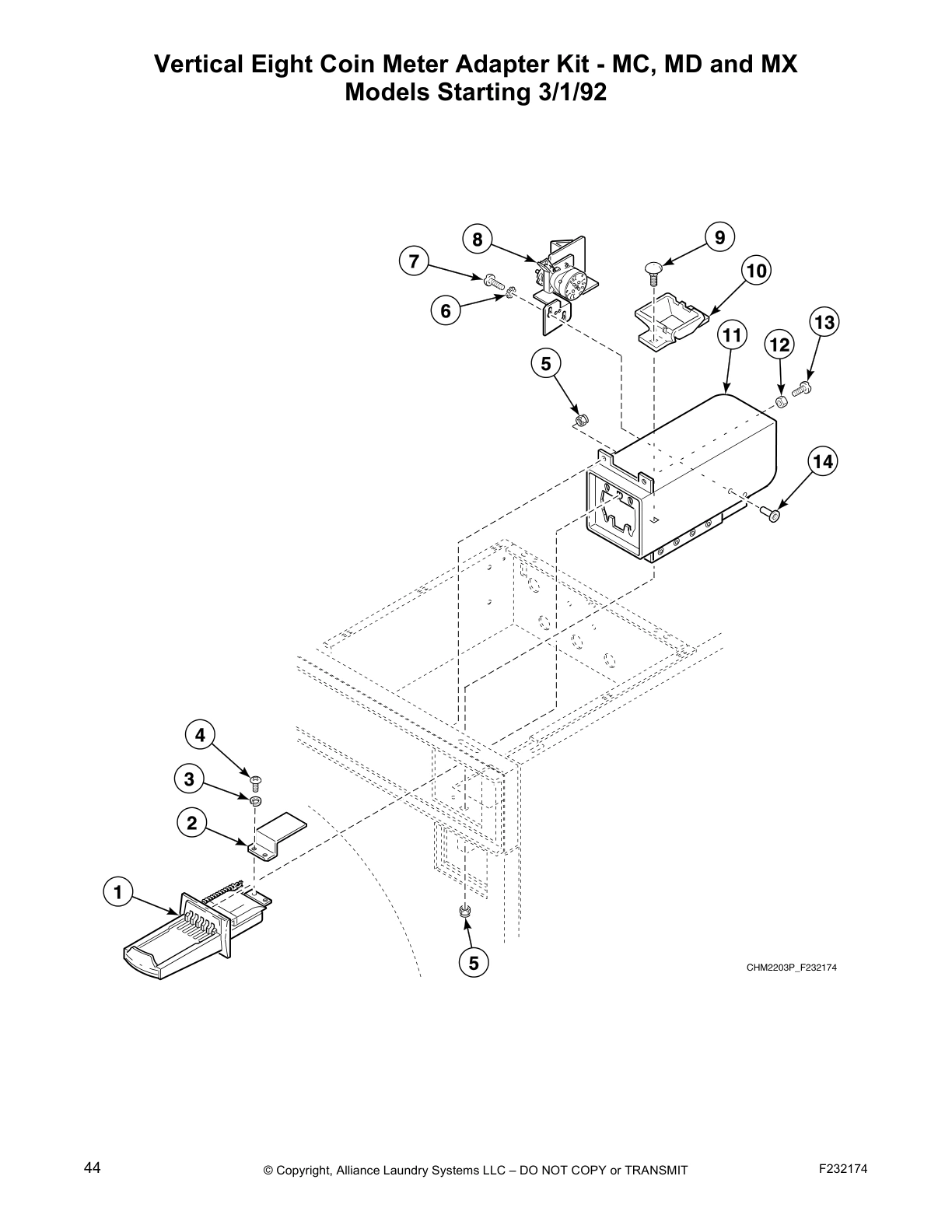

Vertical Eight Coin Meter Adapter Kit - MC, MD and MX
Models Starting 3/1/92
Door Lock - Coin Models (Drawing 1 of 2)

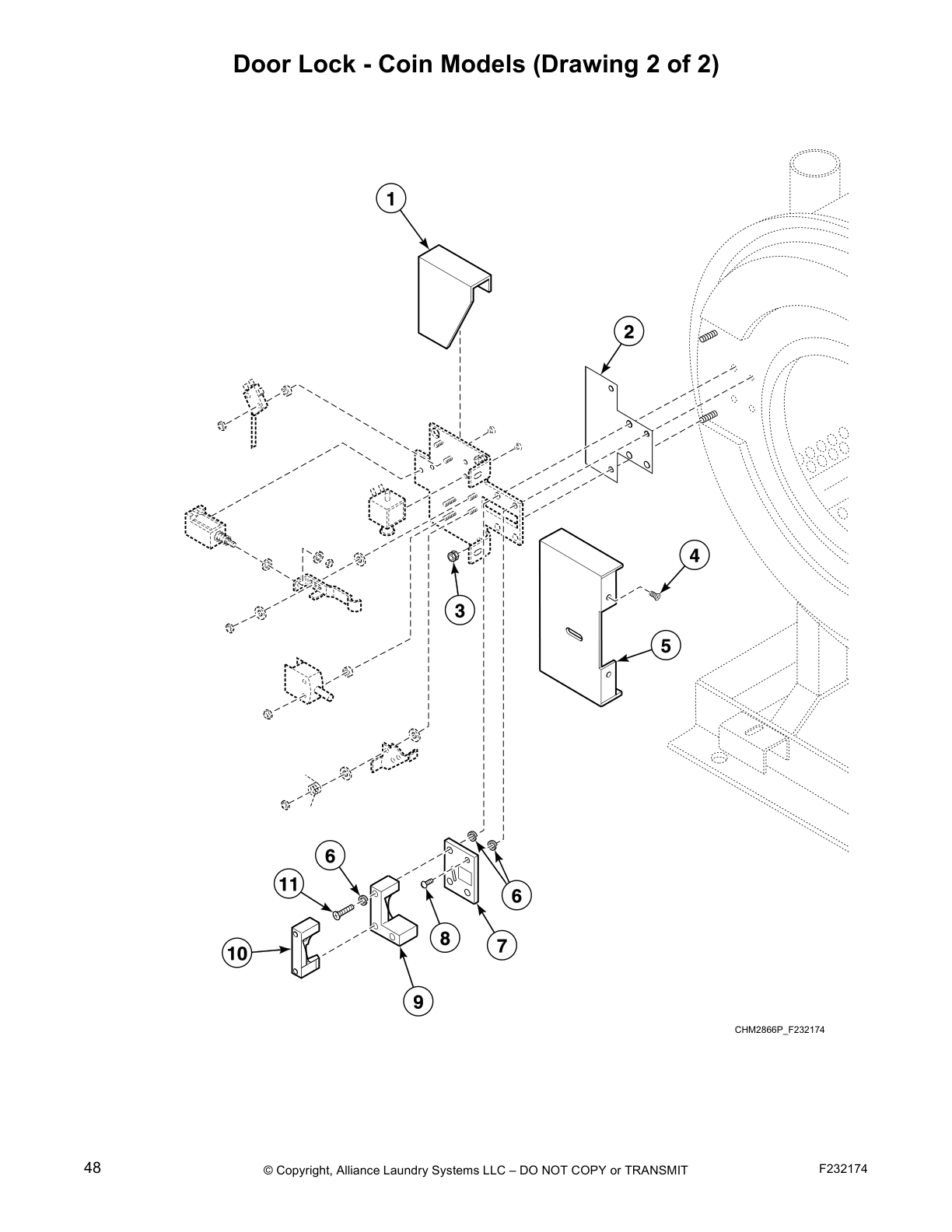

Door Lock - Coin Models (Drawing 2 of 2)
Door Lock - MN Models

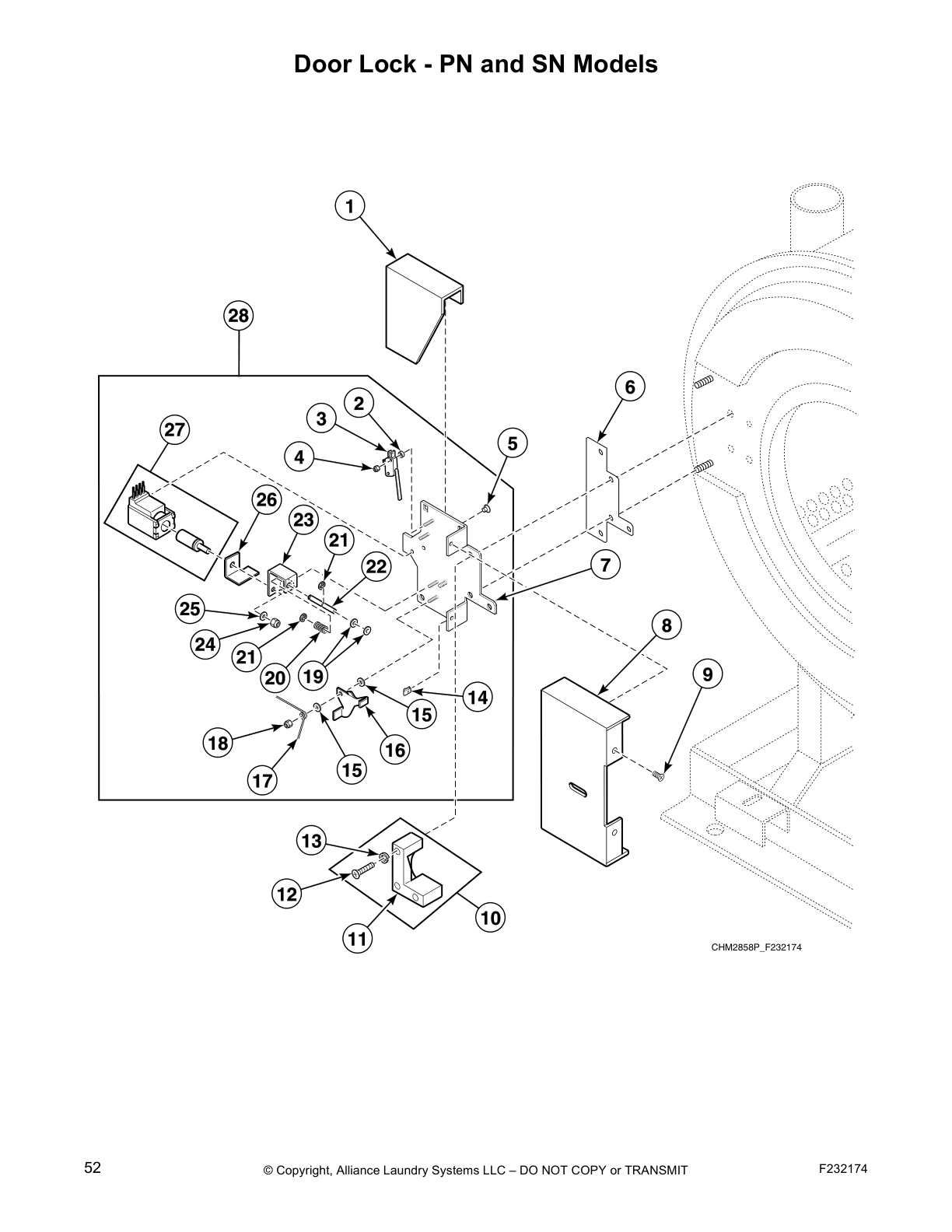

Door Lock - PN and SN Models

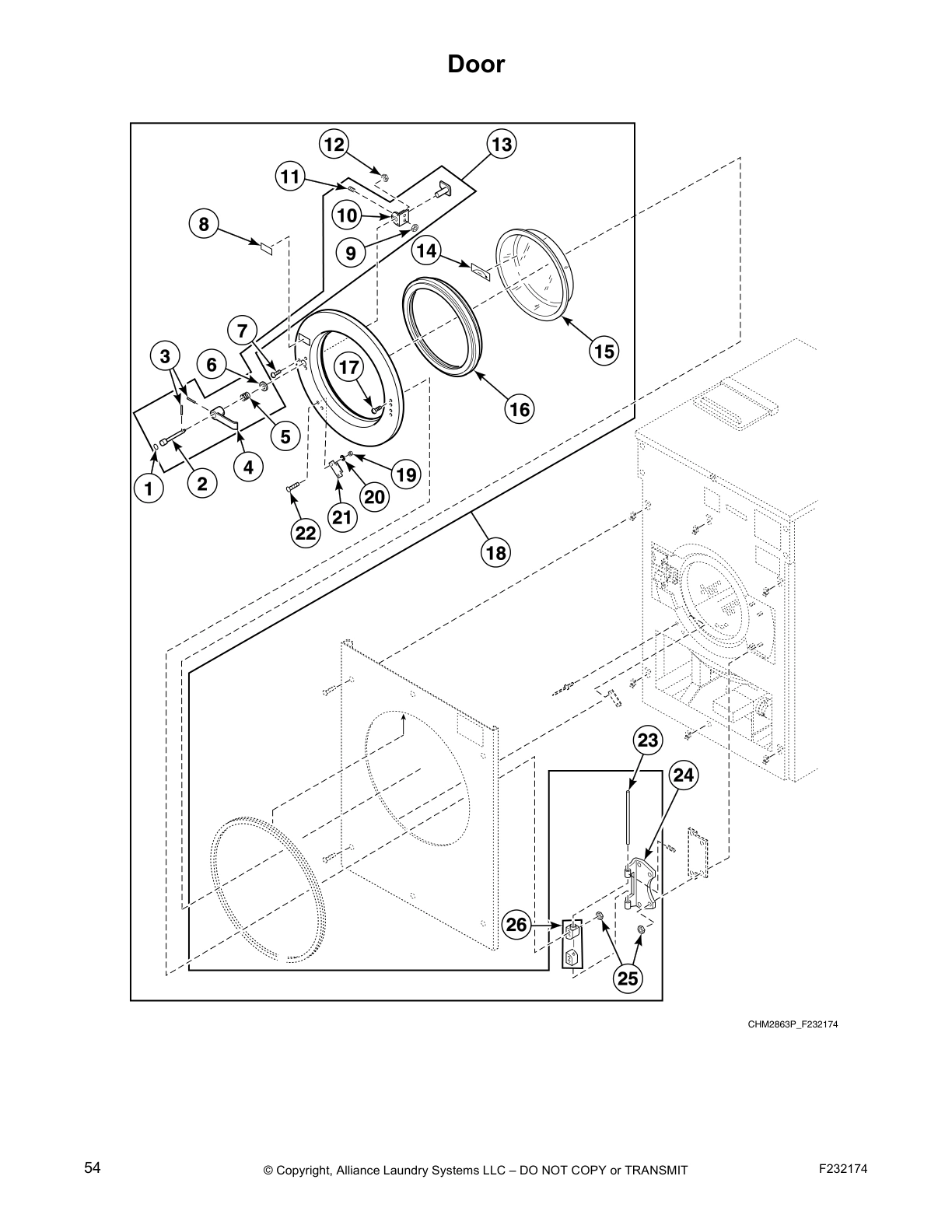

Door

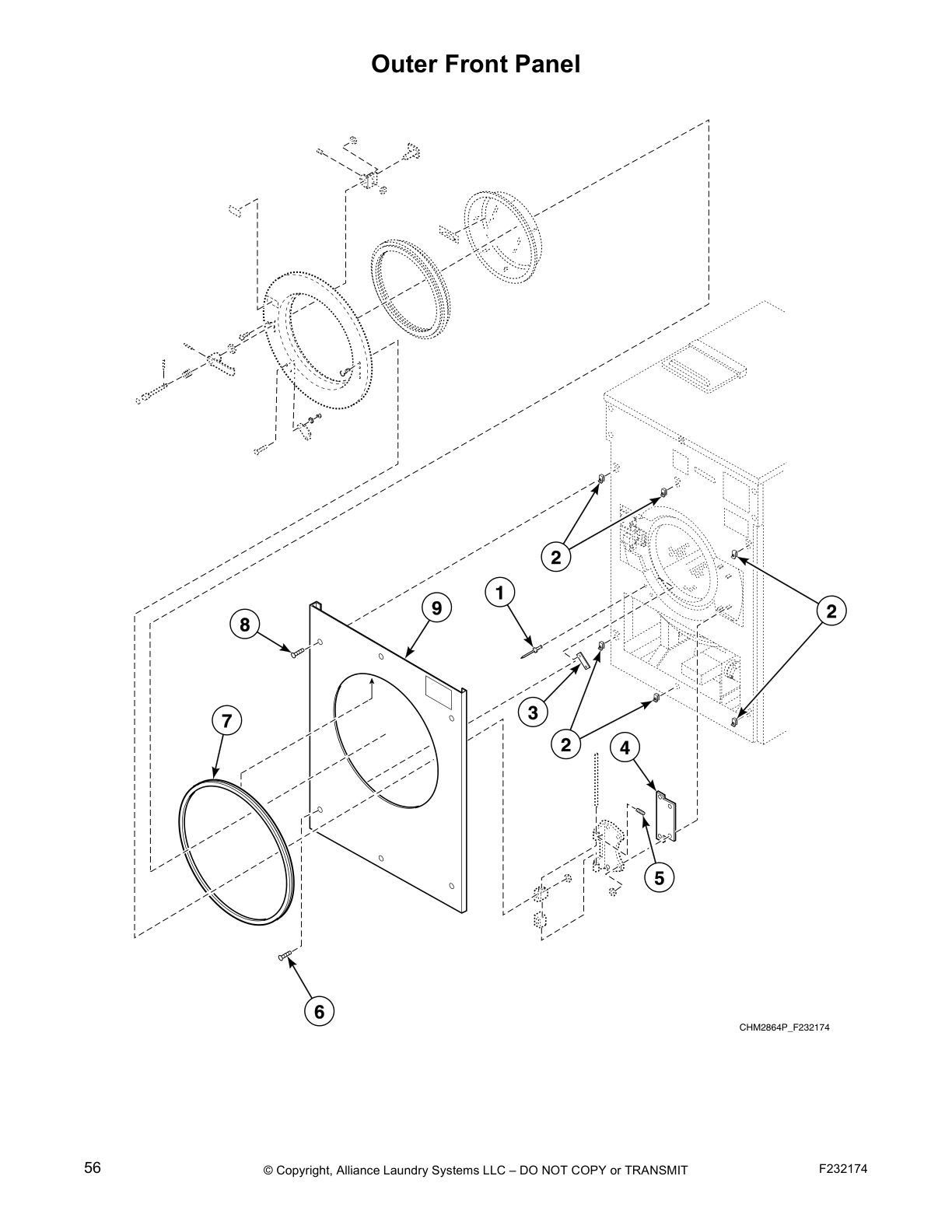

Outer Front Panel

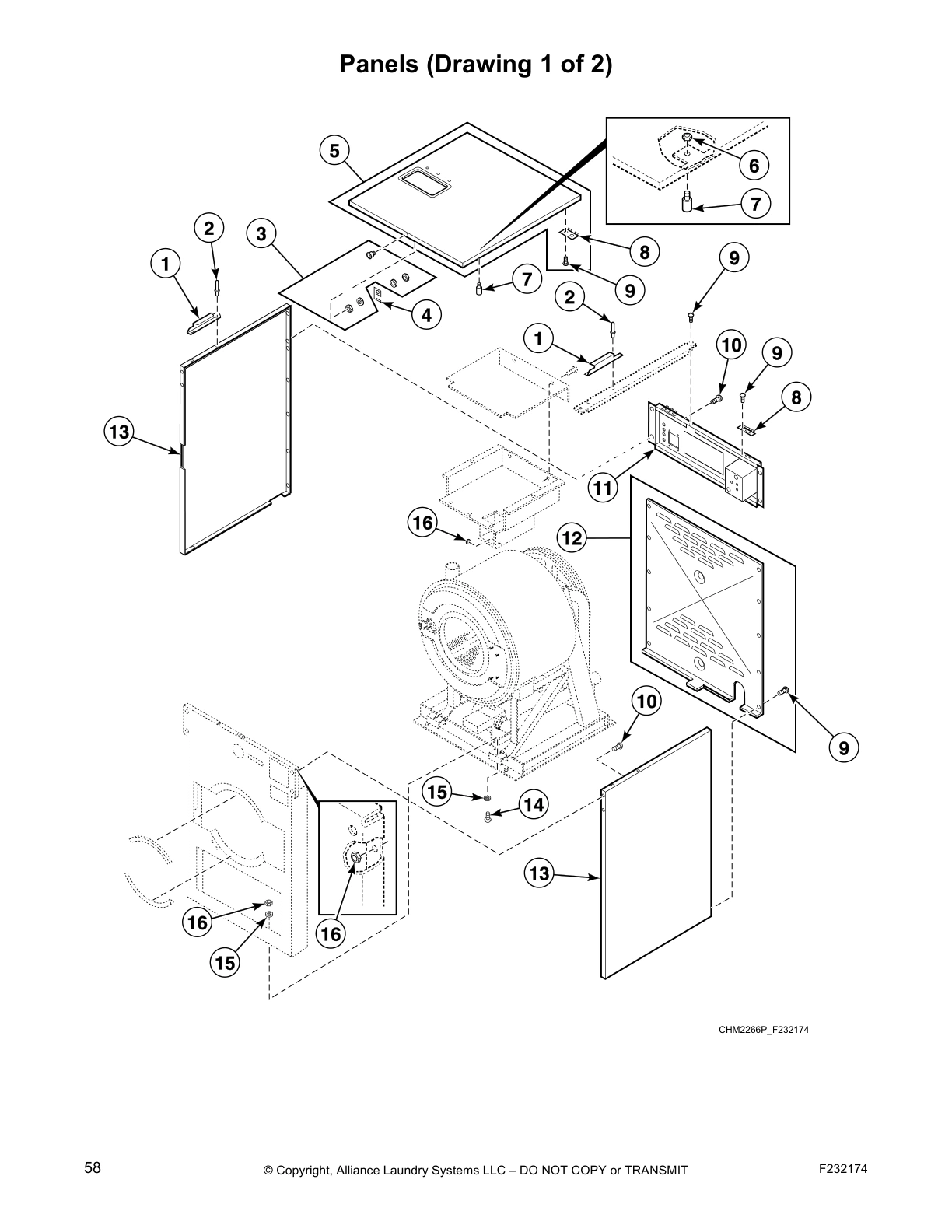

Panels (Drawing 1 of 2)
Panels (Drawing 2 of 2)

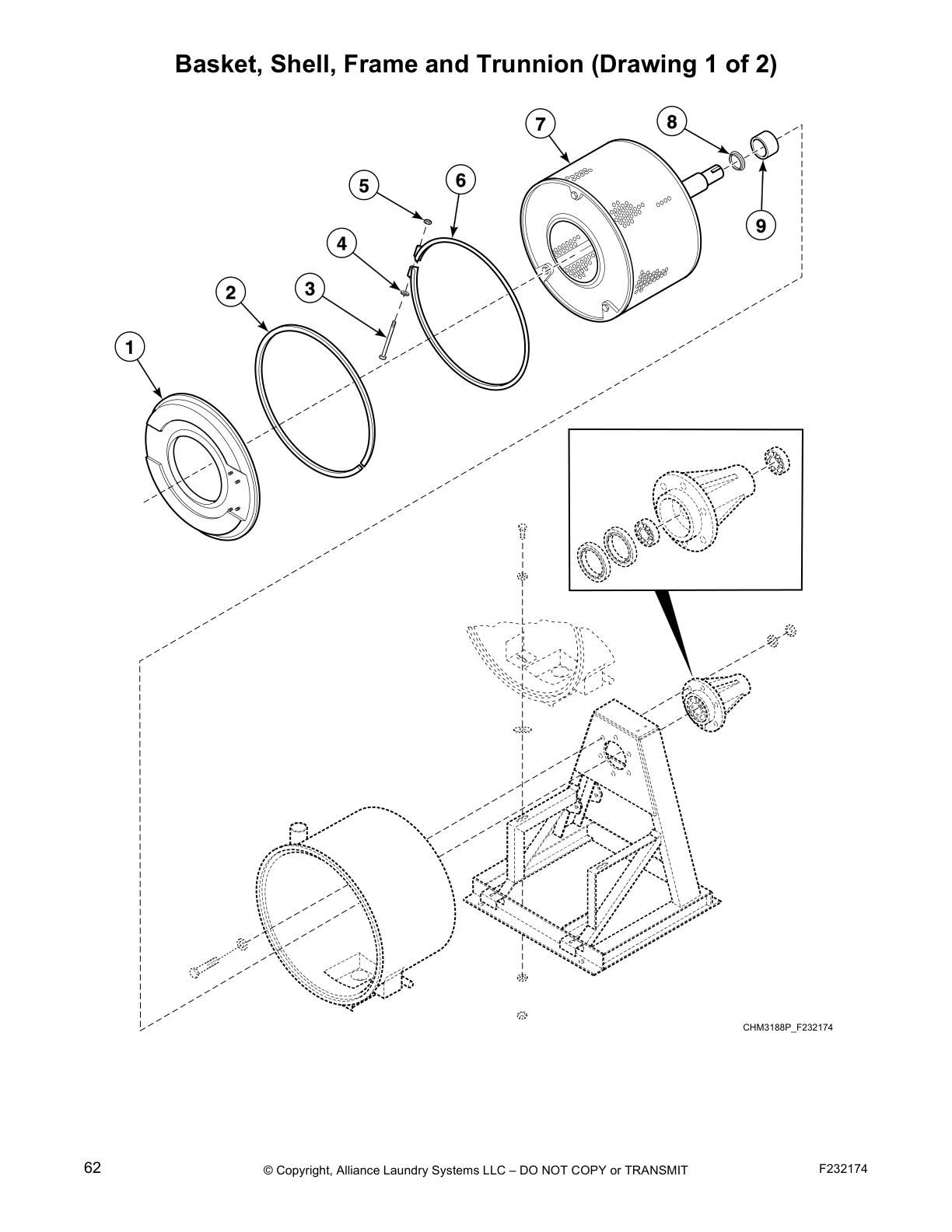

Basket, Shell, Frame and Trunnion (Drawing 1 of 2)

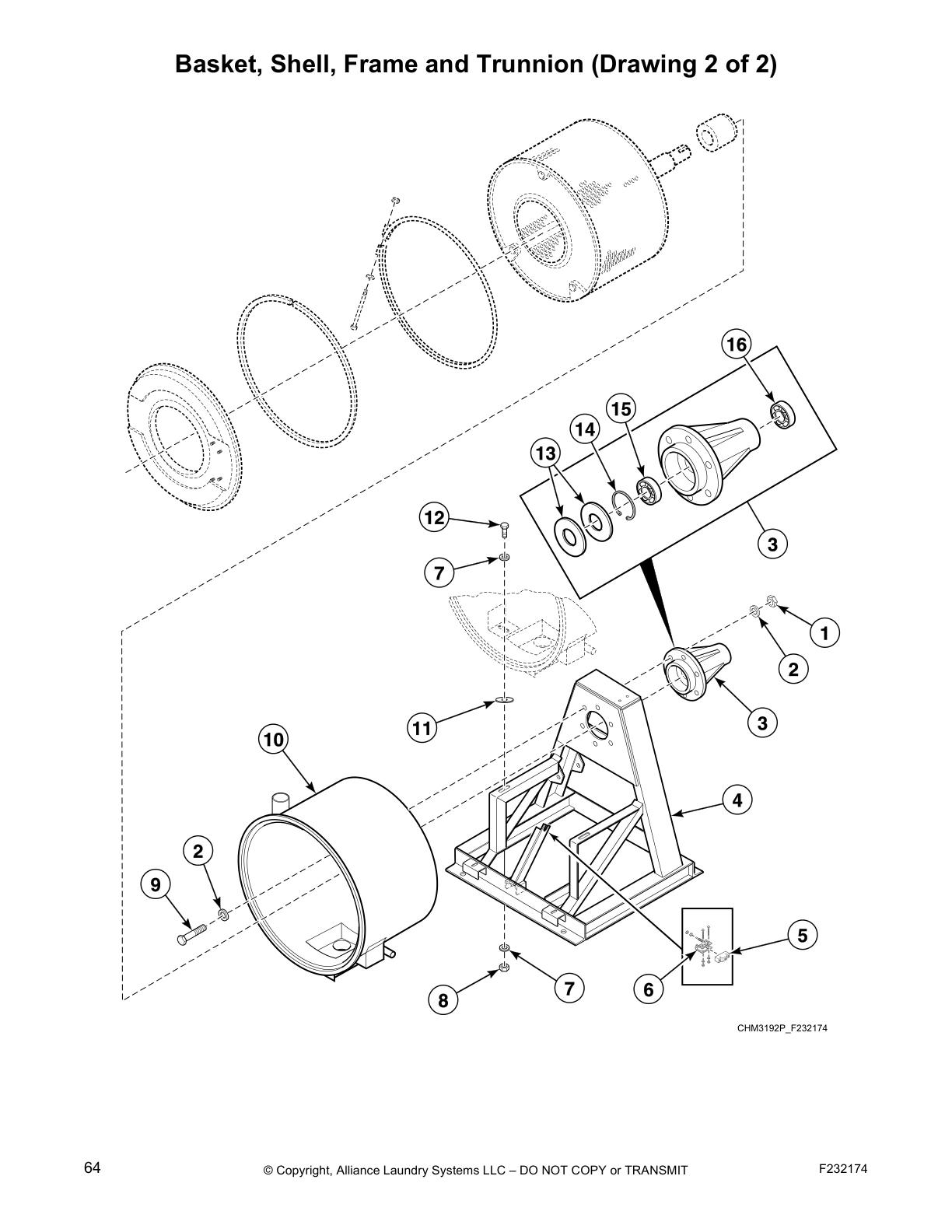

Basket, Shell, Frame and Trunnion (Drawing 2 of 2)
Dispenser

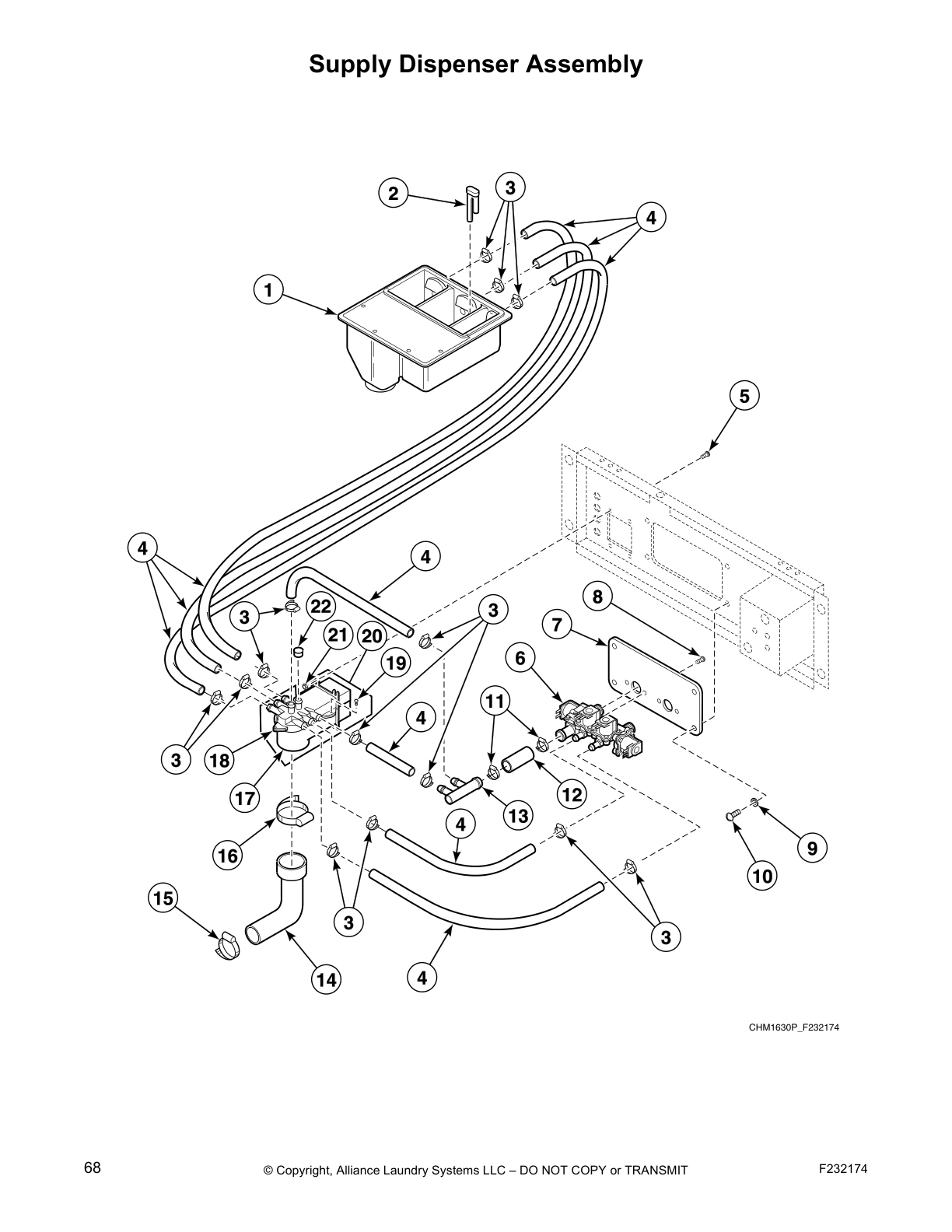

Supply Dispenser Assembly

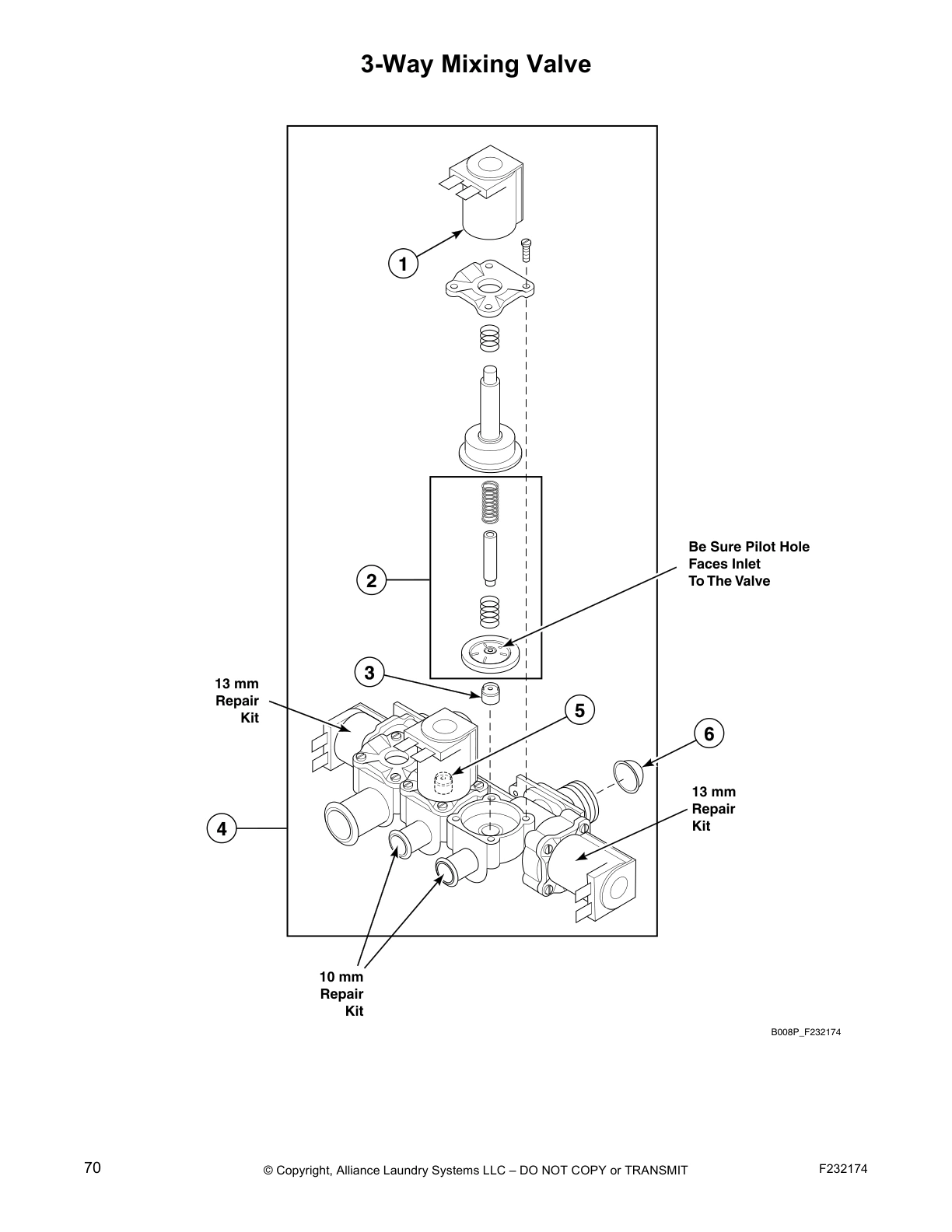

3-Way Mixing Valve

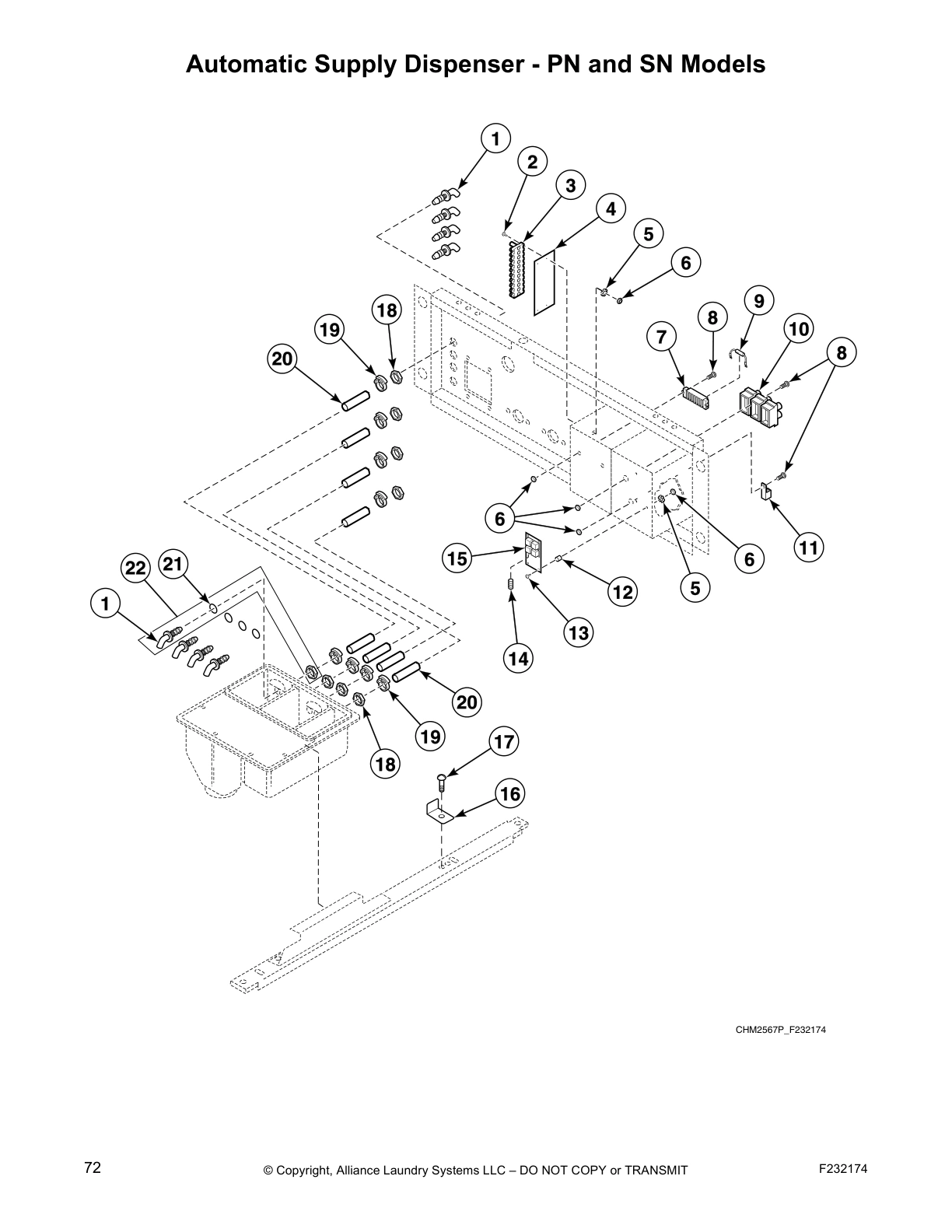

Automatic Supply Dispenser - PN and SN Models

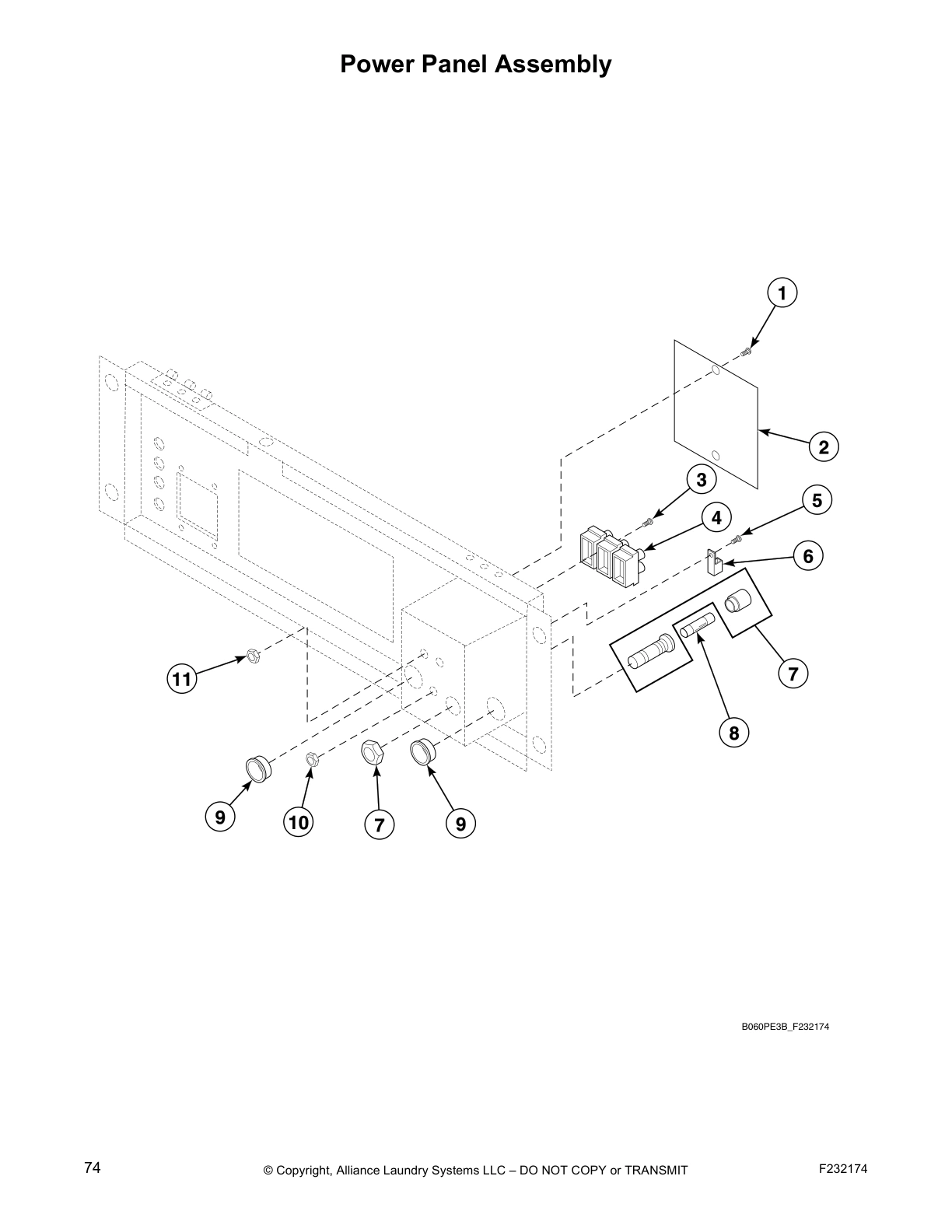

Power Panel Assembly

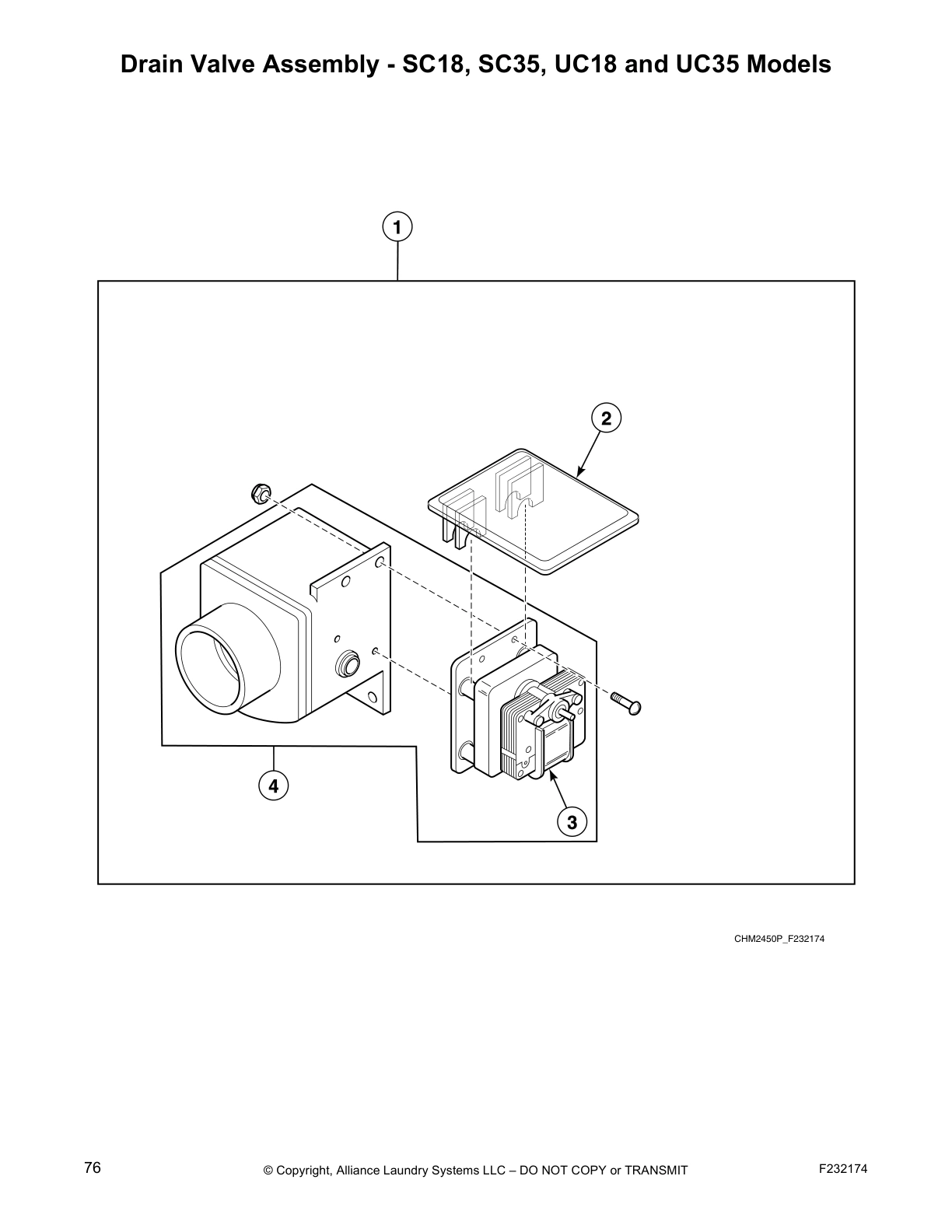

Drain Valve Assembly - SC18, SC35, UC18 and UC35 Models

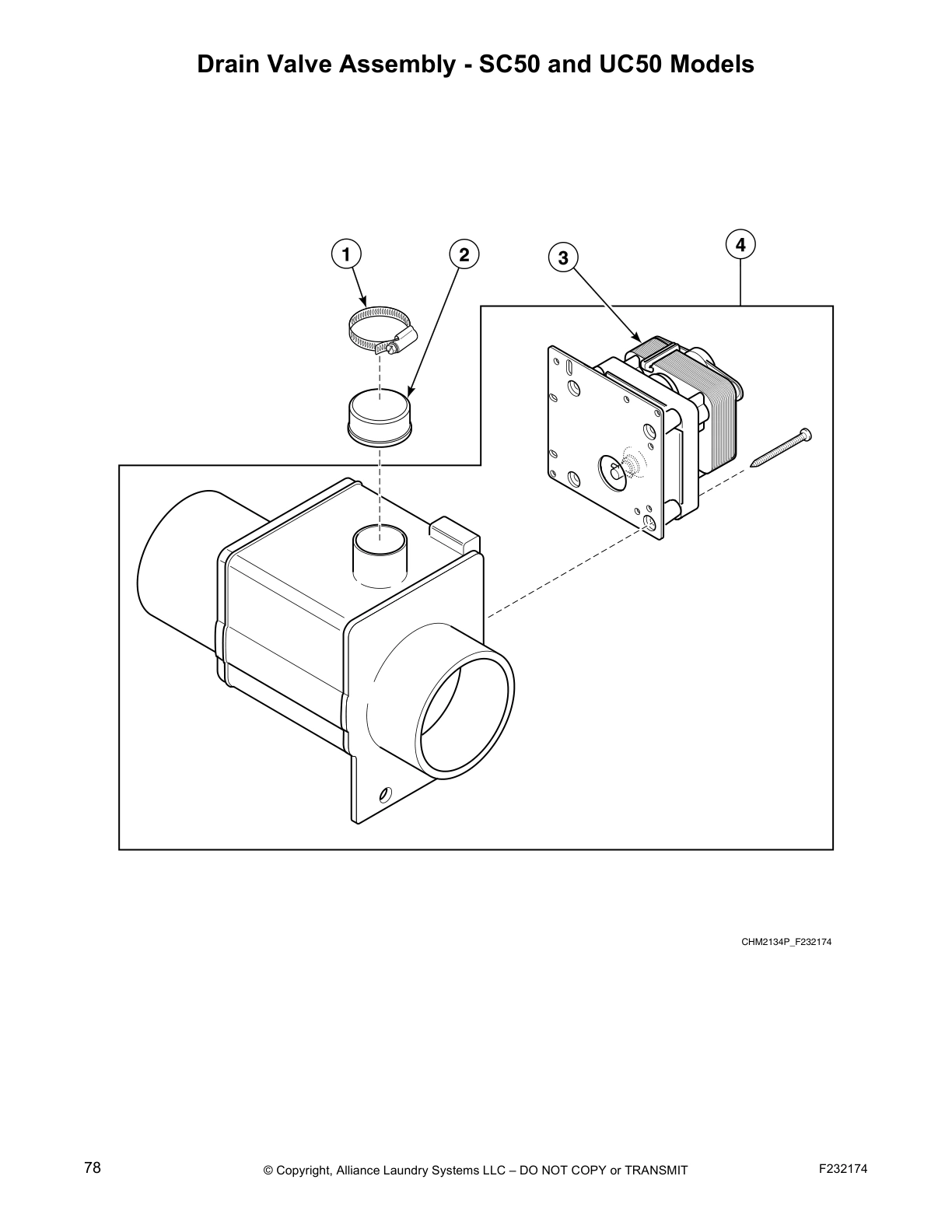

Drain Valve Assembly - SC50 and UC50 Models
Drain Assembly, Hoses and Air Trap - SC50 and UC50 Models
With Heat Shell

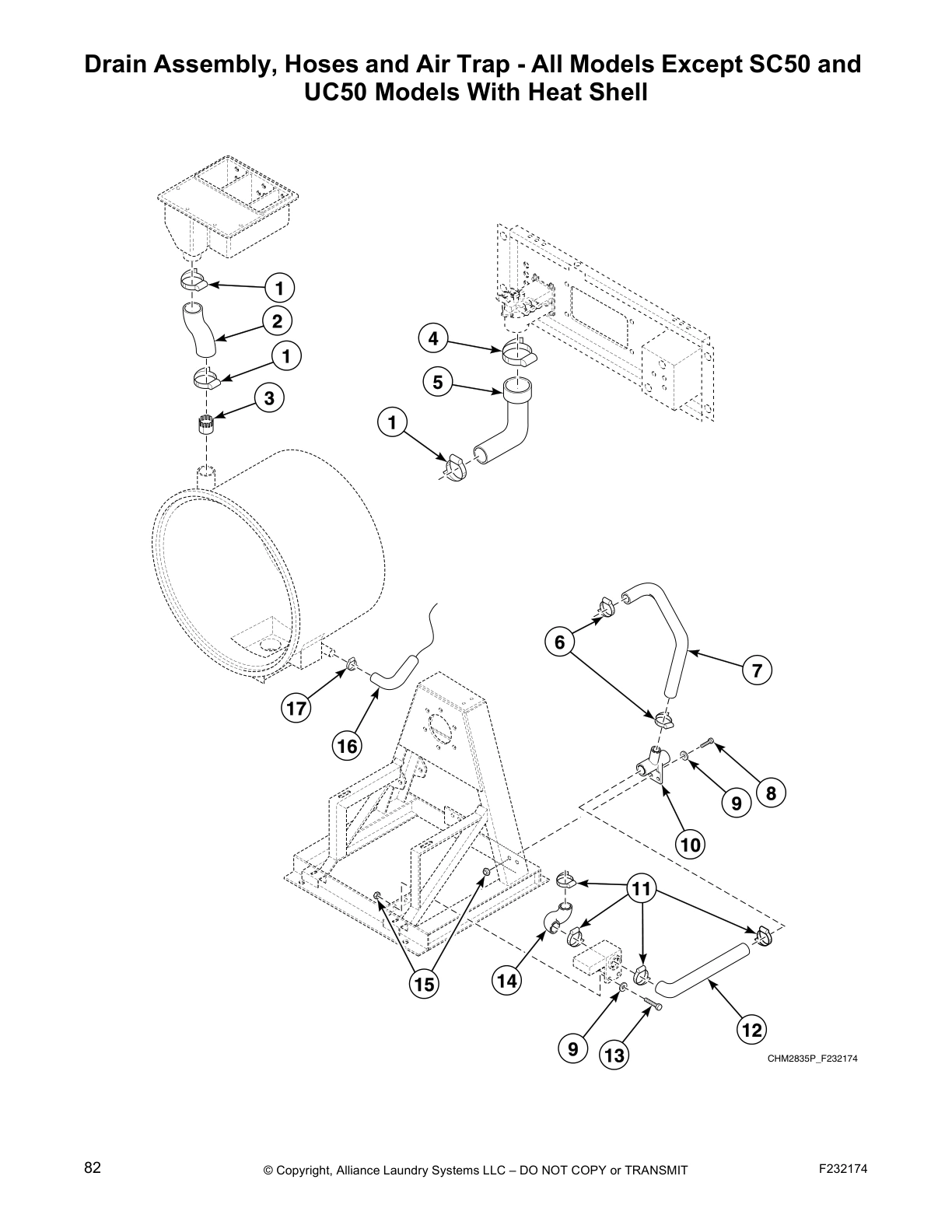

Drain Assembly, Hoses and Air Trap - All Models Except SC50 and
UC50 Models With Heat Shell

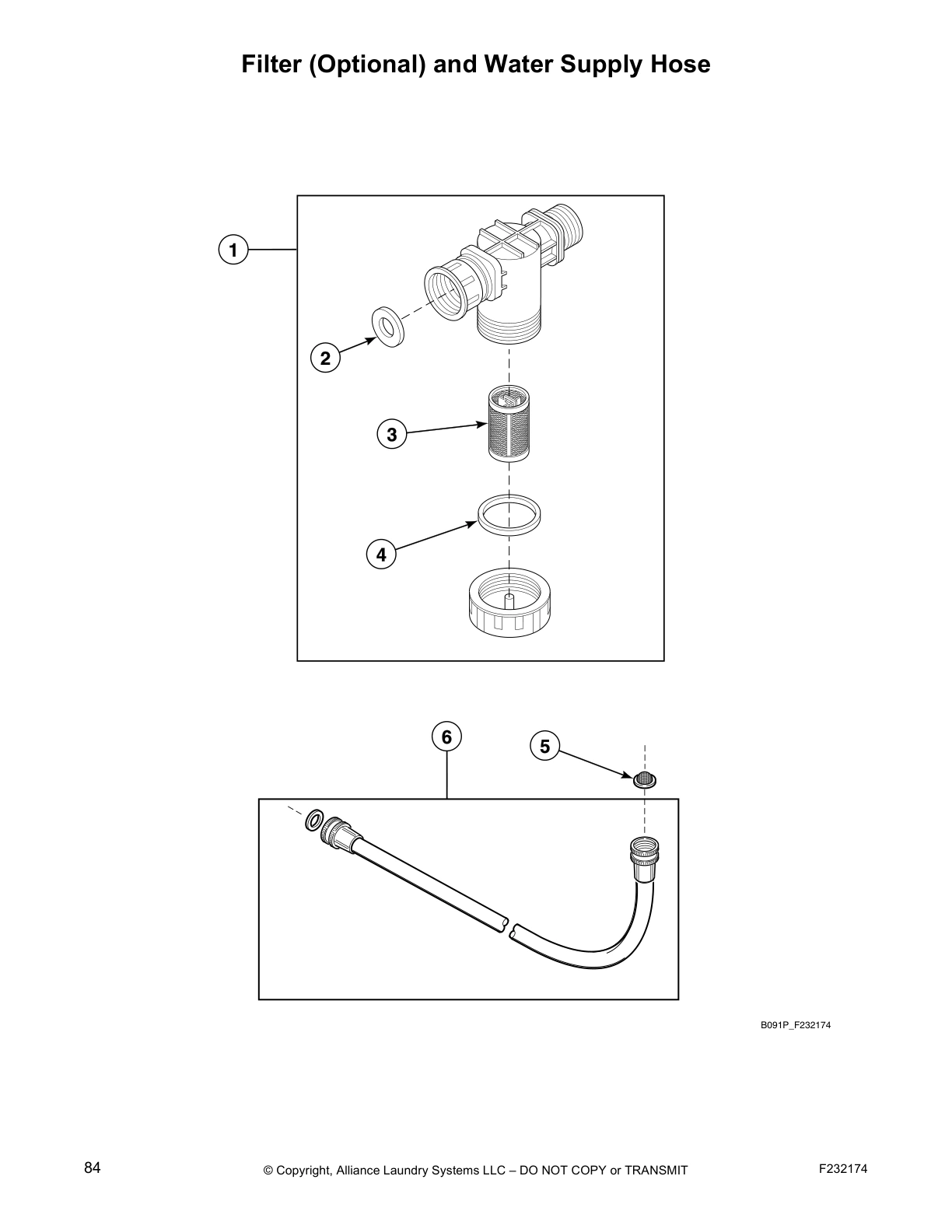

Filter (Optional) and Water Supply Hose

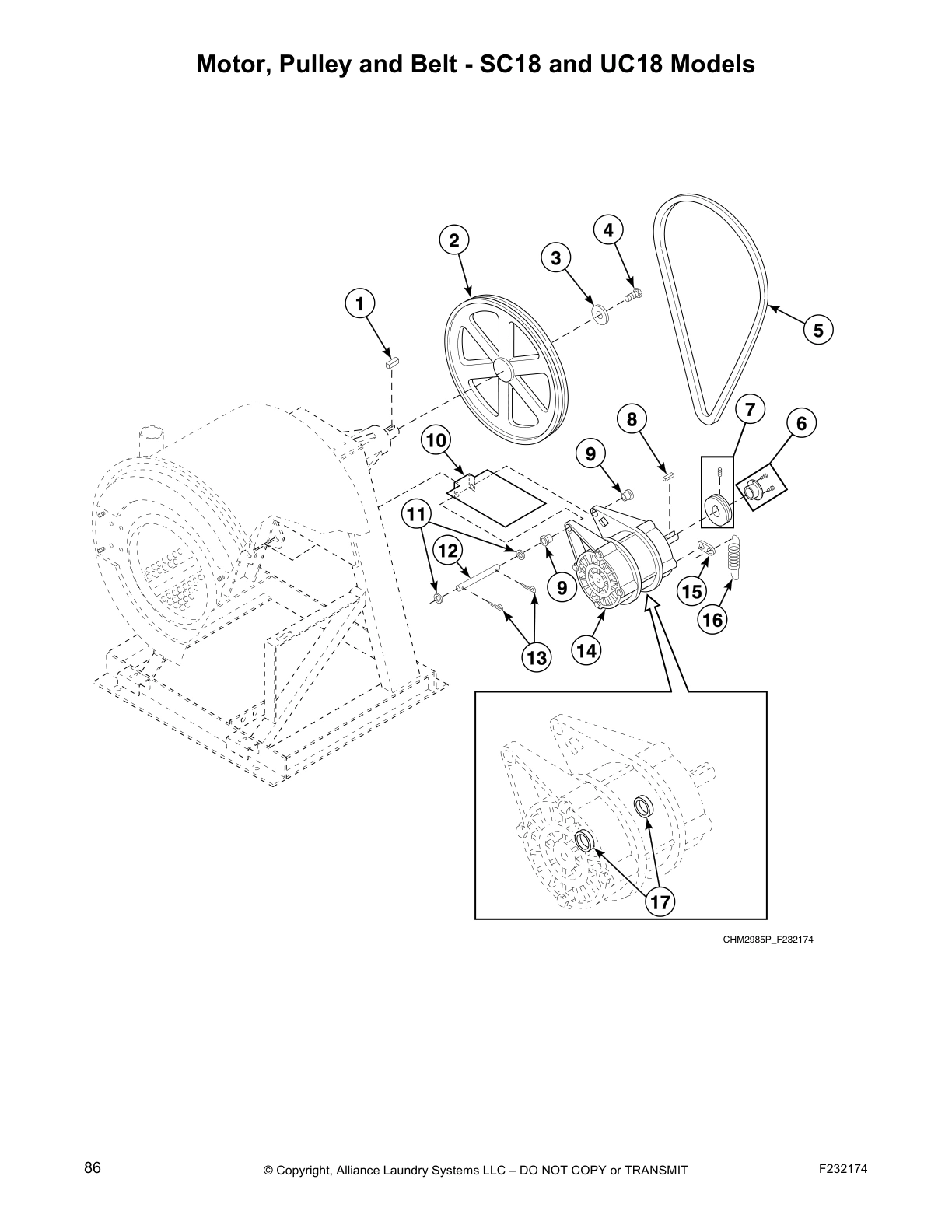

Motor, Pulley and Belt - SC18 and UC18 Models

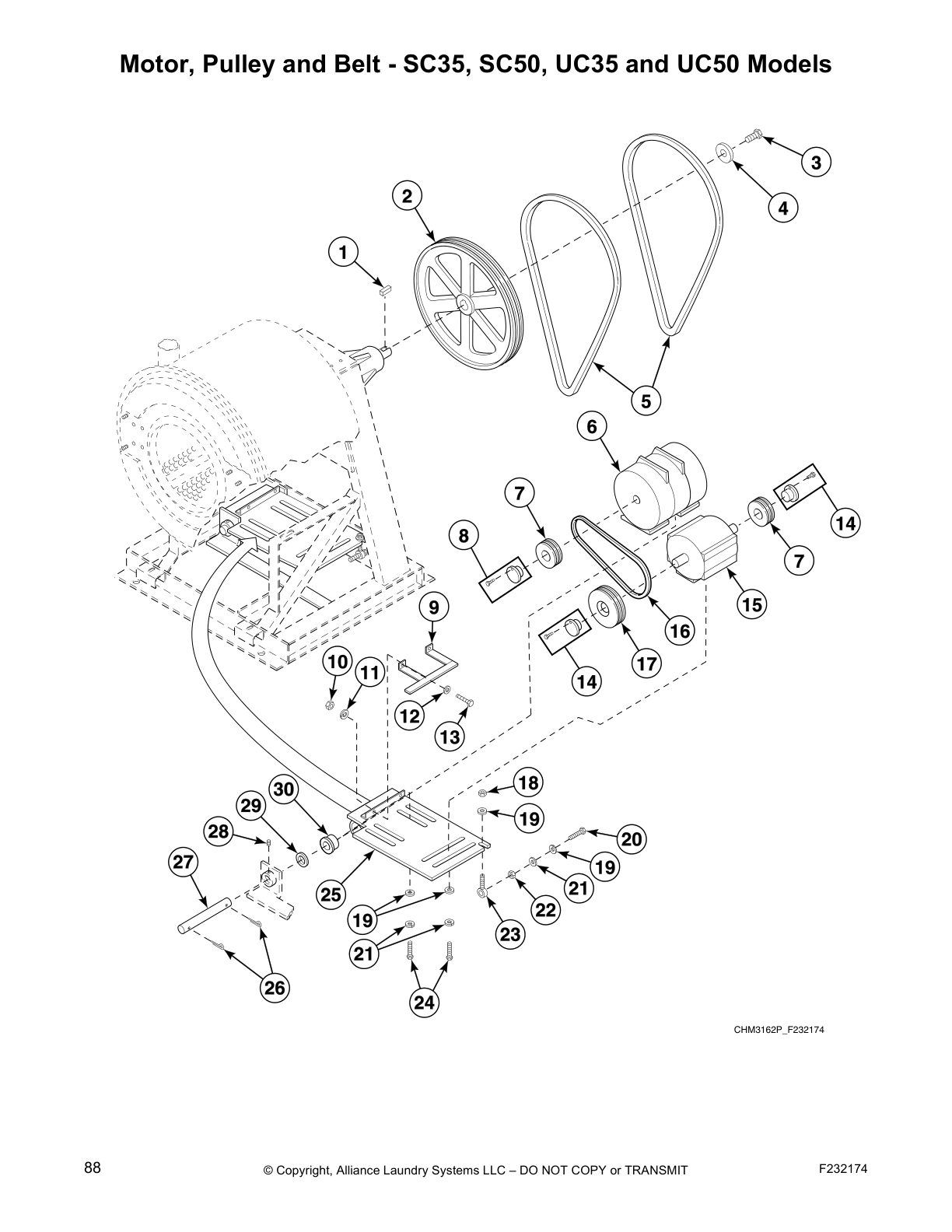

Motor, Pulley and Belt - SC35, SC50, UC35 and UC50 Models

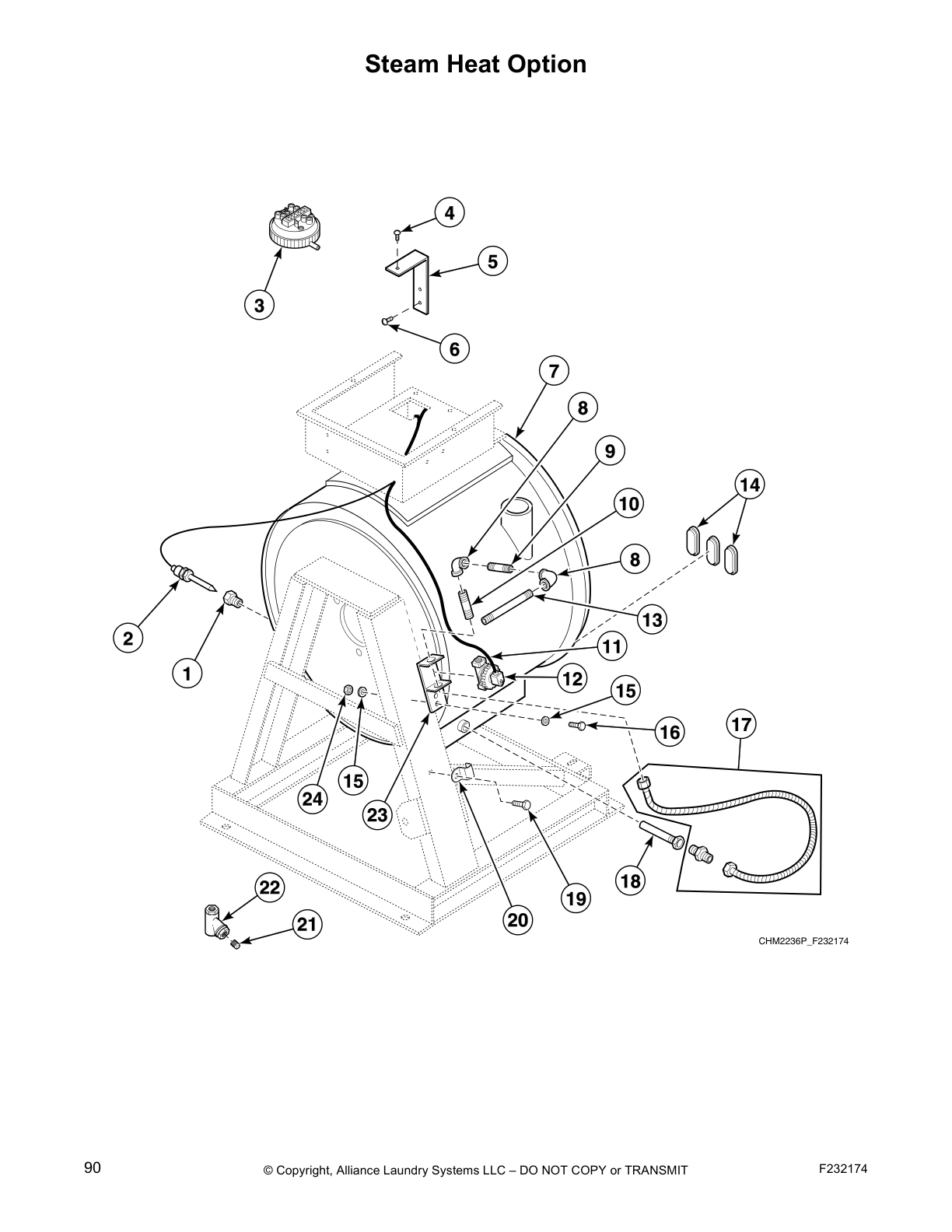

Steam Heat Option

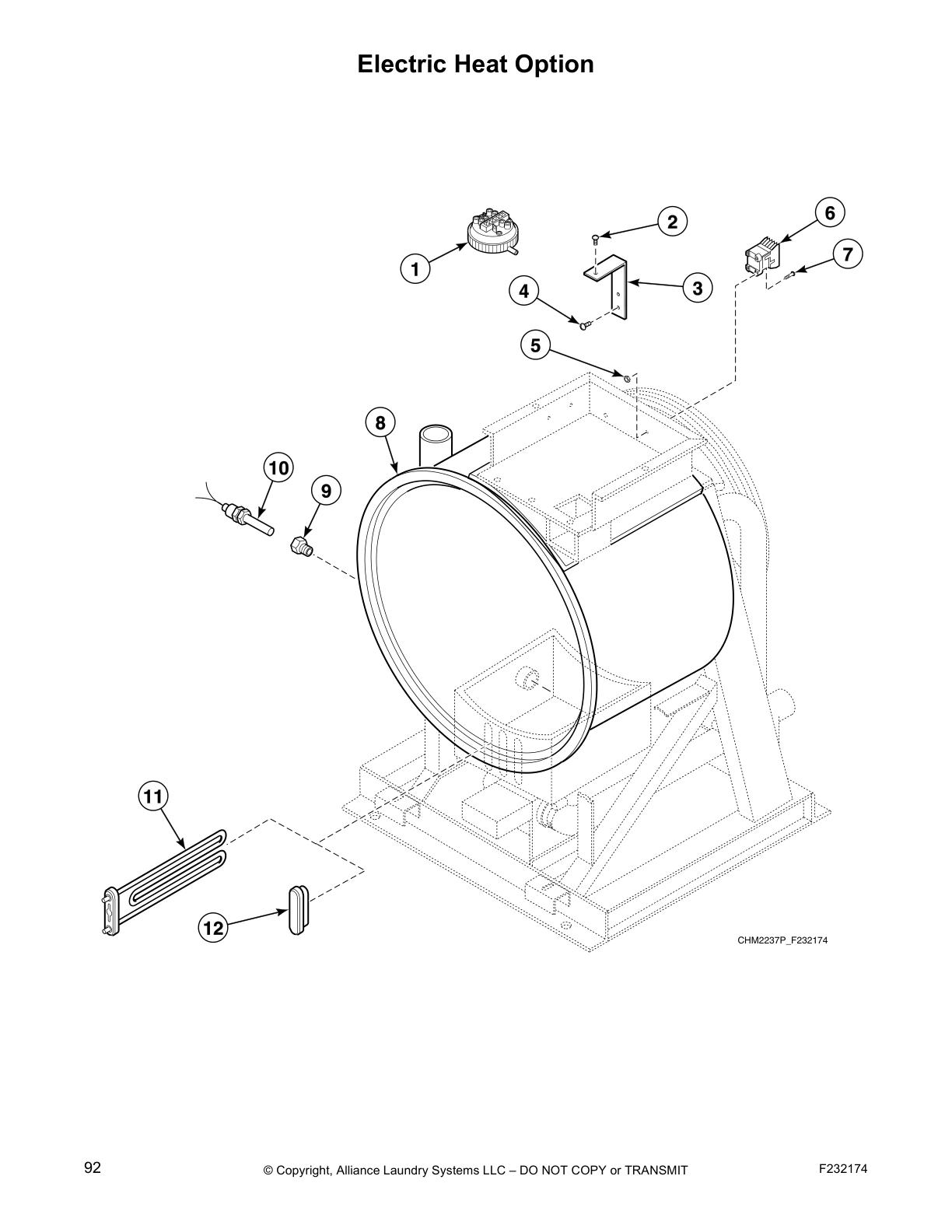

Electric Heat Option

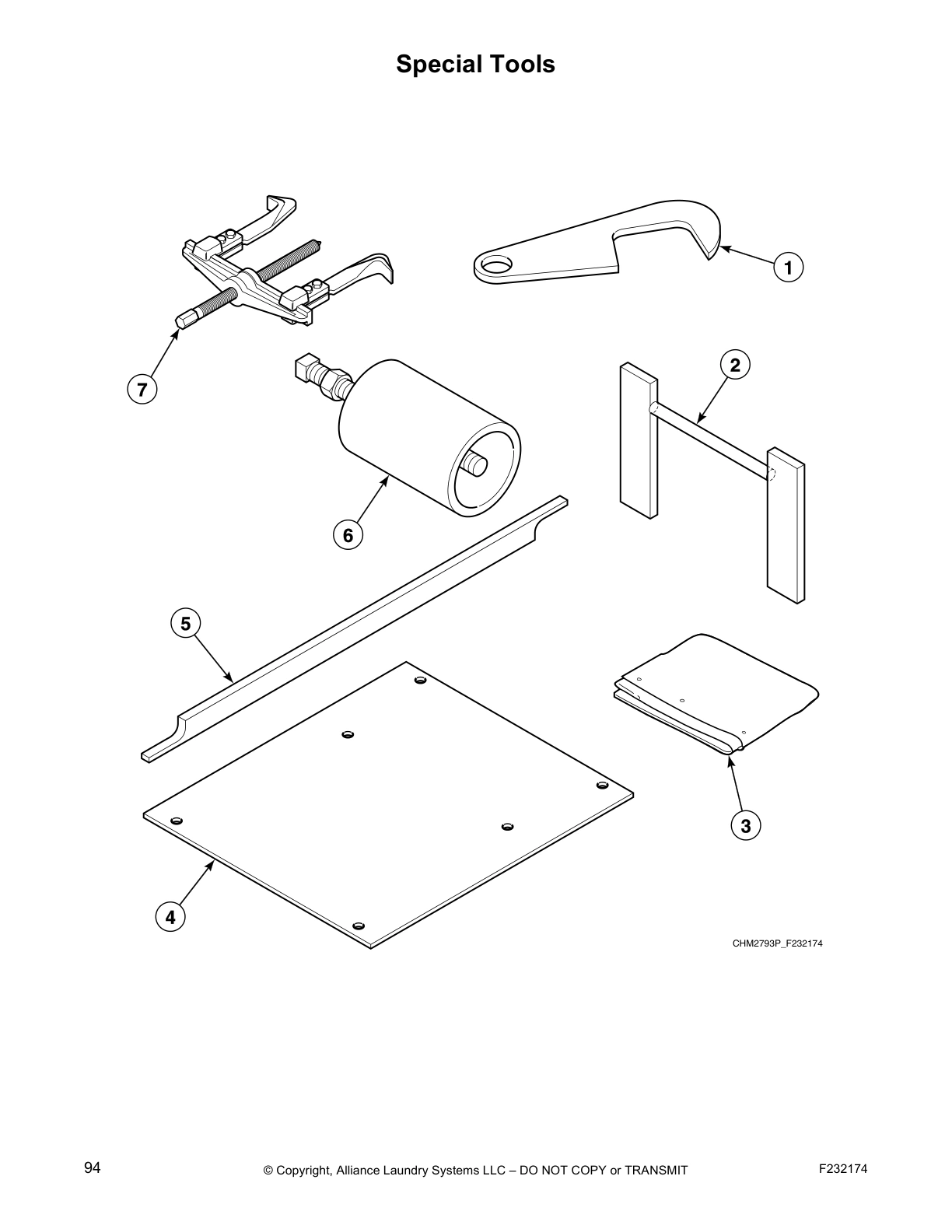

Special Tools
Common parts from model Unimac UC35MD3 Washer
SPQ F430916 SPQ F430916 Contact Us For Availability
Female Pin Terminal SPQ F330217P Contact Us For Availability
Coin Meter Assembly SPQ F200003004 Contact Us For Availability
SPQ F200003002 SPQ F200003002 Contact Us For Availability
SPQ F200003010 SPQ F200003010 Contact Us For Availability
SPQ F200003008 SPQ F200003008 Contact Us For Availability
SPQ F200004912 SPQ F200004912 Contact Us For Availability
SPQ F200004908P SPQ F200004908P Contact Us For Availability
SPQ F200004905 SPQ F200004905 Contact Us For Availability
SPQ F200004902 SPQ F200004902 Contact Us For Availability
SPQ F200004900 SPQ F200004900 Contact Us For Availability
SPQ F200115005P SPQ F200115005P Contact Us For Availability
SPQ F200115002 SPQ F200115002 Contact Us For Availability
SPQ F200115011 SPQ F200115011 Contact Us For Availability
SPQ F200115009 SPQ F200115009 Contact Us For Availability
SPQ F200115007 SPQ F200115007 Contact Us For Availability
SPQ F200115001 SPQ F200115001 Contact Us For Availability
SPQ F200115112 SPQ F200115112 Contact Us For Availability
SPQ F200115109 SPQ F200115109 Contact Us For Availability
SPQ F200115105 SPQ F200115105 Contact Us For Availability
SPQ F200115102 SPQ F200115102 Contact Us For Availability
SPQ F200115100 SPQ F200115100 Contact Us For Availability
SPQ F160420 SPQ F160420 Contact Us For Availability
SPQ F390300 SPQ F390300 Contact Us For Availability
Drain Motor SPQ F380933P Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
SPQ F280225P SPQ F280225P Contact Us For Availability
SPQ 70079601 SPQ 70079601 Contact Us For Availability
SPQ F330179P SPQ F330179P Contact Us For Availability
1
Water Level Switch SPQ F0340345-10P Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Coin Meter Assembly SPQ F200003006 Contact Us For Availability
1
Coin Meter Assembly SPQ F200003011 Contact Us For Availability
1
CCA Mounting Bracket SPQ F608169 Contact Us For Availability
1
Male Connector SPQ F140571 Contact Us For Availability
1
Coin Meter Assembly SPQ F200004910P Contact Us For Availability
1
Key SPQ F160582 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Screw SPQ F432293 Contact Us For Availability
1
Mounting Bracket SPQ F602722 Contact Us For Availability
1
Shell Front Kit SPQ F741301-01 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
1
Supply Dispenser Sub-Assembly SPQ F602374 Contact Us For Availability
1
Hose Clamp SPQ F200213 Contact Us For Availability
1
Coil SPQ F380900 Contact Us For Availability
1
Drain Valve Assembly SPQ F602920 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F792000 Contact Us For Availability
2
Nut SPQ F150390 Contact Us For Availability
2
Drain Valve Cover SPQ F603175 Contact Us For Availability
2
RC Network Filter SPQ F140915 Contact Us For Availability
2
Pop Rivet SPQ F370411-1P Contact Us For Availability
2
Female Pin Terminal SPQ 00430 Contact Us For Availability
2
Coin Box SPQ F160423 Contact Us For Availability
2
Coin Slide Extension SPQ F606006 Contact Us For Availability
2
SPQ F431901 SPQ F431901 Contact Us For Availability
2
Rivet SPQ F432005 Contact Us For Availability
2
Trunnion Kit SPQ F431131 Contact Us For Availability
2
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
2
Valve Repair Kit SPQ F380917 Contact Us For Availability
2
Input Power Block SPQ F602533 Contact Us For Availability
2
Vacuum Breaker Hose SPQ F150419 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Thermostat SPQ F603131 Contact Us For Availability
2
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F460131 Contact Us For Availability
3
Push Red Button Decal SPQ F150271 Contact Us For Availability
3
SPQ F160304P SPQ F160304P Contact Us For Availability
3
SPQ F370310 SPQ F370310 Contact Us For Availability
3
Nut SPQ F430243 Contact Us For Availability
3
Optic Switch Kit SPQ F775801-01P Contact Us For Availability
3
Coin Meter Wire Harness SPQ F607322-2P Contact Us For Availability
3
Washer SPQ F431102 Contact Us For Availability
3
Washer SPQ F431147 Contact Us For Availability
3
Magnetic Switch SPQ F0340723-00 Contact Us For Availability
3
Grommet SPQ F170607 Contact Us For Availability
3
Screw SPQ F430500 Contact Us For Availability
3
Frame Assembly SPQ F747003 Contact Us For Availability
3
Overflow Hose SPQ F150321 Contact Us For Availability
3
Flow Restrictor SPQ F380954 Contact Us For Availability
3
Ground Terminal Lug SPQ F430938 Contact Us For Availability
3
Drain Valve Motor SPQ F200133600 Contact Us For Availability
3
SPQ F430325 SPQ F430325 Contact Us For Availability
3
Screw SPQ F430172 Contact Us For Availability
3
Template SPQ F450127 Contact Us For Availability
4
3-Way Mixing Valve Kit SPQ F380939 Contact Us For Availability
4
Coin Meter Blocking Coil SPQ F160467P Contact Us For Availability
4
SPQ F431222 SPQ F431222 Contact Us For Availability
4
SPQ F200025200P SPQ F200025200P Contact Us For Availability
4
Bracket SPQ F606005 Contact Us For Availability
4
SPQ F430225 SPQ F430225 Contact Us For Availability
4
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
4
Module Cover SPQ F602961 Contact Us For Availability
4
Switch SPQ F605462 Contact Us For Availability
4
Nut SPQ F431024 Contact Us For Availability
4
SPQ F200108P SPQ F200108P Contact Us For Availability
4
Fuse Holder SPQ F140747 Contact Us For Availability
4
SPQ F430100 SPQ F430100 Contact Us For Availability
4
Bolt Layout Mounting Template SPQ F608709 Contact Us For Availability
5
Supply Dispenser Gasket SPQ F170170 Contact Us For Availability
5
SPQ F140738 SPQ F140738 Contact Us For Availability
5
Nut SPQ F430311 Contact Us For Availability
5
Top Cover Latch SPQ F431215 Contact Us For Availability
5
Nut SPQ F430174 Contact Us For Availability
5
Coin Meter Decal SPQ F370424-1 Contact Us For Availability
5
SPQ F430977 SPQ F430977 Contact Us For Availability
5
SPQ F150225 SPQ F150225 Contact Us For Availability
5
Trim SPQ F430536 Contact Us For Availability
5
Electrical Box Assembly SPQ F602694 Contact Us For Availability
5
Strainer SPQ F380938 Contact Us For Availability
5
Fuse SPQ F140746 Contact Us For Availability
5
Washer SPQ F200215 Contact Us For Availability
5
SPQ F431115 SPQ F431115 Contact Us For Availability
5
Elbow SPQ F601186 Contact Us For Availability
6
Front Panel Kit SPQ F015050100P Contact Us For Availability
6
SPQ F340919 SPQ F340919 Contact Us For Availability
6
SPQ F431113 SPQ F431113 Contact Us For Availability
6
Circuit Board Support SPQ F230803 Contact Us For Availability
6
Pop Rivet SPQ F200002503 Contact Us For Availability
6
SPQ F605974 SPQ F605974 Contact Us For Availability
6
Nipple SPQ F430215 Contact Us For Availability
6
SPQ F430978 SPQ F430978 Contact Us For Availability
6
Contactor SPQ F430231 Contact Us For Availability
6
SPQ F310125 SPQ F310125 Contact Us For Availability
6
Top Cover Kit SPQ F190802P Contact Us For Availability
6
Pop Rivet SPQ F431210 Contact Us For Availability
6
Shell Band Kit SPQ F741701 Contact Us For Availability
6
SPQ F340913 SPQ F340913 Contact Us For Availability
6
Elbi Conversion Kit SPQ F380958 Contact Us For Availability
6
Insulator Bushing SPQ F430903 Contact Us For Availability
6
SPQ F150332 SPQ F150332 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
SPQ F280342 SPQ F280342 Contact Us For Availability
6
Basket Puller Kit SPQ F798002 Contact Us For Availability
7
Door Lock Catch Casting SPQ F602567 Contact Us For Availability
7
SPQ F370437P SPQ F370437P Contact Us For Availability
7
SPQ F430928 SPQ F430928 Contact Us For Availability
7
SPQ F431022 SPQ F431022 Contact Us For Availability
7
SPQ F431907 SPQ F431907 Contact Us For Availability
7
SPQ F430986 SPQ F430986 Contact Us For Availability
7
Stud SPQ F160562 Contact Us For Availability
7
Basket Assembly SPQ F605726 Contact Us For Availability
7
SPQ F140734 SPQ F140734 Contact Us For Availability
7
SPQ F280351 SPQ F280351 Contact Us For Availability
7
Bearing Puller Tool SPQ F460129P Contact Us For Availability
8
SPQ F300113P SPQ F300113P Contact Us For Availability
8
SPQ F370438P SPQ F370438P Contact Us For Availability
8
Coin Guide Assembly SPQ F160466P Contact Us For Availability
8
Terminal Strip Insulator Decal SPQ F432001 Contact Us For Availability
8
Coin Meter Assembly SPQ F200115106P Contact Us For Availability
8
SPQ F160650P SPQ F160650P Contact Us For Availability
8
SPQ F603003 SPQ F603003 Contact Us For Availability
8
SPQ F8535601 SPQ F8535601 Contact Us For Availability
8
SPQ F757419 SPQ F757419 Contact Us For Availability
8
Take-Apart Hinge SPQ F602753 Contact Us For Availability
8
SPQ F430948 SPQ F430948 Contact Us For Availability
8
SPQ F350304P SPQ F350304P Contact Us For Availability
8
SPQ F220420 SPQ F220420 Contact Us For Availability
9
SPQ F431108 SPQ F431108 Contact Us For Availability
9
Female Pin Terminal SPQ F0370410-10P Contact Us For Availability
9
Pop Rivet SPQ F200002502P Contact Us For Availability
9
RC Network Filter SPQ F370425P Contact Us For Availability
9
SPQ F160651P SPQ F160651P Contact Us For Availability
9
SPQ F230661 SPQ F230661 Contact Us For Availability
9
SPQ F758001-01P SPQ F758001-01P Contact Us For Availability
9
Gasket SPQ F170401P Contact Us For Availability
9
Shaft Seal Sleeve SPQ F8312005P Contact Us For Availability
9
SPQ F430987 SPQ F430987 Contact Us For Availability
9
SPQ F430322 SPQ F430322 Contact Us For Availability
9
SPQ F350104 SPQ F350104 Contact Us For Availability
9
SPQ F220410P SPQ F220410P Contact Us For Availability
10
Door Lock Catch SPQ F150223 Contact Us For Availability
10
Nut SPQ F430232 Contact Us For Availability
10
DC Power Cable SPQ F140202 Contact Us For Availability
10
Nut SPQ F431005 Contact Us For Availability
10
Screw SPQ F430925 Contact Us For Availability
10
Coin Catch Funnel Kit SPQ F606651 Contact Us For Availability
10
Coin Funnel Assembly SPQ F607535 Contact Us For Availability
10
Door Lock Plate Shim SPQ F603185 Contact Us For Availability
10
Door Spacer SPQ F0150273-00 Contact Us For Availability
10
Shell Kit SPQ F741008 Contact Us For Availability
10
Screw SPQ F430929 Contact Us For Availability
10
Drain Connector Tee SPQ F8017101 Contact Us For Availability
10
Thermostat SPQ F290111P Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Washer SPQ F431100 Contact Us For Availability
11
Coin Meter Insert Decal SPQ F231010 Contact Us For Availability
11
Door Lock Plate Sub-Assembly SPQ F633734 Contact Us For Availability
11
Screw SPQ F430533 Contact Us For Availability
11
Valve Panel Sub-Assembly SPQ F633494-3 Contact Us For Availability
11
Drain Hose SPQ F0150331-00 Contact Us For Availability
11
Pipe Nipple SPQ 70435601 Contact Us For Availability
11
Temperature Probe SPQ F370606P Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Rear Panel Kit SPQ F757003 Contact Us For Availability
12
Screw SPQ F430942 Contact Us For Availability
12
Water Hose SPQ F200128P Contact Us For Availability
12
Screw SPQ F430103 Contact Us For Availability
12
Harness Assembly SPQ F140887P Contact Us For Availability
12
Element SPQ F360205P Contact Us For Availability
13
Door Handle Kit SPQ F730155 Contact Us For Availability
13
Right Side Panel SPQ F8159601 Contact Us For Availability
13
Triple Lip Seal SPQ F8203803 Contact Us For Availability
13
Manifold SPQ F8333201 Contact Us For Availability
13
Front Drain Hose SPQ F150312 Contact Us For Availability
13
Motor Pulley Bushing SPQ F430114 Contact Us For Availability
13
DIN Valve Kit SPQ F8521601 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Water Level Switch SPQ F330227 Contact Us For Availability
14
Power Supply Harness SPQ F607322-5P Contact Us For Availability
14
Counterclockwise Spin R Decal SPQ F230693 Contact Us For Availability
14
Left Side Panel SPQ F634500-1P Contact Us For Availability
14
Motor SPQ F280211P Contact Us For Availability
14
Heating Element Plug SPQ 70214101 Contact Us For Availability
15
Interlock Contactor SPQ F140912 Contact Us For Availability
15
Power Supply Harness SPQ F0141904-01P Contact Us For Availability
15
Door Lock Torsion Spring SPQ F431902 Contact Us For Availability
15
Door Glass SPQ F8485301P Contact Us For Availability
15
Washer SPQ F634499-1 Contact Us For Availability
15
Bearing SPQ F100134 Contact Us For Availability
15
Air Trap Hose SPQ F020014200 Contact Us For Availability
15
Belt SPQ F220411 Contact Us For Availability
16
Nut SPQ F140913 Contact Us For Availability
16
Coin Meter Wire Harness SPQ F0141904-00P Contact Us For Availability
16
Door Lock Microswitch SPQ F8193601 Contact Us For Availability
16
Door Gasket SPQ F170123 Contact Us For Availability
16
Screw SPQ F430317 Contact Us For Availability
16
Nut SPQ F8166301 Contact Us For Availability
16
Washer SPQ F100137P Contact Us For Availability
16
Soap Dispenser Hose SPQ F200205 Contact Us For Availability
16
Pulley SPQ F220421 Contact Us For Availability
17
Spacer SPQ F340200 Contact Us For Availability
17
Spacer SPQ F310110 Contact Us For Availability
17
Terminal Strip SPQ F430917 Contact Us For Availability
17
Washer SPQ F140914 Contact Us For Availability
17
Fuse SPQ F607322-3 Contact Us For Availability
17
Door Assembly SPQ F430906 Contact Us For Availability
17
Pipe Insulation SPQ F430108 Contact Us For Availability
17
Vacuum Breaker Top SPQ F015033000 Contact Us For Availability
17
Supply Dispenser Baffle SPQ F150309 Contact Us For Availability
17
Cotter Pin SPQ F280319 Contact Us For Availability
18
Screw SPQ F730525 Contact Us For Availability
18
Siphon Tube SPQ F0150329-00 Contact Us For Availability
18
Power Supply CCA SPQ F350127 Contact Us For Availability
18
Screw SPQ F602540 Contact Us For Availability
18
Pushbutton Rod SPQ F603239-4 Contact Us For Availability
18
Motor Support Rod SPQ F280178 Contact Us For Availability
18
Steam Hose SPQ F410300 Contact Us For Availability
19
Coin Guide Assembly SPQ F370411-2P Contact Us For Availability
19
Washer SPQ F603239-3 Contact Us For Availability
19
Vacuum Breaker Assembly SPQ F430177 Contact Us For Availability
19
Steam Injector Tube Assembly SPQ F200154 Contact Us For Availability
20
Cap Plug SPQ F603031 Contact Us For Availability
20
Blind Rivet SPQ F320300 Contact Us For Availability
20
SPQ F280197 SPQ F280197 Contact Us For Availability
21
Relay CCA SPQ F330186P Contact Us For Availability
21
Door Lock Microswitch SPQ F605381 Contact Us For Availability
21
SPQ F430144 SPQ F430144 Contact Us For Availability
21
Temperature Probe SPQ F430115 Contact Us For Availability
22
Door Hinge SPQ F8390801 Contact Us For Availability
22
Washer SPQ F190301 Contact Us For Availability
23
Screw SPQ F140243P Contact Us For Availability
23
Door Lock Splash Shield SPQ F431903 Contact Us For Availability
23
Door Mount SPQ J1111905 Contact Us For Availability
23
SPQ F430205 SPQ F430205 Contact Us For Availability
24
Spring Pin SPQ F602813-2 Contact Us For Availability
24
SPQ F430524 SPQ F430524 Contact Us For Availability
24
Steam Bracket Assembly SPQ F420409 Contact Us For Availability
25
SPQ F431123 SPQ F431123 Contact Us For Availability
25
Door Handle SPQ F190216P Contact Us For Availability
26
SPQ F430116 SPQ F430116 Contact Us For Availability
27
SPQ F300128P SPQ F300128P Contact Us For Availability
27
SPQ F430401 SPQ F430401 Contact Us For Availability
28
SPQ F601114 SPQ F601114 Contact Us For Availability
29
SPQ F430502 SPQ F430502 Contact Us For Availability
34
SPQ F430211 SPQ F430211 Contact Us For Availability
NI
SPQ F330175P SPQ F330175P Contact Us For Availability
NI
Coin Meter Assembly SPQ F200003005P Contact Us For Availability
NI
SPQ F730016P SPQ F730016P Contact Us For Availability
NI
SPQ F798704 SPQ F798704 Contact Us For Availability
NI
Male Connector SPQ F140916 Contact Us For Availability
NI
SPQ F370225P SPQ F370225P Contact Us For Availability
NI
SPQ F140612P SPQ F140612P Contact Us For Availability
NI
SPQ F200003003P SPQ F200003003P Contact Us For Availability
NI
SPQ F200003001 SPQ F200003001 Contact Us For Availability
NI
SPQ F200003000P SPQ F200003000P Contact Us For Availability
NI
Coin Meter Assembly SPQ F200003012 Contact Us For Availability
NI
SPQ F200003009P SPQ F200003009P Contact Us For Availability
NI
SPQ F200003007 SPQ F200003007 Contact Us For Availability
NI
SPQ F200002500P SPQ F200002500P Contact Us For Availability
NI
SPQ F0231595-00 SPQ F0231595-00 Contact Us For Availability
NI
SPQ F634561-2 SPQ F634561-2 Contact Us For Availability
NI
SPQ F634561-1 SPQ F634561-1 Contact Us For Availability
NI
Coin Meter Assembly SPQ F200004904 Contact Us For Availability
NI
SPQ F200004911 SPQ F200004911 Contact Us For Availability
NI
SPQ F200004906P SPQ F200004906P Contact Us For Availability
NI
SPQ F200004903 SPQ F200004903 Contact Us For Availability
NI
SPQ F200004901 SPQ F200004901 Contact Us For Availability
NI
SPQ F200004909P SPQ F200004909P Contact Us For Availability
NI
Coin Meter Insert Decal SPQ F200115006P Contact Us For Availability
NI
SPQ F200115004 SPQ F200115004 Contact Us For Availability
NI
SPQ F200115000P SPQ F200115000P Contact Us For Availability
NI
SPQ F200115010 SPQ F200115010 Contact Us For Availability
NI
SPQ F200115008 SPQ F200115008 Contact Us For Availability
NI
SPQ F200115003 SPQ F200115003 Contact Us For Availability
NI
Coin Meter Decal SPQ F200115103 Contact Us For Availability
NI
SPQ F200115111 SPQ F200115111 Contact Us For Availability
NI
SPQ F200115107 SPQ F200115107 Contact Us For Availability
NI
SPQ F200115104 SPQ F200115104 Contact Us For Availability
NI
SPQ F200115101 SPQ F200115101 Contact Us For Availability
NI
SPQ F160421 SPQ F160421 Contact Us For Availability
NI
SPQ F160673 SPQ F160673 Contact Us For Availability
NI
SPQ F431209 SPQ F431209 Contact Us For Availability
NI
SPQ F430969 SPQ F430969 Contact Us For Availability
NI
SPQ F603390-1P SPQ F603390-1P Contact Us For Availability
NI
SPQ F431041 SPQ F431041 Contact Us For Availability
NI
SPQ F190203P SPQ F190203P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F798710 SPQ F798710 Contact Us For Availability
NI
SPQ F798709 SPQ F798709 Contact Us For Availability
NI
SPQ F380957 SPQ F380957 Contact Us For Availability
NI
SPQ F140909 SPQ F140909 Contact Us For Availability
NI
SPQ F380972P SPQ F380972P Contact Us For Availability
NI
Drain Valve Motor and Gear Box Assembly SPQ G159764P Contact Us For Availability
NI
SPQ F380943P SPQ F380943P Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F280226 SPQ F280226 Contact Us For Availability
NI
SPQ F606257 SPQ F606257 Contact Us For Availability
NI
SPQ F421936 SPQ F421936 Contact Us For Availability
NI
SPQ F421962 SPQ F421962 Contact Us For Availability
NI
SPQ F420708 SPQ F420708 Contact Us For Availability
NI
SPQ F330182 SPQ F330182 Contact Us For Availability
NI
SPQ F330180P SPQ F330180P Contact Us For Availability
× ![]()
