Model LG UBKC90 – Common Parts & Diagrams
Diagram 0

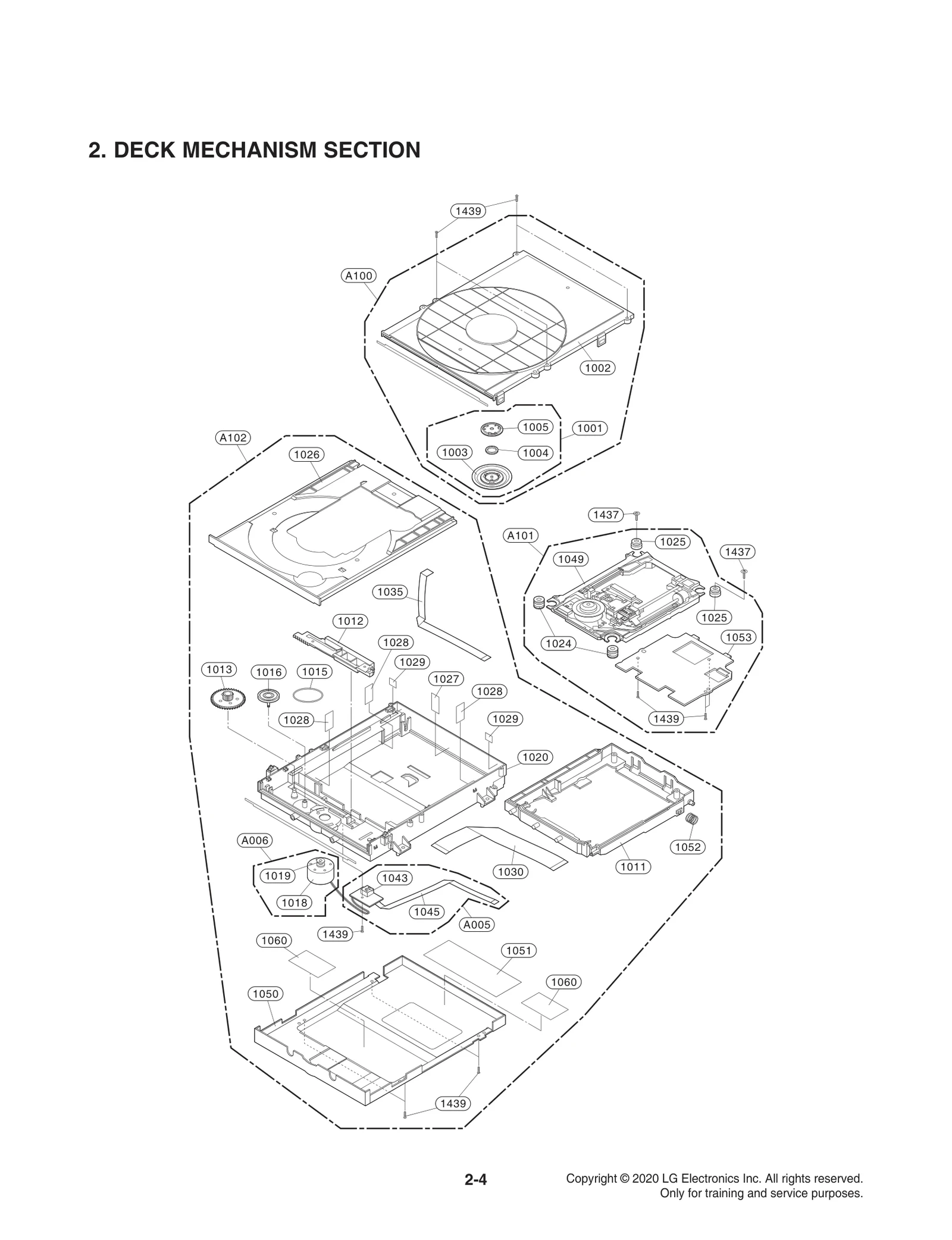

Diagram 1

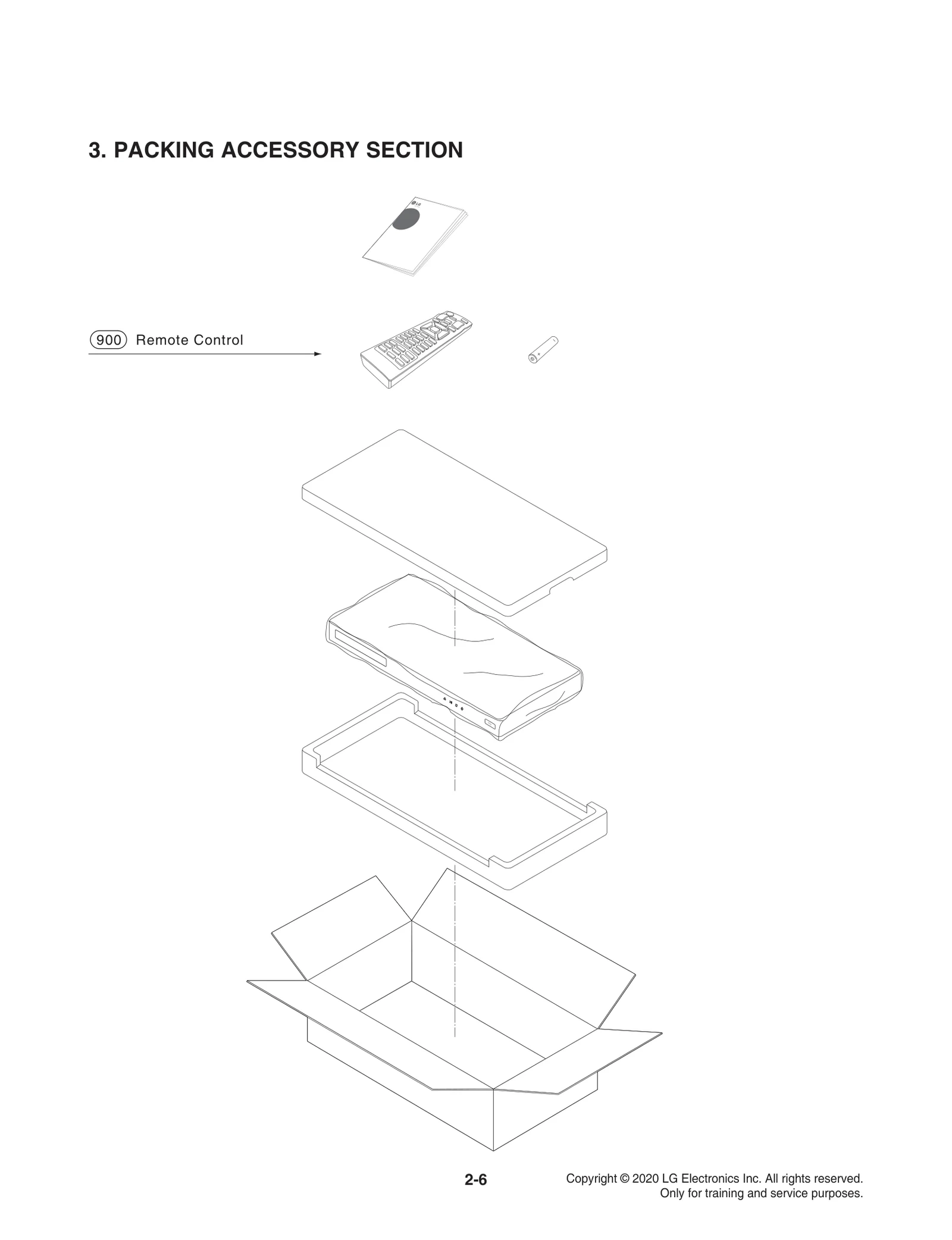

Diagram 2
Diagram 3
Common parts from model LG UBKC90
250
Case LGE MBN65523901 Contact Us For Availability
251
Button LGE MBG66246601 Contact Us For Availability
260
Chassis LGE MBS63805921 Contact Us For Availability
261
Foot LGE MDP63026803 Contact Us For Availability
262
Cover LGE MCK67389501 Contact Us For Availability
263
Holder LGE MEG65020801 Contact Us For Availability
264
Holder LGE MEG65020901 Contact Us For Availability
266
Damper LGE MCQ62096408 Contact Us For Availability
267
Bracket Assembly LGE ABA30039201 Contact Us For Availability
283
Door LGE MCV63873901 Contact Us For Availability
284
Spring LGE MHY63124701 Contact Us For Availability
300
Power Cord,Attach LGE EAD62501535 Contact Us For Availability
1001
Clamp Assembly LGE ACA73589401 Contact Us For Availability
1002
Cover LGE MCK69432401 Contact Us For Availability
1003
Clamp LGE MBU63585501 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB35231201 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM64504201 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1024
Damper LGE MCQ68986002 Contact Us For Availability
1025
Damper LGE MCQ68966602 Contact Us For Availability
1026
Tray LGE MJS62671802 Contact Us For Availability
1027
Sheet LGE MHK65808501 Contact Us For Availability
1028
Sheet LGE MHK65808502 Contact Us For Availability
1029
Sheet LGE MHK65808506 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD36091013 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62039801 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ63001101 Contact Us For Availability
1050
Cover LGE MCK69430801 Contact Us For Availability
1051
Sheet LGE MHK65808503 Contact Us For Availability
1052
Spring LGE MHY64884001 Contact Us For Availability
1053
Bracket LGE MAZ65527701 Contact Us For Availability
1060
Sheet LGE MHK65808504 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR83858301 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A44
Frame Assembly LGE ADV76946807 Contact Us For Availability
A45
Case Assembly LGE ABQ76603409 Contact Us For Availability
A46
BPR Total Assembly LGE EBU64392001 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR84231701 Contact Us For Availability
A53
BPR Total Assembly LGE EBU64502101 Contact Us For Availability
A100
Cover Assembly LGE ACQ90288201 Contact Us For Availability
A101
Bracket Assembly LGE ABA76688301 Contact Us For Availability
A102
Base Assembly LGE AAN76508701 Contact Us For Availability
CABLE1
Harness,Single LGE EAD62632403 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62228008 Contact Us For Availability
IC302A
S/W,System Program LGE SAA38932502 Contact Us For Availability
IC402A
S/W,System Program LGE SAA38932501 Contact Us For Availability
× ![]()
