Model Whirlpool U31FS-7-DN GAS RANGE – Common Parts & Diagrams
01 - BODY

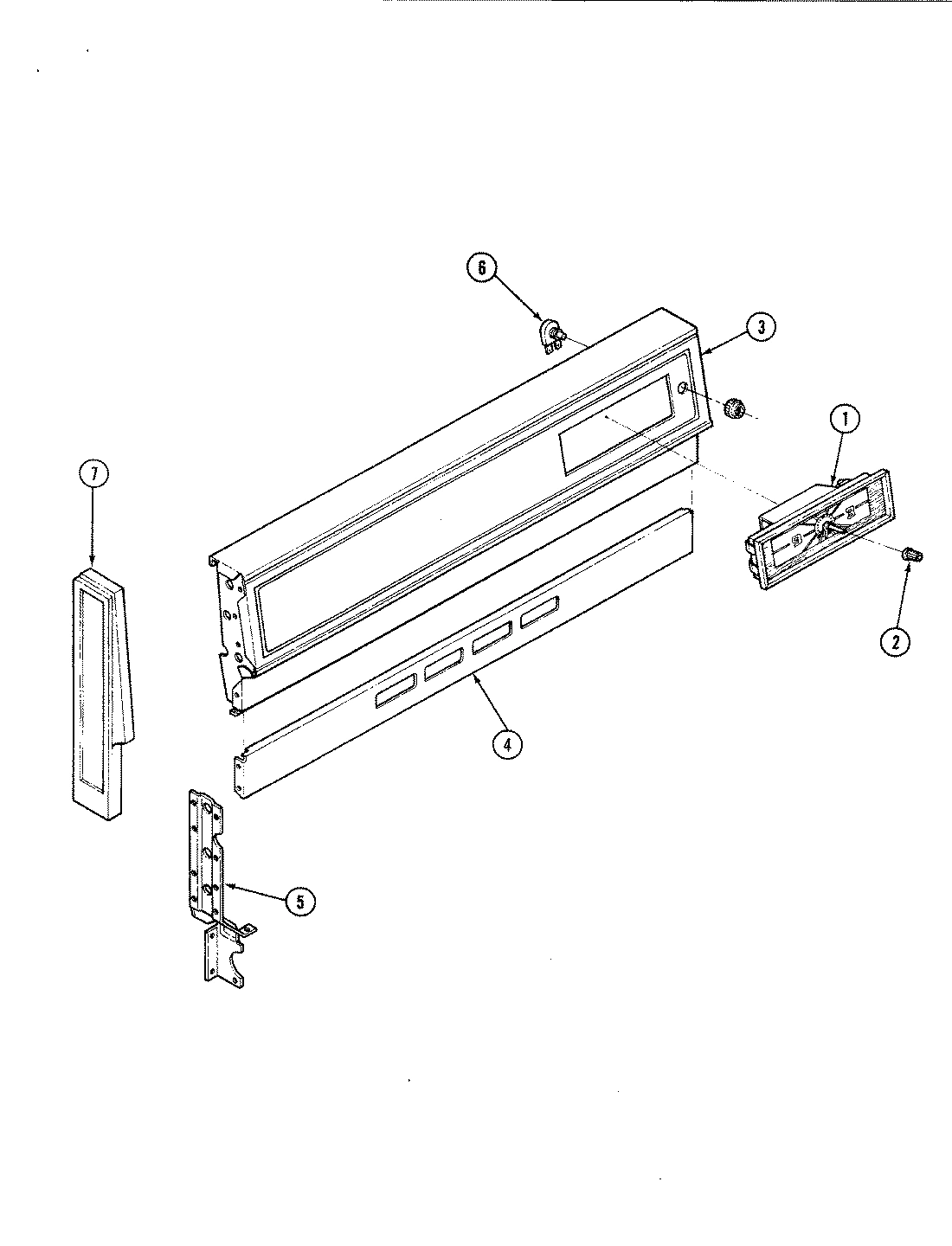

02 - CONTROL PANEL

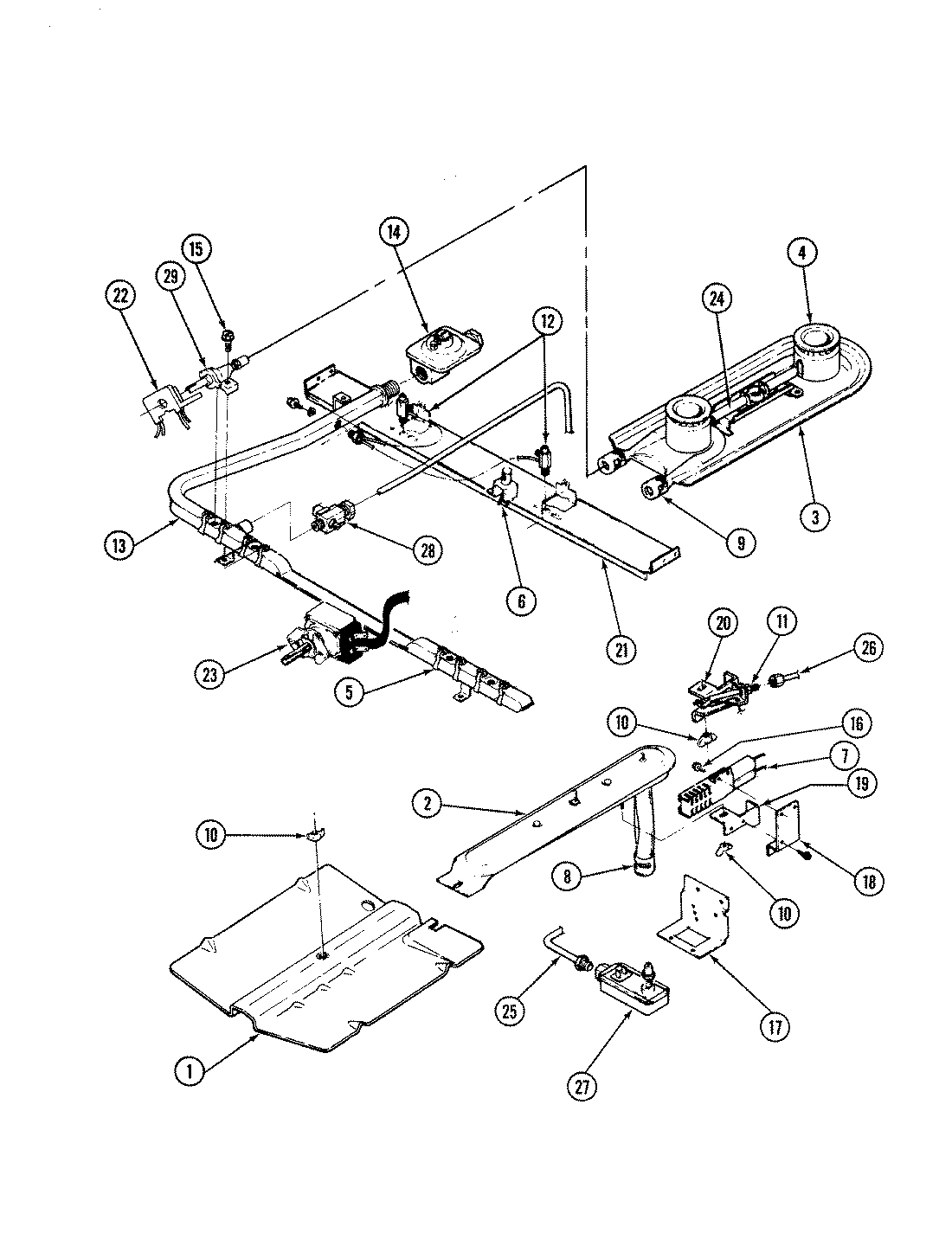

04 - GAS CONTROLS

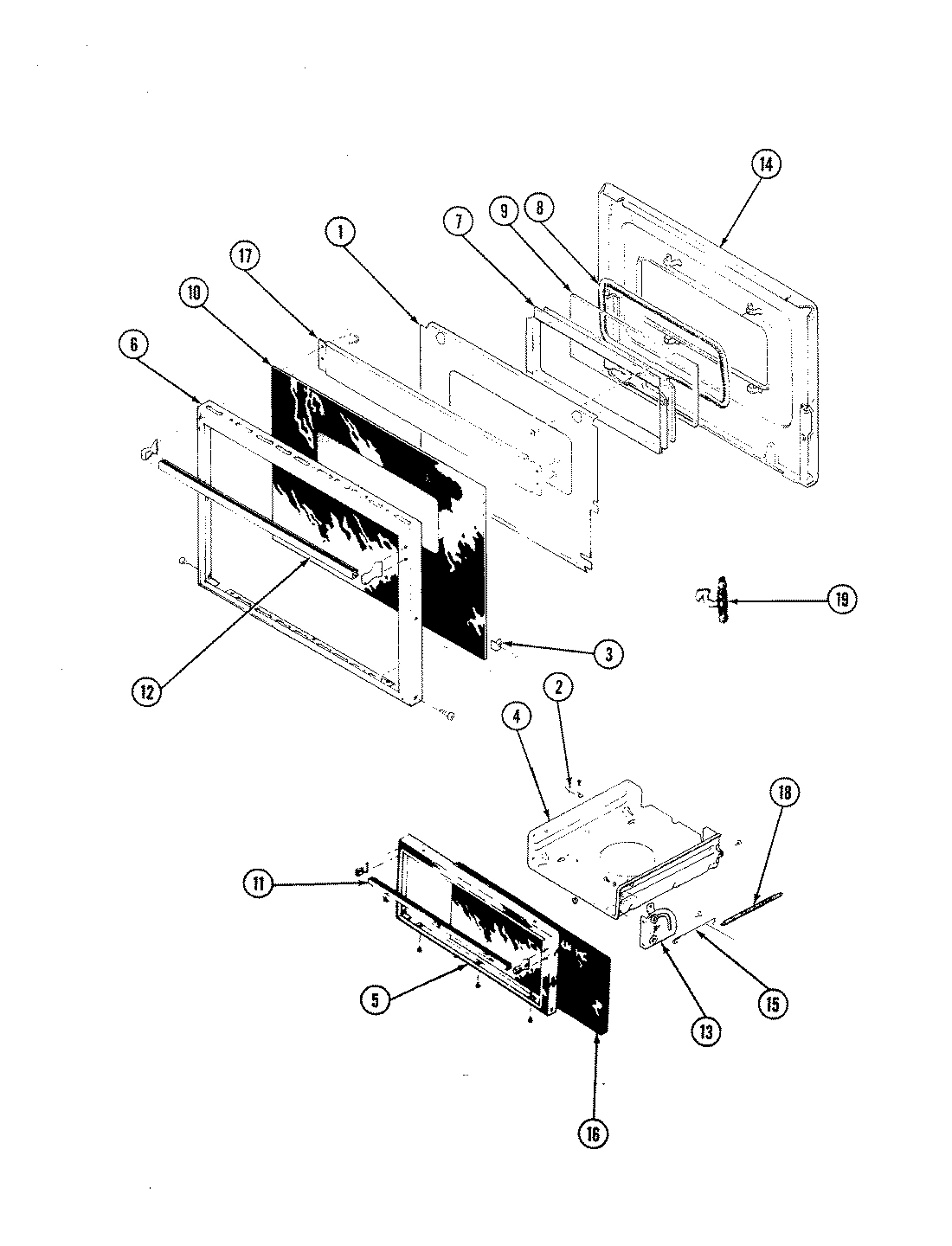

03 - DOOR
Common parts from model Whirlpool U31FS-7-DN GAS RANGE
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, MAIN WPL 4002F14480 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
1
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
BAFFLE WPL 0153321 Contact Us For Availability
1
BAFFLE WPL 0153329 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601F10016 Contact Us For Availability
2
GRIP NUT WPL 1555247 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
CATCH WPL 1135208 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
BURNER, TOP FRONT WPL 7505P14060 Contact Us For Availability
3
BURNER, TOP REAR WPL 7505P14160 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300252 Contact Us For Availability
4
BLOCK WPL 1867258 Contact Us For Availability
4
BLOCK WPL 1867271 Contact Us For Availability
4
PANEL, BKGD LOWER WPL 2620W01400 Contact Us For Availability
4
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
4
DRAWER ASSY. WPL 0384226 Contact Us For Availability
5
BOTTOM, MISC WPL 0236238 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
5
SUPPORT WPL 3807F01080 Contact Us For Availability
5
SUPPORT WPL 3807F01280 Contact Us For Availability
5
SUPPORT, BKG LEFT WPL 3807W01080 Contact Us For Availability
5
SUPPORT, BKG RIGHT WPL 3807W01180 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 0237110 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
7
+ BOTTOM OVEN ASSY WPL 0234282 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
TRIM WPL 1916101 Contact Us For Availability
7
TRIM WPL 1916102 Contact Us For Availability
8
BRACKET WPL 0284305 Contact Us For Availability
8
+ BRACKET WPL 0284307 Contact Us For Availability
8
BRACKET WPL 0284315 Contact Us For Availability
8
BRACKET WPL 0284316 Contact Us For Availability
8
FLUE ASSY. WPL 0444240 Contact Us For Availability
8
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
8
SCREW WPL 7101P06160 Contact Us For Availability
8
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
8
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
8
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
8
CLAMP WPL Y0315206 Contact Us For Availability
8
MIXER, AIR WPL 0607214 Contact Us For Availability
9
RING, SNAP WPL 1013214 Contact Us For Availability
9
CLIP WPL 1141237 Contact Us For Availability
9
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
9
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
9
MIXER, AIR WPL Y0607215 Contact Us For Availability
10
FRAME ASSY. WPL 0462232 Contact Us For Availability
10
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
10
WING NUT WPL 1555254 Contact Us For Availability
10
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
11
PILOT ASSY. WPL 1566267 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
11
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
11
HANDLE, OVEN DOOR WPL 7701P07460 Contact Us For Availability
12
FRAME ASSY. WPL 0462226 Contact Us For Availability
12
PILOT ASSY. WPL 1566281 Contact Us For Availability
12
PILOT ASSY. WPL 1566288 Contact Us For Availability
12
PILOT, TOP BURNER WPL 7505P08060 Contact Us For Availability
12
BURNER, PILOT WPL 7505P08160 Contact Us For Availability
12
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
12
BURNER, PILOT (LP) WPL 7505P19460 Contact Us For Availability
12
HANDLE, DOOR WPL 1355275 Contact Us For Availability
12
HANDLE, DOOR WPL 1355298 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P02860 Contact Us For Availability
13
MANIFOLD PIPE WPL 7513P10260 Contact Us For Availability
13
PIPE MANIFOLD WPL 7513P13160 Contact Us For Availability
13
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
13
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
14
SEAL WPL 1726256 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 1665247 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2422C074 Contact Us For Availability
15
GRATE WPL 2003W00100 Contact Us For Availability
15
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
15
SCREW VALVE WPL 1986319 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
+ HINGE, MAIN TOP WPL 0529103 Contact Us For Availability
16
+ HINGE, MAIN TOP WPL 0529104 Contact Us For Availability
16
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
16
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE RETAINER, GLASS WPL W10124350 Contact Us For Availability
17
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
17
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
17
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
17
KNOB, THERMOSTAT WPL 7711P13760 Contact Us For Availability
17
KNOB, THERMOSTAT WPL 7731P05360 Contact Us For Availability
17
INSERT WPL Y0507229 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
SUPPORT WPL 0862445 Contact Us For Availability
17
SPACER WPL 1783200 Contact Us For Availability
17
SCREW WPL 1986341 Contact Us For Availability
17
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
18
SPRING WPL 1790306 Contact Us For Availability
18
SPRING, BROILER DRAWER WPL 1790279 Contact Us For Availability
19
LINING, MISC. WPL 0606391 Contact Us For Availability
19
SUPPORT WPL 0862434 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
20
NUT WPL 1555266 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
20
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
20
LINING, INNER SIDE WPL 4019J022 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
+ SUPPORT ASSEMBLY WPL 0862435 Contact Us For Availability
21
SUPPORT WPL 0862470 Contact Us For Availability
23
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
23
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
23
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
23
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
23
SCREW WPL 7101P29560 Contact Us For Availability
23
THERMOSTAT OVEN WPL 7515P01560 Contact Us For Availability
23
THERMOSTAT WPL 7515P02660 Contact Us For Availability
23
THERMOSTAT WPL 7515P03260 Contact Us For Availability
24
RACK WPL 7801P00460 Contact Us For Availability
24
TUBE WPL 1930321 Contact Us For Availability
25
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
25
TUBING, OVEN (3/8``) WPL 3414F09944 Contact Us For Availability
25
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
26
SCREW, SPECIAL WPL 1986214 Contact Us For Availability
26
3/16 X 56 TUBING WPL 0931202 Contact Us For Availability
26
TUBING, 3/16`` X 54``----NA WPL 3414F06244 Contact Us For Availability
27
HOUSING WPL Y0537241 Contact Us For Availability
27
VALVE, OVEN WPL 7501P06160 Contact Us For Availability
27
VALVE, OVEN WPL 7501P10160 Contact Us For Availability
28
STOP, MAIN TOP WPL 0115101 Contact Us For Availability
29
SUPPORT WPL 0862446 Contact Us For Availability
29
SUPPORT WPL 1828264 Contact Us For Availability
29
WPL 7502P01560 WPL 7502P01560 Contact Us For Availability
29
WPL 7502P01660 WPL 7502P01660 Contact Us For Availability
29
WPL 7502P10860 WPL 7502P10860 Contact Us For Availability
29
WPL 7502P10960 WPL 7502P10960 Contact Us For Availability
29
WPL 7502P22260 WPL 7502P22260 Contact Us For Availability
29
WPL 7502P22360 WPL 7502P22360 Contact Us For Availability
31
ANCHOR ASSM WPL 1430238 Contact Us For Availability
31
TOP, WPL 2001F03630 Contact Us For Availability
32
WPL 1916166 WPL 1916166 Contact Us For Availability
32
WPL 1916167 WPL 1916167 Contact Us For Availability
32
WPL 3404A00151 WPL 3404A00151 Contact Us For Availability
32
WPL 3404A01351 WPL 3404A01351 Contact Us For Availability
32
WPL 3404A01451 WPL 3404A01451 Contact Us For Availability
33
WPL 1188267 WPL 1188267 Contact Us For Availability
33
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
× ![]()
