Model Whirlpool U31FN-7K GAS RANGE – Common Parts & Diagrams
01 - BODY

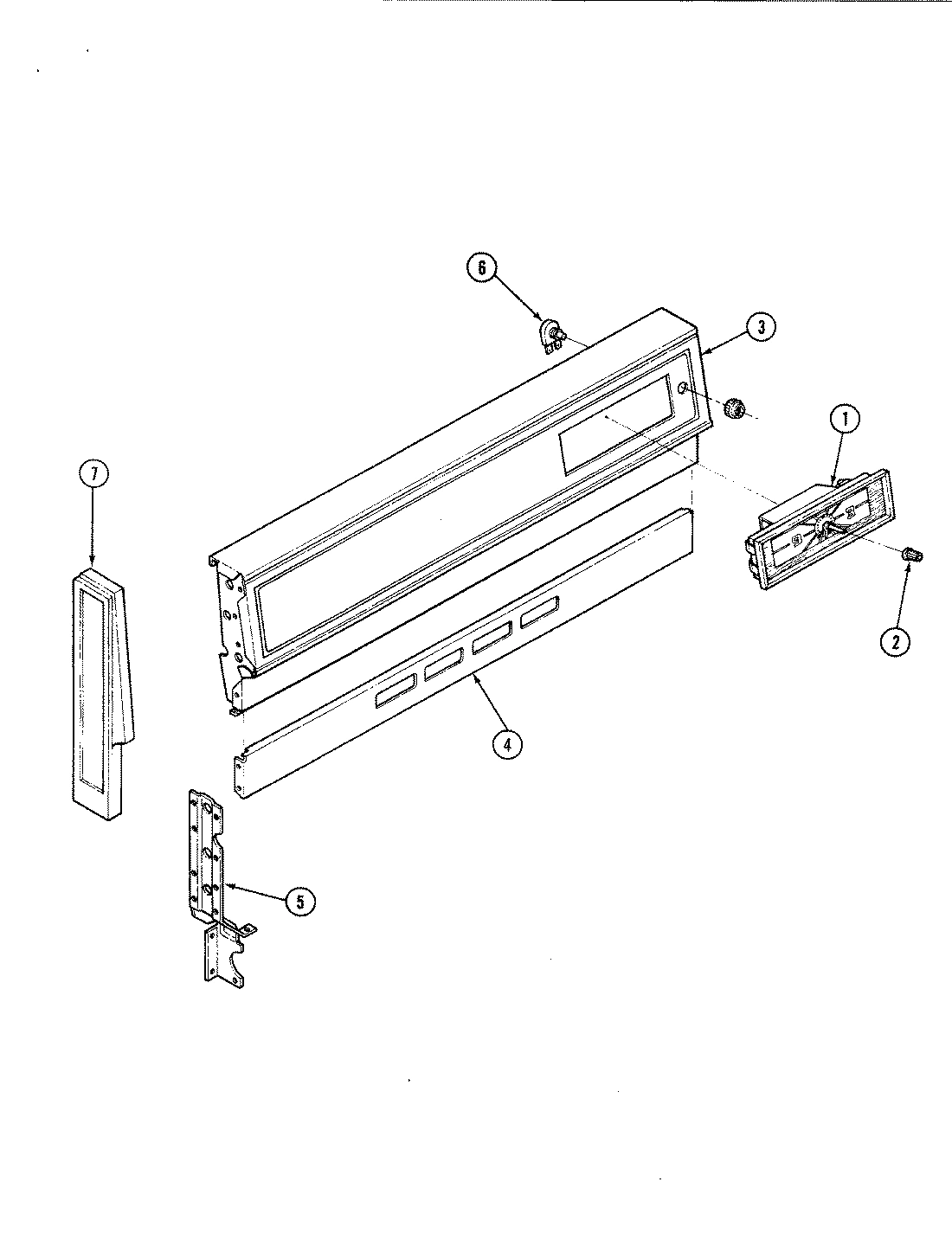

02 - CONTROL PANEL

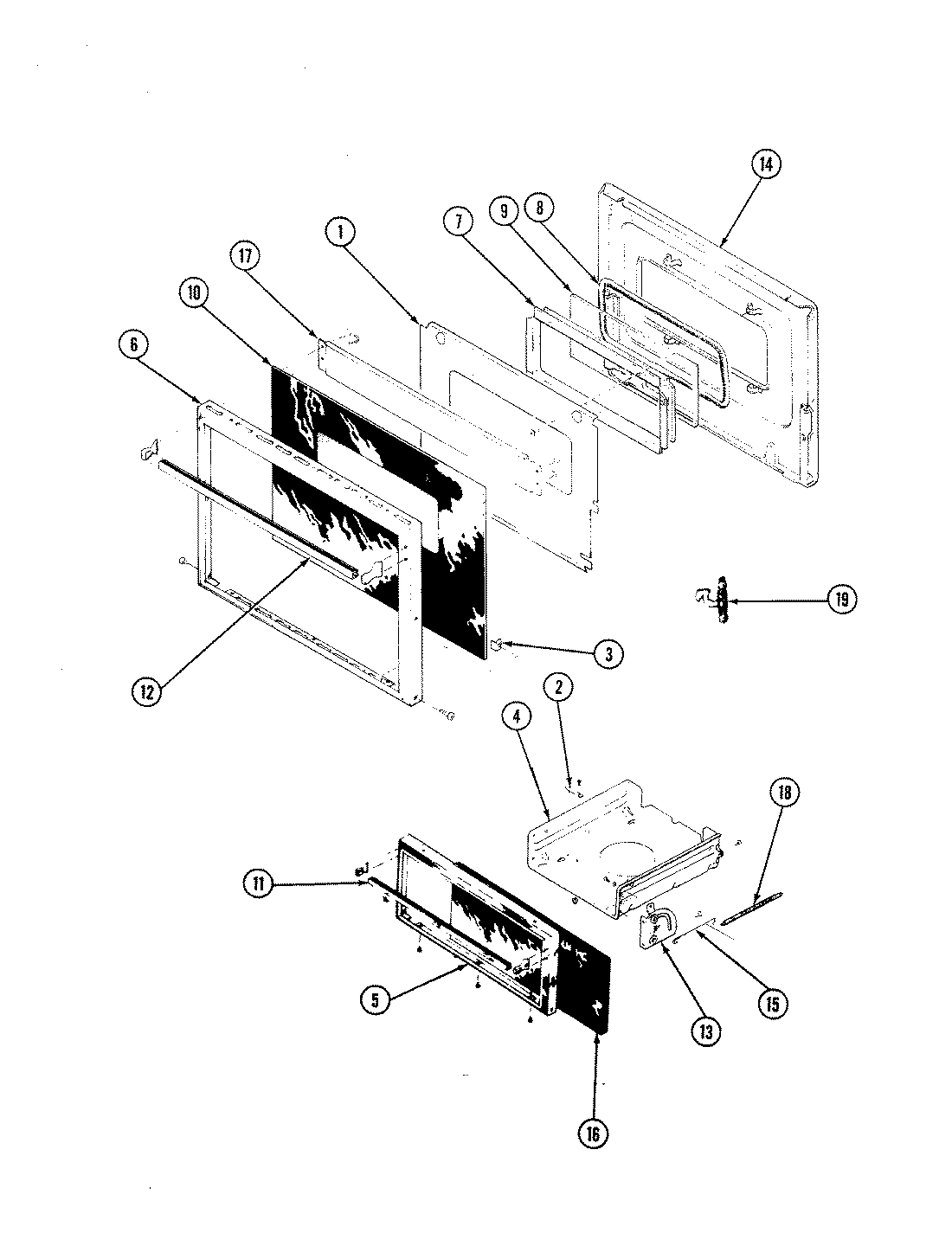

03 - DOOR

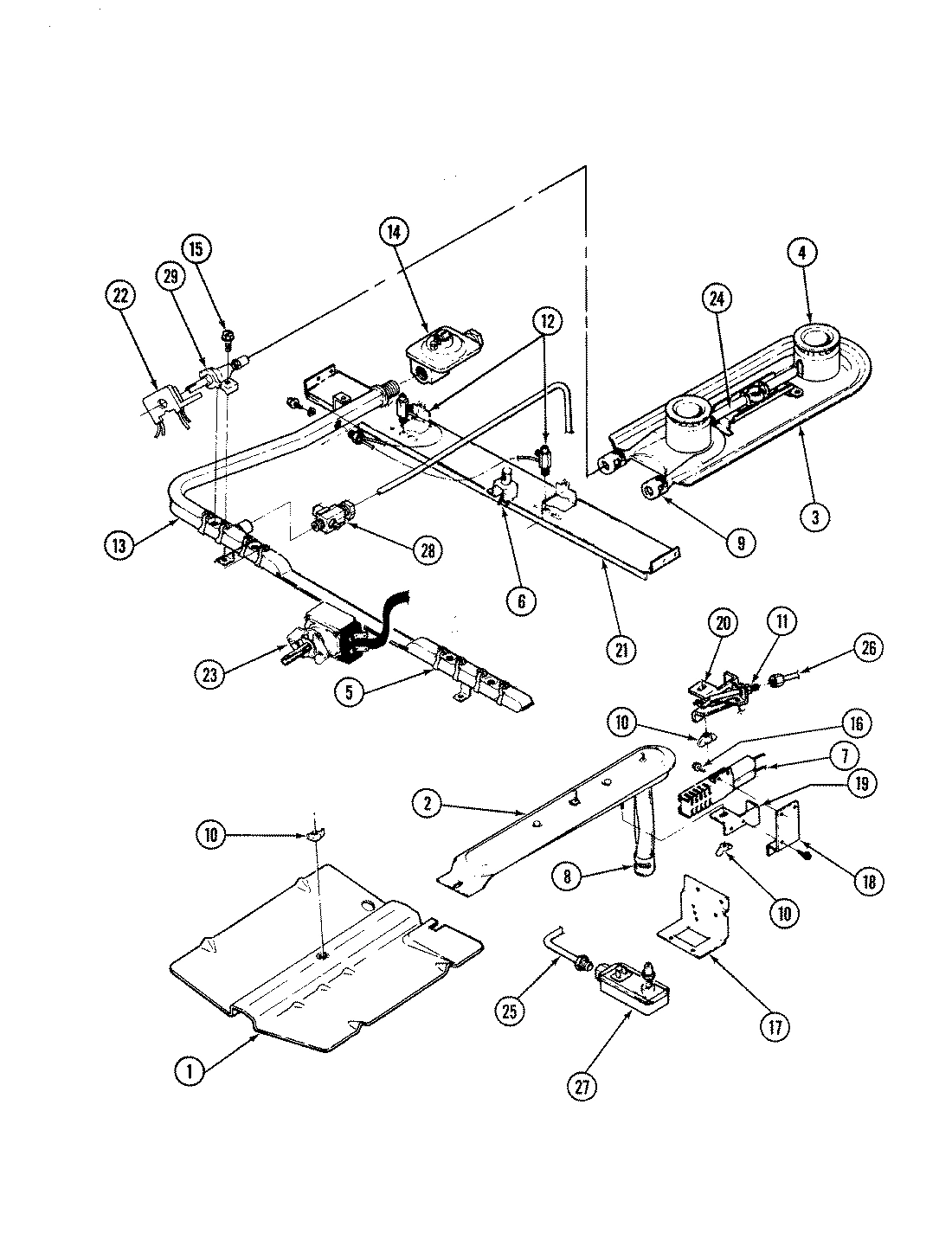

04 - GAS CONTROLS
Common parts from model Whirlpool U31FN-7K GAS RANGE
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, MAIN WPL 4002F14480 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
1
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
BAFFLE WPL 0153329 Contact Us For Availability
1
BAFFLE WPL 0153321 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601F10016 Contact Us For Availability
2
GRIP NUT WPL 1555247 Contact Us For Availability
2
CATCH WPL 1135208 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
3
BACKGUARD ASSY, SN WHT WPL 2601W10981 Contact Us For Availability
3
PANEL, BKGD WHT WPL 2601W27581 Contact Us For Availability
3
BACKGUARD ASSY WPL 2601W35081 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
BURNER, TOP FRONT WPL 7505P14060 Contact Us For Availability
3
BURNER, TOP REAR WPL 7505P14160 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300253 Contact Us For Availability
4
BLOCK WPL 1867258 Contact Us For Availability
4
BLOCK WPL 1867271 Contact Us For Availability
4
PANEL, BKGD LOWER WPL 2620W01400 Contact Us For Availability
4
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
4
DRAWER ASSY. WPL 0384226 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
5
BOTTOM, MISC WPL 0236238 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
5
SUPPORT WPL 3807F01080 Contact Us For Availability
5
SUPPORT WPL 3807F01280 Contact Us For Availability
5
SUPPORT, BKG LEFT WPL 3807W01080 Contact Us For Availability
5
SUPPORT, BKG RIGHT WPL 3807W01180 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 0237110 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
6
IGNITOR WPL 1482237 Contact Us For Availability
7
+ BOTTOM OVEN ASSY WPL 0234282 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
TRIM WPL 1916101 Contact Us For Availability
7
TRIM WPL 1916102 Contact Us For Availability
7
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
8
BRACKET WPL 0284305 Contact Us For Availability
8
+ BRACKET WPL 0284307 Contact Us For Availability
8
BRACKET WPL 0284315 Contact Us For Availability
8
BRACKET WPL 0284316 Contact Us For Availability
8
FLUE ASSY. WPL 0444240 Contact Us For Availability
8
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
8
SCREW WPL 7101P06160 Contact Us For Availability
8
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
8
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
8
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
8
CLAMP WPL Y0315206 Contact Us For Availability
8
MIXER, AIR WPL 0607214 Contact Us For Availability
9
RING, SNAP WPL 1013214 Contact Us For Availability
9
CLIP WPL 1141237 Contact Us For Availability
9
MODULE, SPARK WPL 1522106 Contact Us For Availability
9
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
9
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
9
MIXER, AIR WPL Y0607215 Contact Us For Availability
10
FRAME ASSY. WPL 0462232 Contact Us For Availability
10
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
10
WING NUT WPL 1555254 Contact Us For Availability
10
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
11
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
11
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
11
HANDLE, OVEN DOOR WPL 7701P07460 Contact Us For Availability
12
FRAME ASSY. WPL 0462226 Contact Us For Availability
12
HANDLE, DOOR WPL 1355275 Contact Us For Availability
12
HANDLE, DOOR WPL 1355298 Contact Us For Availability
13
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
13
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
13
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
13
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
14
SEAL WPL 1726256 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2422C074 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 1665241 Contact Us For Availability
15
GRATE WPL 2003W00100 Contact Us For Availability
15
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
15
SCREW VALVE WPL 1986319 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
16
+ HINGE, MAIN TOP WPL 0529103 Contact Us For Availability
16
+ HINGE, MAIN TOP WPL 0529104 Contact Us For Availability
16
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
16
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
16
PANEL,SOLID OVEN DR WPL 0674317N Contact Us For Availability
16
PANEL,BROILER DOOR WPL 0684309N Contact Us For Availability
16
10.24X1/4`` ROUND HD WPL 1986304 Contact Us For Availability
16
SLEEVE WPL 7214P00360 Contact Us For Availability
17
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
17
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
17
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
17
KNOB, THERMOSTAT WPL 7711P31260 Contact Us For Availability
17
INSERT WPL Y0507229 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
SPACER WPL 1783200 Contact Us For Availability
17
SCREW WPL 1986341 Contact Us For Availability
17
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
17
SUPPORT WPL 0862445 Contact Us For Availability
18
SPRING WPL 1790306 Contact Us For Availability
18
SPRING, BROILER DRAWER WPL 1790279 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
19
LINING, MISC. WPL 0606391 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
19
SUPPORT WPL 0862434 Contact Us For Availability
20
NUT WPL 1555266 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
20
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
20
LINING, INNER SIDE WPL 4019J022 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
PANEL, MANIFOLD WPL 2616N016 Contact Us For Availability
21
SUPPORT WPL 0862470 Contact Us For Availability
22
PANEL, SIDE WPL 0801240N Contact Us For Availability
22
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
22
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
22
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
22
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
22
SWITCH WPL 7403P25960 Contact Us For Availability
22
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
23
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
23
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
23
THERMOSTAT,GAS RANGE WPL 1888440 Contact Us For Availability
23
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
23
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
23
THERMOSTAT WPL 7404P06360 Contact Us For Availability
24
RACK WPL 7801P00460 Contact Us For Availability
24
TUBE WPL 1930342 Contact Us For Availability
25
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
25
TUBING, OVEN (3/8``) WPL 3414F09944 Contact Us For Availability
25
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE TU WPL W10124350 Contact Us For Availability
26
SCREW, SPECIAL WPL 1986214 Contact Us For Availability
27
HOUSING WPL Y0537241 Contact Us For Availability
27
WPL 7501P01760 WPL 7501P01760 Contact Us For Availability
27
WPL 7501P02260 WPL 7501P02260 Contact Us For Availability
27
WPL 7501P10260 WPL 7501P10260 Contact Us For Availability
27
WPL 7501P10860 WPL 7501P10860 Contact Us For Availability
28
STOP, MAIN TOP WPL 0115101 Contact Us For Availability
28
WPL 1951367 WPL 1951367 Contact Us For Availability
29
SUPPORT WPL 0862446 Contact Us For Availability
29
SUPPORT WPL 1828264 Contact Us For Availability
29
WPL 7502P01560 WPL 7502P01560 Contact Us For Availability
29
WPL 7502P01660 WPL 7502P01660 Contact Us For Availability
29
WPL 7502P10860 WPL 7502P10860 Contact Us For Availability
29
WPL 7502P10960 WPL 7502P10960 Contact Us For Availability
29
WPL 7502P22260 WPL 7502P22260 Contact Us For Availability
29
WPL 7502P22360 WPL 7502P22360 Contact Us For Availability
31
WPL 1430238 WPL 1430238 Contact Us For Availability
31
WPL 2001F03591 WPL 2001F03591 Contact Us For Availability
32
WPL 1916166 WPL 1916166 Contact Us For Availability
32
WPL 1916167 WPL 1916167 Contact Us For Availability
32
WPL 3404A00151 WPL 3404A00151 Contact Us For Availability
32
WPL 3404A01351 WPL 3404A01351 Contact Us For Availability
32
WPL 3404A01451 WPL 3404A01451 Contact Us For Availability
33
WPL 1188267 WPL 1188267 Contact Us For Availability
33
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
× ![]()
