Model Whirlpool U23F FREEZER – Common Parts & Diagrams

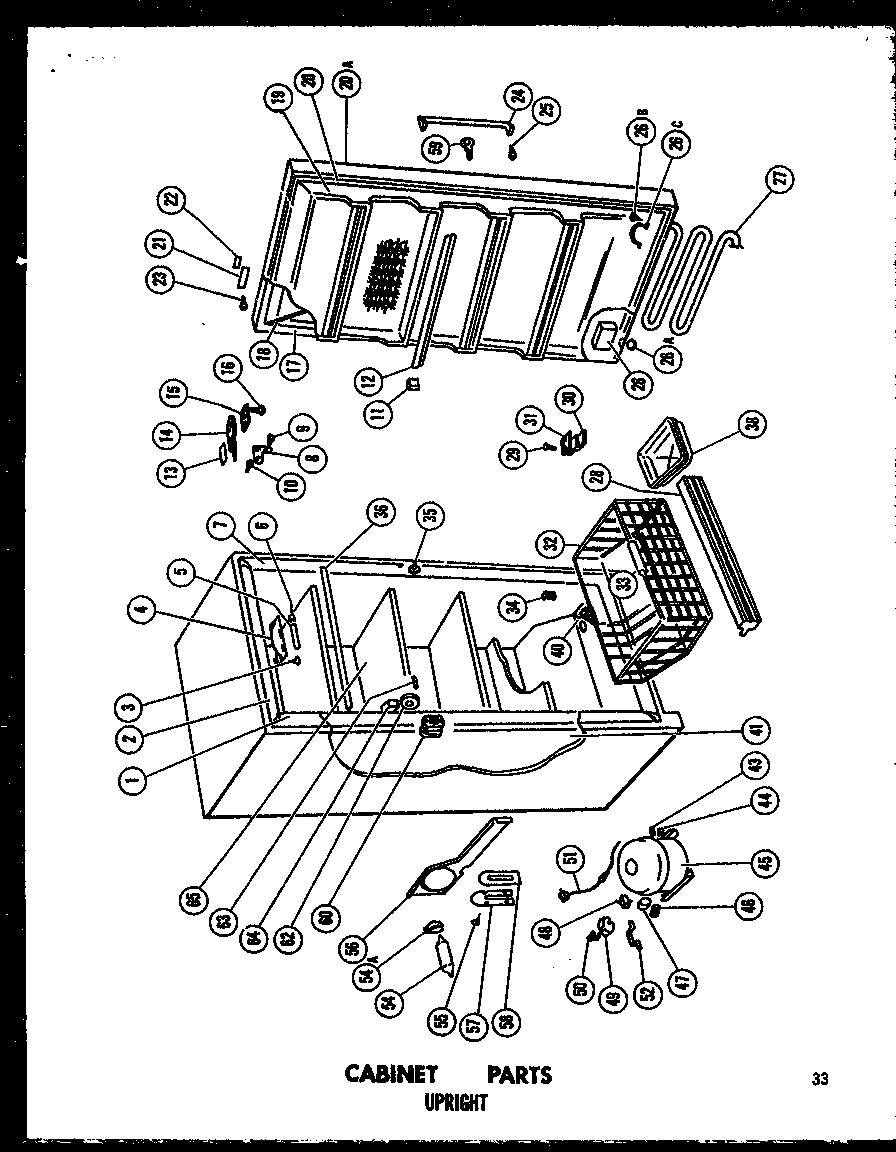

01 - CABINET PARTS
Common parts from model Whirlpool U23F FREEZER
1
BREAKER FRAME WPL D3914103 Contact Us For Availability
2
BREAKER FRAME WPL D3710305 Contact Us For Availability
3
SCREW WPL M0217516 Contact Us For Availability
4
LIGHT HOUSING WPL C3540301 Contact Us For Availability
5
LIGHT BULB WPL A0318001 Contact Us For Availability
6
SOCKET WPL B0542702 Contact Us For Availability
7
BREAKER FRAME WPL D7098601 Contact Us For Availability
8
LINER GUSSET WPL C3523801 Contact Us For Availability
9
SCREW WPL M0250531 Contact Us For Availability
10
SEMS FASTNER WPL M0252047 Contact Us For Availability
11
SUPPORT WPL D3976805 Contact Us For Availability
11
SUPPORT WPL D3976806 Contact Us For Availability
12
PACKAGE RETAINER WPL D3976703 Contact Us For Availability
14
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
14
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
15
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
16
SCREW WPL M0247058 Contact Us For Availability
17
INSULATION WPL B0566703 Contact Us For Availability
17
INSULATION WPL B0566705 Contact Us For Availability
17
INSULATION WPL B0573902 Contact Us For Availability
18
TIE ROD WPL B0569803 Contact Us For Availability
19
INNER DR PANEL WPL D3913504 Contact Us For Availability
20
GASKET WPL D3913601 Contact Us For Availability
20
DOOR W-EU18F-U WPL D7017012 Contact Us For Availability
21
NAMEPLATE WPL C3578003 Contact Us For Availability
22
ESCUTCHEON WPL C3577601 Contact Us For Availability
23
STUD WPL M0550001 Contact Us For Availability
24
HANDLE, DOOR WPL D3890301 Contact Us For Availability
25
SCREW WPL M0248231 Contact Us For Availability
26
VENT ASSY WPL A3101901 Contact Us For Availability
26
INSULATION WPL A3126701 Contact Us For Availability
26
BLOCK WPL C3565101 Contact Us For Availability
26
SEMS FASTNER WPL M0243037 Contact Us For Availability
27
WIRING HARNESS WPL C3643801 Contact Us For Availability
28
GRILLE-TOE WPL C3574707 Contact Us For Availability
29
SCREW WPL M0246159 Contact Us For Availability
30
HINGE, BOTTOM WPL C3566701 Contact Us For Availability
31
SHIM WPL A3015201 Contact Us For Availability
31
SHIM WPL A3015202 Contact Us For Availability
31
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
32
BASKET, SLIDE OUT WPL D3892002 Contact Us For Availability
33
HANDLE WPL B0571801 Contact Us For Availability
34
GLIDE BASKET WPL B0543101 Contact Us For Availability
35
SWITCH, LIGHT WPL D7101301 Contact Us For Availability
36
TRIM, SHELF WPL B0560001 Contact Us For Availability
38
DRAIN PAN WPL C3523101 Contact Us For Availability
40
DRAIN SCREEN WPL A3113701 Contact Us For Availability
41
INSULATION, BATT - BOTTOM, 1-5 WPL B0523528 Contact Us For Availability
41
INSULATION, BATT, TOP, 3-1/8` WPL B0535214 Contact Us For Availability
41
INSULATION, BOTTOM WPL B0553903 Contact Us For Availability
41
INSULATION, BATT BACK WPL B0572701 Contact Us For Availability
41
INSULATION FT. K WPL B0572828 Contact Us For Availability
41
INSULATION, BATT, SIDE, 3-1/8`` WPL B0572902 Contact Us For Availability
43
CLIP WPL M0111001 Contact Us For Availability
44
GROMMET K WPL A4002702 Contact Us For Availability
45
KIT, COMPRESSOR WPL D3858101 Contact Us For Availability
45
COMPRESSOR, PRODUCTION WPL D3871801 Contact Us For Availability
46
SPRING K WPL A3043601 Contact Us For Availability
47
xOVERLOAD WPL C3556301 Contact Us For Availability
48
RELAY WPL C3553301 Contact Us For Availability
49
TERMINAL COVER WPL B0551801 Contact Us For Availability
50
STRAP K WPL A3041801 Contact Us For Availability
51
WIRING HARNESS WPL D7098322 Contact Us For Availability
52
WALL SPACER WPL A3032901 Contact Us For Availability
54
CLAMP WPL M0102315 Contact Us For Availability
55
SCREW WPL M0216532 Contact Us For Availability
56
FAN SHROUD WPL D3768506 Contact Us For Availability
57
COVER PLATE -G WPL A0382904 Contact Us For Availability
58
GASKET WPL A0382801 Contact Us For Availability
59
STRIKE LOCK WPL B0570101 Contact Us For Availability
59
INSULATION, LOCK WPL B0576001 Contact Us For Availability
59
LOCK ASSEMBLY WPL C3571301 Contact Us For Availability
59
WASHER-LOCK WPL C3571303 Contact Us For Availability
59
NUT WPL C3571304 Contact Us For Availability
59
LOCK LEVER WPL C3571306 Contact Us For Availability
59
LOCKWASHER WPL C3571307 Contact Us For Availability
59
SCREW WPL C3571308 Contact Us For Availability
59
WASHER WPL M0274016 Contact Us For Availability
62
KNOB, CONTROL WPL C3577902 Contact Us For Availability
63
RIVET PLASTIC WPL A3032601 Contact Us For Availability
64
COLD CONTROL WPL B0543809 Contact Us For Availability
65
ASSY., WPL D7050973 Contact Us For Availability
NI
WPL B0544001 WPL B0544001 Contact Us For Availability
NI
WPL D3913901 WPL D3913901 Contact Us For Availability
NI
WPL A0300301 WPL A0300301 Contact Us For Availability
NI
WPL A0319703 WPL A0319703 Contact Us For Availability
NI
WPL A0353901 WPL A0353901 Contact Us For Availability
NI
WPL A0363605 WPL A0363605 Contact Us For Availability
NI
WPL A0365901 WPL A0365901 Contact Us For Availability
NI
WPL A0366101 WPL A0366101 Contact Us For Availability
NI
WPL A3013201 WPL A3013201 Contact Us For Availability
NI
WPL A3044501 WPL A3044501 Contact Us For Availability
NI
WPL A3061401 WPL A3061401 Contact Us For Availability
NI
WPL A3063201 WPL A3063201 Contact Us For Availability
NI
WPL A3063202 WPL A3063202 Contact Us For Availability
NI
WPL A3130001 WPL A3130001 Contact Us For Availability
NI
WPL B0539806 WPL B0539806 Contact Us For Availability
NI
WPL B0539807 WPL B0539807 Contact Us For Availability
NI
WPL B5636001 WPL B5636001 Contact Us For Availability
NI
WPL B5646005 WPL B5646005 Contact Us For Availability
NI
WPL C3569502 WPL C3569502 Contact Us For Availability
NI
WPL D3912302 WPL D3912302 Contact Us For Availability
NI
WPL D3913801 WPL D3913801 Contact Us For Availability
NI
WPL M0110502 WPL M0110502 Contact Us For Availability
NI
WPL M0112601 WPL M0112601 Contact Us For Availability
NI
WPL M0202528 WPL M0202528 Contact Us For Availability
NI
WPL M0207943 WPL M0207943 Contact Us For Availability
NI
WPL M0211530 WPL M0211530 Contact Us For Availability
NI
WPL M023083 WPL M023083 Contact Us For Availability
× ![]()
