Model Whirlpool U15F FREEZER – Common Parts & Diagrams

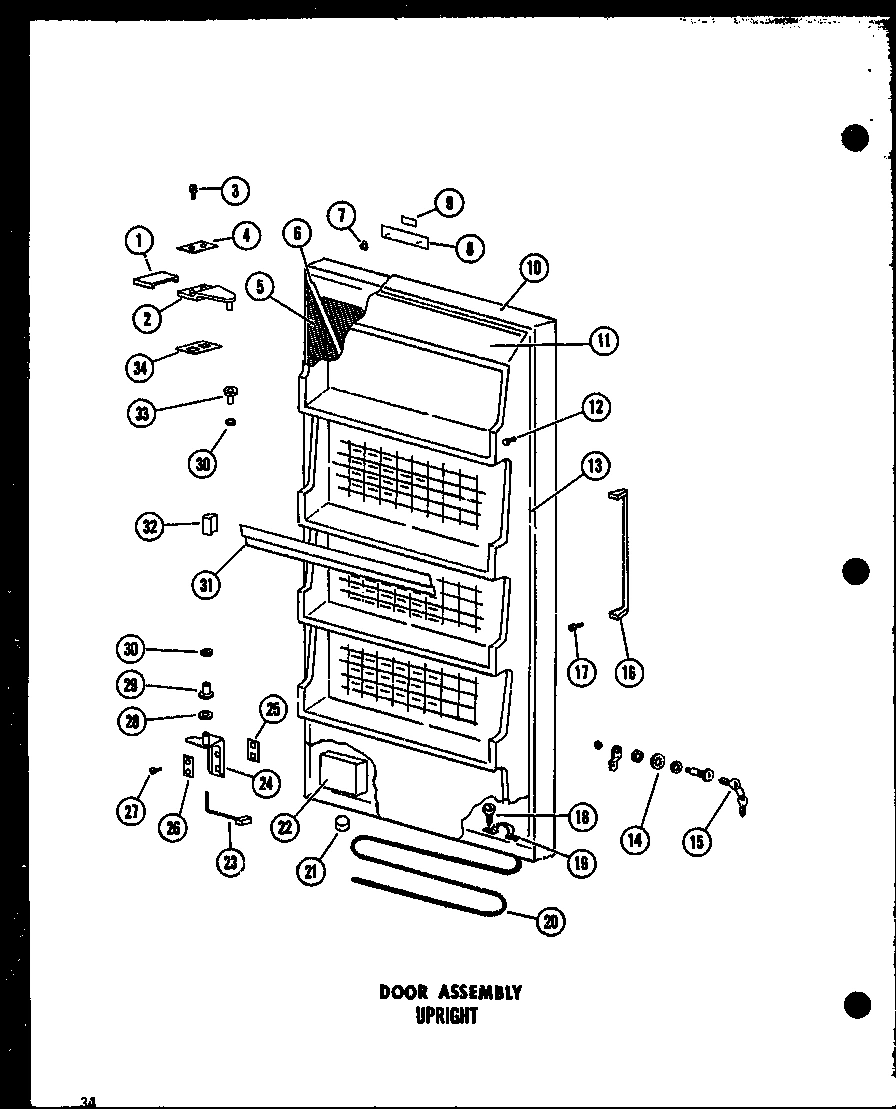

01 - DOOR ASSY

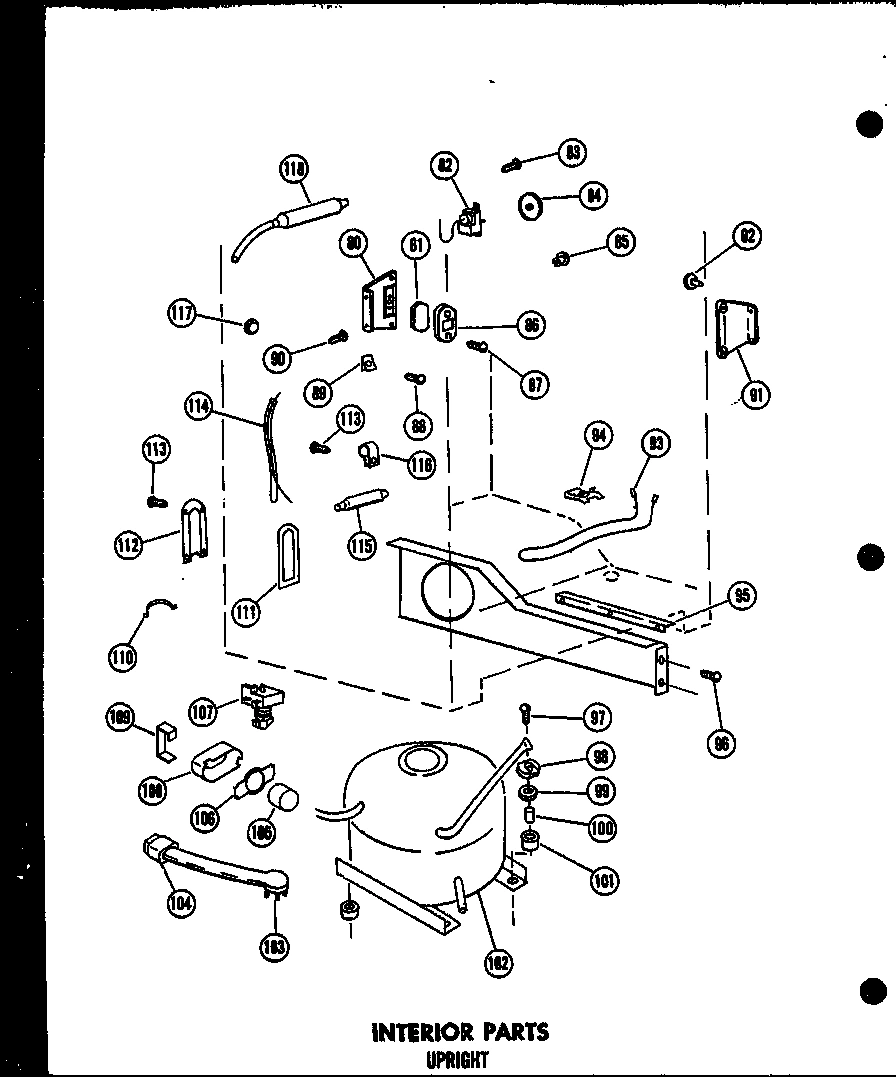

03 - INTERIOR PARTS

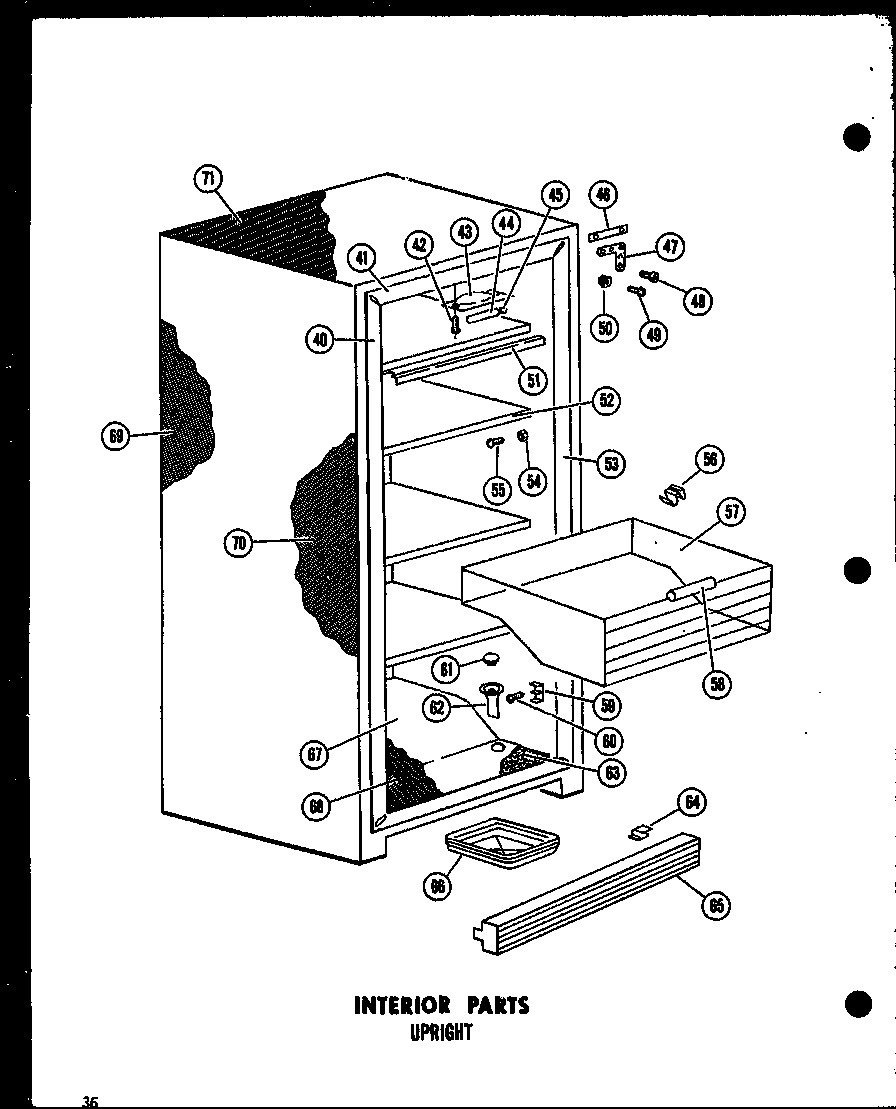

02 - INTERIOR PARTS
Common parts from model Whirlpool U15F FREEZER
U12F/P60117-25W THIS MODEL HAS A DANFOSS COMP WPL NOTE Contact Us For Availability
1
COVER WPL B0526601 Contact Us For Availability
2
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
3
SCREW WPL M0247058 Contact Us For Availability
4
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
5
INSULATION, BATT FILLER WPL B0523820 Contact Us For Availability
5
INSULATION WPL B0566704 Contact Us For Availability
5
INSULATION WPL B0573905 Contact Us For Availability
6
TIE ROD WPL B0569802 Contact Us For Availability
7
STUD WPL M0550001 Contact Us For Availability
8
ESCUTCHEON WPL C3577601 Contact Us For Availability
9
NAMEPLATE WPL C3578003 Contact Us For Availability
10
DOOR W-AU15-1 WPL D7017001 Contact Us For Availability
11
INNER DR PANEL WPL D3916004 Contact Us For Availability
12
SEMS FASTNER WPL M0241018 Contact Us For Availability
12
SCREW-SM WPL M0241118 Contact Us For Availability
13
GASKET, DOOR WPL D3880402 Contact Us For Availability
14
CAM-LOCK WPL A3188301 Contact Us For Availability
14
INSULATION, LOCK WPL B0576001 Contact Us For Availability
14
LOCK ASSY WPL C3671703 Contact Us For Availability
14
WASHER-LOCK WPL M0272512 Contact Us For Availability
14
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
14
NUT WPL M0281402 Contact Us For Availability
14
NUT WPL M0282017 Contact Us For Availability
15
KEY WPL A3188601 Contact Us For Availability
16
HANDLE, DOOR WPL D3890301 Contact Us For Availability
17
SCREW WPL M0248231 Contact Us For Availability
18
SEMS FASTNER WPL M0243037 Contact Us For Availability
19
SPRING CLIP WPL B0544001 Contact Us For Availability
20
WIRING HARNESS WPL C3643801 Contact Us For Availability
21
VENT ASSY WPL A3101901 Contact Us For Availability
22
INSULATION WPL A3126701 Contact Us For Availability
22
BLOCK, AIR VENT WPL C3576001 Contact Us For Availability
23
WIRE, BOTTOM HINGE WPL B5646005 Contact Us For Availability
24
HINGE, BOTTOM WPL C3566701 Contact Us For Availability
25
SHIM WPL A3015201 Contact Us For Availability
25
SHIM WPL A3015202 Contact Us For Availability
26
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
27
SCREW WPL M0246159 Contact Us For Availability
28
WASHER K WPL M0274013 Contact Us For Availability
29
FLAT BEARING (BOTTOM HINGE) WPL B0539807 Contact Us For Availability
30
WASHER WPL M0274027 Contact Us For Availability
31
PACKAGE RETAINER WPL D3976703 Contact Us For Availability
32
SUPPORT WPL D3976805 Contact Us For Availability
32
SUPPORT WPL D3976806 Contact Us For Availability
33
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
34
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
40
BREAKER FRAME WPL D3914004 Contact Us For Availability
41
BREAKER FRAME WPL D3710305 Contact Us For Availability
42
SCREW WPL M0217516 Contact Us For Availability
43
LIGHT HOUSING WPL C3540301 Contact Us For Availability
44
LIGHT BULB WPL A0318001 Contact Us For Availability
45
SOCKET WPL B0542702 Contact Us For Availability
46
TAP STRIP WPL A3013201 Contact Us For Availability
47
LINER GUSSET WPL C3523801 Contact Us For Availability
48
SCREW WPL M0250531 Contact Us For Availability
49
SEMS FASTNER WPL M0252047 Contact Us For Availability
50
GROMMET WPL A0381802 Contact Us For Availability
51
TRIM, SHELF WPL B0560001 Contact Us For Availability
52
SHELF WLDMT WPL D3856902 Contact Us For Availability
53
BREAKER FRAME WPL D7098703 Contact Us For Availability
54
NUT A WPL M0281204 Contact Us For Availability
55
SCREW WPL M0207943 Contact Us For Availability
61
DRAIN SCREEN WPL A3113701 Contact Us For Availability
62
DRAIN-VALVE WPL A3044501 Contact Us For Availability
63
INSULATION WPL A3130001 Contact Us For Availability
64
CLIP WPL M0111901 Contact Us For Availability
65
GRILLE-TOE WPL C3574707 Contact Us For Availability
66
DRAIN PAN WPL C3523101 Contact Us For Availability
67
LINER ASSY U15 WPL D7050871 Contact Us For Availability
68
INSULATION BOTTOM WPL B0523554 Contact Us For Availability
68
INSULATION BOTTOM WPL B0573002 Contact Us For Availability
69
INSULATION, BATT BACK WPL B0572702 Contact Us For Availability
70
INSULATION BATT SIDE WPL B0573102 Contact Us For Availability
71
INSULATION BATT, TOP WPL B0535213 Contact Us For Availability
71
INSULATION FT. K WPL B0572828 Contact Us For Availability
80
STRIKE PAD WPL D3913901 Contact Us For Availability
81
SHIM WPL A3063201 Contact Us For Availability
81
SHIM WPL A3063202 Contact Us For Availability
82
CONTROL, TEMPERATURE WPL B0543810 Contact Us For Availability
83
SCREW WPL M0202528 Contact Us For Availability
84
KNOB, CONTROL WPL C3577902 Contact Us For Availability
85
RIVET PLASTIC WPL A3032601 Contact Us For Availability
86
STRIKE LOCK WPL B0570101 Contact Us For Availability
87
SCREW WPL M0230834 Contact Us For Availability
89
SPEED NUT WPL M0288107 Contact Us For Availability
91
TIE STRIP WPL D3913801 Contact Us For Availability
92
SWITCH, LIGHT WPL D7101301 Contact Us For Availability
98
CLIP WPL M0111001 Contact Us For Availability
101
GROMMET K WPL A4002702 Contact Us For Availability
102
COMPRESSOR AE1330A WPL D3957701 Contact Us For Availability
103
WIRING HARNESS & POWER CORD WPL D7098301 Contact Us For Availability
104
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
105
OVERLOAD K WPL C3590101 Contact Us For Availability
106
SPRING K WPL A3043601 Contact Us For Availability
107
RELAY WPL C3553401 Contact Us For Availability
108
COVER K WPL B0559501 Contact Us For Availability
109
STRAP K WPL A3041801 Contact Us For Availability
110
WALL SPACER WPL A3032901 Contact Us For Availability
111
GASKET WPL A0382801 Contact Us For Availability
112
COVER PLATE -G WPL A0382904 Contact Us For Availability
114
HEAT EXCHANGE WPL D3909504 Contact Us For Availability
116
CLAMP WPL M0102315 Contact Us For Availability
117
PLUG WPL A0353901 Contact Us For Availability
118
ACCUMULATOR WPL A3059801 Contact Us For Availability
NI
TAP STRIP WPL A3061401 Contact Us For Availability
× ![]()
