Model Whirlpool TWA-200 WASHER – Common Parts & Diagrams

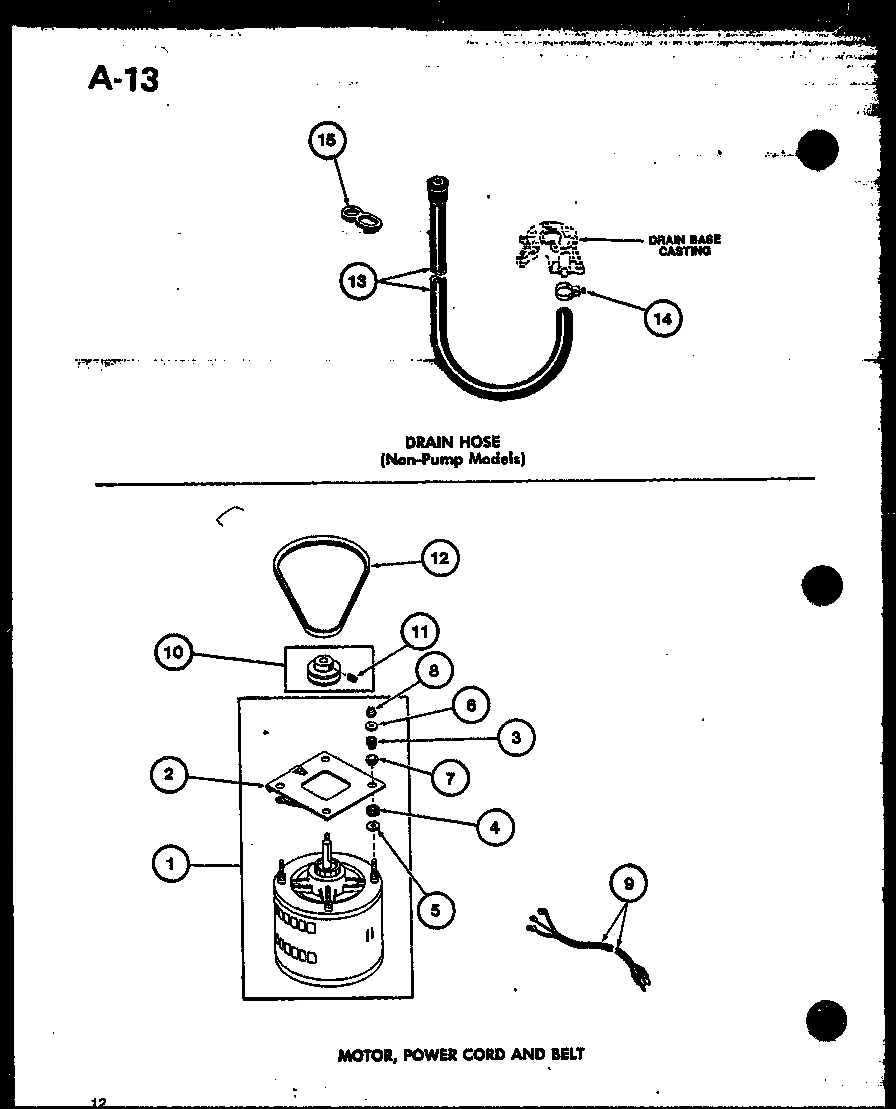

02 - DRAIN HOSE (NON-PUMP MODELS)/MOTOR

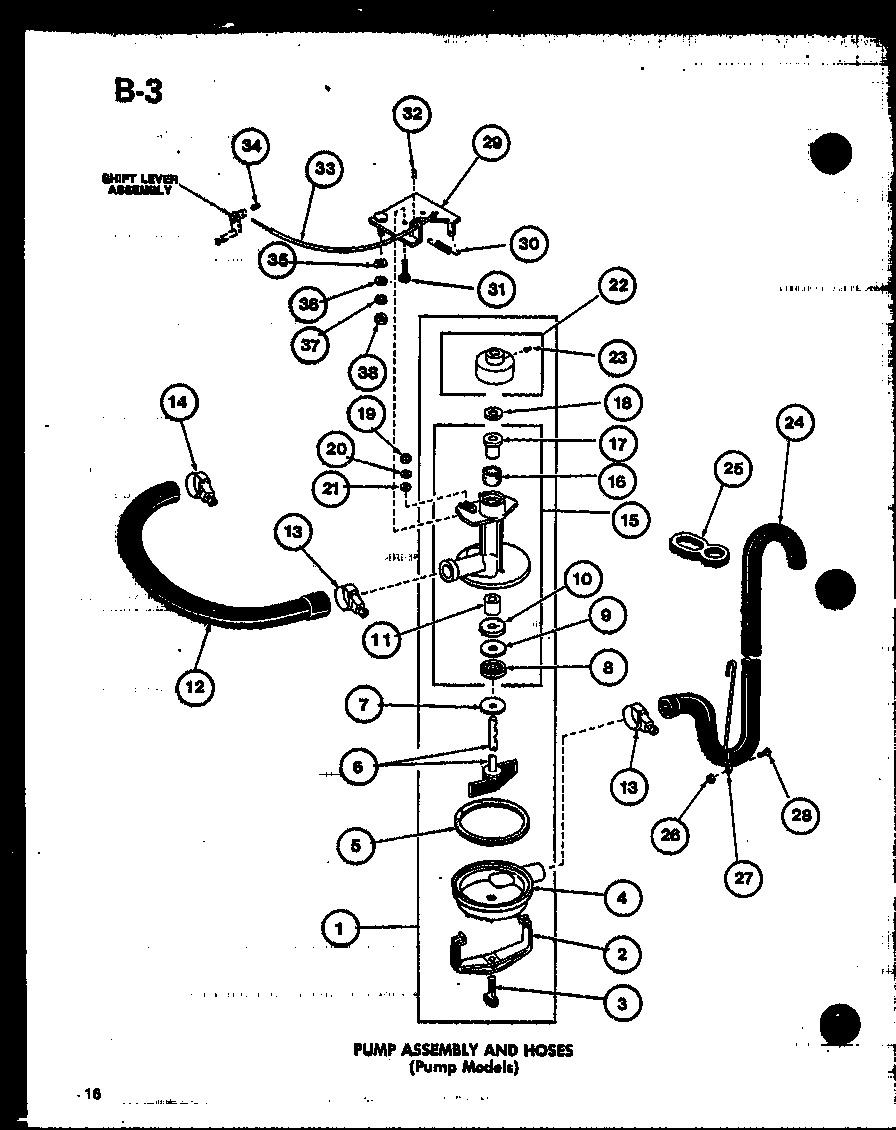

03 - PUMP ASSY AND HOSES (PUMP MODELS)

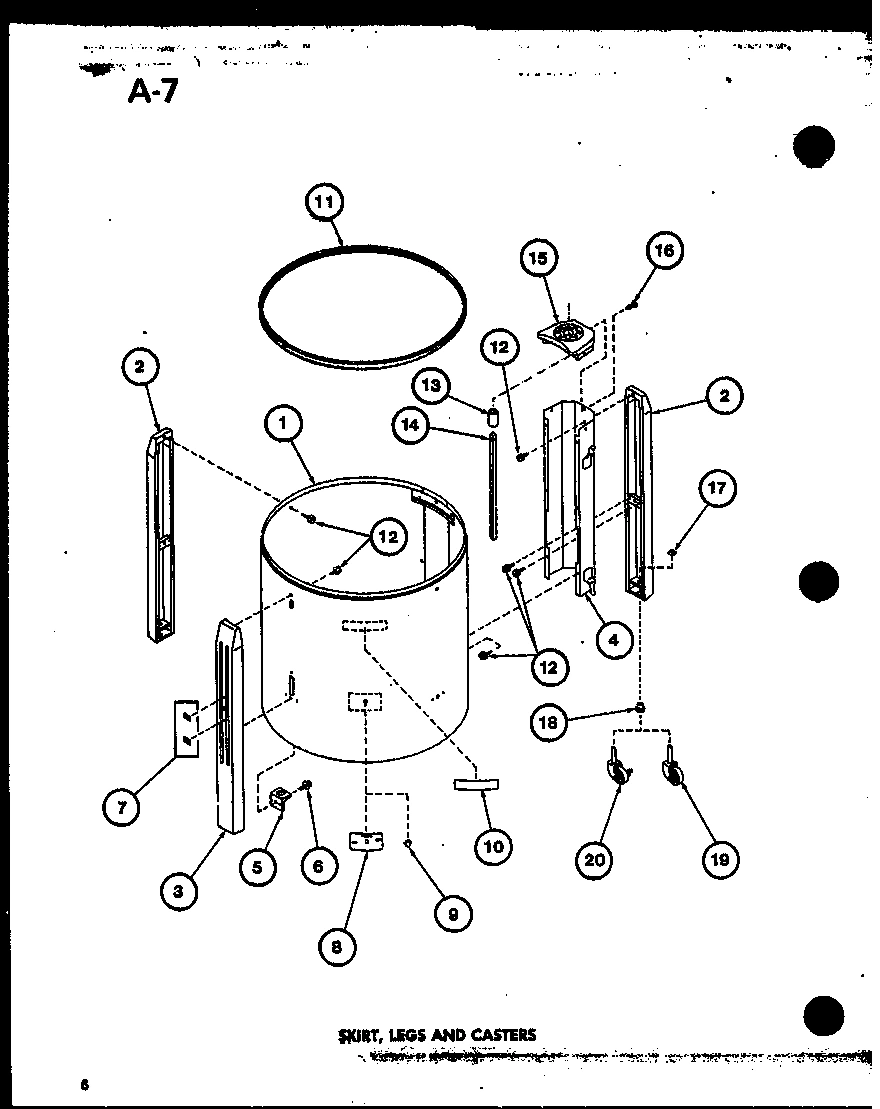

05 - SKIRT

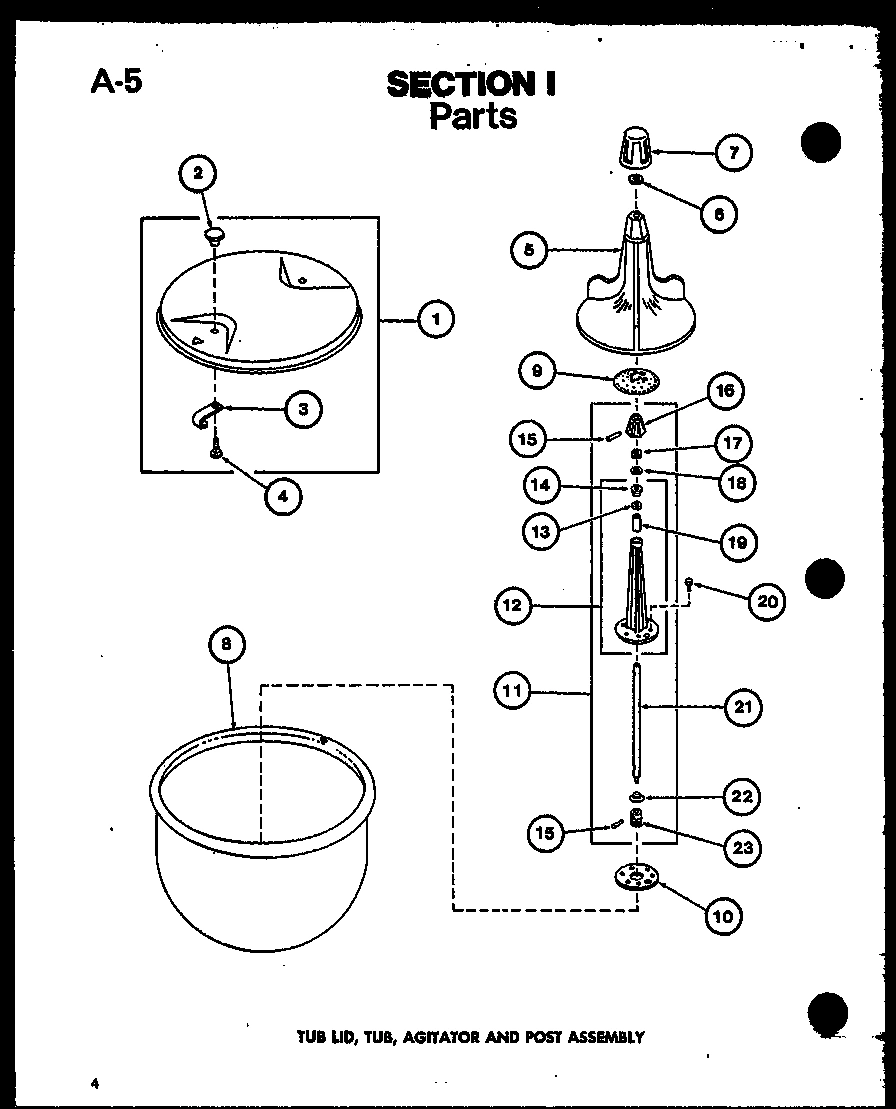

07 - TUB LID
01 - DRAIN BASE CASTING

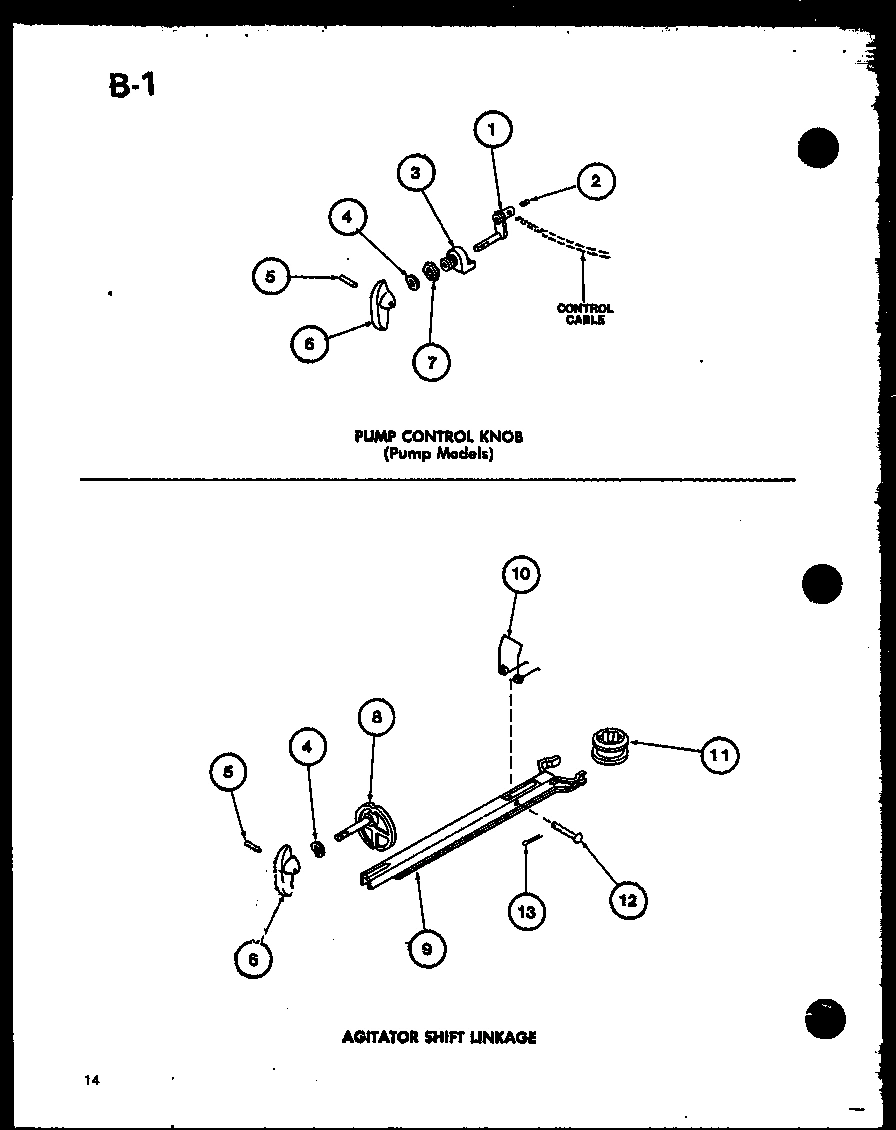

04 - PUMP CTRL KNOB /AGITATOR SHIFT LINKAGE

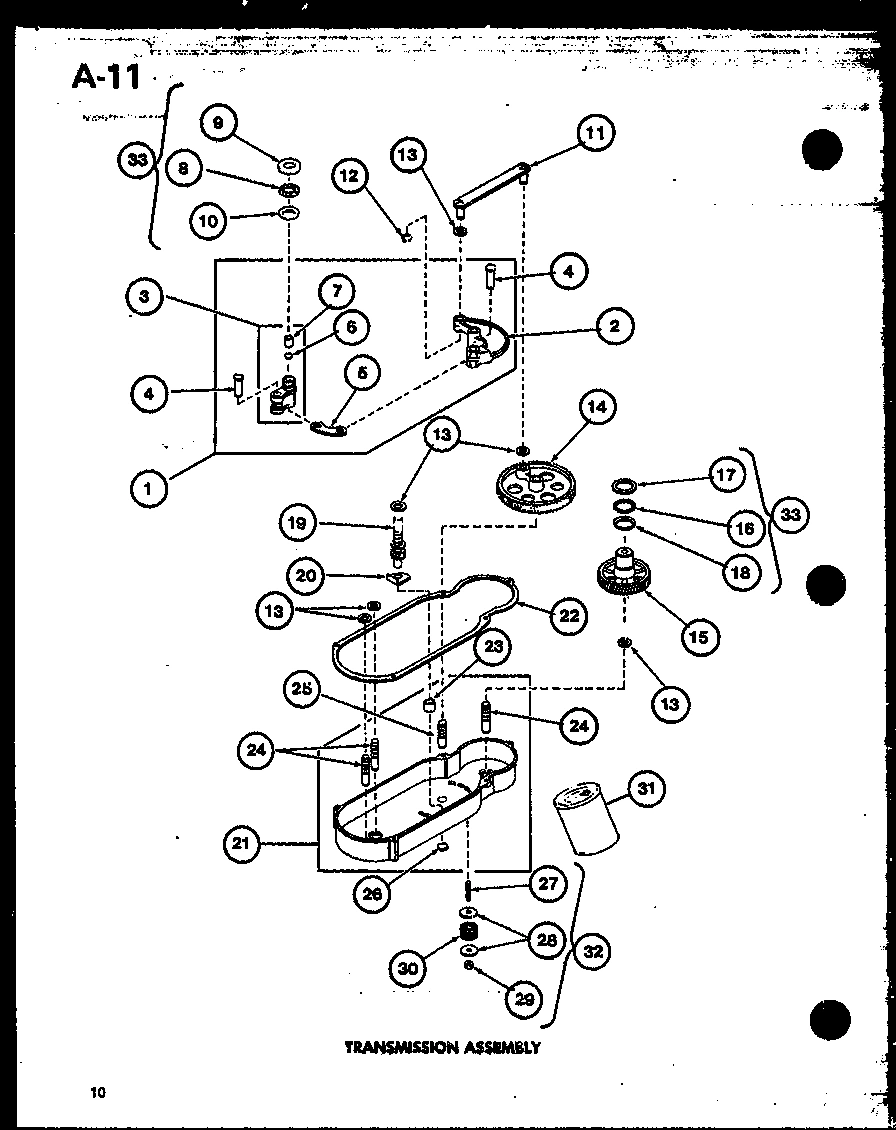

06 - TRANSMISSION ASSY

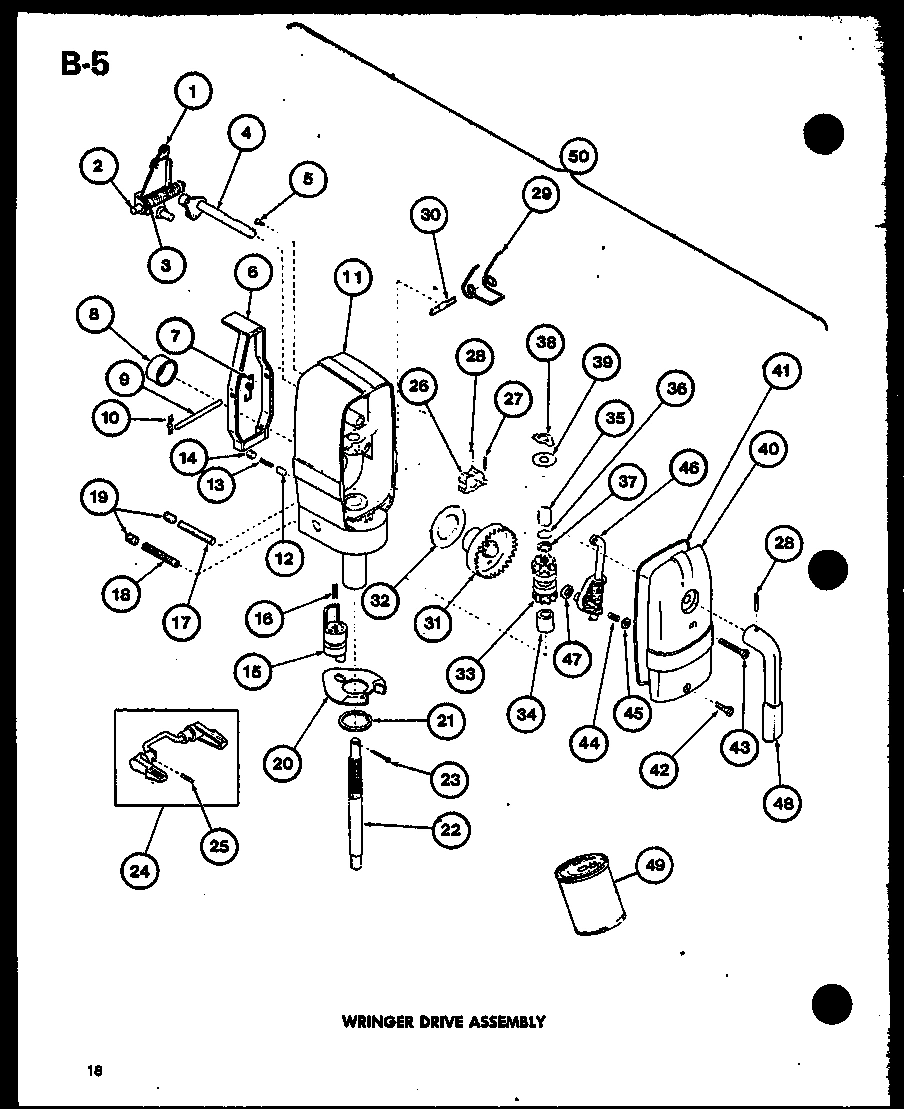

09 - WRINGER DRIVE ASSY

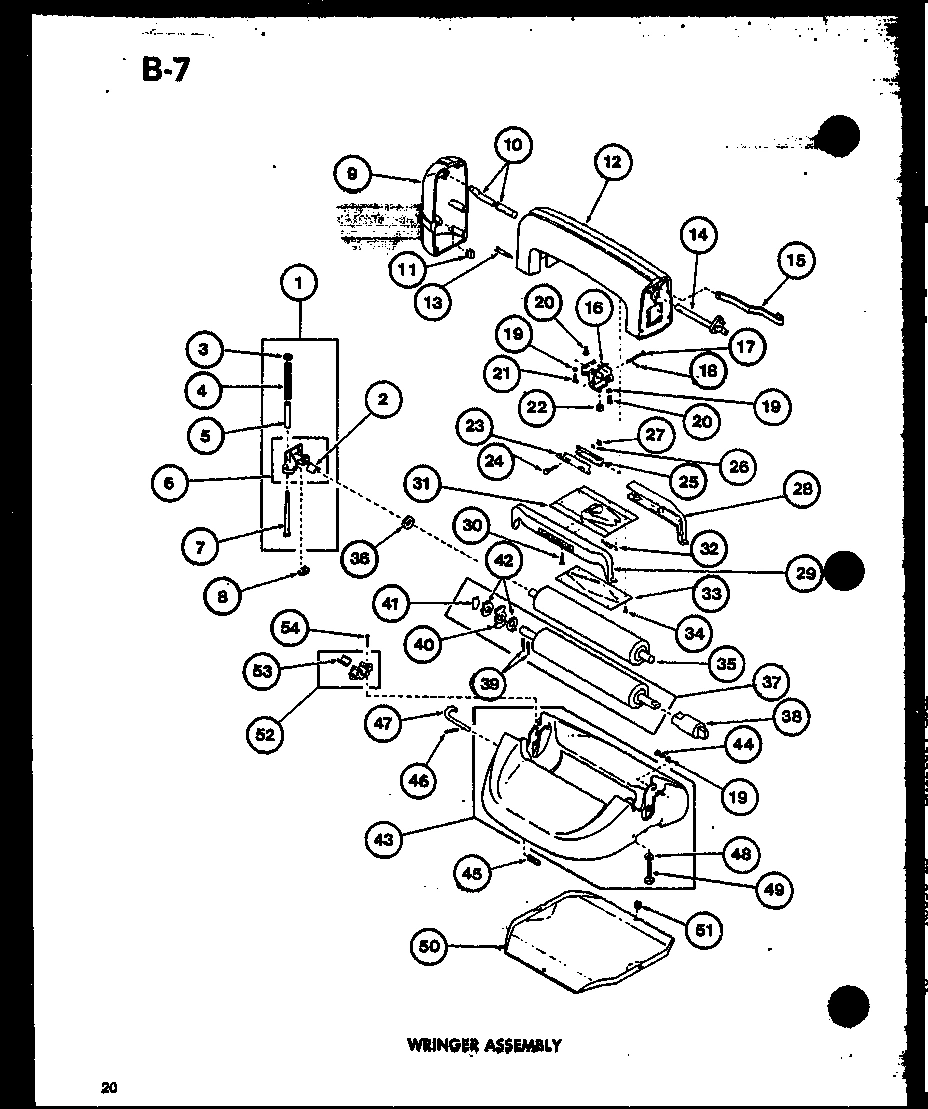

08 - WRINGER ASSY
Common parts from model Whirlpool TWA-200 WASHER
1
MOTOR WPL R0607004 Contact Us For Availability
1
ASSEMBLY, PUMP WPL R0610502 Contact Us For Availability
1
SKIRT WHITE WPL R0603043 Contact Us For Availability
1
ASSEMBLY, TUB LID WPL R0610025 Contact Us For Availability
1
PULLEY WPL R0609506 Contact Us For Availability
1
PUMP CONTROL LEVER WPL R0605607 Contact Us For Availability
1
LINK ASSY WPL R0610030 Contact Us For Availability
1
TOGGLE ASSY WPL R0605632 Contact Us For Availability
1
BEARING SPRING WPL R0610039 Contact Us For Availability
2
MOTOR BASE WPL R0605606 Contact Us For Availability
2
COVER CLAMP WPL R0601533 Contact Us For Availability
2
SET SCREW WPL R0600063 Contact Us For Availability
2
LEG WHITE WPL R0605580 Contact Us For Availability
2
KNOB, BLACK WPL R0603533 Contact Us For Availability
2
SET SCREW WPL R0600057 Contact Us For Availability
2
ASSY,ROCKER ARM WPL R0610032 Contact Us For Availability
2
PIN WPL R0600076 Contact Us For Availability
3
RUBBER MTG WPL R0606509 Contact Us For Availability
3
LEG WHITE WPL R0605582 Contact Us For Availability
3
LID HOOK WPL R0605568 Contact Us For Availability
3
CASTING, DRAIN BASE WPL R0605589 Contact Us For Availability
3
CONTROL BLOCK WPL R0605608 Contact Us For Availability
3
CLUTCH ARM WPL R0610031 Contact Us For Availability
3
SPRING WPL R0605633 Contact Us For Availability
3
NUT WPL R0601030 Contact Us For Availability
4
RUBBER MTG WPL R0606510 Contact Us For Availability
4
PUMP COVER WPL R0605617 Contact Us For Availability
4
SHROUD WHITE WPL R0605581 Contact Us For Availability
4
BOLT WPL R0600054 Contact Us For Availability
4
GASKET WPL R0604514 Contact Us For Availability
4
SPRING WASHER WPL R0600536 Contact Us For Availability
4
LINK PIN WPL R0600090 Contact Us For Availability
4
SHIFT SHAFT WPL R0605631 Contact Us For Availability
4
SPRING WPL R0605667 Contact Us For Availability
5
WASHER WPL R0600510 Contact Us For Availability
5
GASKET WPL R0604518 Contact Us For Availability
5
BRACKET WPL R0605577 Contact Us For Availability
5
AGITATOR WPL R0603534 Contact Us For Availability
5
TRANSMISSION & MOTOR CHANNEL WPL R0603044 Contact Us For Availability
5
PIN WPL R0600066 Contact Us For Availability
5
COUPLING WPL R0605595 Contact Us For Availability
5
SCREW WPL R0600074 Contact Us For Availability
5
SLEEVE WPL R0605669 Contact Us For Availability
6
WASHER WPL R0600534 Contact Us For Availability
6
IMPELLER & SHAFT WPL R0605619 Contact Us For Availability
6
SCREW WPL R0600056 Contact Us For Availability
6
WASHER WPL R0600515 Contact Us For Availability
6
NUT WPL R0601024 Contact Us For Availability
6
KNOB BLACK WPL R0603535 Contact Us For Availability
6
PLUG WPL R0605594 Contact Us For Availability
6
RELEASE LEVER WPL R0605630 Contact Us For Availability
6
ROLL BEARING, UPPER WRINGER WPL R0605668 Contact Us For Availability
7
WASHER WPL R0600535 Contact Us For Availability
7
THRUST WASHER WPL R0600541 Contact Us For Availability
7
``ON`` AND ``OFF`` STICKER SET WPL R0613002 Contact Us For Availability
7
HOLD-DOWN CAP WPL R0603514 Contact Us For Availability
7
SCREW WPL R0600058 Contact Us For Availability
7
NUT WPL R0601028 Contact Us For Availability
7
BEARING WPL R0605593 Contact Us For Availability
7
TORSION SPRING WPL R0605635 Contact Us For Availability
7
BOLT WPL R0600085 Contact Us For Availability
8
LOCKNUT WPL YR0601010 Contact Us For Availability
8
WATER SEAL WPL R0606534 Contact Us For Availability
8
TUB PORCELAIN WPL R0603042 Contact Us For Availability
8
CAM WPL R0605612 Contact Us For Availability
8
GASKET WPL R0604515 Contact Us For Availability
8
BEARING WPL R0605634 Contact Us For Availability
8
CLIP WPL R0601538 Contact Us For Availability
9
POWER CORD WPL R0605042 Contact Us For Availability
9
WASHER WPL R0600543 Contact Us For Availability
9
PLUG BUTTON WPL R0603536 Contact Us For Availability
9
DRAIN SCREEN WPL R0604511 Contact Us For Availability
9
SHIFT FORK WPL R0605611 Contact Us For Availability
9
RETAINER WPL R0605591 Contact Us For Availability
9
RIVOT PIN WPL R0600075 Contact Us For Availability
9
END CASTING WHITE WPL R0605647 Contact Us For Availability
10
PULLEY WPL R0609507 Contact Us For Availability
10
PACKING WPL R0604519 Contact Us For Availability
10
NAMEPLATE WPL R0613001 Contact Us For Availability
10
GASKET WPL R0604512 Contact Us For Availability
10
SPRING WPL R0605609 Contact Us For Availability
10
LOWER GASKET RETAINER WPL R0605592 Contact Us For Availability
10
RETAINER CLIP WPL R0601537 Contact Us For Availability
10
CRANK WPL R0605654 Contact Us For Availability
11
PUMP BEARING WPL R0605616 Contact Us For Availability
11
GASKET WPL R0604513 Contact Us For Availability
11
ASSEMBLY, AGITATOR POST WPL R0610026 Contact Us For Availability
11
SPLINE WPL R0605610 Contact Us For Availability
11
CONNECTING ROD WPL R0605590 Contact Us For Availability
11
REVERSE HSG WHITE WPL R0605645 Contact Us For Availability
11
CLIP WPL R0601535 Contact Us For Availability
12
BELT WPL R0606531 Contact Us For Availability
12
HOSE WPL R0606533 Contact Us For Availability
12
SCREW WPL R0600023 Contact Us For Availability
12
CASTING AGITATOR POST WPL R0605574 Contact Us For Availability
12
PIVOT PIN WPL R0600065 Contact Us For Availability
12
RETAINER RING WPL R0601528 Contact Us For Availability
12
INDENT LATCH WPL R0605646 Contact Us For Availability
12
TOP BAR CASTING-W WPL R0605648 Contact Us For Availability
13
HOSE WPL R0606530 Contact Us For Availability
13
HOSE CLAMP WPL R0601529 Contact Us For Availability
13
COUPLING WPL R0605575 Contact Us For Availability
13
SEAL WPL R0606527 Contact Us For Availability
13
BEARING WPL R0610029 Contact Us For Availability
13
WASHER WPL R0600533 Contact Us For Availability
13
INDENT LATCH SPRING WPL R0605642 Contact Us For Availability
13
SCREW WPL R0600084 Contact Us For Availability
14
SET SCREW WPL R0600062 Contact Us For Availability
14
HOSE CLAMP WPL R0601530 Contact Us For Availability
14
DRIVE SHAFT, WRINGER WPL R0605578 Contact Us For Availability
14
THRUST BEARING WPL R0605570 Contact Us For Availability
14
GEAR WPL R0605596 Contact Us For Availability
14
CRANK WPL R0605655 Contact Us For Availability
15
PUMP BODY WPL R0605618 Contact Us For Availability
15
SUPPORT CASTING WPL R0605579 Contact Us For Availability
15
TAPER PIN WPL R0601510 Contact Us For Availability
15
BOLT WPL R0600059 Contact Us For Availability
15
WGR DRIVE GEAR WPL R0605597 Contact Us For Availability
15
RELEASE CAM WPL R0605639 Contact Us For Availability
15
LOCK RELEASE BAR WPL R0605649 Contact Us For Availability
16
OIL WICK WPL R0606535 Contact Us For Availability
16
DRIVE BLOCK WPL R0605569 Contact Us For Availability
16
ADJUSTING ARM WPL R0605583 Contact Us For Availability
16
GASKET WPL R0604517 Contact Us For Availability
16
CAM SPRING WPL R0605638 Contact Us For Availability
16
LOCK WPL R0605650 Contact Us For Availability
17
PUMP BEARING WPL R0605615 Contact Us For Availability
17
PUSHNUT WPL R0601023 Contact Us For Availability
17
WASHER WPL R0600511 Contact Us For Availability
17
NUT WPL R0601026 Contact Us For Availability
17
RETAINER WPL R0605602 Contact Us For Availability
17
SPRING BLACK WPL R0605640 Contact Us For Availability
17
LOCK RELEASE PIN WPL R0600087 Contact Us For Availability
18
THRUST WASHER WPL R0600542 Contact Us For Availability
18
BUSHING WPL R0605576 Contact Us For Availability
18
WASHER WPL R0600512 Contact Us For Availability
18
COTTER PIN WPL R0600064 Contact Us For Availability
18
RETAINER WPL R0605601 Contact Us For Availability
18
SPRING RED WPL R0605641 Contact Us For Availability
19
CLAMP SCREW WPL R0600060 Contact Us For Availability
19
CASTER WPL R0610027 Contact Us For Availability
19
BEARING, SLEEVE WPL R0605571 Contact Us For Availability
19
LOCKWASHER WPL R0600520 Contact Us For Availability
19
PINION WPL R0605598 Contact Us For Availability
19
SET SCREW WPL R0600073 Contact Us For Availability
20
LOCKWASHER WPL R0600540 Contact Us For Availability
20
CASTER,LOCKING WPL R0610028 Contact Us For Availability
20
SCREW WPL R0600053 Contact Us For Availability
20
RIVET WPL R0600061 Contact Us For Availability
20
WASHER WPL R0605599 Contact Us For Availability
20
CAM PLATE WPL R0605620 Contact Us For Availability
20
SCREW WPL R0600077 Contact Us For Availability
21
WASHER WPL R0600529 Contact Us For Availability
21
DRIVE SHAFT WPL R0605572 Contact Us For Availability
21
TRANSMISSION CASE WPL R0607503 Contact Us For Availability
21
RETAINER RING WPL R0601536 Contact Us For Availability
21
SCREW WPL R0600088 Contact Us For Availability
22
PULLEY ASSY WPL R0609505 Contact Us For Availability
22
WASHER WPL R0600531 Contact Us For Availability
22
GASKET WPL R0604516 Contact Us For Availability
22
WGR DRIVE SHAFT WPL R0605621 Contact Us For Availability
22
ROLLER WPL R0605663 Contact Us For Availability
23
SET SCREW WPL R0600067 Contact Us For Availability
23
SPLINE WPL R0605573 Contact Us For Availability
23
BEARING WPL R0605585 Contact Us For Availability
23
COTTER PIN WPL R0600069 Contact Us For Availability
23
CRANK LOCK WPL R0605664 Contact Us For Availability
24
DRAIN HOSE WPL R0606532 Contact Us For Availability
24
SHAFT WPL R0605604 Contact Us For Availability
24
UES 04805WP WPL R0610036 Contact Us For Availability
24
SCREW WPL R0600078 Contact Us For Availability
25
HOSE HANGER WPL R0606529 Contact Us For Availability
25
SHAFT WPL R0605605 Contact Us For Availability
25
PIN WPL R0600068 Contact Us For Availability
25
COUPLING WPL R0605656 Contact Us For Availability
26
PLUG WPL R0605603 Contact Us For Availability
26
COLLAR WPL R0605636 Contact Us For Availability
26
LOCKWASHER WPL R0600503 Contact Us For Availability
27
NUT WPL R0601003 Contact Us For Availability
27
HOSE SUPPORT WPL R0601531 Contact Us For Availability
27
STUD WPL R0600089 Contact Us For Availability
28
SCREW WPL R0600006 Contact Us For Availability
28
PLUG WPL R0600532 Contact Us For Availability
28
RELEASE BAR LH WH WPL R0605657 Contact Us For Availability
29
MTG BRACKET WPL R0605613 Contact Us For Availability
29
SPRING WPL R0605629 Contact Us For Availability
29
RELEASE BAR RH WH WPL R0605658 Contact Us For Availability
30
SPRING WPL R0605614 Contact Us For Availability
30
GROMMET WPL R0606528 Contact Us For Availability
30
RETAINER WPL R0601534 Contact Us For Availability
30
SCREW WPL R0600083 Contact Us For Availability
31
TRANSMISSION LUB WPL R0608006 Contact Us For Availability
31
GEAR WPL R0605626 Contact Us For Availability
31
PLATE WPL R0605666 Contact Us For Availability
32
PIN CLIP WPL R0601532 Contact Us For Availability
32
TRANSMISSION ASSY WPL R0607502 Contact Us For Availability
32
BEARING WPL R0605627 Contact Us For Availability
32
SPRING WPL R0605651 Contact Us For Availability
33
CONTROL CABLE WPL R0605043 Contact Us For Availability
33
REPAIR KIT, TRANSMISSION WPL R0610033 Contact Us For Availability
33
PINION WPL R0605625 Contact Us For Availability
33
COVER PLATE WPL R0605652 Contact Us For Availability
34
BEARING WPL R0605622 Contact Us For Availability
34
SCREW WPL R0600082 Contact Us For Availability
35
SPRING WASHER WPL R0600537 Contact Us For Availability
35
BEARING WPL R0605628 Contact Us For Availability
35
WRINGER ROLLER WPL R0606538 Contact Us For Availability
36
WASHER WPL R0600539 Contact Us For Availability
36
WASHER WPL R0600548 Contact Us For Availability
36
WASHER WPL R0600550 Contact Us For Availability
37
LOCKWASHER WPL R0600538 Contact Us For Availability
37
WASHER WPL R0600549 Contact Us For Availability
37
WRINGER ROLL, LOWER WPL R0606537 Contact Us For Availability
38
WASHER WPL R0600546 Contact Us For Availability
38
COUPLING WPL R0605653 Contact Us For Availability
39
WASHER WPL R0600547 Contact Us For Availability
39
PIN WPL R0600086 Contact Us For Availability
40
COVER WPL R0605644 Contact Us For Availability
40
SHIFTER WPL R0605665 Contact Us For Availability
41
GASKET WPL R0604520 Contact Us For Availability
41
SPRING WPL R0605662 Contact Us For Availability
42
SCREW WPL R0600070 Contact Us For Availability
42
WASHER WPL R0600551 Contact Us For Availability
43
SCREW WPL R0600071 Contact Us For Availability
43
BOARD, DRAIN WPL R0610038 Contact Us For Availability
44
SPRING WPL R0605624 Contact Us For Availability
44
SCREW WPL R0600081 Contact Us For Availability
45
SPRING WPL R0605584 Contact Us For Availability
45
WASHER WPL R0600545 Contact Us For Availability
46
GROOVE PIN WPL R0600072 Contact Us For Availability
46
SHIFT ASSY WPL R0605623 Contact Us For Availability
47
WASHER WPL R0600544 Contact Us For Availability
47
SHIFT SHAFT WPL R0605660 Contact Us For Availability
48
NUT WPL R0601029 Contact Us For Availability
48
LEVER, SHIFT WPL R0605643 Contact Us For Availability
49
WRINGER DRIVE LUBE WPL R0608005 Contact Us For Availability
49
ADJ SCREW WPL R0600080 Contact Us For Availability
50
ASSEMBLY, WRINGER DRIVE WPL R0610035 Contact Us For Availability
50
TILT BOARD WPL R0605659 Contact Us For Availability
51
BUMPER WPL R0606536 Contact Us For Availability
52
BEARING WPL R0605661 Contact Us For Availability
53
BRG INSERT WPL R0605637 Contact Us For Availability
54
SCREW WPL R0600079 Contact Us For Availability
NI
REPAIR KIT, PUMP WPL R0610034 Contact Us For Availability
NI
ASSEMBLY, WRINGER WPL R0610037 Contact Us For Availability
× ![]()
Login and Registration Form
