Model LG TSP500-A – Common Parts & Diagrams

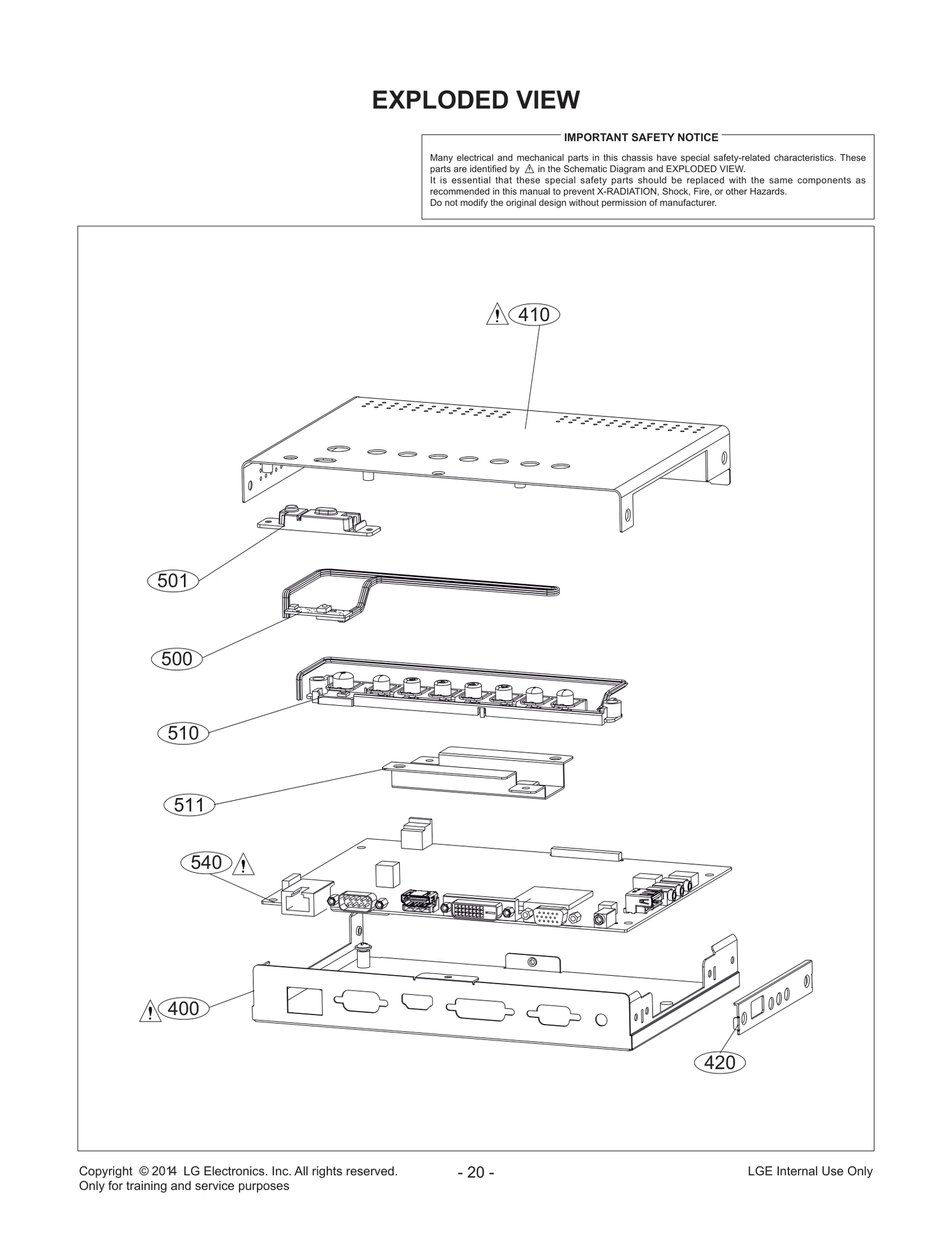

Diagram 0
Diagram 1
Common parts from model LG TSP500-A
410
Cover Assembly LGE ACQ86391101 Contact Us For Availability
420
Cover LGE MCK67536801 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR77068801 Contact Us For Availability
535
Adapters LGE EAY61231403 Contact Us For Availability
540
DMS Chassis Assembly LGE EBT62399801 Contact Us For Availability
A1
Title LGE SAC33111345 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A5
Harness,Single LGE EAD62297201 Contact Us For Availability
A6
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR118
Resistor,Array LGE EBC32260404 Contact Us For Availability
C9
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C14
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C17
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C18
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C22
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C30
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C45
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C103
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C130
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C191
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C195
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C228
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C231
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C239
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C247
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C265
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C275
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C289
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C319
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C366
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C371
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C373
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C378
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C386
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C418
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C428
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C457
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C462
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C476
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C527
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C529
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
D2
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D100
LED,Chip LGE EAV61915801 Contact Us For Availability
D105
Diode,TVS LGE EAH61232601 Contact Us For Availability
D109
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D127
Diode,TVS LGE EAH61515101 Contact Us For Availability
D132
Diode,TVS LGE EAH39491701 Contact Us For Availability
D136
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
IC1
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC100
Sensor,Ambient Light LGE EBD60658101 Contact Us For Availability
IC101
Receiver Module LGE EAV37989901 Contact Us For Availability
IC104
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC105
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC107
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC108
Display SOC,Digital TV LGE EAN61856201 Contact Us For Availability
IC110
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC111
S/W,Firmware LGE SAA36251301 Contact Us For Availability
IC112
S/W,Firmware LGE SAA36294018 Contact Us For Availability
IC113
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC115
IC,Reset LGE EAN60670101 Contact Us For Availability
IC115
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC116
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC117
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC119
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC120
S/W,Firmware LGE SAA36294710 Contact Us For Availability
IC123
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC124
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC124
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC126
IC,Timer LGE EAN54696201 Contact Us For Availability
IC127
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC128
S/W,Firmware LGE SAA36294104 Contact Us For Availability
IC129
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC133
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC134
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
JK100
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK101
Jack,Modular LGE EAG62012402 Contact Us For Availability
JK102
Connector,USB LGE EAG62571101 Contact Us For Availability
JK103
Jack,Phone LGE EAG61030001 Contact Us For Availability
L2
Inductor,Wire Wound,Chip LGE EAP36703101 Contact Us For Availability
L3
Inductor,Wire Wound,Chip LGE EAP61606701 Contact Us For Availability
L6
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L121
Filter,Bead LGE EAM32500903 Contact Us For Availability
L139
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L167
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
LV1
Harness,Single LGE EAD62107409 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P100
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P100
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P102
Connector,DSUB LGE EAG63030202 Contact Us For Availability
P103
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P104
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P106
Connector,DSUB LGE EAG62012203 Contact Us For Availability
Q1
FET LGE EBK40524302 Contact Us For Availability
Q8
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q133
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q134
FET LGE EBK42767801 Contact Us For Availability
Q135
FET LGE EBK60752501 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R13
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R20
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R21
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R28
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R34
Resistor,Chip LGE EBC32271301 Contact Us For Availability
R49
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R51
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R59
Resistor,Chip LGE ERHZ0000477 Contact Us For Availability
R80
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R119
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R158
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R168
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R189
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R205
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R247
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R270
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R276
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R277
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R345
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R354
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R384
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R420
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R452
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R462
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R479
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R489
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R562
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R580
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R590
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R632
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R634
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R3019
Resistor,Chip LGE EBC61939101 Contact Us For Availability
R3032
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R3033
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
S1
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S2
Plate,Metal LGE MGJ63553601 Contact Us For Availability
S3
Harness,Single LGE EAD52821205 Contact Us For Availability
S4
Harness,Single LGE EAD56480819 Contact Us For Availability
SW101
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW101
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X100
Crystal LGE 6212AB2872B Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
