Model Electrolux TGF365BEDA RANGE – Common Parts & Diagrams

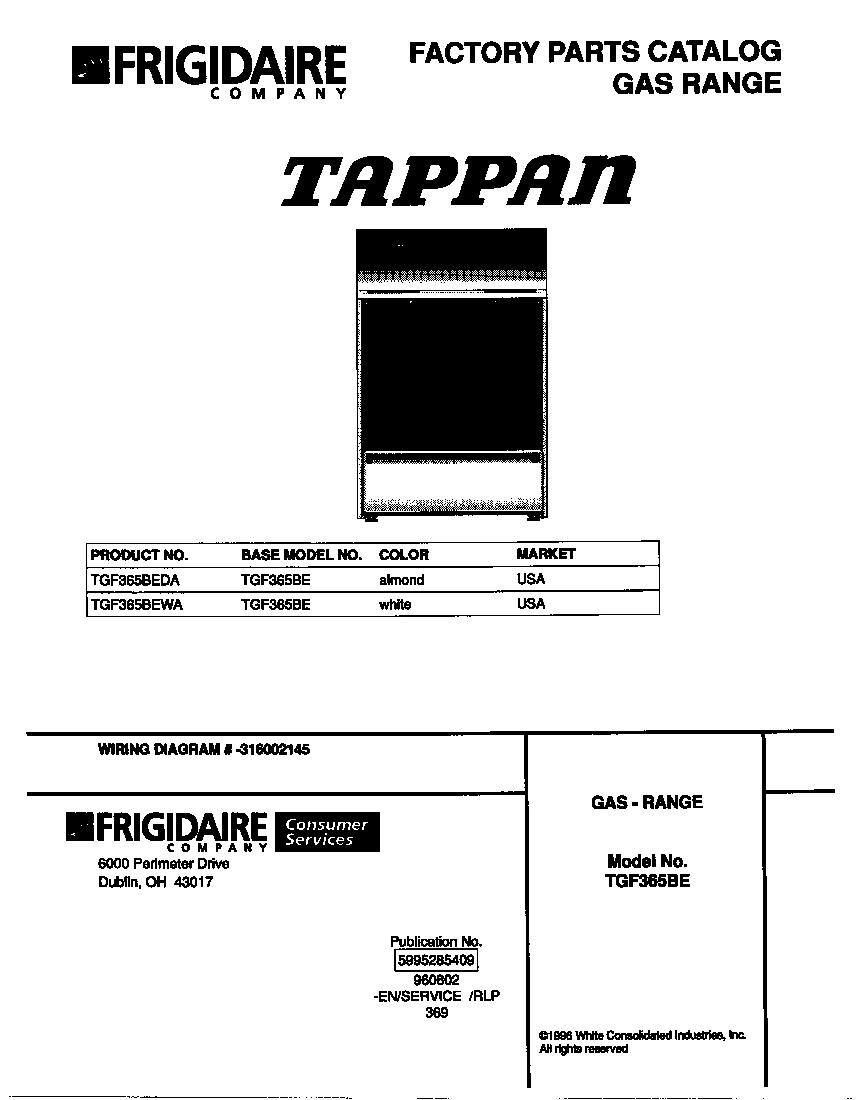

01 - COVER

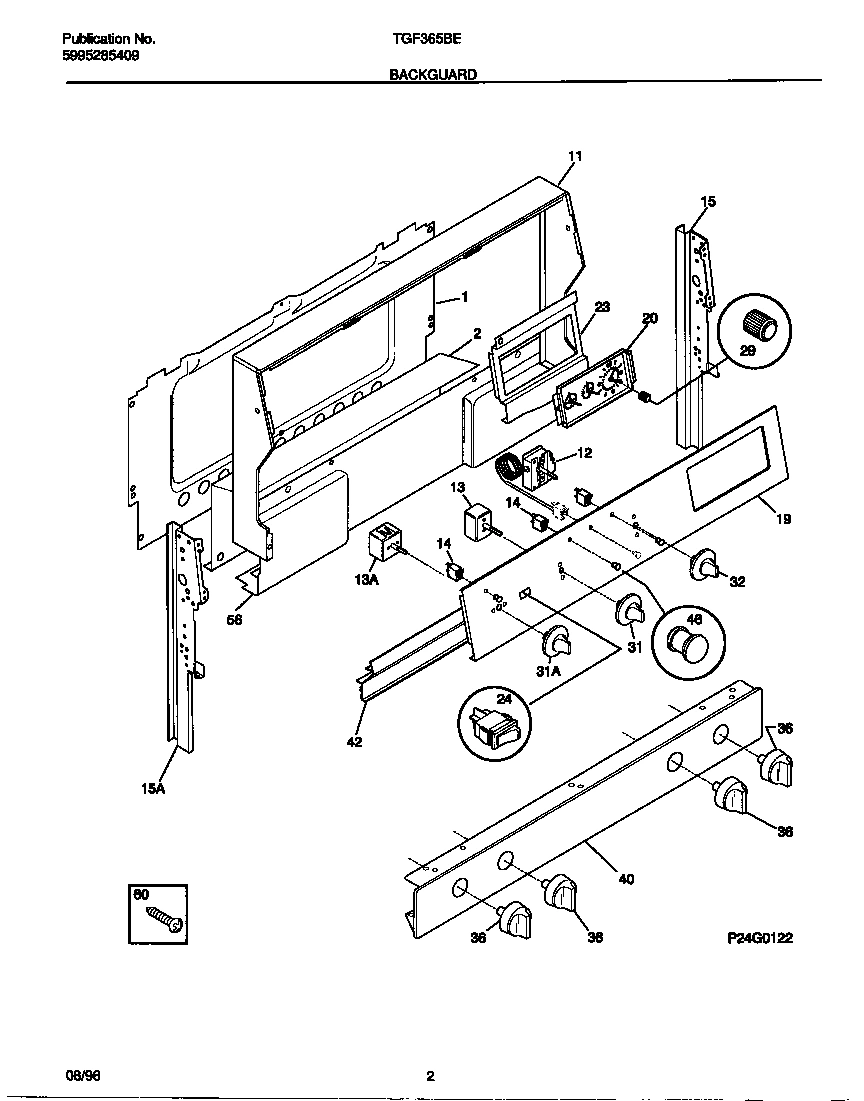

02 - BACKGUARD

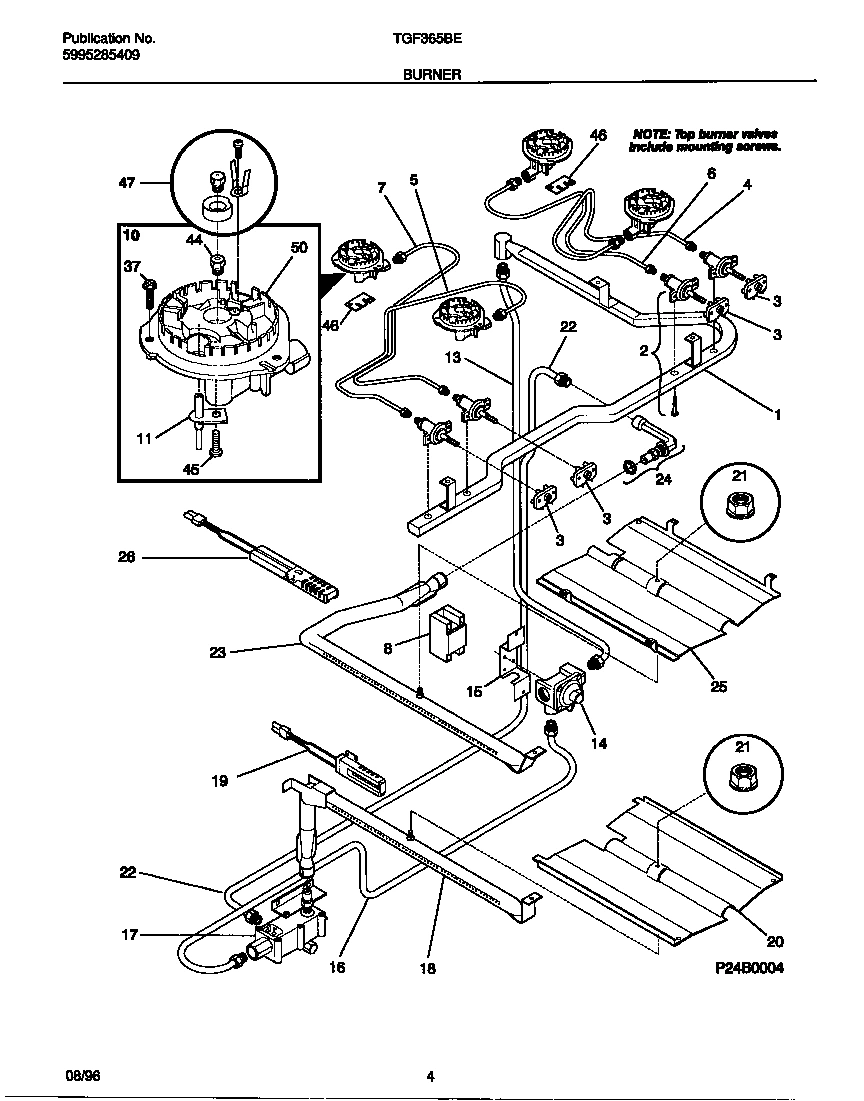

03 - BURNER

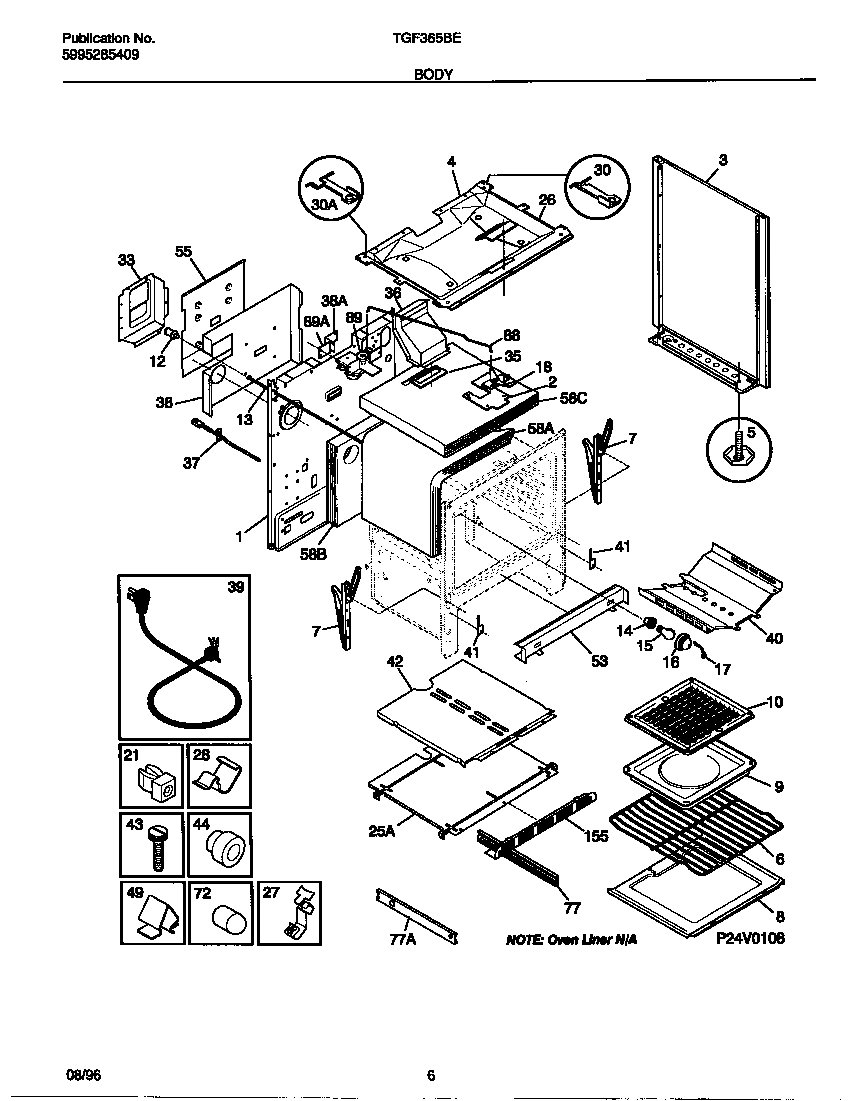

04 - BODY

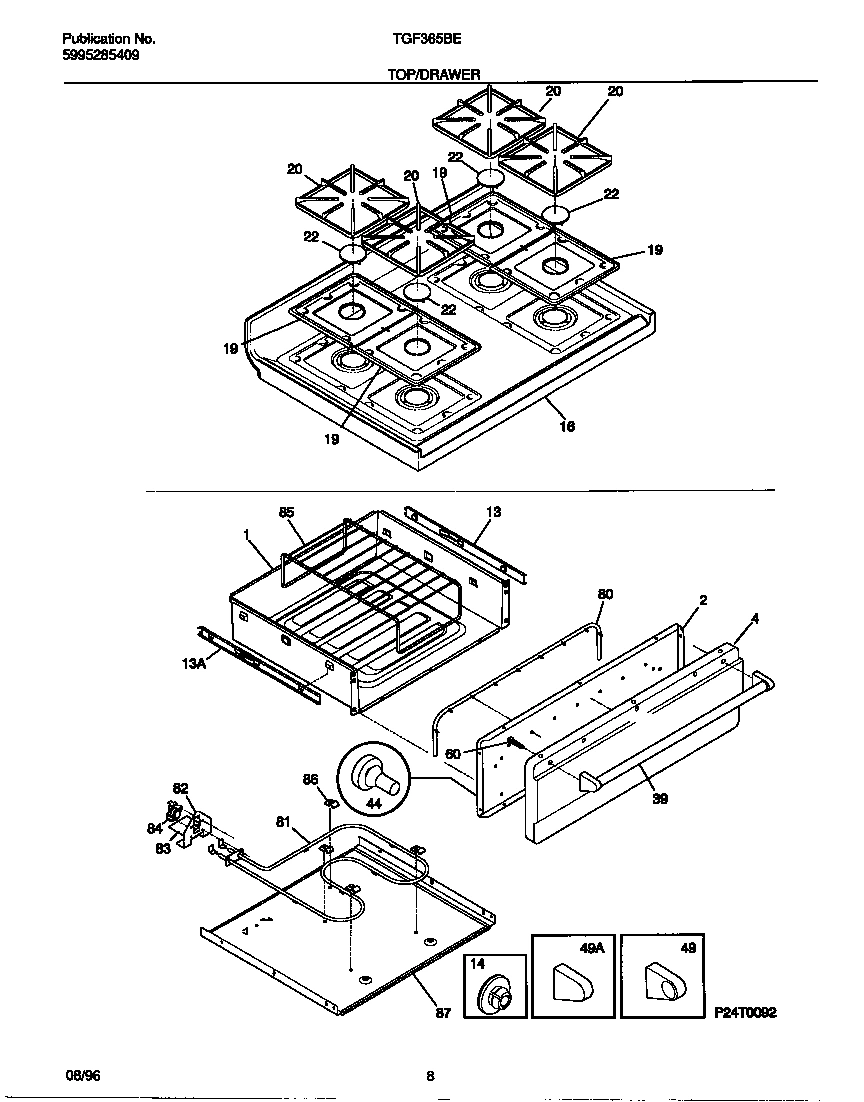

05 - TOP/DRAWER

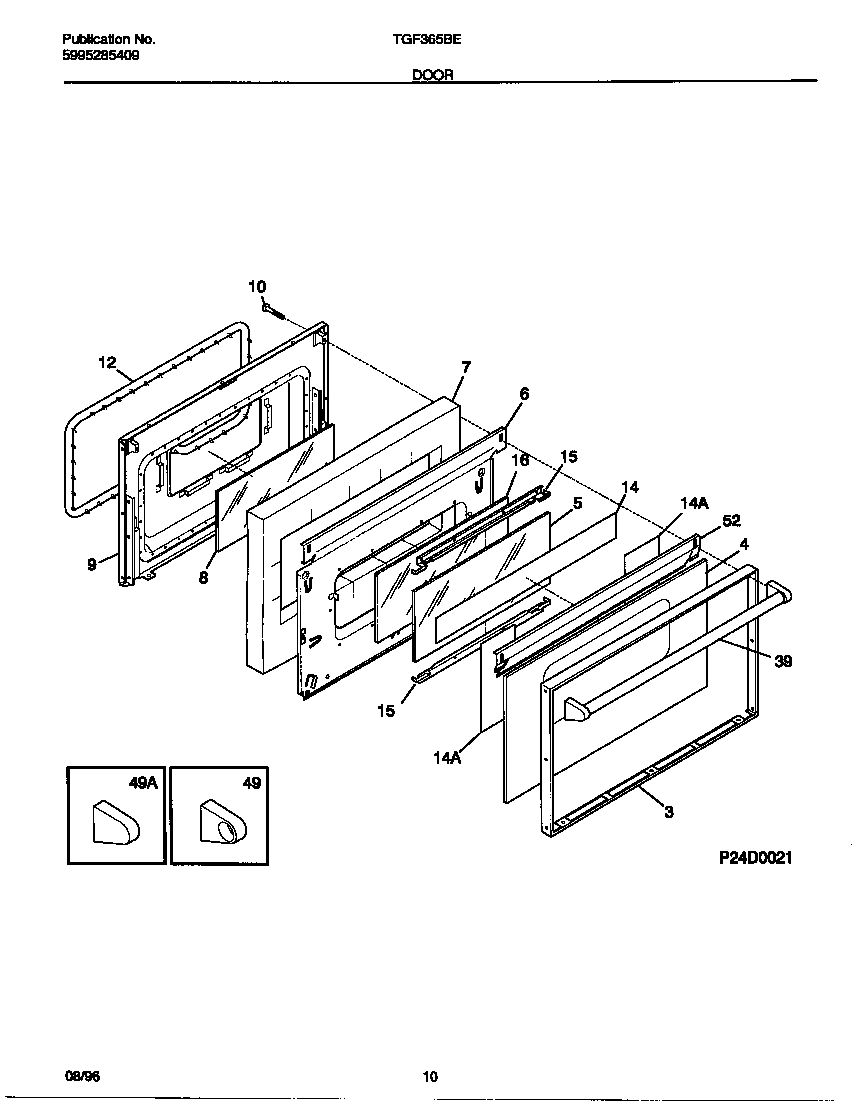

06 - DOOR

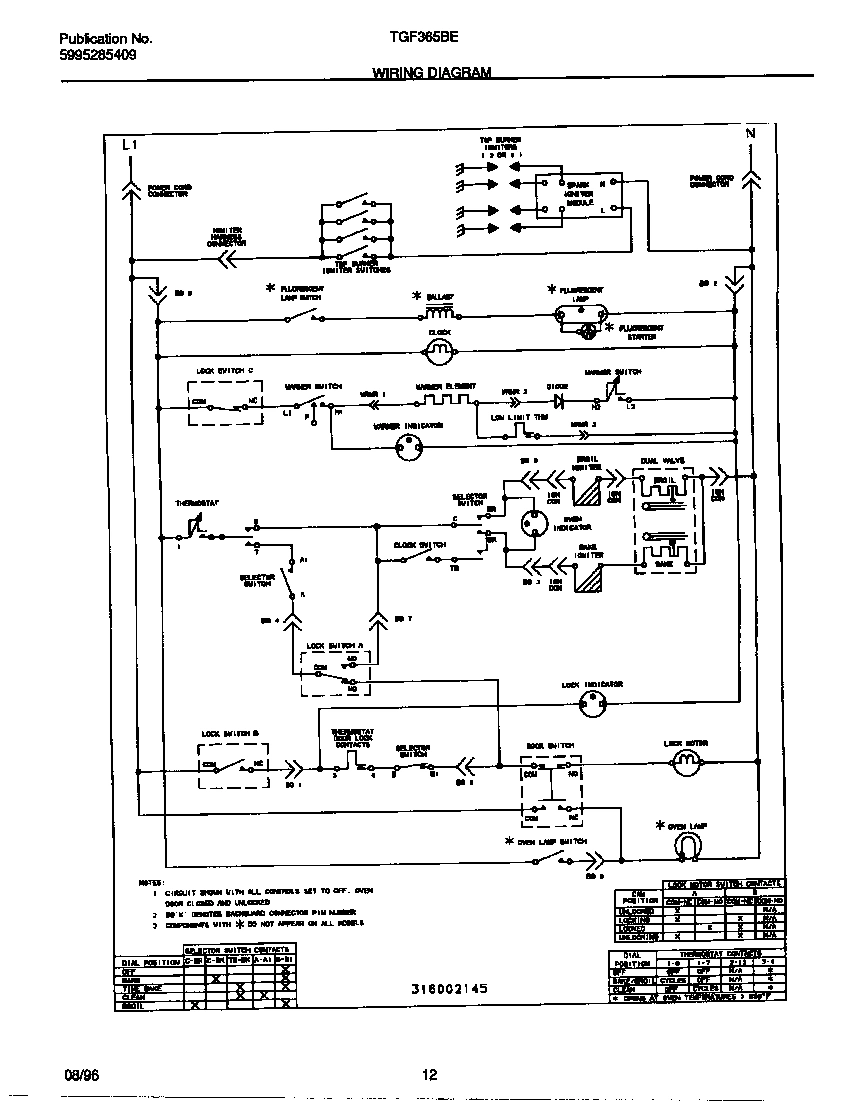

07 - WIRING DIAGRAM
Common parts from model Electrolux TGF365BEDA RANGE
*12402
SCREW, CUP PT, 8-18 X 3/8 WCI 316021108 Contact Us For Availability
*12403
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
*12404
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*12406
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*12408
WCI 316065301 WCI 316065301 Contact Us For Availability
*12409
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
WCI 316094601 WCI 316094601 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7A
WCI 316007002 WCI 316007002 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316073300 WCI 316073300 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
WCI 316096500 WCI 316096500 Contact Us For Availability
13
WCI 316096501 WCI 316096501 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
19
WCI 316011401 WCI 316011401 Contact Us For Availability
20
WCI 316085201 WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
25
WCI 316092301 WCI 316092301 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
38
WCI 316097100 WCI 316097100 Contact Us For Availability
39
WCI 316019507 WCI 316019507 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 316008302 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
55
WCI 316052601 WCI 316052601 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
77
WCI 316094900 WCI 316094900 Contact Us For Availability
77
WCI 316094901 WCI 316094901 Contact Us For Availability
80
WCI 316093000 WCI 316093000 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
82
BRACKET-MOUNTING, WARMER ELEMENT WCI 316093200 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 316093300 Contact Us For Availability
84
WCI 316093500 WCI 316093500 Contact Us For Availability
86
WCI 316095800 WCI 316095800 Contact Us For Availability
87
WCI 316091902 WCI 316091902 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028104 WCI 316028104 Contact Us For Availability
89
WCI 316097000 WCI 316097000 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
