Model GE TFX24ELK Refrigerator – Common Parts & Diagrams

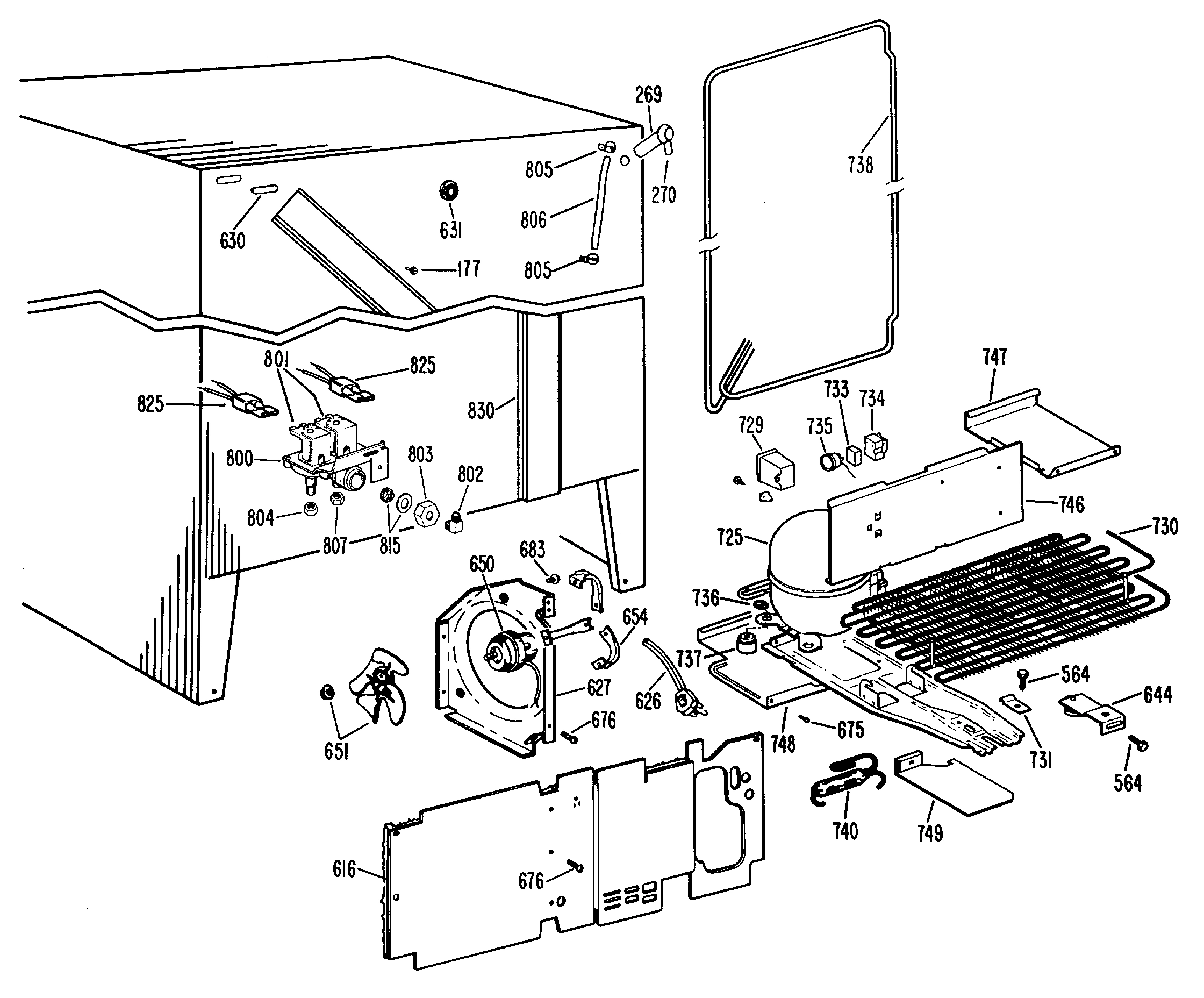

0

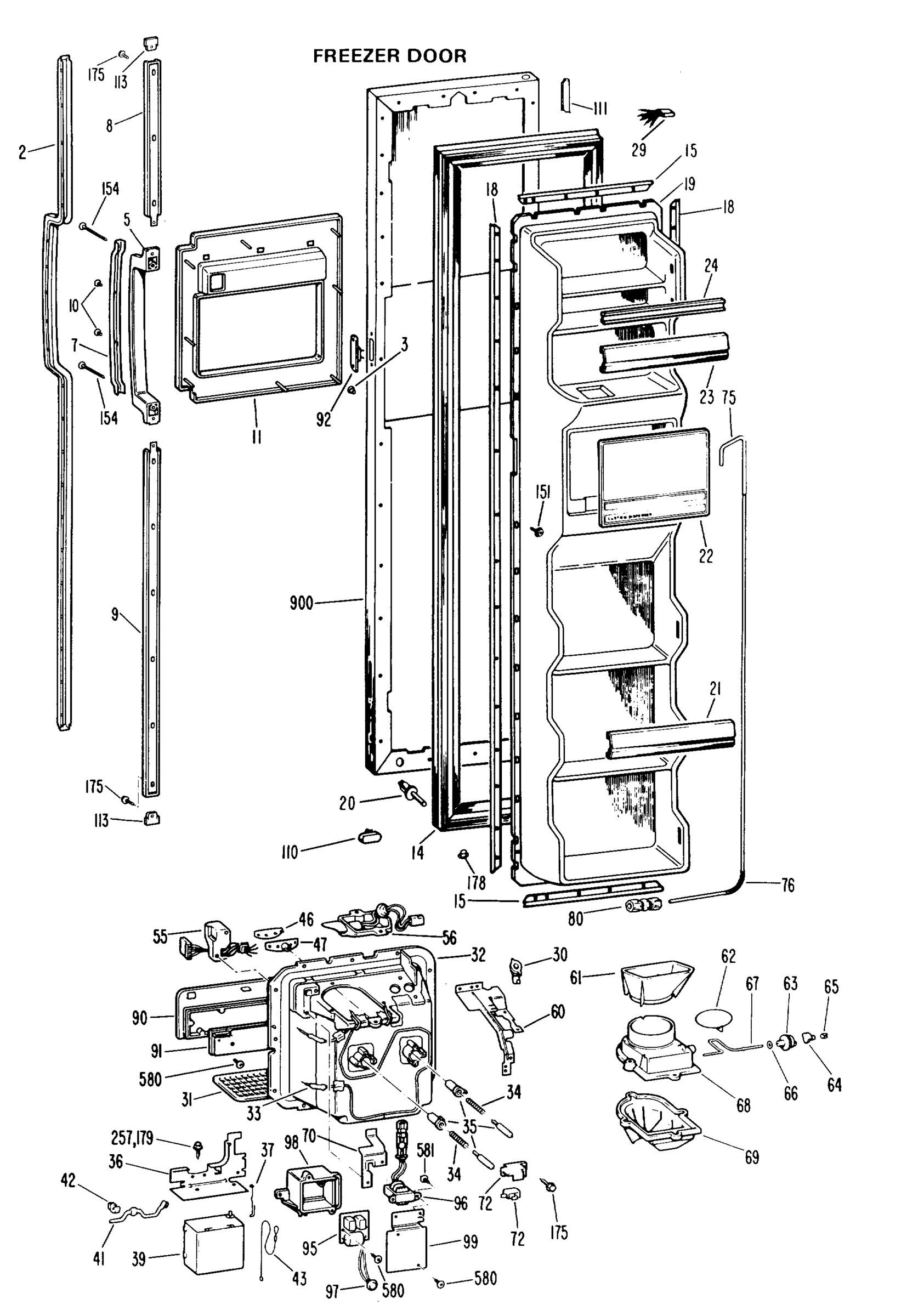

FREEZER DOOR

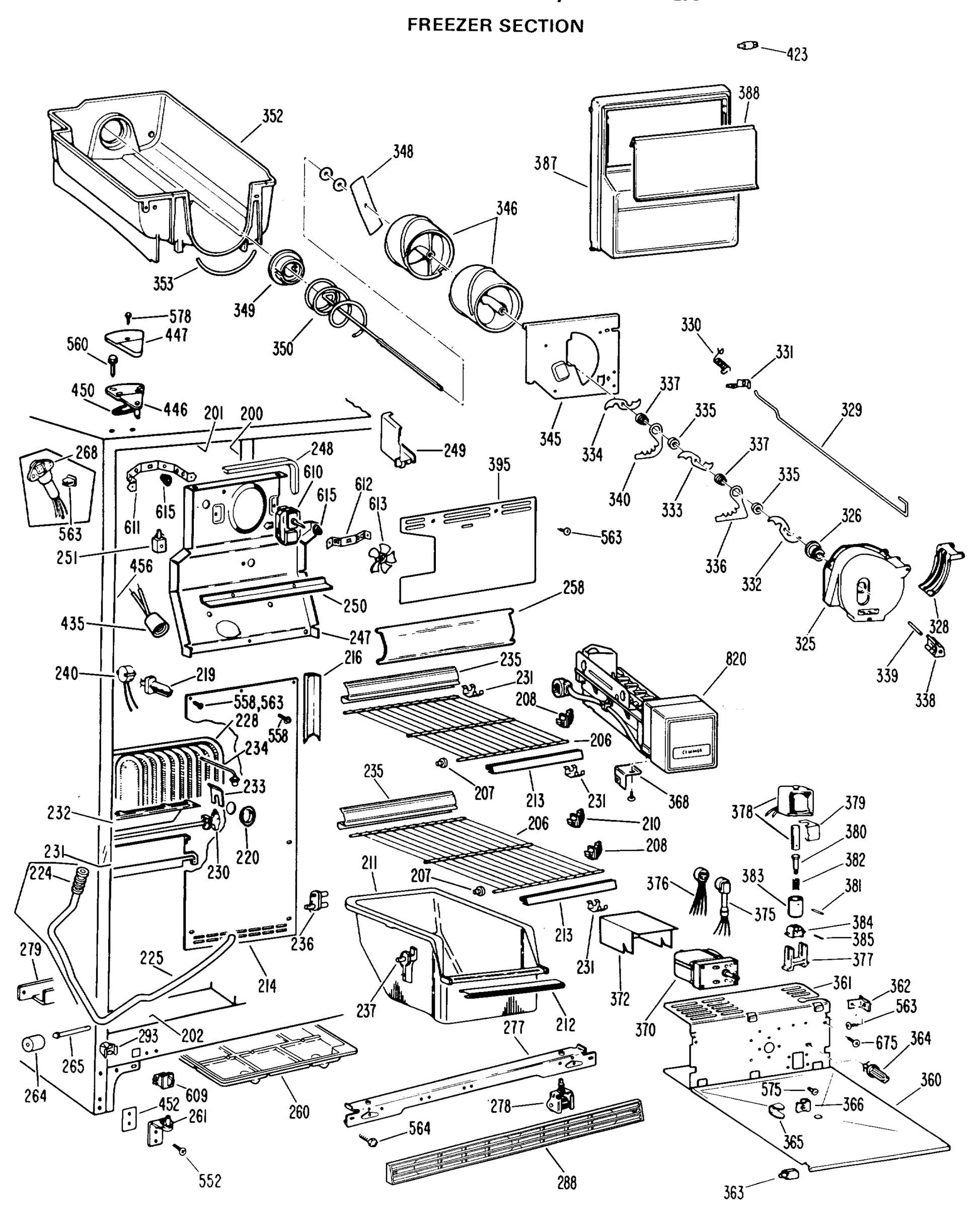

FREEZER SECTION

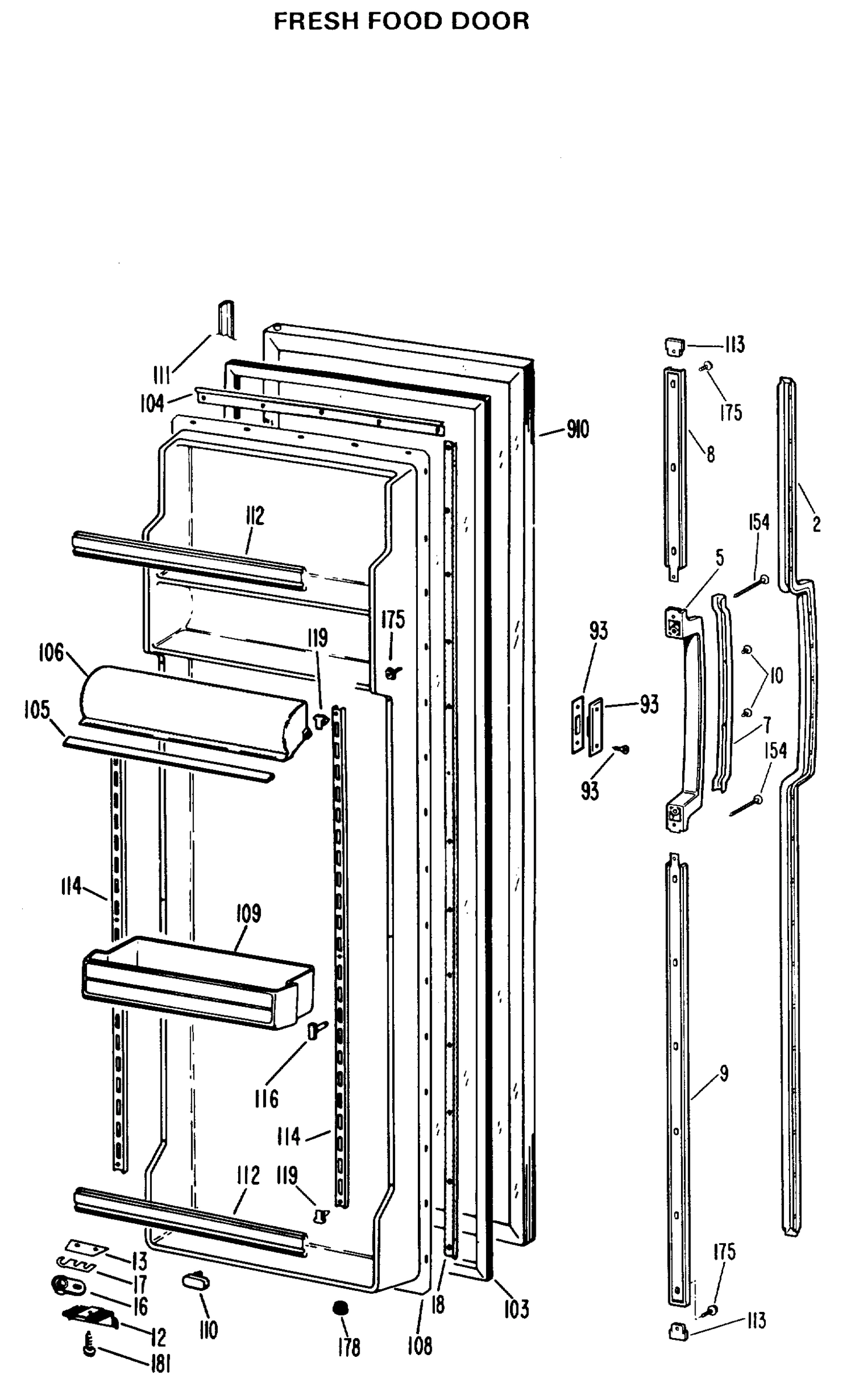

FRESH FOOD DOOR

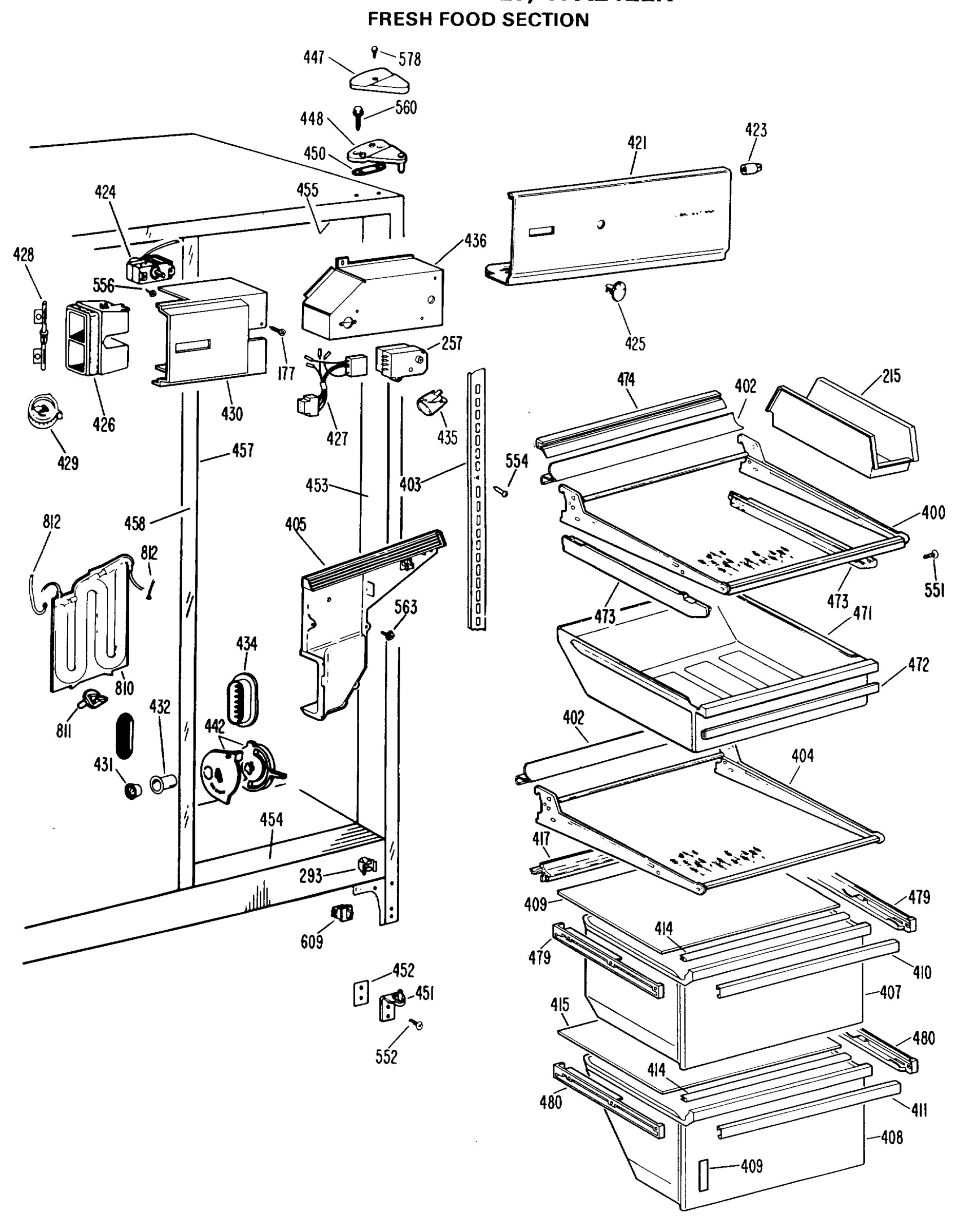

FRESH FOOD SECTION
Common parts from model GE TFX24ELK Refrigerator
1
GEN 31-5024 GEN 31-5024 Contact Us For Availability
2
GEN WR12X0622 GEN WR12X0622 Contact Us For Availability
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
5
GEN WR12X0618 GEN WR12X0618 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X0621 GEN WR12X0621 Contact Us For Availability
9
GEN WR12X0616 GEN WR12X0616 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1314 GEN WR38X1314 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0465 GEN WR24X0465 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0540 GEN WR77X0540 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR17X2508 GEN WR17X2508 Contact Us For Availability
22
GEN WR17X2504 GEN WR17X2504 Contact Us For Availability
23
GEN WR17X2509 GEN WR17X2509 Contact Us For Availability
24
GEN WR17X2510 GEN WR17X2510 Contact Us For Availability
29
HARNESS O. DOOR RECESS GEN WR49X0301 Contact Us For Availability
29
GEN WR49X0308 GEN WR49X0308 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
GEN WR14X0245 GEN WR14X0245 Contact Us For Availability
32
RECESS DISPENSER GEN WR17X2047 Contact Us For Availability
33
GEN WR51X0313 GEN WR51X0313 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X7840 GEN WR02X7840 Contact Us For Availability
37
CLIP TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
41
CRANK & RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
LANYARD DISPENSER GEN WR02X4237 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
55
GEN WR23X0306 GEN WR23X0306 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
56
GEN WR02X7910 GEN WR02X7910 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
GEN WR17X1586 GEN WR17X1586 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM DISP GEN WR17X5881 Contact Us For Availability
70
GEN WR02X7245 GEN WR02X7245 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
GEN WR23X0144 GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
90
GEN WR55X0024 GEN WR55X0024 Contact Us For Availability
91
GEN WR02X7313 GEN WR02X7313 Contact Us For Availability
91
GEN WR02X7314 GEN WR02X7314 Contact Us For Availability
91
BOARD ASM. LOGIC GEN WR55X0016 Contact Us For Availability
92
GEN WR23X0310 GEN WR23X0310 Contact Us For Availability
93
GEN WR01X1709 GEN WR01X1709 Contact Us For Availability
93
GEN WR02X7315 GEN WR02X7315 Contact Us For Availability
95
GEN WR55X0013 GEN WR55X0013 Contact Us For Availability
96
GEN WR62X0039 GEN WR62X0039 Contact Us For Availability
97
GEN WR52X0024 GEN WR52X0024 Contact Us For Availability
98
GEN WR02X7349 GEN WR02X7349 Contact Us For Availability
99
GEN WR02X7350 GEN WR02X7350 Contact Us For Availability
103
GEN WR24X0464 GEN WR24X0464 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1310 GEN WR38X1310 Contact Us For Availability
106
GEN WR22X0397 GEN WR22X0397 Contact Us For Availability
108
GEN WR77X0538 GEN WR77X0538 Contact Us For Availability
109
GEN WR71X1932 GEN WR71X1932 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X1425 GEN WR38X1425 Contact Us For Availability
112
GEN WR17X2494 GEN WR17X2494 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
114
GEN WR17X1391 GEN WR17X1391 Contact Us For Availability
116
GEN WR02X8036 GEN WR02X8036 Contact Us For Availability
119
GEN WR02X8027 GEN WR02X8027 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1641 GEN WR40X1641 Contact Us For Availability
201
GEN WR40X1638 GEN WR40X1638 Contact Us For Availability
202
GEN WR40X1637 GEN WR40X1637 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
210
GEN WR02X7215 GEN WR02X7215 Contact Us For Availability
211
GEN WR21X0170 GEN WR21X0170 Contact Us For Availability
212
GEN WR17X2513 GEN WR17X2513 Contact Us For Availability
213
GEN WR38X1316 GEN WR38X1316 Contact Us For Availability
214
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
214
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
214
GEN WR17X2130 GEN WR17X2130 Contact Us For Availability
215
GEN WR32X0898 GEN WR32X0898 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
GEN WR02X7926 GEN WR02X7926 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7845 GEN WR02X7845 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
GEN WR85X0201 GEN WR85X0201 Contact Us For Availability
230
GEN WR02X4557 GEN WR02X4557 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X3440 GEN WR02X3440 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4970 GEN WR02X4970 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR38X1436 GEN WR38X1436 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X2134 GEN WR17X2134 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
GEN WR17X1414 GEN WR17X1414 Contact Us For Availability
250
GEN WR02X7945 GEN WR02X7945 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
257
SCREW GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
260
GEN WR32X0963 GEN WR32X0963 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0307 GEN WR23X0307 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2005 GEN WR17X2005 Contact Us For Availability
288
GRILLE BASE GEN WR74X0199 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
SPRING DEFLECTOR GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
AUGER HELIX DISP GEN WR17X2054 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X1874 GEN WR71X1874 Contact Us For Availability
361
GEN WR17X2051 GEN WR17X2051 Contact Us For Availability
362
GEN WR02X7936 GEN WR02X7936 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X7311 GEN WR02X7311 Contact Us For Availability
370
GEN WR60X0111 GEN WR60X0111 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
COVER ICE DOOR ASM GEN WR17X2690 Contact Us For Availability
388
GEN WR17X2064 GEN WR17X2064 Contact Us For Availability
388
GEN WR38 GEN WR38 Contact Us For Availability
400
GEN WR71X1928 GEN WR71X1928 Contact Us For Availability
402
GEN WR38X1434 GEN WR38X1434 Contact Us For Availability
403
GEN WR72X0119 GEN WR72X0119 Contact Us For Availability
404
GEN WR71X1929 GEN WR71X1929 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1049 GEN WR32X1049 Contact Us For Availability
408
GEN WR32X1047 GEN WR32X1047 Contact Us For Availability
409
GEN WR32X1046 GEN WR32X1046 Contact Us For Availability
409
GEN WR02X7214 GEN WR02X7214 Contact Us For Availability
410
GEN WR17X2495 GEN WR17X2495 Contact Us For Availability
411
GEN WR17X2496 GEN WR17X2496 Contact Us For Availability
414
GEN WR14X0339 GEN WR14X0339 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2497 GEN WR17X2497 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0442 GEN WR09X0442 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GEN WR02X8043 GEN WR02X8043 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
447
GEN WR02X8262 GEN WR02X8262 Contact Us For Availability
448
GEN WR13X0601 GEN WR13X0601 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1631 GEN WR40X1631 Contact Us For Availability
454
GEN WR40X1629 GEN WR40X1629 Contact Us For Availability
455
GEN WR40X1635 GEN WR40X1635 Contact Us For Availability
457
GEN WR40X1640 GEN WR40X1640 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
471
GEN WR32X1048 GEN WR32X1048 Contact Us For Availability
472
GEN WR38X1309 GEN WR38X1309 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
479
SLIDE PAN R/S GEN WR17X2099 Contact Us For Availability
479
GEN WR17X2100 GEN WR17X2100 Contact Us For Availability
480
GEN WR72X0110 GEN WR72X0110 Contact Us For Availability
480
GEN WR72X0111 GEN WR72X0111 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
580
GEN WZ02X0561 GEN WZ02X0561 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
730
GEN WR84X0135 GEN WR84X0135 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7928 GEN WR02X7928 Contact Us For Availability
734
GEN WR02X7929 GEN WR02X7929 Contact Us For Availability
735
GEN WR08X0096 GEN WR08X0096 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0046 GEN WR84X0046 Contact Us For Availability
746
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
747
GEN WR17X2331 GEN WR17X2331 Contact Us For Availability
748
BAFFLE COMP. FLR. GEN WR17X2004 Contact Us For Availability
749
GEN WR17X2338 GEN WR17X2338 Contact Us For Availability
801
COIL ASM-WATER(BLUE) GEN WR62X0027 Contact Us For Availability
801
COIL-ICE GEN WR62X0044 Contact Us For Availability
802
GEN WR57X0094 GEN WR57X0094 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
WATER TANK DISPENSER ASM GEN WR17X2132 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
815
GEN WR57X0073 GEN WR57X0073 Contact Us For Availability
825
GEN WR23X0305 GEN WR23X0305 Contact Us For Availability
830
GEN WR17X2602 GEN WR17X2602 Contact Us For Availability
900
FRZ O.DOOR/TRIM (WH) GEN WR78X8282 Contact Us For Availability
900
FRZ O.DOOR/TRIM (AD) GEN WR78X8283 Contact Us For Availability
900
FRZ O.DOOR/TRIM (HA) GEN WR78X8284 Contact Us For Availability
910
FF O.DOOR/TRIM (WH) GEN WR78X8285 Contact Us For Availability
910
GEN WR78X8286 GEN WR78X8286 Contact Us For Availability
910
GEN WR78X8287 GEN WR78X8287 Contact Us For Availability
32767
GEN 49-6586 GEN 49-6586 Contact Us For Availability
× ![]()
