Model Electrolux TFU09M4EW0 FREEZER – Common Parts & Diagrams

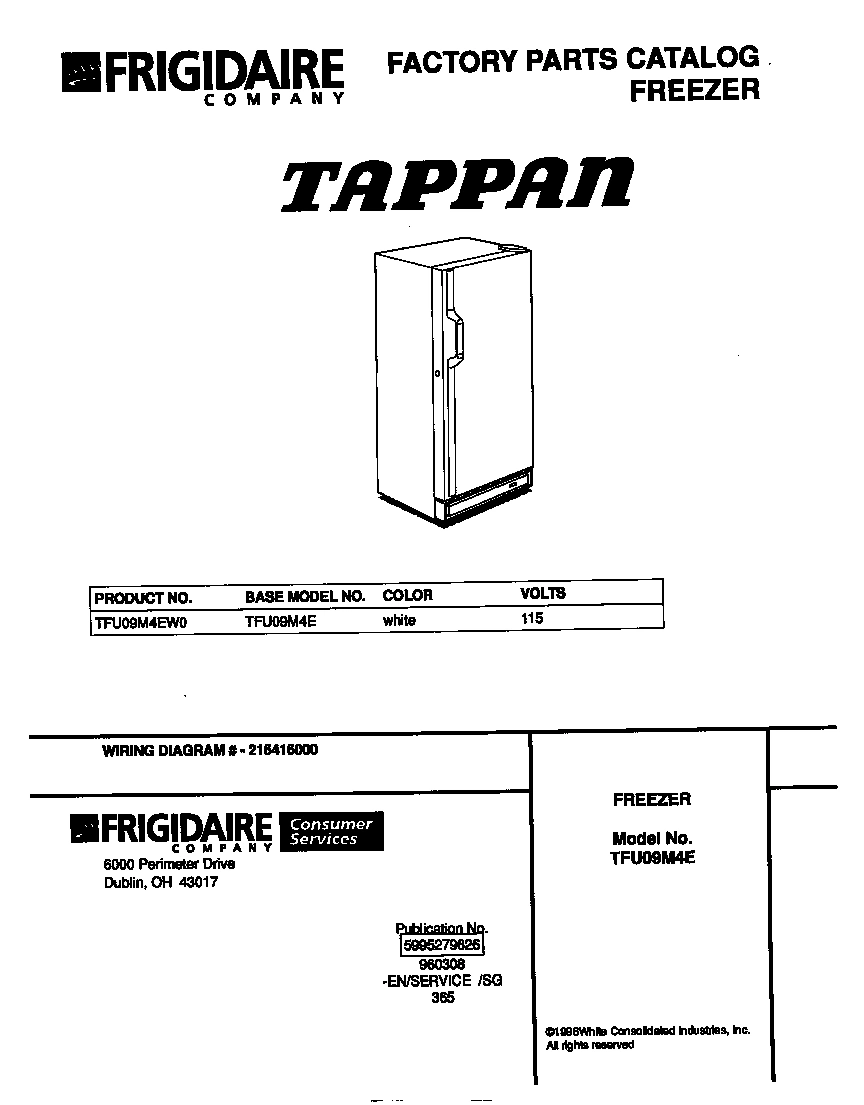

01 - COVER

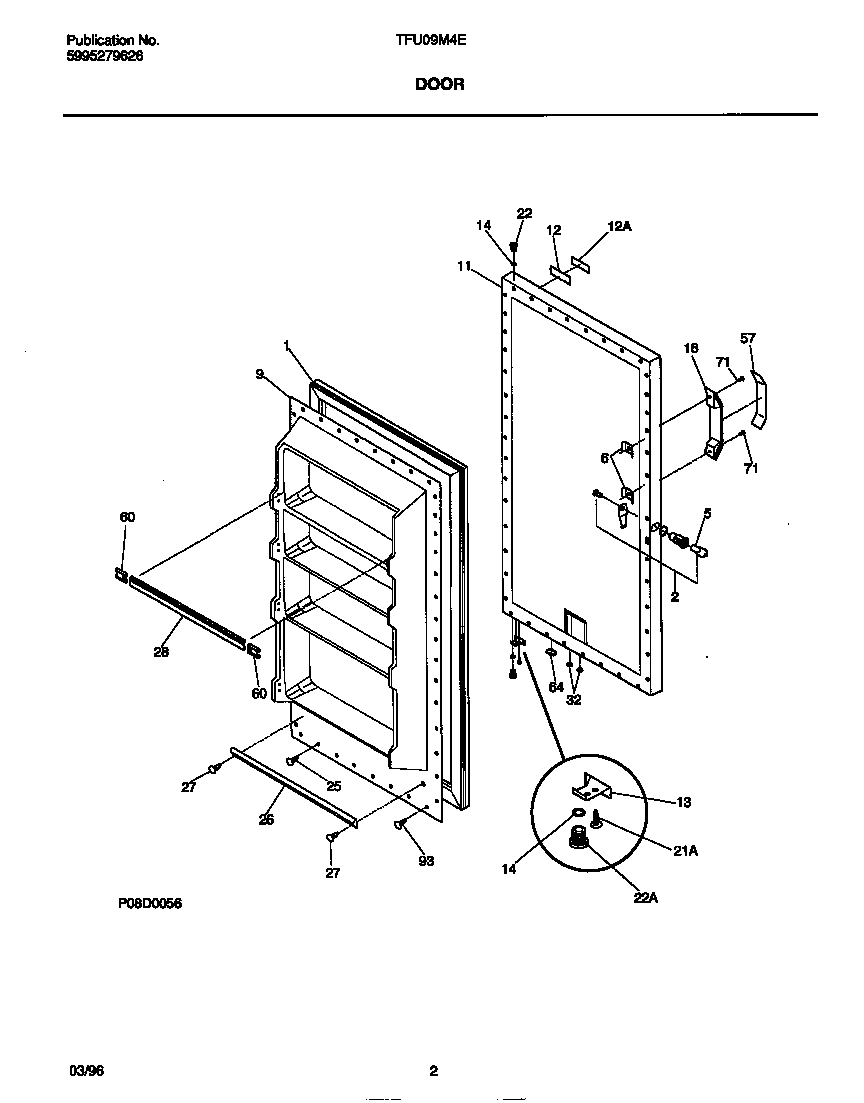

02 - DOOR

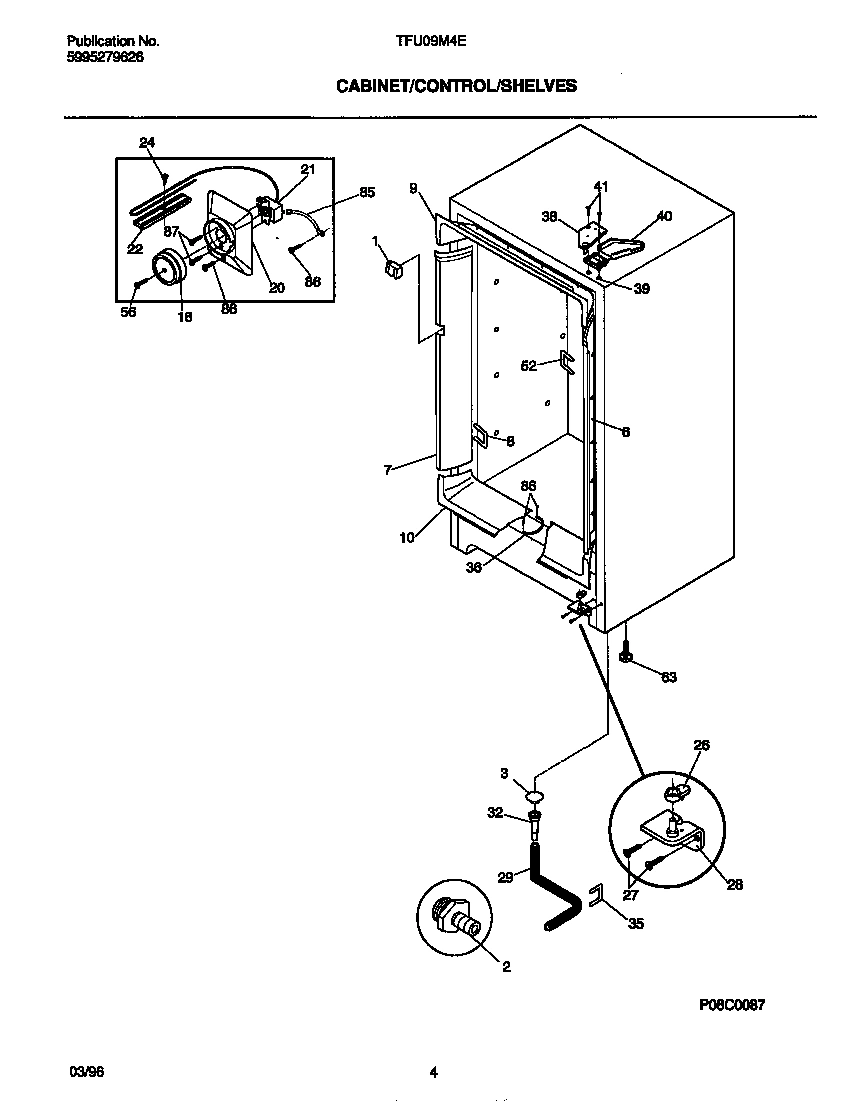

03 - CABINET/CONTROL/SHELVES

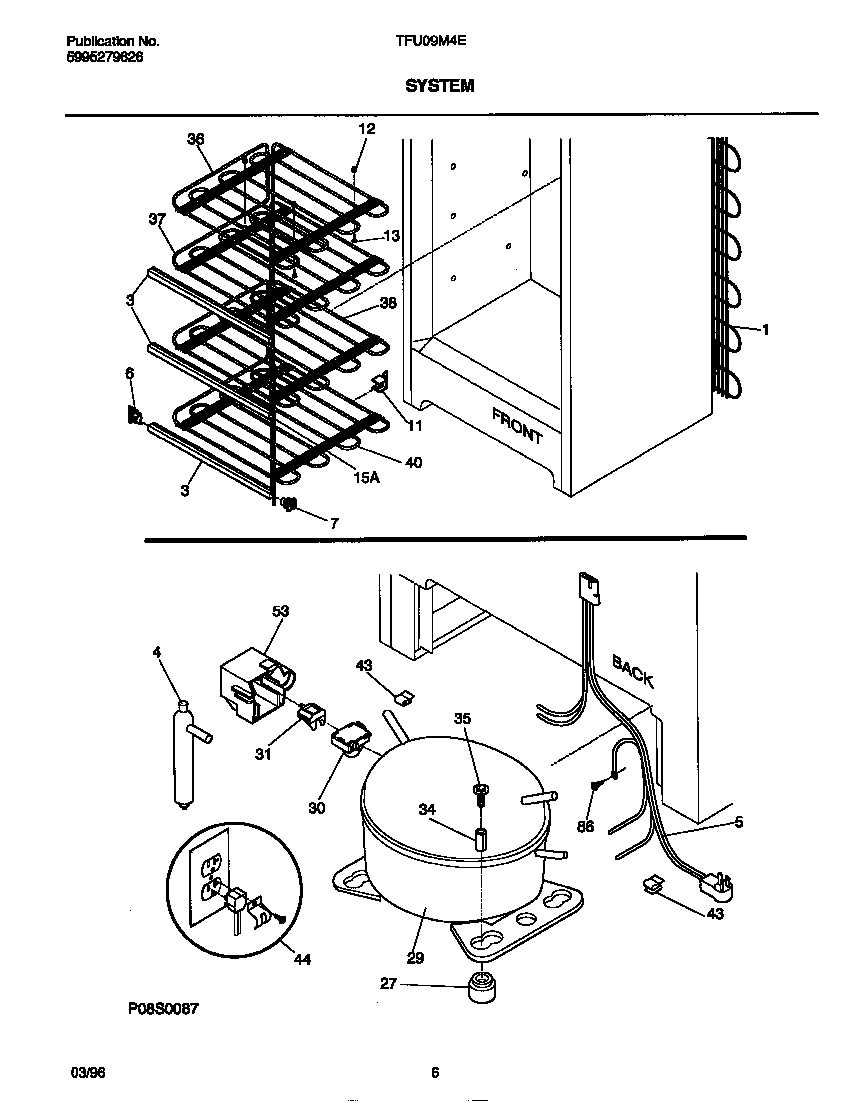

04 - SYSTEM
Common parts from model Electrolux TFU09M4EW0 FREEZER
*34881
INSULATION WCI 5303917276 Contact Us For Availability
*34882
WCI 06594680 WCI 06594680 Contact Us For Availability
1
WCI 3206236 WCI 3206236 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
1
WCI 5303304537 WCI 5303304537 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
WCI 216447700 WCI 216447700 Contact Us For Availability
5
WCI 216405600 WCI 216405600 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 216102600 Contact Us For Availability
7
BREAKER-LOCK SIDE, WHITE WCI 216102701 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
9
WCI 216073100 WCI 216073100 Contact Us For Availability
10
WCI 216073000 WCI 216073000 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216404900 WCI 216404900 Contact Us For Availability
18
WCI 216446900 WCI 216446900 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216405000 WCI 216405000 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216274100 WCI 216274100 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216347700 WCI 216347700 Contact Us For Availability
31
OVERLOAD PROTECTOR WCI 216100105 Contact Us For Availability
32
WCI 216390000 WCI 216390000 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
36
WCI 216069300 WCI 216069300 Contact Us For Availability
37
WCI 216069400 WCI 216069400 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216069500 WCI 216069500 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
40
WCI 216069600 WCI 216069600 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
53
COVER, COMPRESSOR WCI 216347800 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
57
WCI 216446800 WCI 216446800 Contact Us For Availability
60
WCI 5303298264 WCI 5303298264 Contact Us For Availability
64
PLUG-BUTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
× ![]()
