Model Electrolux TEF242BU2 RANGE – Common Parts & Diagrams
01 - COVER

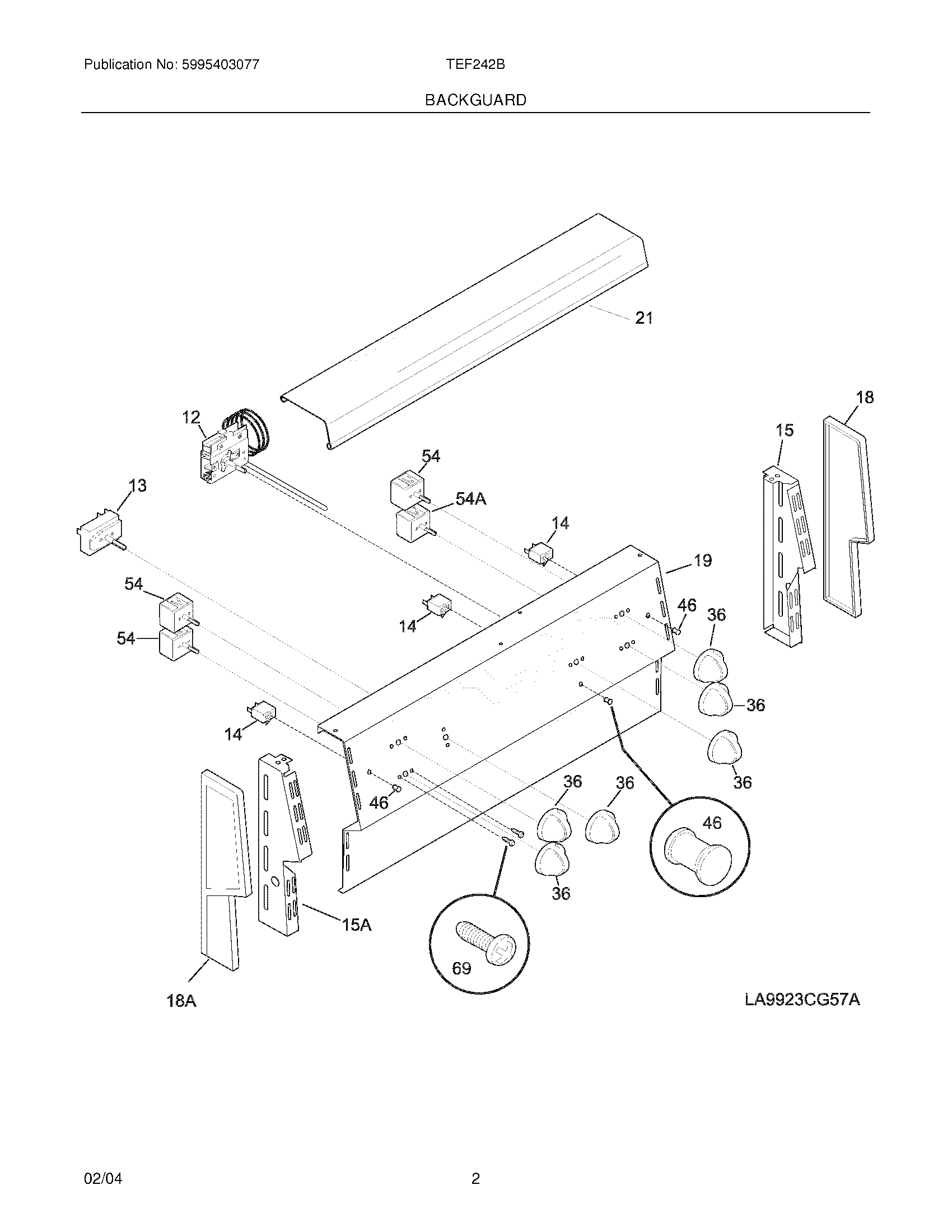

03 - BACKGUARD

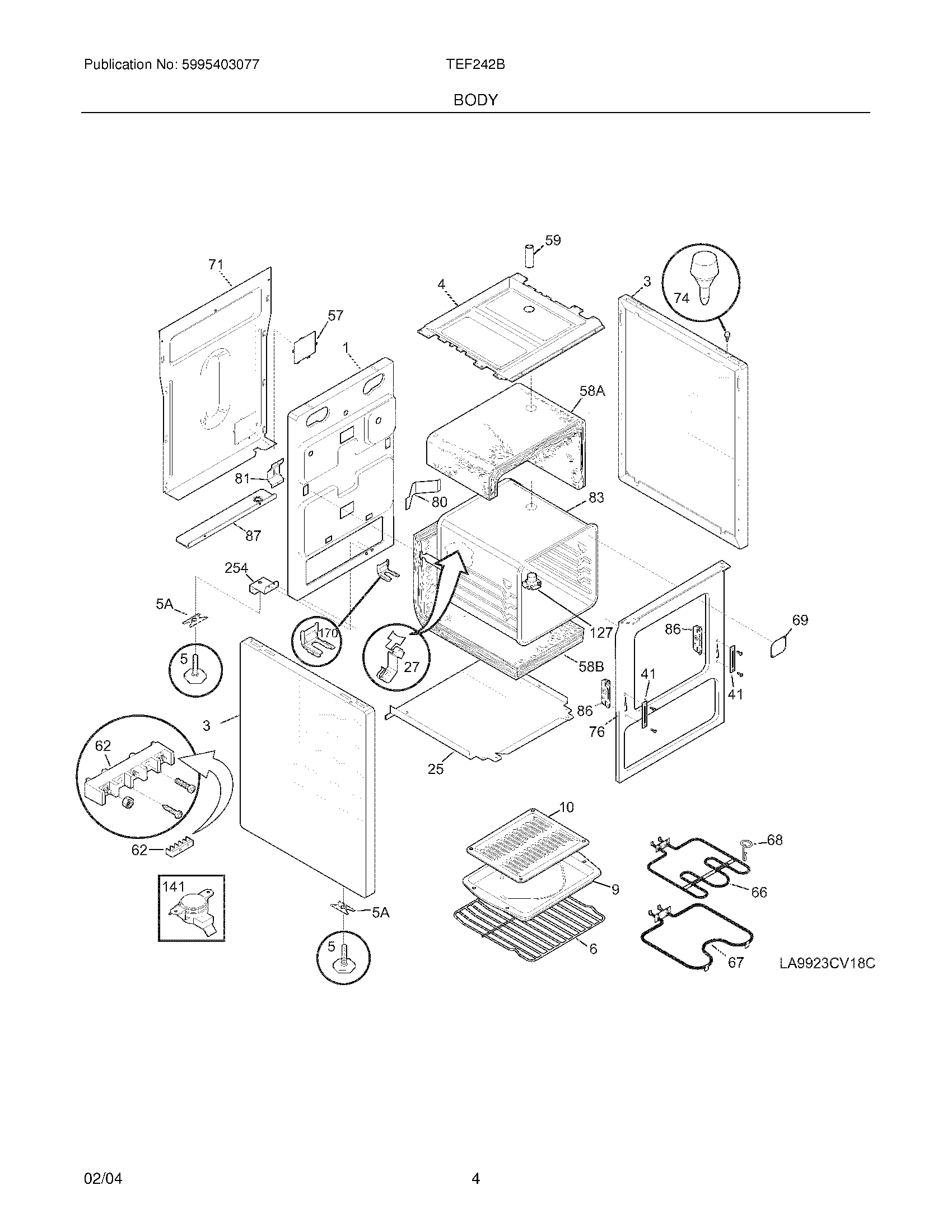

05 - BODY

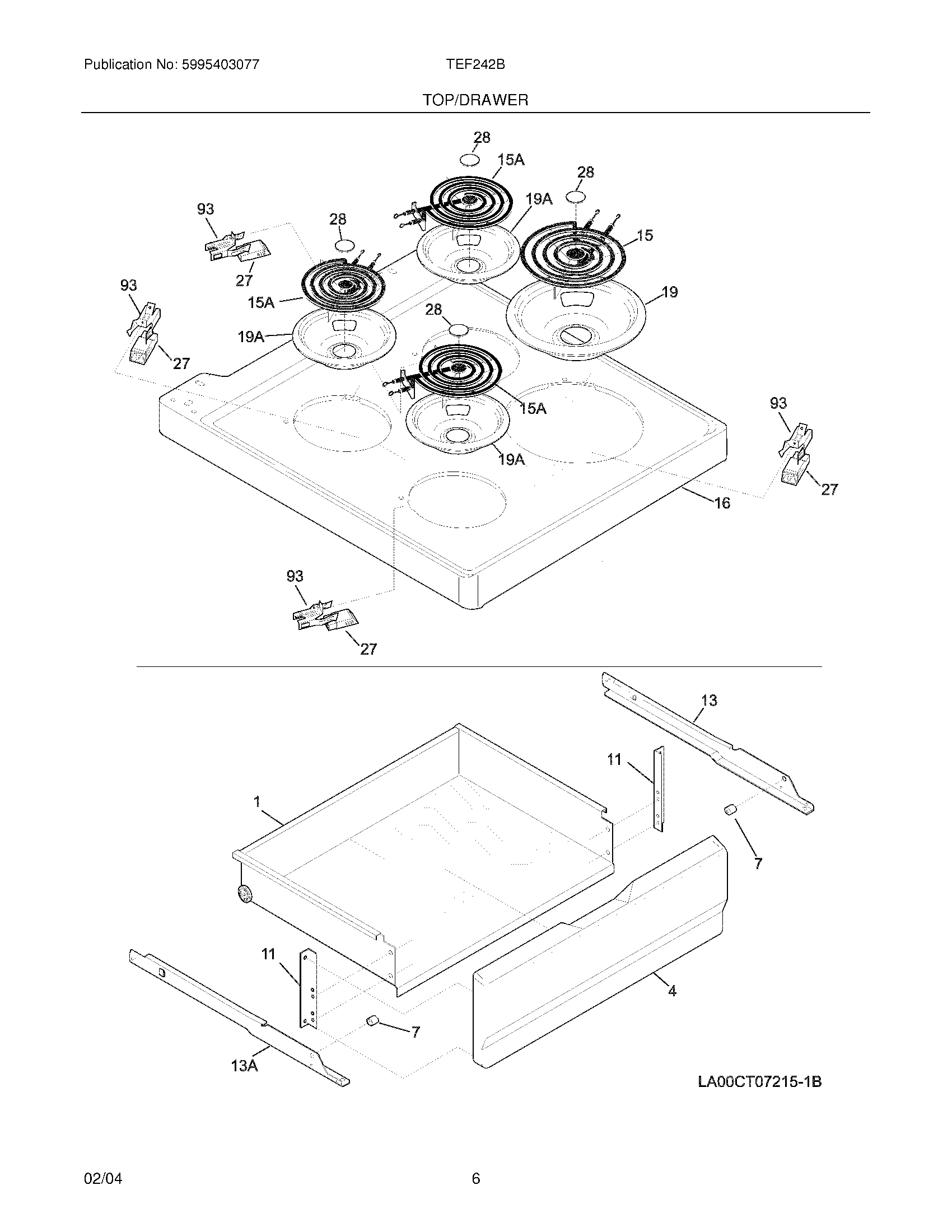

07 - TOP/DRAWER

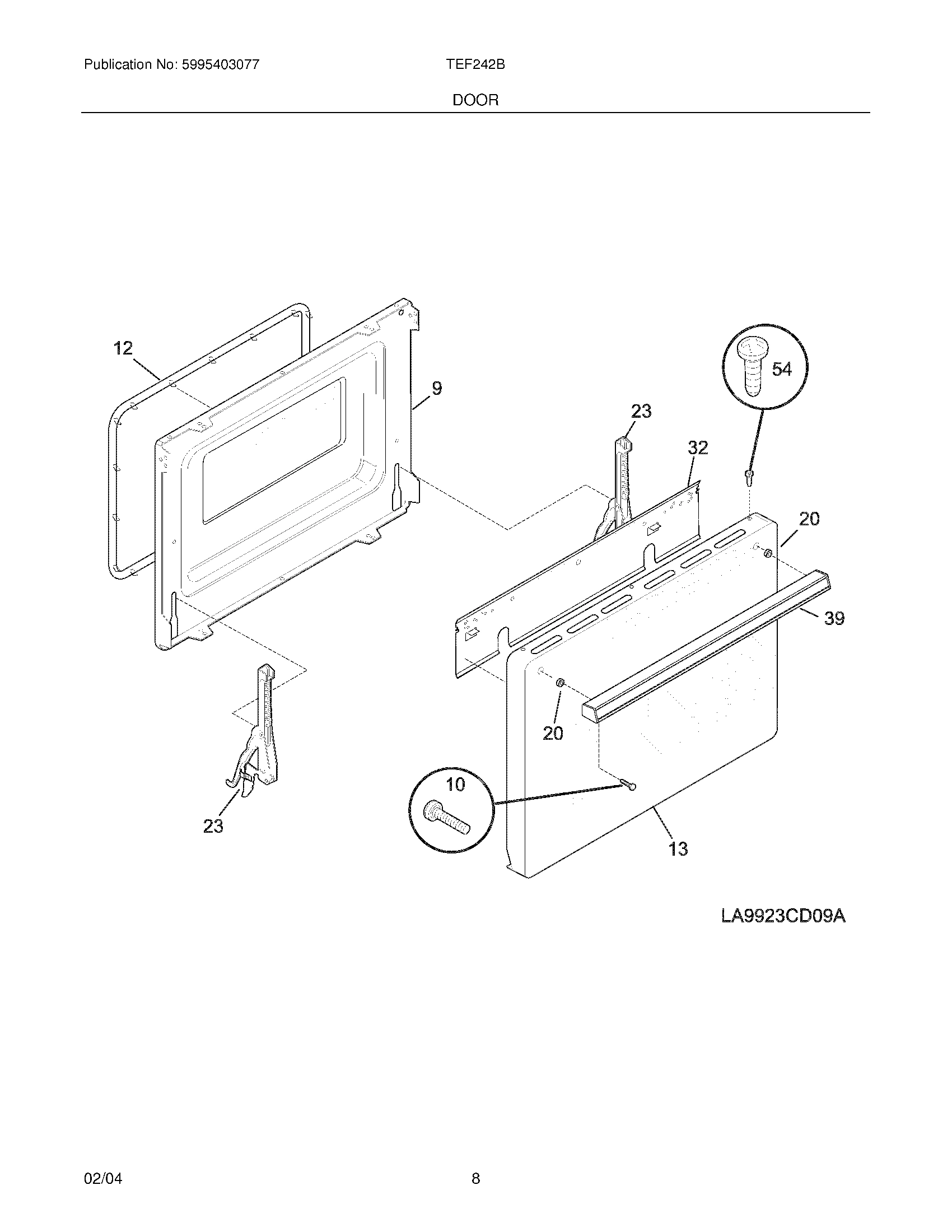

09 - DOOR

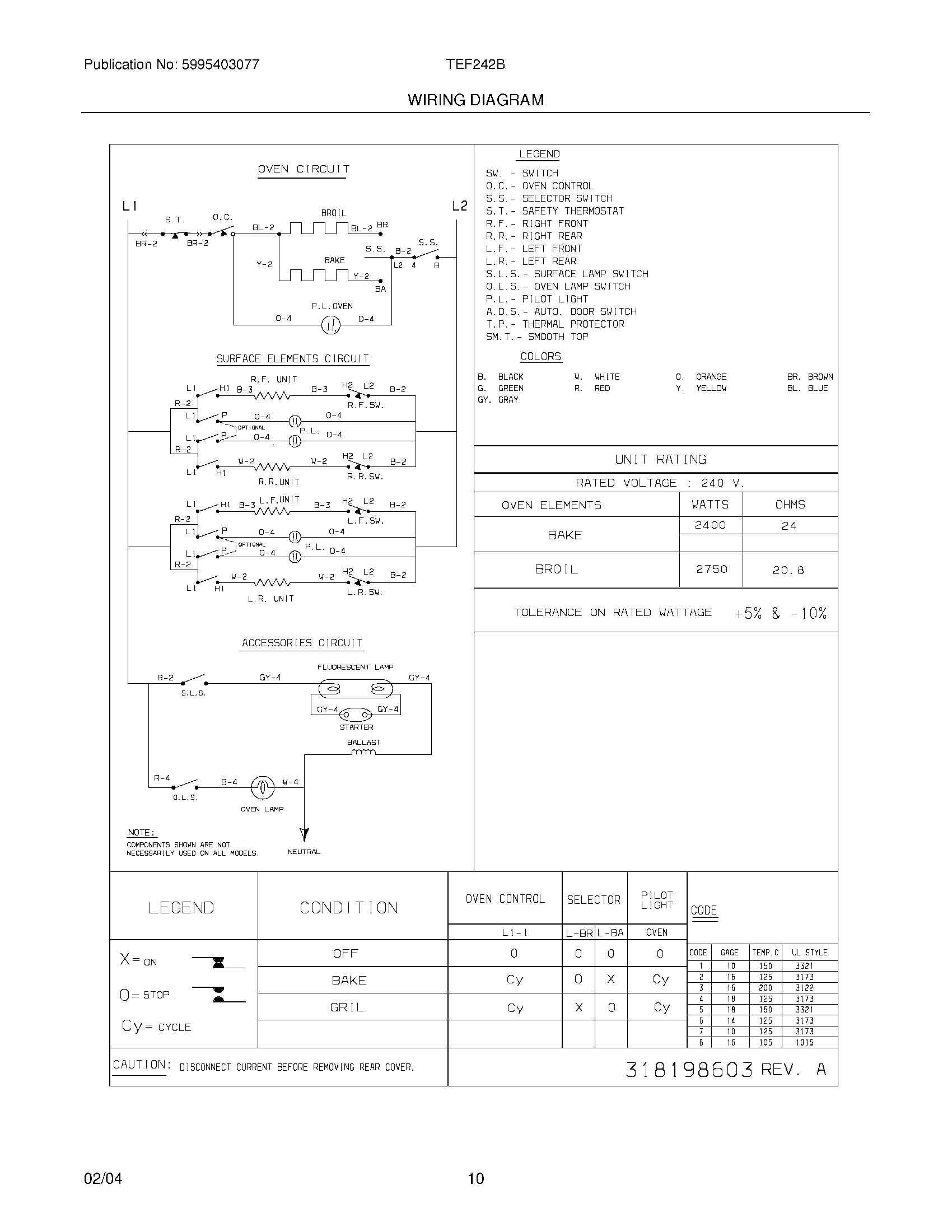

10 - WIRING DIAGRAM
Common parts from model Electrolux TEF242BU2 RANGE
1
WCI 5303325610 WCI 5303325610 Contact Us For Availability
4
WCI 318044224 WCI 318044224 Contact Us For Availability
5
WCI 318175503 WCI 318175503 Contact Us For Availability
7
WCI 318014800 WCI 318014800 Contact Us For Availability
9
WCI 318149603 WCI 318149603 Contact Us For Availability
11
WCI 5303324427 WCI 5303324427 Contact Us For Availability
12
WCI 318053321 WCI 318053321 Contact Us For Availability
13
WCI 318057910 WCI 318057910 Contact Us For Availability
13
WCI 318018100 WCI 318018100 Contact Us For Availability
13
WCI 318009053 WCI 318009053 Contact Us For Availability
13A
WCI 318018101 WCI 318018101 Contact Us For Availability
16
WCI 318120924 WCI 318120924 Contact Us For Availability
20
WCI 5303310504 WCI 5303310504 Contact Us For Availability
23
Hinge,oven door WCI 318024702 Contact Us For Availability
27
WCI 318223401 WCI 318223401 Contact Us For Availability
27
WCI 318223402 WCI 318223402 Contact Us For Availability
32
WCI 318057203 WCI 318057203 Contact Us For Availability
36
WCI 318017106 WCI 318017106 Contact Us For Availability
39
WCI 5303325853 WCI 5303325853 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
63
WCI 316208500 WCI 316208500 Contact Us For Availability
69
WCI 318036411 WCI 318036411 Contact Us For Availability
71
WCI 318086504 WCI 318086504 Contact Us For Availability
74
WCI 318147410 WCI 318147410 Contact Us For Availability
76
WCI 318136103 WCI 318136103 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
83
WCI 318089614 WCI 318089614 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
87
WCI 318111810 WCI 318111810 Contact Us For Availability
127
Adapter,vent tube ,with converter WCI 318230000 Contact Us For Availability
141
WCI 318003602 WCI 318003602 Contact Us For Availability
170
WCI 5304413730 WCI 5304413730 Contact Us For Availability
254
Support,mtg (anti-tip) WCI 318175600 Contact Us For Availability
NI
Screw,8-18 x 0.500 WCI 5303323133 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 316221001 WCI 316221001 Contact Us For Availability
NI
WCI 5303325170 WCI 5303325170 Contact Us For Availability
× ![]()
