Model Maytag TC607X4 COMPACTOR – Common Parts & Diagrams

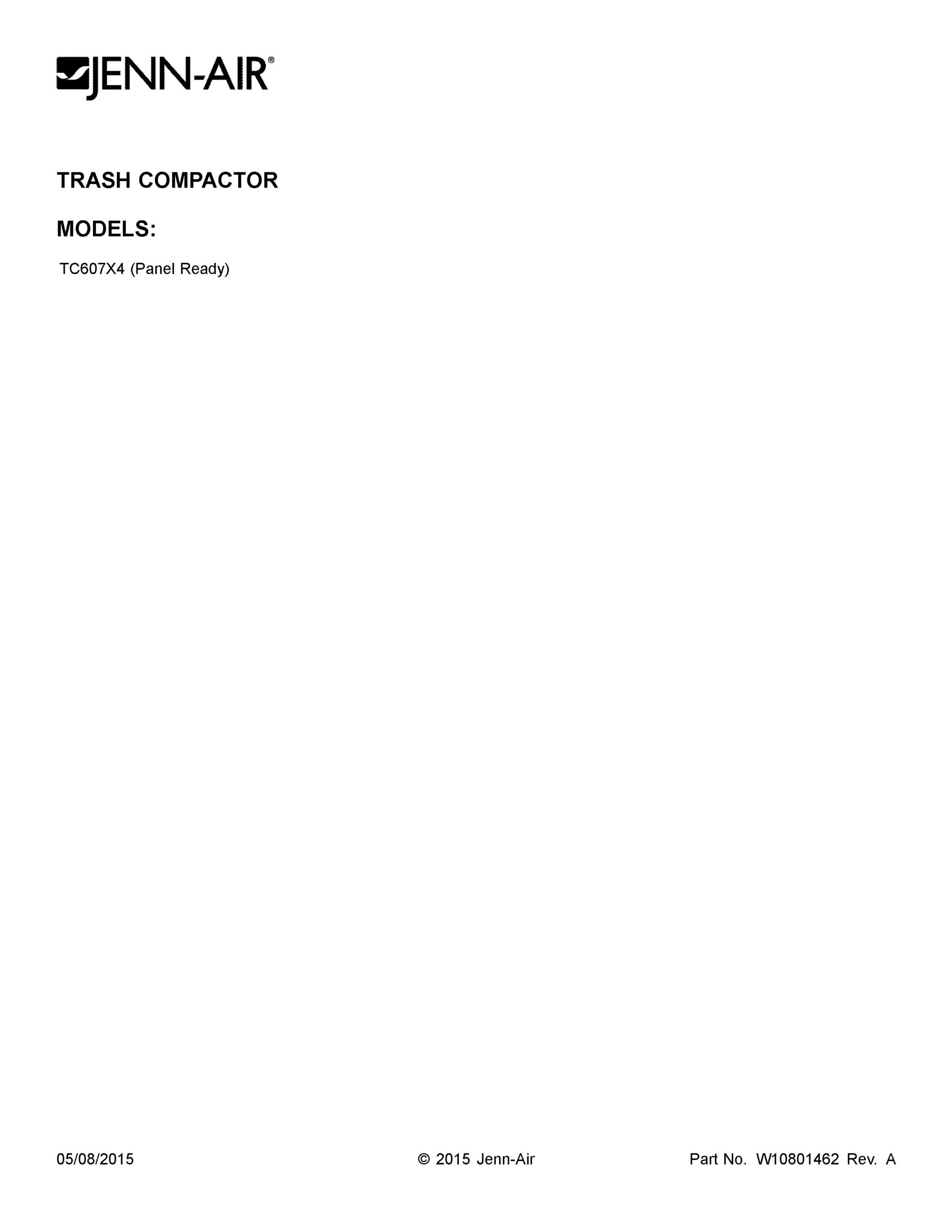

01 - COVER SHEET

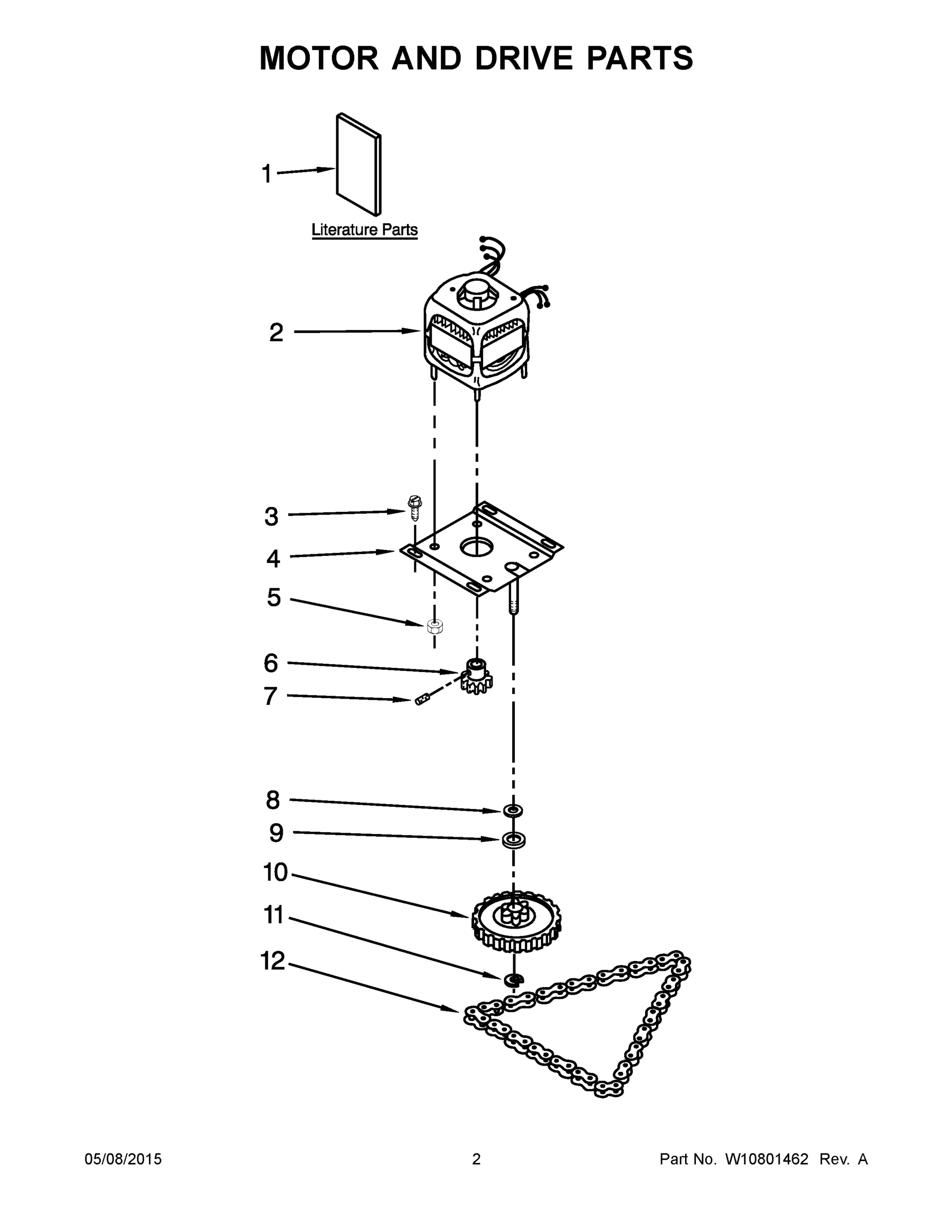

02 - MOTOR AND DRIVE PARTS

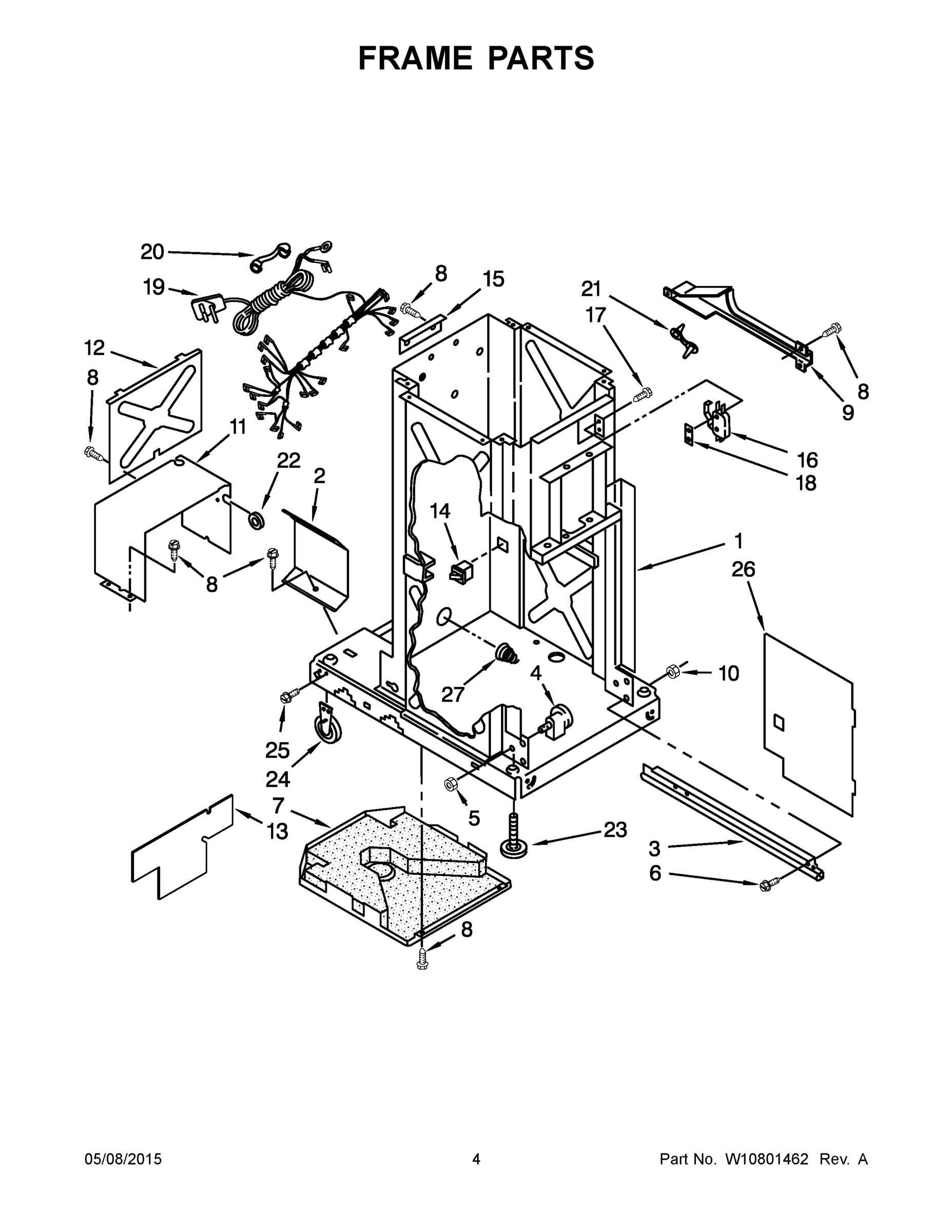

03 - FRAME PARTS

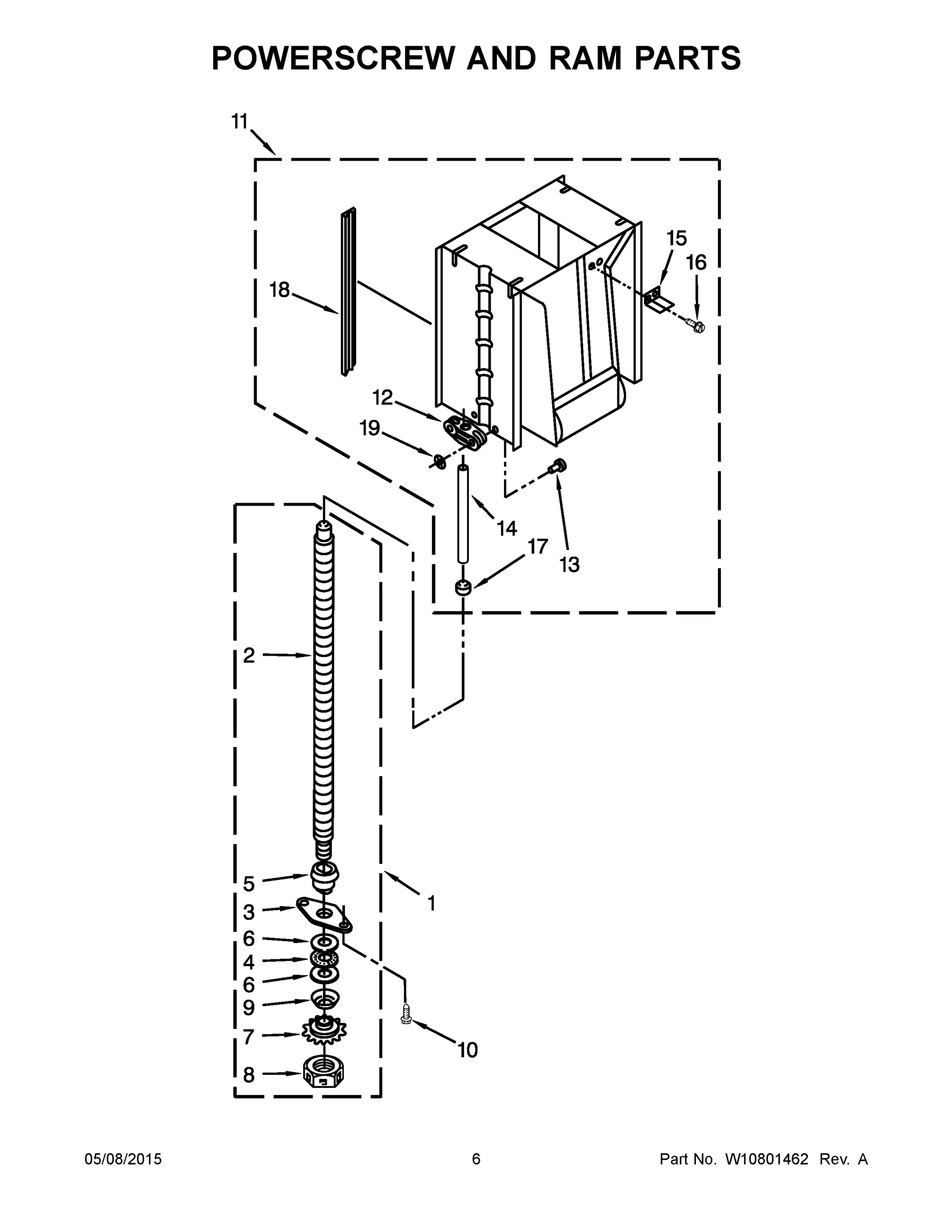

04 - POWERSCREW AND RAM PARTS

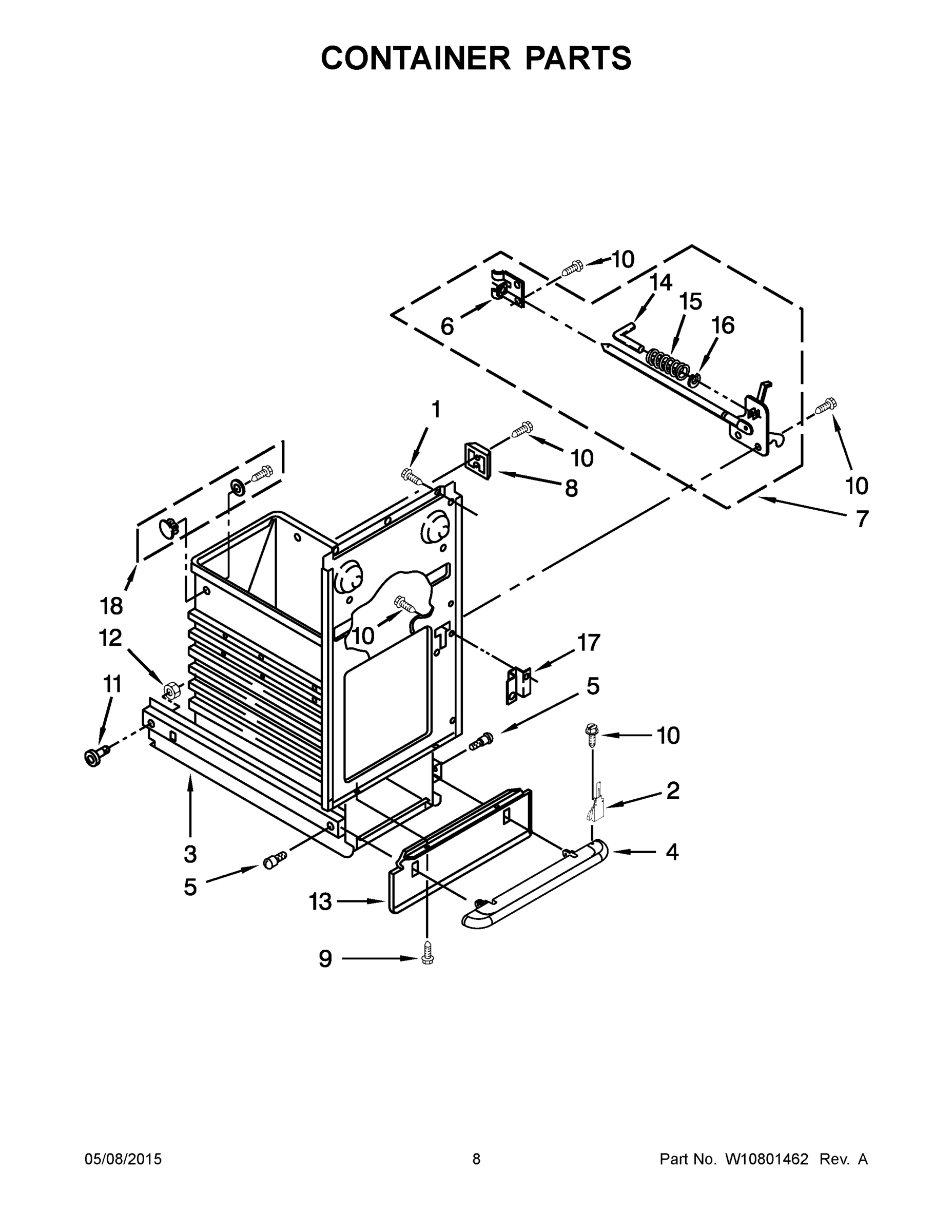

05 - CONTAINER PARTS

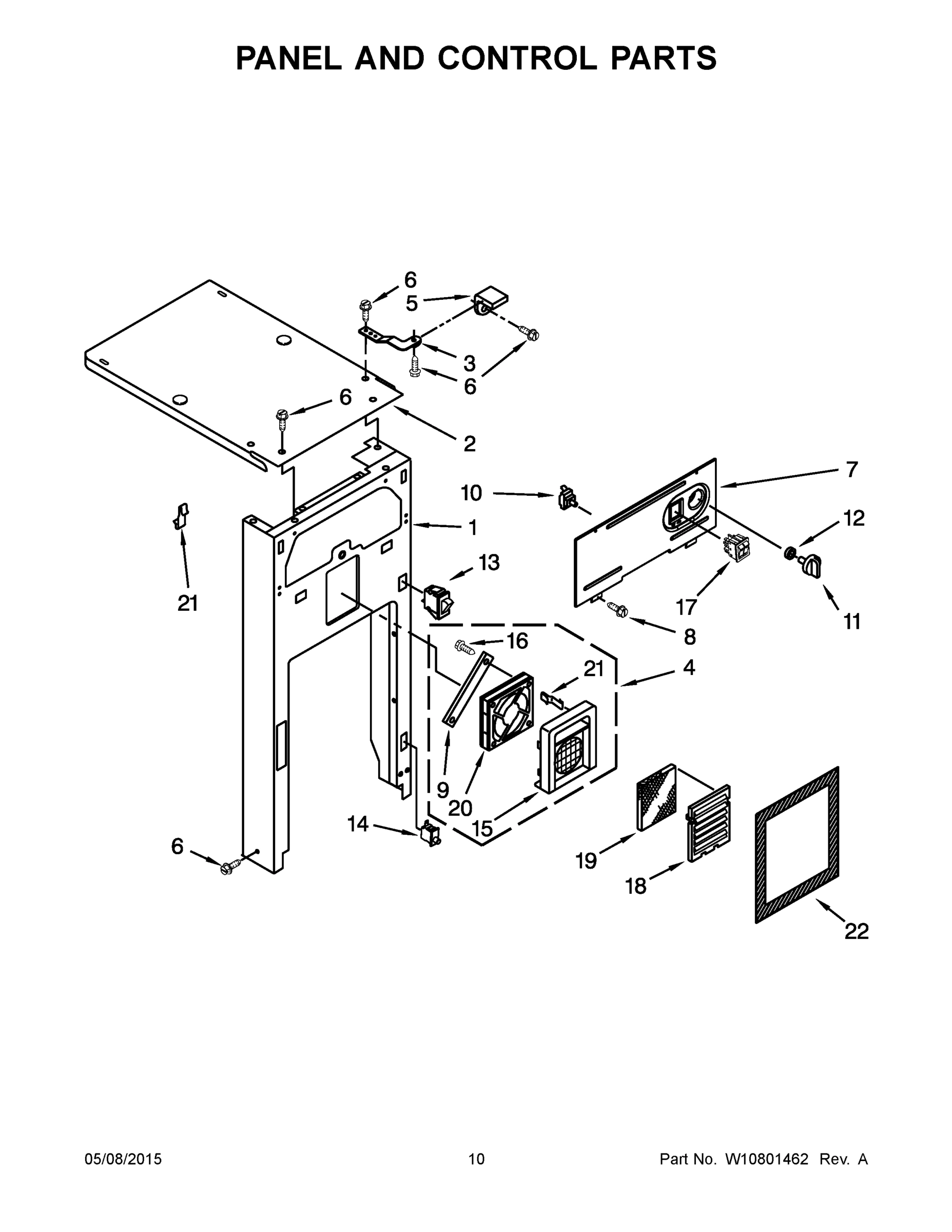

06 - PANEL AND CONTROL PARTS

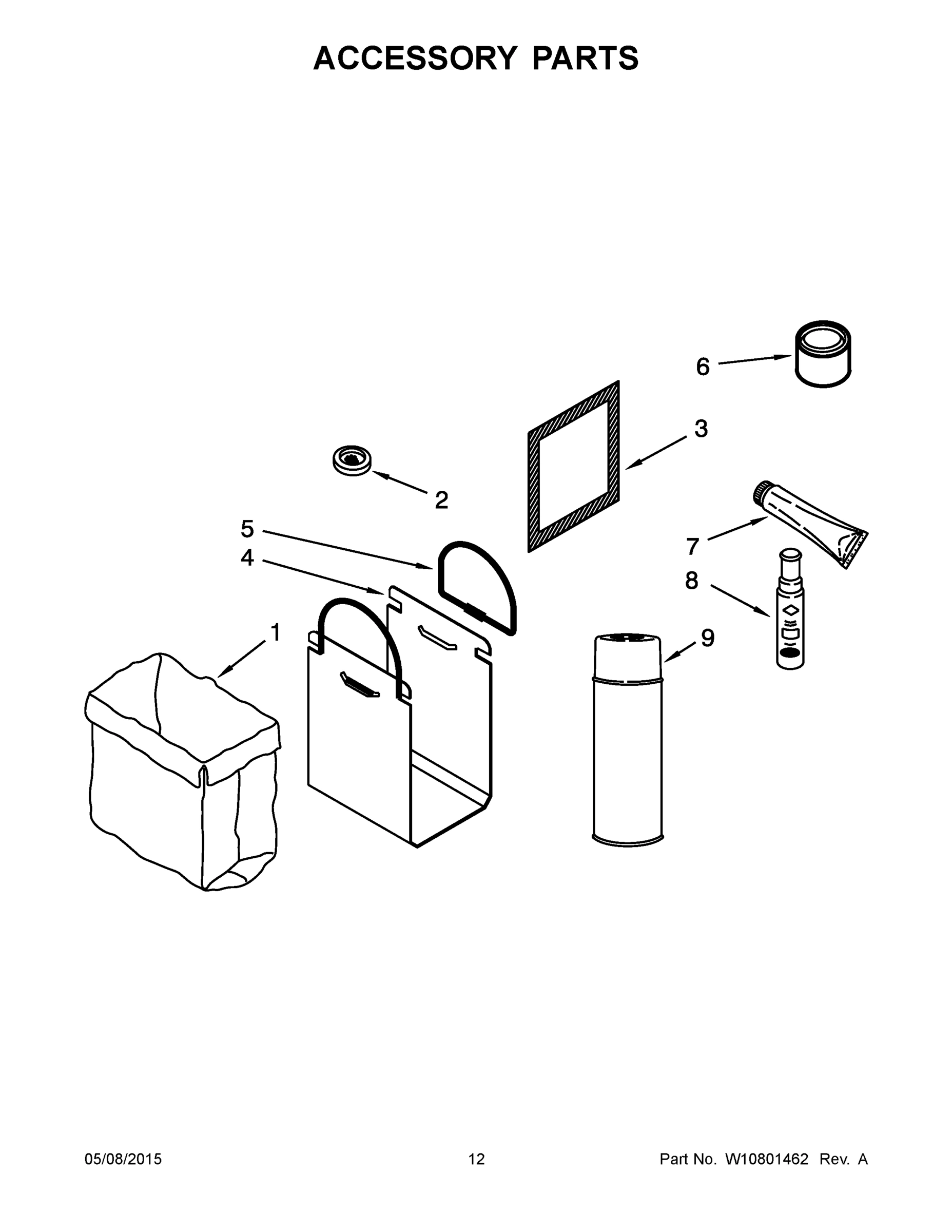

07 - ACCESSORY PARTS
Common parts from model Maytag TC607X4 COMPACTOR
1
MAY W10415490 MAY W10415490 Contact Us For Availability
1
SCREW, POWER COMPLETE ASSEMBLY MAY 9870500 Contact Us For Availability
1
SCREW MAY 4152204 Contact Us For Availability
1
MAY W10242567 MAY W10242567 Contact Us For Availability
1
BAG, TRASH (15" PLASTIC) (15 PACK) MAY 4318921 Contact Us For Availability
1A
MAY W10242571 MAY W10242571 Contact Us For Availability
1A
BAG, TRASH (15" PLASTIC) (60 PACK) MAY 4318922 Contact Us For Availability
1B
MAY W10318872 MAY W10318872 Contact Us For Availability
1B
BAG, TRASH (15" PLASTIC) (180 PACK) MAY 94318921 Contact Us For Availability
1C
BAG, TRASH (15" PLASTIC) (12 PACK) MAY 675186 Contact Us For Availability
1D
BAG, TRASH (15" PLASTIC) (48 PACK) MAY 882652 Contact Us For Availability
2
MAY W10318887 MAY W10318887 Contact Us For Availability
2
SHIELD, SLIDE TRACK MAY 9870867 Contact Us For Availability
2
BLACK MAY W10242549 Contact Us For Availability
2
MAY 608572 MAY 608572 Contact Us For Availability
2
2 PACK MAY 777635 Contact Us For Availability
3
FRAME SLIDE (RIGHT HAND) MAY 9870976 Contact Us For Availability
3
PLATE, BEARING MAY 779121 Contact Us For Availability
3
MAY 9870934 MAY 9870934 Contact Us For Availability
3
MAY 9871993 MAY 9871993 Contact Us For Availability
3
MAY 9872166GA MAY 9872166GA Contact Us For Availability
3A
FRAME SLIDE (LEFT HAND) MAY 9870975 Contact Us For Availability
3A
MAY 9872166LG MAY 9872166LG Contact Us For Availability
3B
MAY 9872166L MAY 9872166L Contact Us For Availability
4
MAY 776327 MAY 776327 Contact Us For Availability
4
BEARING, ROLLER MAY 4153788 Contact Us For Availability
4
BEARING, NEEDLE MAY 775482 Contact Us For Availability
4
BLACK MAY 9871989B Contact Us For Availability
4
MAY 9871893 MAY 9871893 Contact Us For Availability
4
CARRIER, BAG MAY 13030RP Contact Us For Availability
5
LOCKNUT MAY 776338 Contact Us For Availability
5
HUB, POWER SCREW MAY 776941 Contact Us For Availability
5
SCREW MAY 780263 Contact Us For Availability
5
BRACKET, MOUNTING MAY 780239 Contact Us For Availability
5
MAY 777108 MAY 777108 Contact Us For Availability
6
MAY 4149667 MAY 4149667 Contact Us For Availability
6
SCREW MAY 777458 Contact Us For Availability
6
MAY W10001260 MAY W10001260 Contact Us For Availability
6
RACE, THRUST MAY 775481 Contact Us For Availability
6
MAY 776395 MAY 776395 Contact Us For Availability
6
MAY 675351 MAY 675351 Contact Us For Availability
7
MAY 454512 MAY 454512 Contact Us For Availability
7
MAY 9870167 MAY 9870167 Contact Us For Availability
7
SPROCKET, WASHER MAY 777385 Contact Us For Availability
7
MAY 9870066 MAY 9870066 Contact Us For Availability
7
ESCUTCHEON, CONTROL MAY W10242574 Contact Us For Availability
7
ADHESIVE (2 OZ. TUBE) MAY 279368 Contact Us For Availability
8
MAY 776035 MAY 776035 Contact Us For Availability
8
NUT, POWER SCREW MAY 4154842 Contact Us For Availability
8
ACTUATOR, SAFETY SWITCH MAY 9871125 Contact Us For Availability
8
SCREW MAY 246131 Contact Us For Availability
8
PAINT, TOUCH-UP 1/2 OZ. (ALMOND) MAY 72107 Contact Us For Availability
8A
PAINT, TOUCH-UP 1/2 OZ. (WHITE) MAY 72017 Contact Us For Availability
8B
PAINT, TOUCH-UP 1/2 OZ. (BLACK) MAY 72032 Contact Us For Availability
8C
PAINT, TOUCH-UP 1/2 OZ. (BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
8D
MAY 8171571 MAY 8171571 Contact Us For Availability
8E
MAY 8171651 MAY 8171651 Contact Us For Availability
8F
MAY 8171652 MAY 8171652 Contact Us For Availability
8G
MAY 8171653 MAY 8171653 Contact Us For Availability
9
MAY 297462 MAY 297462 Contact Us For Availability
9
MAY 4149659 MAY 4149659 Contact Us For Availability
9
WASHER, CONE MAY 777332 Contact Us For Availability
9
SCREW MAY 3196175 Contact Us For Availability
9
MAY 4152703 MAY 4152703 Contact Us For Availability
9
PAINT, SPRAY 13 OZ. (ALMOND) MAY 350956 Contact Us For Availability
9A
MAY 285006 MAY 285006 Contact Us For Availability
9B
PAINT, SPRAY 13 OZ. (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
9C
PAINT, SPRAY 13 OZ. (WHITE) MAY 350930 Contact Us For Availability
10
SCREW MAY 9871067 Contact Us For Availability
10
MAY 777124 MAY 777124 Contact Us For Availability
10
NUT, HEX MAY 3400938 Contact Us For Availability
10
MAY 9871971 MAY 9871971 Contact Us For Availability
11
MAY 776036 MAY 776036 Contact Us For Availability
11
MAY 780434 MAY 780434 Contact Us For Availability
11
MAY 9871251 MAY 9871251 Contact Us For Availability
11
MAY 9871602 MAY 9871602 Contact Us For Availability
11
MAY 9871920 MAY 9871920 Contact Us For Availability
12
MAY 780477 MAY 780477 Contact Us For Availability
12
LOCKNUT MAY 776356 Contact Us For Availability
12
MAY 608009 MAY 608009 Contact Us For Availability
12
MAY 9870163 MAY 9870163 Contact Us For Availability
12
NUT MAY 777383 Contact Us For Availability
13
MAY 9872154 MAY 9872154 Contact Us For Availability
13
MAY 9870187 MAY 9870187 Contact Us For Availability
13
BLACK MAY W10242557 Contact Us For Availability
13
SWITCH, DRAWER (BLACK) MAY 9871829 Contact Us For Availability
14
MAY 4149377 MAY 4149377 Contact Us For Availability
14
MAY 9870037 MAY 9870037 Contact Us For Availability
14
PIN, LATCH MAY 776654 Contact Us For Availability
14
MAY W10242556 MAY W10242556 Contact Us For Availability
15
ANGLE, FRAME PLATE MAY 775668 Contact Us For Availability
15
MAY 9870498 MAY 9870498 Contact Us For Availability
15
MAY 775736 MAY 775736 Contact Us For Availability
15
MAY 4151442 MAY 4151442 Contact Us For Availability
16
MAY 777811 MAY 777811 Contact Us For Availability
16
SCREW MAY 780034 Contact Us For Availability
16
MAY 489399 MAY 489399 Contact Us For Availability
16
RING, "E" MAY 775735 Contact Us For Availability
17
SCREW MAY 777849 Contact Us For Availability
17
MAY 9870775 MAY 9870775 Contact Us For Availability
17
MAY 775665 MAY 775665 Contact Us For Availability
17
MAY 9871973 MAY 9871973 Contact Us For Availability
18
MAY 777850 MAY 777850 Contact Us For Availability
18
MAY 9870169 MAY 9870169 Contact Us For Availability
18
MAY 4147703 MAY 4147703 Contact Us For Availability
18
MAY 9871099 MAY 9871099 Contact Us For Availability
19
MAY W10279448 MAY W10279448 Contact Us For Availability
19
CLIP MAY 8534092 Contact Us For Availability
19
FILTER ELEMENT MAY 4151750 Contact Us For Availability
20
BUSHING, POWER CORD MAY 776119 Contact Us For Availability
20
MAY 9871051 MAY 9871051 Contact Us For Availability
21
MAY 777035 MAY 777035 Contact Us For Availability
21
CLIP MAY 4151897 Contact Us For Availability
22
MAY 776118 MAY 776118 Contact Us For Availability
22
MAY W10540355 MAY W10540355 Contact Us For Availability
23
FOOT MAY 775526 Contact Us For Availability
24
WHEEL, LEVELER MAY 9870585 Contact Us For Availability
26
MAY 9870444 MAY 9870444 Contact Us For Availability
27
MAY 777180 MAY 777180 Contact Us For Availability
NI
MAY 9870118 MAY 9870118 Contact Us For Availability
NI
OPTIONAL PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
STAINLESS MAY 8564945 Contact Us For Availability
× ![]()
