Model Speed Queen SYT025V Washer – Common Parts & Diagrams

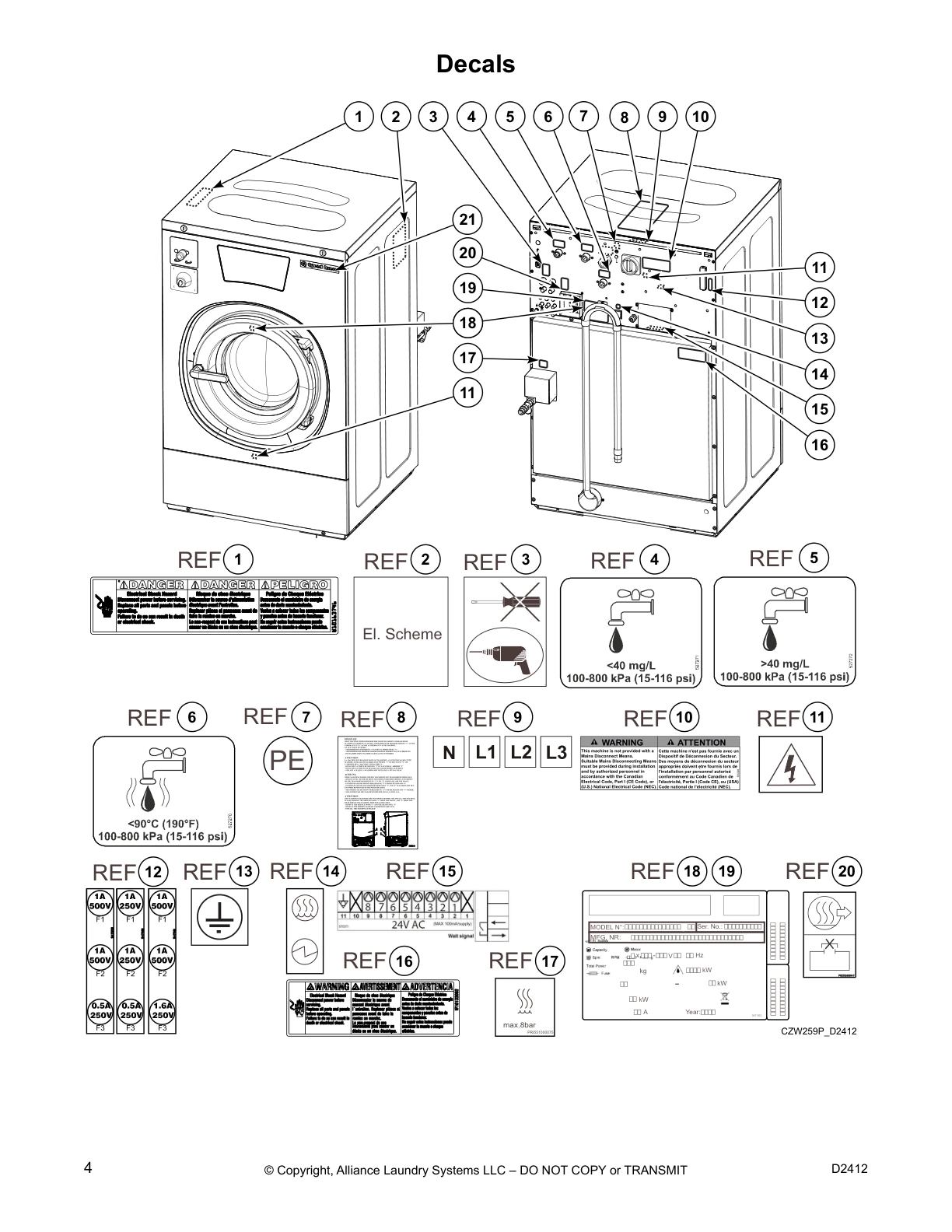

Decals

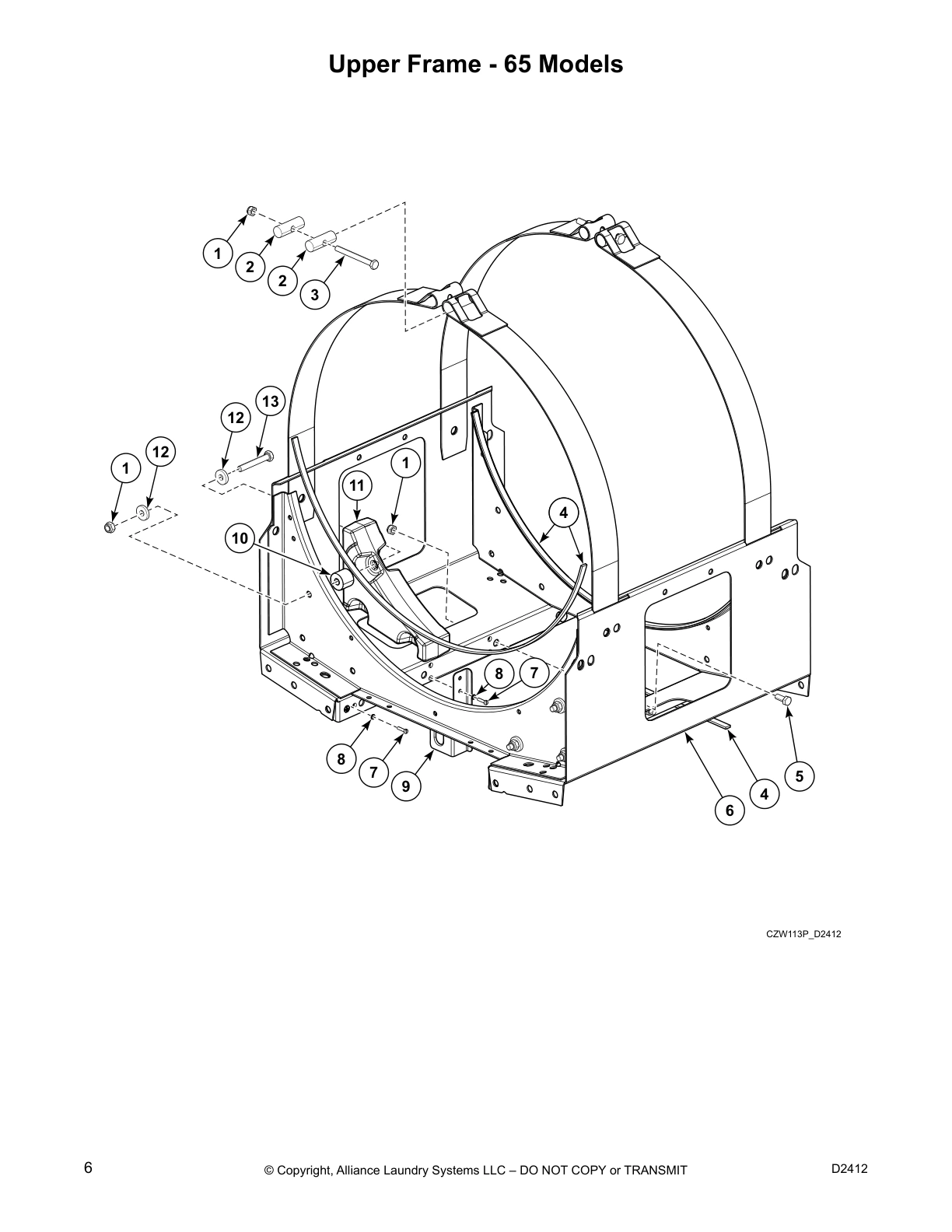

Upper Frame - 65 Models

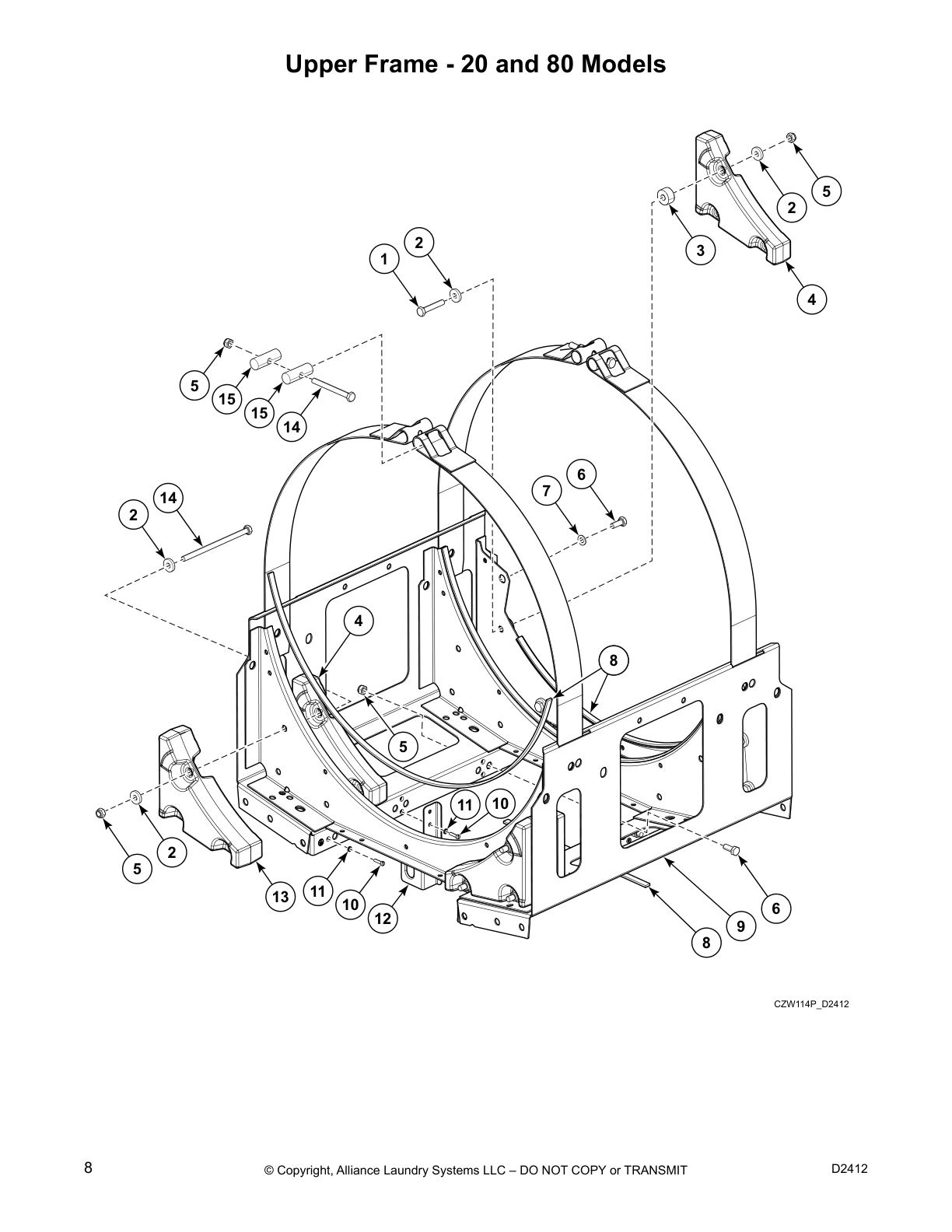

Upper Frame - 20 and 80 Models

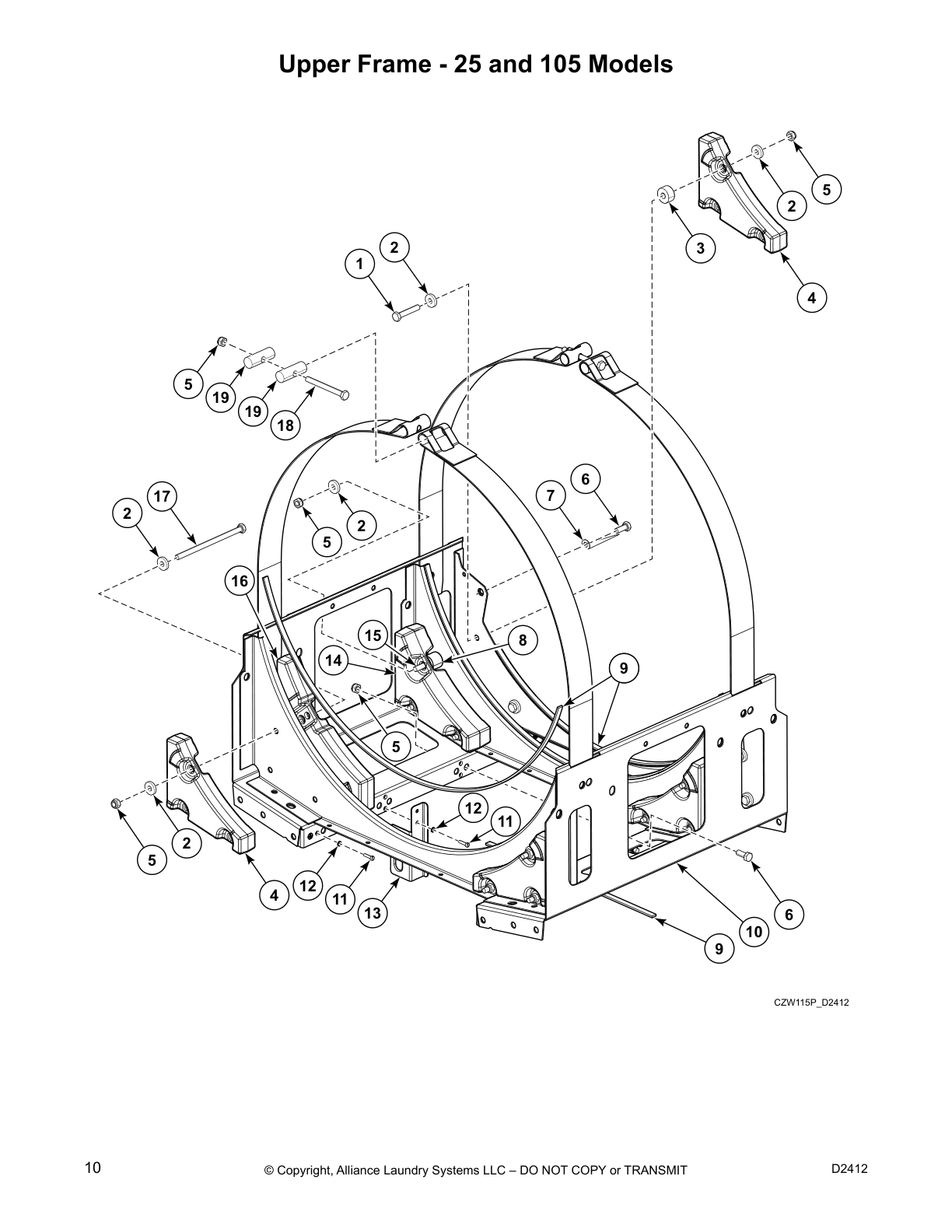

Upper Frame - 25 and 105 Models

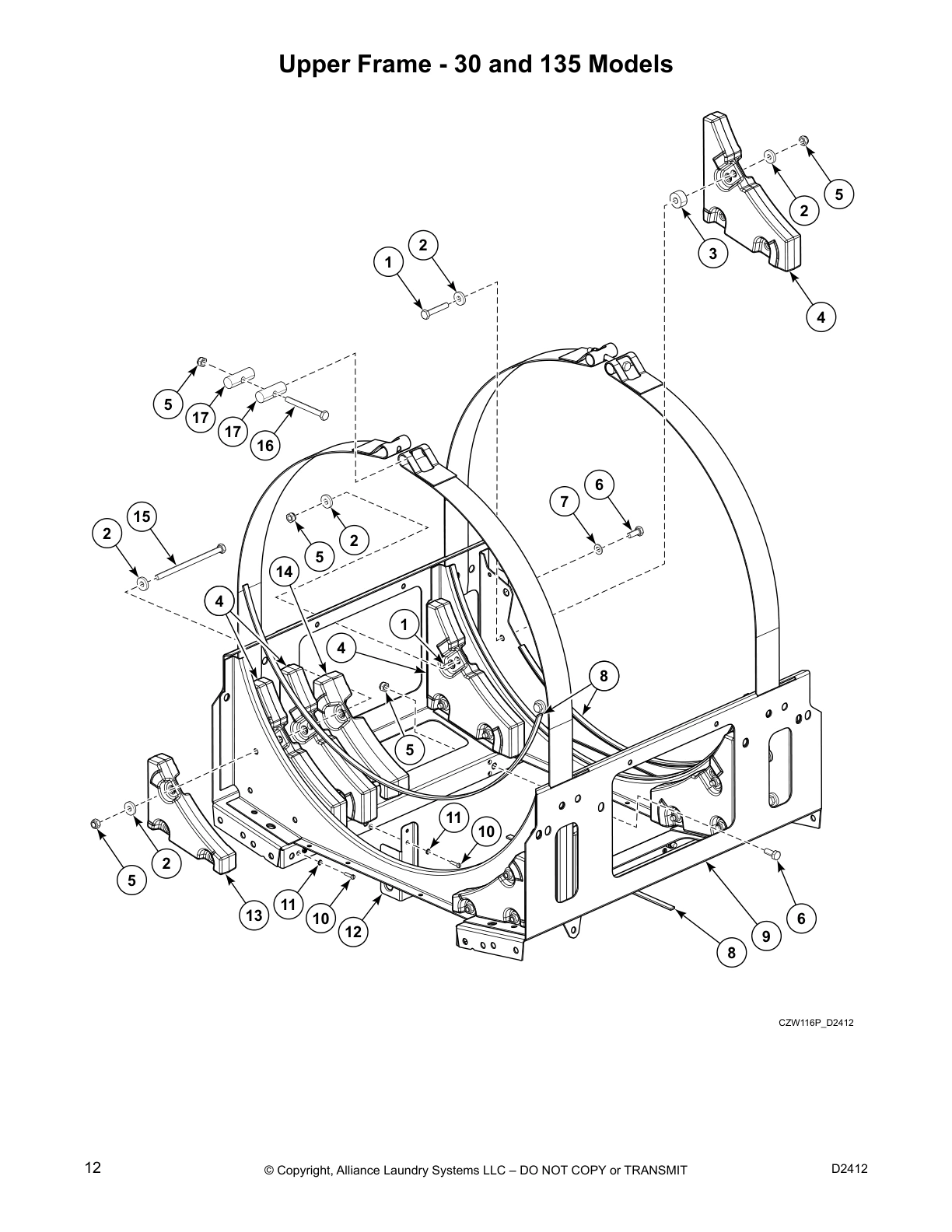

Upper Frame - 30 and 135 Models

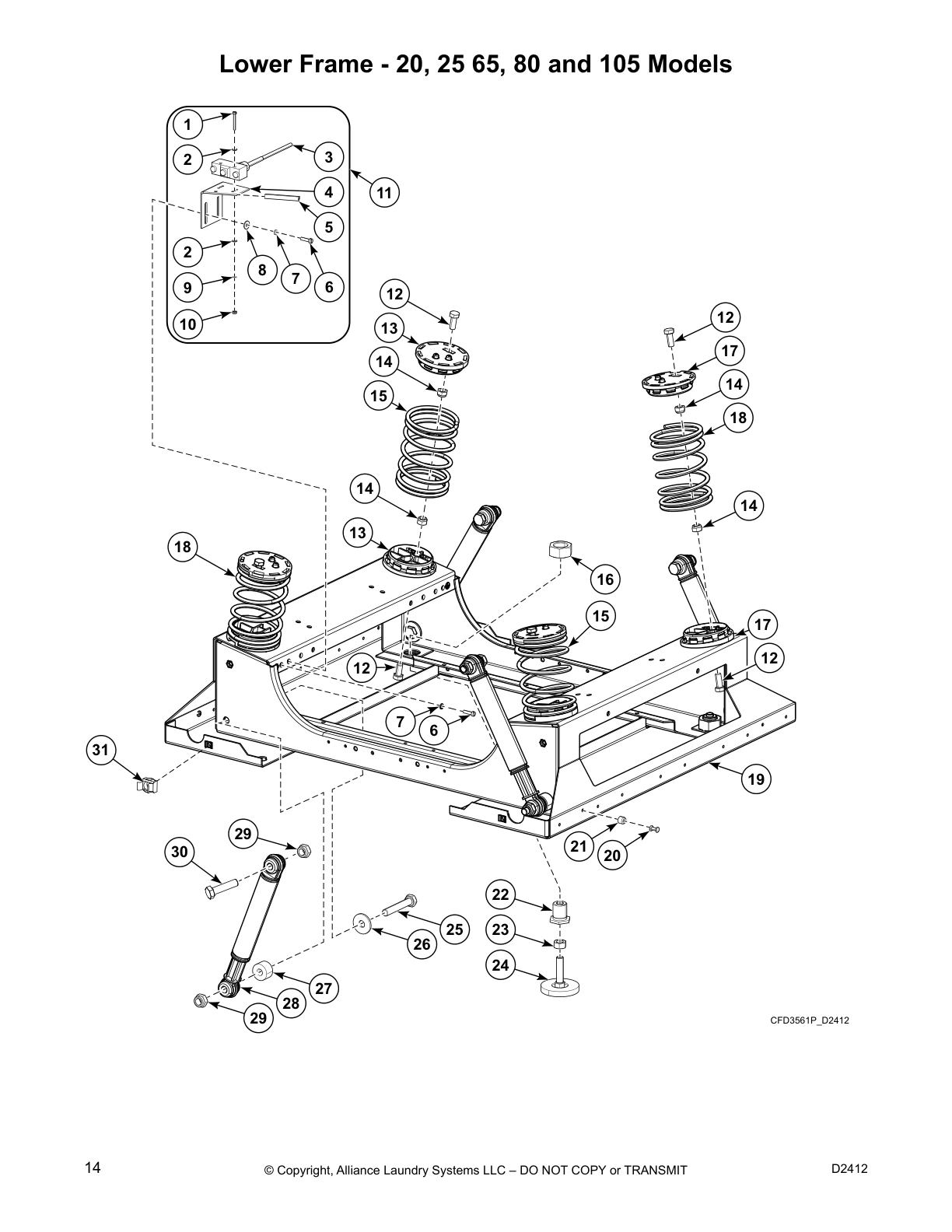

Lower Frame - 20, 25 65, 80 and 105 Models

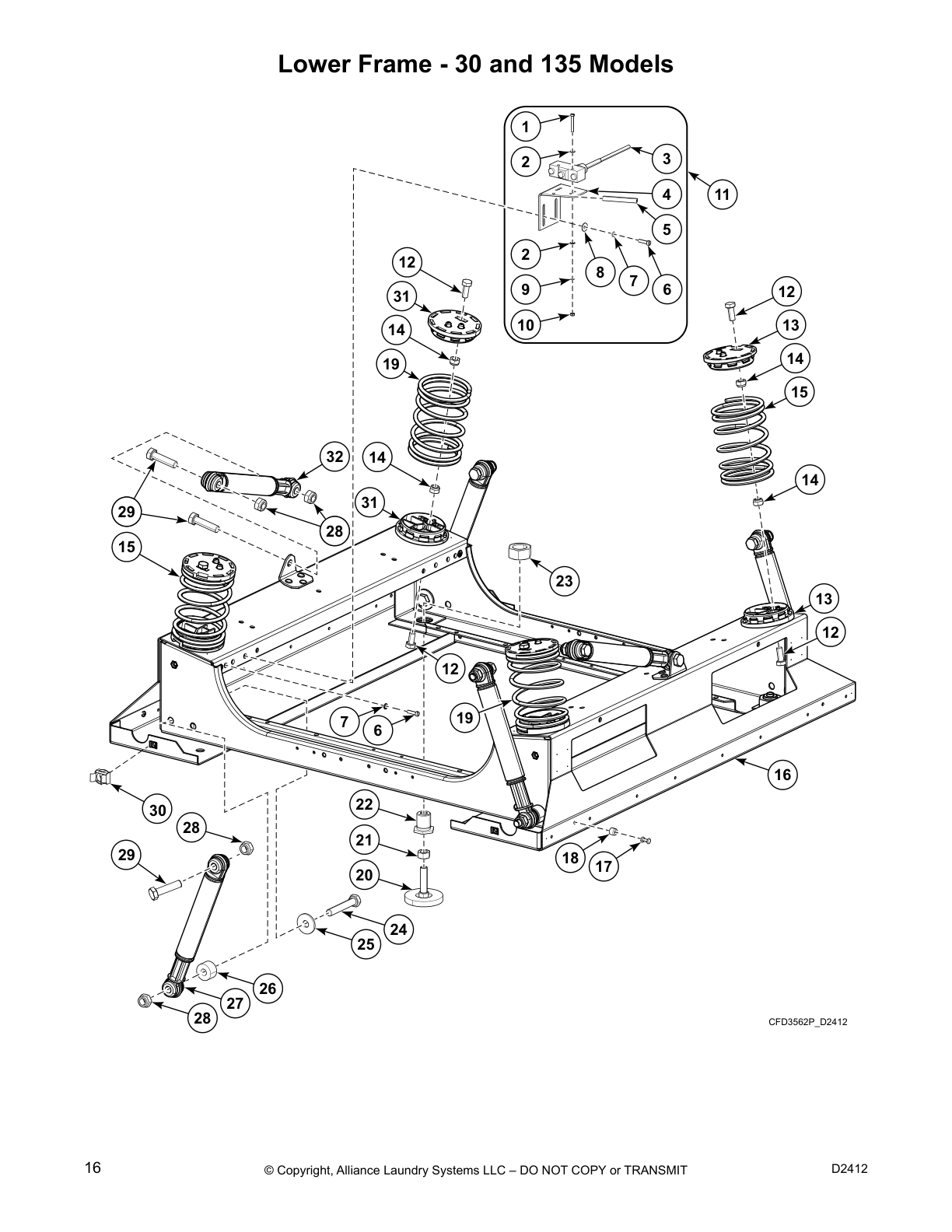

Lower Frame - 30 and 135 Models

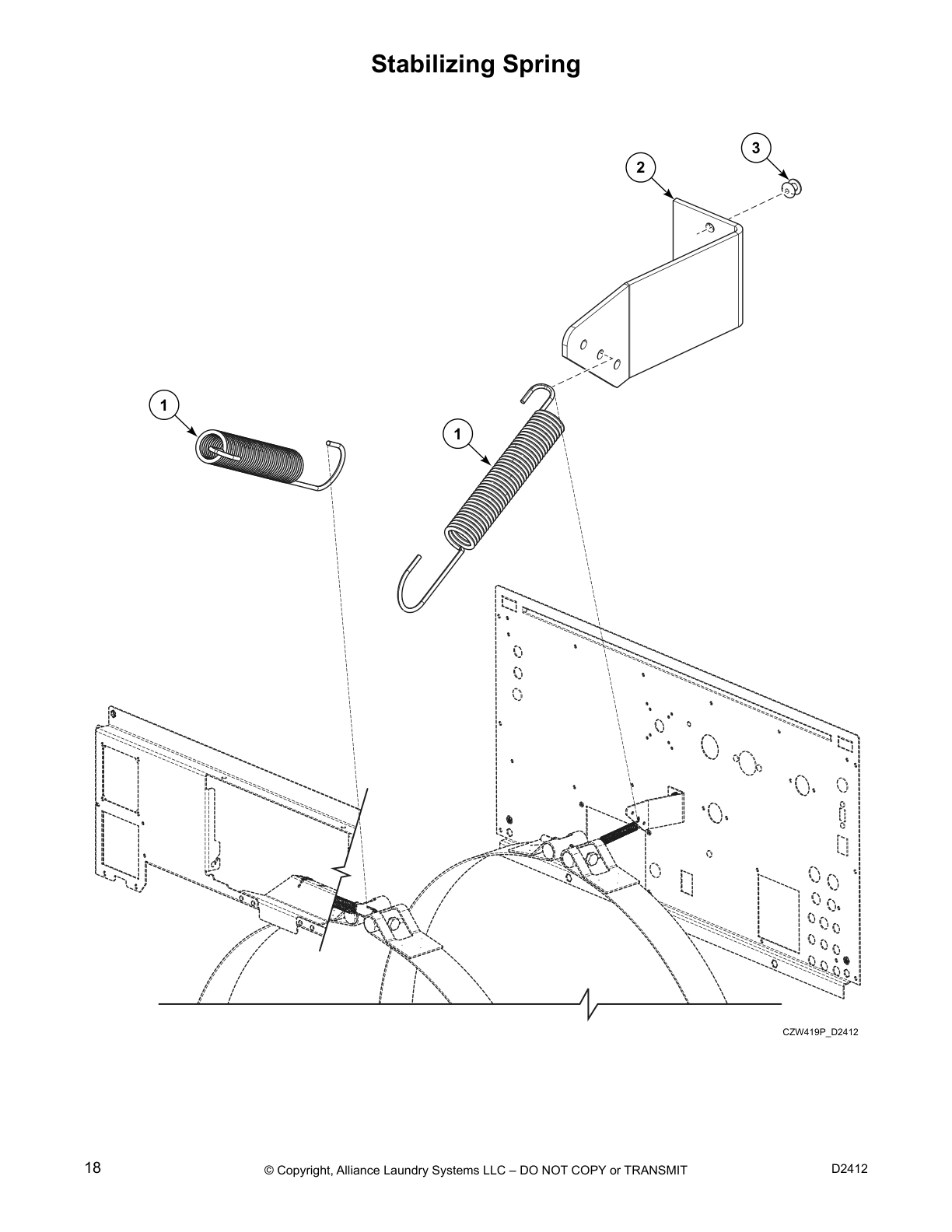

Stabilizing Spring

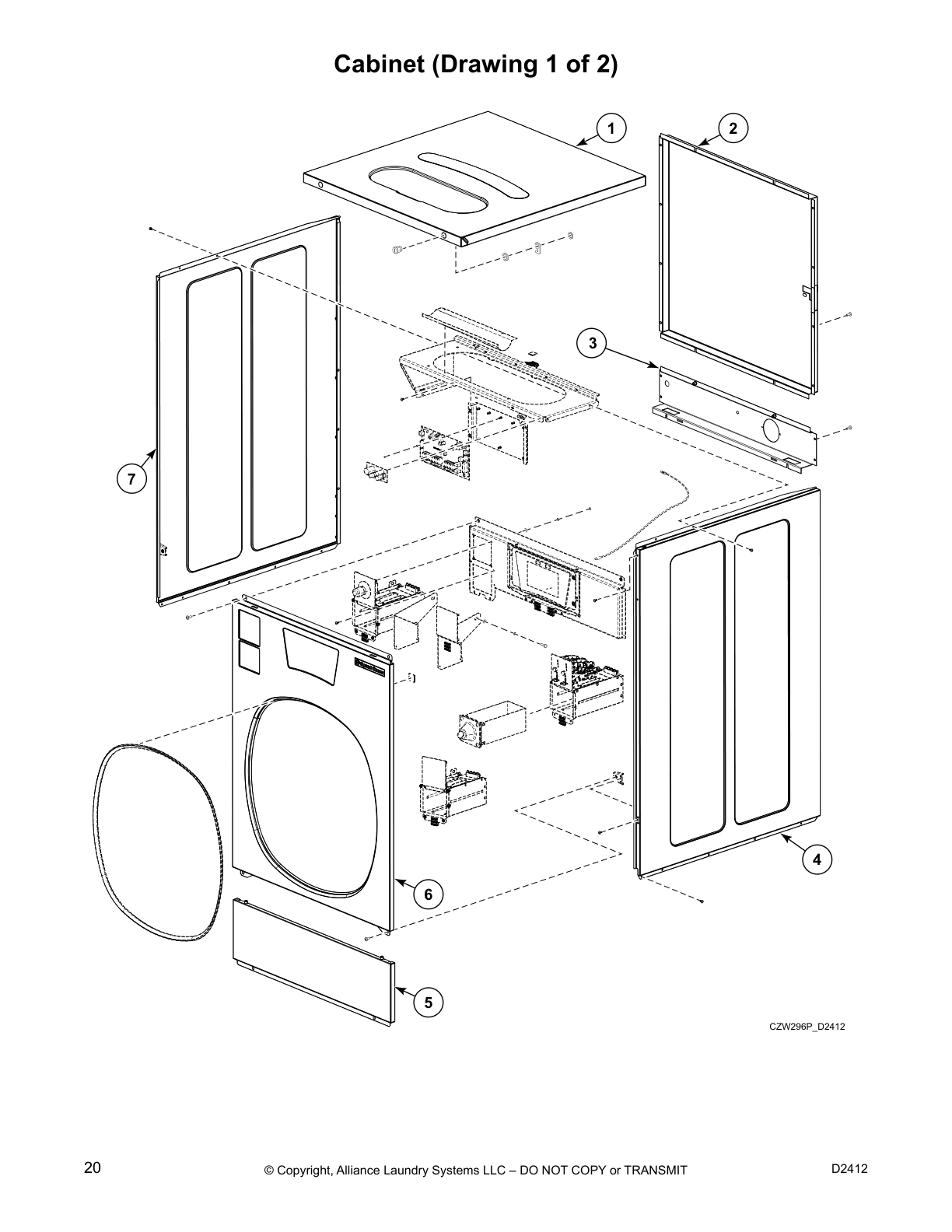

Cabinet (Drawing 1 of 2)

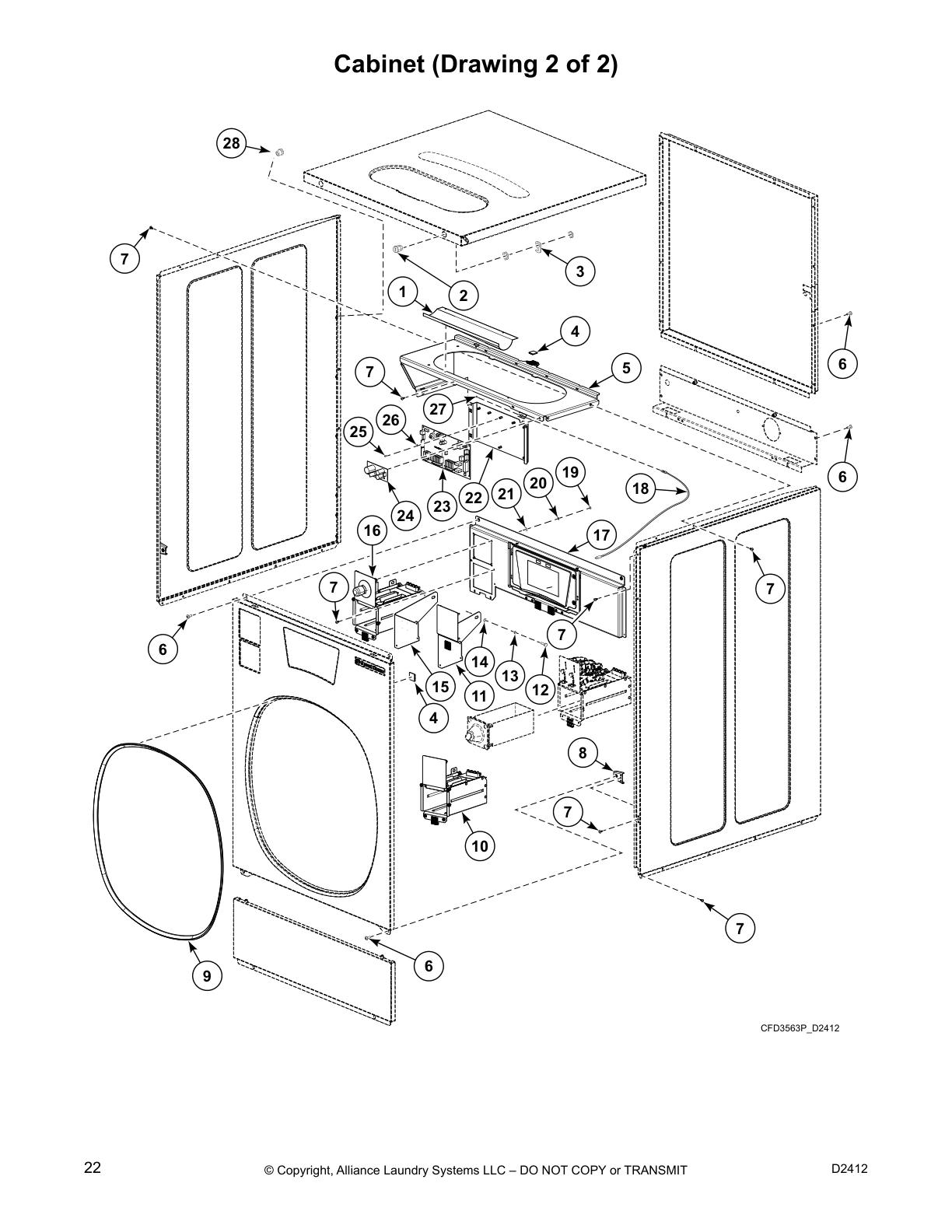

Cabinet (Drawing 2 of 2)

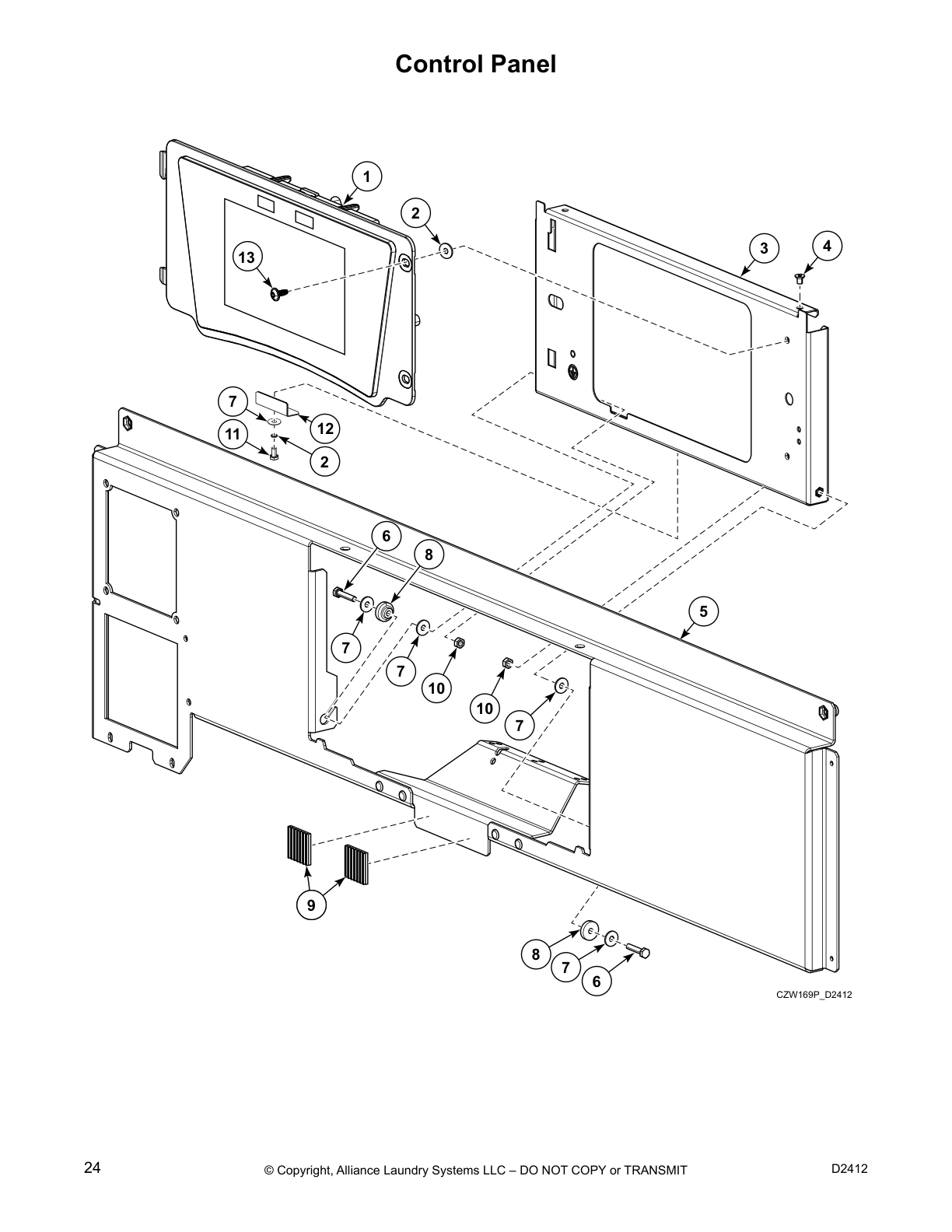

Control Panel
Coin Meter (Drawing 1 of 3)

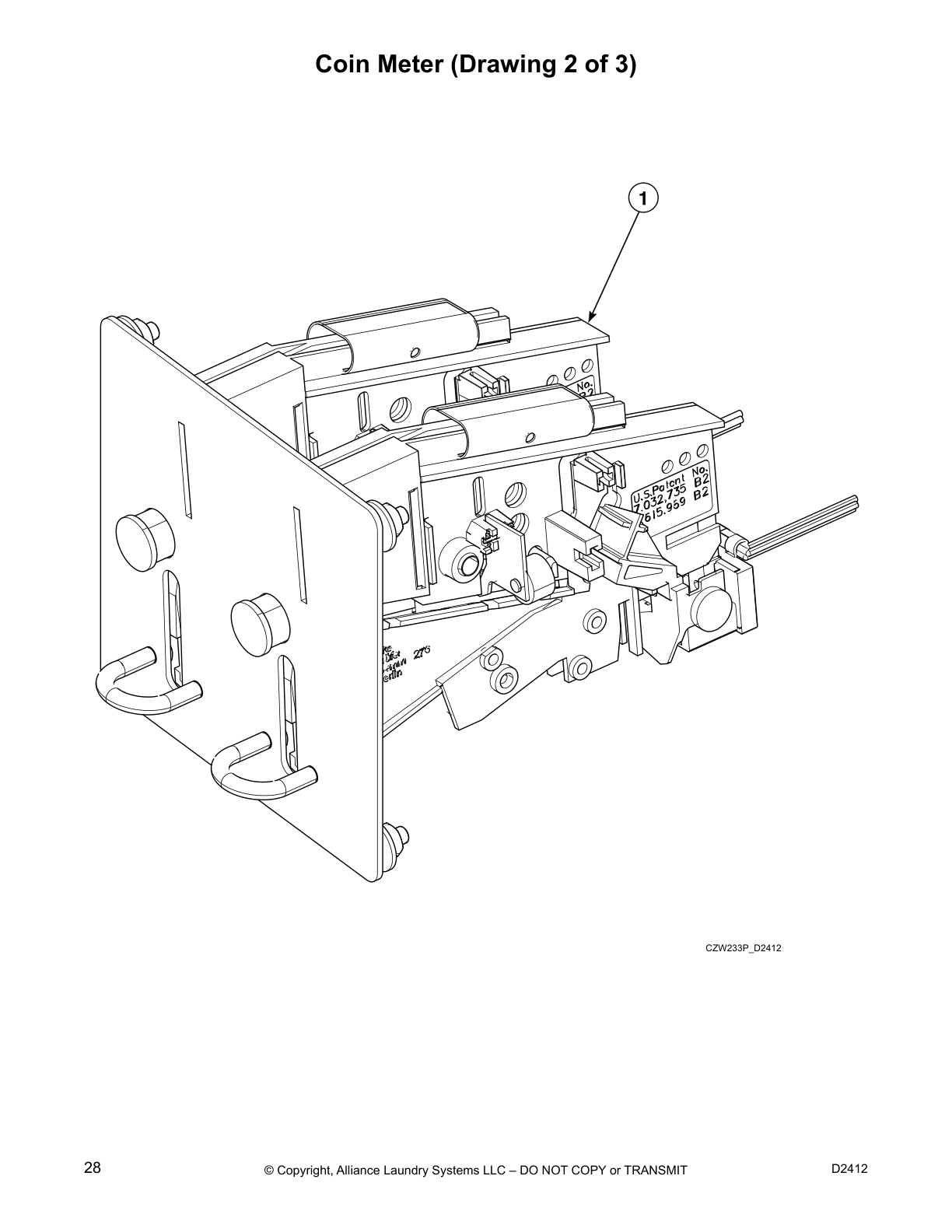

Coin Meter (Drawing 2 of 3)
Coin Meter (Drawing 3 of 3)

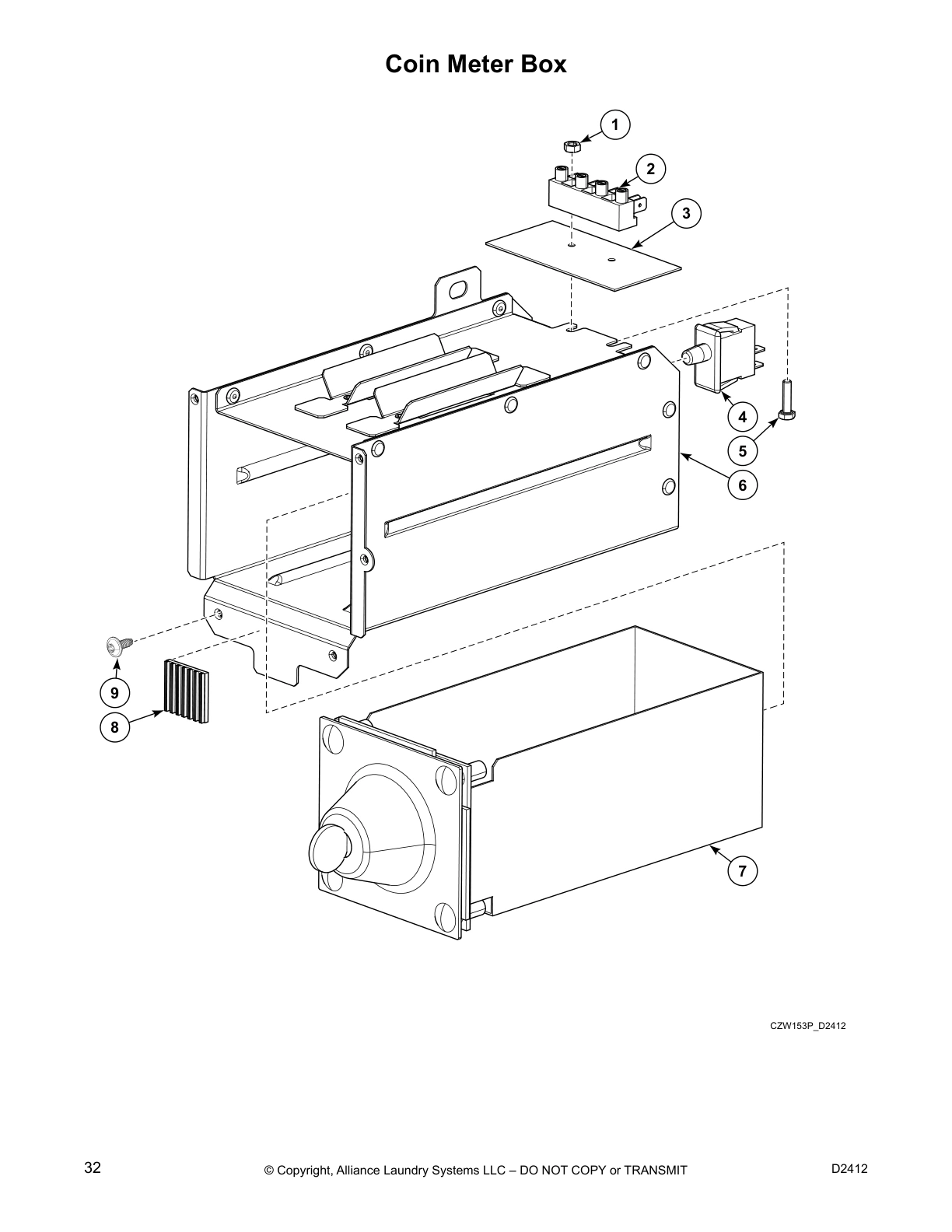

Coin Meter Box

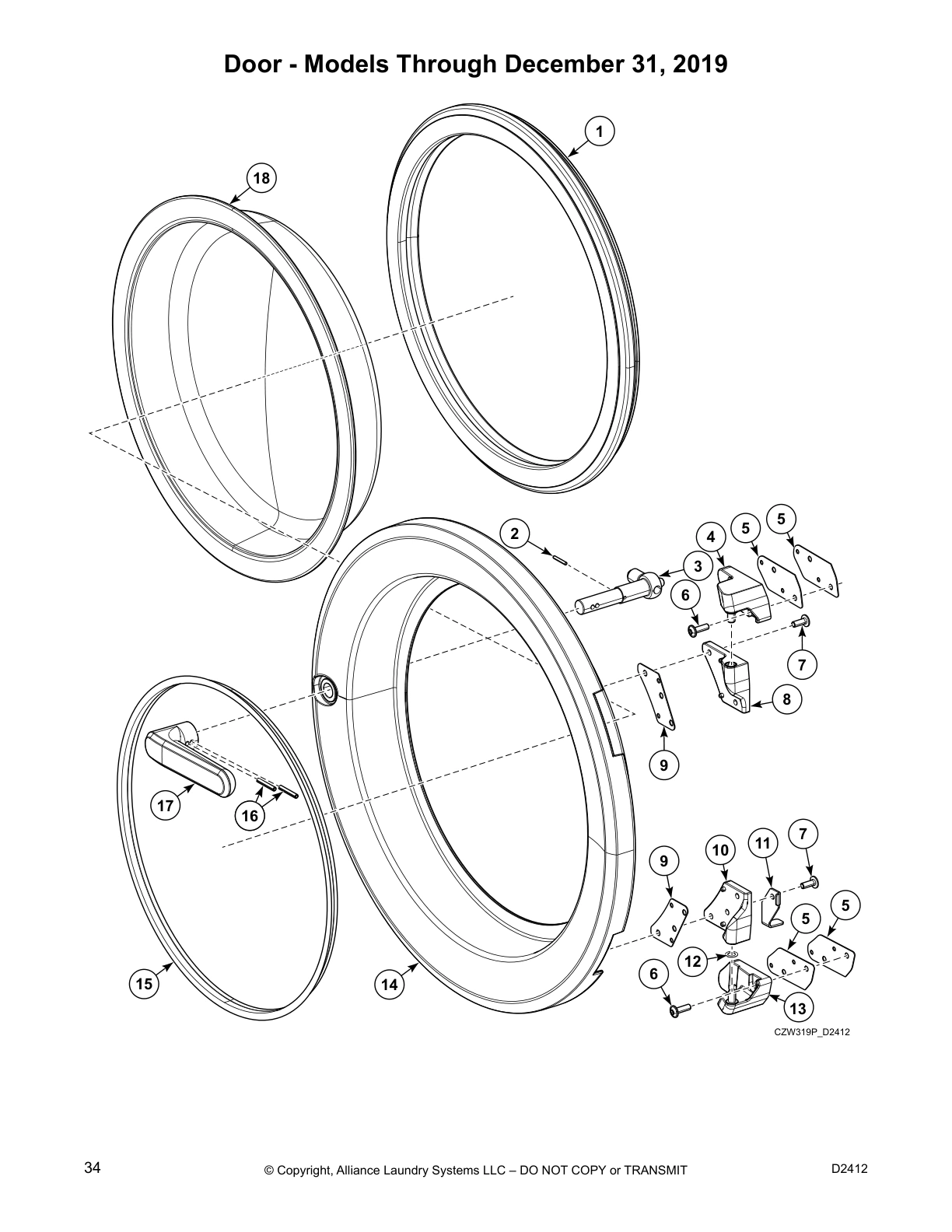

Door - Models Through December 31, 2019

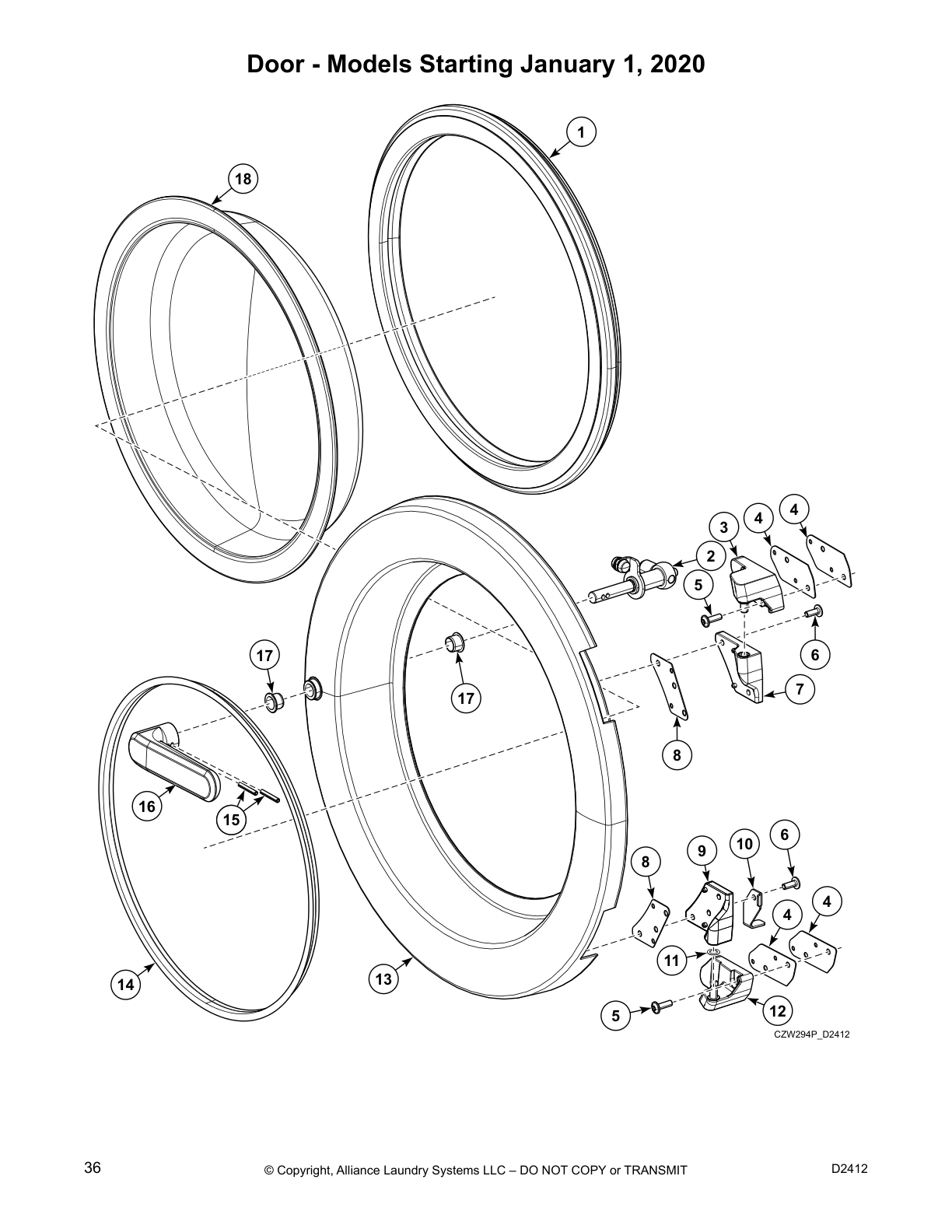

Door - Models Starting January 1, 2020

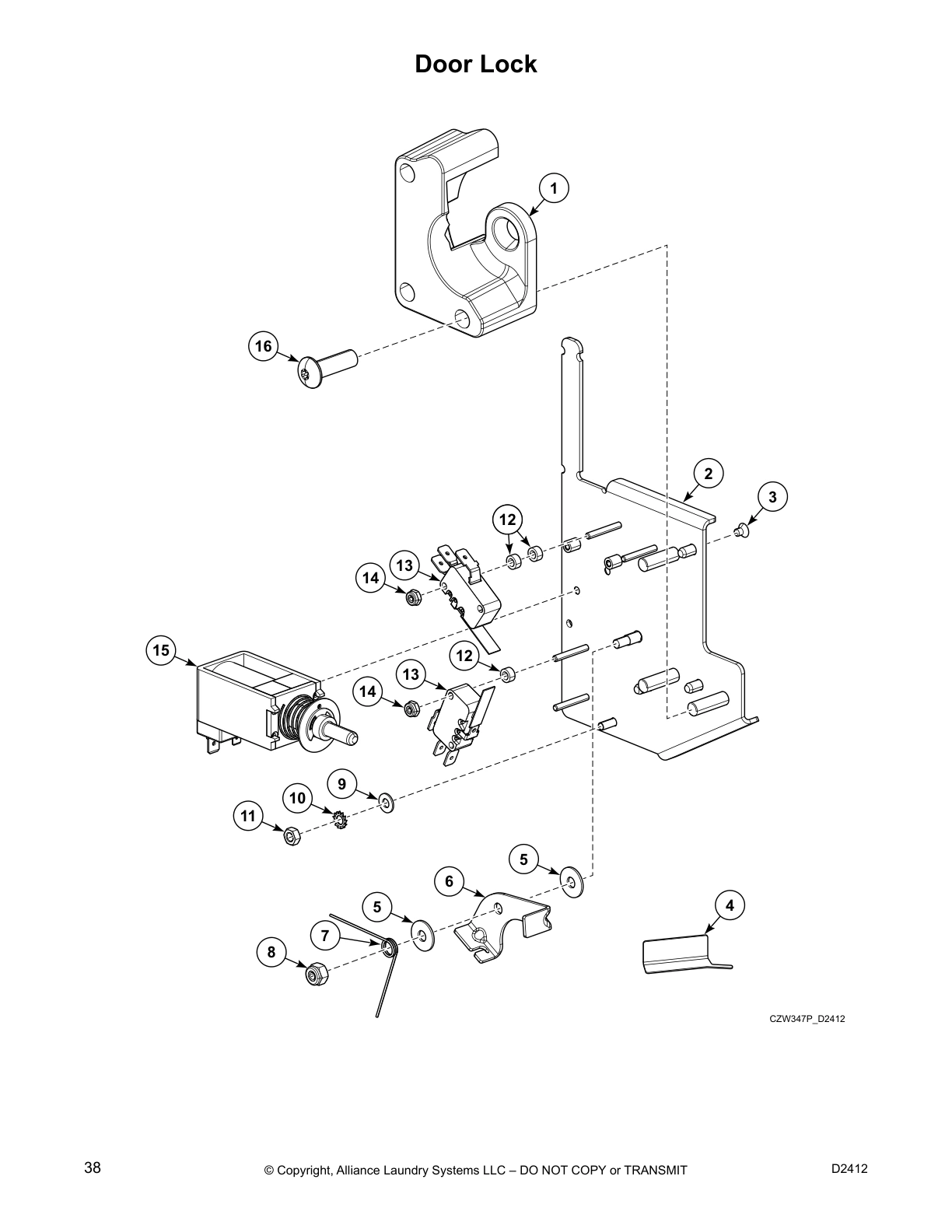

Door Lock

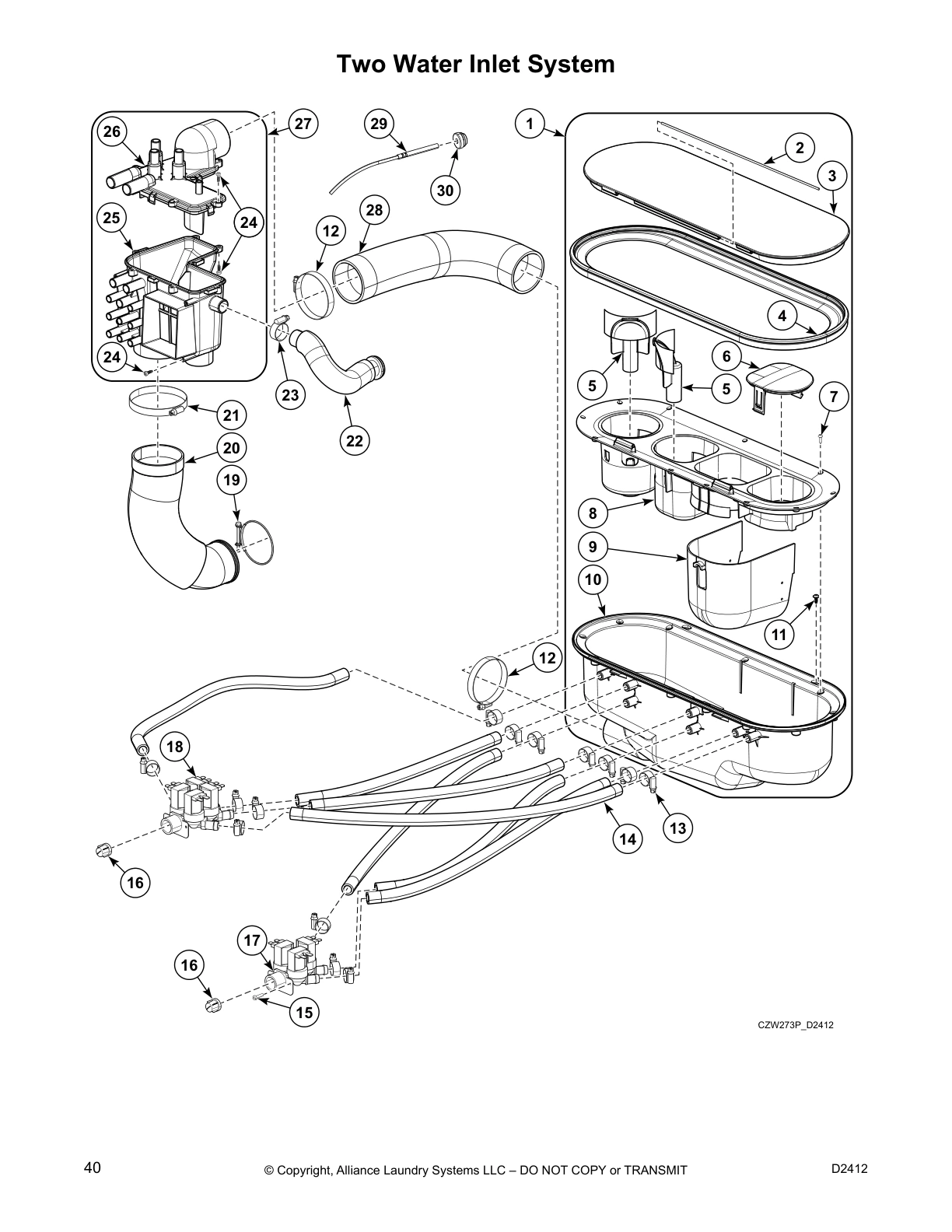

Two Water Inlet System

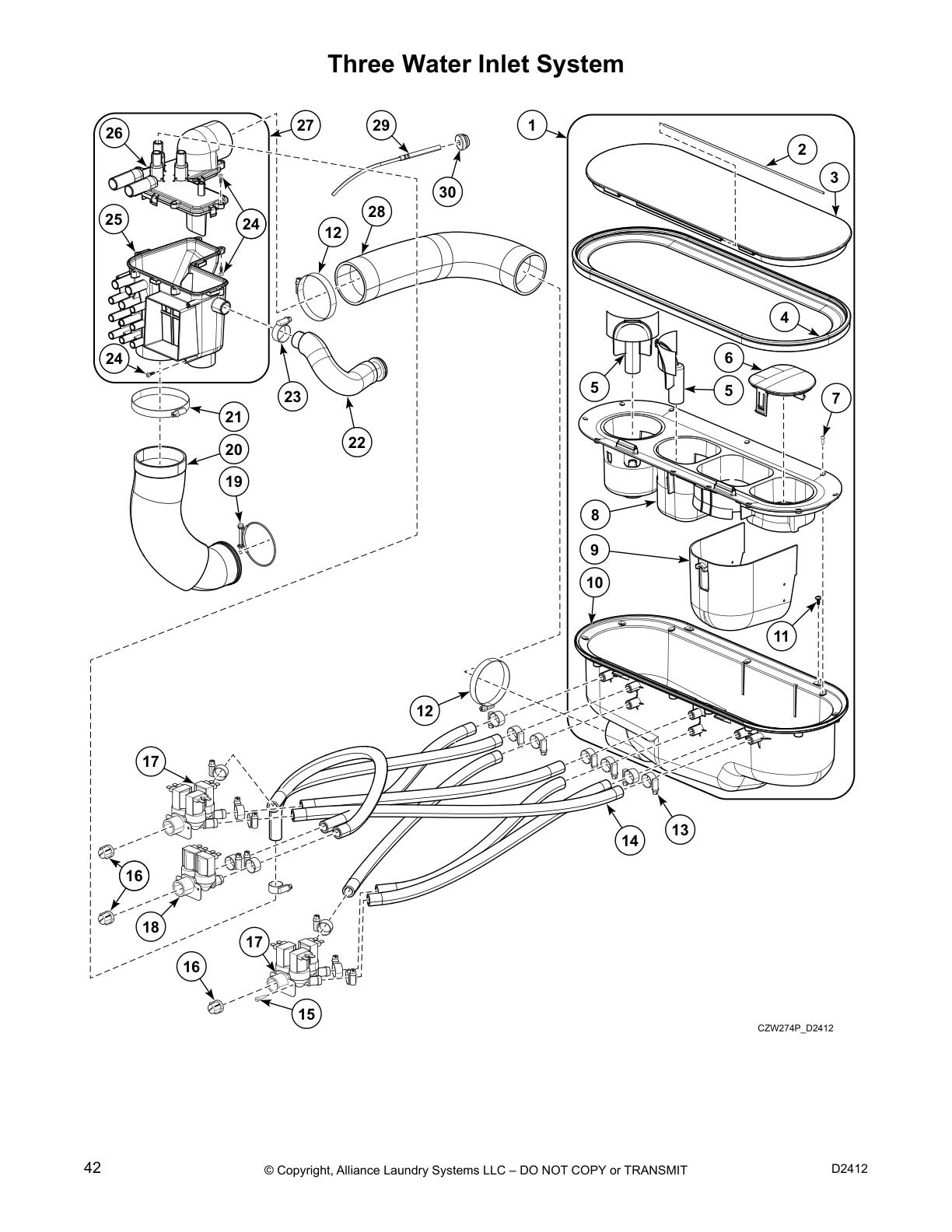

Three Water Inlet System

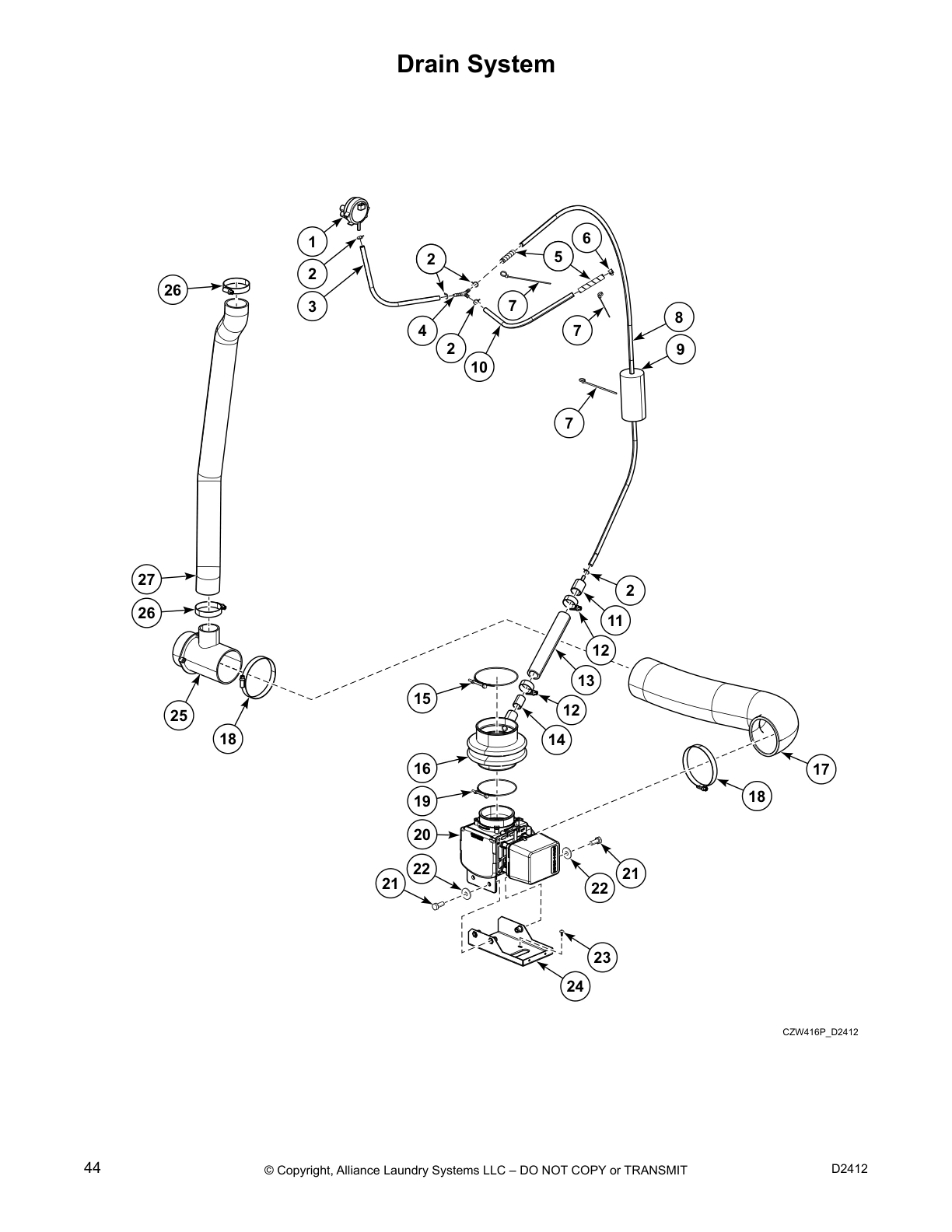

Drain System

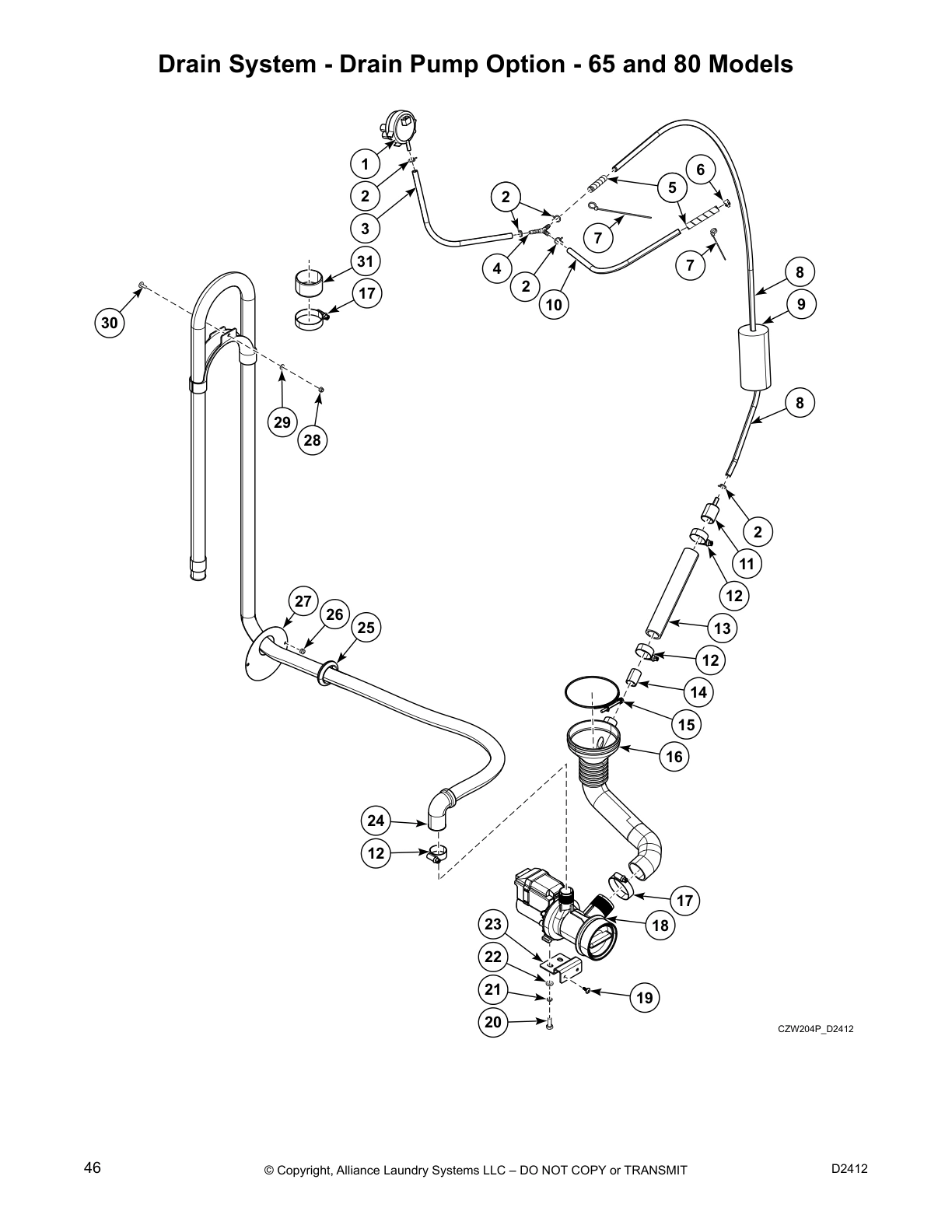

Drain System - Drain Pump Option - 65 and 80 Models

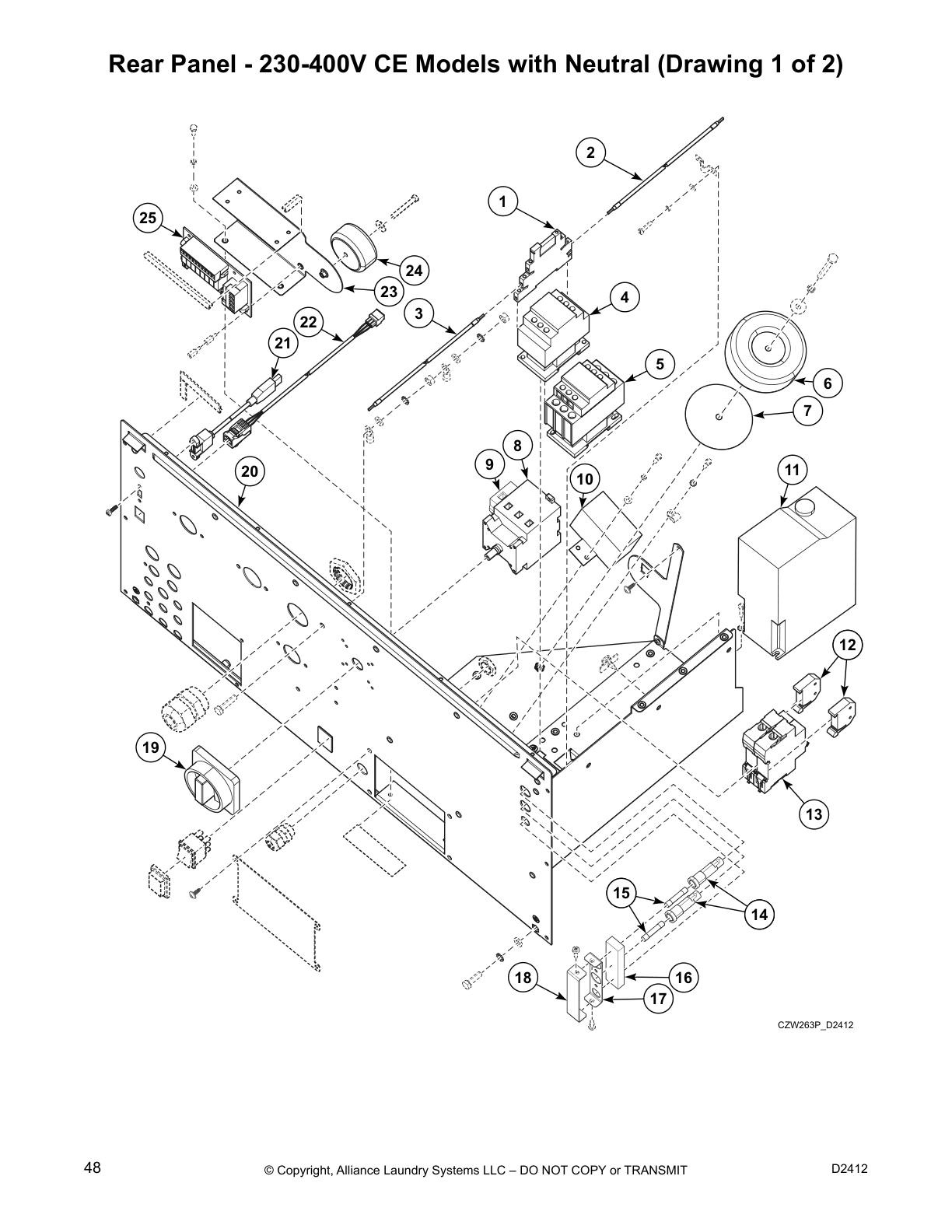

Rear Panel - 230-400V CE Models with Neutral (Drawing 1 of 2)

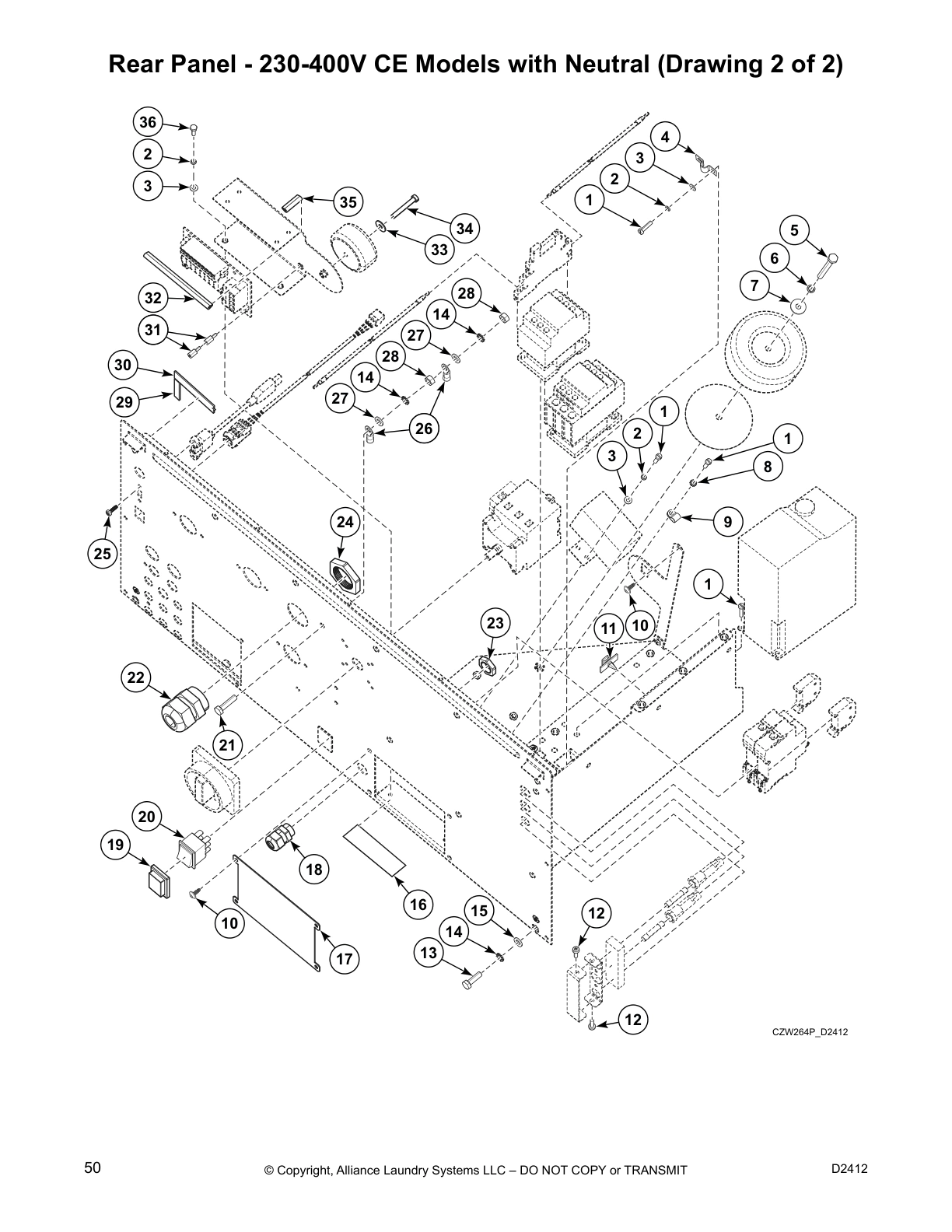

Rear Panel - 230-400V CE Models with Neutral (Drawing 2 of 2)

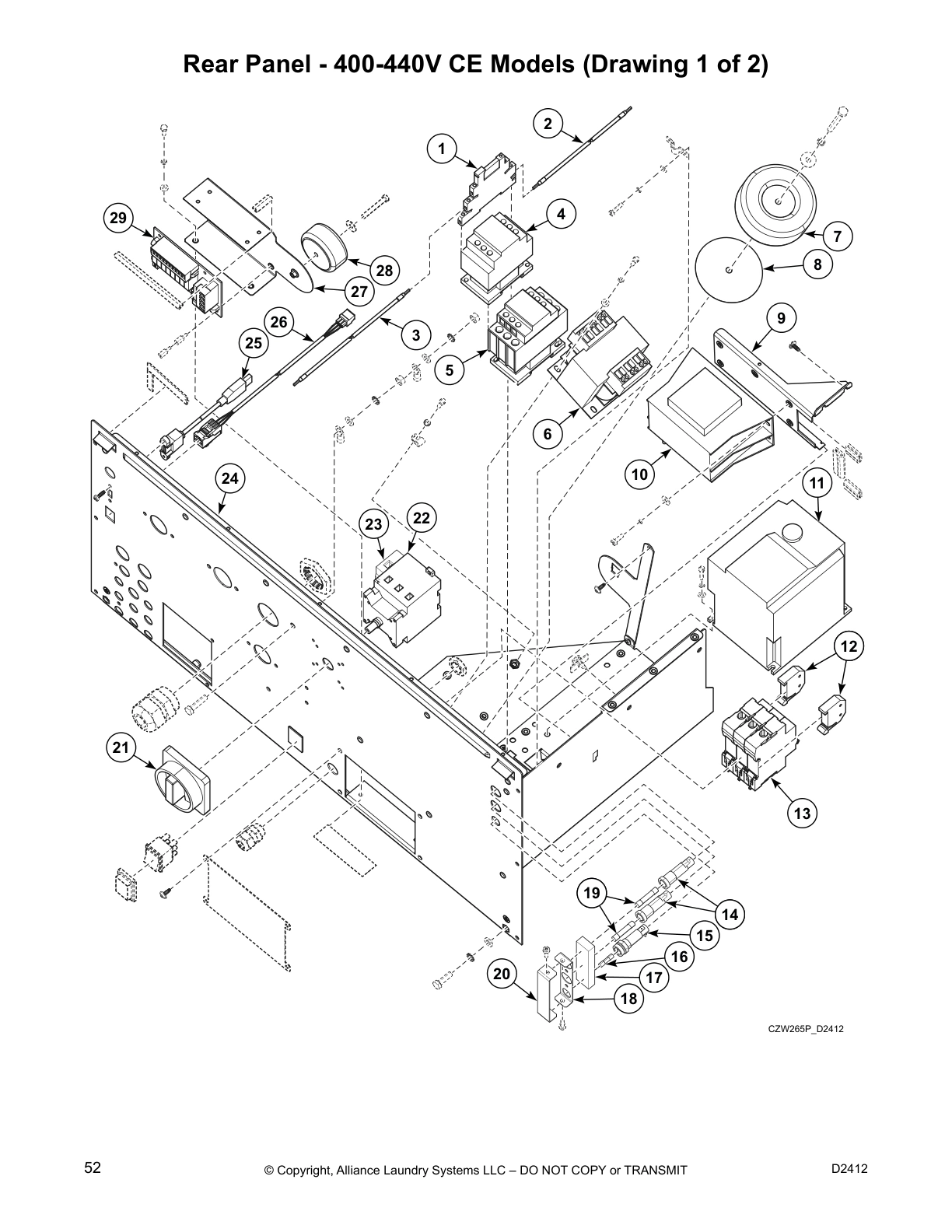

Rear Panel - 400-440V CE Models (Drawing 1 of 2)

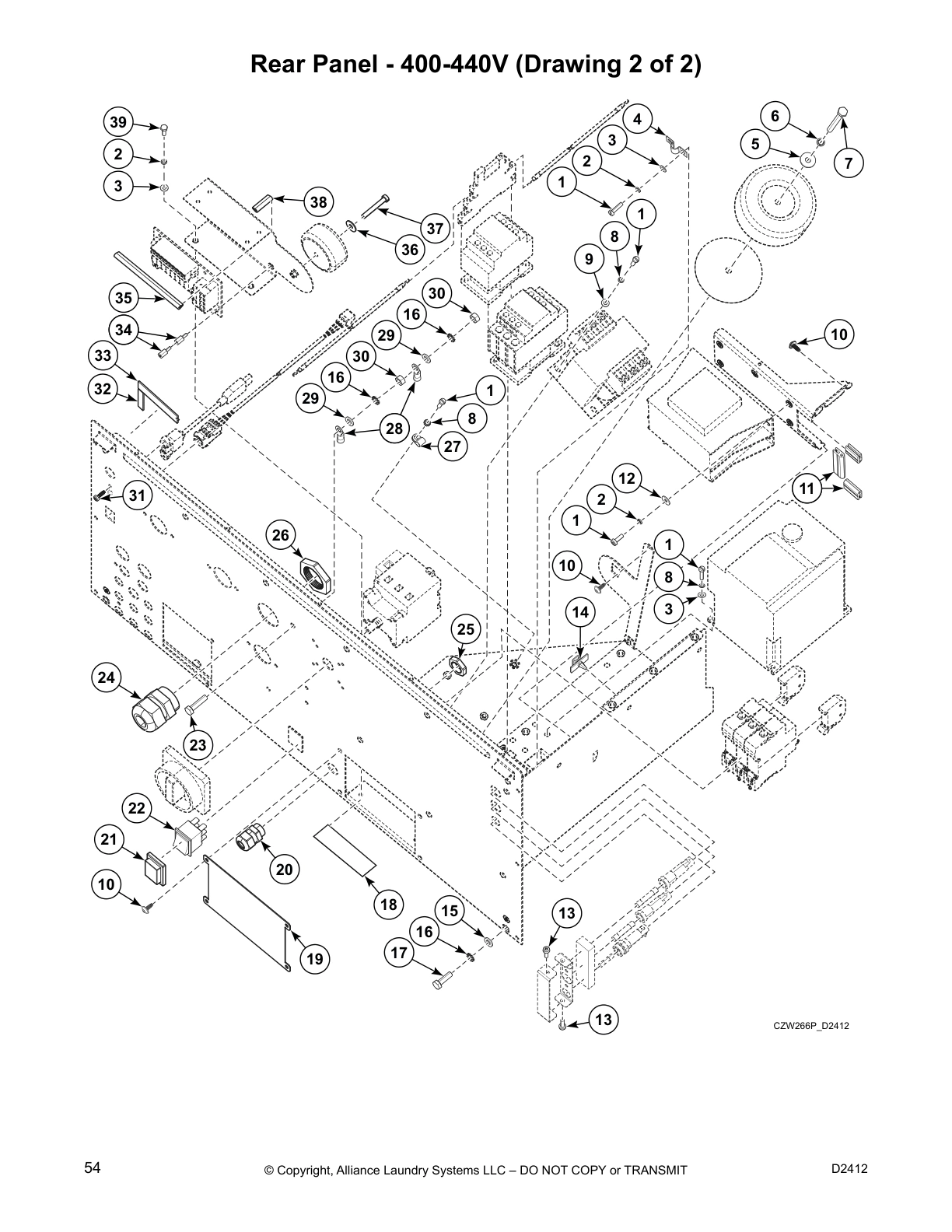

Rear Panel - 400-440V (Drawing 2 of 2)

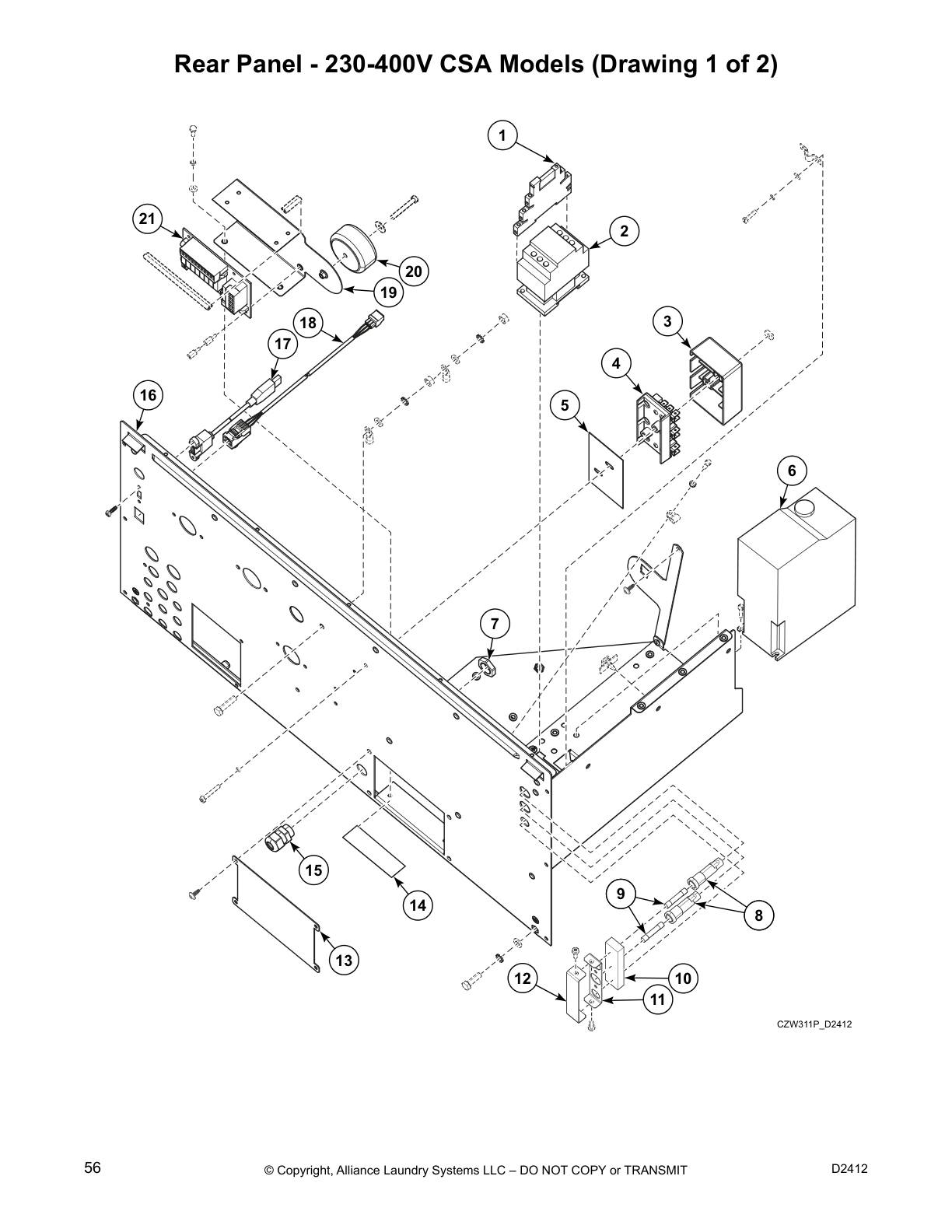

Rear Panel - 230-400V CSA Models (Drawing 1 of 2)

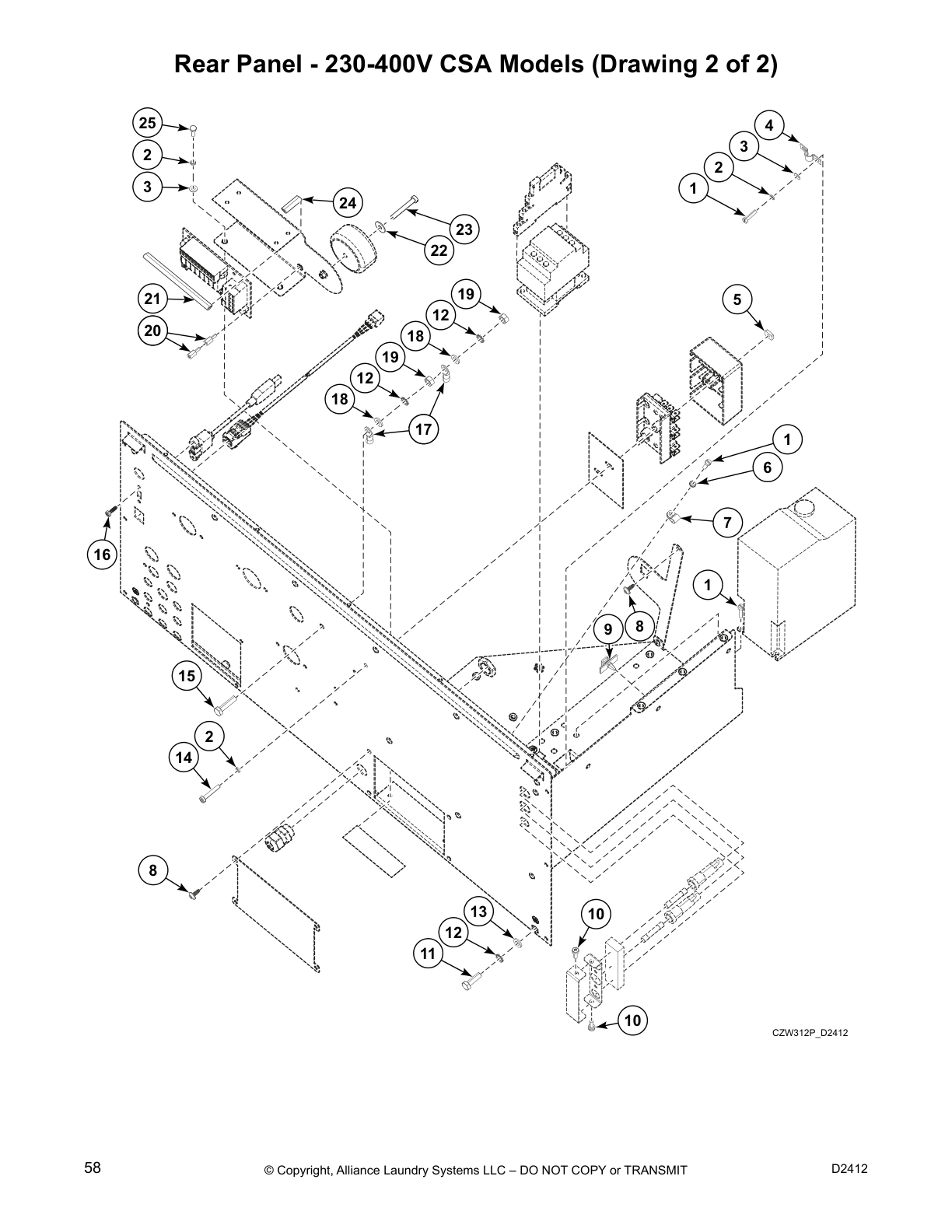

Rear Panel - 230-400V CSA Models (Drawing 2 of 2)

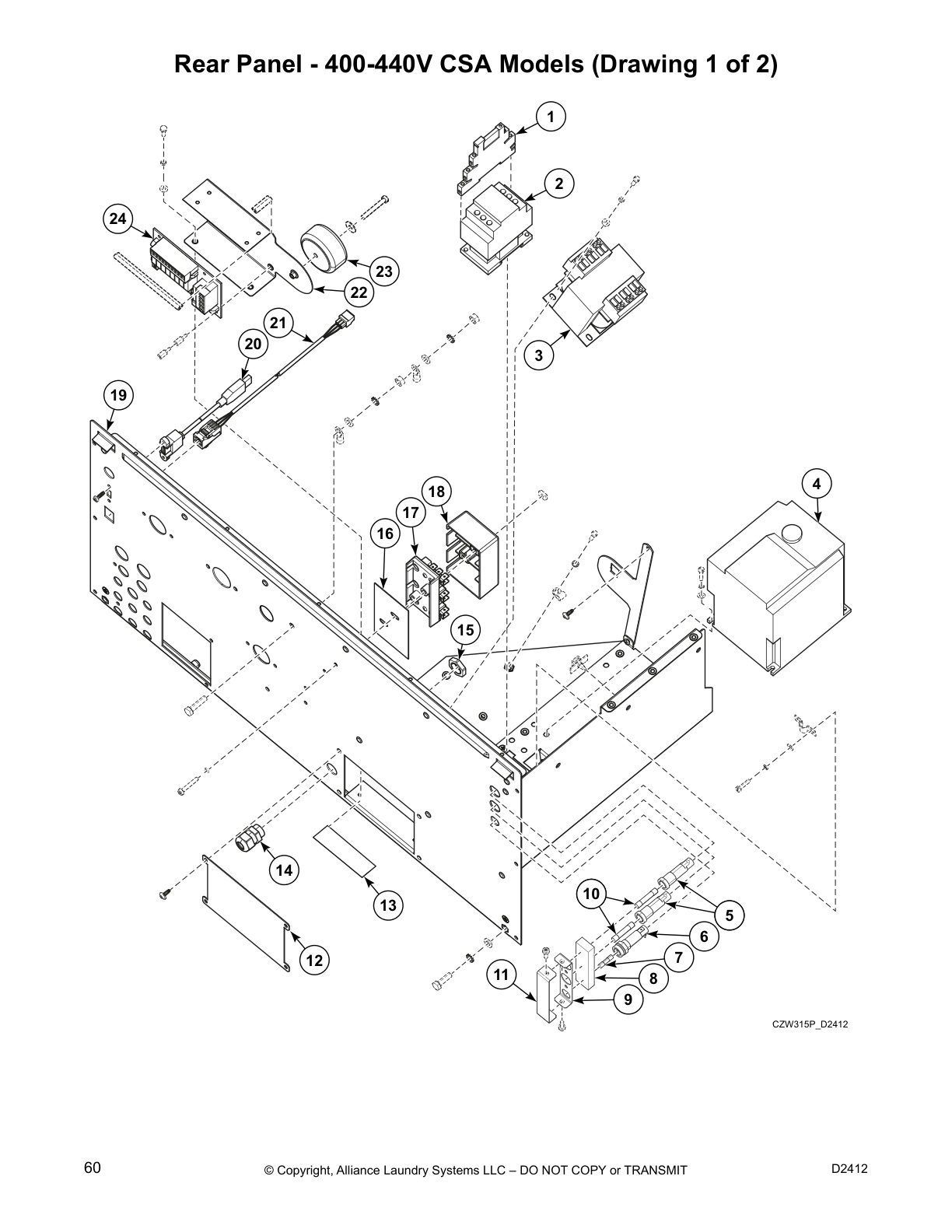

Rear Panel - 400-440V CSA Models (Drawing 1 of 2)

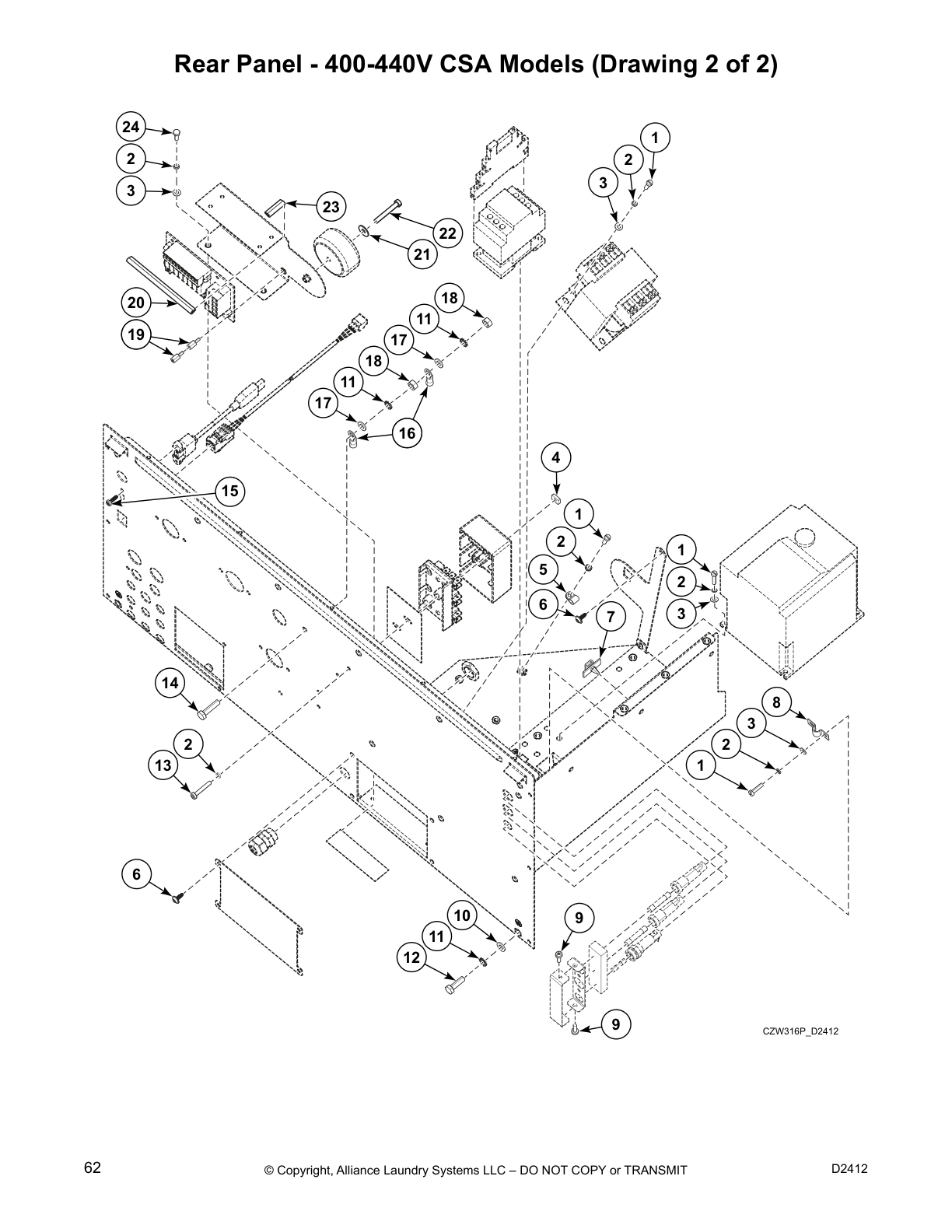

Rear Panel - 400-440V CSA Models (Drawing 2 of 2)

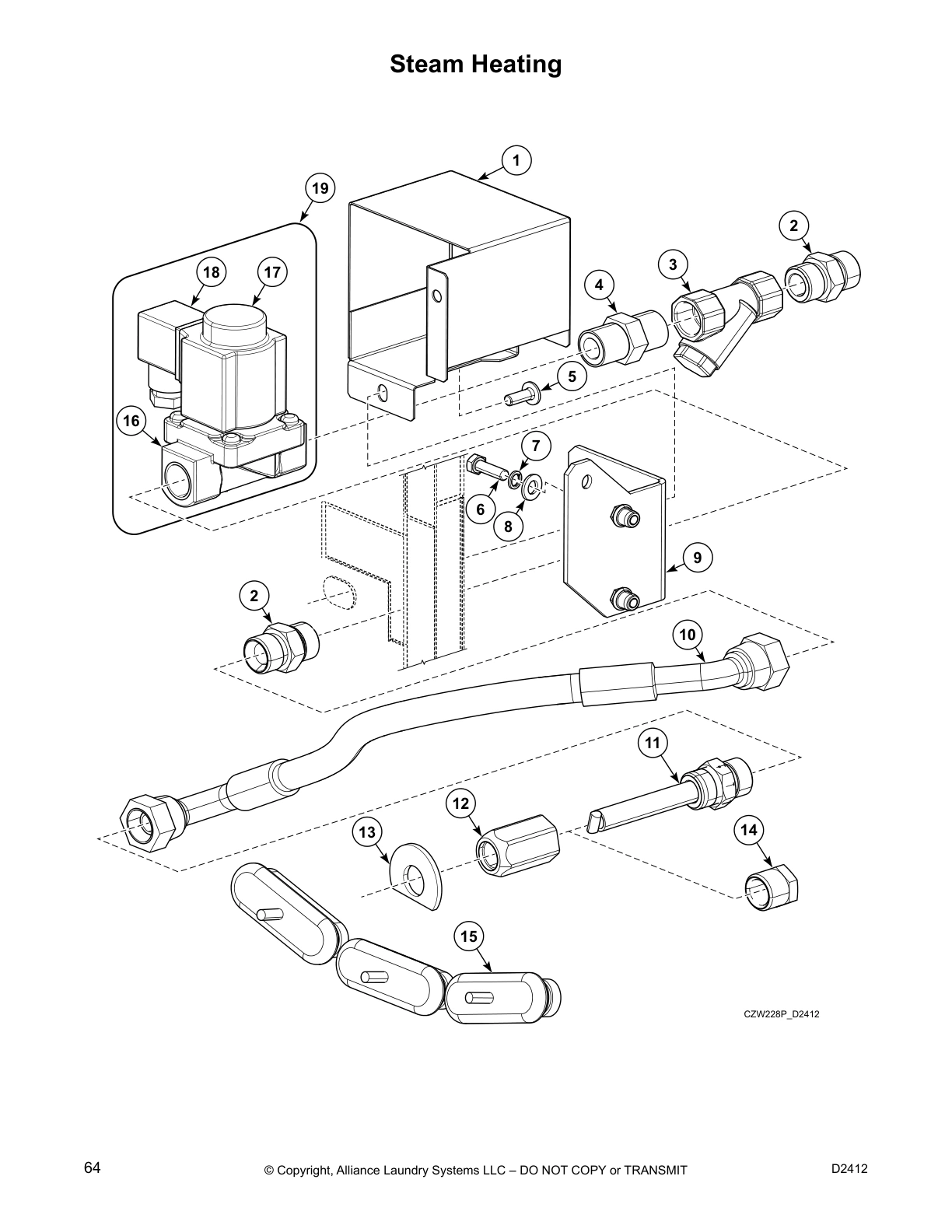

Steam Heating

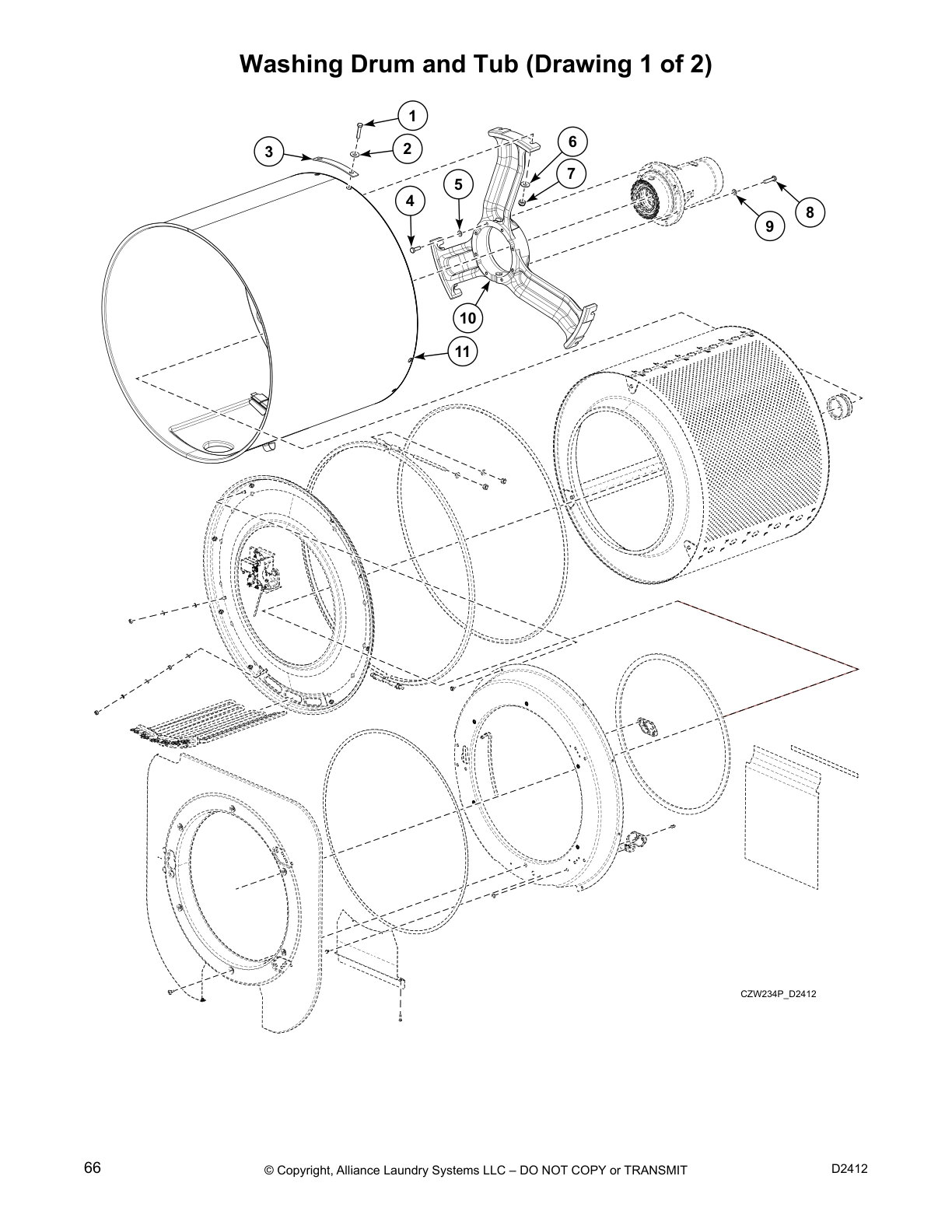

Washing Drum and Tub (Drawing 1 of 2)

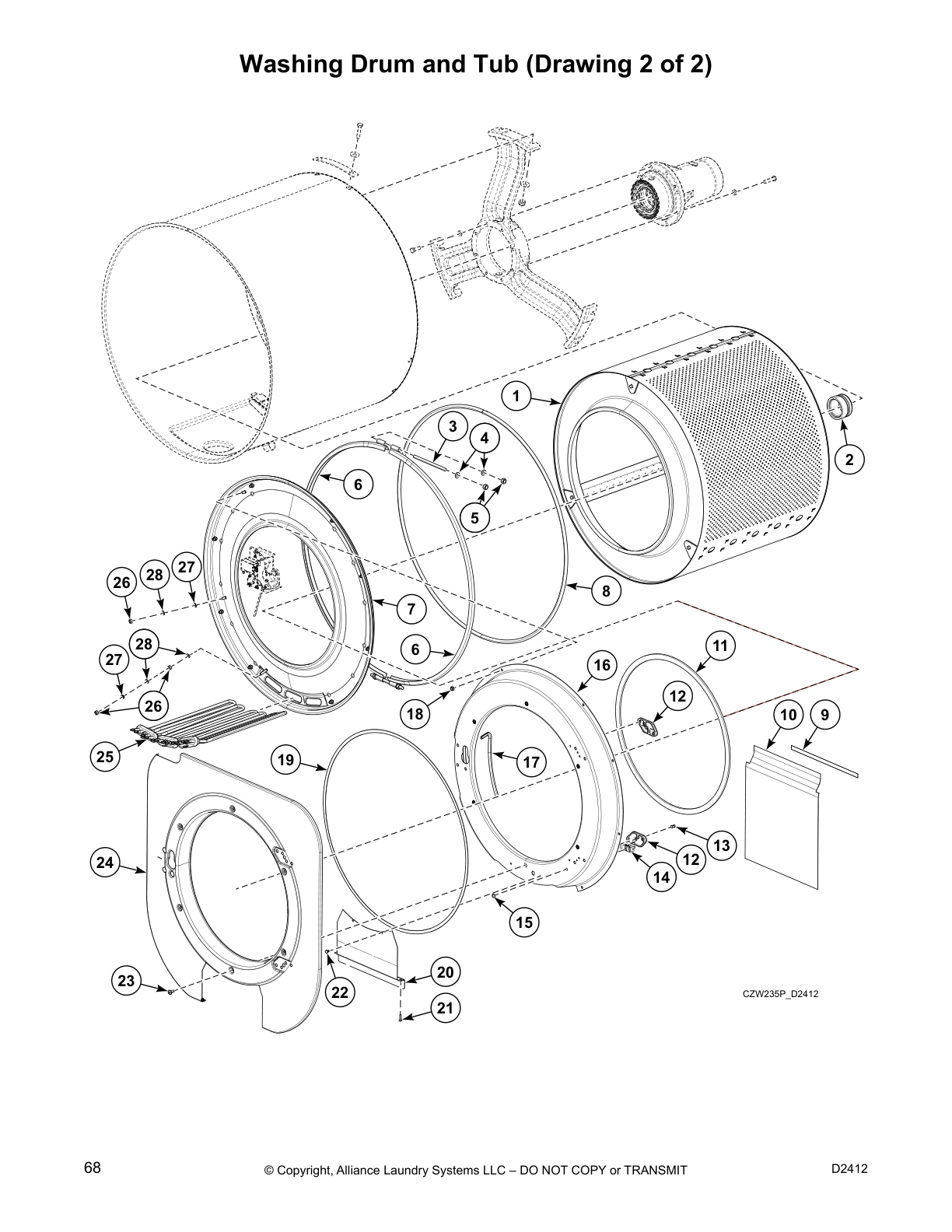

Washing Drum and Tub (Drawing 2 of 2)

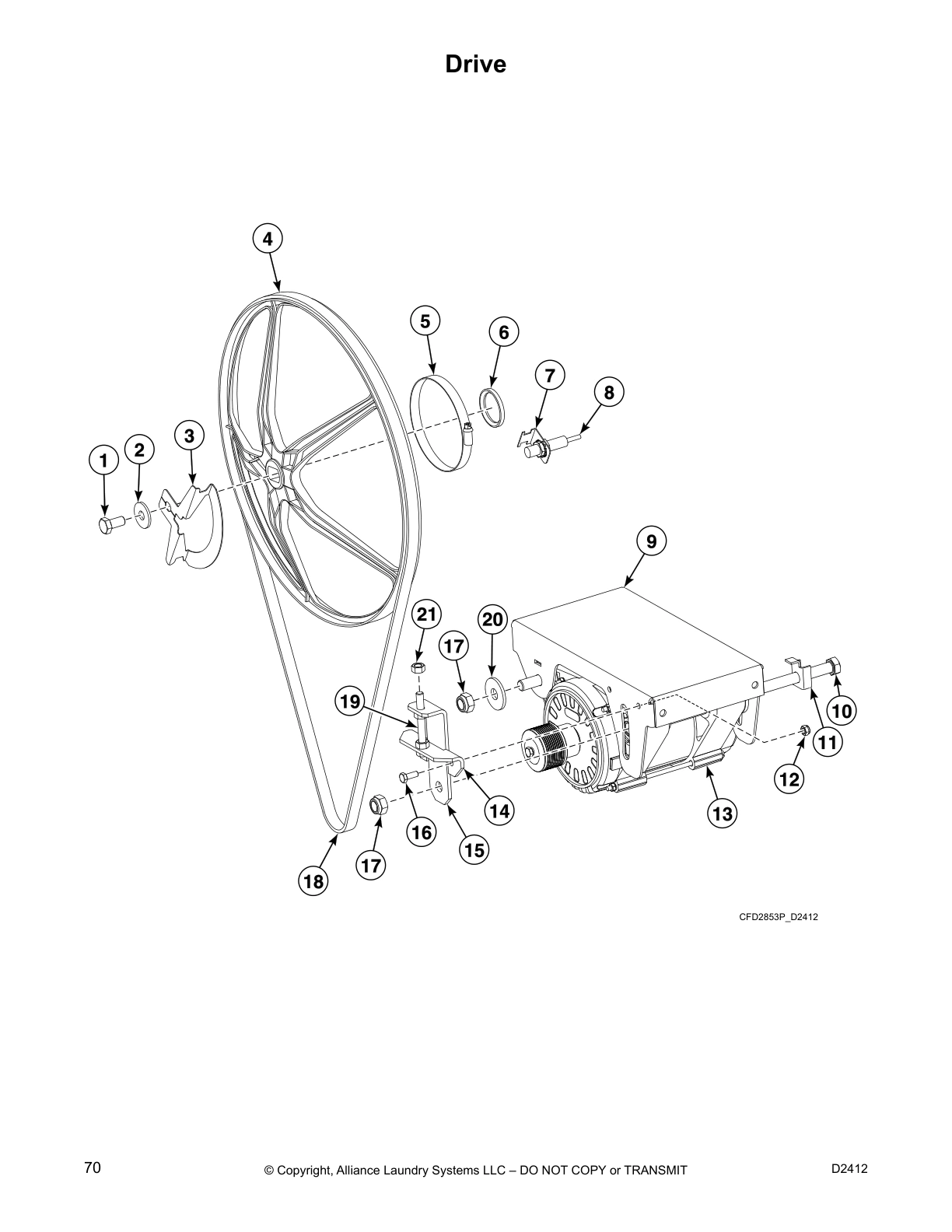

Drive

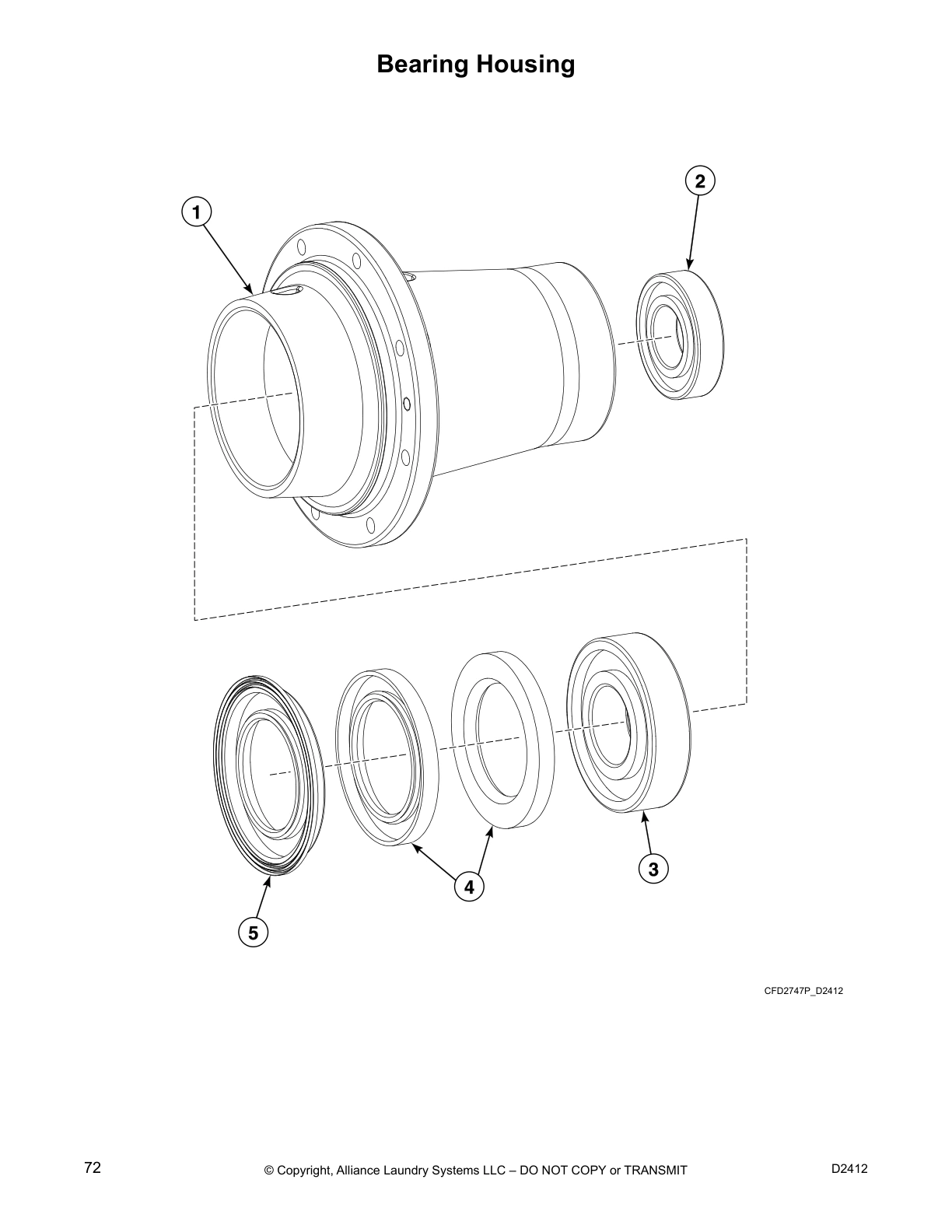

Bearing Housing

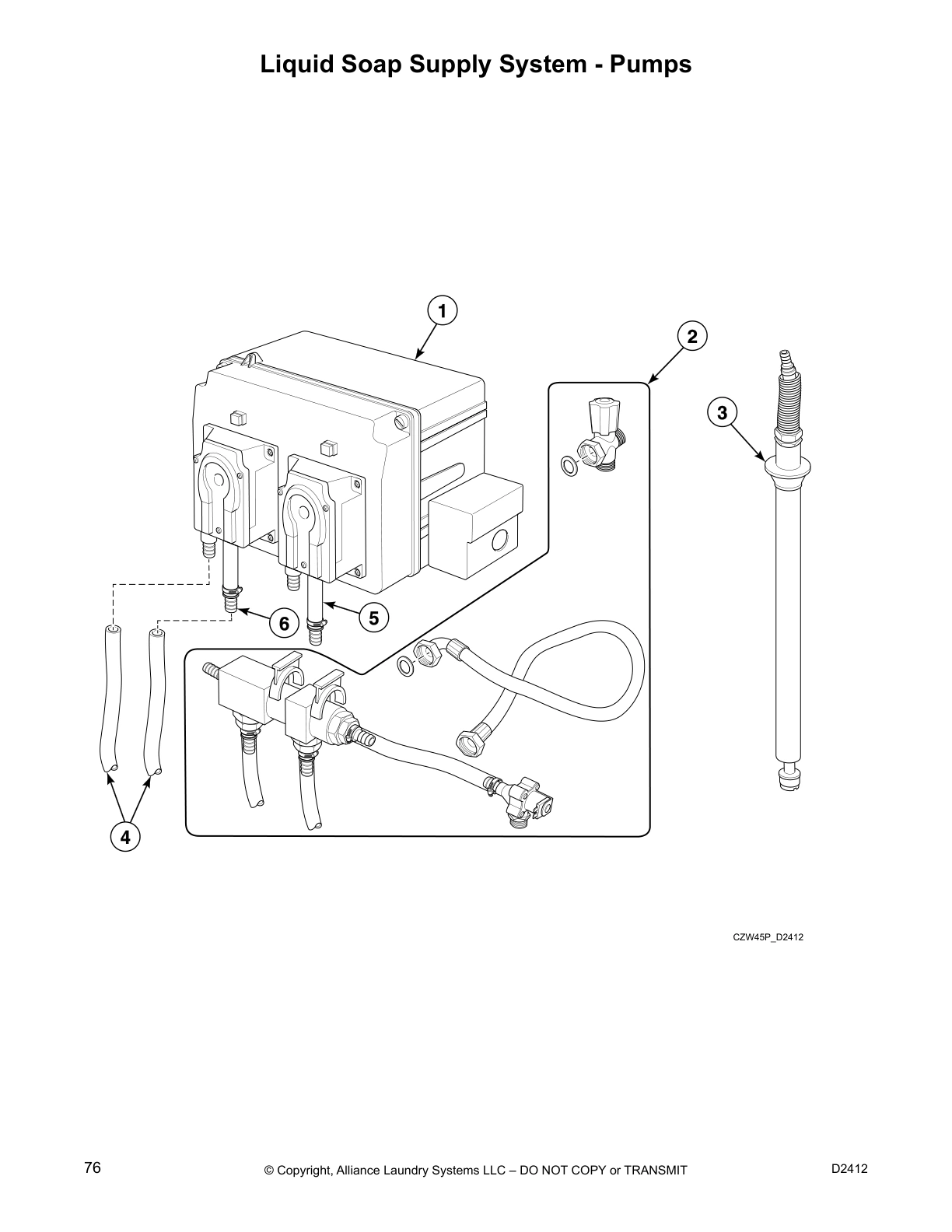

Liquid Soap Supply System - Pumps
Common parts from model Speed Queen SYT025V Washer
SPQ SP560432 SPQ SP560432 Contact Us For Availability
SPQ SP560428 SPQ SP560428 Contact Us For Availability
SPQ SP560426 SPQ SP560426 Contact Us For Availability
SPQ SP560424 SPQ SP560424 Contact Us For Availability
SPQ SP560422 SPQ SP560422 Contact Us For Availability
SPQ SP560420 SPQ SP560420 Contact Us For Availability
SPQ SP560418 SPQ SP560418 Contact Us For Availability
SPQ SP560416 SPQ SP560416 Contact Us For Availability
SPQ SP560414 SPQ SP560414 Contact Us For Availability
SPQ SP560412 SPQ SP560412 Contact Us For Availability
SPQ SP560410 SPQ SP560410 Contact Us For Availability
SPQ SP560408 SPQ SP560408 Contact Us For Availability
SPQ SP560406 SPQ SP560406 Contact Us For Availability
SPQ SP560312 SPQ SP560312 Contact Us For Availability
SPQ SP560310 SPQ SP560310 Contact Us For Availability
SPQ SP560091 SPQ SP560091 Contact Us For Availability
SPQ SP559949 SPQ SP559949 Contact Us For Availability
SPQ SP559934 SPQ SP559934 Contact Us For Availability
SPQ SP558959 SPQ SP558959 Contact Us For Availability
SPQ SP560093 SPQ SP560093 Contact Us For Availability
SPQ SP560087 SPQ SP560087 Contact Us For Availability
SPQ 572321 SPQ 572321 Contact Us For Availability
SPQ 572314 SPQ 572314 Contact Us For Availability
SPQ 572308 SPQ 572308 Contact Us For Availability
SPQ 572302 SPQ 572302 Contact Us For Availability
SPQ SPPRI505000054 SPQ SPPRI505000054 Contact Us For Availability
SPQ SP245704000603 SPQ SP245704000603 Contact Us For Availability
SPQ SPPRI540020005 SPQ SPPRI540020005 Contact Us For Availability
1
Bolt SPQ SP309933000845 Contact Us For Availability
1
Bolt SPQ SP309084240325 Contact Us For Availability
1
Bolt SPQ SP527420 Contact Us For Availability
1
Spring SPQ SP505372 Contact Us For Availability
1
Cover SPQ 569656 Contact Us For Availability
1
Coin Meter SPQ SP560751 Contact Us For Availability
1
Coin Meter SPQ SP560100 Contact Us For Availability
1
Coin Meter SPQ 575277 Contact Us For Availability
1
Soap Hopper SPQ SP540111 Contact Us For Availability
1
Bolt SPQ SP309933001020 Contact Us For Availability
1
Bearing Housing SPQ SP537752 Contact Us For Availability
1
Pump SPQ 529746 Contact Us For Availability
2
Adhesive SPQ SP525284 Contact Us For Availability
2
Roller SPQ SP311125000003 Contact Us For Availability
2
Speed Sensor SPQ SP311902100010 Contact Us For Availability
2
Rear Spring Holder SPQ SP550448 Contact Us For Availability
2
Washer SPQ SP555746 Contact Us For Availability
2
Terminal Board SPQ SPPRI350000007 Contact Us For Availability
2
Door Level SPQ 571605 Contact Us For Availability
2
Door Lock Plate SPQ 568971 Contact Us For Availability
2
Filling Elbow Pipe SPQ SP526491 Contact Us For Availability
2
Washer SPQ SPPRI241000017 Contact Us For Availability
2
Contactor SPQ SP514038 Contact Us For Availability
2
Washer SPQ SP537736 Contact Us For Availability
2
Bolt SPQ SP537843 Contact Us For Availability
2
Bearing SPQ SPPRI608001048 Contact Us For Availability
2
Manifold Flush Kit SPQ 529745 Contact Us For Availability
3
SPQ SP515274 SPQ SP515274 Contact Us For Availability
3
SPQ SP528309 SPQ SP528309 Contact Us For Availability
3
Rivet SPQ 505479 Contact Us For Availability
3
Lower Rear Cover SPQ SP533382 Contact Us For Availability
3
SPQ SPPRI610002007 SPQ SPPRI610002007 Contact Us For Availability
3
Control Plate SPQ 569575 Contact Us For Availability
3
Isolation Paper SPQ SPPRI350012007 Contact Us For Availability
3
Fixed Upper Hinge SPQ 568902 Contact Us For Availability
3
Fixed Upper Hinge SPQ 568979 Contact Us For Availability
3
Screw SPQ F430977 Contact Us For Availability
3
Soap Hopper Plug SPQ SP526487 Contact Us For Availability
3
Spring Clamp SPQ SP526480 Contact Us For Availability
3
Foam Roller SPQ SPPRI503000028 Contact Us For Availability
3
SPQ SP502214 SPQ SP502214 Contact Us For Availability
3
Ferrite Core SPQ SP516648 Contact Us For Availability
3
Nut SPQ SP311125000010 Contact Us For Availability
3
SPQ SP311679800006 SPQ SP311679800006 Contact Us For Availability
3
SPQ SP555545 SPQ SP555545 Contact Us For Availability
3
Sealing Ring SPQ SPPRI608000048 Contact Us For Availability
3
Suction Tube SPQ 529744 Contact Us For Availability
4
SPQ SP311679800004 SPQ SP311679800004 Contact Us For Availability
4
SPQ SP533784 SPQ SP533784 Contact Us For Availability
4
SPQ SP533387 SPQ SP533387 Contact Us For Availability
4
Leading Pin SPQ SP309965240408 Contact Us For Availability
4
Microswitch SPQ SP506045 Contact Us For Availability
4
Emergency Opener SPQ 571615 Contact Us For Availability
4
Internal Vessel SPQ SP526439 Contact Us For Availability
4
SPQ SP283449080200 SPQ SP283449080200 Contact Us For Availability
4
Self-Adhesive Profile SPQ 557961 Contact Us For Availability
4
SPQ SP311125240006 SPQ SP311125240006 Contact Us For Availability
4
SPQ SP537885 SPQ SP537885 Contact Us For Availability
4
SPQ SP556166 SPQ SP556166 Contact Us For Availability
4
Bearing Replacement Tool K SPQ SP525813 Contact Us For Availability
4
Hose SPQ 529743 Contact Us For Availability
5
Bolt SPQ SP535479 Contact Us For Availability
5
Bolt SPQ SP555658 Contact Us For Availability
5
SPQ SP529206 SPQ SP529206 Contact Us For Availability
5
Bolt SPQ SP309933000416 Contact Us For Availability
5
Washer SPQ F8193101 Contact Us For Availability
5
Water Hose SPQ SP540158 Contact Us For Availability
5
SPQ SP540183 SPQ SP540183 Contact Us For Availability
5
SPQ SP309933240825 SPQ SP309933240825 Contact Us For Availability
5
SPQ SPF02119000415 SPQ SPF02119000415 Contact Us For Availability
5
SPQ SPPRI240000005 SPQ SPPRI240000005 Contact Us For Availability
5
Adhesive SPQ SP537848 Contact Us For Availability
5
Connection SPQ 529742 Contact Us For Availability
6
Hinge Spacer SPQ SP537864 Contact Us For Availability
6
Fastener SPQ 569655 Contact Us For Availability
6
Coin Meter Case SPQ 569588 Contact Us For Availability
6
Closing Plate SPQ 568941 Contact Us For Availability
6
Filling Hose Pipe SPQ SP540113 Contact Us For Availability
6
SPQ SP345000626088 SPQ SP345000626088 Contact Us For Availability
6
SPQ SP528313 SPQ SP528313 Contact Us For Availability
6
Washer SPQ SP309933000620 Contact Us For Availability
6
SPQ SP311125240008 SPQ SP311125240008 Contact Us For Availability
6
SPQ 529789 SPQ 529789 Contact Us For Availability
7
Adhesive SPQ SP311127000006 Contact Us For Availability
7
Torsion/Door Lock Spring SPQ 571612 Contact Us For Availability
7
Filling Hose Pipe SPQ SP526468 Contact Us For Availability
7
SPQ SP100188 SPQ SP100188 Contact Us For Availability
7
SPQ SP528392 SPQ SP528392 Contact Us For Availability
7
Fuse Holder SPQ SP345805005020 Contact Us For Availability
7
SPQ SP311737000010 SPQ SP311737000010 Contact Us For Availability
7
SPQ SP555547 SPQ SP555547 Contact Us For Availability
8
SPQ SP517232 SPQ SP517232 Contact Us For Availability
8
SPQ SP557472 SPQ SP557472 Contact Us For Availability
8
SPQ SP310985000010 SPQ SP310985000010 Contact Us For Availability
8
Fastener SPQ SP550115 Contact Us For Availability
8
SPQ 569555 SPQ 569555 Contact Us For Availability
8
SPQ SP311125000006 SPQ SP311125000006 Contact Us For Availability
8
SPQ SP550113 SPQ SP550113 Contact Us For Availability
8
Kit of Hinges SPQ SP535421 Contact Us For Availability
8
SPQ F430232 SPQ F430232 Contact Us For Availability
8
SPQ SP309798124313 SPQ SP309798124313 Contact Us For Availability
8
SPQ 570387 SPQ 570387 Contact Us For Availability
8
SPQ SP555504 SPQ SP555504 Contact Us For Availability
8
SPQ SP310934240008 SPQ SP310934240008 Contact Us For Availability
8
SPQ SP557701 SPQ SP557701 Contact Us For Availability
9
SPQ SP540112 SPQ SP540112 Contact Us For Availability
9
SPQ SP554310 SPQ SP554310 Contact Us For Availability
9
SPQ SP309933000835 SPQ SP309933000835 Contact Us For Availability
9
SPQ SP537737 SPQ SP537737 Contact Us For Availability
9
SPQ SP533761 SPQ SP533761 Contact Us For Availability
10
Upper Frame SPQ SP533756 Contact Us For Availability
10
Nut SPQ SP310934000003 Contact Us For Availability
10
Main Vessel SPQ SP540115 Contact Us For Availability
10
Water Level Switch Hose SPQ SPPRI540001003 Contact Us For Availability
10
Fuse SPQ SP345805163032 Contact Us For Availability
10
Cross Piece SPQ SP537730 Contact Us For Availability
10
Cage SPQ SP533393 Contact Us For Availability
11
Edge Protection SPQ SP529068 Contact Us For Availability
11
Card Reader Cover Plate SPQ 569636 Contact Us For Availability
11
Air Trap Reduction SPQ SPPRI503000027 Contact Us For Availability
11
Fuse Cover SPQ SP554311 Contact Us For Availability
11
Screw SPQ SP311679824006 Contact Us For Availability
11
External Tub SPQ SP537917 Contact Us For Availability
11
Profile SPQ SP522450 Contact Us For Availability
11
Nut SPQ SP533742 Contact Us For Availability
12
Lower Weight SPQ SP533388 Contact Us For Availability
12
Washer SPQ SP311902100004 Contact Us For Availability
12
Bolt SPQ SP309933000618 Contact Us For Availability
12
Holder SPQ 569658 Contact Us For Availability
12
Fixed Hinge SPQ 568982 Contact Us For Availability
12
Spacer SPQ F431901 Contact Us For Availability
12
Hose Clamp SPQ SPPRI240000021 Contact Us For Availability
12
Hose Clamp SPQ SPPRI240000003 Contact Us For Availability
12
Cover SPQ 566549 Contact Us For Availability
12
Hinge Spacer SPQ SP537849 Contact Us For Availability
12
Tensioning Angle Piece SPQ SP310985000006 Contact Us For Availability
13
Earthing Index Plat SPQ SPPRI551000001 Contact Us For Availability
13
Label SPQ 570371 Contact Us For Availability
13
Cover Strip Pin SPQ SP533737 Contact Us For Availability
13
Rivet SPQ SP534977 Contact Us For Availability
13
Rivet SPQ SP547779 Contact Us For Availability
13
Door SPQ SP553526 Contact Us For Availability
13
Microswitch SPQ 568978 Contact Us For Availability
13
Hose SPQ SPPRI240000002 Contact Us For Availability
13
Hose SPQ SPPRI503002049 Contact Us For Availability
13
Hex Pillar SPQ SP550482 Contact Us For Availability
14
Label SPQ 509472 Contact Us For Availability
14
Pin Insertion SPQ SP310985000008 Contact Us For Availability
14
Distance Case SPQ SP533753 Contact Us For Availability
14
Nut SPQ F430225 Contact Us For Availability
14
Hose Pipe SPQ SPPRI540000014 Contact Us For Availability
14
Reinforcement Tube SPQ SP500125 Contact Us For Availability
14
Bushing SPQ SP101406 Contact Us For Availability
14
Profiled Sealing SPQ SP309933100625 Contact Us For Availability
14
Microswitch SPQ 571634 Contact Us For Availability
14
Belt SPQ SP533326 Contact Us For Availability
15
Rivet SPQ SP533765 Contact Us For Availability
15
Module SPQ 569635 Contact Us For Availability
15
Clip SPQ SP526497 Contact Us For Availability
15
Pin SPQ SP554970 Contact Us For Availability
15
Bolt SPQ SP101745 Contact Us For Availability
15
Screw SPQ SP526532 Contact Us For Availability
15
Nut SPQ SP101416 Contact Us For Availability
15
Nut SPQ 571635 Contact Us For Availability
15
Washer SPQ SP533327 Contact Us For Availability
16
Nut SPQ SP309933000880 Contact Us For Availability
16
Bolt SPQ F8270701 Contact Us For Availability
16
Drain Elbow SPQ SP526492 Contact Us For Availability
16
Speed Sensor Plate SPQ SP309933000616 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Terminal Block SPQ 430642 Contact Us For Availability
17
Seal SPQ SP533738 Contact Us For Availability
17
Profiled Sealing SPQ SPPRI505000058 Contact Us For Availability
17
Casing SPQ SP529739 Contact Us For Availability
17
3-Way Valve SPQ SPPRI340004030 Contact Us For Availability
17
Reverse Function Drain Valve SPQ SP526457 Contact Us For Availability
17
Cable Holder SPQ SP311125100006 Contact Us For Availability
17
Drum V-Pulley SPQ SP310985000012 Contact Us For Availability
18
Roller SPQ SP533764 Contact Us For Availability
18
Adjustable Foot SPQ SP520408 Contact Us For Availability
18
4-Way Valve SPQ SP547959 Contact Us For Availability
18
Drain Valve SPQ SPPRI240000007 Contact Us For Availability
18
Cable Clamp SPQ SP310934100006 Contact Us For Availability
18
Terminal Block Shield SPQ 70333001 Contact Us For Availability
18
Hose Clamp SPQ SP533157 Contact Us For Availability
19
Nameplate SPQ SP516715 Contact Us For Availability
19
Speed Sensor Holder SPQ SP309933000870 Contact Us For Availability
19
Pin SPQ SP548933 Contact Us For Availability
19
SPQ 570381 SPQ 570381 Contact Us For Availability
19
Shaft Ring SPQ SP284000012003 Contact Us For Availability
20
Index Plate SPQ SPPRI551000047 Contact Us For Availability
20
Damper SPQ SPPRI504000001 Contact Us For Availability
20
Vent Hose SPQ SP540117 Contact Us For Availability
20
Washer SPQ SP547821 Contact Us For Availability
20
USB Cable SPQ SP547006 Contact Us For Availability
20
Motor Holder SPQ SP311902100012 Contact Us For Availability
21
SPQ F8688001 SPQ F8688001 Contact Us For Availability
21
Connector SPQ SP309084000416 Contact Us For Availability
21
Microswitch SPQ SP310934000010 Contact Us For Availability
21
Mixer Body SPQ SP526484 Contact Us For Availability
21
Screw SPQ SP526460 Contact Us For Availability
21
Cable SPQ SP545234 Contact Us For Availability
21
SPQ SP505430 SPQ SP505430 Contact Us For Availability
21
SPQ SP310934000008 SPQ SP310934000008 Contact Us For Availability
22
Drain Valve Holder SPQ SP309933000820 Contact Us For Availability
22
Vibration Switch Holder SPQ SP533726 Contact Us For Availability
22
Holder SPQ 570382 Contact Us For Availability
22
Heating Element SPQ SP537856 Contact Us For Availability
23
Washer SPQ SP537854 Contact Us For Availability
23
Profiled Sealing SPQ SP310934000020 Contact Us For Availability
23
Mixer SPQ SP526509 Contact Us For Availability
23
Tee SPQ SP311902100008 Contact Us For Availability
23
Transformer SPQ 564561 Contact Us For Availability
23
SPQ SP309933240412 SPQ SP309933240412 Contact Us For Availability
24
SPQ SP506432 SPQ SP506432 Contact Us For Availability
24
Hook Lock SPQ 553189 Contact Us For Availability
24
SPQ SP311125000004 SPQ SP311125000004 Contact Us For Availability
24
Soap Relay Board SPQ 553187 Contact Us For Availability
25
Fastener SPQ SP309798500306 Contact Us For Availability
25
Y-Piece SPQ SP526512 Contact Us For Availability
25
Clamp SPQ SP540144 Contact Us For Availability
26
Console SPQ SP311679800003 Contact Us For Availability
26
SPQ SP533727 SPQ SP533727 Contact Us For Availability
26
Temperature Sensor Se SPQ SP526565 Contact Us For Availability
26
Seal SPQ SP540143 Contact Us For Availability
27
SPQ SP533716 SPQ SP533716 Contact Us For Availability
27
Dispenser Seal SPQ SP526557 Contact Us For Availability
27
Spiral SPQ SP526454 Contact Us For Availability
27
Adhesive SPQ SP540145 Contact Us For Availability
28
SPQ SP313251000006 SPQ SP313251000006 Contact Us For Availability
28
Flap SPQ SP526558 Contact Us For Availability
28
SPQ SP310934240006 SPQ SP310934240006 Contact Us For Availability
30
SPQ SP510923 SPQ SP510923 Contact Us For Availability
30
Soap Hopper Upper Co SPQ SP526461 Contact Us For Availability
31
SPQ SP534978 SPQ SP534978 Contact Us For Availability
NI
SPQ SPPRI551001001 SPQ SPPRI551001001 Contact Us For Availability
NI
SPQ SP245704003021 SPQ SP245704003021 Contact Us For Availability
NI
SPQ SP311125000008 SPQ SP311125000008 Contact Us For Availability
NI
SPQ SP560745 SPQ SP560745 Contact Us For Availability
NI
SPQ SP560429 SPQ SP560429 Contact Us For Availability
NI
SPQ SP560427 SPQ SP560427 Contact Us For Availability
NI
SPQ SP560425 SPQ SP560425 Contact Us For Availability
NI
SPQ SP560423 SPQ SP560423 Contact Us For Availability
NI
SPQ SP560421 SPQ SP560421 Contact Us For Availability
NI
SPQ SP560419 SPQ SP560419 Contact Us For Availability
NI
SPQ SP560417 SPQ SP560417 Contact Us For Availability
NI
SPQ SP560415 SPQ SP560415 Contact Us For Availability
NI
SPQ SP560413 SPQ SP560413 Contact Us For Availability
NI
SPQ SP560411 SPQ SP560411 Contact Us For Availability
NI
SPQ SP560409 SPQ SP560409 Contact Us For Availability
NI
SPQ SP560407 SPQ SP560407 Contact Us For Availability
NI
SPQ SP560405 SPQ SP560405 Contact Us For Availability
NI
SPQ SP560311 SPQ SP560311 Contact Us For Availability
NI
SPQ SP560309 SPQ SP560309 Contact Us For Availability
NI
SPQ SP560090 SPQ SP560090 Contact Us For Availability
NI
SPQ SP559938 SPQ SP559938 Contact Us For Availability
NI
SPQ SP559933 SPQ SP559933 Contact Us For Availability
NI
SPQ SP558958 SPQ SP558958 Contact Us For Availability
NI
SPQ SP560094 SPQ SP560094 Contact Us For Availability
NI
SPQ SP560092 SPQ SP560092 Contact Us For Availability
NI
SPQ 572324 SPQ 572324 Contact Us For Availability
NI
SPQ 572318 SPQ 572318 Contact Us For Availability
NI
SPQ 572311 SPQ 572311 Contact Us For Availability
NI
SPQ 572305 SPQ 572305 Contact Us For Availability
NI
SPQ 570000 SPQ 570000 Contact Us For Availability
NI
SPQ 569999 SPQ 569999 Contact Us For Availability
NI
SPQ 570553 SPQ 570553 Contact Us For Availability
NI
SPQ SP540122 SPQ SP540122 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ SP547980 SPQ SP547980 Contact Us For Availability
NI
SPQ SP101621 SPQ SP101621 Contact Us For Availability
NI
SPQ SP537739 SPQ SP537739 Contact Us For Availability
NI
SPQ SP537896 SPQ SP537896 Contact Us For Availability
NI
Lubrication Grease SPQ SP538787 Contact Us For Availability
NI
SPQ SP537750 SPQ SP537750 Contact Us For Availability
NI
SPQ 529787 SPQ 529787 Contact Us For Availability
NI
SPQ 529747 SPQ 529747 Contact Us For Availability
NI
SPQ 547808 SPQ 547808 Contact Us For Availability
× ![]()
