Model Maytag SXI20J REFRIGERATOR – Common Parts & Diagrams

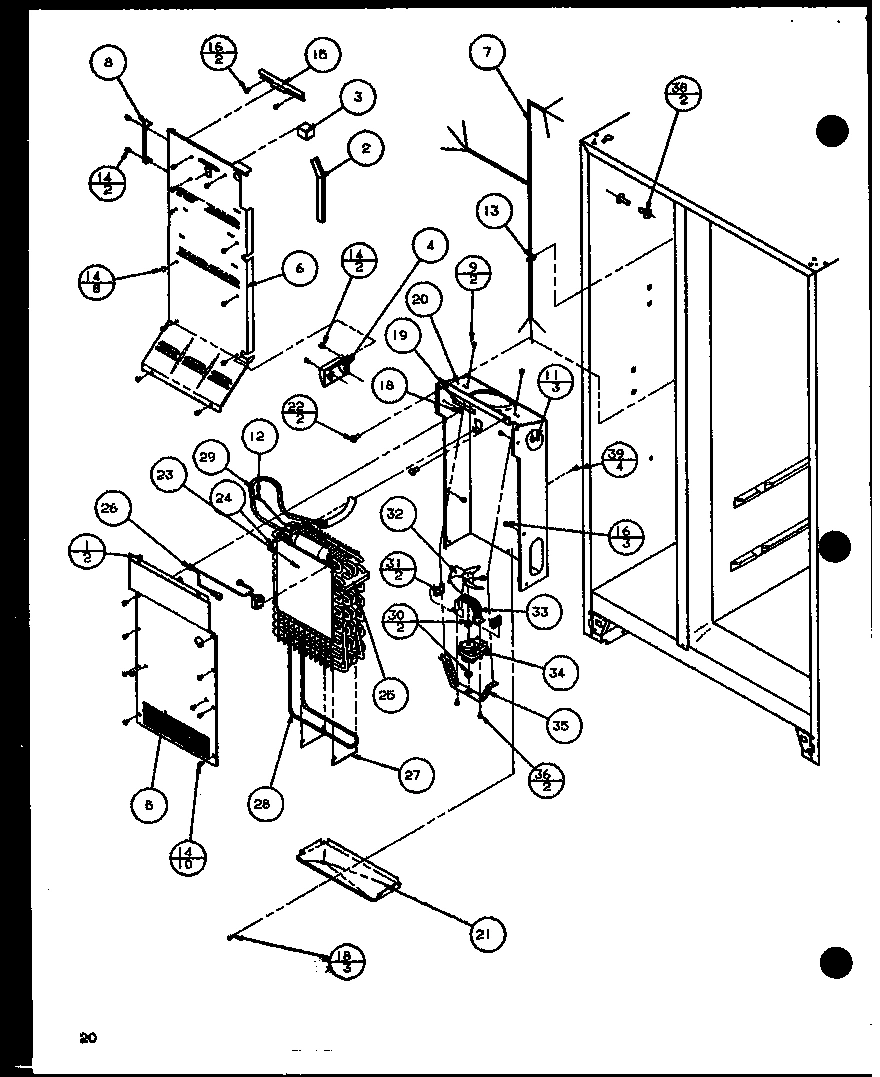

01 - EVAP AND AIR HANDLING

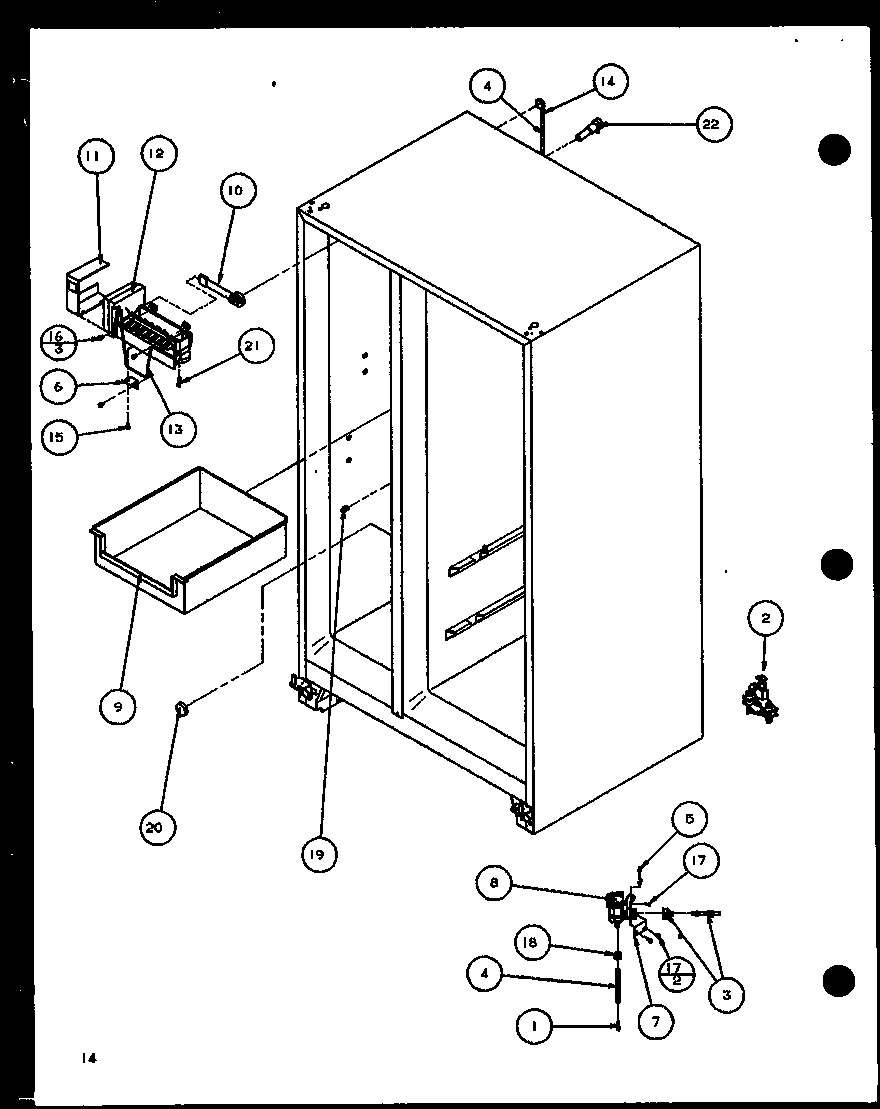

02 - FACTORY INSTALLED ICE MAKER

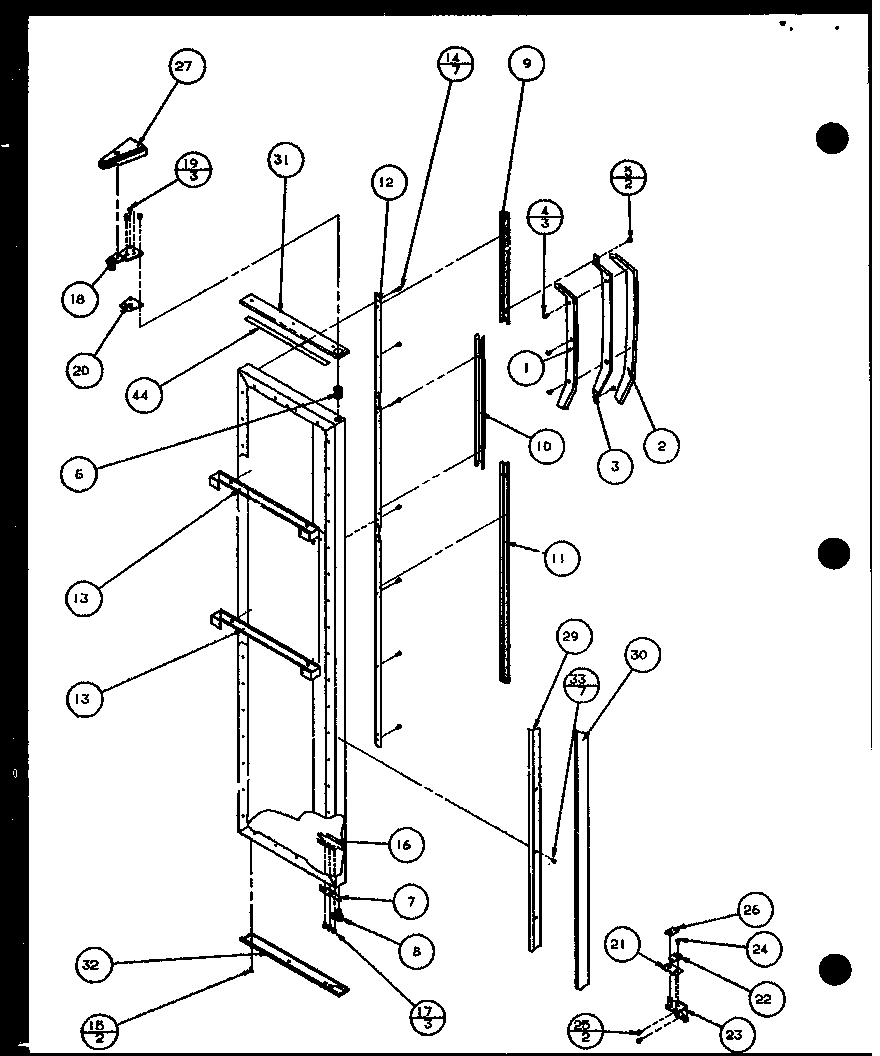

03 - FZ DOOR

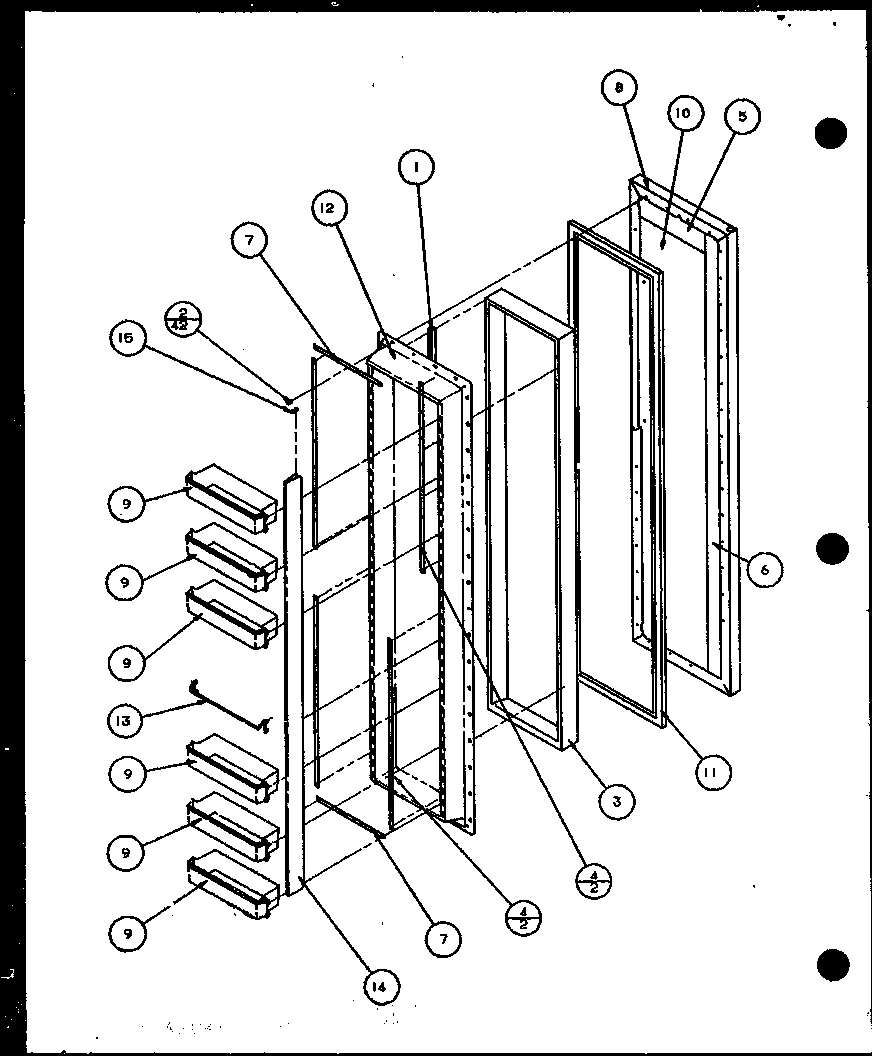

04 - FZ DOOR

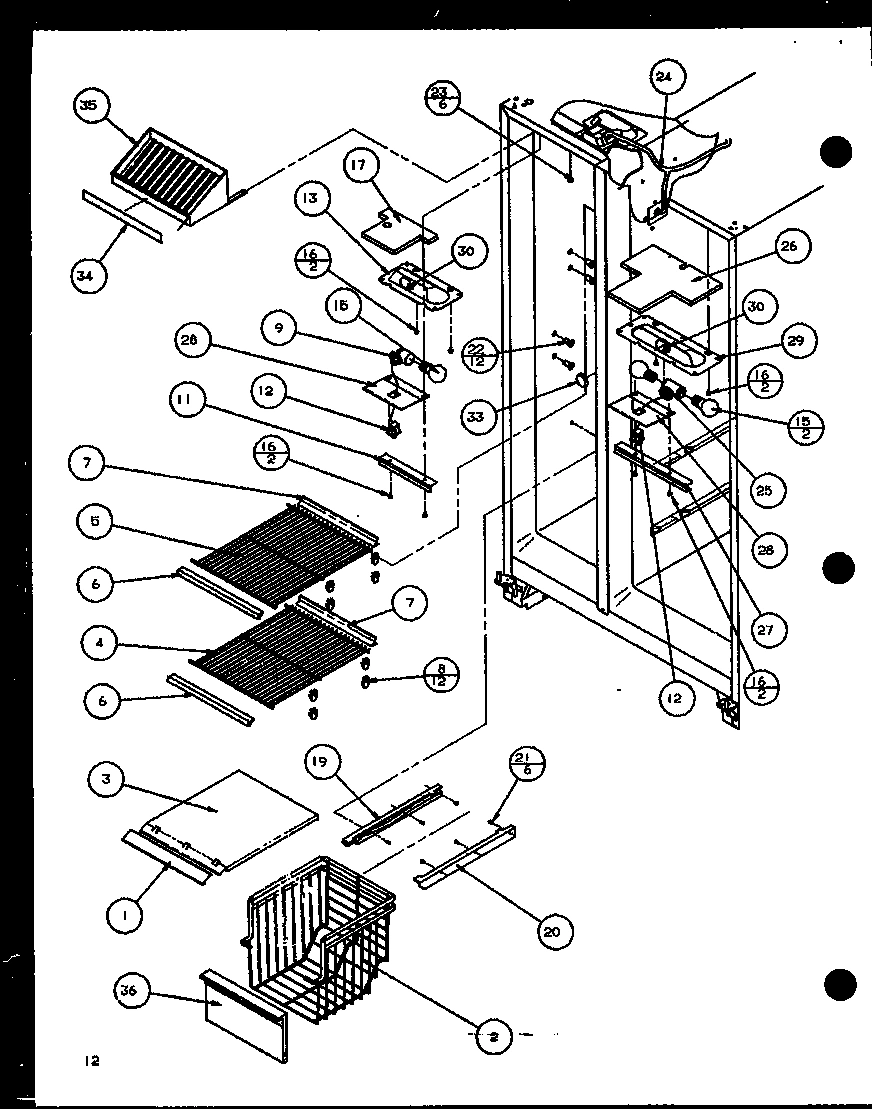

05 - FZ SHELVING AND REF LIGHT

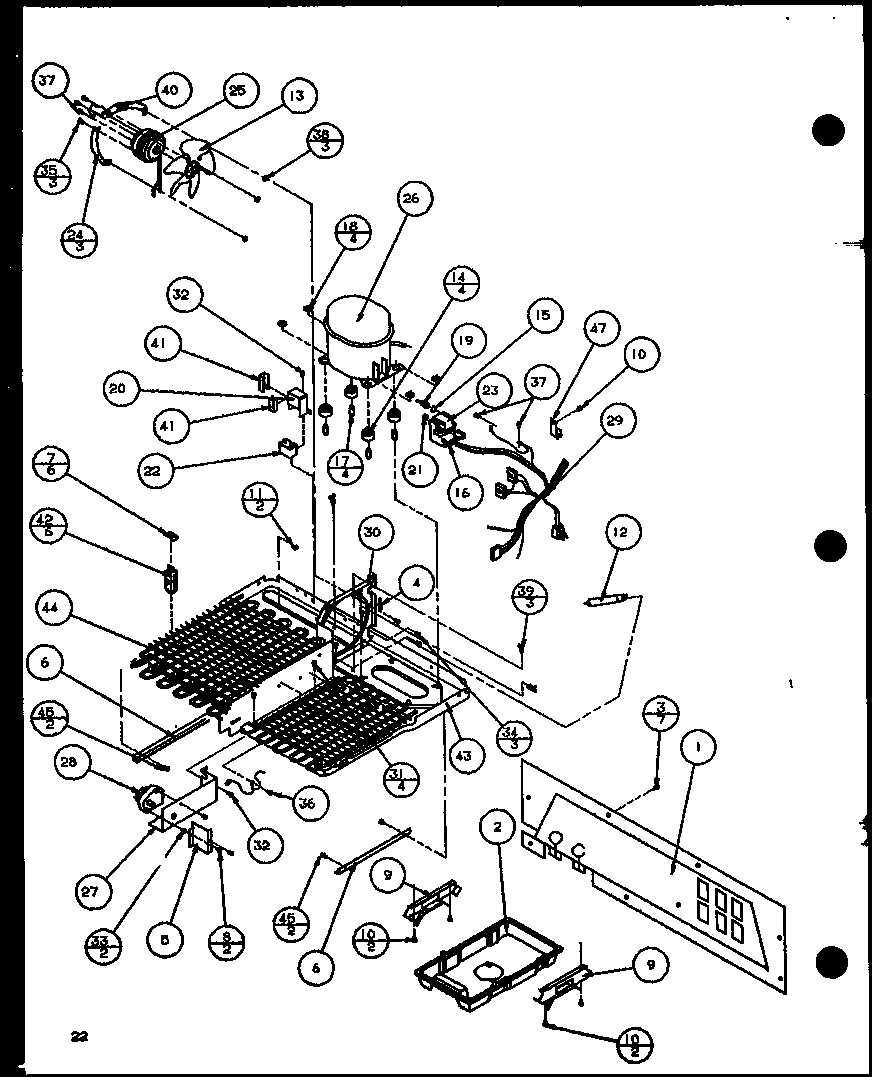

06 - MACHINE COMPARTMENT

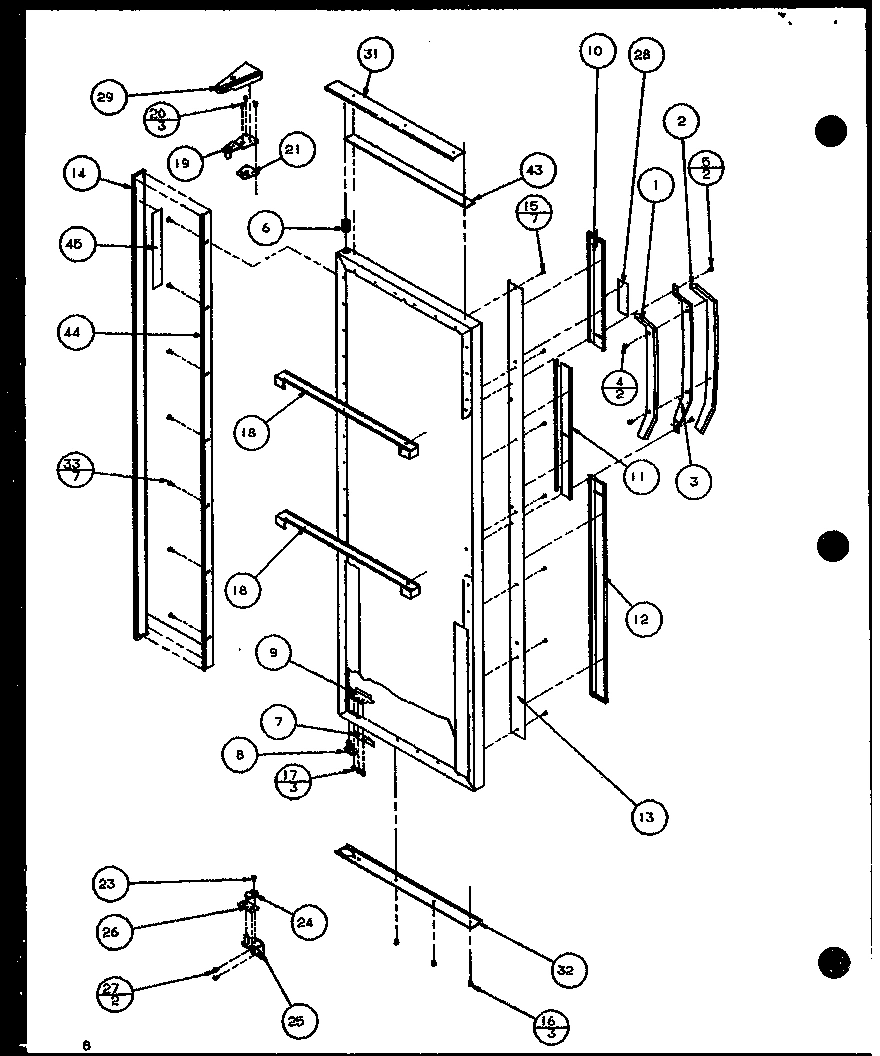

07 - REF DOOR

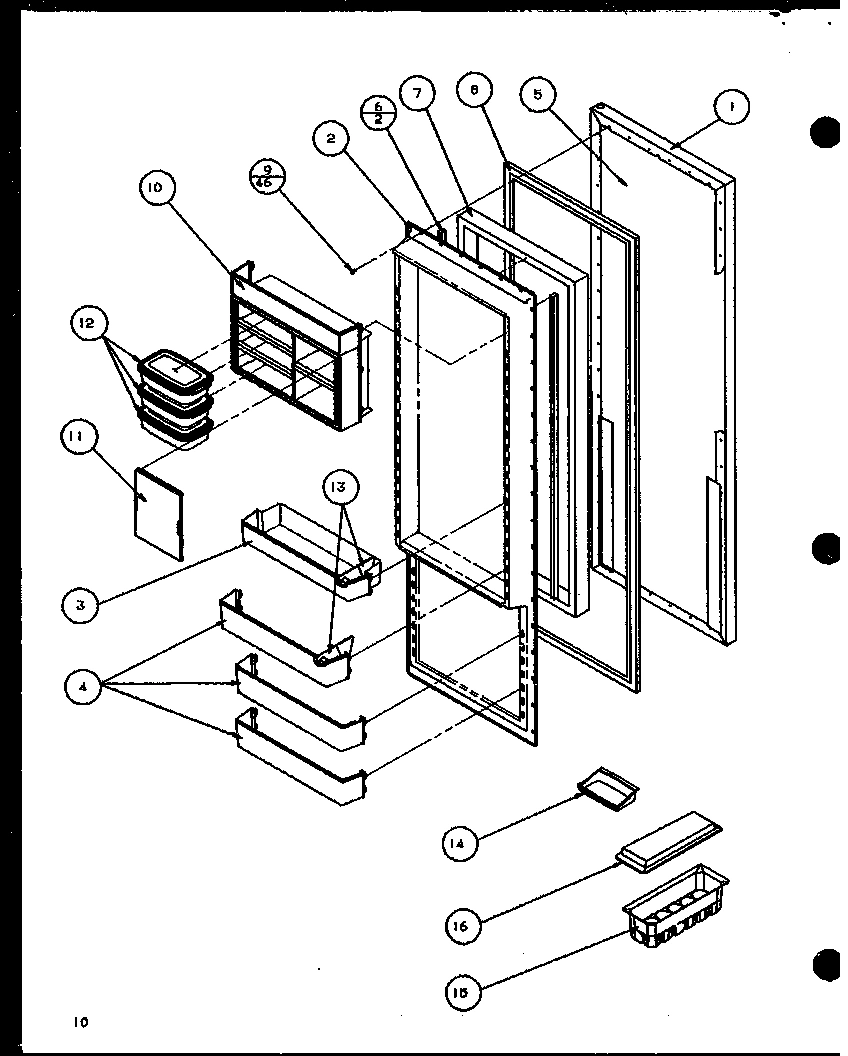

08 - REF DOOR

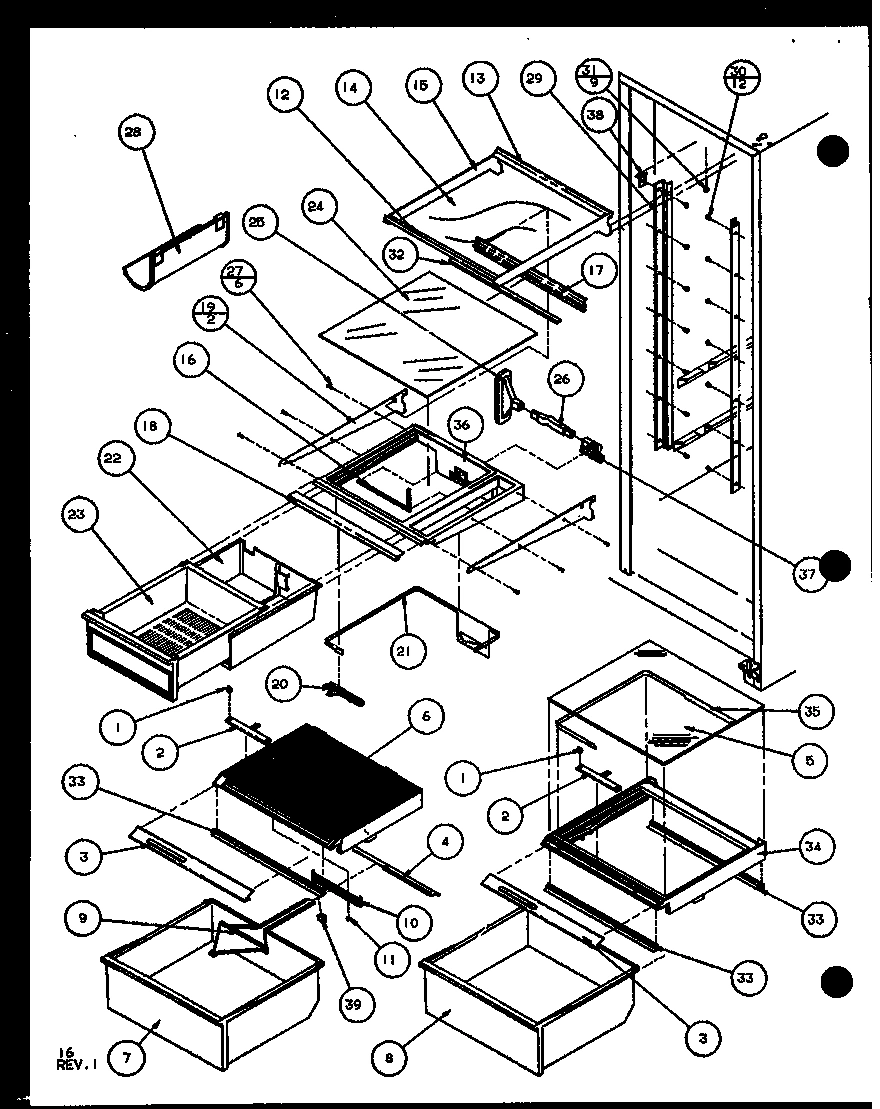

09 - REF SHELVING AND DRAWERES

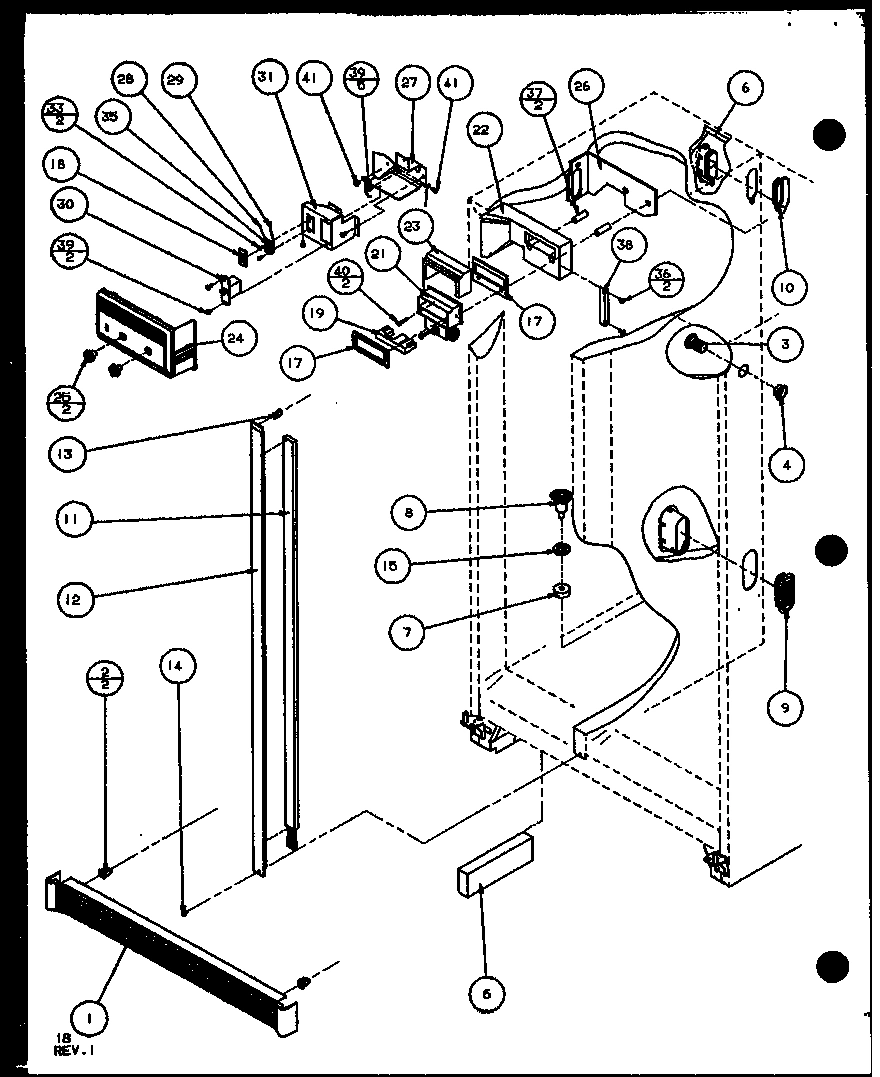

10 - REF/FZ CONTROLS AND CABINET PARTS

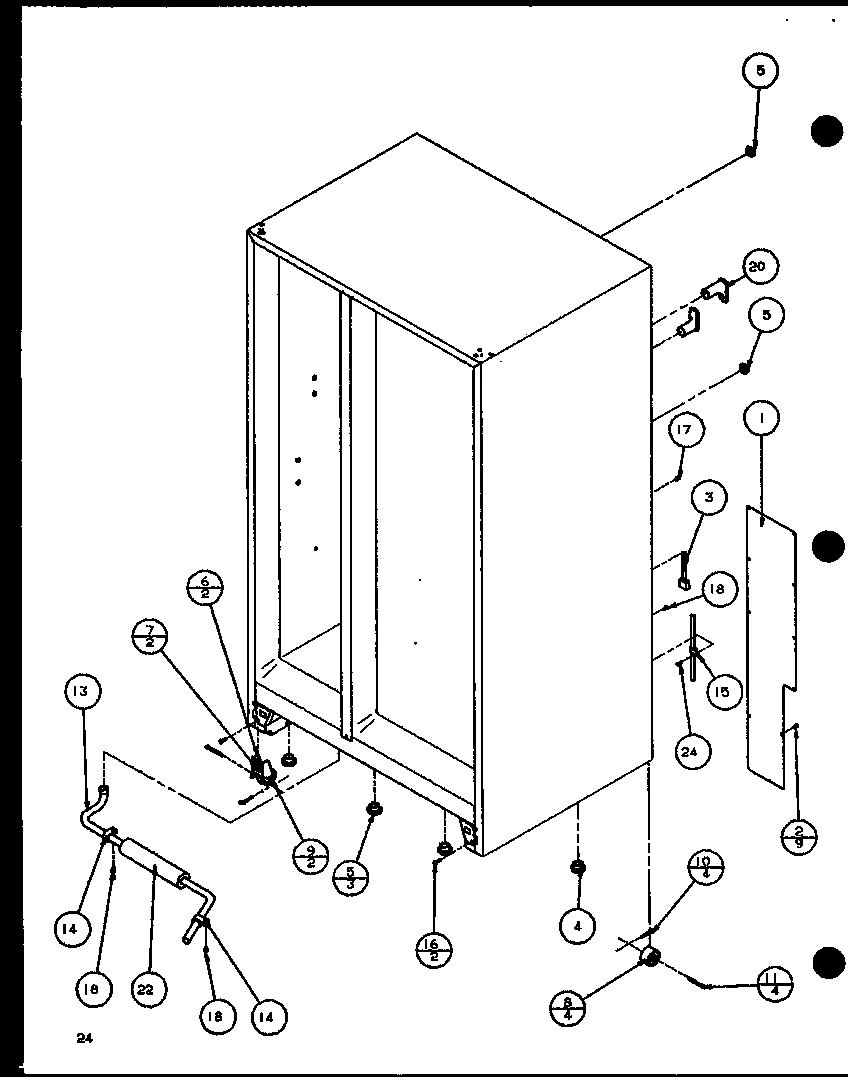

11 - ROLLERS AND BACK UNIT
Common parts from model Maytag SXI20J REFRIGERATOR
1
MAY A1055101 MAY A1055101 Contact Us For Availability
1
MAY D7863001 MAY D7863001 Contact Us For Availability
1
MAY D7863002 MAY D7863002 Contact Us For Availability
1
MAY D7863003 MAY D7863003 Contact Us For Availability
1
MAY D7863004 MAY D7863004 Contact Us For Availability
1
MAY C8987105 MAY C8987105 Contact Us For Availability
1
MAY D7616620 MAY D7616620 Contact Us For Availability
1
MAY D7788901 MAY D7788901 Contact Us For Availability
1
MAY D7845703 MAY D7845703 Contact Us For Availability
1
MAY D7882702 MAY D7882702 Contact Us For Availability
1
MAY D7882704 MAY D7882704 Contact Us For Availability
1
MAY 10038401 MAY 10038401 Contact Us For Availability
1
MAY D7786702 MAY D7786702 Contact Us For Availability
1
MAY D7786703 MAY D7786703 Contact Us For Availability
1
MAY D7786704 MAY D7786704 Contact Us For Availability
1
MAY D7786705 MAY D7786705 Contact Us For Availability
1
MAY D7777602 MAY D7777602 Contact Us For Availability
2
MAY B8386602 MAY B8386602 Contact Us For Availability
2
MAY A3034801 MAY A3034801 Contact Us For Availability
2
MAY D7863101 MAY D7863101 Contact Us For Availability
2
MAY D7863102 MAY D7863102 Contact Us For Availability
2
MAY D7863103 MAY D7863103 Contact Us For Availability
2
MAY D7863104 MAY D7863104 Contact Us For Availability
2
MAY D7820801 MAY D7820801 Contact Us For Availability
2
MAY D7790601 MAY D7790601 Contact Us For Availability
2
MAY D7828203 MAY D7828203 Contact Us For Availability
2
MAY D7860602 MAY D7860602 Contact Us For Availability
2
MAY M0117301 MAY M0117301 Contact Us For Availability
3
MAY C8976102 MAY C8976102 Contact Us For Availability
3
MAY A3084501 MAY A3084501 Contact Us For Availability
3
MAY D7826603 MAY D7826603 Contact Us For Availability
3
MAY D7781506 MAY D7781506 Contact Us For Availability
3
MAY M0241118 MAY M0241118 Contact Us For Availability
3
MAY D7783302 MAY D7783302 Contact Us For Availability
3
MAY D7616629 MAY D7616629 Contact Us For Availability
3
MAY A3187702 MAY A3187702 Contact Us For Availability
3
MAY R0157154 MAY R0157154 Contact Us For Availability
4
MAY D7786901 MAY D7786901 Contact Us For Availability
4
MAY B5705308 MAY B5705308 Contact Us For Availability
4
MAY M0215115 MAY M0215115 Contact Us For Availability
4
MAY D7828601 MAY D7828601 Contact Us For Availability
4
MAY D7788307 MAY D7788307 Contact Us For Availability
4
MAY B5759604 MAY B5759604 Contact Us For Availability
4
MAY D7783402 MAY D7783402 Contact Us For Availability
4
MAY D7764105 MAY D7764105 Contact Us For Availability
4
MAY A3187801 MAY A3187801 Contact Us For Availability
5
MAY D7865901 MAY D7865901 Contact Us For Availability
5
MAY B8374701 MAY B8374701 Contact Us For Availability
5
MAY M0253942 MAY M0253942 Contact Us For Availability
5
MAY B5629043 MAY B5629043 Contact Us For Availability
5
MAY D7788302 MAY D7788302 Contact Us For Availability
5
MAY C8973502 MAY C8973502 Contact Us For Availability
5
MAY B0566723 MAY B0566723 Contact Us For Availability
5
MAY D7421269 MAY D7421269 Contact Us For Availability
5
MAY B5629045 MAY B5629045 Contact Us For Availability
5
MAY A3080001 MAY A3080001 Contact Us For Availability
6
MAY D7821102 MAY D7821102 Contact Us For Availability
6
MAY B8391801 MAY B8391801 Contact Us For Availability
6
MAY B5629044 MAY B5629044 Contact Us For Availability
6
MAY C8913515 MAY C8913515 Contact Us For Availability
6
MAY C8913701 MAY C8913701 Contact Us For Availability
6
MAY C8987104 MAY C8987104 Contact Us For Availability
6
MAY D7856901 MAY D7856901 Contact Us For Availability
6
MAY B5705320 MAY B5705320 Contact Us For Availability
6
MAY C8742401 MAY C8742401 Contact Us For Availability
7
MAY D7867001 MAY D7867001 Contact Us For Availability
7
BRKT, WATER VALVE MAY D7701601 Contact Us For Availability
7
MAY C8972402 MAY C8972402 Contact Us For Availability
7
MAY B0523562 MAY B0523562 Contact Us For Availability
7
MAY C8982801 MAY C8982801 Contact Us For Availability
7
MAY C8913607 MAY C8913607 Contact Us For Availability
7
MAY M0293703 MAY M0293703 Contact Us For Availability
7
MAY D7817203 MAY D7817203 Contact Us For Availability
7
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
7
MAY M0286708 MAY M0286708 Contact Us For Availability
8
MAY D7838301 MAY D7838301 Contact Us For Availability
8
MAY D7712602 MAY D7712602 Contact Us For Availability
8
MAY D7751402 MAY D7751402 Contact Us For Availability
8
MAY D7845730 MAY D7845730 Contact Us For Availability
8
MAY D7882714 MAY D7882714 Contact Us For Availability
8
MAY D7882716 MAY D7882716 Contact Us For Availability
8
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
8
MAY M0216716 MAY M0216716 Contact Us For Availability
8
MAY D7870905 MAY D7870905 Contact Us For Availability
8
MAY D7782006 MAY D7782006 Contact Us For Availability
8
MAY D7753901 MAY D7753901 Contact Us For Availability
8
MAY M0520102 MAY M0520102 Contact Us For Availability
9
MAY D7806201 MAY D7806201 Contact Us For Availability
9
MAY D7852102 MAY D7852102 Contact Us For Availability
9
MAY D7852103 MAY D7852103 Contact Us For Availability
9
MAY D7852104 MAY D7852104 Contact Us For Availability
9
MAY D7852105 MAY D7852105 Contact Us For Availability
9
MAY D7790801 MAY D7790801 Contact Us For Availability
9
MAY M0219717 MAY M0219717 Contact Us For Availability
9
MAY D7827302 MAY D7827302 Contact Us For Availability
9
MAY C8973401 MAY C8973401 Contact Us For Availability
9
MAY D7790501 MAY D7790501 Contact Us For Availability
9
MAY D7782204 MAY D7782204 Contact Us For Availability
9
MAY D7785401 MAY D7785401 Contact Us For Availability
9
MAY M1205302 MAY M1205302 Contact Us For Availability
10
MAY D7826301 MAY D7826301 Contact Us For Availability
10
MAY D7853902 MAY D7853902 Contact Us For Availability
10
MAY D7853903 MAY D7853903 Contact Us For Availability
10
MAY D7853904 MAY D7853904 Contact Us For Availability
10
MAY D7853905 MAY D7853905 Contact Us For Availability
10
MAY D7800403 MAY D7800403 Contact Us For Availability
10
MAY D7852007 MAY D7852007 Contact Us For Availability
10
MAY D7852008 MAY D7852008 Contact Us For Availability
10
MAY D7852009 MAY D7852009 Contact Us For Availability
10
MAY D7852010 MAY D7852010 Contact Us For Availability
10
MAY D7781202 MAY D7781202 Contact Us For Availability
10
MAY D7807602 MAY D7807602 Contact Us For Availability
10
MAY D7785501 MAY D7785501 Contact Us For Availability
10
MAY M1200004 MAY M1200004 Contact Us For Availability
11
MAY D7820401 MAY D7820401 Contact Us For Availability
11
MAY D7792702 MAY D7792702 Contact Us For Availability
11
MAY D7792703 MAY D7792703 Contact Us For Availability
11
MAY D7792704 MAY D7792704 Contact Us For Availability
11
MAY D7792705 MAY D7792705 Contact Us For Availability
11
MAY D7870904 MAY D7870904 Contact Us For Availability
11
MAY 10014704 MAY 10014704 Contact Us For Availability
11
MAY M0233844 MAY M0233844 Contact Us For Availability
11
MAY D7853802 MAY D7853802 Contact Us For Availability
11
MAY D7853803 MAY D7853803 Contact Us For Availability
11
MAY D7853804 MAY D7853804 Contact Us For Availability
11
MAY D7853805 MAY D7853805 Contact Us For Availability
11
MAY D7781304 MAY D7781304 Contact Us For Availability
11
MAY M0230017 MAY M0230017 Contact Us For Availability
11
MAY D7837501 MAY D7837501 Contact Us For Availability
11
MAY M1200202 MAY M1200202 Contact Us For Availability
12
MAY D7824701 MAY D7824701 Contact Us For Availability
12
MAY D7792902 MAY D7792902 Contact Us For Availability
12
MAY D7829503 MAY D7829503 Contact Us For Availability
12
MAY C3680304 MAY C3680304 Contact Us For Availability
12
MAY B5715001 MAY B5715001 Contact Us For Availability
12
MAY D7792802 MAY D7792802 Contact Us For Availability
12
MAY D7792803 MAY D7792803 Contact Us For Availability
12
MAY D7792804 MAY D7792804 Contact Us For Availability
12
MAY D7792805 MAY D7792805 Contact Us For Availability
12
MAY D7806403 MAY D7806403 Contact Us For Availability
12
MAY C8913513 MAY C8913513 Contact Us For Availability
12
MAY D7788602 MAY D7788602 Contact Us For Availability
12
MAY D7788605 MAY D7788605 Contact Us For Availability
12
MAY D7788606 MAY D7788606 Contact Us For Availability
13
MAY D7875201 MAY D7875201 Contact Us For Availability
13
MAY D7837401 MAY D7837401 Contact Us For Availability
13
MAY D7838201 MAY D7838201 Contact Us For Availability
13
MAY D7760101 MAY D7760101 Contact Us For Availability
13
MAY B5742601 MAY B5742601 Contact Us For Availability
13
MAY D7793202 MAY D7793202 Contact Us For Availability
13
MAY D7814601 MAY D7814601 Contact Us For Availability
13
MAY C8913606 MAY C8913606 Contact Us For Availability
13
MAY M0113604 MAY M0113604 Contact Us For Availability
13
MAY D7748501 MAY D7748501 Contact Us For Availability
14
MAY M0114003 MAY M0114003 Contact Us For Availability
14
MAY D7877601 MAY D7877601 Contact Us For Availability
14
MAY 10063206 MAY 10063206 Contact Us For Availability
14
MAY B8333401 MAY B8333401 Contact Us For Availability
14
MAY D3799802 MAY D3799802 Contact Us For Availability
14
MAY D7421245 MAY D7421245 Contact Us For Availability
14
MAY M0102303 MAY M0102303 Contact Us For Availability
15
MAY C8976201 MAY C8976201 Contact Us For Availability
15
MAY M0211116 MAY M0211116 Contact Us For Availability
15
MAY M0213815 MAY M0213815 Contact Us For Availability
15
MAY 10063101 MAY 10063101 Contact Us For Availability
15
MAY A0282803 MAY A0282803 Contact Us For Availability
15
MAY B8358301 MAY B8358301 Contact Us For Availability
15
MAY D7695604 MAY D7695604 Contact Us For Availability
15
MAY D7871006 MAY D7871006 Contact Us For Availability
15
SEAL, O RING MAY M0500703 Contact Us For Availability
15
MAY M0103901 MAY M0103901 Contact Us For Availability
16
MAY M0230917 MAY M0230917 Contact Us For Availability
16
MAY M0211018 MAY M0211018 Contact Us For Availability
16
MAY YB8358601 MAY YB8358601 Contact Us For Availability
16
MAY D7805901 MAY D7805901 Contact Us For Availability
16
MAY A3263905 MAY A3263905 Contact Us For Availability
16
MAY M0204339 MAY M0204339 Contact Us For Availability
17
MAY M0232903 MAY M0232903 Contact Us For Availability
17
MAY C8976301 MAY C8976301 Contact Us For Availability
17
MAY B8384901 MAY B8384901 Contact Us For Availability
17
MAY C8990404 MAY C8990404 Contact Us For Availability
17
MAY B8345401 MAY B8345401 Contact Us For Availability
18
MAY A4539606 MAY A4539606 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
18
MAY M0233704 MAY M0233704 Contact Us For Availability
18
MAY B8385001 MAY B8385001 Contact Us For Availability
18
MAY D7837402 MAY D7837402 Contact Us For Availability
18
MAY C8913531 MAY C8913531 Contact Us For Availability
18
MAY B8391601 MAY B8391601 Contact Us For Availability
19
MAY M0322202 MAY M0322202 Contact Us For Availability
19
MAY B5757707 MAY B5757707 Contact Us For Availability
19
MAY D7757803 MAY D7757803 Contact Us For Availability
19
MAY D7839901 MAY D7839901 Contact Us For Availability
19
MAY C8906203 MAY C8906203 Contact Us For Availability
19
MAY D7862958 MAY D7862958 Contact Us For Availability
19
MAY D7862959 MAY D7862959 Contact Us For Availability
19
MAY C8902601 MAY C8902601 Contact Us For Availability
20
MAY D7865802 MAY D7865802 Contact Us For Availability
20
MAY M0311301 MAY M0311301 Contact Us For Availability
20
MAY M0257244 MAY M0257244 Contact Us For Availability
20
MAY D7839902 MAY D7839902 Contact Us For Availability
20
MAY C8931101 MAY C8931101 Contact Us For Availability
20
MAY D7859401 MAY D7859401 Contact Us For Availability
20
MAY C8971902 MAY C8971902 Contact Us For Availability
21
MAY D7850202 MAY D7850202 Contact Us For Availability
21
MAY B8389001 MAY B8389001 Contact Us For Availability
21
MAY M0213529 MAY M0213529 Contact Us For Availability
21
MAY C8931502 MAY C8931502 Contact Us For Availability
21
MAY D7859501 MAY D7859501 Contact Us For Availability
21
MAY D7547407 MAY D7547407 Contact Us For Availability
22
MAY M0580003 MAY M0580003 Contact Us For Availability
22
MAY B8318810 MAY B8318810 Contact Us For Availability
22
MAY C8971701 MAY C8971701 Contact Us For Availability
22
MAY C8931602 MAY C8931602 Contact Us For Availability
22
MAY D7817902 MAY D7817902 Contact Us For Availability
22
MAY D7749902 MAY D7749902 Contact Us For Availability
22
MAY A0329814 MAY A0329814 Contact Us For Availability
23
GASKET, EVAP. MAY B8327901 Contact Us For Availability
23
MAY D7757703 MAY D7757703 Contact Us For Availability
23
MAY C8960801 MAY C8960801 Contact Us For Availability
23
MAY D7814002 MAY D7814002 Contact Us For Availability
23
MAY D7788201 MAY D7788201 Contact Us For Availability
24
MAY B8385502 MAY B8385502 Contact Us For Availability
24
MAY B8385601 MAY B8385601 Contact Us For Availability
24
MAY D7748301 MAY D7748301 Contact Us For Availability
24
MAY D7771301 MAY D7771301 Contact Us For Availability
24
MAY C8982101 MAY C8982101 Contact Us For Availability
24
MAY M0211016 MAY M0211016 Contact Us For Availability
24
MAY D7421298 MAY D7421298 Contact Us For Availability
24
MAY D7790301 MAY D7790301 Contact Us For Availability
25
MAY M0256258 MAY M0256258 Contact Us For Availability
25
MAY D7808602 MAY D7808602 Contact Us For Availability
25
MAY D7584002 MAY D7584002 Contact Us For Availability
25
MAY D7757704 MAY D7757704 Contact Us For Availability
25
MAY D7873601 MAY D7873601 Contact Us For Availability
25
MAY D7795806 MAY D7795806 Contact Us For Availability
26
MAY C8972006 MAY C8972006 Contact Us For Availability
26
MAY B8386701 MAY B8386701 Contact Us For Availability
26
MAY B8386702 MAY B8386702 Contact Us For Availability
26
MAY B8386703 MAY B8386703 Contact Us For Availability
26
MAY B8387701 MAY B8387701 Contact Us For Availability
26
MAY B8387702 MAY B8387702 Contact Us For Availability
26
MAY C8778301 MAY C8778301 Contact Us For Availability
26
MAY D7739203 MAY D7739203 Contact Us For Availability
26
MAY D7869001 MAY D7869001 Contact Us For Availability
26
MAY D7819101 MAY D7819101 Contact Us For Availability
27
MAY C8983101 MAY C8983101 Contact Us For Availability
27
MAY 10014705 MAY 10014705 Contact Us For Availability
27
MAY D7844201 MAY D7844201 Contact Us For Availability
27
MAY M0246258 MAY M0246258 Contact Us For Availability
27
MAY M0230028 MAY M0230028 Contact Us For Availability
27
MAY D7822401 MAY D7822401 Contact Us For Availability
28
MAY D7872801 MAY D7872801 Contact Us For Availability
28
MAY D7297602 MAY D7297602 Contact Us For Availability
28
MAY D7790403 MAY D7790403 Contact Us For Availability
28
MAY C8984305 MAY C8984305 Contact Us For Availability
28
MAY D7547603 MAY D7547603 Contact Us For Availability
28
MAY A3221103 MAY A3221103 Contact Us For Availability
29
MAY R0170031 MAY R0170031 Contact Us For Availability
29
MAY D7872101 MAY D7872101 Contact Us For Availability
29
MAY D7716403 MAY D7716403 Contact Us For Availability
29
MAY D7866501 MAY D7866501 Contact Us For Availability
29
MAY D7789803 MAY D7789803 Contact Us For Availability
29
MAY D7789804 MAY D7789804 Contact Us For Availability
29
MAY A3221104 MAY A3221104 Contact Us For Availability
30
MAY A1017202 MAY A1017202 Contact Us For Availability
30
MAY B5733302 MAY B5733302 Contact Us For Availability
30
MAY D7844110 MAY D7844110 Contact Us For Availability
30
MAY M0211017 MAY M0211017 Contact Us For Availability
30
MAY C3615024 MAY C3615024 Contact Us For Availability
31
MAY A1047901 MAY A1047901 Contact Us For Availability
31
MAY D7872403 MAY D7872403 Contact Us For Availability
31
MAY M0580007 MAY M0580007 Contact Us For Availability
31
MAY D7872204 MAY D7872204 Contact Us For Availability
31
MAY D7868601 MAY D7868601 Contact Us For Availability
32
FAN-EVAP MAY C8795501 Contact Us For Availability
32
MAY D7872501 MAY D7872501 Contact Us For Availability
32
MAY D7872301 MAY D7872301 Contact Us For Availability
32
MAY 10043102 MAY 10043102 Contact Us For Availability
33
MAY C8881301 MAY C8881301 Contact Us For Availability
33
MAY M0223004 MAY M0223004 Contact Us For Availability
33
PLUG MAY A3069103 Contact Us For Availability
33
MAY M0218118 MAY M0218118 Contact Us For Availability
33
MAY D7718403 MAY D7718403 Contact Us For Availability
33
MAY D7718404 MAY D7718404 Contact Us For Availability
33
MAY M0234003 MAY M0234003 Contact Us For Availability
34
MAY C8891601 MAY C8891601 Contact Us For Availability
34
MAY C8986101 MAY C8986101 Contact Us For Availability
34
MAY M0221332 MAY M0221332 Contact Us For Availability
34
MAY D7853202 MAY D7853202 Contact Us For Availability
35
MAY D7767701 MAY D7767701 Contact Us For Availability
35
MAY D7839701 MAY D7839701 Contact Us For Availability
35
MAY M0223803 MAY M0223803 Contact Us For Availability
35
MAY D7859601 MAY D7859601 Contact Us For Availability
35
MAY M0342601 MAY M0342601 Contact Us For Availability
36
MAY M0211030 MAY M0211030 Contact Us For Availability
36
MAY D7820702 MAY D7820702 Contact Us For Availability
36
MAY D7857003 MAY D7857003 Contact Us For Availability
36
SCREW 1`` MAY M0211021 Contact Us For Availability
37
MAY M0253916 MAY M0253916 Contact Us For Availability
37
MAY D7869102 MAY D7869102 Contact Us For Availability
37
MAY A3044208 MAY A3044208 Contact Us For Availability
38
MAY M0560005 MAY M0560005 Contact Us For Availability
38
MAY M0500107 MAY M0500107 Contact Us For Availability
38
MAY C8992301 MAY C8992301 Contact Us For Availability
38
MAY C8977301 MAY C8977301 Contact Us For Availability
39
MAY M0580002 MAY M0580002 Contact Us For Availability
39
MAY M0585401 MAY M0585401 Contact Us For Availability
39
MAY M0118102 MAY M0118102 Contact Us For Availability
40
MAY M0321202 MAY M0321202 Contact Us For Availability
40
MAY M0216539 MAY M0216539 Contact Us For Availability
41
MAY A3261703 MAY A3261703 Contact Us For Availability
42
MAY B8346301 MAY B8346301 Contact Us For Availability
43
MAY R0195037 MAY R0195037 Contact Us For Availability
43
MAY D7748602 MAY D7748602 Contact Us For Availability
44
MAY 10015401 MAY 10015401 Contact Us For Availability
44
MAY D7824504 MAY D7824504 Contact Us For Availability
45
MAY M0211530 MAY M0211530 Contact Us For Availability
45
MAY R0195038 MAY R0195038 Contact Us For Availability
47
MAY M0102325 MAY M0102325 Contact Us For Availability
NI
MAY A1066001 MAY A1066001 Contact Us For Availability
NI
MAY D7871301 MAY D7871301 Contact Us For Availability
NI
MAY D7871802 MAY D7871802 Contact Us For Availability
NI
MAY R0179117 MAY R0179117 Contact Us For Availability
× ![]()
