Model LG SV12A10 SLIDER CASEMENT – Common Parts & Diagrams

Common parts from model LG SV12A10 SLIDER CASEMENT

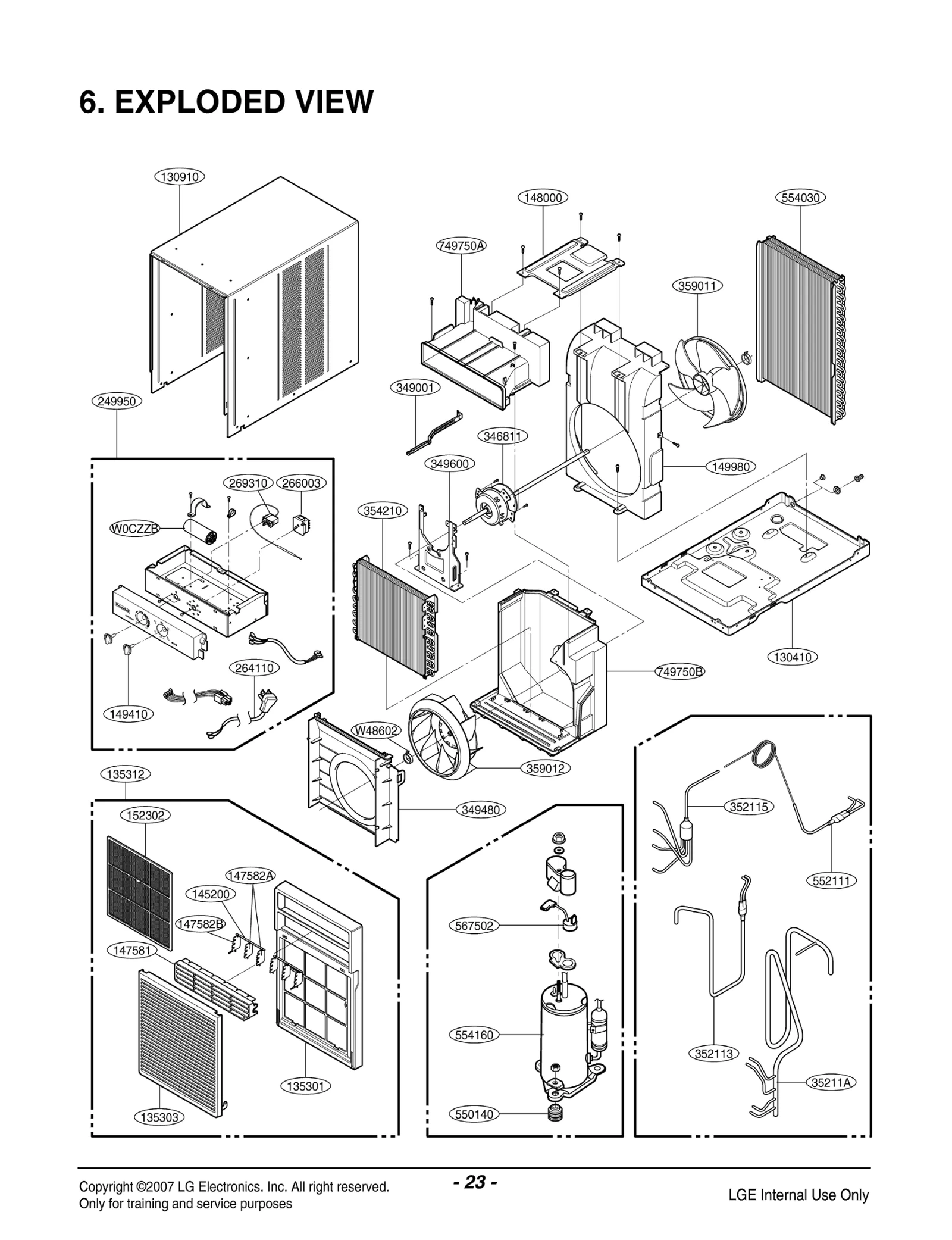

Diagram 0

Print

• This Diagram
• All Diagrams

130910

CABINET ASSEMBLY,SINGLE LGE 3091A20014A Contact Us For Availability

View on Model

135301

GRILLE,FRONT LGE 3530A20055A Contact Us For Availability

View on Model

135303

GRILLE,INLET LGE 3530A20056A Contact Us For Availability

View on Model

135312

GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A20123A Contact Us For Availability

View on Model

145200

4520A30036A LG Link Backorder LGE 4520A30036A View Details $3.64

View on Model

147581

LOUVER,HORIZONTAL LGE 4758A20032A Contact Us For Availability

View on Model

147582A

LOUVER,VERTICAL LGE 4758A20017A Contact Us For Availability

View on Model

147582B

LOUVER,VERTICAL LGE 4758A20017B Contact Us For Availability

View on Model

148000

4800A20001A LG Air Conditioner Support Assemb Backorder LGE 4800A20001A View Details $8.52

View on Model

149410

KNOB ASSEMBLY LGE 4941A30017A Contact Us For Availability

View on Model

149980

Shroud LGE 4998A10017A Contact Us For Availability

View on Model

152302

FILTER ASSEMBLY,AIR CLEANER LGE 5231A20012A Contact Us For Availability

View on Model

249950

CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20227S Contact Us For Availability

View on Model

264110

POWER CORD ASSEMBLY LGE 6411A20011P Contact Us For Availability

View on Model

266003

2H00598E LG Rotary Switch Backorder LGE 2H00598E View Details $28.39

View on Model

269310

THERMOSTAT ASSEMBLY LGE 2H01109Q Contact Us For Availability

View on Model

346811

MOTOR ASSEMBLY,SINGLE LGE 4681A20069C Contact Us For Availability

View on Model

349001

DAMPER,VENTILATION LGE 4900A20006A Contact Us For Availability

View on Model

349480

ORIFICE LGE 4948A20012A Contact Us For Availability

View on Model

349600

4960A20034A LG Motor Bracket Backorder LGE 4960A20034A View Details $19.35

View on Model

352113

5211A20558F LG Discharge Tube Assembly Backorder LGE 5211A20558F View Details $48.13

View on Model

352115

5211A20575C LG Evaporator Tube Assembly Backorder LGE 5211A20575C View Details $46.12

View on Model

354210

EVAPORATOR ASSEMBLY,FIRST LGE 5421A20115D Contact Us For Availability

View on Model

359011

FAN,AXIAL LGE 5900A20026A Contact Us For Availability

View on Model

359012

FAN,TURBO LGE 5900A20019A Contact Us For Availability

View on Model

550140

4830AR4335A LG Compressor Damper Backorder LGE 4830AR4335A View Details $3.64

View on Model

552111

TUBE ASSEMBLY,CAPILLARY LGE 5211A20557K Contact Us For Availability

View on Model

554030

CONDENSER ASSEMBLY,FIRST LGE 5403A20082A Contact Us For Availability

View on Model

554160

COMPRESSOR SET LGE 2520UKGC2DA Contact Us For Availability

View on Model

567502

6750U-L029A LG Overload Protector Backorder LGE 6750U-L029A View Details $15.11

View on Model

749750A

AIR GUIDE ASSEMBLY LGE 5239A20007A Contact Us For Availability

View on Model

749750B

AIR GUIDE ASSEMBLY LGE 5239A20008A Contact Us For Availability

View on Model

W0CZZB

CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.64

View on Model

×
