Model Electrolux SU777EXR2 DISHWASHER – Common Parts & Diagrams
01 - COVER

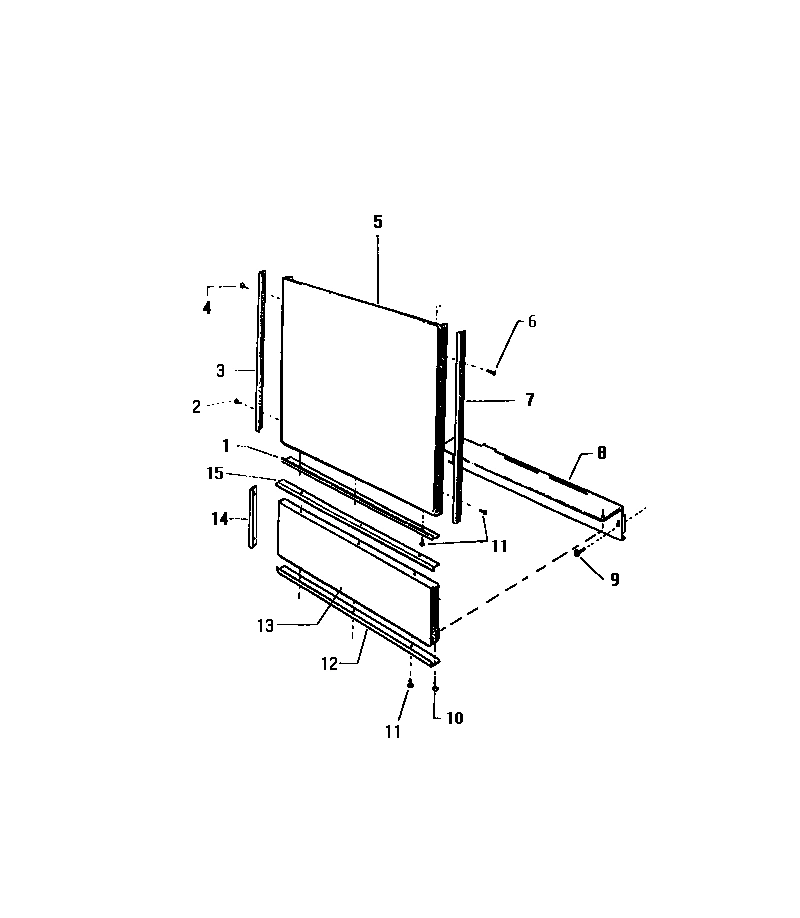

02 - OUTER DOOR

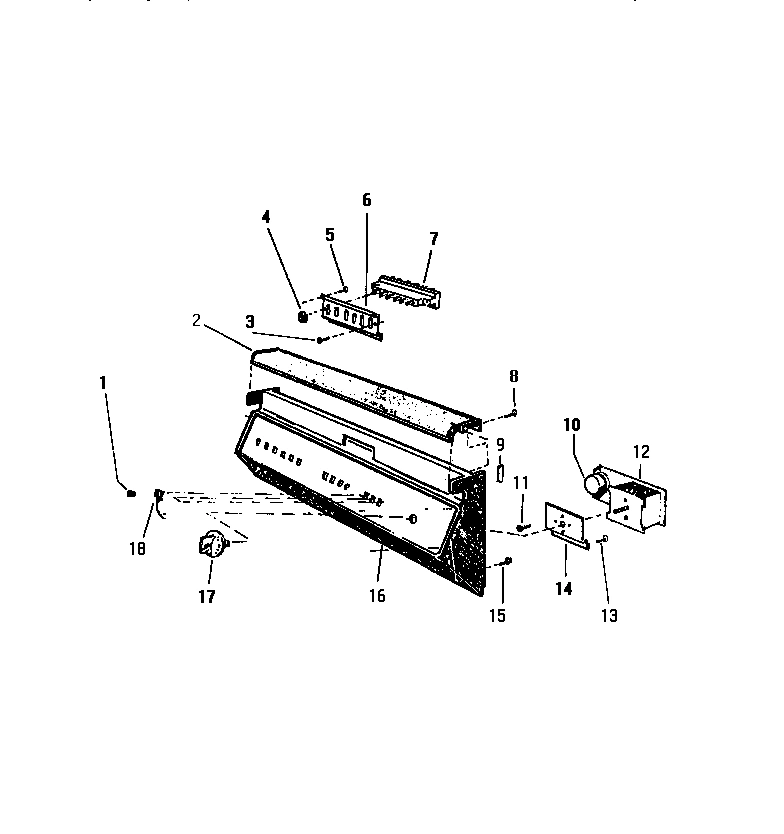

03 - CONTROL PANEL

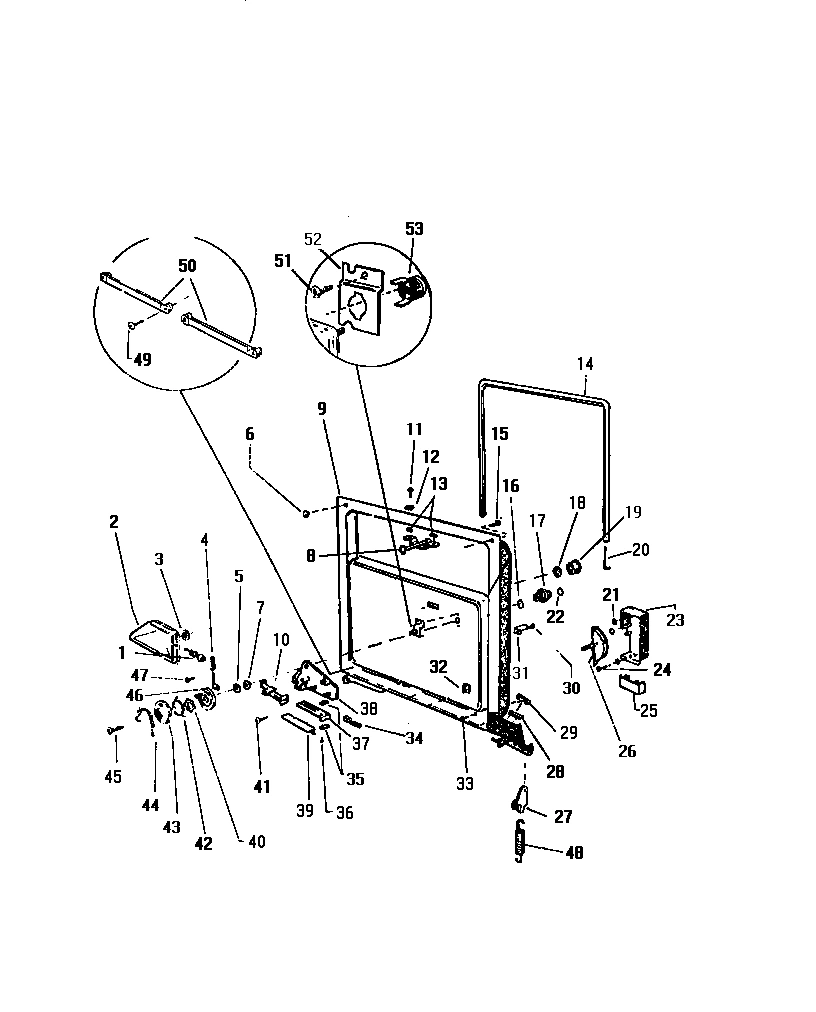

04 - INNER PANEL & COMPONENTS

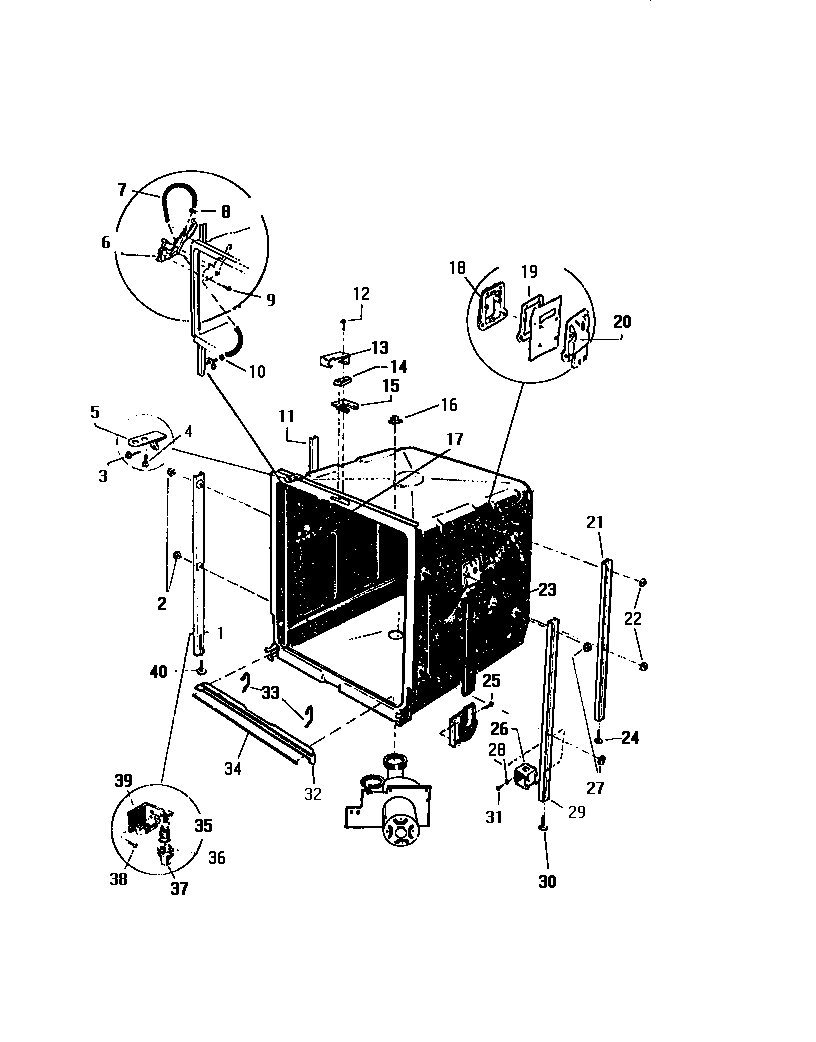

05 - OUTER TUB

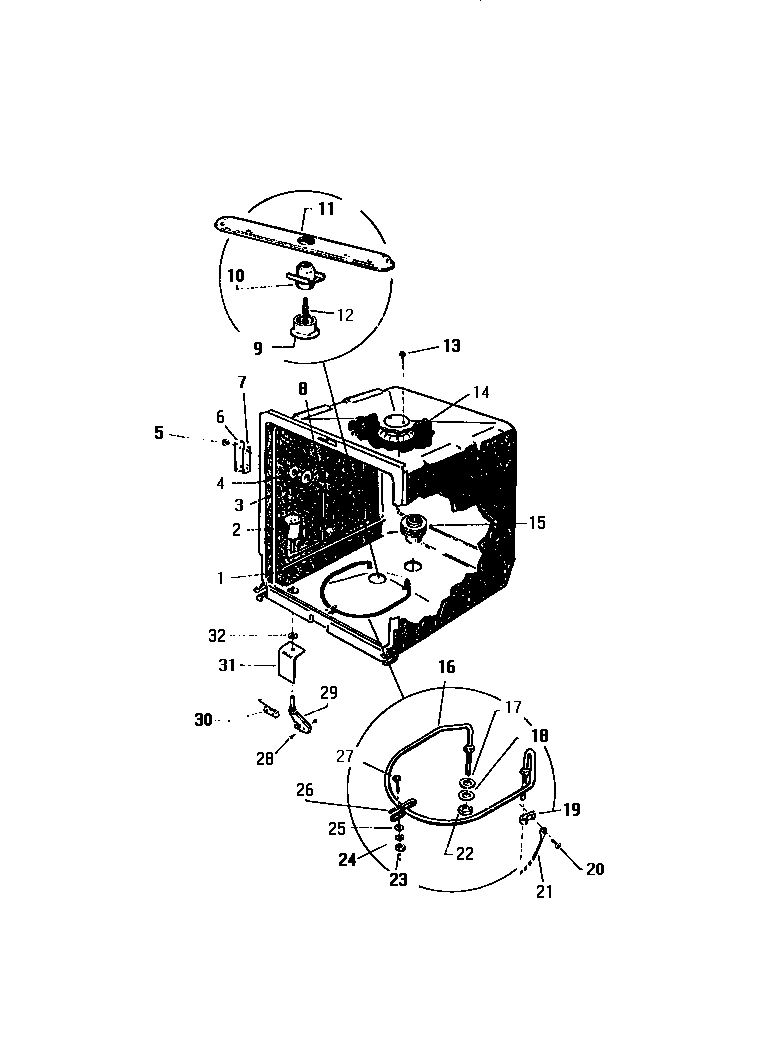

06 - INNER TUB COMPONENTS

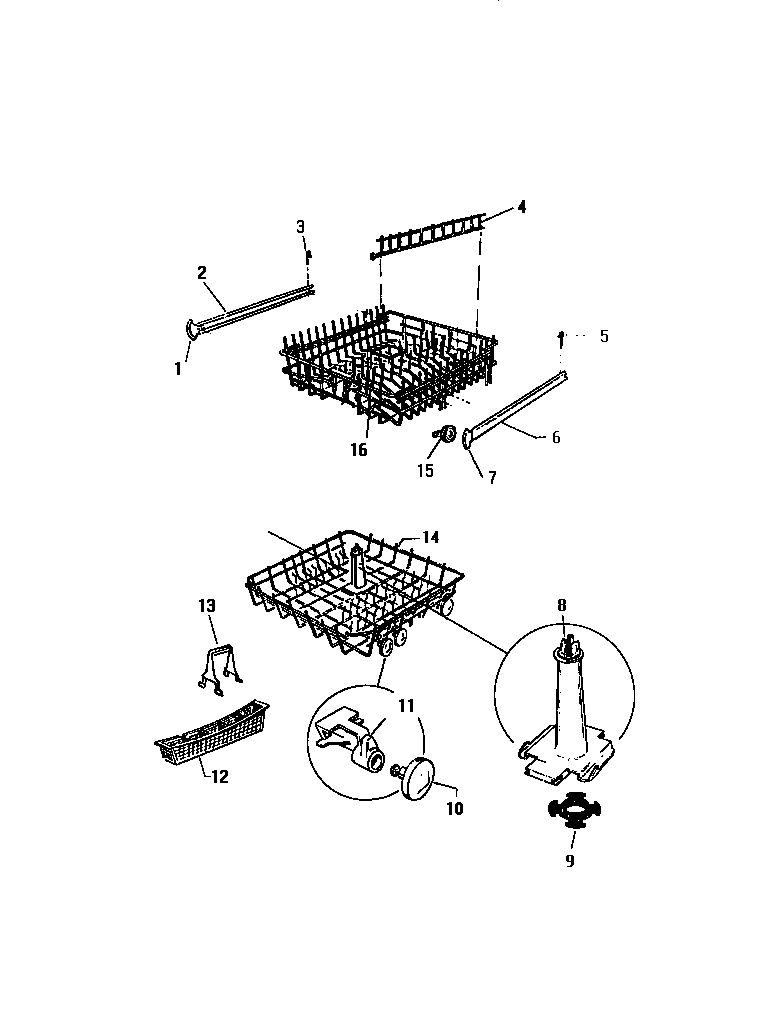

07 - RACKS & WASH TOWER

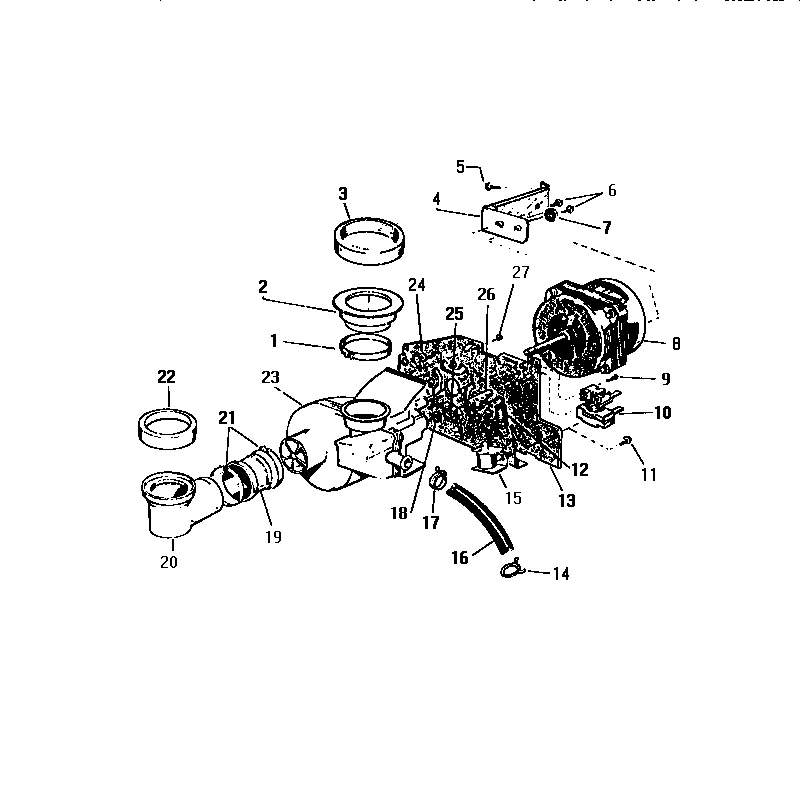

08 - PUMP, MOTOR AND COMPONENTS
Common parts from model Electrolux SU777EXR2 DISHWASHER
*27600
HARNESS TUB & DOOR -2 MODELS WCI S439901 Contact Us For Availability
*27601
HARNESS TUB & DOOR -3 MODELS WCI S452601 Contact Us For Availability
*27602
WCI S263902 WCI S263902 Contact Us For Availability
*27603
WIRE-GND-MOTOR WCI S11101 Contact Us For Availability
*27604
INSULATION (TUB) W/STRAPS WCI S900134 Contact Us For Availability
*27605
WCI S123702 WCI S123702 Contact Us For Availability
*27606
PAL NUT-HARNESS TO TUB WCI C507845 Contact Us For Availability
*27607
SEALANT & TUB PATCH WCI S900113 Contact Us For Availability
*27608
WCI Q49587 WCI Q49587 Contact Us For Availability
*27609
WCI Q171155 WCI Q171155 Contact Us For Availability
*27610
TOUCH UP PAINT, 1 OZ., AVOCADO WCI Q171154 Contact Us For Availability
*27611
WCI Q171156 WCI Q171156 Contact Us For Availability
*27612
WCI Q171157 WCI Q171157 Contact Us For Availability
1
WCI S3401 WCI S3401 Contact Us For Availability
1
WCI S3402 WCI S3402 Contact Us For Availability
1
WCI S250402 WCI S250402 Contact Us For Availability
1
WCI 2647D67H WCI 2647D67H Contact Us For Availability
1
WCI S117901 WCI S117901 Contact Us For Availability
1
END CAP-LEFT SIDE WCI S1129945 Contact Us For Availability
1
WCI 2646D60H32 WCI 2646D60H32 Contact Us For Availability
2
WCI S427108 WCI S427108 Contact Us For Availability
2
WCI S401001 WCI S401001 Contact Us For Availability
2
WCI S415202 WCI S415202 Contact Us For Availability
2
SLIDE/W/END CAP LEFT SIDE WCI S266002 Contact Us For Availability
2
WCI 689B559H01 WCI 689B559H01 Contact Us For Availability
3
SCREW AS REQ. WCI Q413102 Contact Us For Availability
3
WCI C411209 WCI C411209 Contact Us For Availability
3
SCREW TO TUB (2) WCI C505617 Contact Us For Availability
3
WCI S116201 WCI S116201 Contact Us For Availability
3
WCI S120601 WCI S120601 Contact Us For Availability
4
WCI 194C661HO2 WCI 194C661HO2 Contact Us For Availability
4
WCI S115101 WCI S115101 Contact Us For Availability
4
SCREW (2) TO CABINET WCI C418701 Contact Us For Availability
4
WCI S4203 WCI S4203 Contact Us For Availability
4
SHELF WCI S266301 Contact Us For Availability
4
WCI S446501 WCI S446501 Contact Us For Availability
5
INSERT-OUTER DOOR, BLACK & ALMOND WCI S263812 Contact Us For Availability
5
WHEAT & COFFEE WCI S263814 Contact Us For Availability
5
PANEL-OUTER DOOR, WHITE WCI S428003 Contact Us For Availability
5
WCI S105601 WCI S105601 Contact Us For Availability
5
WCI 689B594H01 WCI 689B594H01 Contact Us For Availability
5
PIN (2) WCI S118201 Contact Us For Availability
6
WCI S265601 WCI S265601 Contact Us For Availability
6
WCI C502328 WCI C502328 Contact Us For Availability
6
WCI S800521 WCI S800521 Contact Us For Availability
6
WCI S119301 WCI S119301 Contact Us For Availability
6
SLIDE-W/END CAP - RIGHT SIDE WCI S266001 Contact Us For Availability
6
WCI S10401 WCI S10401 Contact Us For Availability
7
WCI S430501 WCI S430501 Contact Us For Availability
7
WCI S434303 WCI S434303 Contact Us For Availability
7
WCI S102301 WCI S102301 Contact Us For Availability
7
WCI 689B519H04 WCI 689B519H04 Contact Us For Availability
7
WCI S5001 WCI S5001 Contact Us For Availability
7
END CAP-RIGHT SIDE WCI S1129944 Contact Us For Availability
7
WCI S9401 WCI S9401 Contact Us For Availability
8
WCI S414904 WCI S414904 Contact Us For Availability
8
SCREW (2) WCI C403401 Contact Us For Availability
8
WCI S450402 WCI S450402 Contact Us For Availability
8
WCI S4101 WCI S4101 Contact Us For Availability
8
WCI S000404812 WCI S000404812 Contact Us For Availability
8
WCI S443701 WCI S443701 Contact Us For Availability
9
WCI S265501 WCI S265501 Contact Us For Availability
9
WCI S417037 WCI S417037 Contact Us For Availability
9
SUPPORT LESS SPRING WCI S255502 Contact Us For Availability
9
GASKET-TOWER ASSEMBLY WCI 194C658H02 Contact Us For Availability
9
SCREW (1) WCI S6901 Contact Us For Availability
10
WCI Q507511 WCI Q507511 Contact Us For Availability
10
MOTOR WCI S900065 Contact Us For Availability
10
LEVER WCI S253102 Contact Us For Availability
10
WCI 194C546H26 WCI 194C546H26 Contact Us For Availability
10
WCI S414702 WCI S414702 Contact Us For Availability
10
WHEEL (8) WCI S251901 Contact Us For Availability
10
WCI S269101 WCI S269101 Contact Us For Availability
11
WCI Q505860 WCI Q505860 Contact Us For Availability
11
SCREW (2) WCI C507511 Contact Us For Availability
11
WCI S6501 WCI S6501 Contact Us For Availability
11
WCI S414601 WCI S414601 Contact Us For Availability
11
SUPPORT WHEEL (8) WCI S404501 Contact Us For Availability
12
WCI S412704 WCI S412704 Contact Us For Availability
12
WCI S453601 WCI S453601 Contact Us For Availability
12
WCI S3502 WCI S3502 Contact Us For Availability
12
WCI S255703 WCI S255703 Contact Us For Availability
12
WCI S403503 WCI S403503 Contact Us For Availability
12
WCI S255701 WCI S255701 Contact Us For Availability
13
INSERT SERVICE PANEL, BLACK & ALMOND WCI S263813 Contact Us For Availability
13
INSERT SERVICE PANEL, WHEAT & COFFEE WCI S263815 Contact Us For Availability
13
PANEL SERVICE AS REQ. WHITE WCI S423810 Contact Us For Availability
13
SCREW 2 REQ WCI Q20363 Contact Us For Availability
13
WCI 194C549H01 WCI 194C549H01 Contact Us For Availability
13
SCREW WCI C505620 Contact Us For Availability
13
WCI S125101 WCI S125101 Contact Us For Availability
13
WCI 194C580H02 WCI 194C580H02 Contact Us For Availability
13
WCI S405806 WCI S405806 Contact Us For Availability
14
TRIM (2 REQ.) WCI S412703 Contact Us For Availability
14
WCI S117701 WCI S117701 Contact Us For Availability
14
WCI S900127 WCI S900127 Contact Us For Availability
14
WCI S125001 WCI S125001 Contact Us For Availability
14
WCI S253601 WCI S253601 Contact Us For Availability
14
RACK-LOWER LESS WHEELS WCI S700203 Contact Us For Availability
14
WCI 194C546H18 WCI 194C546H18 Contact Us For Availability
15
WCI S412705 WCI S412705 Contact Us For Availability
15
WCI S4501 WCI S4501 Contact Us For Availability
15
WCI C500555 WCI C500555 Contact Us For Availability
15
WCI S272502 WCI S272502 Contact Us For Availability
15
WCI S268601 WCI S268601 Contact Us For Availability
15
WCI S1133590 WCI S1133590 Contact Us For Availability
15
WCI S266801 WCI S266801 Contact Us For Availability
16
WCI S900174 WCI S900174 Contact Us For Availability
16
WCI C507906 WCI C507906 Contact Us For Availability
16
WCI 194C559H16 WCI 194C559H16 Contact Us For Availability
16
WCI S900029 WCI S900029 Contact Us For Availability
16
RACK UPPER LESS ROLLERS WCI S702302 Contact Us For Availability
16
WCI 194C644H01 WCI 194C644H01 Contact Us For Availability
17
WCI S252002 WCI S252002 Contact Us For Availability
17
WCI S900042 WCI S900042 Contact Us For Availability
17
WCI S6502 WCI S6502 Contact Us For Availability
17
WCI C411210 WCI C411210 Contact Us For Availability
17
WCI Q502227 WCI Q502227 Contact Us For Availability
18
WCI S900104 WCI S900104 Contact Us For Availability
18
WCI S100401 WCI S100401 Contact Us For Availability
18
WCI 2647D99H03 WCI 2647D99H03 Contact Us For Availability
18
GASKET OUTSD TUB (2) WCI C411208 Contact Us For Availability
18
WCI S104701 WCI S104701 Contact Us For Availability
19
WCI S250001 WCI S250001 Contact Us For Availability
19
WCI 194C623H02 WCI 194C623H02 Contact Us For Availability
19
WCI C507337 WCI C507337 Contact Us For Availability
19
WCI S100701 WCI S100701 Contact Us For Availability
20
CLIP WCI S6201 Contact Us For Availability
20
WCI 2647D89H01 WCI 2647D89H01 Contact Us For Availability
20
SCREW WCI C502510 Contact Us For Availability
20
WCI S410401 WCI S410401 Contact Us For Availability
21
WCI C507905 WCI C507905 Contact Us For Availability
21
LEG WCI 2647D67H01 Contact Us For Availability
21
WCI 2645D77A15 WCI 2645D77A15 Contact Us For Availability
21
WCI 2646D60H34 WCI 2646D60H34 Contact Us For Availability
22
WCI C507907 WCI C507907 Contact Us For Availability
22
NUT (2 REQ.) WCI C501305 Contact Us For Availability
22
WCI S104801 WCI S104801 Contact Us For Availability
23
WCI S401505 WCI S401505 Contact Us For Availability
23
WCI S105202 WCI S105202 Contact Us For Availability
23
WCI C501879 WCI C501879 Contact Us For Availability
23
WCI S412201 WCI S412201 Contact Us For Availability
24
WCI C411605 WCI C411605 Contact Us For Availability
24
WCI C420401 WCI C420401 Contact Us For Availability
25
WCI S265801 WCI S265801 Contact Us For Availability
25
WCI C505384 WCI C505384 Contact Us For Availability
25
WCI S255704 WCI S255704 Contact Us For Availability
26
WCI S401601 WCI S401601 Contact Us For Availability
26
WCI 194C608H02 WCI 194C608H02 Contact Us For Availability
26
WCI 848A040HO1 WCI 848A040HO1 Contact Us For Availability
26
WCI S104001 WCI S104001 Contact Us For Availability
27
WCI 194C581H04 WCI 194C581H04 Contact Us For Availability
27
WCI C503184 WCI C503184 Contact Us For Availability
27
WCI C505458 WCI C505458 Contact Us For Availability
28
WCI C71095 WCI C71095 Contact Us For Availability
28
WASHER WCI Q500411 Contact Us For Availability
28
WCI S900018 WCI S900018 Contact Us For Availability
29
WCI 689B641H01 WCI 689B641H01 Contact Us For Availability
29
WCI 2646D67H05 WCI 2646D67H05 Contact Us For Availability
29
WCI 2645D68H03 WCI 2645D68H03 Contact Us For Availability
30
WCI 2646D25H03 WCI 2646D25H03 Contact Us For Availability
31
WCI 689B600H01 WCI 689B600H01 Contact Us For Availability
31
WCI C505964 WCI C505964 Contact Us For Availability
31
WCI S105001 WCI S105001 Contact Us For Availability
32
WCI S6301 WCI S6301 Contact Us For Availability
32
WCI S401801 WCI S401801 Contact Us For Availability
32
WCI 848A024H01 WCI 848A024H01 Contact Us For Availability
33
WCI S601 WCI S601 Contact Us For Availability
34
BI-METAL (2) WCI S900123 Contact Us For Availability
35
WCI S106901 WCI S106901 Contact Us For Availability
35
SCREEN & WASHER WCI Q19801 Contact Us For Availability
36
WCI C413103 WCI C413103 Contact Us For Availability
36
WCI S122201 WCI S122201 Contact Us For Availability
37
WCI S102501 WCI S102501 Contact Us For Availability
37
WCI S122301 WCI S122301 Contact Us For Availability
38
WCI S406702 WCI S406702 Contact Us For Availability
39
WCI S117601 WCI S117601 Contact Us For Availability
39
FILL VALVE W/SOLENOID WCI 2647D57H02 Contact Us For Availability
40
WCI S115301 WCI S115301 Contact Us For Availability
40
SCREW LEVELING (FR & REAR) WCI C503489 Contact Us For Availability
42
WCI S102701 WCI S102701 Contact Us For Availability
43
WCI S406601 WCI S406601 Contact Us For Availability
44
WCI S102602 WCI S102602 Contact Us For Availability
46
WCI S406501 WCI S406501 Contact Us For Availability
47
WCI S402701 WCI S402701 Contact Us For Availability
48
SPRING WCI 194C676H02 Contact Us For Availability
48
SPRING WCI 194C676H04 Contact Us For Availability
50
WCI S255001 WCI S255001 Contact Us For Availability
51
WCI C402701 WCI C402701 Contact Us For Availability
52
WCI S110001 WCI S110001 Contact Us For Availability
53
WCI S114002 WCI S114002 Contact Us For Availability
× ![]()
