Model LG ST600 – Common Parts & Diagrams

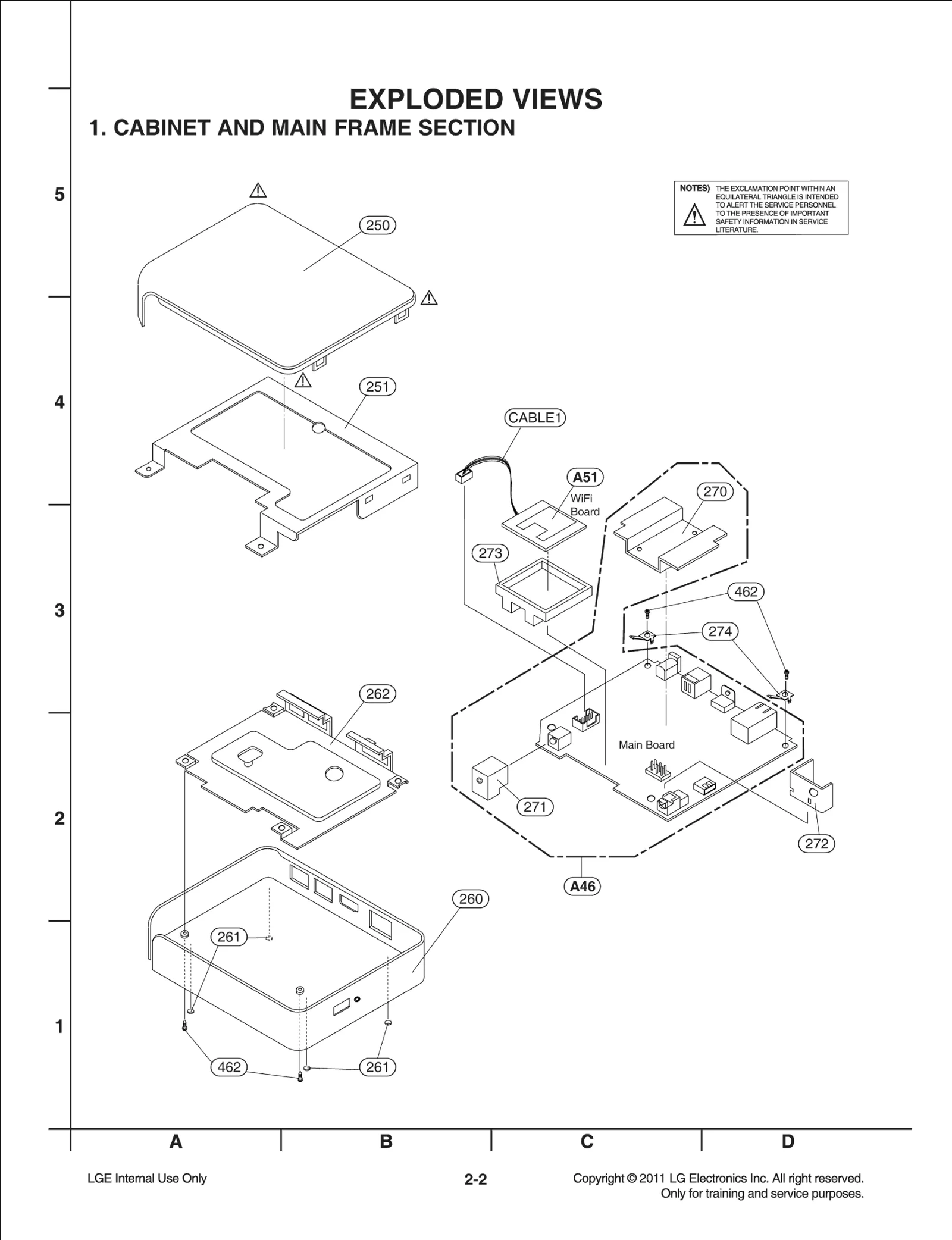

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG ST600
250
Cover LGE MCK66593002 Contact Us For Availability
251
Bracket LGE MAZ63014401 Contact Us For Availability
260
Cover LGE MCK66593103 Contact Us For Availability
261
Foot LGE MDP31428102 Contact Us For Availability
262
Bracket LGE MAZ63014501 Contact Us For Availability
270
Heat Sink LGE MED62292201 Contact Us For Availability
271
Holder Assembly LGE AEJ73419401 Contact Us For Availability
272
Holder LGE MEG62706501 Contact Us For Availability
273
Holder LGE MEG62719901 Contact Us For Availability
274
Plate LGE 3300RCH001A Contact Us For Availability
300
Power Cord LGE EAD60783505 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
801
Manual Assembly,Owners LGE AFN74553218 Contact Us For Availability
802
Box,Master LGE MAY65089747 Contact Us For Availability
802A
Box LGE MAY42946836 Contact Us For Availability
802B
Box,Master LGE MAY65089786 Contact Us For Availability
808
Primary Cell Battery,Alkaline LGE 6910R-AB02C Contact Us For Availability
832
Title LGE SAC35193504 Contact Us For Availability
833
Adapters LGE EAY62409301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73355401 Contact Us For Availability
A46
Option Code Assembly LGE EBR73456602 Contact Us For Availability
A51
Module,WLAN LGE EAT61333201 Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CH1473F562 Contact Us For Availability
C226
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C241
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C245
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C256
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C258
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C260
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C262
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C271
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C303
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C312
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C541
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C560
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C572
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C602
Capacitor,Ceramic,Ch LGE 0CK105BCG7A Contact Us For Availability
C656
CAPACITOR,CHIP[TANTALUM] LGE 0CH7226D621 Contact Us For Availability
C802
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C825
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C852
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
CABLE1
Harness,Single LGE EAD61073408 Contact Us For Availability
CF804
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
CN303
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
IC241
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC271
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC301A
S/W,Firmware LGE SAA35560503 Contact Us For Availability
IC302
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC500
IC,Video Processors LGE EAN61949801 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859601 Contact Us For Availability
IC603A
S/W,Firmware LGE SAA35560501 Contact Us For Availability
JK291
Jack,DC Power LGE EAG61490901 Contact Us For Availability
JK801
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK801
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK803
Connector,DSUB LGE EAG55468501 Contact Us For Availability
JK805
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK806
Connector,USB LGE EAG35130502 Contact Us For Availability
L241
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L502
Filter,Bead LGE EAM58459401 Contact Us For Availability
L506
Filter,Bead LGE 0LCCE00050C Contact Us For Availability
L506
FILTER,BEAD,CHIP LGE SFBH0006806 Contact Us For Availability
L804
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
LED301
LED Assembly LGE EAV61493801 Contact Us For Availability
Q201
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q374
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R203
Resistor,Chip LGE 0RJ3303C478 Contact Us For Availability
R205
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R208
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R211
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R212
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R215
Resistor,Chip LGE 0RH1203C622 Contact Us For Availability
R216
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R218
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R241
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R242
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R247
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R249
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R252
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R253
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R302
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R326
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R344
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R345
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R346
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R348
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R351
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R355
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R375
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R376
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R582
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R583
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R589
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R819
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R852
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
RC301
Receiver Module LGE EAV41920202 Contact Us For Availability
SW301
Switch,Tact LGE EBF61395201 Contact Us For Availability
V801
Varistor LGE 6102R7E001A Contact Us For Availability
X301
Crystal LGE EAW37968901 Contact Us For Availability
X501
Crystal LGE EAW60673001 Contact Us For Availability
ZD301
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
