Model LG SPJ4-S – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Common parts from model LG SPJ4-S
390L
Cover Assembly LGE ACQ85928328 Contact Us For Availability
390R
Cover LGE MCK67107002 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
394
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77537308 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
A81A
PCB Assembly LGE EBR83882701 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76843001 Contact Us For Availability
A330
Board Assembly LGE AAX75687401 Contact Us For Availability
A600

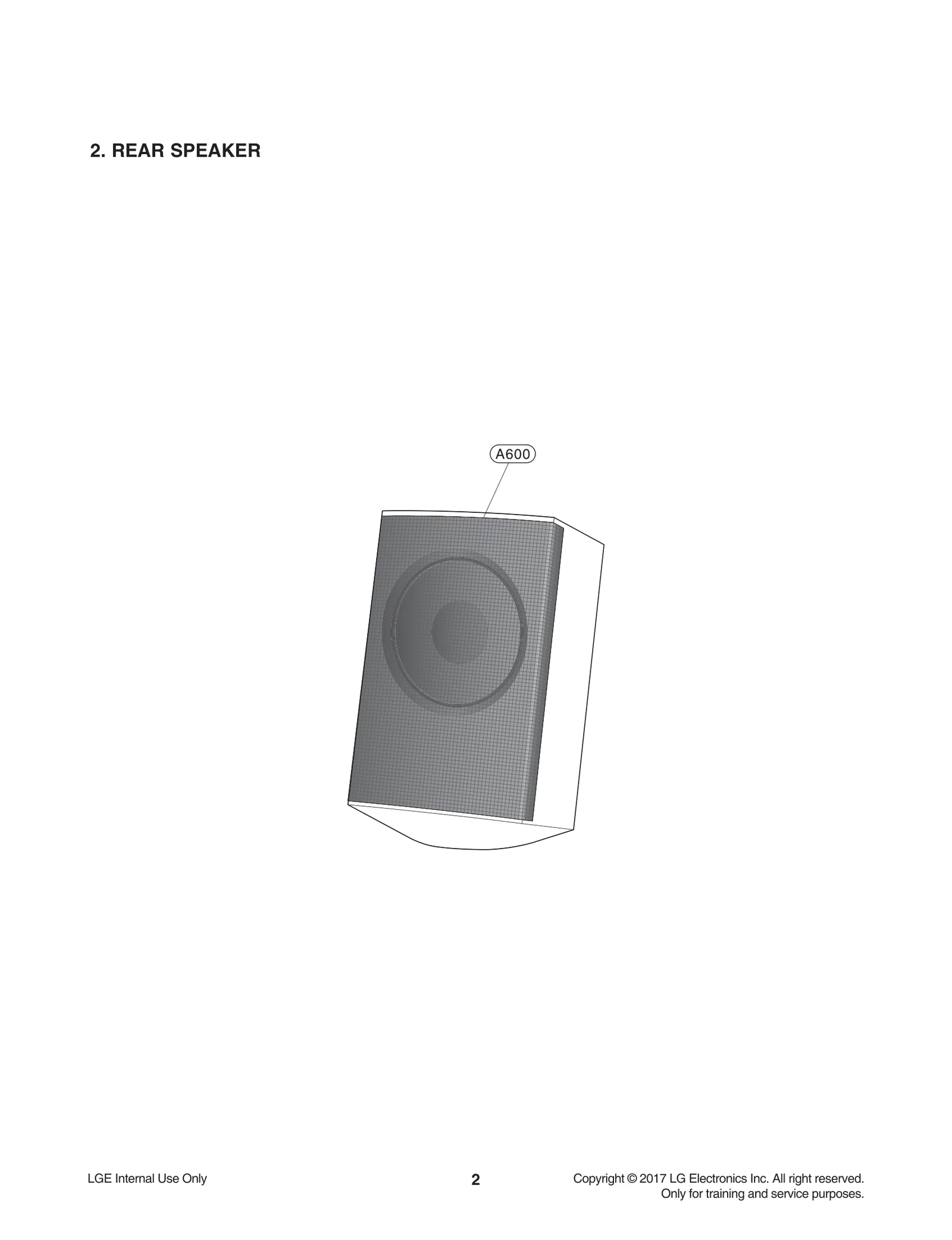

Speaker System Total LGE TCG36728301 Contact Us For Availability
BD901
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C903
Capacitor,AL,Chip LGE 0CZZR00033A Contact Us For Availability
C905
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C906
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C907
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C908
Capacitor,Film,DIP LGE 0CQ2222K409 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C919
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C938
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C939
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C950
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C952
CAPACITOR LGE 624-087D Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D922
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D931
Diode,Switching LGE EAH61853601 Contact Us For Availability
D931
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D933
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D933
Diode,Switching LGE EAH36644401 Contact Us For Availability
D934
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D934
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D950
Diode,Schottky LGE EAH62134501 Contact Us For Availability
D950
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC902
IC,PMIC LGE 0IPMG00075A Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
L921
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF902
FILTER(CIRC),EMC LGE 6200JB8014B Contact Us For Availability
PC903
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R923
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R924
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R925
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R926
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R930
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R931
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R935
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R936
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD2702F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC3E8
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
RC308
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
RC309
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
RC310
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
RC315
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
RC320
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
RC326
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
RC328
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
RC335
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
RC357
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
RC372
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
RC373
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
RC379
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
RC381
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
RC384
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
RC396
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
RCN301
WAFER LGE 6602T25008J Contact Us For Availability
RCN303
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
RIC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
RIC302
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
RIC302
IC,Sound/Audio Processor LGE EAN62335601 Contact Us For Availability
RIC303
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
RIC303
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932252 Contact Us For Availability
RIC306
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
RIC307
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
RIC308
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
RIC308
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
RJK301
Connector,Terminal Block LGE 6640000029C Contact Us For Availability
RL305
Coil,Choke LGE EAP62127101 Contact Us For Availability
RL311
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
RL311
Filter,Bead LGE EAM38769505 Contact Us For Availability
RLED301
LED Assembly LGE EAV61919501 Contact Us For Availability
RQ303
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
RQ308
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
RR3A5
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
RR3C6
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
RR3E6
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RR305
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
RR310
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
RR323
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RR358
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
RR362
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
RR364
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
RR366
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
RR368
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
RR377
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
RR380
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
RR387
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
RR388
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
RSW301
Switch,Tact LGE EBF52268801 Contact Us For Availability
RX301
Crystal LGE EAW61645204 Contact Us For Availability
RX301
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
RX303
Crystal LGE EAW61645210 Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770120 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
ZD901
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD931
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD932
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD932
Diode,Zener LGE 0DZGD00064B Contact Us For Availability
ZD933
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
× ![]()
