Model LG SPD7Y – Common Parts & Diagrams
Diagram 0

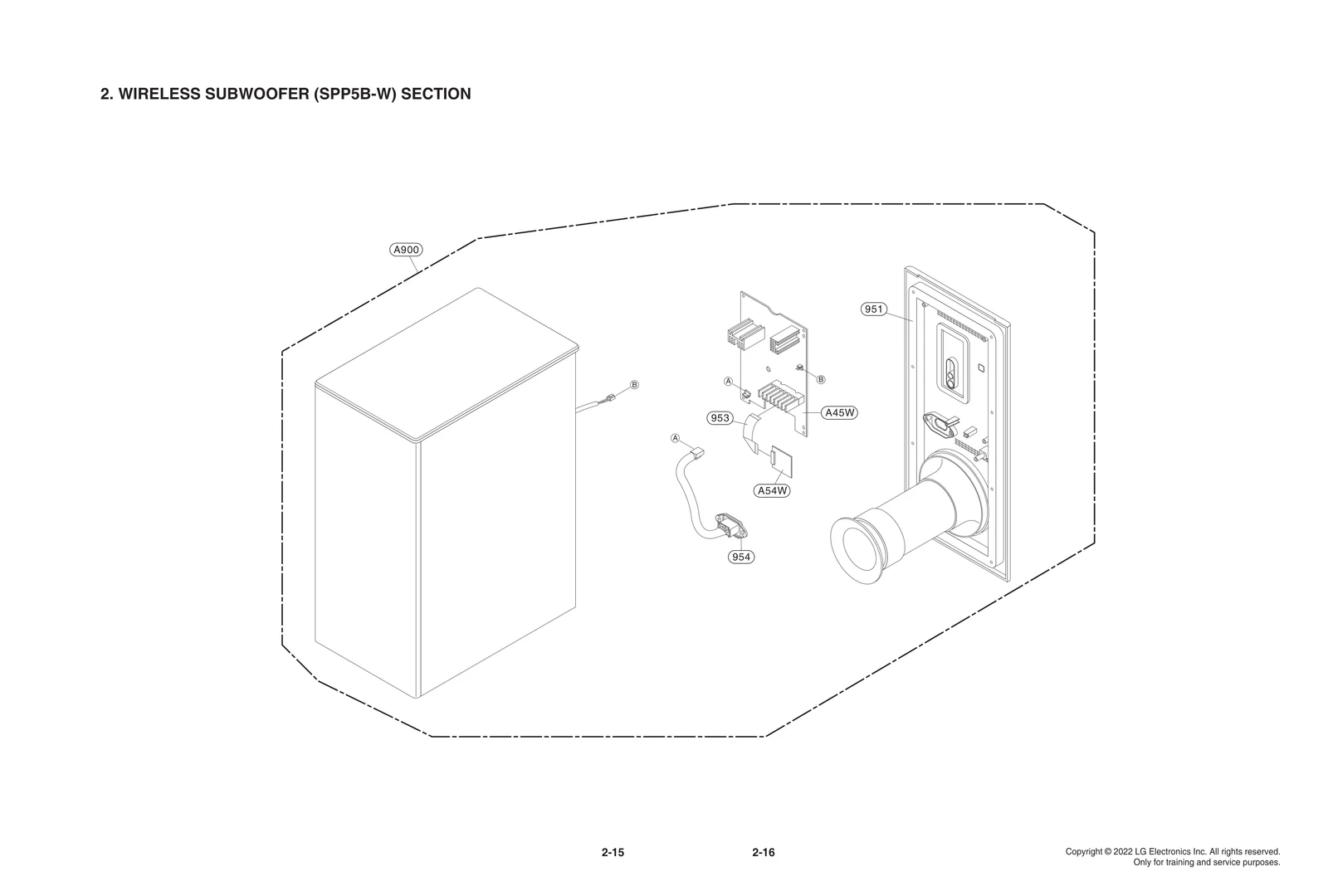

Diagram 1

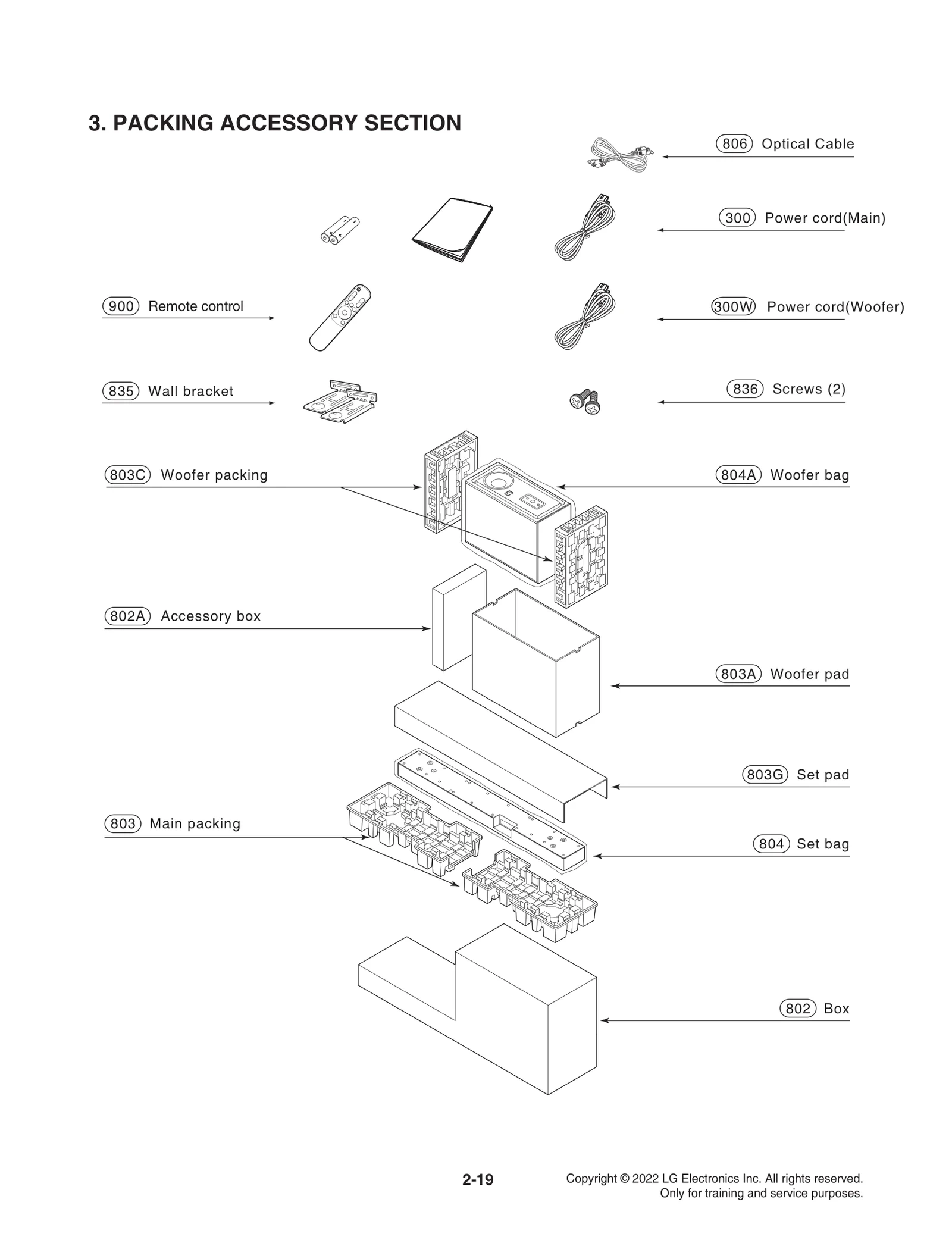

Diagram 2
Diagram 3
Common parts from model LG SPD7Y
262
Damper LGE MCQ70767102 Contact Us For Availability
262
Damper LGE MCQ70845602 Contact Us For Availability
264
Damper LGE MCQ70845603 Contact Us For Availability
264
Damper LGE MCQ70767106 Contact Us For Availability
268
Chassis LGE MBS64866201 Contact Us For Availability
802
Box,Master LGE MAY69795212 Contact Us For Availability
802A
Box LGE MAY67849144 Contact Us For Availability
803
Packing LGE MFZ67253201 Contact Us For Availability
803A
Packing LGE MFZ66293082 Contact Us For Availability
803C
Packing LGE MFZ67251101 Contact Us For Availability
803G
Packing LGE MFZ66293078 Contact Us For Availability
804
Bag LGE MAF66405305 Contact Us For Availability
804A
Bag LGE MAF66405205 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30012602 Contact Us For Availability
953
Cable,FFC LGE EAD62131539 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
A41
Case Assembly LGE ABQ30088003 Contact Us For Availability
A42
Case Assembly LGE ABQ30000105 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT66631602 Contact Us For Availability
A47
LFS Total PCB Assembly LGE EBT66626903 Contact Us For Availability
A51
Module,Bluetooth LGE EAT64073402 Contact Us For Availability
A51
Module,Bluetooth LGE EAT64073401 Contact Us For Availability
A53
Holder Assembly LGE AEJ76299301 Contact Us For Availability
A54
Module,RF Full Module(RxTx) LGE EAT63117407 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117406 Contact Us For Availability
A55
PCB Assembly LGE EBR32814503 Contact Us For Availability
A80L
Case Assembly LGE ABQ30000204 Contact Us For Availability
A80R
Case Assembly LGE ABQ30000304 Contact Us For Availability
A900
Active Woofer LGE TCG37548142 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131550 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD61049032 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970525 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131543 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62185625 Contact Us For Availability
IC100A
S/W,System Program LGE SAA42353502 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42353501 Contact Us For Availability
IC102A
S/W,System Program LGE SAA42436501 Contact Us For Availability
IC103A
S/W,System Program LGE SAA42436601 Contact Us For Availability
IC505A
S/W,System Program LGE SAA42436401 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932276 Contact Us For Availability
× ![]()
