Model LG SPD7R – Common Parts & Diagrams
Diagram 0

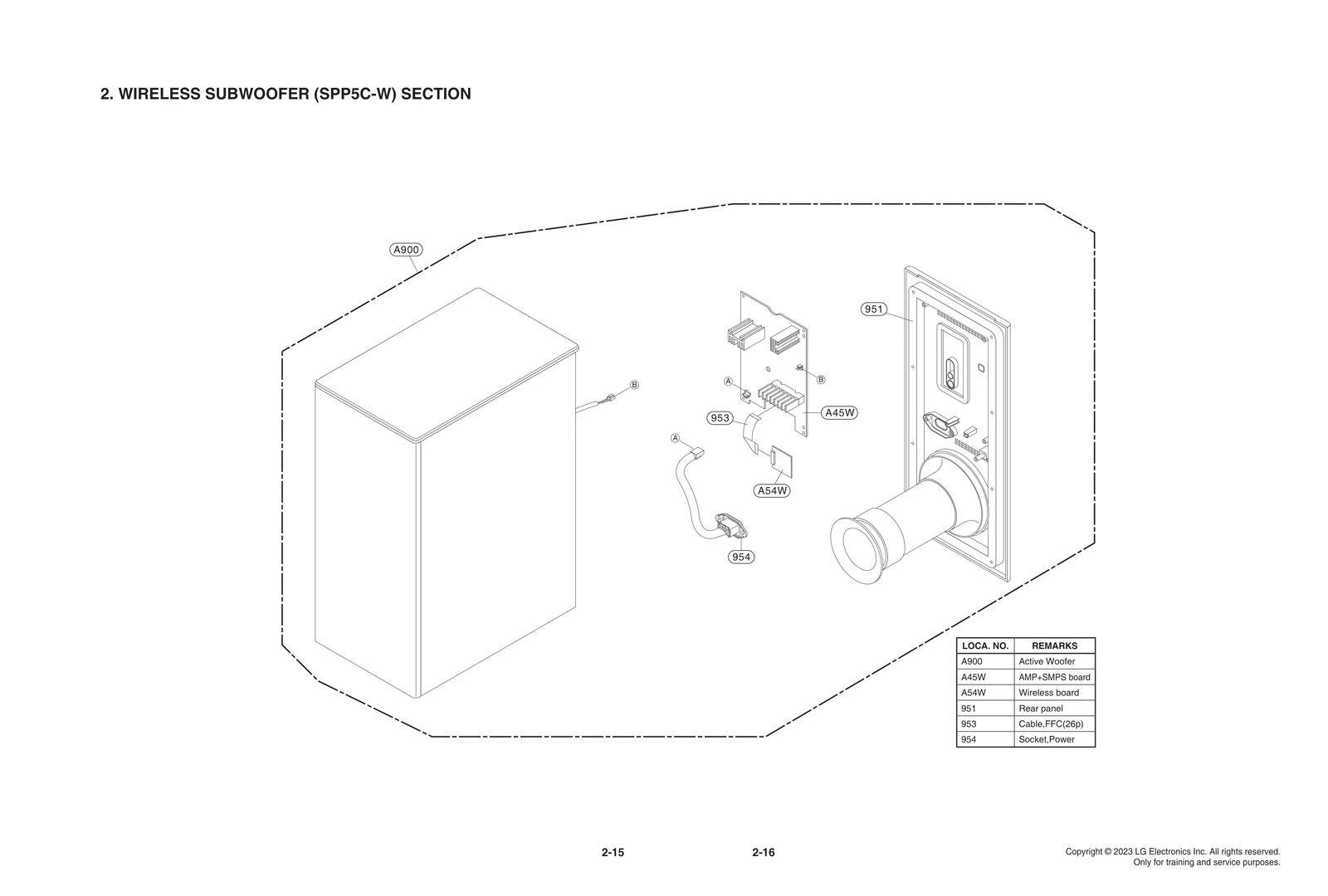

Diagram 1

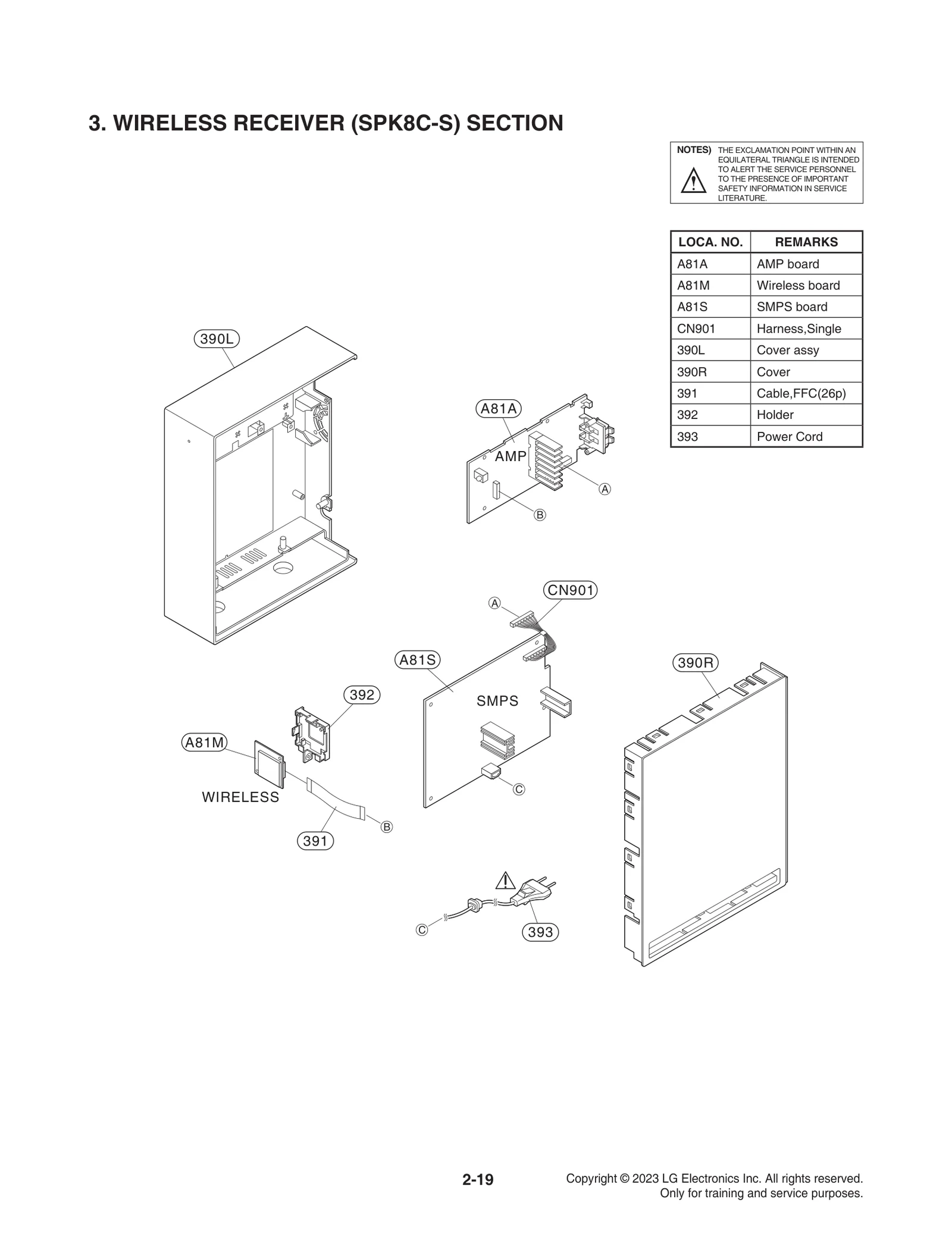

Diagram 2

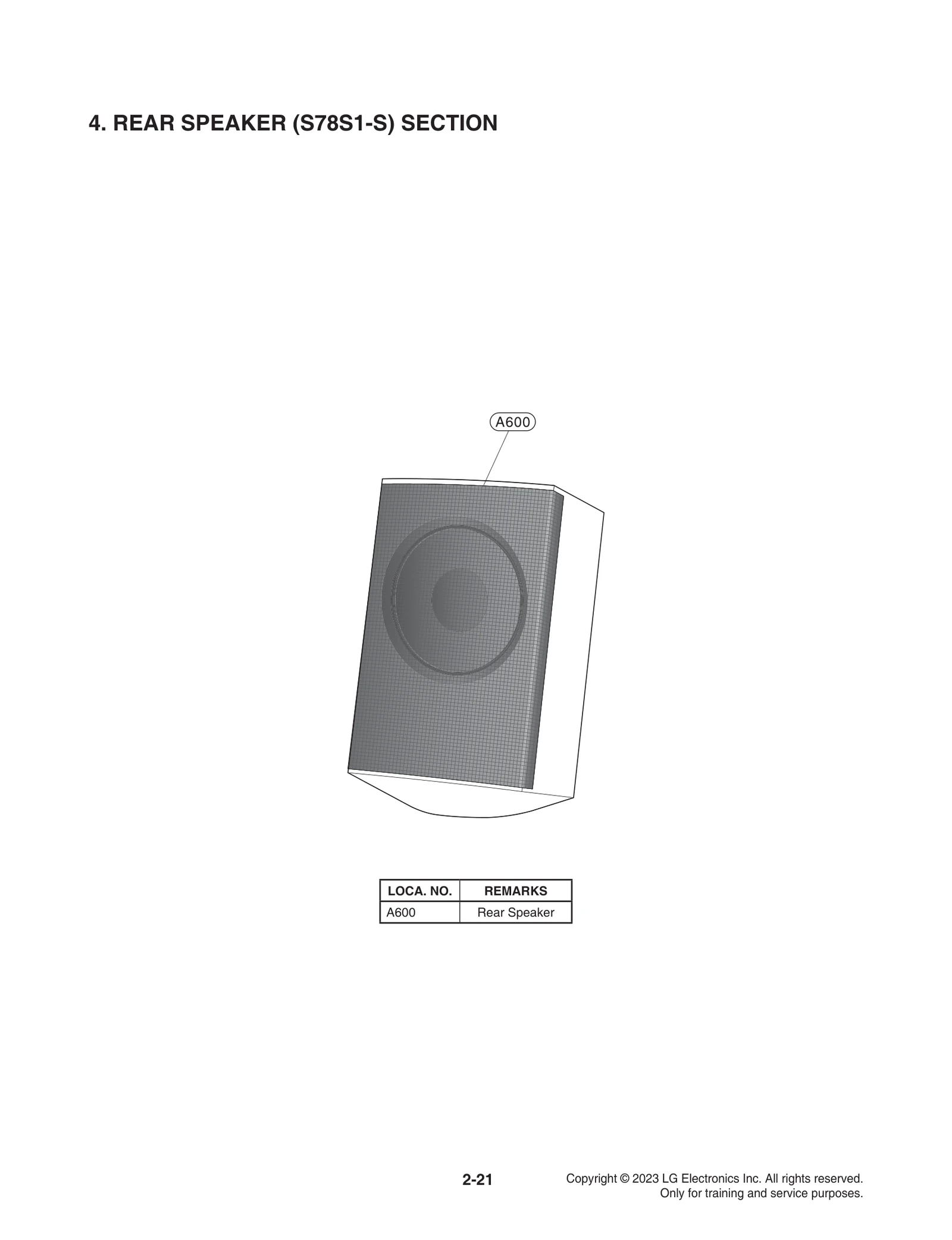

Diagram 3

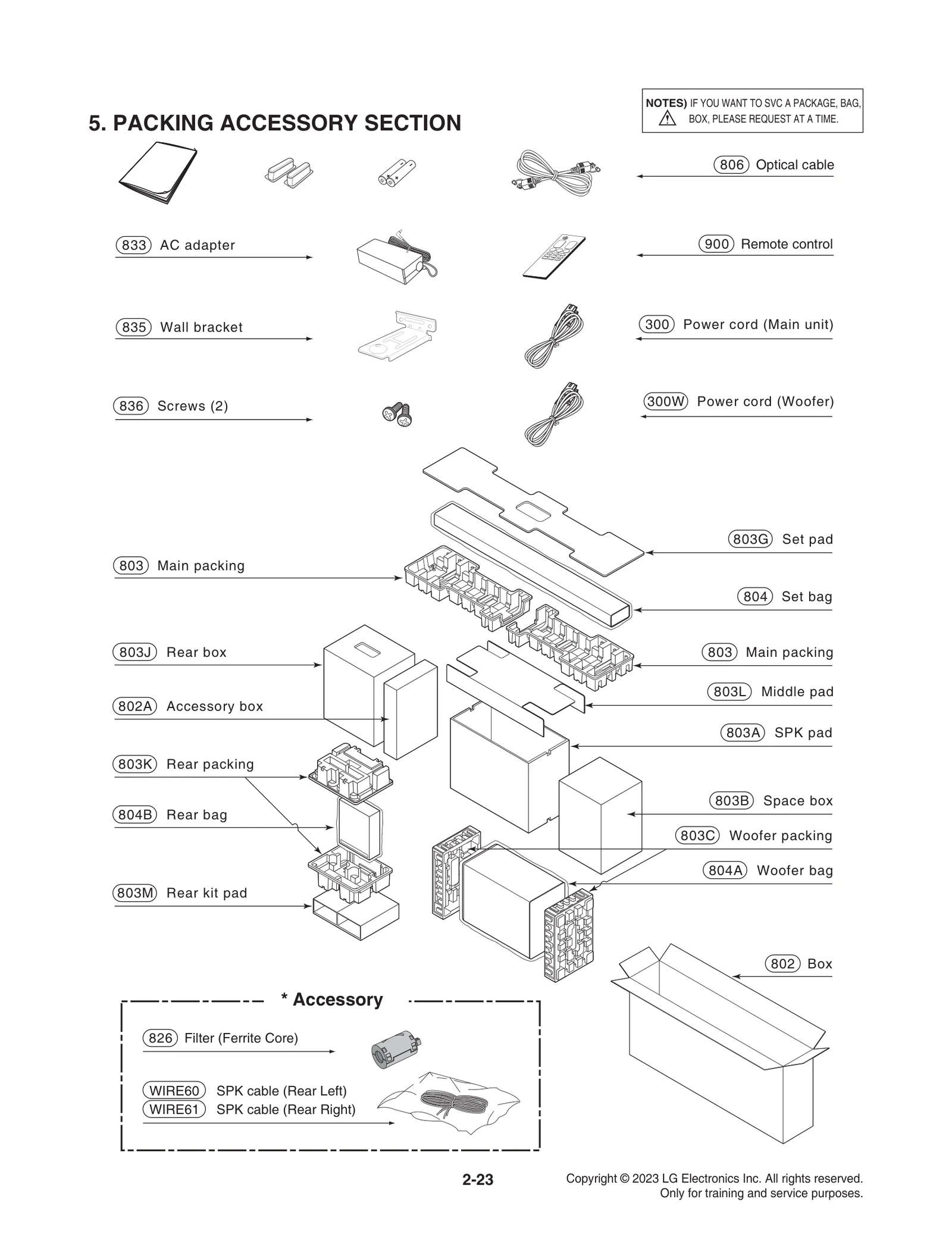

Diagram 4
Diagram 5
Common parts from model LG SPD7R
262
Damper LGE MCQ70845606 Contact Us For Availability
264
Damper LGE MCQ70845604 Contact Us For Availability
264
Damper LGE MCQ70767107 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928334 Contact Us For Availability
390R
Cover LGE MCK67107002 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
802
Box LGE MAY69988103 Contact Us For Availability
802A
Box LGE MAY67849151 Contact Us For Availability
803
Packing LGE MFZ67390801 Contact Us For Availability
803A
Packing LGE MFZ66293082 Contact Us For Availability
803B
Packing LGE MFZ67395301 Contact Us For Availability
803C
Packing LGE MFZ67251101 Contact Us For Availability
803G
Packing LGE MFZ67395201 Contact Us For Availability
803J
Packing LGE MFZ67395302 Contact Us For Availability
803K
Packing LGE MFZ67395401 Contact Us For Availability
803L
Packing LGE MFZ66293091 Contact Us For Availability
803M
Packing LGE MFZ67395901 Contact Us For Availability
804
Bag LGE MAF66405303 Contact Us For Availability
804A
Bag LGE MAF66405205 Contact Us For Availability
804B
Bag LGE MAF62487804 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
833
Adapters LGE EAY65901201 Contact Us For Availability
835
Accessory Assembly LGE AAA77427003 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30012602 Contact Us For Availability
953
Cable,FFC LGE EAD62131539 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
A41
Case Assembly LGE ABQ30075301 Contact Us For Availability
A42
Case Assembly LGE ABQ30084303 Contact Us For Availability
A45W
PCB Assembly LGE EBR41354401 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT66636428 Contact Us For Availability
A51
Module,Bluetooth LGE EAT64073401 Contact Us For Availability
A51
Module,Bluetooth LGE EAT64073402 Contact Us For Availability
A54
Module,Tx Module LGE EAT65204501 Contact Us For Availability
A55
BPR Total Assembly LGE EBU67346101 Contact Us For Availability
A80L
Case Assembly LGE ABQ30084401 Contact Us For Availability
A80R
Case Assembly LGE ABQ30087601 Contact Us For Availability
A81A
PCB Assembly LGE EBR41357801 Contact Us For Availability
A81M
Module,Rx Module LGE EAT65204301 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR89202101 Contact Us For Availability
A600
Speaker System Total LGE TCG36948121 Contact Us For Availability
A900
Active Woofer LGE TCG37549630 Contact Us For Availability
CABLE1
Harness,Single LGE EAD65485503 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63126714 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131547 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
IC100A
S/W,System Program LGE SAA44208801 Contact Us For Availability
IC101A
S/W,System Program LGE SAA44428901 Contact Us For Availability
IC503A
S/W,System Program LGE SAA44208701 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172306 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
× ![]()
