Model LG SP9YA Soundbar – Common Parts & Diagrams

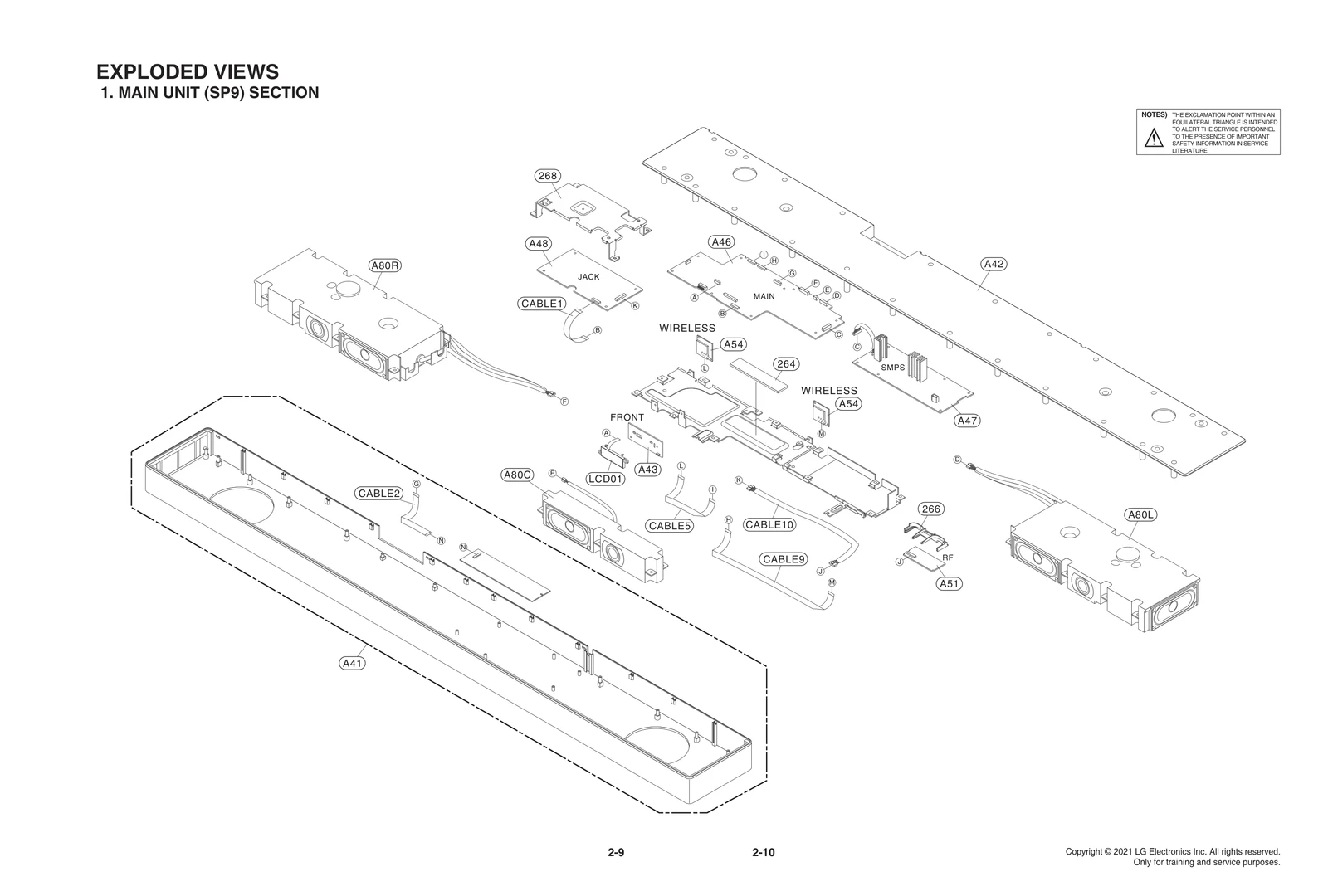

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG SP9YA Soundbar
266
Holder Assembly LGE AEJ76039801 Contact Us For Availability
268
Frame Assembly LGE ADV30002404 Contact Us For Availability
802
Box,Master LGE MAY69747801 Contact Us For Availability
802A
Box LGE MAY67849128 Contact Us For Availability
803
Packing LGE MFZ67278201 Contact Us For Availability
803A
Packing LGE MFZ66293024 Contact Us For Availability
803B
Packing LGE MFZ67251601 Contact Us For Availability
803C
Packing LGE MFZ67251201 Contact Us For Availability
803F
Packing LGE MFZ67278301 Contact Us For Availability
803G
Packing LGE MFZ66293039 Contact Us For Availability
804
Bag LGE MAF61903712 Contact Us For Availability
804A
Bag LGE MAF66405202 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071209 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
835
Accessory Assembly LGE AAA77508403 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly,Sub LGE AAX76974311 Contact Us For Availability
A42
Case Assembly LGE ABQ30002511 Contact Us For Availability
A43
PCB Assembly LGE EBR32894801 Contact Us For Availability
A46
PCB Assembly LGE EBR32894701 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR32465801 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66632501 Contact Us For Availability
A54
Module,RF Full Module(RxTx) LGE EAT63117405 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A80C
Case Assembly LGE ABQ30002201 Contact Us For Availability
A80L
Case Assembly LGE ABQ30002011 Contact Us For Availability
A80R
Case Assembly LGE ABQ30002111 Contact Us For Availability
A900
Active Woofer LGE TCG37249263 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131540 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970520 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970521 Contact Us For Availability
CABLE9
Cable,FFC LGE EAD63970522 Contact Us For Availability
CABLE10
Harness,Single LGE EAD65366204 Contact Us For Availability
IC100A
S/W,System Program LGE SAA42353502 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42353501 Contact Us For Availability
IC102A
S/W,System Program LGE SAA42353201 Contact Us For Availability
IC103A
S/W,System Program LGE SAA42353301 Contact Us For Availability
IC504A
S/W,System Program LGE SAA42353101 Contact Us For Availability
ICK02A
S/W,System Program LGE SAA42353401 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932276 Contact Us For Availability
× ![]()
