Model LG SP8YA Soundbar – Common Parts & Diagrams

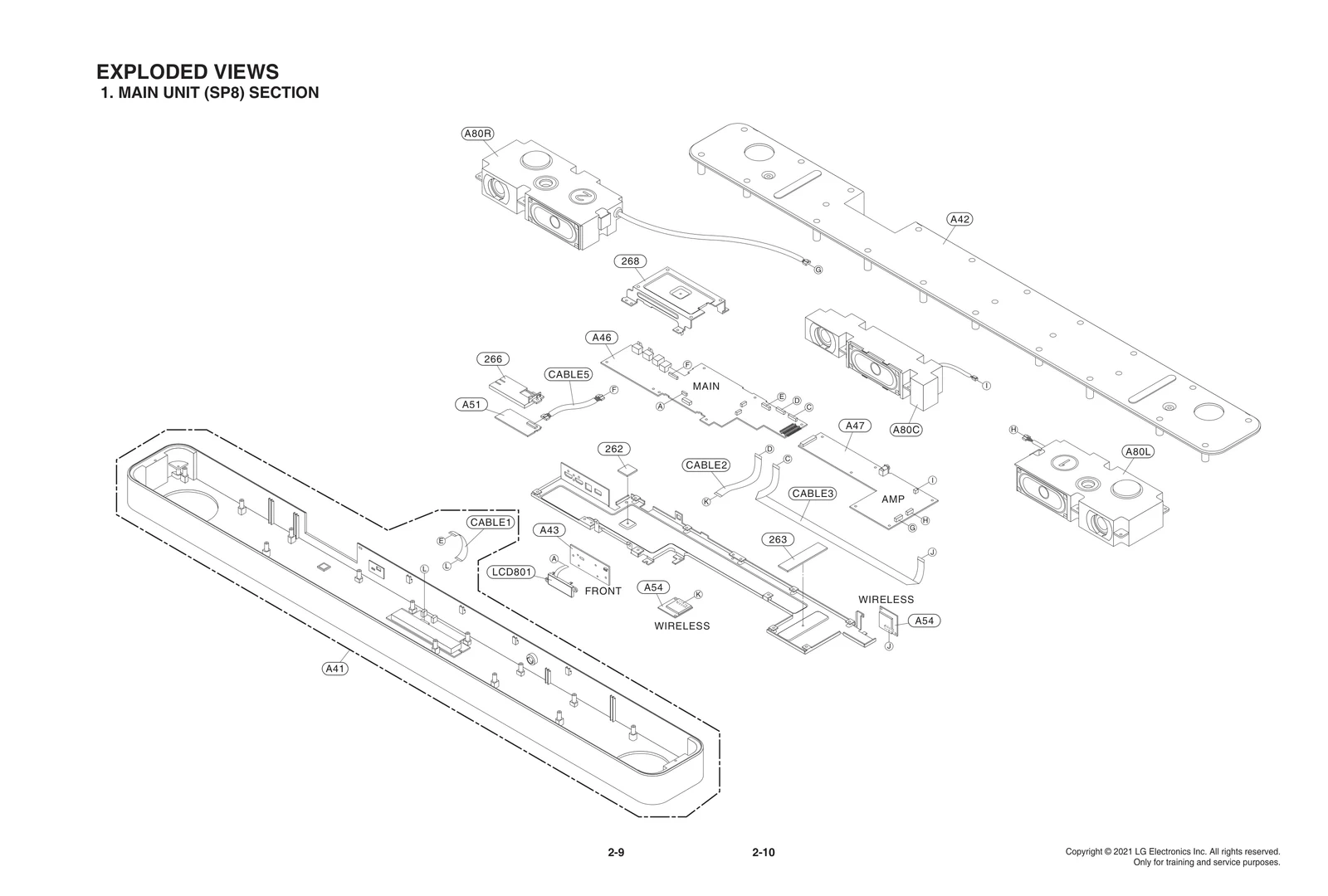

Diagram 0

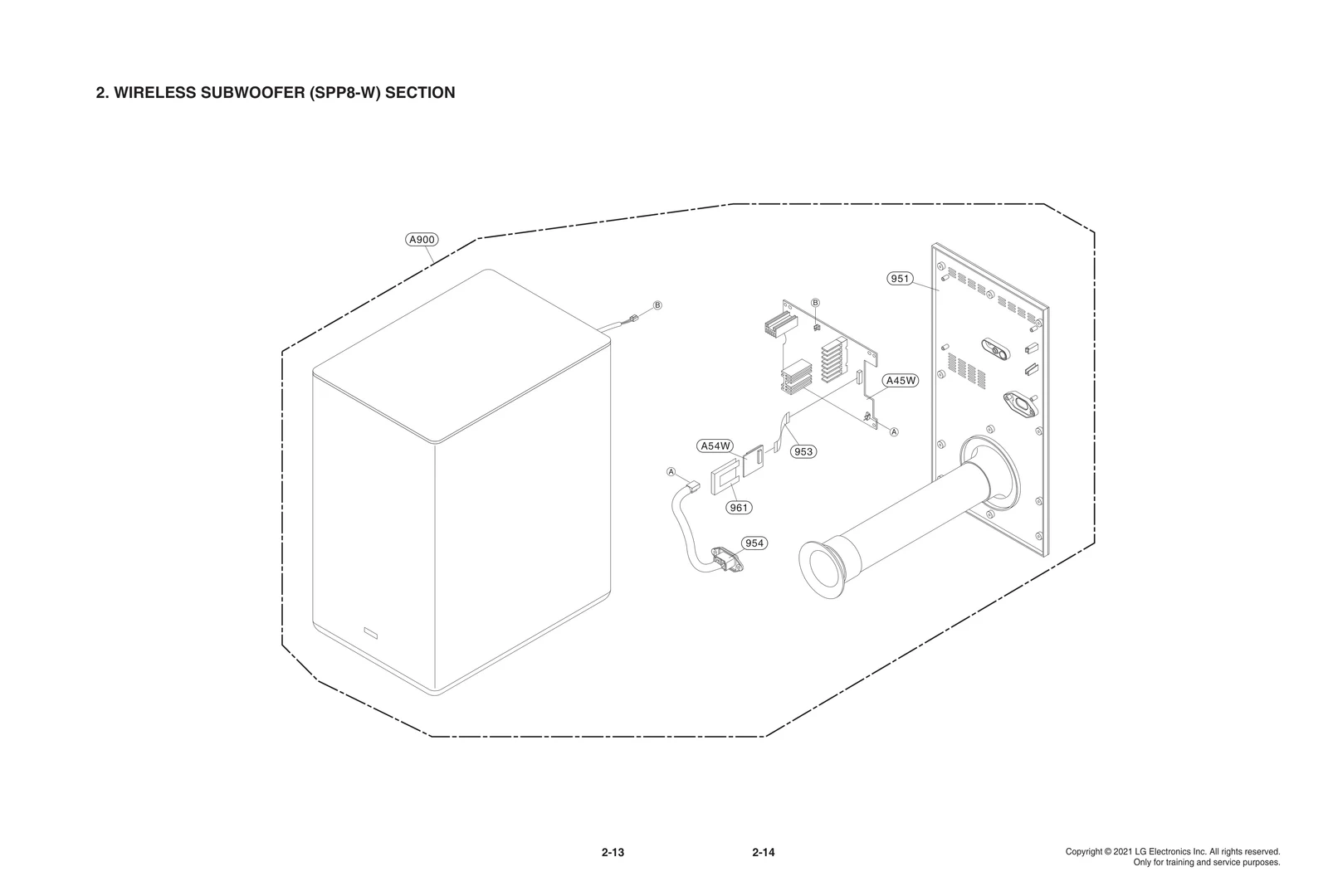

Diagram 1

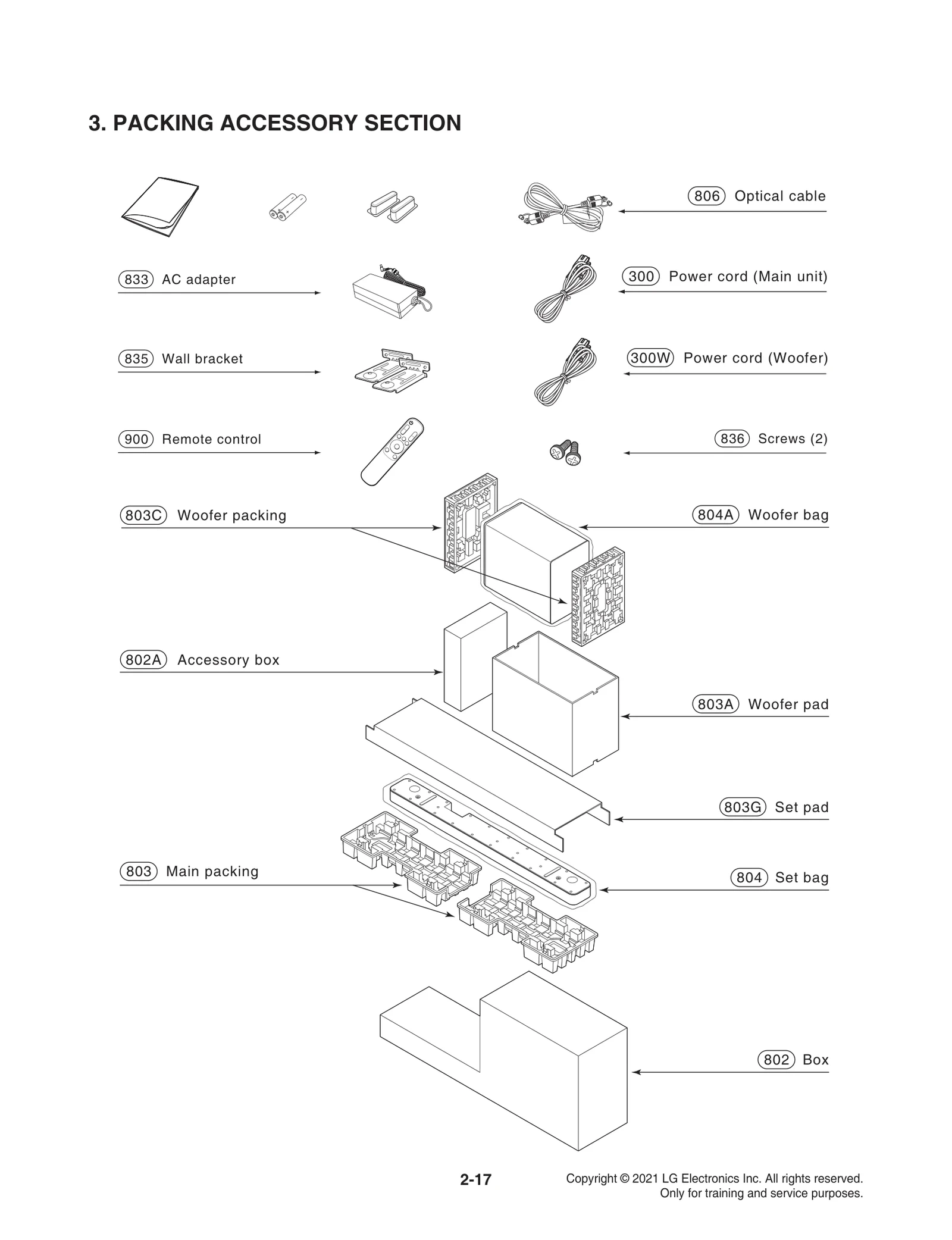

Diagram 2
Diagram 3
Common parts from model LG SP8YA Soundbar
263
Damper LGE MCQ70767103 Contact Us For Availability
263
Damper LGE MCQ62096483 Contact Us For Availability
266
Holder Assembly LGE AEJ75879401 Contact Us For Availability
268
Chassis LGE MBS64585501 Contact Us For Availability
802
Box,Master LGE MAY69793701 Contact Us For Availability
802A
Box LGE MAY67849127 Contact Us For Availability
803
Packing LGE MFZ66471620 Contact Us For Availability
803A
Packing LGE MFZ66293028 Contact Us For Availability
803C
Packing LGE MFZ67251201 Contact Us For Availability
803G
Packing LGE MFZ66293023 Contact Us For Availability
804
Bag LGE MAF66405303 Contact Us For Availability
804A
Bag LGE MAF66405202 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071209 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
835
Accessory Assembly LGE AAA77508403 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly LGE AAX76827606 Contact Us For Availability
A42
Case Assembly LGE ABQ76920212 Contact Us For Availability
A43
PCB Assembly LGE EBR32700401 Contact Us For Availability
A46
PCB Assembly LGE EBR32700301 Contact Us For Availability
A47
LFS Total PCB Assembly LGE EBT66636201 Contact Us For Availability
A54
Module,RF Full Module(RxTx) LGE EAT63117405 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A80C
Case Assembly LGE ABQ77060902 Contact Us For Availability
A80L
Case Assembly LGE ABQ77100408 Contact Us For Availability
A80R
Case Assembly LGE ABQ77100508 Contact Us For Availability
A900
Active Woofer LGE TCG37549502 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131542 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970514 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970513 Contact Us For Availability
CABLE5
Harness,Single LGE EAD65366201 Contact Us For Availability
IC100A
S/W,System Program LGE SAA42353502 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42353501 Contact Us For Availability
IC102A
S/W,System Program LGE SAA42353203 Contact Us For Availability
IC103A
S/W,System Program LGE SAA42353303 Contact Us For Availability
IC504A
S/W,System Program LGE SAA42353103 Contact Us For Availability
ICK01A
S/W,System Program LGE SAA42353403 Contact Us For Availability
LCD801
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932276 Contact Us For Availability
× ![]()
