Model LG SP820 – Common Parts & Diagrams

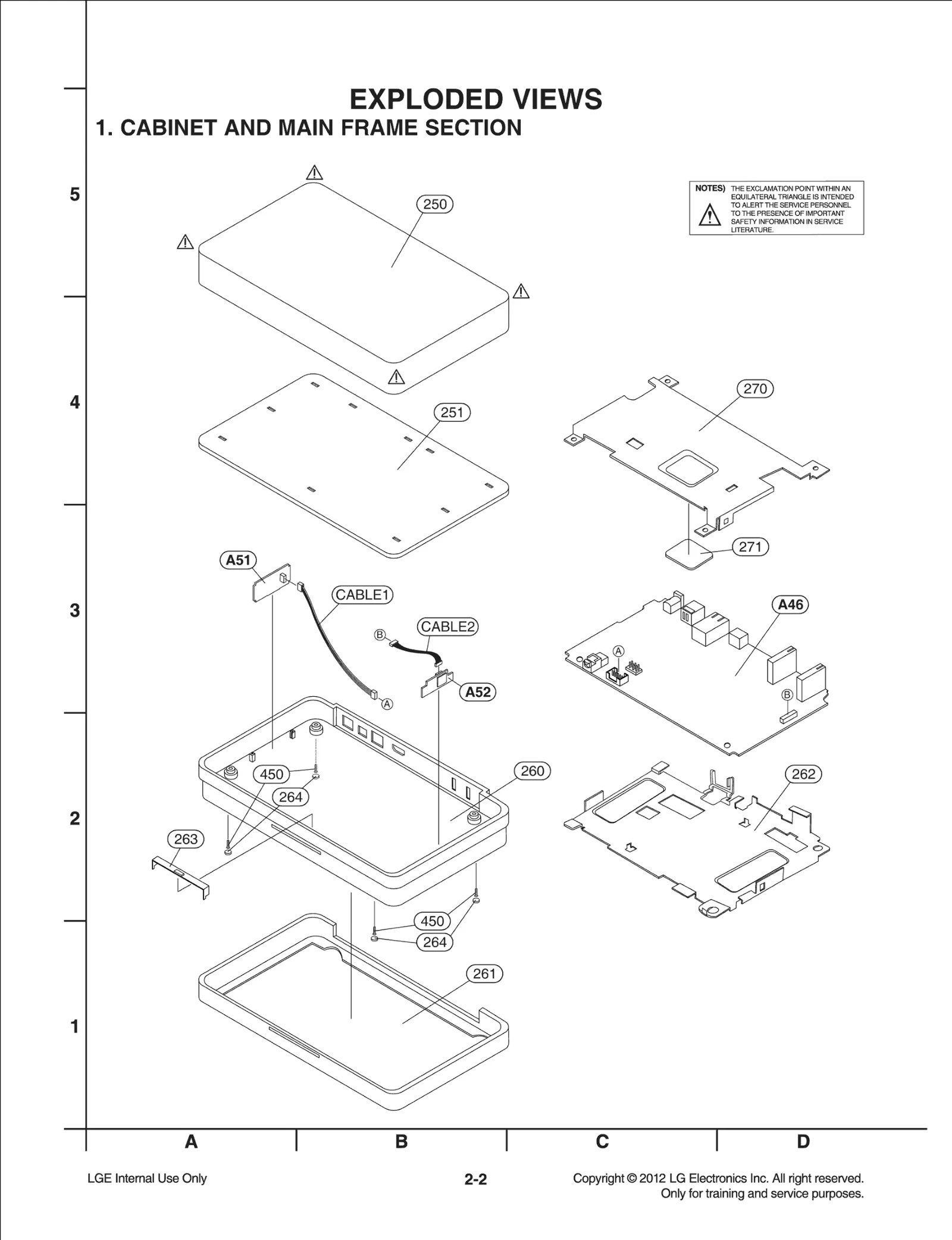

Diagram 0

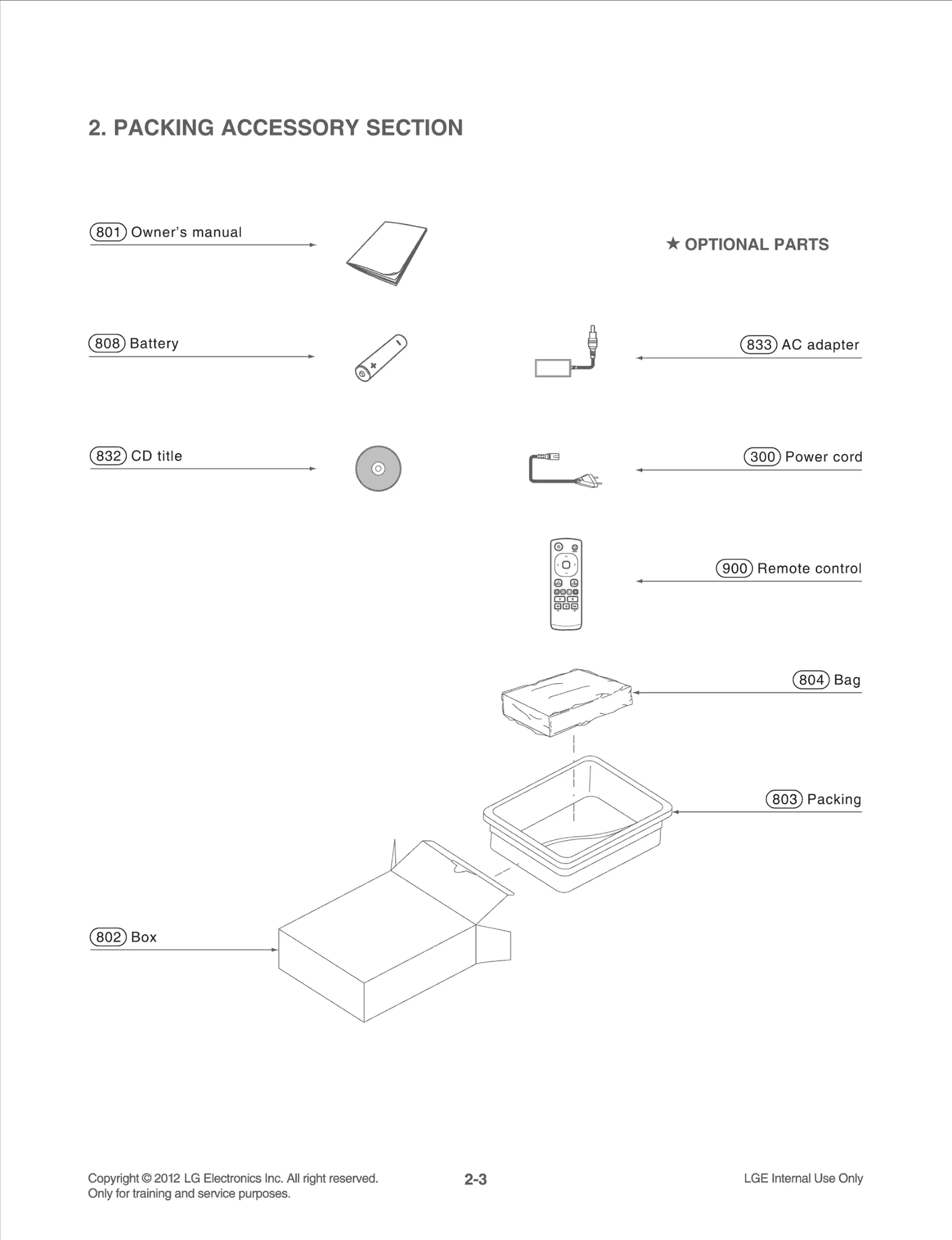

Diagram 1
Diagram 2
Common parts from model LG SP820
250
Case LGE MBN62745001 Contact Us For Availability
251
Cover LGE MCK67131101 Contact Us For Availability
260
Frame LGE MDQ63278001 Contact Us For Availability
261
Cover LGE MCK67053401 Contact Us For Availability
262
Plate LGE MGJ63304401 Contact Us For Availability
263
Holder LGE MEG63061501 Contact Us For Availability
264
Damper LGE MCQ32325019 Contact Us For Availability
270
Plate LGE MGJ63304701 Contact Us For Availability
271
Damper LGE MCQ62096424 Contact Us For Availability
300
Power Cord LGE EAD60816728 Contact Us For Availability
450
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75674705 Contact Us For Availability
802
Box,Master LGE MAY65441943 Contact Us For Availability
803
Packing LGE MFZ47272648 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002W Contact Us For Availability
808
Primary Cell Battery,Alkaline LGE 6910R-AB02C Contact Us For Availability
832
Title LGE SAC35455202 Contact Us For Availability
833
Adapters LGE EAY62409302 Contact Us For Availability
833
Adapters LGE EAY62409303 Contact Us For Availability
833
Adapters LGE EAY62409301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655901 Contact Us For Availability
A46
Option Code Assembly LGE EBR74906006 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C217
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C222
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE 0CK332BKF6A Contact Us For Availability
C244
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C249
Capacitor,Ceramic,Chip LGE ECZH0001120 Contact Us For Availability
C251
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE 0CK470BK4BA Contact Us For Availability
C291
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C343
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C384
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C406
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C764
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CABLE1
Harness,Single LGE EAD61073412 Contact Us For Availability
CABLE2
Harness,Single LGE EAD62096902 Contact Us For Availability
CN351
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
CN356
Connector,Wafer LGE EAG58732904 Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
D271
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D702
Diode,TVS LGE EAH60754201 Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC241
IC,DC,DC Converter LGE EAN61566901 Contact Us For Availability
IC251
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC261
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC271
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC301A
S/W,Firmware LGE SAA35874204 Contact Us For Availability
IC401A
S/W,Firmware LGE SAA35874207 Contact Us For Availability
IC500
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61829201 Contact Us For Availability
IC751
IC,Tx/Rx LGE EAN62420201 Contact Us For Availability
JK291
Jack,DC Power LGE EAG61490901 Contact Us For Availability
JK701
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK711
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK721
Connector,HDMI LGE EAG62611202 Contact Us For Availability
JK741
Connector,USB LGE EAG61450402 Contact Us For Availability
L203
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L712
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
Q346
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R2F1
Fuse,Non Time Delay LGE EAF61670101 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ3303C478 Contact Us For Availability
R202
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R203
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R206
Resistor,Chip LGE EBC60934301 Contact Us For Availability
R208
Resistor,Chip LGE EBC61596501 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ7502C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R271
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R274
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R275
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R276
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R362
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R476
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R484
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R730
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R734
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R755
Resistor,Chip LGE EBC39488101 Contact Us For Availability
R956
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
RA401
Resistor,Array LGE 0RR0222Q62A Contact Us For Availability
RC341
Receiver Module LGE EAV41920202 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
V742
Varistor LGE 6102R7E001A Contact Us For Availability
X441
Crystal LGE EAW32919201 Contact Us For Availability
ZD305
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
