Model LG SP520 – Common Parts & Diagrams
Diagram 0

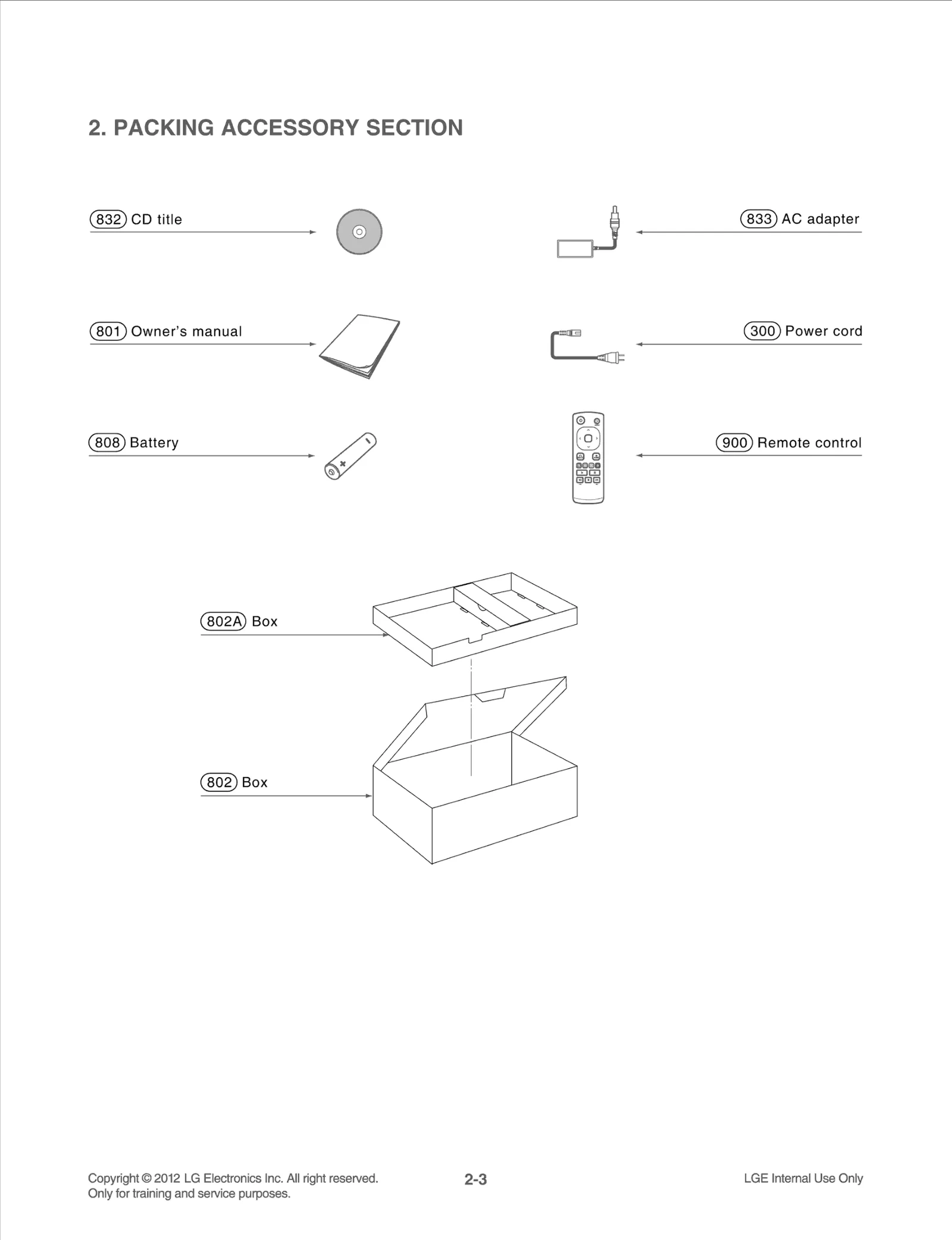

Diagram 1
Diagram 2
Common parts from model LG SP520
250
Cover LGE MCK67126901 Contact Us For Availability
251
Bracket LGE MAZ63464801 Contact Us For Availability
251A
Gasket LGE MDS39538730 Contact Us For Availability
260
Cover LGE MCK67127001 Contact Us For Availability
261
Damper LGE 4850R-0037Y Contact Us For Availability
262
Bracket LGE MAZ63464901 Contact Us For Availability
270
Heat Sink LGE MED62292202 Contact Us For Availability
271
Holder Assembly LGE AEJ73619401 Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75693004 Contact Us For Availability
802
Box,Master LGE MAY65441903 Contact Us For Availability
802A
Box LGE MAY42946836 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
832
Title LGE SAC35454701 Contact Us For Availability
833
Adapters LGE EAY62409301 Contact Us For Availability
833
Adapters LGE EAY62409302 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655601 Contact Us For Availability
A46
Option Code Assembly LGE EBR74641902 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CH1473F562 Contact Us For Availability
C218
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C219
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C244
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C272
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C275
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C302
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C304
Capacitor,Ceramic,Ch LGE 0CK105CD67A Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CK105BCG7A Contact Us For Availability
C647
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C648
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C702
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C709
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
CABLE1
Harness,Single LGE EAD61073408 Contact Us For Availability
CN701
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
IC241
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC271
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC301A
S/W,Firmware LGE SAA35864003 Contact Us For Availability
IC500
IC,Video Processors LGE EAN61949801 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61829201 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859701 Contact Us For Availability
IC603A
S/W,Firmware LGE SAA35864001 Contact Us For Availability
JK291
Jack,DC Power LGE EAG61490901 Contact Us For Availability
JK701
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK702
Connector,USB LGE EAG35130901 Contact Us For Availability
JK703
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK704
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L202
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L503
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L702
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
LED301
LED Assembly LGE EAV61493801 Contact Us For Availability
Q201
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q302
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R2F1
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R208
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R209
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
R210
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R211
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R217
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R218
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R242
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R245
Resistor,Chip LGE 0RJ3303C478 Contact Us For Availability
R247
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R249
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R251
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R252
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R253
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R254
Resistor,Chip LGE EBC00667202 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R329
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R331
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R336
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ5620C477 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ4021C478 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R563
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R582
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R583
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R593
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R677
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
RC301
Receiver Module LGE EAV41920202 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
ZD306
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
