Model LG SP11RA – Common Parts & Diagrams
Diagram 0

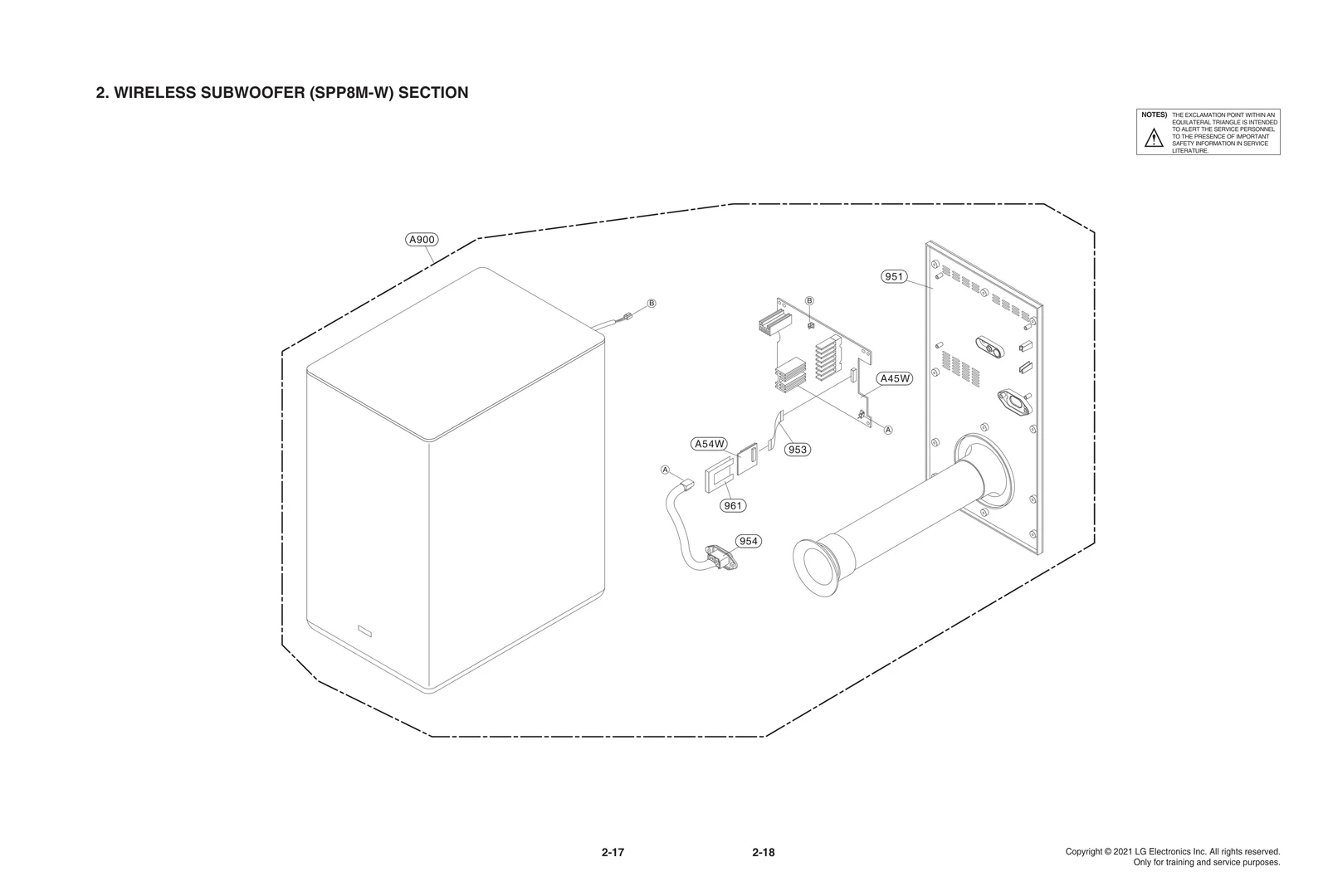

Diagram 1

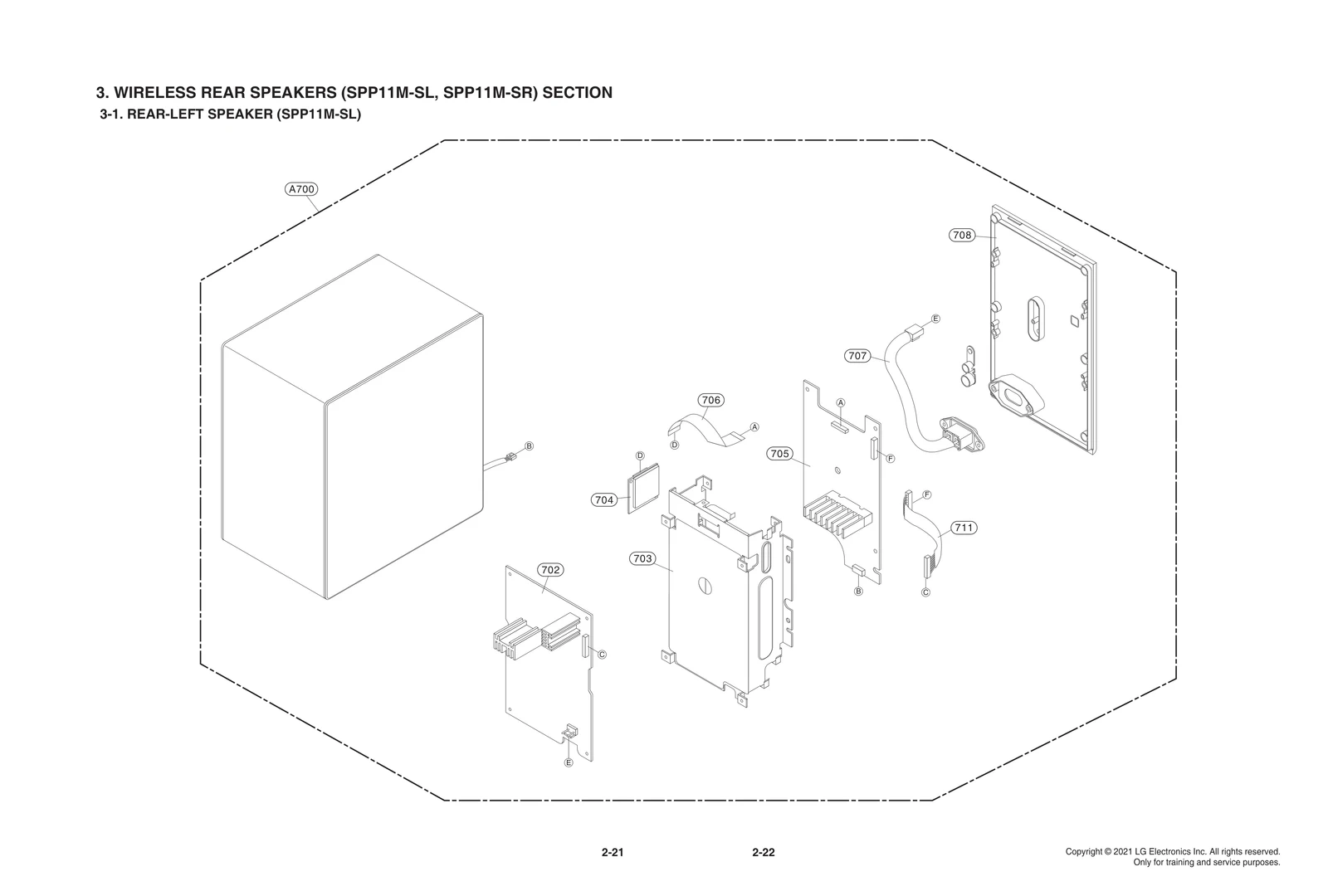

Diagram 2

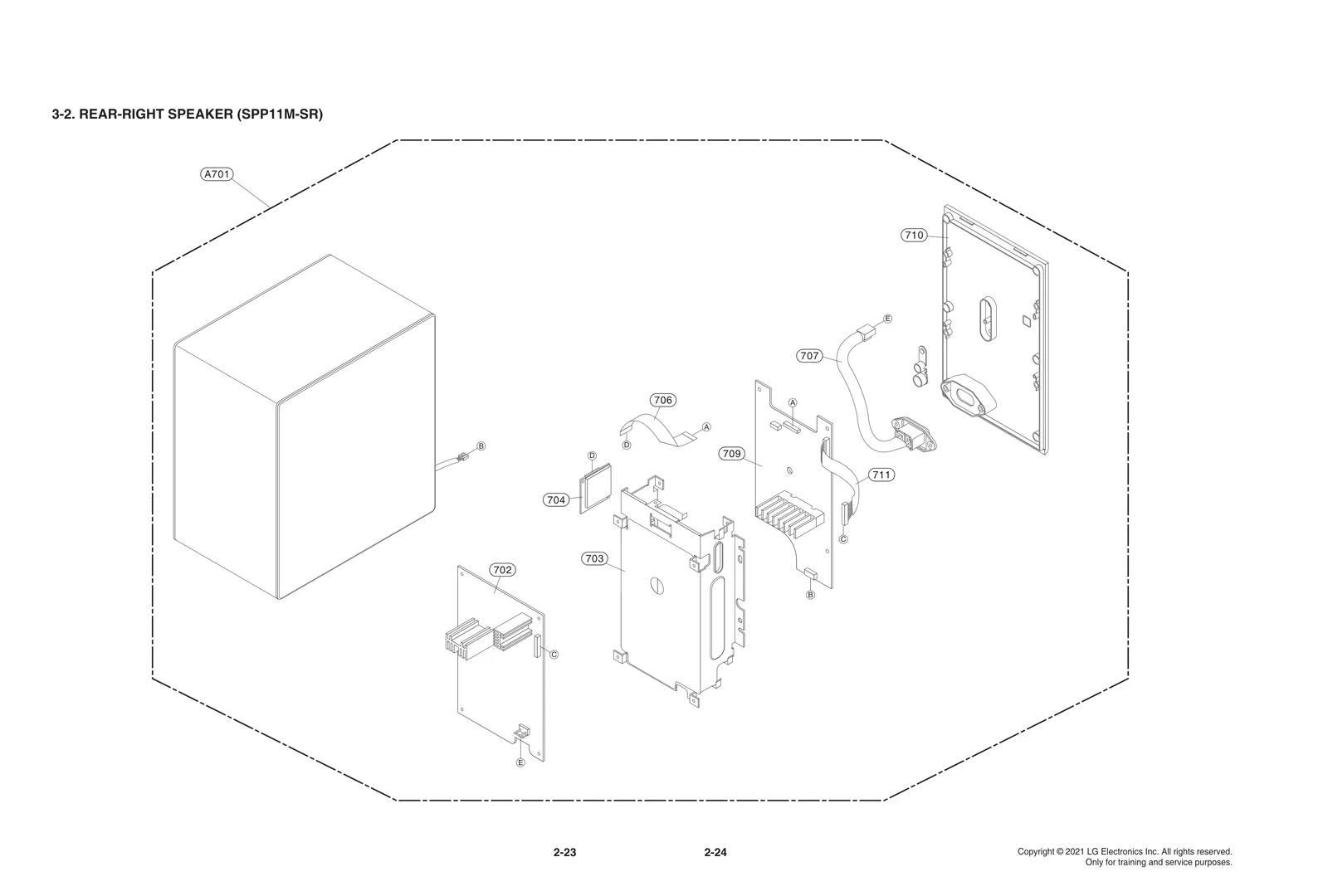

Diagram 3

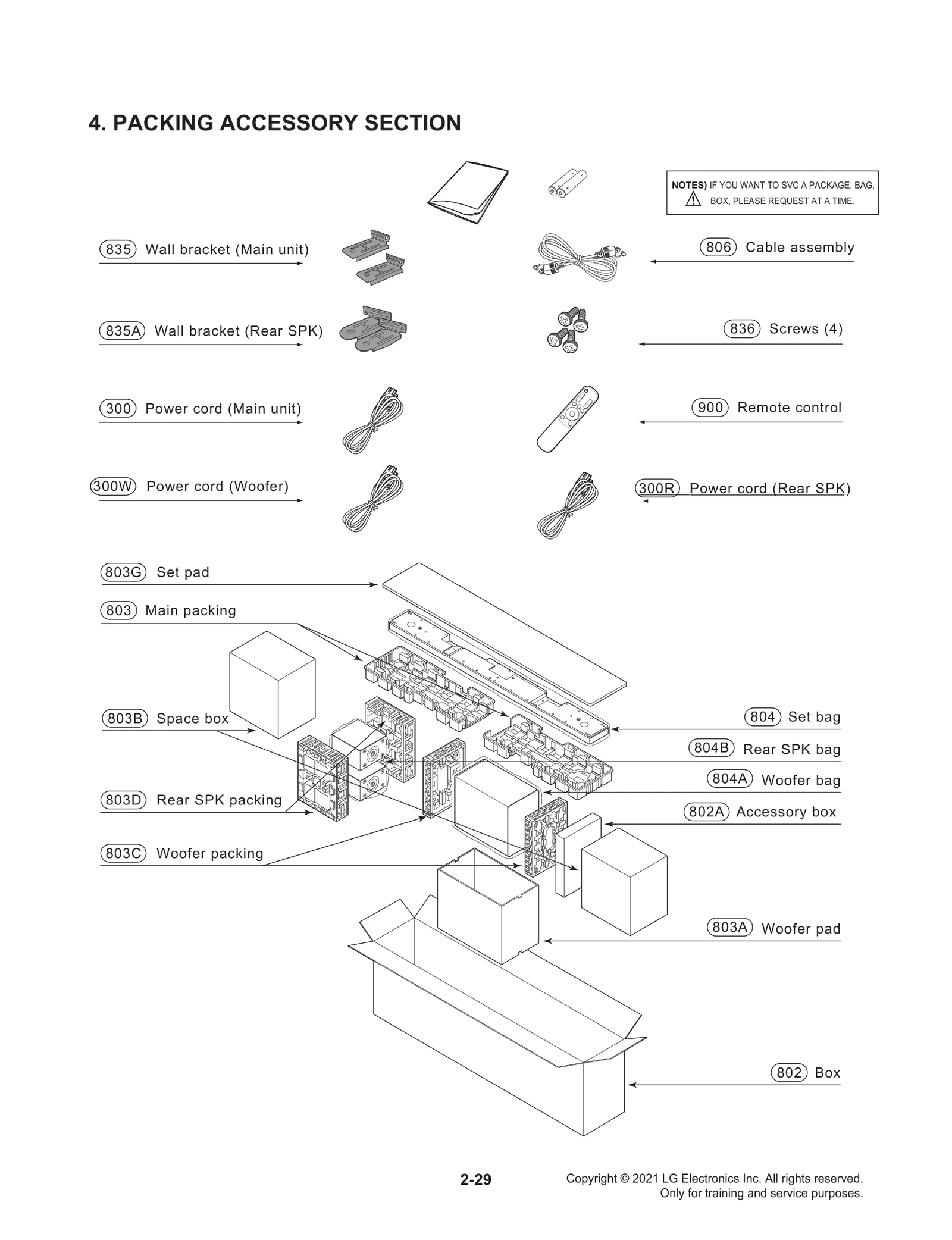

Diagram 4
Diagram 5
Common parts from model LG SP11RA
268
Frame Assembly LGE ADV77732801 Contact Us For Availability
702
PCB Assembly LGE EBR89632701 Contact Us For Availability
703
Frame Assembly LGE ADV30002001 Contact Us For Availability
704
Module,RF Full Module(RxTx) LGE EAT65179301 Contact Us For Availability
705
LFS Total PCB Assembly LGE EBT66468151 Contact Us For Availability
706
Cable,FFC LGE EAD62131545 Contact Us For Availability
707
Socket,Power LGE EAG63233204 Contact Us For Availability
708
Case Assembly LGE ABQ77488202 Contact Us For Availability
709
LFS Total PCB Assembly LGE EBT66468152 Contact Us For Availability
710
Case Assembly LGE ABQ77488201 Contact Us For Availability
711
Harness,Single LGE EAD65830001 Contact Us For Availability
802
Box,Master LGE MAY69793801 Contact Us For Availability
802A
Box LGE MAY67849140 Contact Us For Availability
803
Packing LGE MFZ67283302 Contact Us For Availability
803A
Packing LGE MFZ66293080 Contact Us For Availability
803B
Packing LGE MFZ67251605 Contact Us For Availability
803C
Packing LGE MFZ67251201 Contact Us For Availability
803D
Packing LGE MFZ67251501 Contact Us For Availability
803G
Packing LGE MFZ66293074 Contact Us For Availability
804
Bag LGE MAF66405201 Contact Us For Availability
804A
Bag LGE MAF66405202 Contact Us For Availability
804B
Bag LGE MAF66405703 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
835A
Accessory Assembly LGE AAA30014402 Contact Us For Availability
836
Packing Assembly LGE AGG75620760 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly LGE AAX76977601 Contact Us For Availability
A42
Case Assembly LGE ABQ77381910 Contact Us For Availability
A43
PCB Assembly LGE EBR32927202 Contact Us For Availability
A45W
PCB Assembly LGE EBR34280701 Contact Us For Availability
A46
PCB Assembly LGE EBR32927102 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR32467101 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66635802 Contact Us For Availability
A80
Case Assembly LGE ABQ77362001 Contact Us For Availability
A80C
Case Assembly LGE ABQ77362101 Contact Us For Availability
A80L
Case Assembly LGE ABQ77362205 Contact Us For Availability
A80R
Case Assembly LGE ABQ77341804 Contact Us For Availability
A700
Active Woofer LGE TCG37550211 Contact Us For Availability
A701
Active Woofer LGE TCG37550311 Contact Us For Availability
A900
Active Woofer LGE TCG37550011 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63970527 Contact Us For Availability
CABLE2
Harness,Single LGE EAD65366205 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970517 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD63970523 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970511 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42353506 Contact Us For Availability
IC102A
S/W,System Program LGE SAA42353201 Contact Us For Availability
IC103A
S/W,System Program LGE SAA42353302 Contact Us For Availability
IC104A
S/W,System Program LGE SAA35932290 Contact Us For Availability
IC504A
S/W,System Program LGE SAA42353101 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
RIC705A
S/W,System Program LGE SAA35932293 Contact Us For Availability
RIC705A
S/W,System Program LGE SAA35932292 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932291 Contact Us For Availability
× ![]()
