Model LG SN9YG Soundbar – Common Parts & Diagrams
Diagram 0

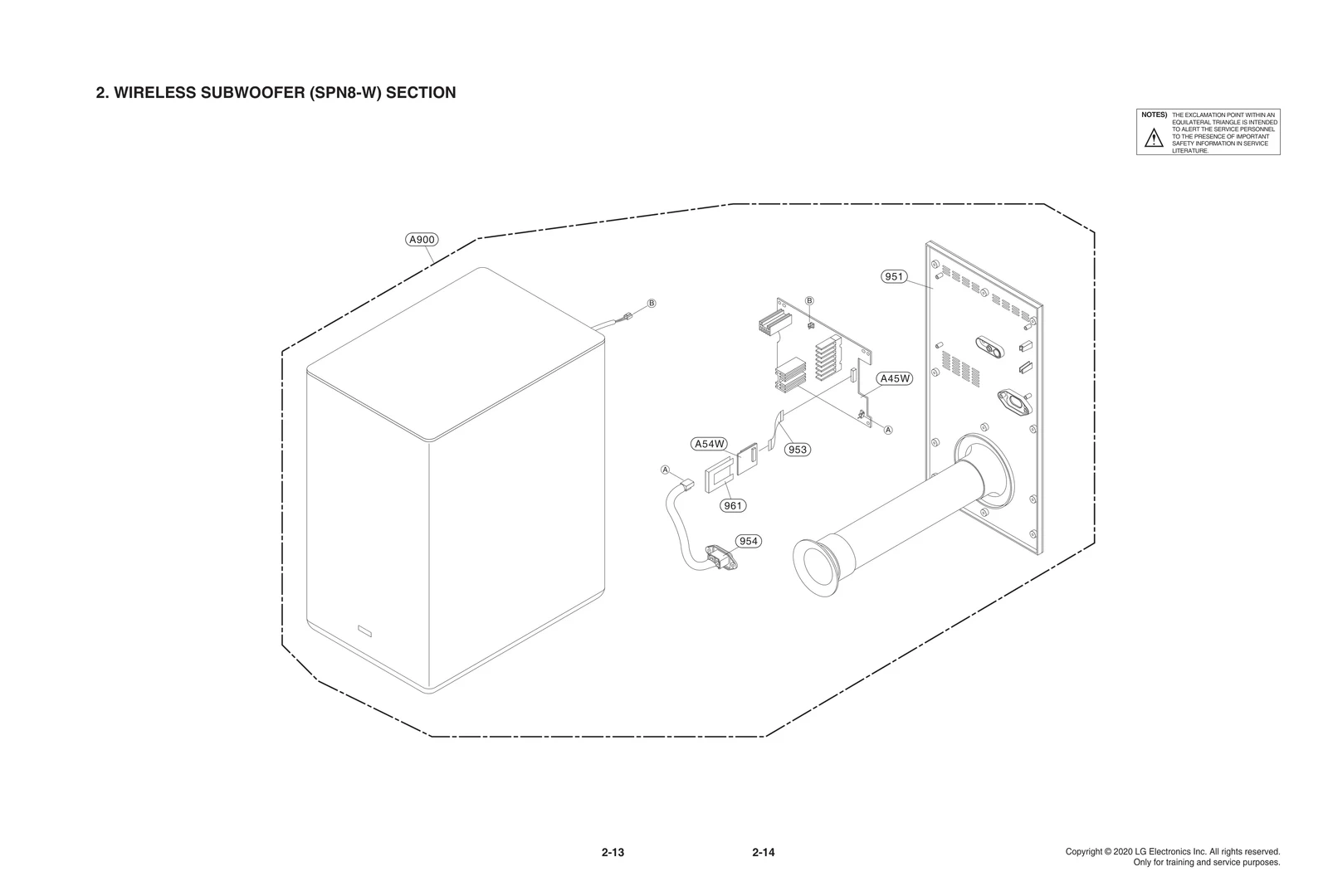

Diagram 1

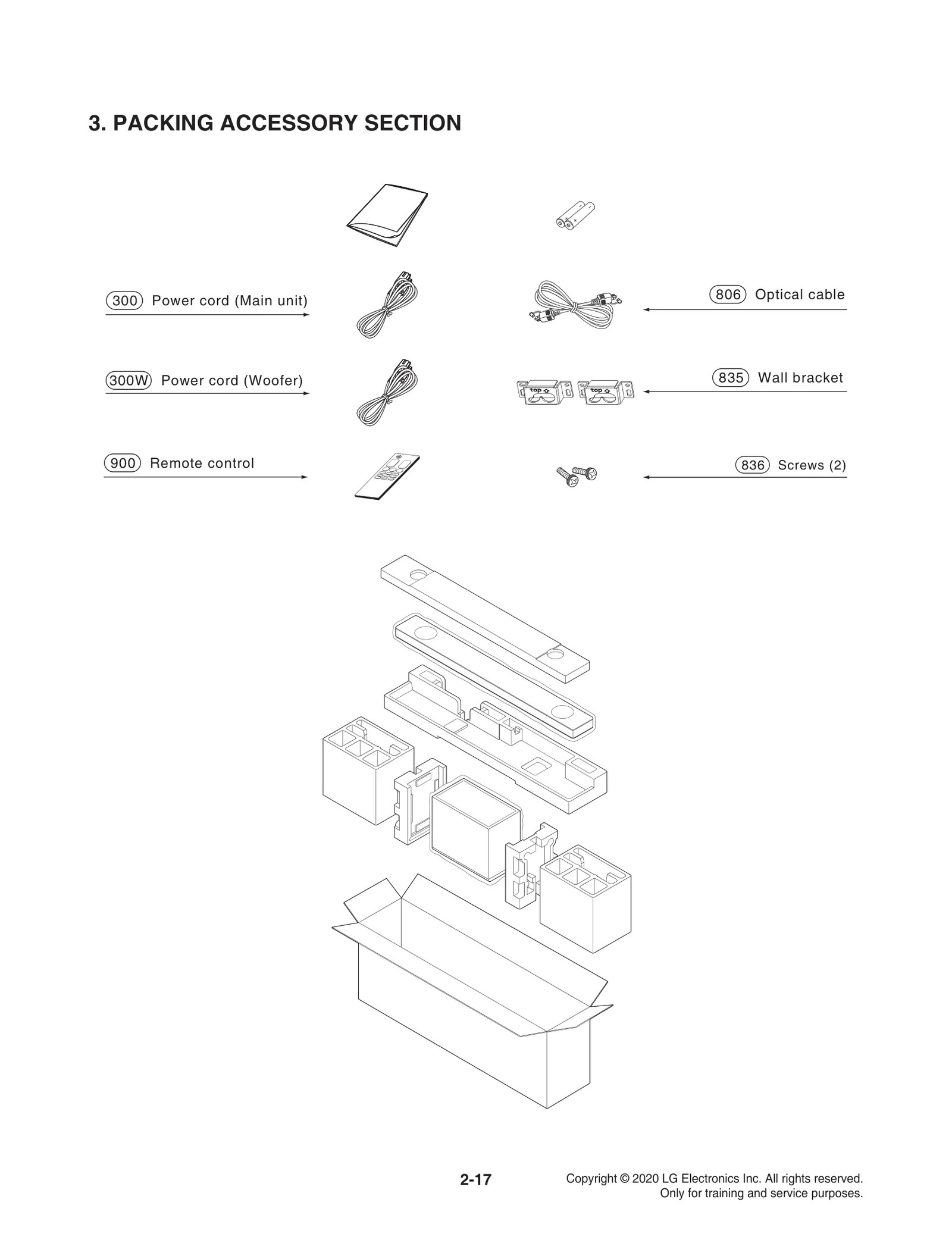

Diagram 2
Diagram 3
Common parts from model LG SN9YG Soundbar
264
Damper LGE MCQ70767105 Contact Us For Availability
266
Holder Assembly LGE AEJ76039801 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD61071209 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB75595351 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly,Sub LGE AAX76974301 Contact Us For Availability
A42
Case Assembly LGE ABQ30002502 Contact Us For Availability
A43
PCB Assembly LGE EBR31298501 Contact Us For Availability
A46
PCB Assembly LGE EBR31298701 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR89658201 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66418201 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A55
PCB Assembly LGE EBR89820601 Contact Us For Availability
A80L
Case Assembly LGE ABQ30002003 Contact Us For Availability
A80R
Case Assembly LGE ABQ30002103 Contact Us For Availability
A900
Active Woofer LGE TCG37249237 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131540 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970520 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970521 Contact Us For Availability
CABLE9
Cable,FFC LGE EAD63970522 Contact Us For Availability
CABLE10
Harness,Single LGE EAD65366204 Contact Us For Availability
GIC01A
S/W,System Program LGE SAA41796901 Contact Us For Availability
IC100A
S/W,System Program LGE SAA35932279 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932273 Contact Us For Availability
IC102A
S/W,System Program LGE SAA41796201 Contact Us For Availability
IC103A
S/W,System Program LGE SAA41797101 Contact Us For Availability
IC504A
S/W,System Program LGE SAA41796101 Contact Us For Availability
ICK02A
S/W,System Program LGE SAA41797201 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932276 Contact Us For Availability
× ![]()
