Model LG SN7R Soundbar – Common Parts & Diagrams

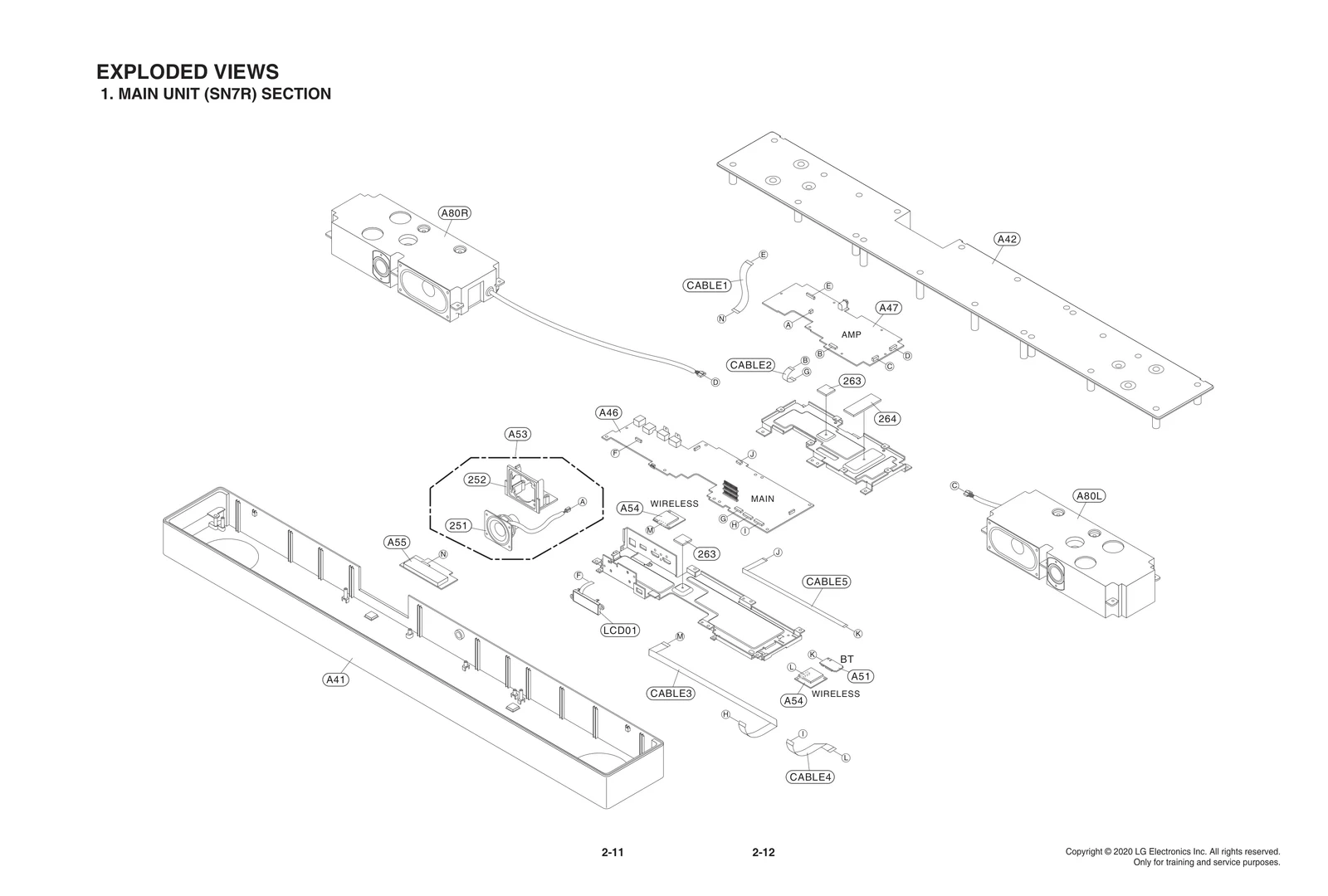

Diagram 0

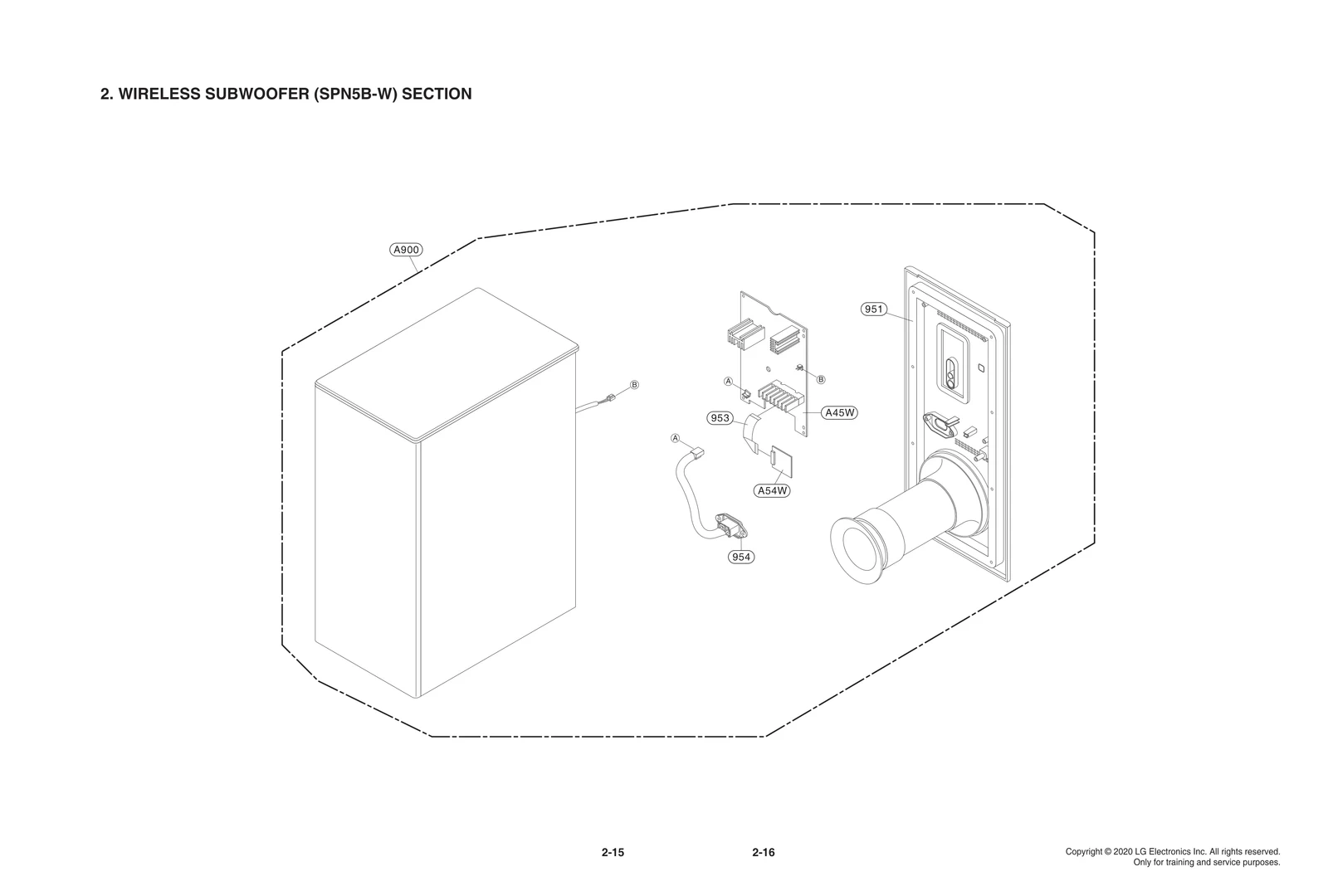

Diagram 1

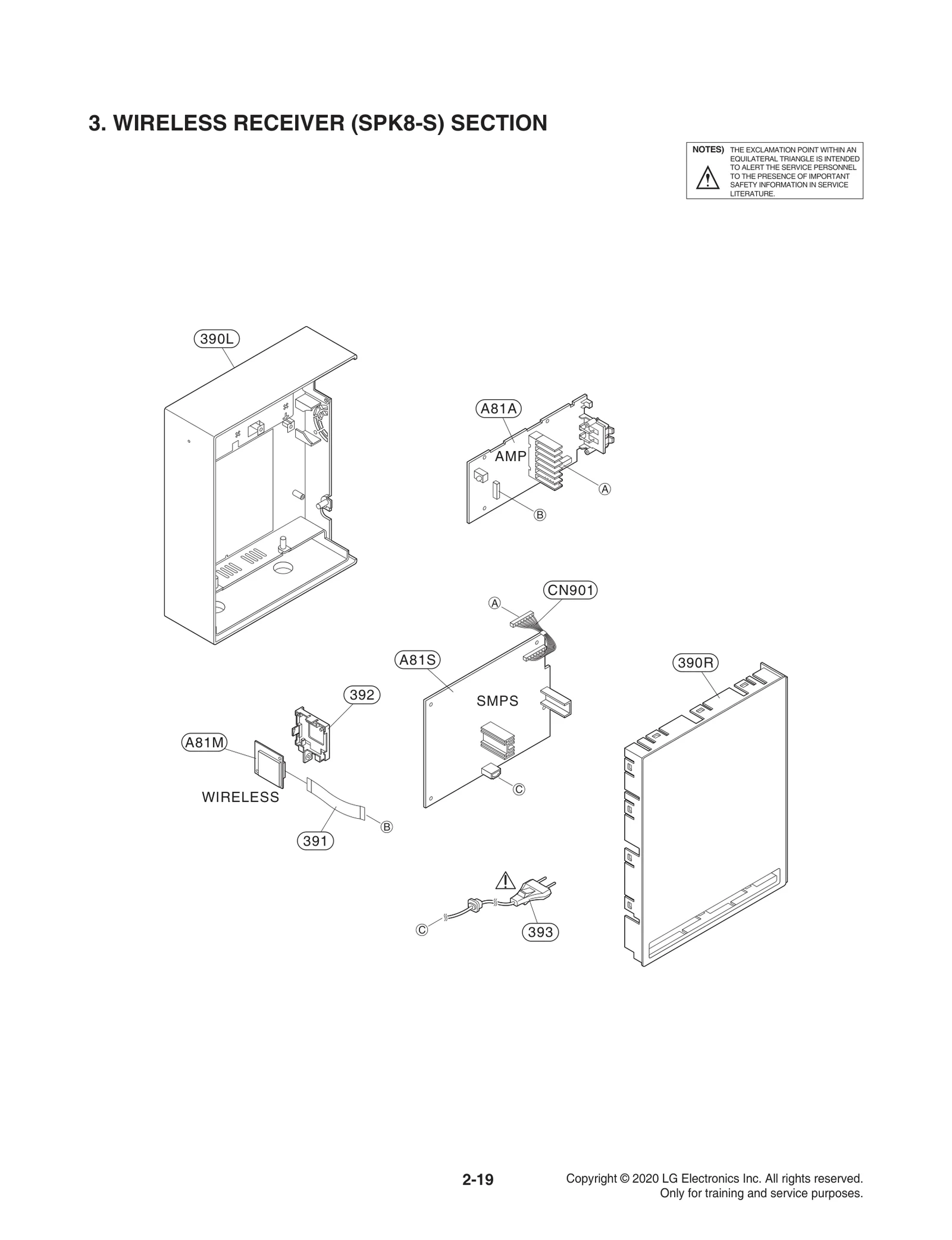

Diagram 2

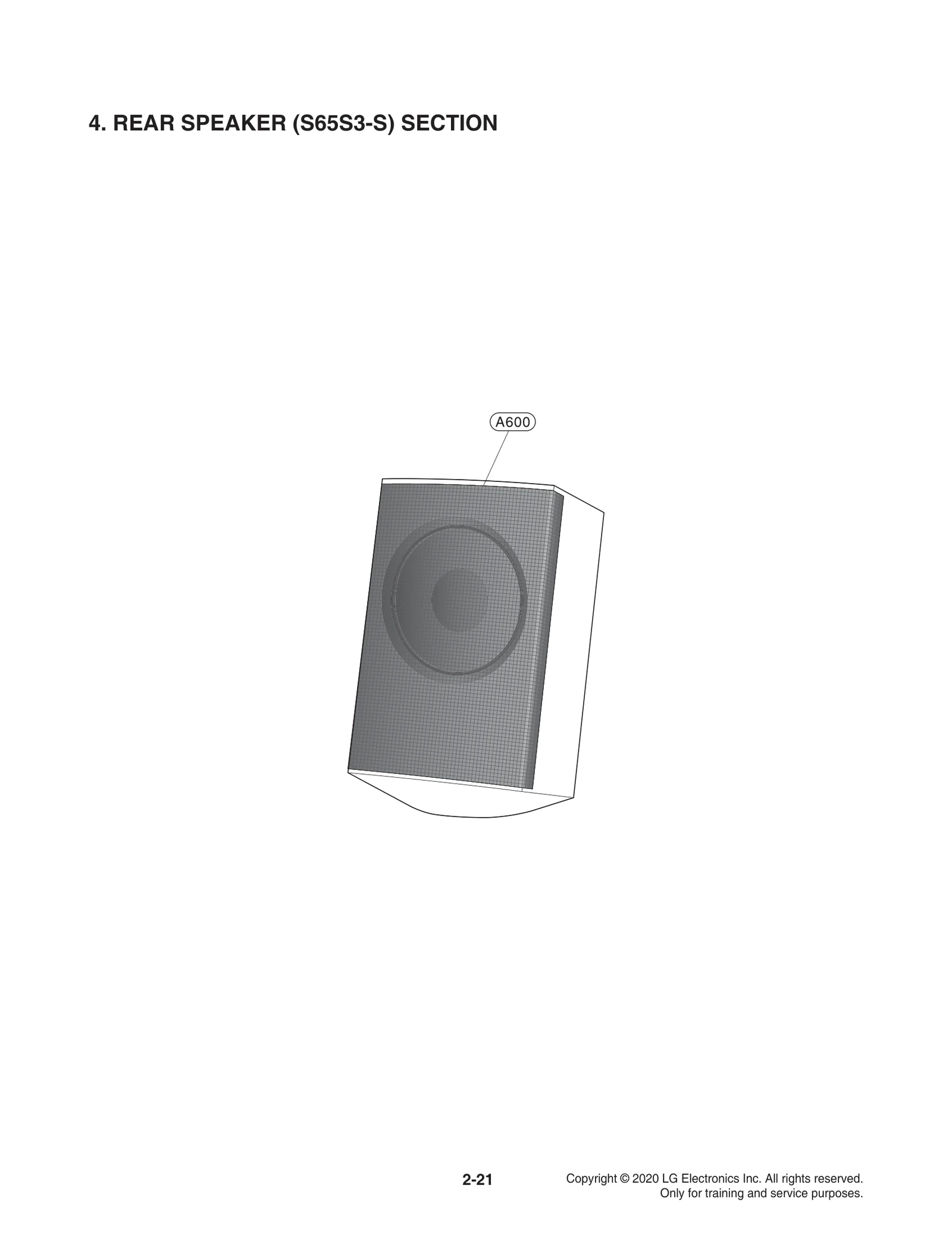

Diagram 3

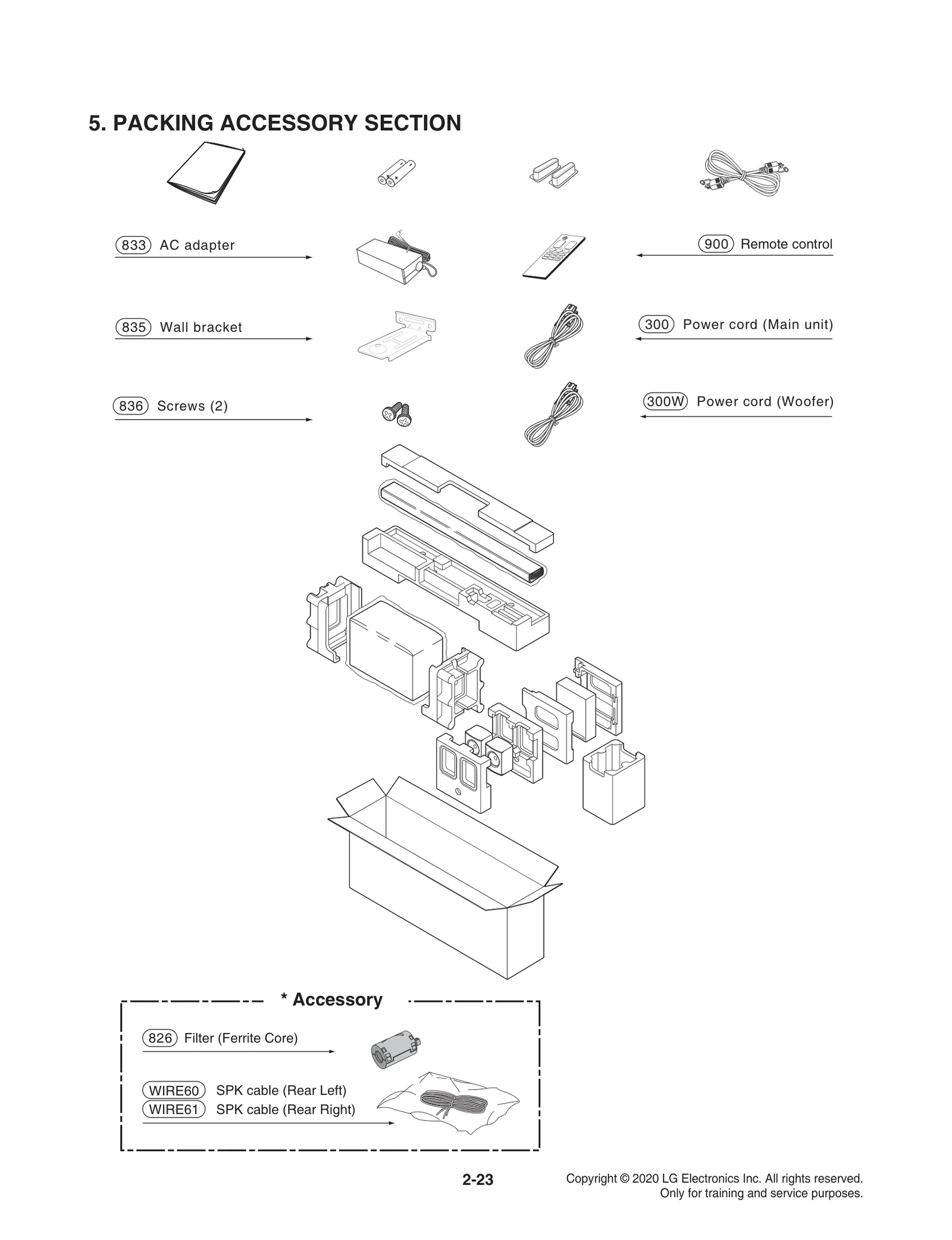

Diagram 4
Diagram 5
Common parts from model LG SN7R Soundbar
264
Damper LGE MCQ62096489 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928334 Contact Us For Availability
390R
Cover LGE MCK67107002 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30012602 Contact Us For Availability
953
Cable,FFC LGE EAD62131539 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
A41
Case Assembly LGE ABQ30000402 Contact Us For Availability
A42
Case Assembly LGE ABQ30000103 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT66409817 Contact Us For Availability
A47
LFS Total PCB Assembly LGE EBT66438101 Contact Us For Availability
A51
Module,Bluetooth LGE EAT64073401 Contact Us For Availability
A53
Holder Assembly LGE AEJ76299301 Contact Us For Availability
A55
PCB Assembly LGE EBR30006401 Contact Us For Availability
A80L
Case Assembly LGE ABQ30000204 Contact Us For Availability
A80R
Case Assembly LGE ABQ30000304 Contact Us For Availability
A81A
PCB Assembly LGE EBR86349901 Contact Us For Availability
A81A
PCB Assembly LGE EBR31802301 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR89202101 Contact Us For Availability
A600
Speaker System Total LGE TCG36668310 Contact Us For Availability
A900
Active Woofer LGE TCG37548302 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131544 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD61049032 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970525 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131543 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62185625 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
IC100A
S/W,System Program LGE SAA35932279 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932273 Contact Us For Availability
IC102A
S/W,System Program LGE SAA41798501 Contact Us For Availability
IC103A
S/W,System Program LGE SAA41798602 Contact Us For Availability
IC505A
S/W,System Program LGE SAA41798401 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932262 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932276 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
× ![]()
