Model LG SN11RG – Common Parts & Diagrams

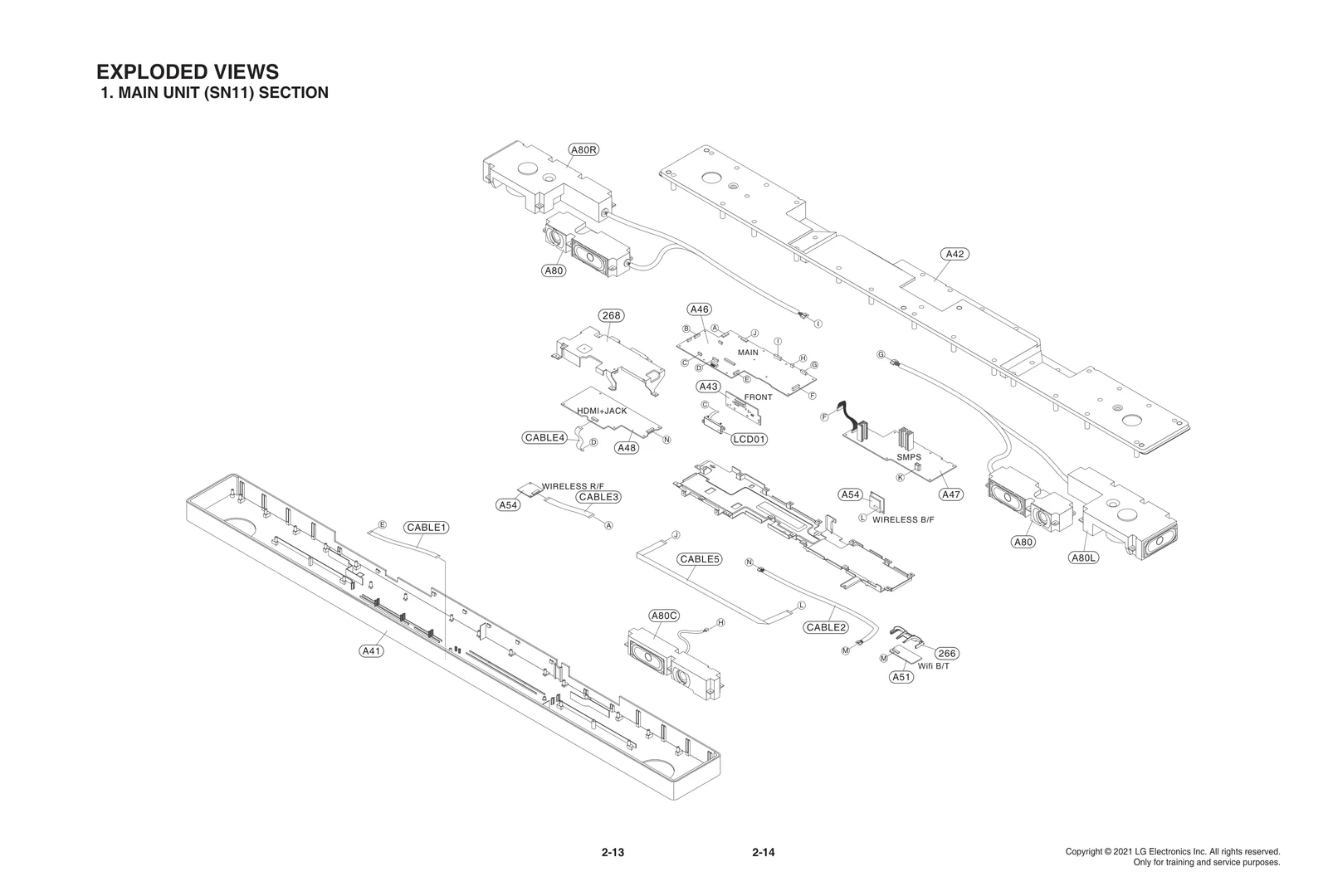

Diagram 0

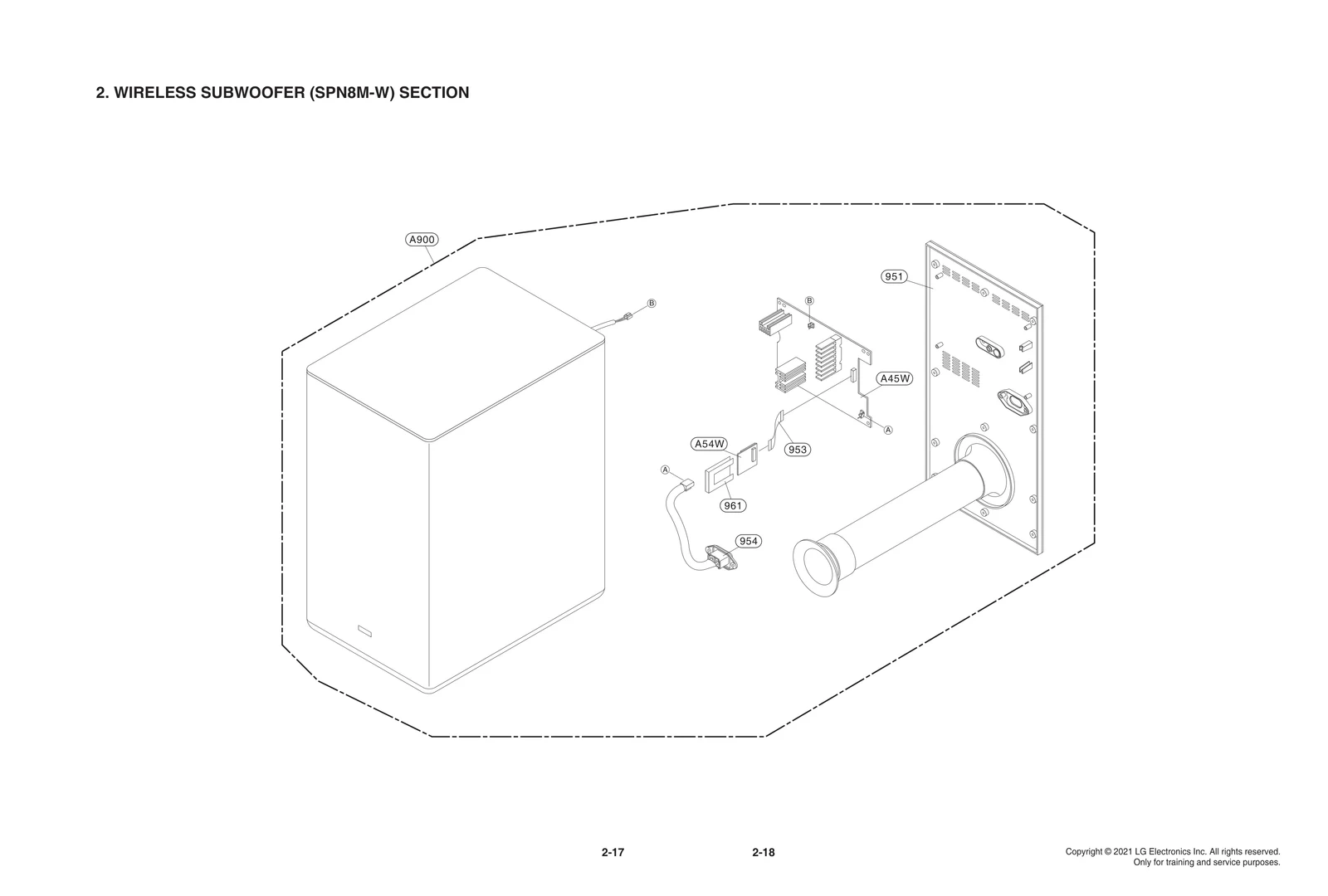

Diagram 1

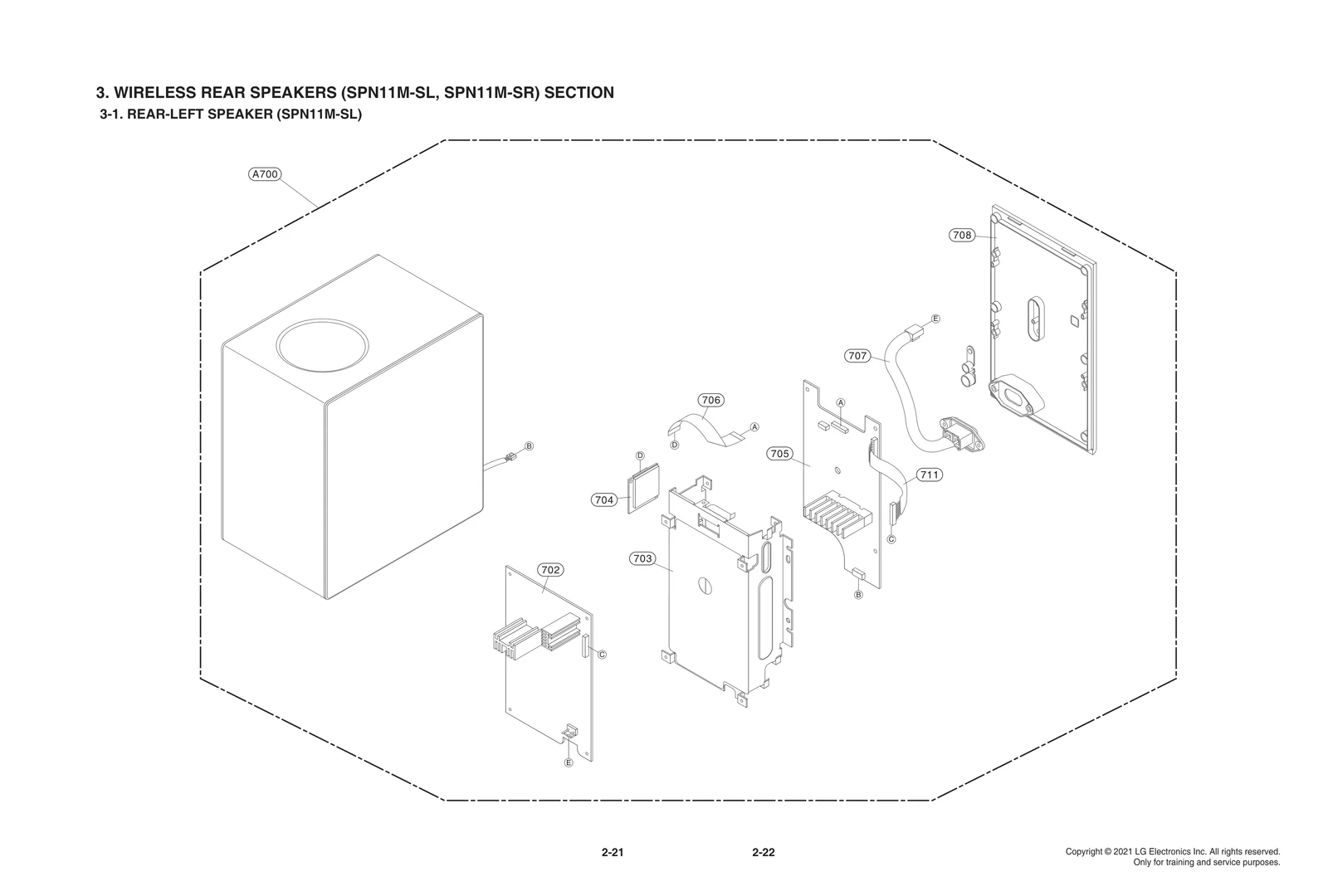

Diagram 2

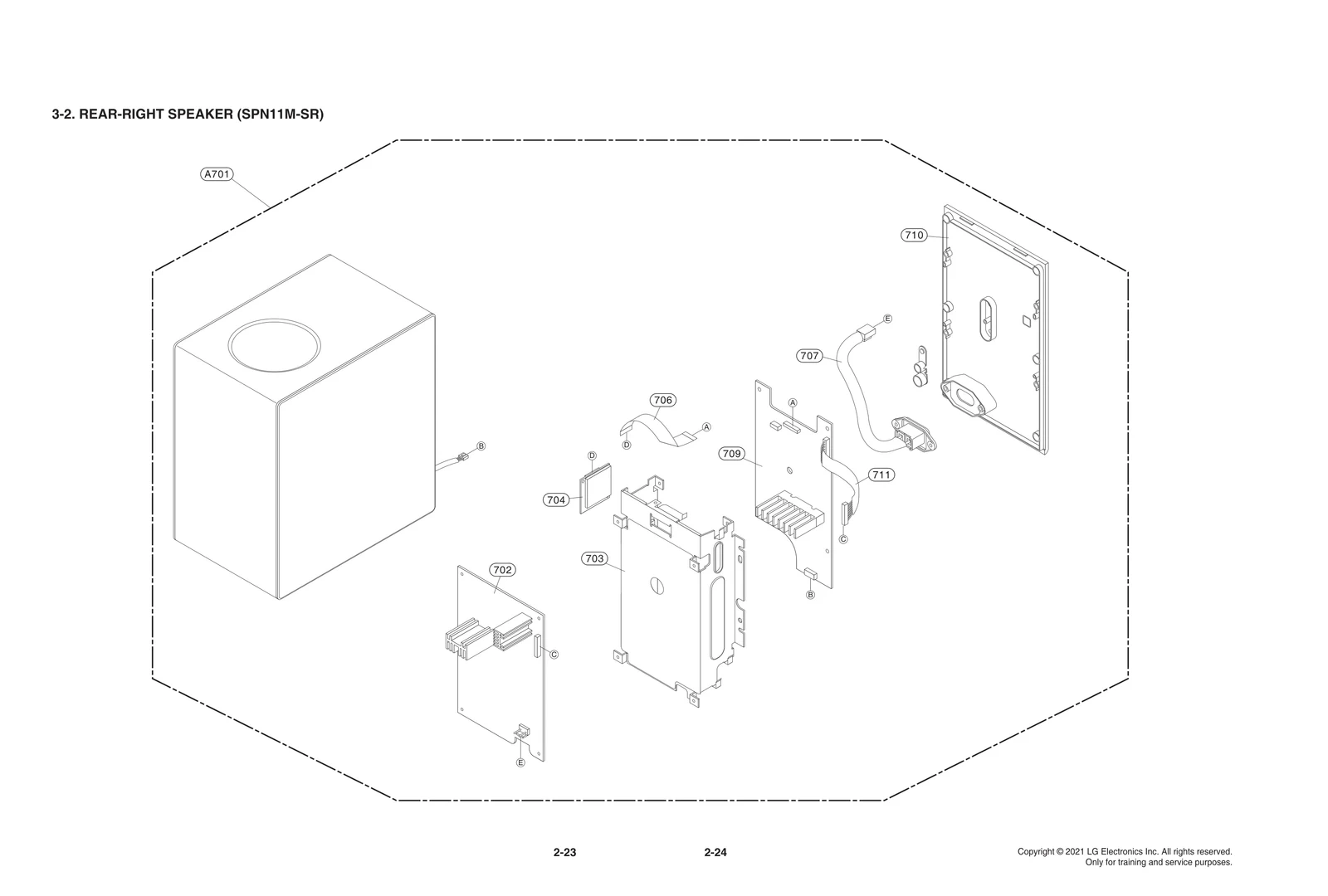

Diagram 3

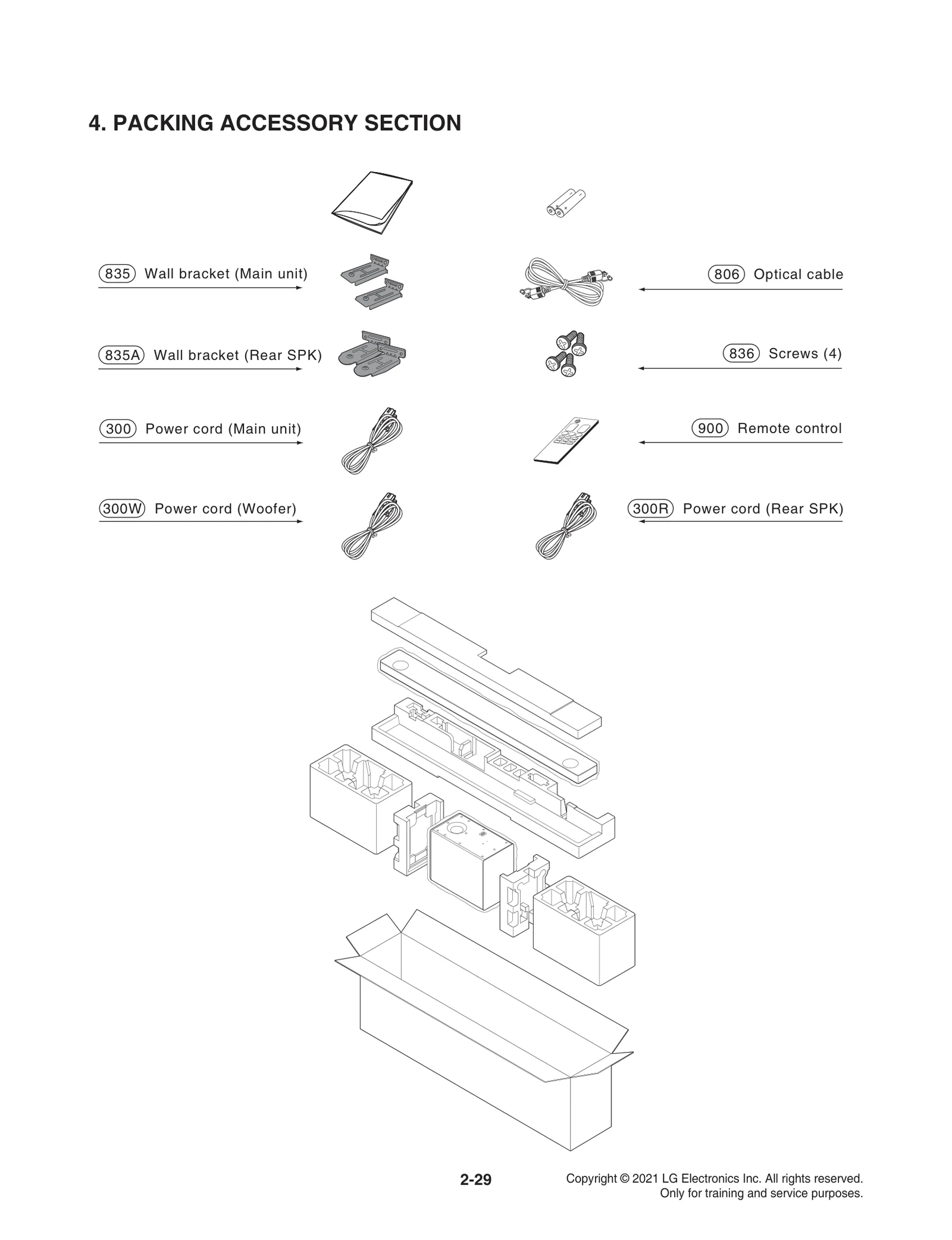

Diagram 4
Diagram 5
Common parts from model LG SN11RG
268
Frame Assembly LGE ADV77732801 Contact Us For Availability
702
PCB Assembly LGE EBR89632701 Contact Us For Availability
703
Frame Assembly LGE ADV30002001 Contact Us For Availability
704
Module,RF Full Module(RxTx) LGE EAT65179301 Contact Us For Availability
705
LFS Total PCB Assembly LGE EBT66468151 Contact Us For Availability
706
Cable,FFC LGE EAD62131545 Contact Us For Availability
707
Socket,Power LGE EAG63233204 Contact Us For Availability
708
Case Assembly LGE ABQ77488202 Contact Us For Availability
709
LFS Total PCB Assembly LGE EBT66468152 Contact Us For Availability
710
Case Assembly LGE ABQ77488201 Contact Us For Availability
711
Harness,Single LGE EAD65830001 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
835A
Accessory Assembly LGE AAA30014402 Contact Us For Availability
836
Packing Assembly LGE AGG75620760 Contact Us For Availability
900
Remote Controller Assembly LGE AKB75595351 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly LGE AAX76971001 Contact Us For Availability
A42
Case Assembly LGE ABQ77381907 Contact Us For Availability
A43
PCB Assembly LGE EBR34378701 Contact Us For Availability
A45W
PCB Assembly LGE EBR34280701 Contact Us For Availability
A46
BPR Total Assembly LGE EBU66465001 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR89644401 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66422604 Contact Us For Availability
A80
Case Assembly LGE ABQ77362001 Contact Us For Availability
A80C
Case Assembly LGE ABQ77362101 Contact Us For Availability
A80L
Case Assembly LGE ABQ77362204 Contact Us For Availability
A80R
Case Assembly LGE ABQ77341803 Contact Us For Availability
A700
Active Woofer LGE TCG37547956 Contact Us For Availability
A701
Active Woofer LGE TCG37548056 Contact Us For Availability
A900
Active Woofer LGE TCG37249284 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63970527 Contact Us For Availability
CABLE2
Harness,Single LGE EAD65366205 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970517 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD63970523 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970511 Contact Us For Availability
GIC01A
S/W,System Program LGE SAA41796301 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42353506 Contact Us For Availability
IC102A
S/W,System Program LGE SAA41796203 Contact Us For Availability
IC103A
S/W,System Program LGE SAA41796401 Contact Us For Availability
IC104A
S/W,System Program LGE SAA35932290 Contact Us For Availability
IC504A
S/W,System Program LGE SAA41796103 Contact Us For Availability
ICK01A
S/W,System Program LGE SAA41796501 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
RIC705A
S/W,System Program LGE SAA35932292 Contact Us For Availability
RIC705A
S/W,System Program LGE SAA35932293 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932291 Contact Us For Availability
× ![]()
