Model LG SL9YG Soundbar – Common Parts & Diagrams

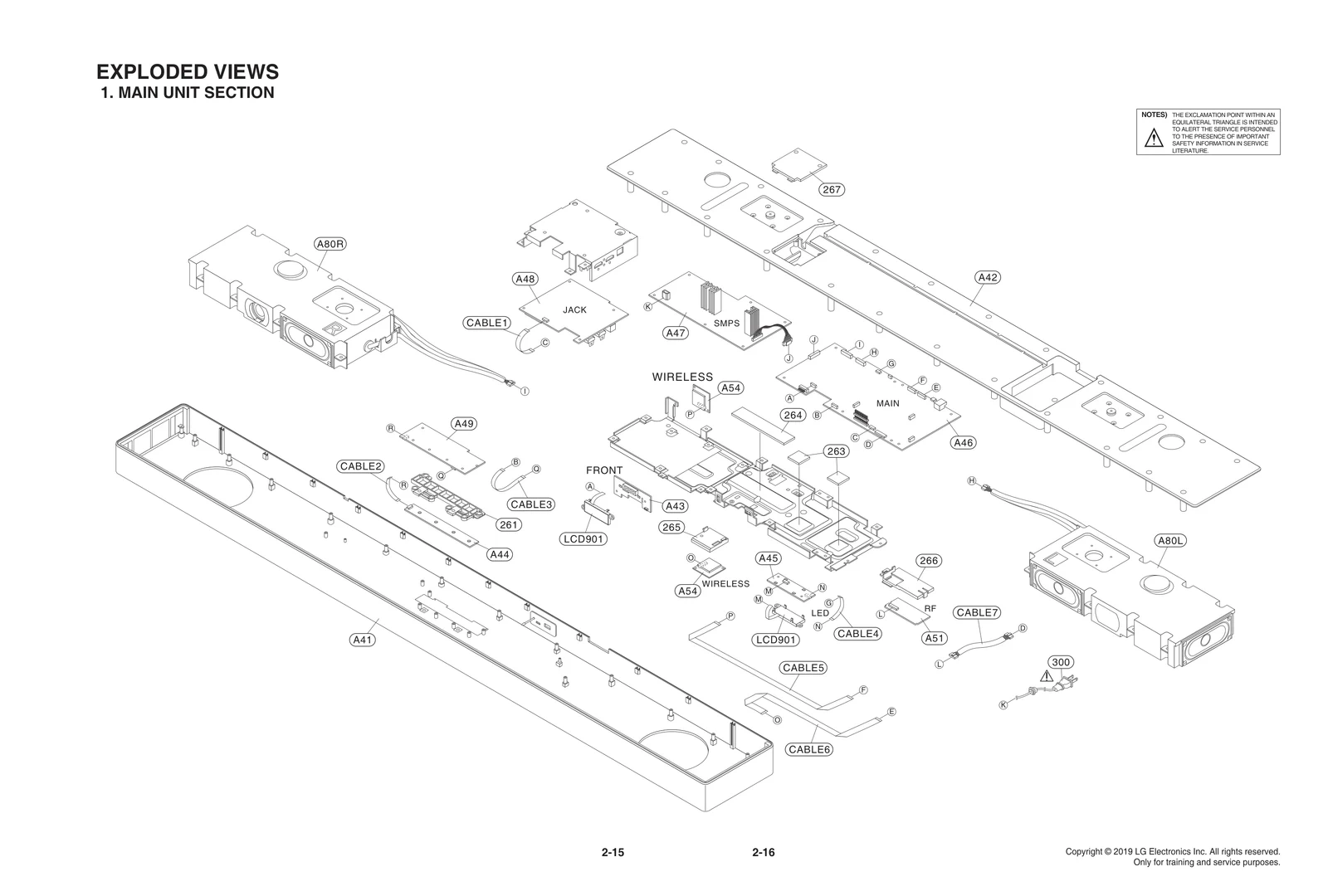

Diagram 0

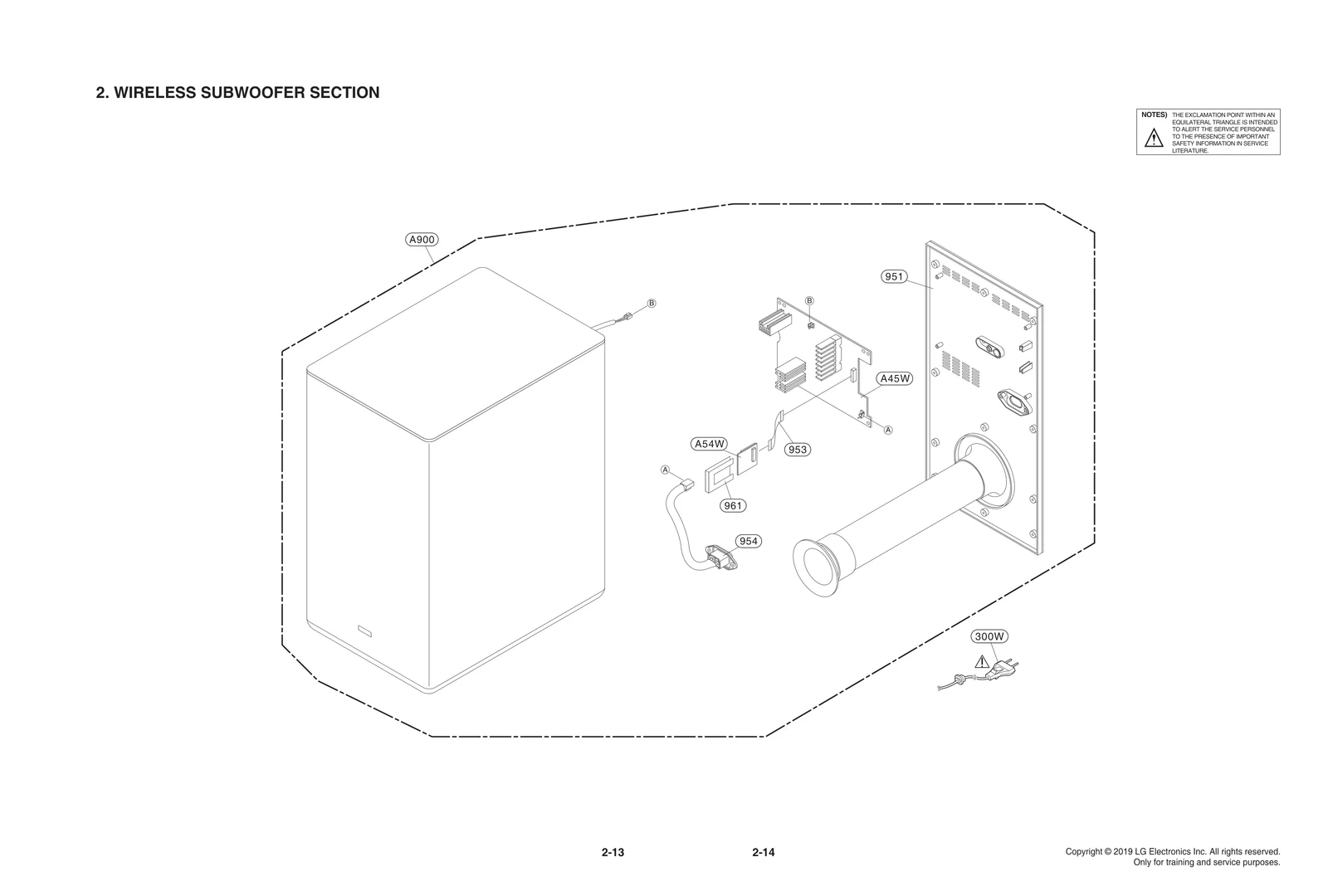

Diagram 1

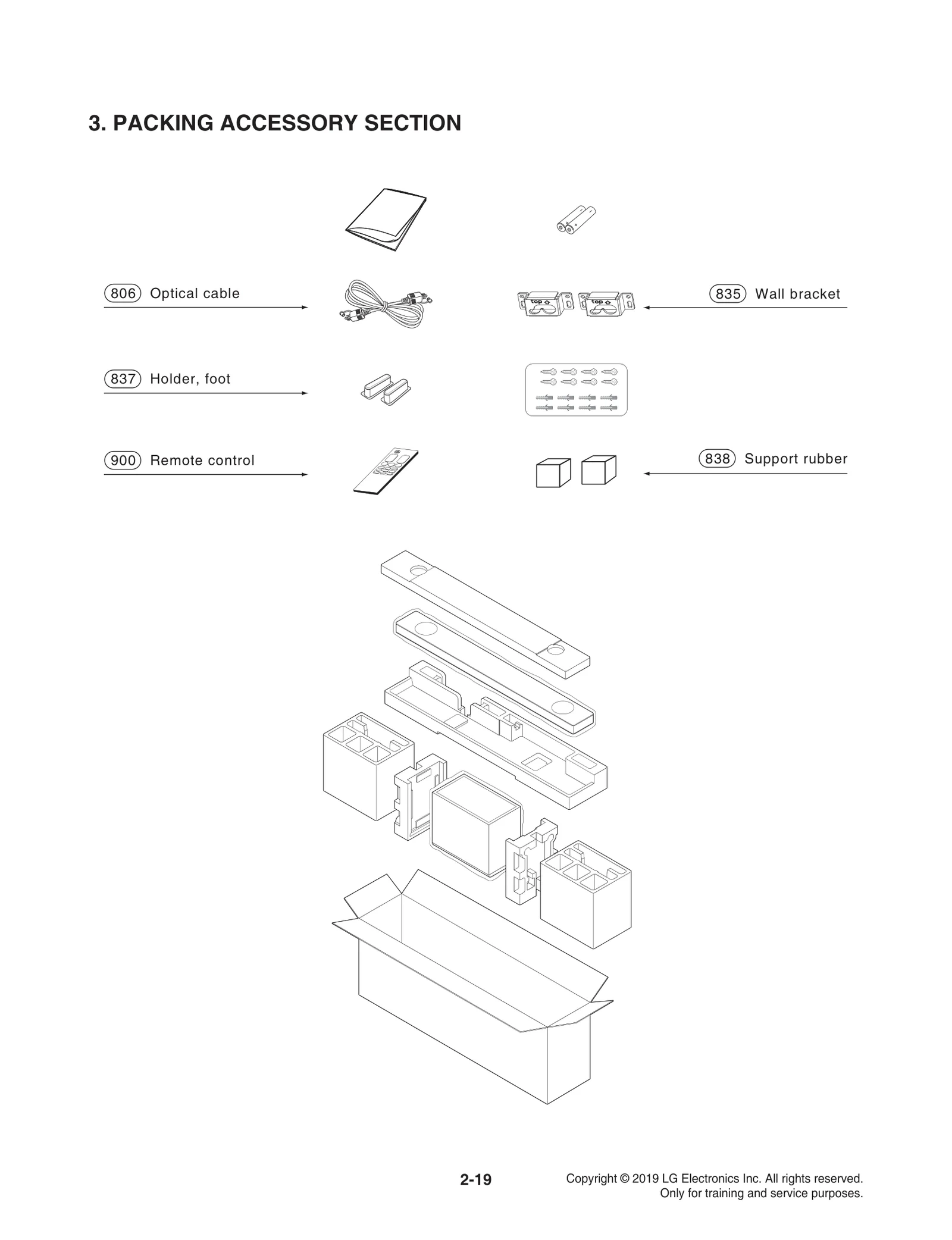

Diagram 2
Diagram 3
Common parts from model LG SL9YG Soundbar
263
Damper LGE MCQ70767104 Contact Us For Availability
264
Damper LGE MCQ70845607 Contact Us For Availability
264
Damper LGE MCQ70767105 Contact Us For Availability
265
Holder Assembly LGE AEJ75439405 Contact Us For Availability
266
Holder Assembly LGE AEJ75879402 Contact Us For Availability
267
Cover Assembly LGE ACQ91115303 Contact Us For Availability
806
Cable,Assembly LGE EAD61071209 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
837
Accessory Assembly LGE AAA78085001 Contact Us For Availability
838
Packing Assembly LGE AGG75620758 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Case Assembly LGE ABQ77200523 Contact Us For Availability
A42
Case Assembly LGE ABQ77181706 Contact Us For Availability
A43
PCB Assembly LGE EBR30043501 Contact Us For Availability
A44
PCB Assembly LGE EBR30045201 Contact Us For Availability
A45
PCB Assembly LGE EBR30044001 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625807 Contact Us For Availability
A45W
LGE EBR89625803 LGE EBR89625803 Contact Us For Availability
A45W
LGE EBR89625806 LGE EBR89625806 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625802 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT65875905 Contact Us For Availability
A47
PCB Assembly LGE EBR87480901 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66032501 Contact Us For Availability
A49
PCB Assembly LGE EBR30045701 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A80L
Case Assembly LGE ABQ77201801 Contact Us For Availability
A80R
Case Assembly LGE ABQ77201701 Contact Us For Availability
A900
Active Woofer LGE TCG37249203 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD64145702 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62246604 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD64128903 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD63126712 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970518 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD62131535 Contact Us For Availability
CABLE7
Harness,Single LGE EAD65366201 Contact Us For Availability
IC100A
S/W,System Program LGE SAA40881101 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932265 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932267 Contact Us For Availability
IC103A
S/W,System Program LGE SAA40908101 Contact Us For Availability
IC504A
S/W,System Program LGE SAA40907902 Contact Us For Availability
IC602A
S/W,System Program LGE SAA40881301 Contact Us For Availability
IC801A
S/W,System Program LGE SAA40881501 Contact Us For Availability
ICA101A
S/W,System Program LGE SAA40908002 Contact Us For Availability
ICT01A
S/W,System Program LGE SAA40881405 Contact Us For Availability
LCD901
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932266 Contact Us For Availability
× ![]()
