Model LG SL8YG Soundbar – Common Parts & Diagrams
Diagram 0

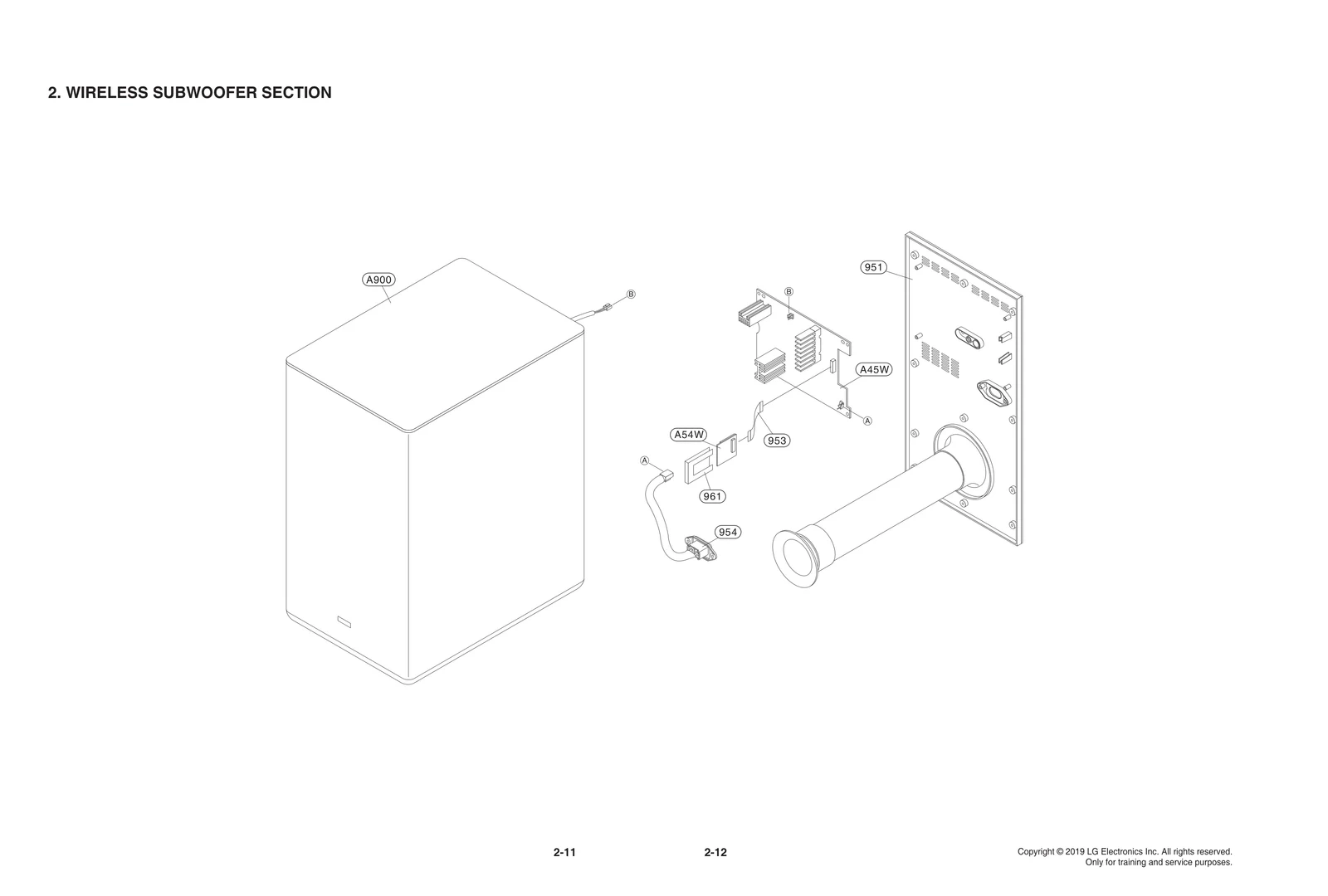

Diagram 1

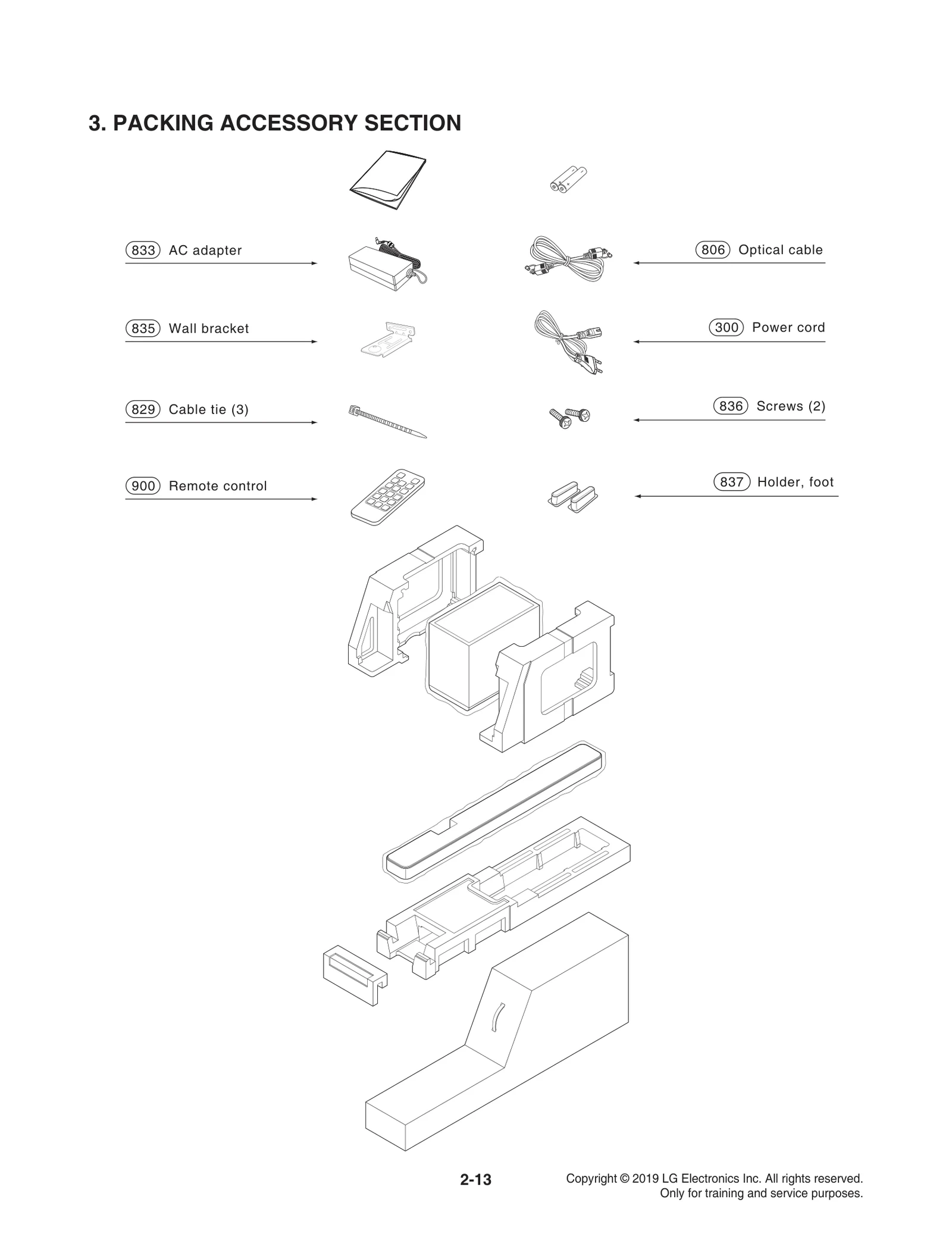

Diagram 2
Diagram 3
Common parts from model LG SL8YG Soundbar
266
Holder Assembly LGE AEJ75879401 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
837
Accessory Assembly LGE AAA78085001 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly LGE AAX76827601 Contact Us For Availability
A42
Case Assembly LGE ABQ76920205 Contact Us For Availability
A43
PCB Assembly LGE EBR88446901 Contact Us For Availability
A45W
PCB Assembly LGE EBR87407101 Contact Us For Availability
A45W
LGE EBR89625806 LGE EBR89625806 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625802 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625807 Contact Us For Availability
A45W
LGE EBR89625803 LGE EBR89625803 Contact Us For Availability
A46
PCB Assembly LGE EBR88446201 Contact Us For Availability
A47
LFS Total PCB Assembly LGE EBT66056101 Contact Us For Availability
A48
PCB Assembly LGE EBR88446701 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A80C
Case Assembly LGE ABQ77060902 Contact Us For Availability
A80L
Case Assembly LGE ABQ77100402 Contact Us For Availability
A80R
Case Assembly LGE ABQ77100502 Contact Us For Availability
A900
Active Woofer LGE TCG37388102 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63970515 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970514 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970513 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62185622 Contact Us For Availability
CABLE5
Harness,Single LGE EAD65366201 Contact Us For Availability
GIC01A
S/W,System Program LGE SAA40881103 Contact Us For Availability
IC100A
S/W,System Program LGE SAA40881102 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932265 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932267 Contact Us For Availability
IC103A
S/W,System Program LGE SAA40881201 Contact Us For Availability
IC400AB
Option Code Assembly LGE EBR88870901 Contact Us For Availability
IC504A
S/W,System Program LGE SAA40881004 Contact Us For Availability
IC602A
S/W,System Program LGE SAA40881301 Contact Us For Availability
IC801A
S/W,System Program LGE SAA40881501 Contact Us For Availability
ICK01A
S/W,System Program LGE SAA40881404 Contact Us For Availability
LCD801
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932266 Contact Us For Availability
× ![]()
