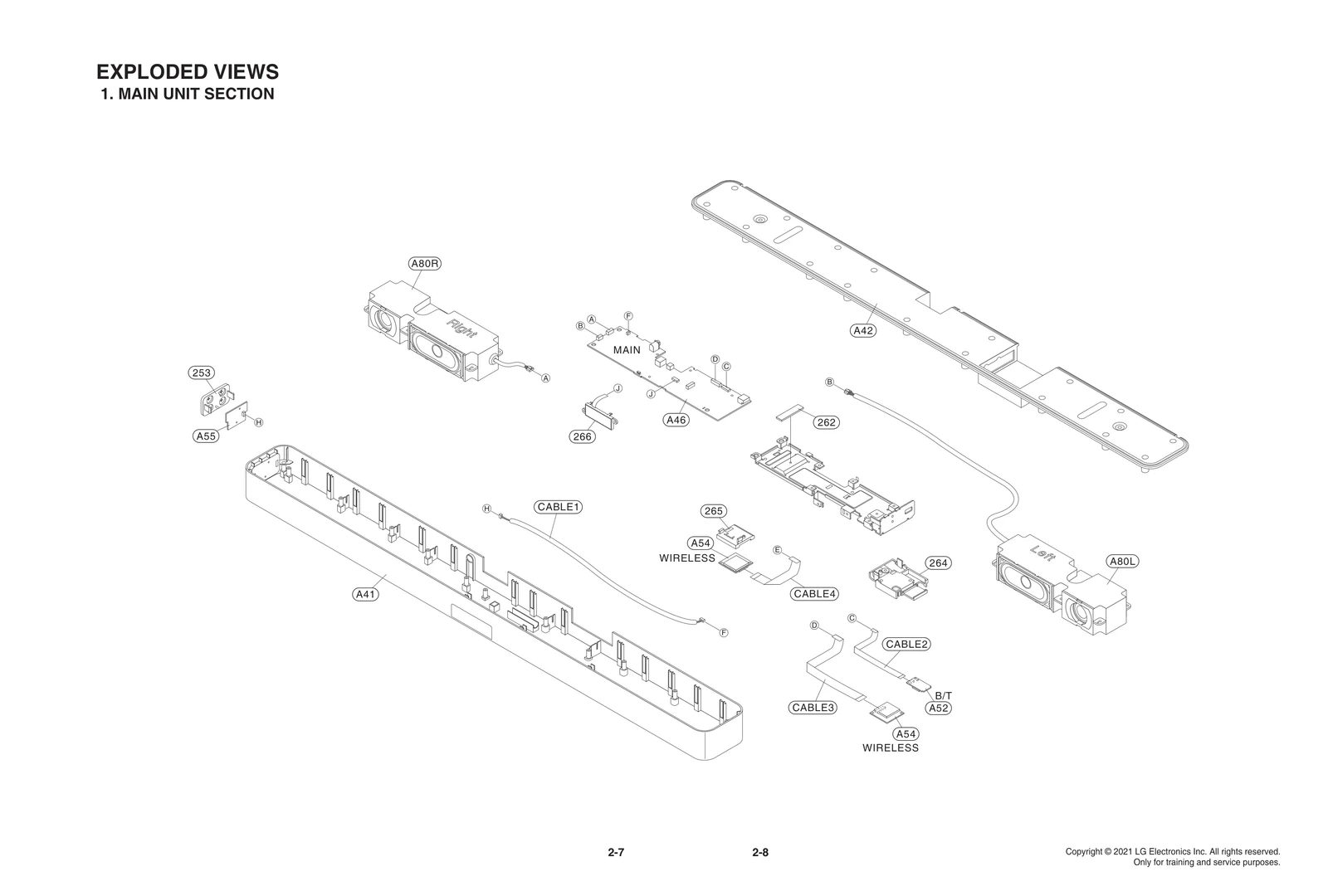

Model LG SL4R Soundbar – Common Parts & Diagrams

264
Holder Assembly
Holder Assembly LGE AEJ74999618 Contact Us For Availability
View on Model
265
Holder Assembly
Holder Assembly LGE AEJ75439405 Contact Us For Availability
View on Model
266
LCD Module
LCD Module LGE EAJ63172305 Contact Us For Availability
View on Model
300W
Power Cord,Attach
Power Cord,Attach LGE EAD62501535 Contact Us For Availability
View on Model

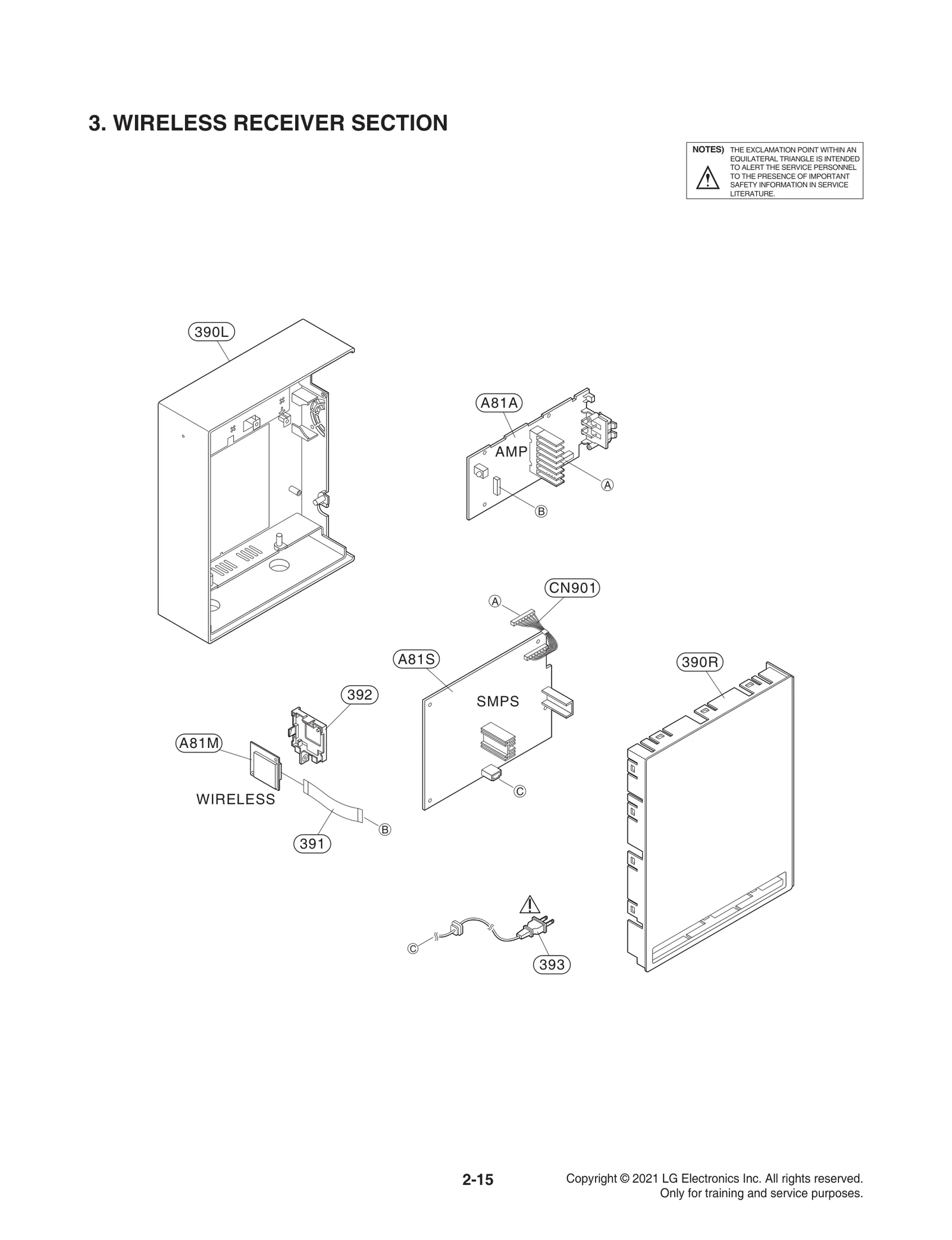

390L
Cover Assembly
Cover Assembly LGE ACQ85928334 Contact Us For Availability
View on Model
390R
Cover
Cover LGE MCK67107002 Contact Us For Availability
View on Model
391
Cable,FFC
Cable,FFC LGE EAD62131501 Contact Us For Availability
View on Model
392
Holder
Holder LGE MEG63059701 Contact Us For Availability
View on Model
806
Cable,Assembly
Cable,Assembly LGE EAD61071210 Contact Us For Availability
View on Model
806
Cable,Assembly
Cable,Assembly LGE EAD63345601 Contact Us For Availability
View on Model
806
Cable,Assembly
Cable,Assembly LGE EAD63727901 Contact Us For Availability
View on Model

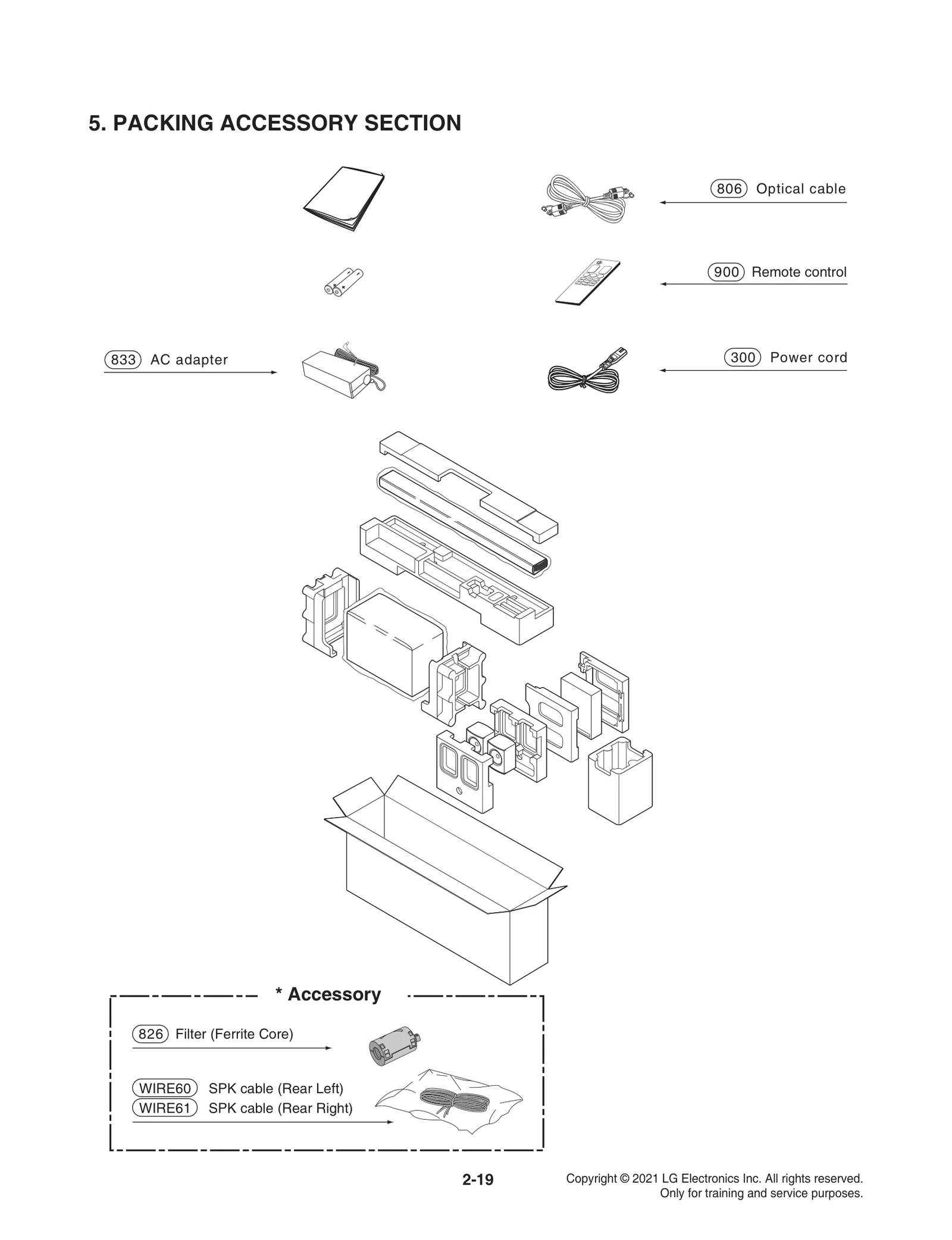

826
Filter,Ferrite Core
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
View on Model
900
Remote Controller Assembly
Remote Controller Assembly LGE AKB75595361 Contact Us For Availability
View on Model
951
Panel,Rear
Panel,Rear LGE MGC63804110 Contact Us For Availability
View on Model
954
Duct
Duct LGE MCZ63611901 Contact Us For Availability
View on Model
955
Duct
Duct LGE MCZ63631801 Contact Us For Availability
View on Model
958
Cable,FFC
Cable,FFC LGE EAD62131520 Contact Us For Availability
View on Model
A41
Case Assembly
Case Assembly LGE ABQ77200109 Contact Us For Availability
View on Model
A42
Case Assembly
Case Assembly LGE ABQ77160313 Contact Us For Availability
View on Model
A45W
Different Kind Array PCB Assembly
Different Kind Array PCB Assembly LGE EBR87888101 Contact Us For Availability
View on Model
A46
LFS Total PCB Assembly
LFS Total PCB Assembly LGE EBT65893026 Contact Us For Availability
View on Model
A47W
PCB Assembly,Power
PCB Assembly,Power LGE EBR32310001 Contact Us For Availability
View on Model
A52
Module,Bluetooth
Module,Bluetooth LGE EAT62833604 Contact Us For Availability
View on Model
A55
PCB Assembly
PCB Assembly LGE EBR88178301 Contact Us For Availability
View on Model
A80L
Case Assembly
Case Assembly LGE ABQ76481708 Contact Us For Availability
View on Model
A80R
Case Assembly
Case Assembly LGE ABQ76481709 Contact Us For Availability
View on Model
A81A
PCB Assembly
PCB Assembly LGE EBR31802301 Contact Us For Availability
View on Model
A81M
Module,RF Full Module(RxTx)
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
View on Model
A81M
Module,RF Full Module(RxTx)
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
View on Model
A81S
PCB Assembly,Power
PCB Assembly,Power LGE EBR89202101 Contact Us For Availability
View on Model

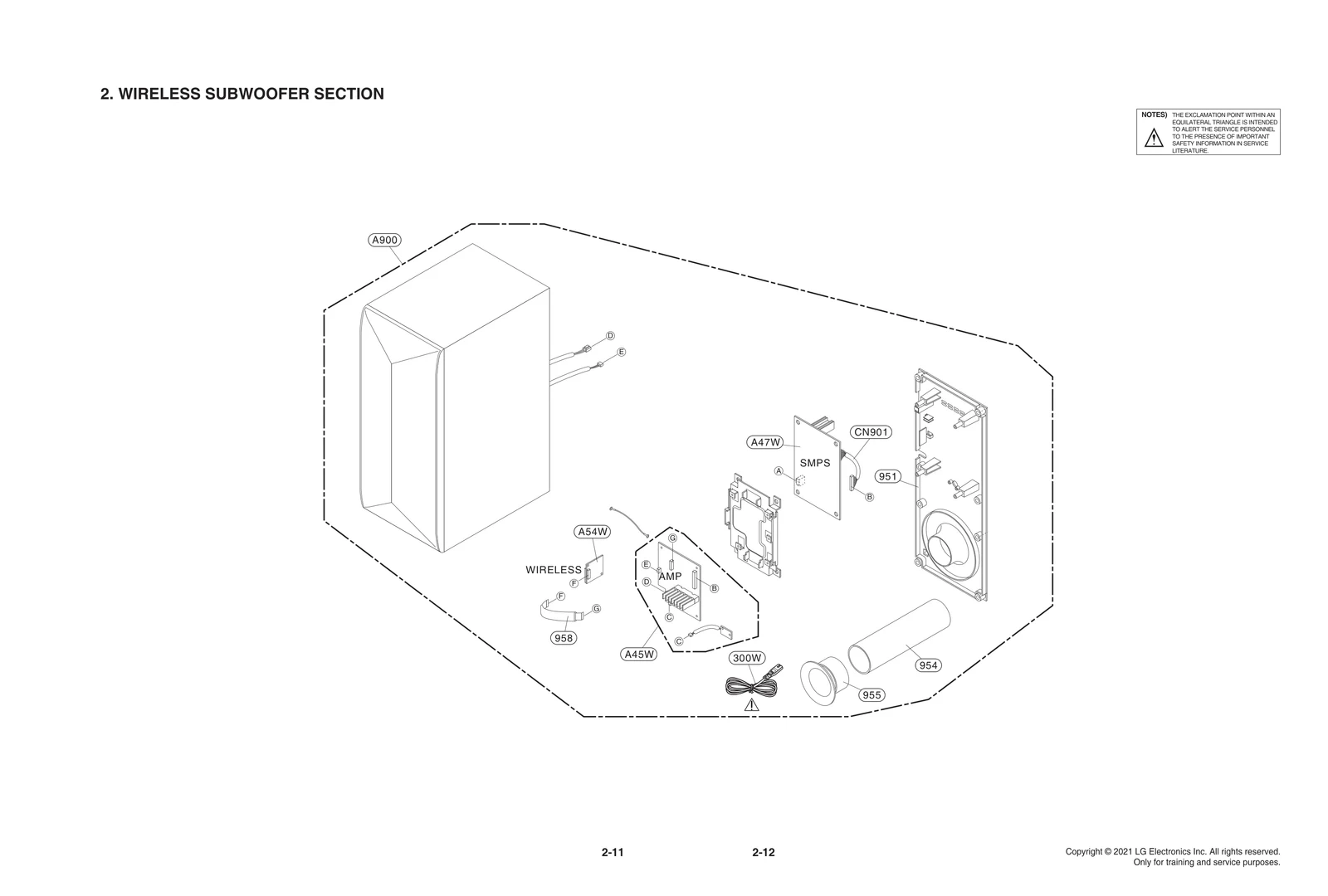

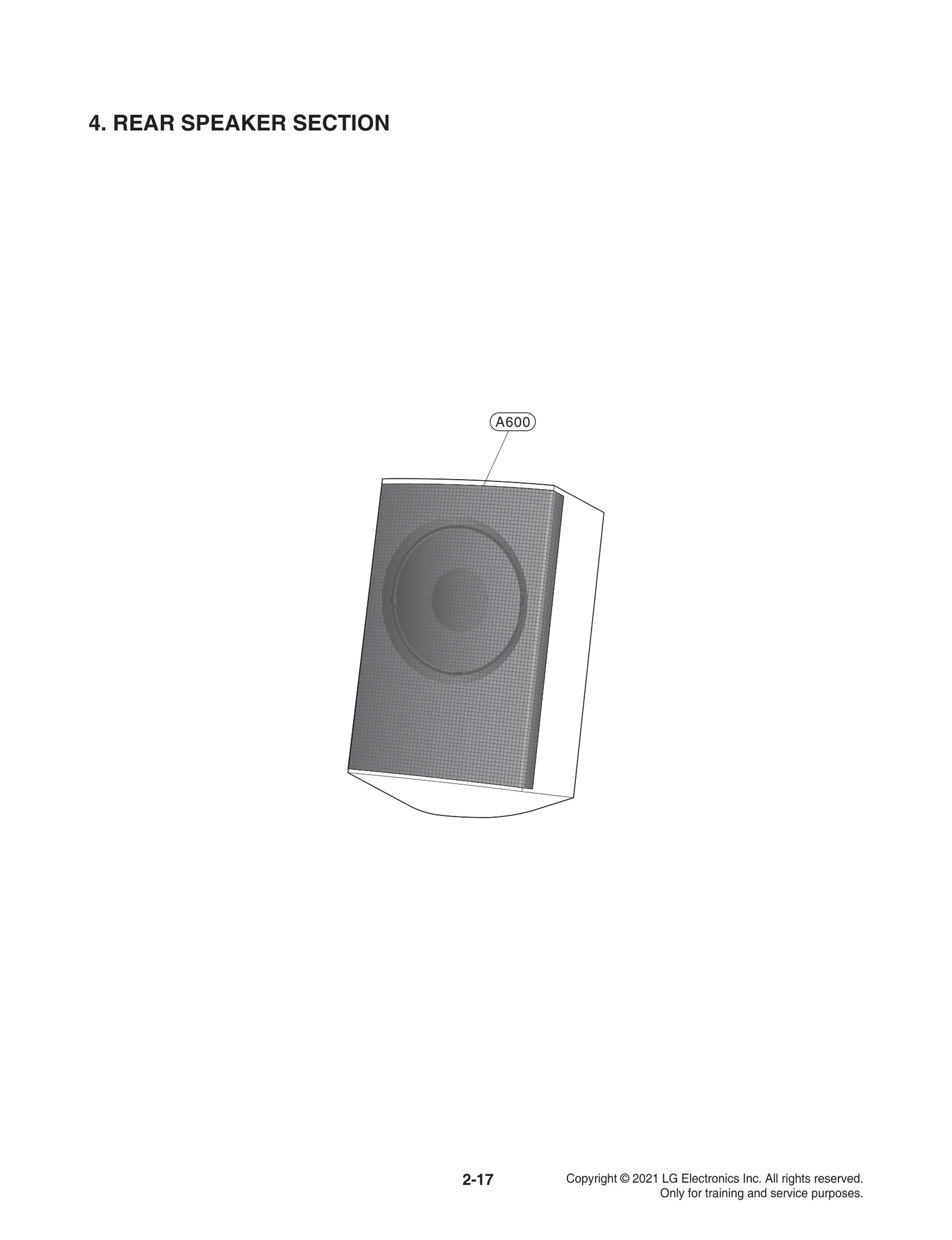

A600
Speaker System Total
Speaker System Total LGE TCG36668310 Contact Us For Availability
View on Model
A900
Speaker System Total
Speaker System Total LGE TCG37408030 Contact Us For Availability
View on Model
CABLE1
Harness,Single
Harness,Single LGE EAD65485502 Contact Us For Availability
View on Model
CABLE2
Cable,FFC
Cable,FFC LGE EAD64105005 Contact Us For Availability
View on Model
CABLE3
Cable,FFC
Cable,FFC LGE EAD62131522 Contact Us For Availability
View on Model
CABLE4
Cable,FFC
Cable,FFC LGE EAD62131525 Contact Us For Availability
View on Model
CN901
Harness,Single
Harness,Single LGE EAD43572707 Contact Us For Availability
View on Model
CN901
Harness,Single
Harness,Single LGE EAD62497601 Contact Us For Availability
View on Model
IC503A
S/W,System Program
S/W,System Program LGE SAA40859401 Contact Us For Availability
View on Model
IC504A
S/W,System Program
S/W,System Program LGE SAA40859301 Contact Us For Availability
View on Model
IC505A
S/W,System Program
S/W,System Program LGE SAA35932265 Contact Us For Availability
View on Model
IC506A
S/W,System Program
S/W,System Program LGE SAA35932267 Contact Us For Availability
View on Model
RIC305A
S/W,System Program
S/W,System Program LGE SAA35932280 Contact Us For Availability
View on Model
WIC603A
S/W,System Program
S/W,System Program LGE SAA35932266 Contact Us For Availability
View on Model
WIRE60
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
View on Model
WIRE61
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
View on Model
