Model LG SL10YG Soundbar – Common Parts & Diagrams
Diagram 0

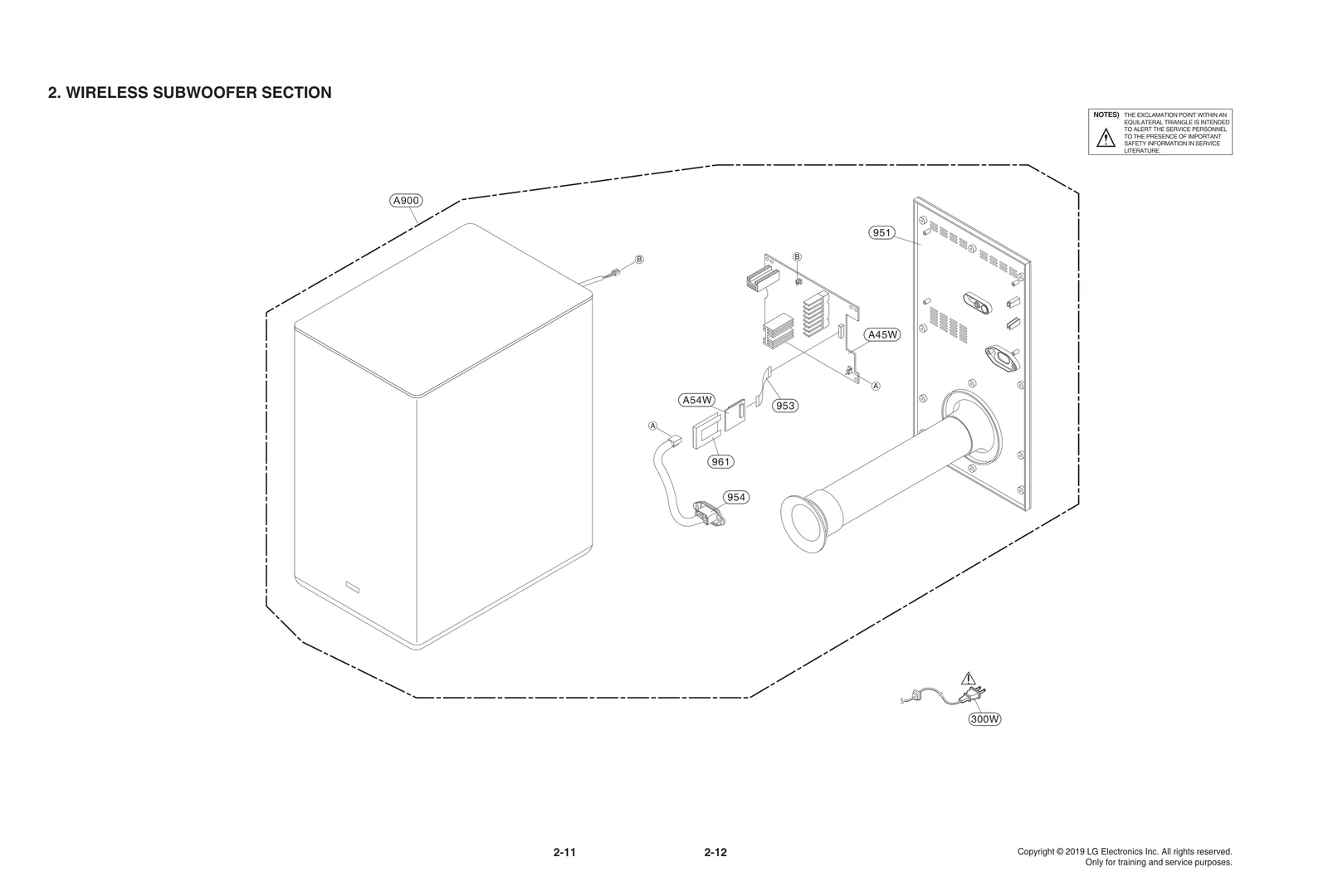

Diagram 1

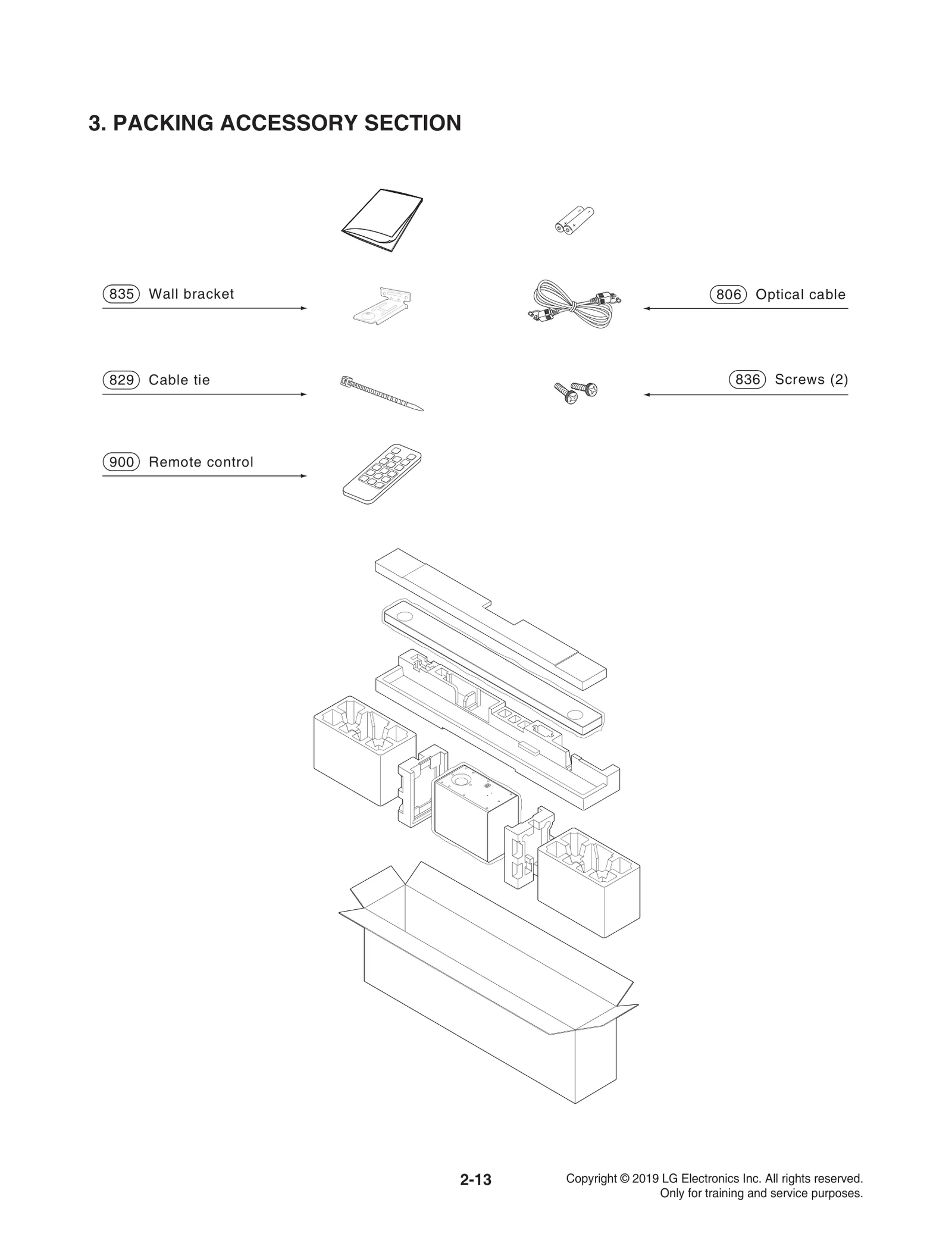

Diagram 2
Diagram 3
Common parts from model LG SL10YG Soundbar
266
Holder Assembly LGE AEJ76039801 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL77272902 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Board Assembly LGE AAX76769401 Contact Us For Availability
A42
Case Assembly LGE ABQ77381903 Contact Us For Availability
A43
PCB Assembly LGE EBR88118001 Contact Us For Availability
A45W
LGE EBR89625806 LGE EBR89625806 Contact Us For Availability
A45W
LGE EBR89625803 LGE EBR89625803 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625802 Contact Us For Availability
A45W
PCB Assembly LGE EBR87407101 Contact Us For Availability
A45W
PCB Assembly LGE EBR89625807 Contact Us For Availability
A46
PCB Assembly LGE EBR88054701 Contact Us For Availability
A47
PCB Assembly LGE EBR87498301 Contact Us For Availability
A48
LFS Total PCB Assembly LGE EBT66097301 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117404 Contact Us For Availability
A80
Case Assembly LGE ABQ77362001 Contact Us For Availability
A80C
Case Assembly LGE ABQ77362101 Contact Us For Availability
A81L
Case Assembly LGE ABQ77362201 Contact Us For Availability
A81R
Case Assembly LGE ABQ77341801 Contact Us For Availability
A900
Active Woofer LGE TCG37249203 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63126711 Contact Us For Availability
CABLE2
Harness,Single LGE EAD65366202 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970517 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD64145701 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970511 Contact Us For Availability
CABLE6
PCB Assembly,Sub LGE EBR87759801 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR87759701 Contact Us For Availability
IC100A
S/W,System Program LGE SAA40881101 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932265 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932267 Contact Us For Availability
IC103A
S/W,System Program LGE SAA40841701 Contact Us For Availability
IC400AB
Option Code Assembly LGE EBR88870905 Contact Us For Availability
IC504A
S/W,System Program LGE SAA40881003 Contact Us For Availability
IC602A
S/W,System Program LGE SAA40881301 Contact Us For Availability
IC801A
S/W,System Program LGE SAA40881501 Contact Us For Availability
IC901A
S/W,System Program LGE SAA40841601 Contact Us For Availability
ICM01A
LGE SAA40881403 LGE SAA40881403 Contact Us For Availability
LCD101
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932266 Contact Us For Availability
× ![]()
