Model LG SJ8 Speaker HTS – Common Parts & Diagrams

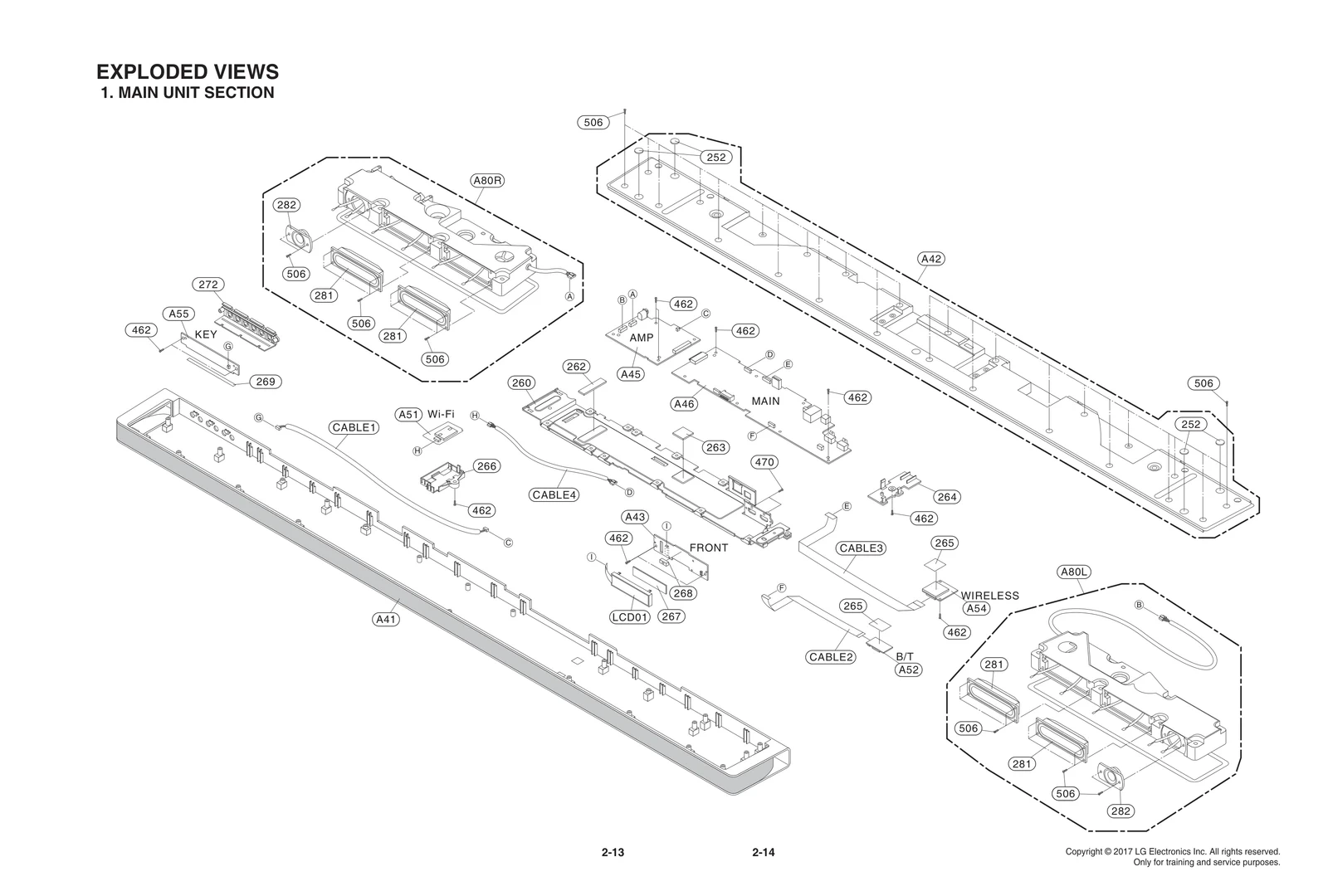

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG SJ8 Speaker HTS
262
Damper LGE MCQ62096475 Contact Us For Availability
263
Damper LGE MCQ62096408 Contact Us For Availability
264
Holder LGE MEG64959401 Contact Us For Availability
265
Sheet LGE MHK65585801 Contact Us For Availability
266
Holder Assembly LGE AEJ74999701 Contact Us For Availability
267
Sheet LGE MHK65507201 Contact Us For Availability
268
Damper LGE MCQ68946701 Contact Us For Availability
269
Gasket LGE MDS63984401 Contact Us For Availability
272
Button LGE MBG66243001 Contact Us For Availability
281
Speaker,Woofer LGE EAB64429402 Contact Us For Availability
282
Speaker,Tweeter LGE EAB62928603 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77555664 Contact Us For Availability
802
Box,Master LGE MAY67852035 Contact Us For Availability
803
Packing LGE MFZ65355601 Contact Us For Availability
804
Bag LGE MAF63350202 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Accessory Assembly LGE AAA76521202 Contact Us For Availability
837
Holder Assembly LGE AEJ75019401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74935611 Contact Us For Availability
950
Screw,Customized LGE 353M050N Contact Us For Availability
951
Panel Assembly,Rear LGE AGL75494306 Contact Us For Availability
952
Damper LGE MCQ68688602 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233204 Contact Us For Availability
955
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
956
Duct LGE MCZ63611901 Contact Us For Availability
958
Duct LGE MCZ63631801 Contact Us For Availability
959
Foot LGE MDP61844201 Contact Us For Availability
960
Gasket LGE MDS63984601 Contact Us For Availability
961
Sheet LGE MHK65448501 Contact Us For Availability
A41
Case Assembly LGE ABQ75822004 Contact Us For Availability
A42
Case Assembly LGE ABQ75822102 Contact Us For Availability
A43
PCB Assembly LGE EBR83398802 Contact Us For Availability
A45
LFS Total PCB Assembly LGE EBT64423301 Contact Us For Availability
A45W
PCB Assembly LGE EBR82538104 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT64441905 Contact Us For Availability
A51
Module,WLAN LGE EAT61813902 Contact Us For Availability
A51
Module,WLAN LGE EAT61813904 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A55
PCB Assembly LGE EBR83398811 Contact Us For Availability
A80L
Cover Assembly LGE ACQ89392502 Contact Us For Availability
A80R
Cover Assembly LGE ACQ89372402 Contact Us For Availability
A900
Active Woofer LGE TCG36688007 Contact Us For Availability
A900W
Board Assembly,Sub LGE AAX75587401 Contact Us For Availability
AR801
Resistor,Array LGE EBC62582709 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C3A2
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C3B4
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5D8
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C7A2
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C7C1
CAPACITOR,FIXED CERA LGE 0CH1561K462 Contact Us For Availability
C7F4
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
C7K4
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C7L3
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7W4
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C8D3
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C148
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C285
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C288
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C313
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C390
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C538
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C588
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C711
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C770
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C780
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C793
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C807
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C882
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C891
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863034 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63970601 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63970501 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63687702 Contact Us For Availability
CF10
Capacitor,Ceramic,Chip LGE 0CC105CH5BA Contact Us For Availability
CN101
Connector,BtoB LGE EAG63717516 Contact Us For Availability
CN203
Connector,Wafer LGE EAG58732906 Contact Us For Availability
CN204
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN601
Connector,BtoB LGE EAG63717515 Contact Us For Availability
CN701
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN702
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CNA00
Connector,Wafer LGE 6630V901352 Contact Us For Availability
CNF00
Connector,BtoB LGE EAG63717504 Contact Us For Availability
CNF01
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CNF51
Connector,BtoB LGE EAG64811002 Contact Us For Availability
CNK10
Connector,Wafer LGE EAG60989201 Contact Us For Availability
D301
Diode,TVS LGE EAH62094301 Contact Us For Availability
D381
Diode,TVS LGE EAH62033601 Contact Us For Availability
D502
Diode,TVS LGE EAH62735601 Contact Us For Availability
D702
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D801
Diode,TVS LGE EAH63292901 Contact Us For Availability
DF00
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
F381
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FB803
Filter,Bead LGE EAM62151101 Contact Us For Availability
FL202
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL808
Filter,Common Mode LGE 6200J000159 Contact Us For Availability
G810
Gasket LGE MDS63255101 Contact Us For Availability
IC101A
S/W,System Program LGE SAA38919101 Contact Us For Availability
IC102A
S/W,System Program LGE SAA38919201 Contact Us For Availability
IC201A
S/W,System Program LGE SAA35932247 Contact Us For Availability
IC260
IC,Digital Signal Processors LGE EAN63570101 Contact Us For Availability
IC261A
S/W,System Program LGE SAA38919301 Contact Us For Availability
IC303
IC,DC,DC Converter LGE EAN64387301 Contact Us For Availability
IC305
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC380
IC,DC,DC Converter LGE EAN64151201 Contact Us For Availability
IC381
IC,DC,DC Converter LGE EAN64387401 Contact Us For Availability
IC382
IC,LDO Voltage Regulator LGE EAN64166901 Contact Us For Availability
IC383
IC,LDO Voltage Regulator LGE EAN64395201 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027302 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN64128901 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN63511402 Contact Us For Availability
IC505A
S/W,System Program LGE SAA38919001 Contact Us For Availability
IC704
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC705
IC,D/A Converter LGE EAN62889801 Contact Us For Availability
IC706
IC,Audio Amplifier LGE EAN62910601 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN64329401 Contact Us For Availability
IC801A
S/W,System Program LGE SAA38919401 Contact Us For Availability
IC803
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC805
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
JK201
Jack,Fiber Optic LGE EAG37842011 Contact Us For Availability
JK202
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK203
Connector,USB LGE 6630S70048D Contact Us For Availability
JK381
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK800
Connector,HDMI LGE EAG62611206 Contact Us For Availability
L307
Inductor,Wire Wound,Chip LGE EAP62506415 Contact Us For Availability
L308
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L381
Inductor,Wire Wound, LGE EAP32850601 Contact Us For Availability
L501
Filter,Bead LGE EAM62155401 Contact Us For Availability
L708
Coil,Choke LGE EAP62526301 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172301 Contact Us For Availability
LEDF00
LED,Chip LGE EAV63052001 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q802
FET LGE EBK62072501 Contact Us For Availability
QF01
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
QF01
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R3A1
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R3A3
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R5C1
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R5F2
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7A9
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R7Y5
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R7Y7
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R272
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R315
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R337
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R338
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R356
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R357
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R381
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R382
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R383
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R384
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R385
Resistor,Chip LGE 0RJ3903C678 Contact Us For Availability
R389
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R392
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R393
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R396
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R399
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R555
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R579
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R728
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R729
Resistor,Chip LGE 0RJ7502C477 Contact Us For Availability
R736
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R741
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R749
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
R763
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R777
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R799
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R822
Resistor,Chip LGE 0RJ3003C478 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R845
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R856
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R860
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R865
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R874
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
RA01
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
RA02
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
RA04
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RCF00
Receiver Module LGE EAV62055002 Contact Us For Availability
RF00
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
RF02
RESISTOR,METAL GLAZE LGE 0RH2400C622 Contact Us For Availability
RF04
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
RF06
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
RF07
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
RF08
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
WBC901
Filter,Bead LGE EAM56488801 Contact Us For Availability
WBC901
Filter,Bead LGE EAM64250501 Contact Us For Availability
WBC904
Filter,Bead LGE EAM38769505 Contact Us For Availability
WC619
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC633
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WC710
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC736
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC738
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC745
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC754
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC766
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
WC788
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WC789
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
WC904
Capacitor,AL,Radial LGE EAE63203311 Contact Us For Availability
WC905
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
WC906
Capacitor,Film,DIP,DC LGE EAE63763101 Contact Us For Availability
WC913
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
WC914
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
WC917
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC926
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
WC928
Capacitor,Ceramic,Chip LGE EAE60685501 Contact Us For Availability
WC928
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
WC930
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
WC949
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
WCM901
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
WCM901
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
WCN601
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WCN701
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WD702
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
WD702
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
WD901
Diode,Switching LGE EAH61853601 Contact Us For Availability
WD902
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
WD922
Diode,Schottky LGE EAH62232801 Contact Us For Availability
WD926
Diode,Schottky LGE EAH62095801 Contact Us For Availability
WF901
Fuse,Time Delay LGE EAF62010003 Contact Us For Availability
WFB604
Filter,Bead LGE EAM42641607 Contact Us For Availability
WFL901
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
WFL902
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
WHS901
Heat Sink LGE MED62751601 Contact Us For Availability
WHS902
Heat Sink LGE MED61841613 Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932248 Contact Us For Availability
WIC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
WIC703
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
WIC704
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WIC705
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
WIC706
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
WIC902
Photo,Coupler LGE EAV61253101 Contact Us For Availability
WIC904
IC,Voltage Regulator LGE EAN63767601 Contact Us For Availability
WIC904
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
WIC905
IC,Power Driver LGE EAN63427501 Contact Us For Availability
WL705
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL707
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
WL707
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
WL900
Inductor,Wire Wound,Chip LGE EAP62147201 Contact Us For Availability
WLED700
LED,Chip LGE EAV63032801 Contact Us For Availability
WPW901
Connector,Wafer LGE 6630VM01502 Contact Us For Availability
WPW901
CONNECTOR (CIRC),WAF LGE 6602V39002A Contact Us For Availability
WQ703
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WQ705
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WQ708
TR,Bipolar LGE EBK61231501 Contact Us For Availability
WQ901
FET LGE EBK63613301 Contact Us For Availability
WQ901
FET LGE EBK62911901 Contact Us For Availability
WQ901
FET LGE EBK61572401 Contact Us For Availability
WR700
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
WR701
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
WR702
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
WR703
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
WR710
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
WR711
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR724
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
WR726
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR736
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR760
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR761
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
WR763
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
WR765
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
WR773
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
WR774
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
WR776
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
WR777
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
WR778
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291102 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291101 Contact Us For Availability
WR907
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
WR915
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
WR917
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
WR919
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
WR920
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
WR923
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
WR925
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
WR929
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
WR943
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
WR944
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
WR945
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
WR946
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
WR962
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
WSW700
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
WT901
Transformer,Switching LGE EBJ63030301 Contact Us For Availability
WTH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
WTH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
WV901
Varistor LGE EAF43134202 Contact Us For Availability
WV901
Varistor LGE EAF43134201 Contact Us For Availability
WX601
Crystal LGE EAW62583505 Contact Us For Availability
WZD700
Diode,Zener LGE EAH39305801 Contact Us For Availability
WZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
WZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
WZD902
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
X260
Crystal LGE EAW63183601 Contact Us For Availability
X700
Crystal LGE EAW61903503 Contact Us For Availability
X801
Crystal LGE EAW62583501 Contact Us For Availability
ZD102
Diode,TVS LGE EAH61192501 Contact Us For Availability
× ![]()
Login and Registration Form
