Model LG SJ7 Speaker HTS – Common Parts & Diagrams
Diagram 0

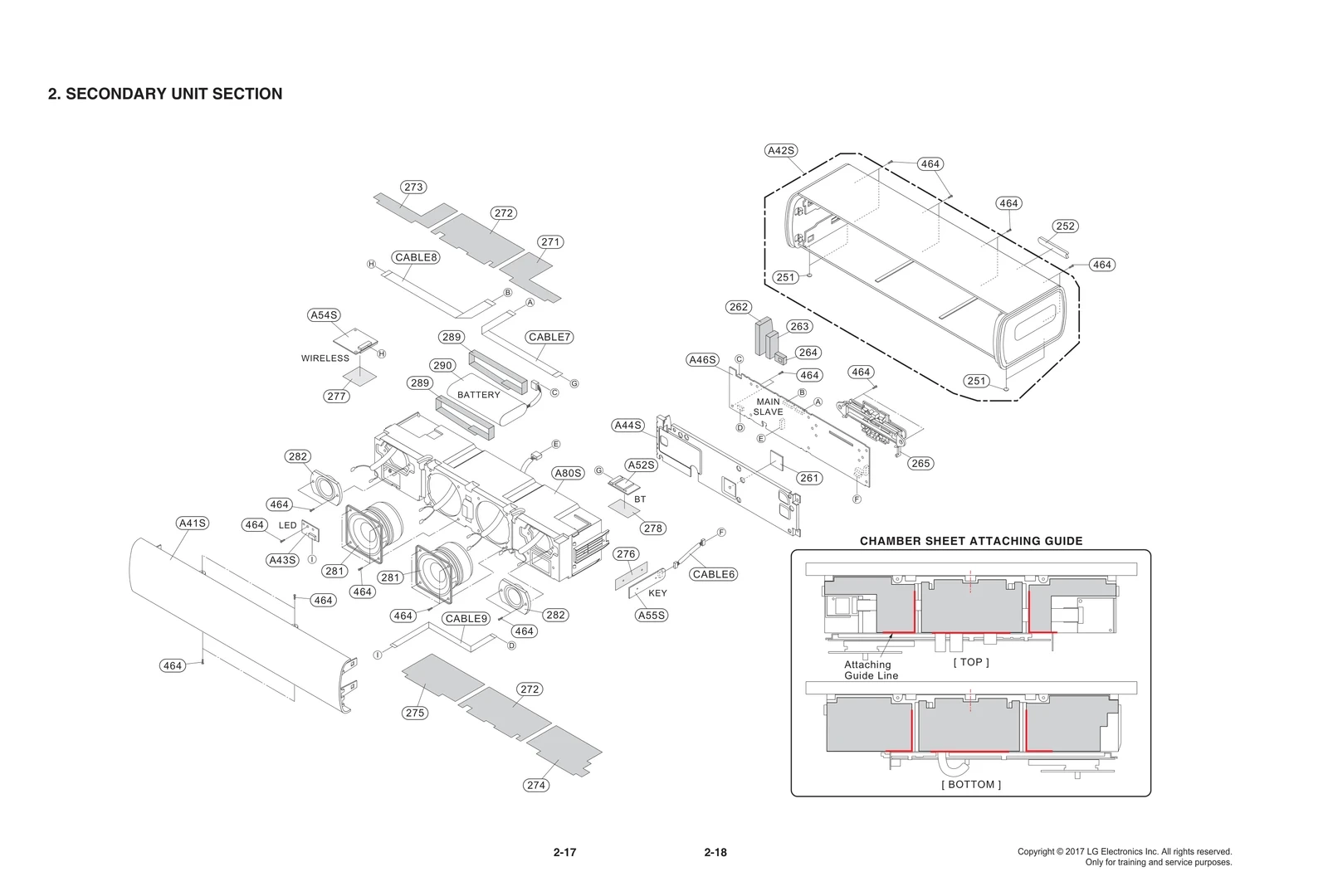

Diagram 1

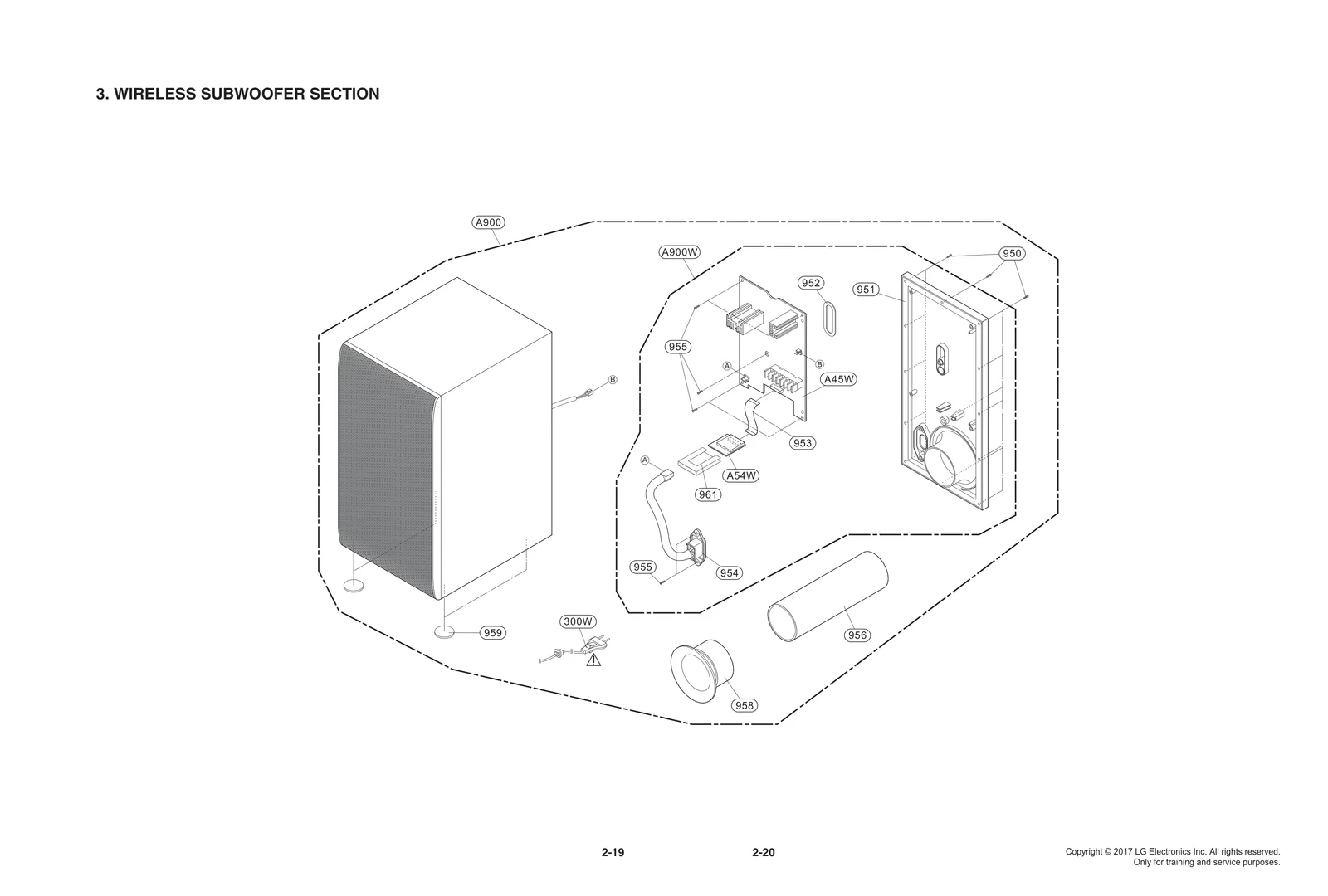

Diagram 2

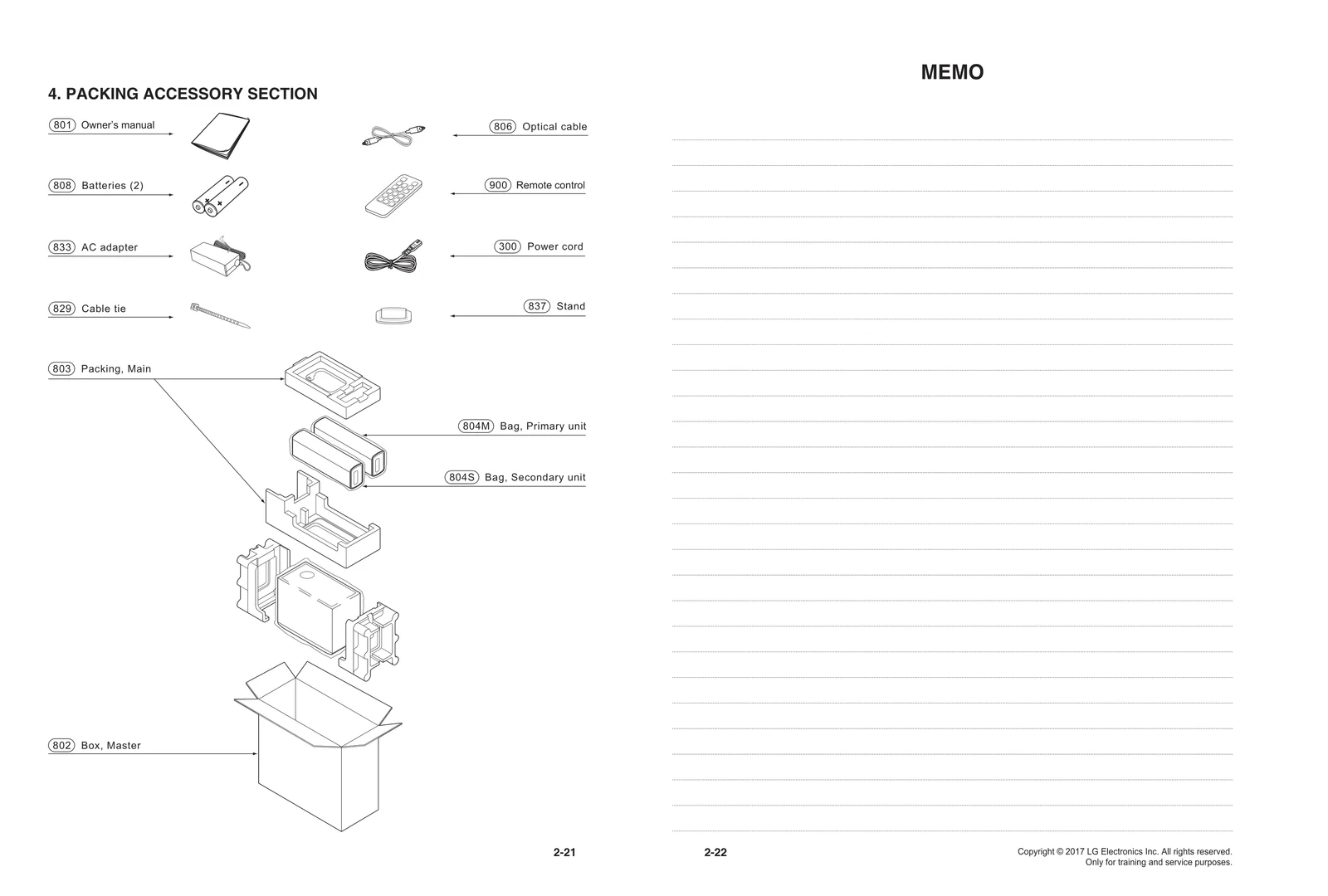

Diagram 3
Diagram 4
Common parts from model LG SJ7 Speaker HTS
251
Foot LGE MDP63646801 Contact Us For Availability
252
Damper LGE MCQ69148801 Contact Us For Availability
261
Damper LGE MCQ62096473 Contact Us For Availability
262
Damper LGE MCQ69148701 Contact Us For Availability
263
Sheet LGE MHK65847507 Contact Us For Availability
264
Damper LGE MCQ69127401 Contact Us For Availability
265
Button Assembly LGE ABH76059601 Contact Us For Availability
271
Sheet LGE MHK65849301 Contact Us For Availability
272
Sheet LGE MHK65849302 Contact Us For Availability
273
Sheet LGE MHK65849303 Contact Us For Availability
274
Sheet LGE MHK65849304 Contact Us For Availability
275
Sheet LGE MHK65849305 Contact Us For Availability
276
Sheet LGE MHK65765301 Contact Us For Availability
277
Sheet LGE MHK65507901 Contact Us For Availability
278
Sheet LGE MHK65585801 Contact Us For Availability
281
Speaker,Woofer LGE EAB63588903 Contact Us For Availability
282
Speaker,Tweeter LGE EAB64448801 Contact Us For Availability
283
Sheet LGE MHK65507201 Contact Us For Availability
284
Gasket LGE MDS65911503 Contact Us For Availability
285
Plate LGE MGJ65181302 Contact Us For Availability
286
Gasket LGE MDS65911502 Contact Us For Availability
289
Gasket LGE MDS63984601 Contact Us For Availability
290
Rechargeable Battery,Lithium Ion LGE EAC62898301 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77612211 Contact Us For Availability
802
Box,Master LGE MAY67852032 Contact Us For Availability
803
Packing LGE MFZ65318301 Contact Us For Availability
804M
Bag LGE MAF63350207 Contact Us For Availability
804S
Bag LGE MAF63350208 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
837
Accessory Assembly LGE AAA76804301 Contact Us For Availability
950
Screw,Customized LGE 353M050N Contact Us For Availability
951
Panel Assembly,Rear LGE AGL75494301 Contact Us For Availability
952
Damper LGE MCQ68688602 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233204 Contact Us For Availability
955
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
956
Duct LGE MCZ63611901 Contact Us For Availability
958
Duct LGE MCZ63631801 Contact Us For Availability
959
Foot LGE MDP61844201 Contact Us For Availability
961
Sheet LGE MHK65489401 Contact Us For Availability
A41M
Cover Assembly LGE ACQ89588101 Contact Us For Availability
A41S
Cover Assembly LGE ACQ89608101 Contact Us For Availability
A42M
Case Assembly LGE ABQ75960101 Contact Us For Availability
A42S
Case Assembly LGE ABQ75960201 Contact Us For Availability
A43M
PCB Assembly LGE EBR85252001 Contact Us For Availability
A43S
PCB Assembly LGE EBR83748311 Contact Us For Availability
A44M
Frame Assembly LGE ADV76185501 Contact Us For Availability
A44S
Frame Assembly LGE ADV76205501 Contact Us For Availability
A45W
PCB Assembly LGE EBR82538104 Contact Us For Availability
A46M
LFS Total PCB Assembly LGE EBT64596002 Contact Us For Availability
A46S
LFS Total PCB Assembly LGE EBT64553402 Contact Us For Availability
A48M
BPR Total Assembly LGE EBU63877111 Contact Us For Availability
A52M
Module,Bluetooth LGE EAT63436201 Contact Us For Availability
A52S
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A54S
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A55M
PCB Assembly LGE EBR85252022 Contact Us For Availability
A55S
PCB Assembly LGE EBR83748302 Contact Us For Availability
A80M
Case Assembly LGE ABQ75980101 Contact Us For Availability
A80S
Case Assembly LGE ABQ75980201 Contact Us For Availability
A900
Active Woofer LGE TCG36728201 Contact Us For Availability
A900W
Board Assembly,Sub LGE AAX75687901 Contact Us For Availability
AR502
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR504
Resistor,Array LGE EBC32260404 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C104
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C151
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C157
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C215
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C314
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C325
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C356
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C357
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C585
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C595
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C600
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE 0CK475DF40A Contact Us For Availability
C745
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C748
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C751
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C758
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C763
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C769
Capacitor,AL,Chip LGE EAE52354701 Contact Us For Availability
C782
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C930
Capacitor,Ceramic,Chip LGE 0CH1183K562 Contact Us For Availability
C931
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C937
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C948
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C952
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63126705 Contact Us For Availability
CABLE2
Harness,Single LGE EAD63469402 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62131528 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD63126707 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970505 Contact Us For Availability
CABLE6
Harness,Single LGE EAD33638857 Contact Us For Availability
CABLE7
Cable,FFC LGE EAD64105002 Contact Us For Availability
CABLE8
Cable,FFC LGE EAD62131527 Contact Us For Availability
CABLE9
Cable,FFC LGE EAD62246602 Contact Us For Availability
CE703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CE901
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CE902
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CF11
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE EAG38938702 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE EAG61090207 Contact Us For Availability
CN104
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN104
Connector,Wafer LGE 6630V90078D Contact Us For Availability
CN106
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN201
Connector,Wafer LGE 6630V90141J Contact Us For Availability
CN501
CONNECTOR(CIRC),DRAW LGE 6630R3S006L Contact Us For Availability
CN501
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN502
Connector,Wafer LGE EAG58732909 Contact Us For Availability
CN503
Connector,USB LGE EAG62571101 Contact Us For Availability
CN504
Connector,Wafer LGE EAG62611107 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN901
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
CNF01
Connector,Wafer LGE EAG62611102 Contact Us For Availability
D501
Diode,TVS LGE EAH62735601 Contact Us For Availability
D504
Diode,Schottky LGE EAH61114901 Contact Us For Availability
D600
Diode,TVS LGE EAH62033601 Contact Us For Availability
D601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D705
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D705
Diode,Switching LGE 0DS135519AA Contact Us For Availability
D803
Diode,TVS LGE EAH63292901 Contact Us For Availability
D902
Diode,Schottky LGE EAH61832801 Contact Us For Availability
D904
Diode,Switching LGE EAH41961301 Contact Us For Availability
DF01
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FB310
Filter,Bead LGE EAM62151101 Contact Us For Availability
FB311
Filter,Bead LGE EAM38769505 Contact Us For Availability
FBF01
Filter,Bead LGE EAM62155402 Contact Us For Availability
FL804
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
G501
Gasket LGE MDS63255101 Contact Us For Availability
IC100A
S/W,System Program LGE SAA39084801 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35932253 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932254 Contact Us For Availability
IC103A
S/W,System Program LGE SAA39084901 Contact Us For Availability
IC303
IC,LDO Voltage Regulator LGE EAN64166901 Contact Us For Availability
IC306
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC311
IC,DC,DC Converter LGE EAN64387301 Contact Us For Availability
IC500A
S/W,System Program LGE SAA39085101 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63728602 Contact Us For Availability
IC501A
S/W,System Program LGE SAA39085201 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN64128901 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62930801 Contact Us For Availability
IC503
IC,Reset LGE EAN64395501 Contact Us For Availability
IC503A
S/W,System Program LGE SAA39084701 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC601
IC,DC,DC Converter LGE EAN64151201 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN64387401 Contact Us For Availability
IC605
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC701A
S/W,System Program LGE SAA35932255 Contact Us For Availability
IC704
IC,CMOS LGE EAN61130301 Contact Us For Availability
IC706
IC,STANDARD LOGIC LGE 0ISTLPH027A Contact Us For Availability
IC902
IC,Charger LGE EAN62701801 Contact Us For Availability
IC907
IC,DC,DC Converter LGE EAN62167401 Contact Us For Availability
JK201
Jack,Fiber Optic LGE EAG37842011 Contact Us For Availability
JK600
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611206 Contact Us For Availability
L301
Inductor,Wire Wound,Chip LGE EAP62506415 Contact Us For Availability
L601
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L607
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L609
Filter,Bead LGE EAM42641607 Contact Us For Availability
L701
Inductor,Multilayer,Chip LGE EAP60946212 Contact Us For Availability
L706
Coil,Choke LGE EAP62526301 Contact Us For Availability
L906
Inductor,Wire Wound,Chip LGE EAP63026903 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172302 Contact Us For Availability
LD101
LED,Chip LGE EAV62832701 Contact Us For Availability
LD504
LED,Chip LGE EAV63052001 Contact Us For Availability
MTK SW
S/W,System Program LGE SAA38837501 Contact Us For Availability
Q104
FET LGE EBK62072501 Contact Us For Availability
Q301
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q500
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q601
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q706
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q900
FET LGE EBK61012301 Contact Us For Availability
Q901
FET LGE EBK61933901 Contact Us For Availability
Q904
FET LGE EBK61913702 Contact Us For Availability
Q906
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
R103
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RH2400C622 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R325
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R357
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ5103C677 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0482C477 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R554
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R555
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R556
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R562
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R606
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R610
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R640
Resistor,Chip LGE 0RJ3903C678 Contact Us For Availability
R646
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R719
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R741
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R741
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
R752
Resistor,Chip LGE 0RZZ000068A Contact Us For Availability
R793
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R808
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ1003C477 Contact Us For Availability
R903
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R904
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R906
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R908
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R913
Resistor,Chip LGE EBC37118603 Contact Us For Availability
R917
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R921
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R922
Resistor,Chip LGE 0RJ7503C678 Contact Us For Availability
R933
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R938
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R945
Resistor,Chip LGE EBC62657101 Contact Us For Availability
R952
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R953
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R954
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R955
Resistor,Chip LGE 0RJ1803D477 Contact Us For Availability
R959
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R960
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R968
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R974
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
RCF01
Receiver Module LGE EAV62055002 Contact Us For Availability
RF10
Resistor,Chip LGE EBC40092901 Contact Us For Availability
RF12
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
RK01
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
RK02
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
RK03
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
SW700
Switch,Tact LGE EBF61874701 Contact Us For Availability
SW703
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
SW707
Switch,Detector LGE EBF63334701 Contact Us For Availability
SWK01
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
WBC901
Filter,Bead LGE EAM56488801 Contact Us For Availability
WC619
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC633
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WC710
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC718
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC736
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC747
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC751
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC754
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC765
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC783
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
WC788
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WC902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
WC904
Capacitor,AL,Radial LGE EAE63203311 Contact Us For Availability
WC905
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
WC906
Capacitor,Film,DIP,DC LGE EAE63763101 Contact Us For Availability
WC913
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
WC914
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
WC917
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC926
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
WC928
Capacitor,Ceramic,Chip LGE EAE60685501 Contact Us For Availability
WC949
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
WCM902
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
WCM902
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
WCN601
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WCN701
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WD702
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
WD901
Diode,Switching LGE EAH61853601 Contact Us For Availability
WD902
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
WD922
Diode,Schottky LGE EAH62232801 Contact Us For Availability
WD926
Diode,Schottky LGE EAH62095801 Contact Us For Availability
WF901
Fuse,Time Delay LGE EAF62010003 Contact Us For Availability
WFL901
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
WFL902
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
WHS901
Heat Sink LGE MED62751601 Contact Us For Availability
WHS902
Heat Sink LGE MED61841613 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932248 Contact Us For Availability
WIC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
WIC703
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
WIC704
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WIC705
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
WIC706
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
WIC902
Photo,Coupler LGE EAV61253101 Contact Us For Availability
WIC904
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
WIC904
IC,Voltage Regulator LGE EAN63767601 Contact Us For Availability
WIC905
IC,Power Driver LGE EAN63427501 Contact Us For Availability
WL705
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL707
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
WL708
Inductor,Wire Wound, LGE EAP32850601 Contact Us For Availability
WL900
Inductor,Wire Wound,Chip LGE EAP62147201 Contact Us For Availability
WLED700
LED,Chip LGE EAV63032801 Contact Us For Availability
WPW901
CONNECTOR (CIRC),WAF LGE 6602V39002A Contact Us For Availability
WPW901
Connector,Wafer LGE 6630VM01502 Contact Us For Availability
WQ706
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WQ901
FET LGE EBK62911901 Contact Us For Availability
WQ901
FET LGE EBK63613301 Contact Us For Availability
WQ901
FET LGE EBK61572401 Contact Us For Availability
WR603
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR700
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
WR703
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
WR712
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR726
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR736
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR751
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
WR761
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
WR763
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
WR765
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
WR766
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
WR768
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR769
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
WR773
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
WR774
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
WR775
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
WR776
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
WR777
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
WR778
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291102 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291101 Contact Us For Availability
WR907
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
WR911
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
WR915
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
WR917
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
WR919
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
WR920
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
WR925
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
WR929
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
WR943
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
WR944
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
WR946
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
WR962
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
WSW700
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
WT901
Transformer,Switching LGE EBJ63030301 Contact Us For Availability
WTH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
WTH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
WV901
Varistor LGE EAF43134201 Contact Us For Availability
WV901
Varistor LGE EAF43134202 Contact Us For Availability
WZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
WZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
WZD902
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
X701
Crystal LGE EAW62583505 Contact Us For Availability
ZD704
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD901
Diode,TVS LGE EAH61192501 Contact Us For Availability
× ![]()
Login and Registration Form
