Model LG SH6 Speaker HTS – Common Parts & Diagrams

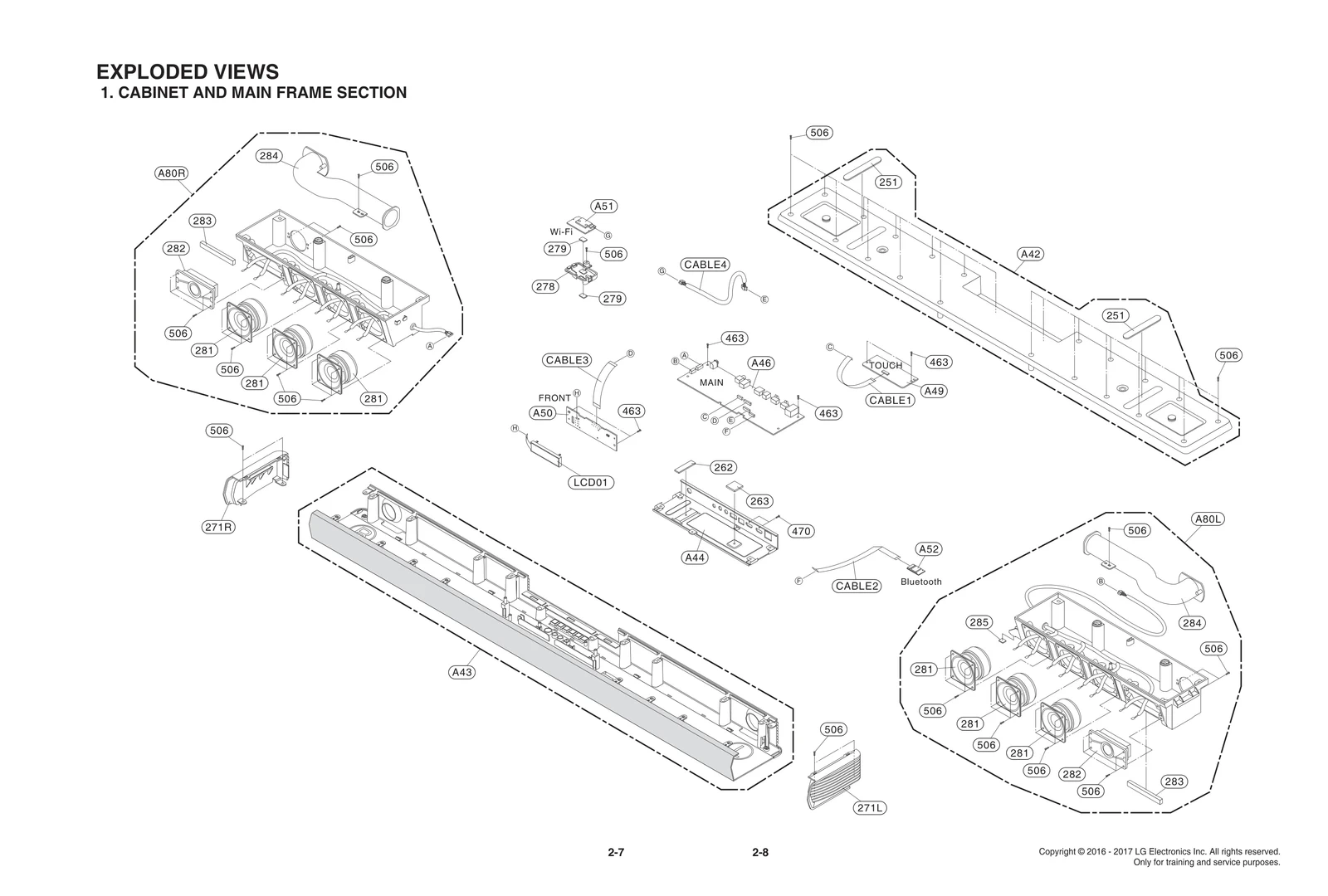

Diagram 0

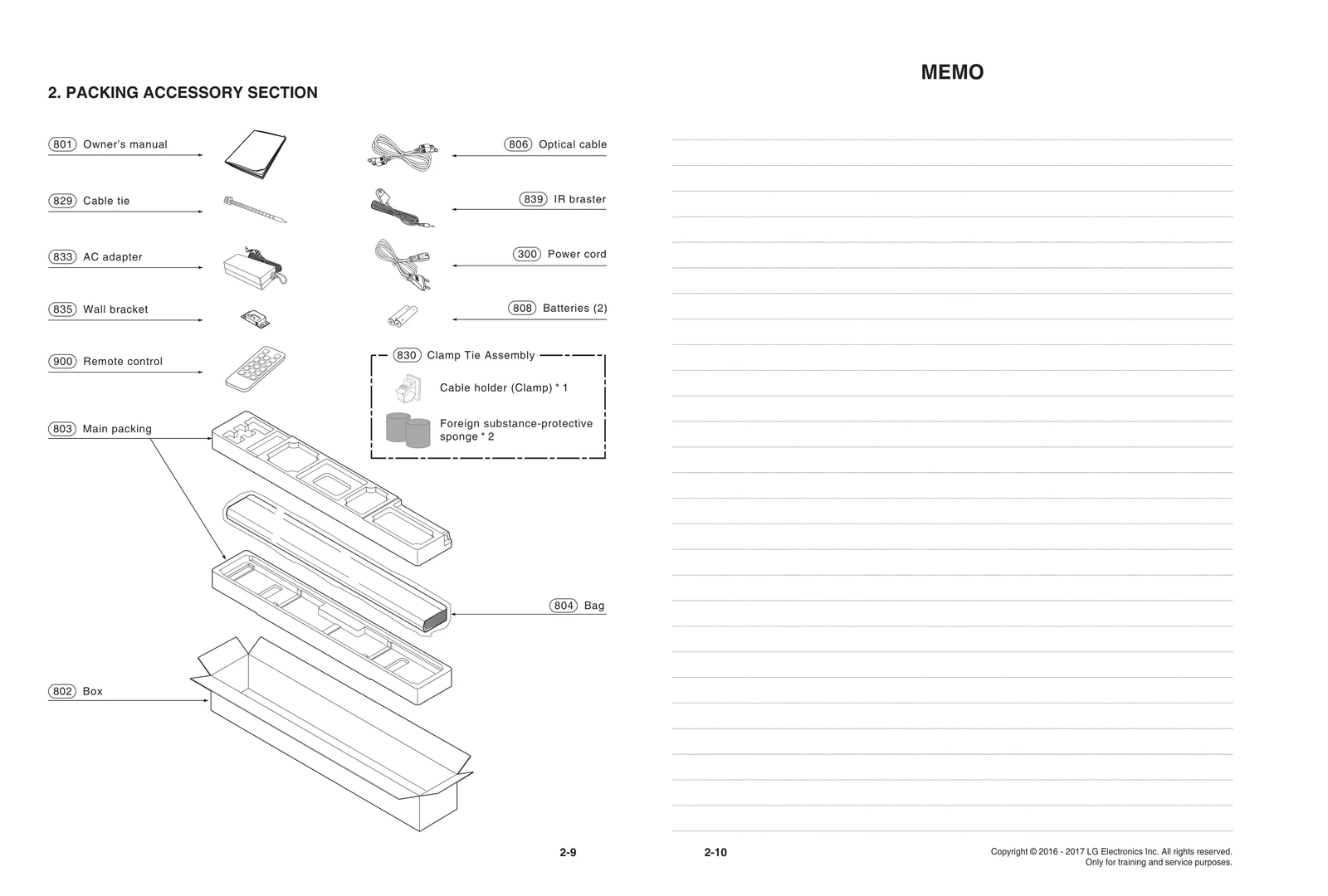

Diagram 1
Diagram 2
Common parts from model LG SH6 Speaker HTS
262
Damper LGE MCQ62096462 Contact Us For Availability
263
Damper LGE MCQ62096408 Contact Us For Availability
271L
Decor Assembly LGE ACW75218201 Contact Us For Availability
271R
Decor Assembly LGE ACW75218101 Contact Us For Availability
278
Case LGE MBN64464801 Contact Us For Availability
279
Damper LGE MCQ68727101 Contact Us For Availability
281
Speaker,Woofer LGE EAB63588902 Contact Us For Availability
282
Speaker,Tweeter LGE EAB63708602 Contact Us For Availability
283
Damper LGE MCQ68867501 Contact Us For Availability
284
Case Assembly LGE ABQ75684901 Contact Us For Availability
285
Damper LGE MCQ32325007 Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
801
Manual Assembly LGE AFN77382722 Contact Us For Availability
802
Box,Master LGE MAY67493477 Contact Us For Availability
803
Packing LGE MFZ65271501 Contact Us For Availability
804
Bag LGE MAF63350206 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
829
Band LGE MAJ62182401 Contact Us For Availability
830
Accessory Assembly LGE AAA76517602 Contact Us For Availability
839
Cable,Assembly LGE EAD61273111 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74815351 Contact Us For Availability
A42
Case Assembly LGE ABQ75740701 Contact Us For Availability
A43
Board Assembly,Sub LGE AAX75428701 Contact Us For Availability
A44
Frame Assembly LGE ADV75968401 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT64286107 Contact Us For Availability
A49
PCB Assembly LGE EBR85273101 Contact Us For Availability
A50
PCB Assembly LGE EBR85253301 Contact Us For Availability
A51
Module,WLAN LGE EAT61813902 Contact Us For Availability
A51
Module,WLAN LGE EAT61813904 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A80L
Case Assembly LGE ABQ75740901 Contact Us For Availability
A80R
Case Assembly LGE ABQ75740801 Contact Us For Availability
AR103
Resistor,Array LGE EBC32260601 Contact Us For Availability
BU901
Buzzer,Magnetic LGE EAB43049401 Contact Us For Availability
C5A9
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C5D8
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C165
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C233
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C245
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C263
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C355
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C420
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C524
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C585
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C620
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C734
Capacitor,AL,Chip LGE EAE52354701 Contact Us For Availability
C735
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C763
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C771
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C909
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130041 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130042 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62226410 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63809602 Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE 6630R-FB02D Contact Us For Availability
CN102
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
CN200
Connector,Wafer LGE EAG58732904 Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN400
Connector,Wafer LGE EAG62611105 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN704
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN801
Connector,HDMI LGE EAG62611206 Contact Us For Availability
CN901
Connector,Wafer LGE EAG62611102 Contact Us For Availability
D300
Diode,TVS LGE EAH62033601 Contact Us For Availability
D502
Diode,TVS LGE EAH62735601 Contact Us For Availability
D700
Diode,Zener LGE EAH39305801 Contact Us For Availability
D705
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D801
Diode,TVS LGE EAH63292901 Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D901
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D902
Diode,Switching LGE 0DD160009AB Contact Us For Availability
F301
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FL200
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL804
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
IC91A
S/W,System Program LGE SAA38539401 Contact Us For Availability
IC100A
S/W,System Program LGE SAA38539101 Contact Us For Availability
IC101A
S/W,System Program LGE SAA38539201 Contact Us For Availability
IC103
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN64151201 Contact Us For Availability
IC303
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
IC306
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027302 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN63511402 Contact Us For Availability
IC505A
S/W,System Program LGE SAA38539001 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
JK200
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK201
Jack,Fiber Optic LGE EAG37842011 Contact Us For Availability
JK202
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK203
Connector,USB LGE EAG62571101 Contact Us For Availability
JK205
Jack,Phone LGE EAG63411502 Contact Us For Availability
JK300
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L210
Filter,Bead LGE EAM62151101 Contact Us For Availability
L248
Filter,Bead LGE EAM61090401 Contact Us For Availability
L301
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L301
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L302
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L302
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L305
Filter,Bead LGE EAM38769505 Contact Us For Availability
L504
Filter,Bead LGE EAM62155402 Contact Us For Availability
L700
Filter,Bead LGE EAM42641607 Contact Us For Availability
L706
Coil,Choke LGE EAP62526301 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172301 Contact Us For Availability
LD400
LED,Chip LGE EAV63052001 Contact Us For Availability
Q101
FET LGE EBK62072501 Contact Us For Availability
Q106
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q301
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q402
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q706
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q910
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
R5C2
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R181
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R246
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R306
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R322
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R325
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R328
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R339
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R400
Resistor,Chip LGE 0RH4700C422 Contact Us For Availability
R401
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R402
Resistor,Chip LGE 0RH5100C422 Contact Us For Availability
R403
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R555
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R706
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R715
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R719
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R741
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R814
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R914
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
RC400
Receiver Module LGE EAV62055002 Contact Us For Availability
SW801
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
X600
Crystal LGE EAW62583505 Contact Us For Availability
× ![]()
Login and Registration Form
