Model LG SH4 – Common Parts & Diagrams

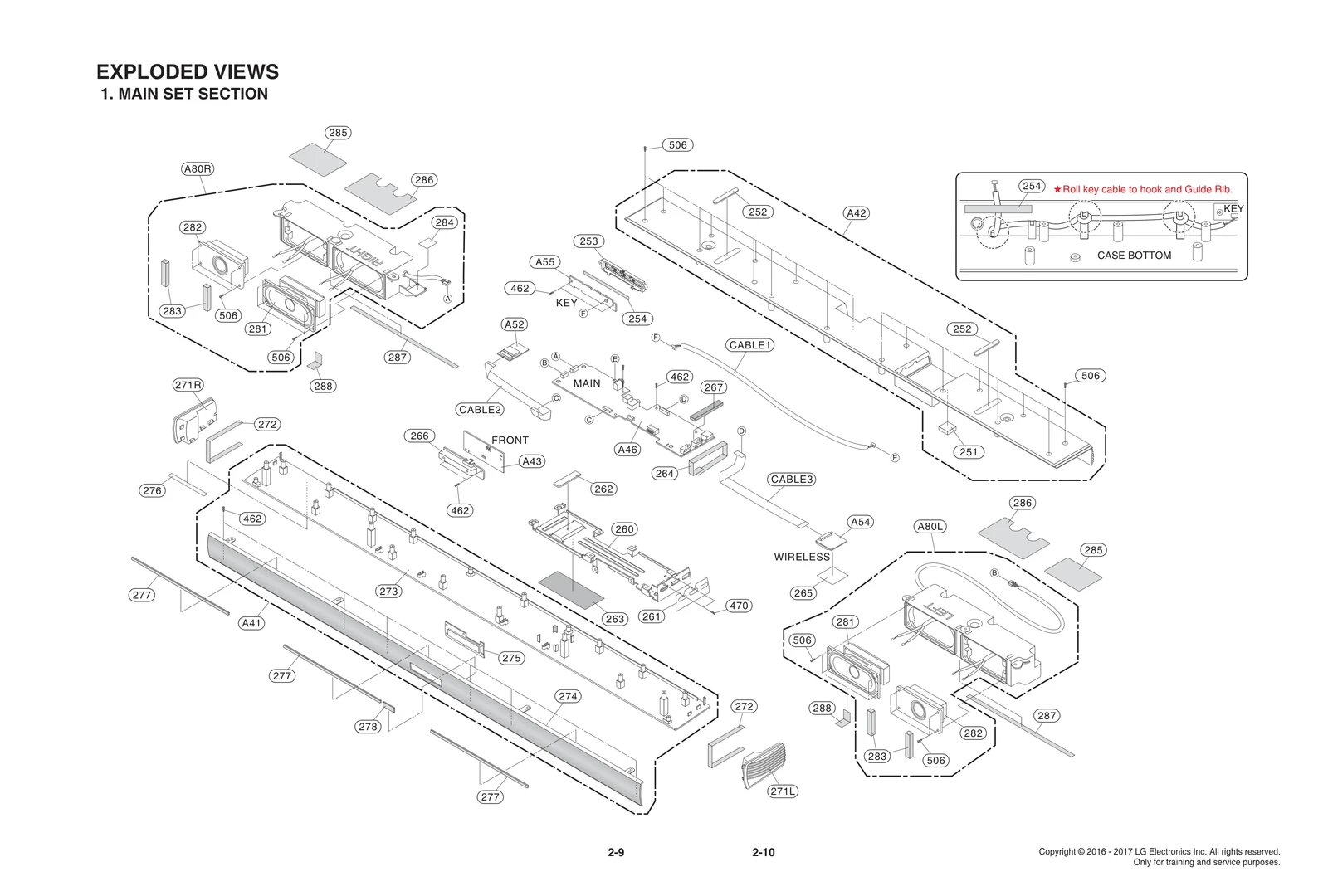

Diagram 0

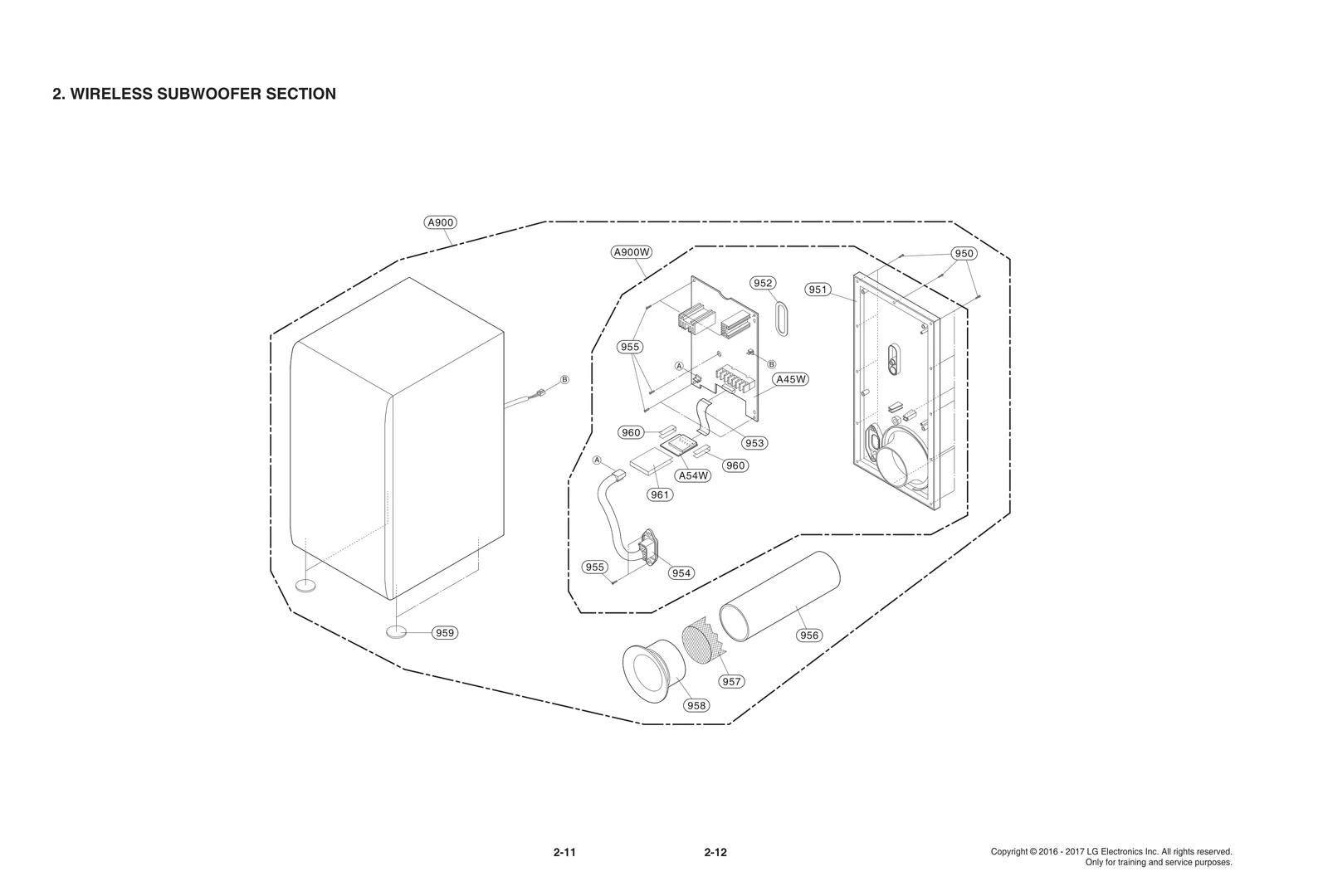

Diagram 1

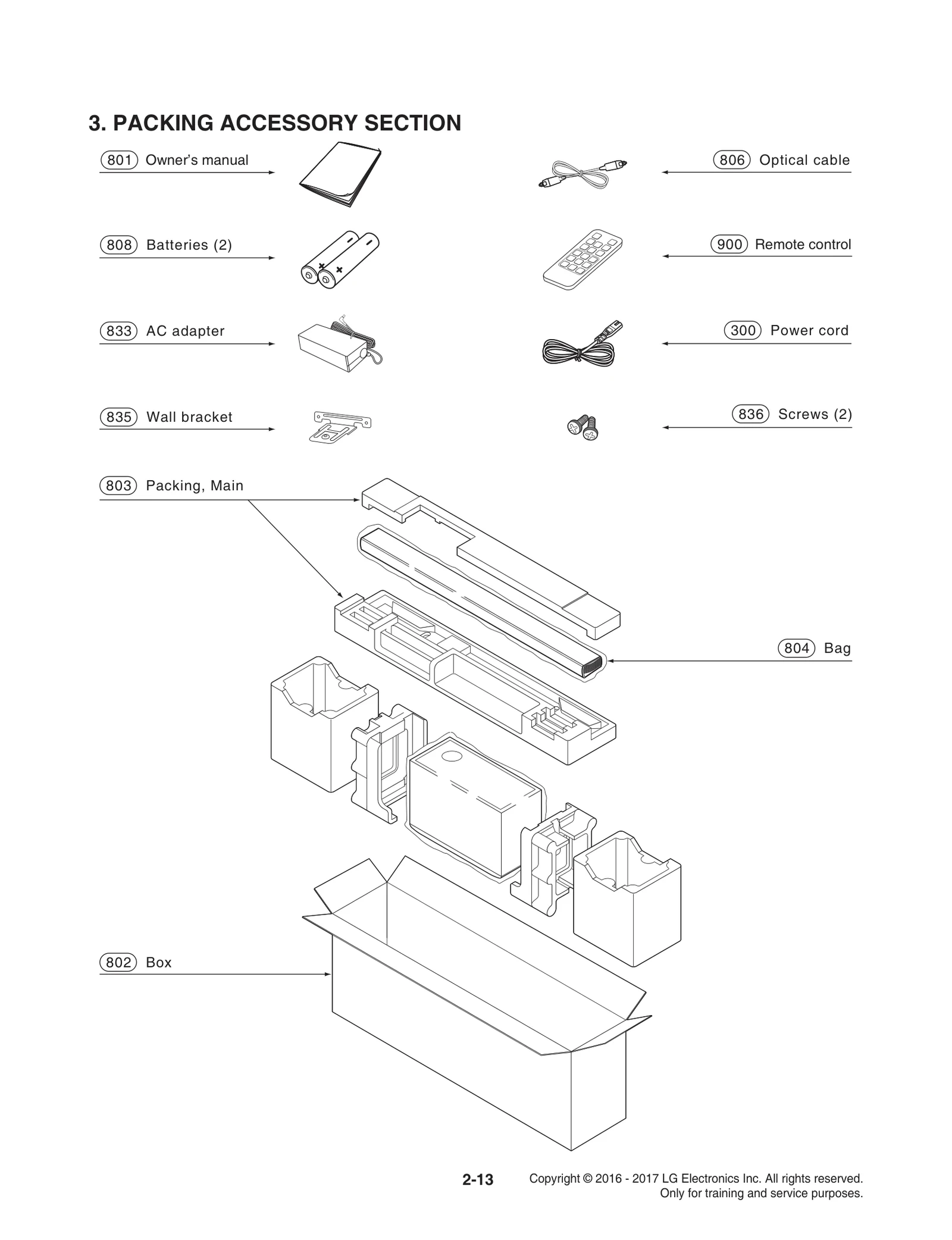

Diagram 2
Diagram 3
Common parts from model LG SH4
253
Button LGE MBG66066001 Contact Us For Availability
254
Damper LGE MCQ67526913 Contact Us For Availability
260
Chassis LGE MBS63625601 Contact Us For Availability
261
Sheet LGE MHK65489801 Contact Us For Availability
262
Damper LGE MCQ62096460 Contact Us For Availability
263
Plate LGE MGJ65181301 Contact Us For Availability
264
Gasket LGE MDS65635101 Contact Us For Availability
265
Sheet LGE MHK65507901 Contact Us For Availability
266
Holder Assembly LGE AEJ74900101 Contact Us For Availability
267
Damper LGE MCQ68884701 Contact Us For Availability
271L
Decor Assembly LGE ACW75157401 Contact Us For Availability
271R
Decor Assembly LGE ACW75117701 Contact Us For Availability
272
Damper LGE MCQ67526914 Contact Us For Availability
273
Case LGE MBN64505601 Contact Us For Availability
274
Case LGE MBN64505701 Contact Us For Availability
275
Decor LGE MCR66528101 Contact Us For Availability
276
Sheet LGE MHK65425211 Contact Us For Availability
277
Damper LGE MCQ67526916 Contact Us For Availability
278
Damper LGE MCQ68685304 Contact Us For Availability
281
Speaker,Woofer LGE EAB63609301 Contact Us For Availability
282
Speaker,Tweeter LGE EAB63708602 Contact Us For Availability
283
Damper LGE MCQ68406003 Contact Us For Availability
284
Sheet LGE MHK65585801 Contact Us For Availability
285
Damper LGE MCQ68845101 Contact Us For Availability
286
Damper LGE MCQ68904701 Contact Us For Availability
287
Damper LGE MCQ67526918 Contact Us For Availability
288
Sheet LGE MHK65552403 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77420214 Contact Us For Availability
802
Box,Master LGE MAY67438904 Contact Us For Availability
803
Packing LGE MFZ65080201 Contact Us For Availability
804
Bag LGE MAF63350203 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
835
Accessory Assembly LGE AAA76521202 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74815331 Contact Us For Availability
950
Screw,Customized LGE 353M050N Contact Us For Availability
951
Panel Assembly,Rear LGE AGL75494301 Contact Us For Availability
952
Damper LGE MCQ68688602 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233204 Contact Us For Availability
955
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
956
Duct LGE MCZ63611901 Contact Us For Availability
957
Duct LGE MCZ64032601 Contact Us For Availability
958
Duct LGE MCZ63631801 Contact Us For Availability
959
Foot LGE MDP37484707 Contact Us For Availability
960
Gasket LGE MDS63984201 Contact Us For Availability
961
Sheet LGE MHK65489401 Contact Us For Availability
A41
Case Assembly LGE ABQ75684701 Contact Us For Availability
A42
Case Assembly LGE ABQ75663801 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR82680701 Contact Us For Availability
A45W
PCB Assembly LGE EBR82322601 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT64198221 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT62593101 Contact Us For Availability
A55
PCB Assembly,Keypad LGE EBR82642401 Contact Us For Availability
A80L
Case Assembly LGE ABQ75684601 Contact Us For Availability
A80R
Case Assembly LGE ABQ75703401 Contact Us For Availability
A900
Active Woofer LGE TCG36488303 Contact Us For Availability
A900W
Board Assembly,Sub LGE AAX75268412 Contact Us For Availability
AR503
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C5A7
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5F7
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5H1
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C7A1
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7A2
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C7A9
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C560
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C568
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C629
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE 0CK475DF40A Contact Us For Availability
C661
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C668
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C766
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C769
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C783
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C834
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C847
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C865
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C868
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
C870
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA851
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863034 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130038 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63752202 Contact Us For Availability
CE601
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CF06
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CN504
Connector,Wafer LGE EAG60989201 Contact Us For Availability
CN505
Connector,BtoB LGE EAG64811001 Contact Us For Availability
CN508
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN704
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CNF02
Connector,BtoB LGE EAG63717501 Contact Us For Availability
CNK01
Connector,Wafer LGE 6630V901352 Contact Us For Availability
D500
Diode,Zener LGE EAH39305801 Contact Us For Availability
D601
Diode,TVS LGE EAH62033601 Contact Us For Availability
D701
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D801
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D804
Diode,TVS LGE EAH63292901 Contact Us For Availability
D805
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FB502
Filter,Bead LGE EAM54407704 Contact Us For Availability
FB506
Filter,Bead LGE EAM62151101 Contact Us For Availability
FB515
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
FB612
Filter,Bead LGE EAM62155402 Contact Us For Availability
FL801
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
FL851
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
GS601
Gasket LGE MDS63255101 Contact Us For Availability
IC501A
S/W,System Program LGE SAA38333201 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62909503 Contact Us For Availability
IC503
IC,SDRAM LGE EAN60700803 Contact Us For Availability
IC505A
S/W,System Program LGE SAA35932239 Contact Us For Availability
IC506A
S/W,System Program LGE SAA38312301 Contact Us For Availability
IC507
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC603
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC607
IC,DC,DC Converter LGE EAN63530002 Contact Us For Availability
IC608
IC,DC,DC Converter LGE EAN64151201 Contact Us For Availability
IC703
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC801
IC,Tx/Rx LGE EAN63547801 Contact Us For Availability
IC803
IC,LDO Voltage Regulator LGE EAN62682301 Contact Us For Availability
IC804
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
ICF01
IC,ROHM LGE 0IRH209000A Contact Us For Availability
JK601
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK800
Connector,HDMI LGE EAG62611206 Contact Us For Availability
JK852
Jack,Fiber Optic LGE EAG37842010 Contact Us For Availability
JK852
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK853
Connector,USB LGE EAG62571101 Contact Us For Availability
JK854
Jack,Phone LGE 6612F00091C Contact Us For Availability
L601
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L604
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L604
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L711
Coil,Choke LGE EAP62526301 Contact Us For Availability
L801
Filter,Bead LGE EAM42641607 Contact Us For Availability
L855
Filter,Bead LGE EAM62151001 Contact Us For Availability
LDF06
LED,Chip LGE EAV62832701 Contact Us For Availability
Q504
FET LGE EBK62072501 Contact Us For Availability
Q602
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q709
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
QF01
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
QF05
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R5A2
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5C8
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5H8
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R5L5
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R5R8
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R7A9
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7B3
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R7B4
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R7B9
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R7C1
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R7C6
Capacitor,Ceramic,Ch LGE 0CK104DKG6A Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R581
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R599
Resistor,Chip LGE 0RH1003B622 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R602
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R633
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R701
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R787
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R797
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R806
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ1303C477 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R831
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R866
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R867
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
RCF01
Receiver Module LGE EAV62055002 Contact Us For Availability
RF05
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
RF07
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
RF12
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
RF22
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
RK01
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
RK02
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
RK03
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
SWK04
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
WBC901
Filter,Bead LGE EAM56488801 Contact Us For Availability
WBC904
Filter,Bead LGE EAM38769505 Contact Us For Availability
WC633
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WC700
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC708
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC732
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC735
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC765
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC766
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
WC772
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
WC783
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
WC902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
WC904
Capacitor,AL,Radial LGE EAE63203311 Contact Us For Availability
WC905
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
WC906
Capacitor,Film,DIP,DC LGE EAE63763101 Contact Us For Availability
WC913
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
WC914
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
WC917
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC926
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
WC928
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
WC928
Capacitor,Ceramic,Chip LGE EAE60685501 Contact Us For Availability
WC949
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
WCM902
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
WCM902
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
WCN601
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WCN701
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WD702
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
WD901
Diode,Switching LGE EAH61853601 Contact Us For Availability
WD902
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
WD922
Diode,Schottky LGE EAH62232801 Contact Us For Availability
WD927
Diode,Schottky LGE EAH62095801 Contact Us For Availability
WF901
Fuse,Time Delay LGE EAF62010003 Contact Us For Availability
WFL901
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
WFL902
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
WHS901
Heat Sink LGE MED62751601 Contact Us For Availability
WHS902
Heat Sink LGE MED61841613 Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA35932240 Contact Us For Availability
WIC704
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WIC706
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
WIC902
Photo,Coupler LGE EAV61253101 Contact Us For Availability
WIC904
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
WIC905
IC,Power Driver LGE EAN63427501 Contact Us For Availability
WL705
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL707
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
WL707
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
WL708
Inductor,Wire Wound, LGE EAP32850601 Contact Us For Availability
WL900
Inductor,Wire Wound,Chip LGE EAP62147201 Contact Us For Availability
WLED700
LED,Chip LGE EAV63032801 Contact Us For Availability
WPW901
CONNECTOR (CIRC),WAF LGE 6602V39002A Contact Us For Availability
WPW901
Connector,Wafer LGE 6630VM01502 Contact Us For Availability
WQ701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
WQ704
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WQ901
FET LGE EBK62911901 Contact Us For Availability
WQ901
FET LGE EBK61572401 Contact Us For Availability
WR601
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR603
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR608
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
WR700
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
WR702
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
WR703
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
WR711
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR726
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR735
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
WR760
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR761
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
WR763
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
WR773
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
WR774
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
WR776
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
WR777
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
WR778
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291101 Contact Us For Availability
WR905
Resistor,Cement LGE EBC32291102 Contact Us For Availability
WR906
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
WR912
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
WR914
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
WR915
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
WR917
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
WR919
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
WR920
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
WR925
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
WR929
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
WR944
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
WR945
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
WR946
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
WR959
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
WSW700
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
WT901
Transformer,Switching LGE EBJ63030301 Contact Us For Availability
WTH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
WTH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
WV901
Varistor LGE EAF43134201 Contact Us For Availability
WV901
Varistor LGE EAF43134202 Contact Us For Availability
WX601
Crystal LGE EAW62583505 Contact Us For Availability
WZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
WZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
WZD903
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
X501
Crystal LGE EAW62583502 Contact Us For Availability
X801
Crystal LGE EAW62583501 Contact Us For Availability
× ![]()
Login and Registration Form
