Model LG SG10TY Soundbar – Common Parts & Diagrams

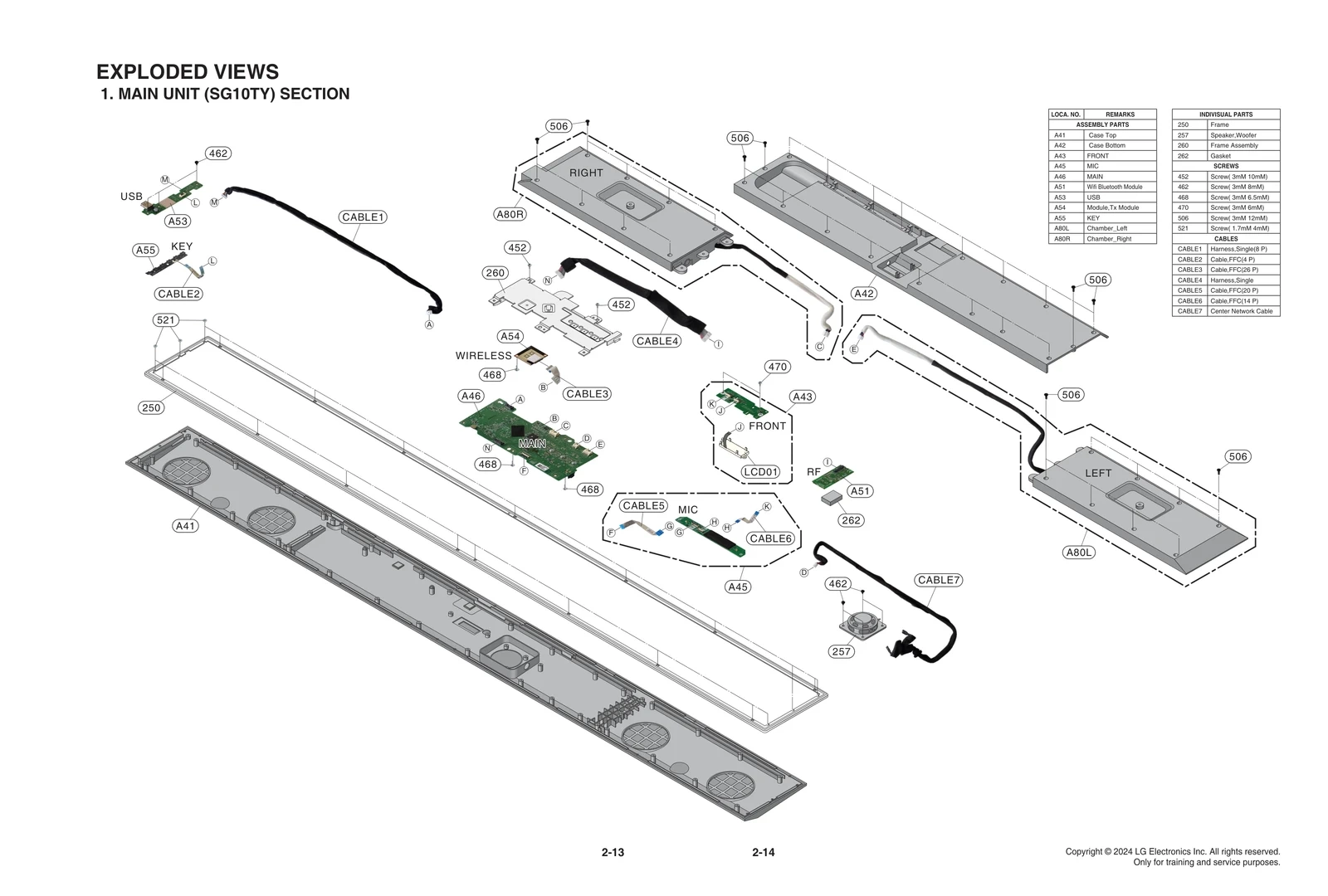

Diagram 0

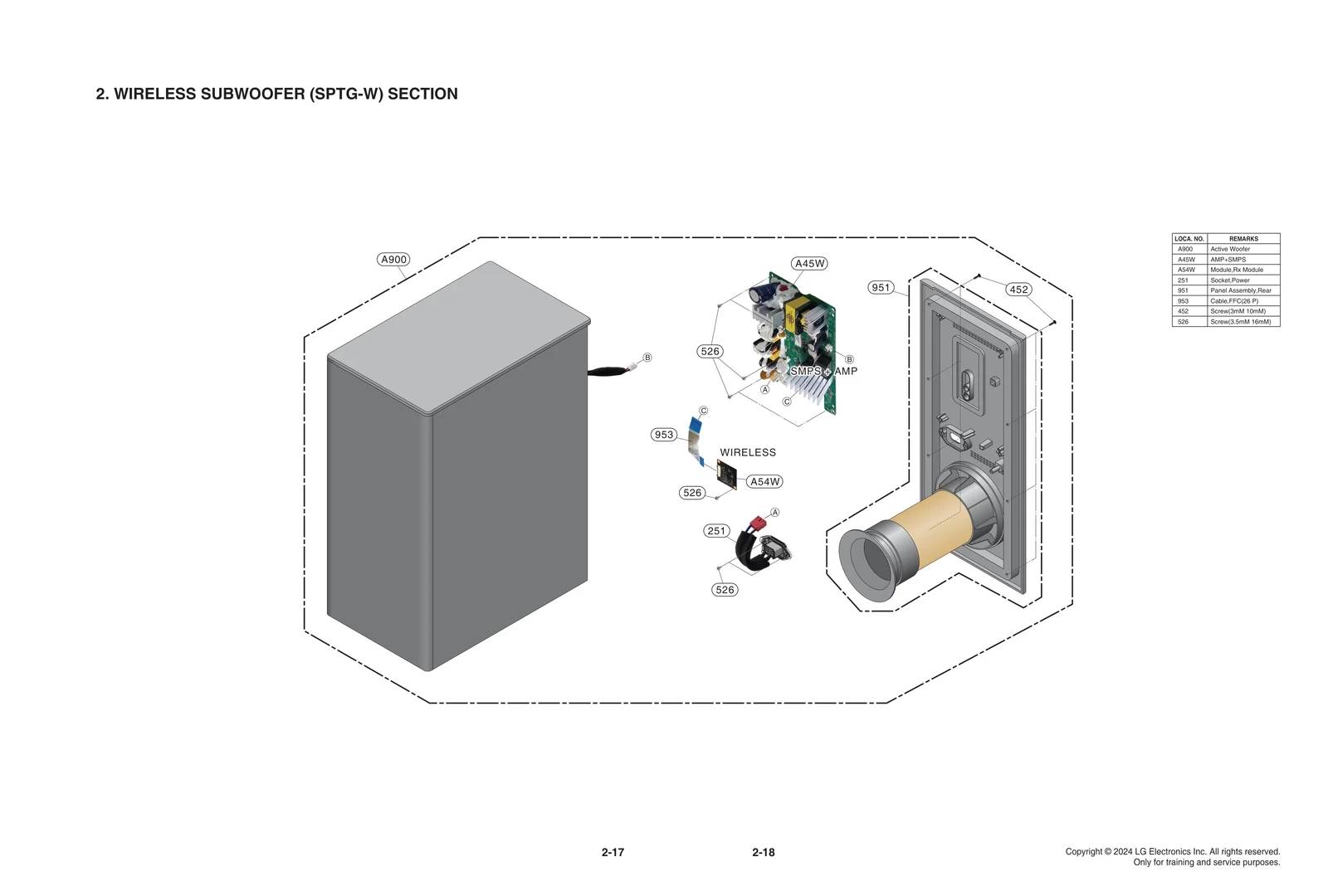

Diagram 1

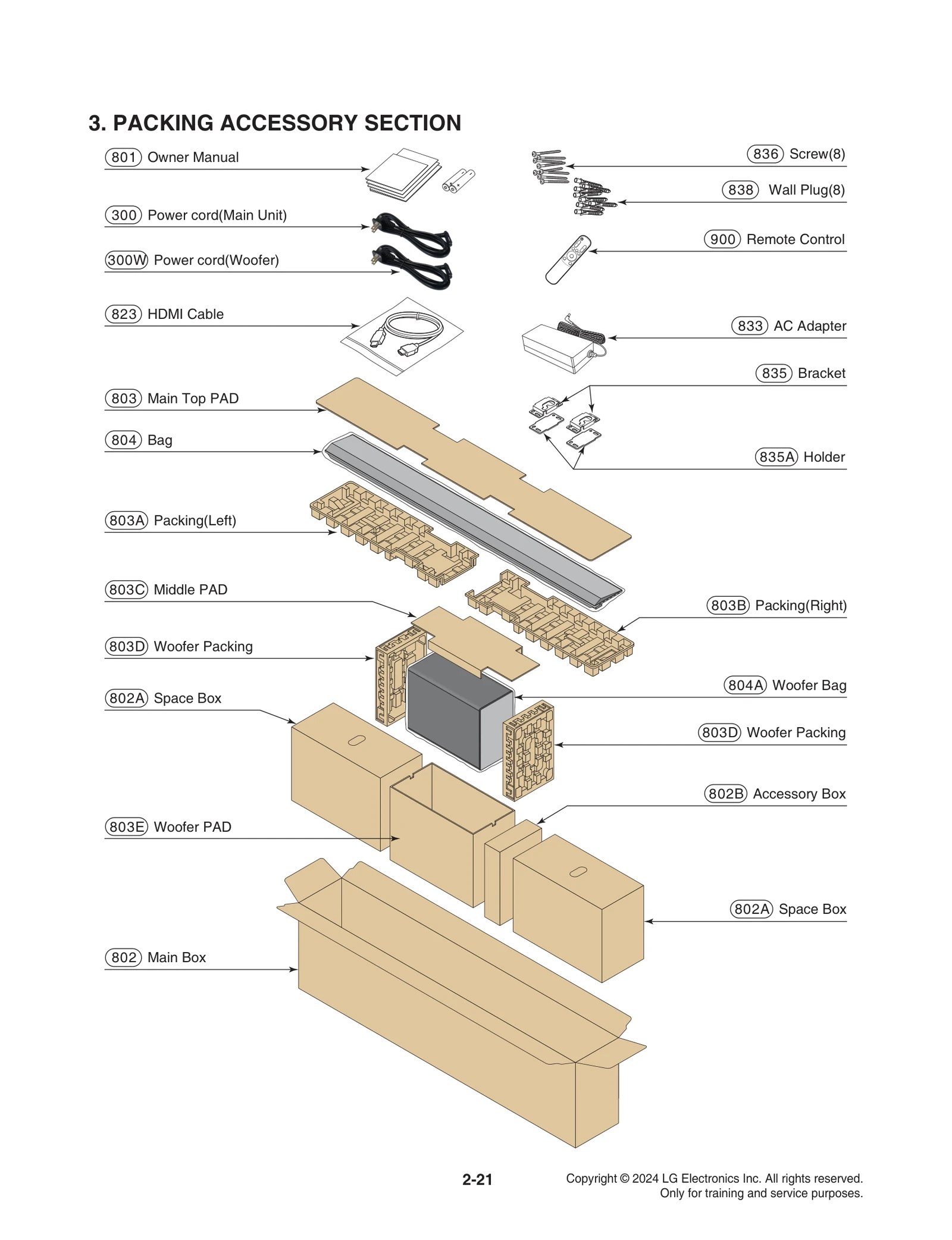

Diagram 2
Diagram 3
Common parts from model LG SG10TY Soundbar
251
Socket,Power LGE EAG63233208 Contact Us For Availability
257
Speaker,Woofer LGE EAB65088203 Contact Us For Availability
260
Frame Assembly LGE ADV30106701 Contact Us For Availability
262
Gasket LGE MDS63690108 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
521
Screw,Customized LGE FAB31442101 Contact Us For Availability
526
Screw,Customized LGE FAB34718601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30129604 Contact Us For Availability
802
Box LGE MAY70141030 Contact Us For Availability
802A
Packing LGE MFZ67510301 Contact Us For Availability
802B
Box LGE MAY70160901 Contact Us For Availability
803
Packing LGE MFZ67510401 Contact Us For Availability
803A
Packing LGE MFZ67510201 Contact Us For Availability
803B
Packing LGE MFZ67510202 Contact Us For Availability
803C
Packing LGE MFZ67251203 Contact Us For Availability
803D
Packing LGE MFZ67251101 Contact Us For Availability
803E
Packing LGE MFZ66293083 Contact Us For Availability
804
Bag LGE MAF66406207 Contact Us For Availability
804A
Bag LGE MAF66405205 Contact Us For Availability
833
Adapters LGE EAY65911002 Contact Us For Availability
835
Bracket LGE MAZ67415302 Contact Us For Availability
835A
LGE MEG66675401 LGE MEG66675401 Contact Us For Availability
836
Screw,Customized LGE FAB31058701 Contact Us For Availability
838
Holder LGE MEG62598701 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30012602 Contact Us For Availability
953
Cable,FFC LGE EAD62131539 Contact Us For Availability
A41
Mesh Assembly LGE AFQ73048902 Contact Us For Availability
A42
Case Assembly LGE ABQ30274101 Contact Us For Availability
A43
PCB Assembly LGE EBR41869101 Contact Us For Availability
A45
PCB Assembly LGE EBR41869901 Contact Us For Availability
A45W
PCB Assembly LGE EBR42765001 Contact Us For Availability
A46
Option Code Assembly LGE EBR42764403 Contact Us For Availability
A53
PCB Assembly LGE EBR41869501 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209401 Contact Us For Availability
A54W
Module,Rx Module LGE EAT65209701 Contact Us For Availability
A55
PCB Assembly LGE EBR41868801 Contact Us For Availability
A80L
Case Assembly LGE ABQ30034804 Contact Us For Availability
A80R
Case Assembly LGE ABQ30034707 Contact Us For Availability
A900
Active Woofer LGE TCG37549046 Contact Us For Availability
CABLE1
Harness,Single LGE EAD65366216 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62246609 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62131570 Contact Us For Availability
CABLE4
Harness,Single LGE EAD65366215 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63425614 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD64128910 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR42250201 Contact Us For Availability
IC1000A
S/W,System Program LGE SAA44610201 Contact Us For Availability
IC1001A
S/W,System Program LGE SAA44614301 Contact Us For Availability
IC4000A
S/W,System Program LGE SAA44612801 Contact Us For Availability
IC5005A
S/W,System Program LGE SAA44609901 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172306 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA44613001 Contact Us For Availability
× ![]()
