Model Whirlpool SF350PSPW0 GAS RANGE – Common Parts & Diagrams
03 - COOKTOP
05 - OVEN DOOR AND BROILER

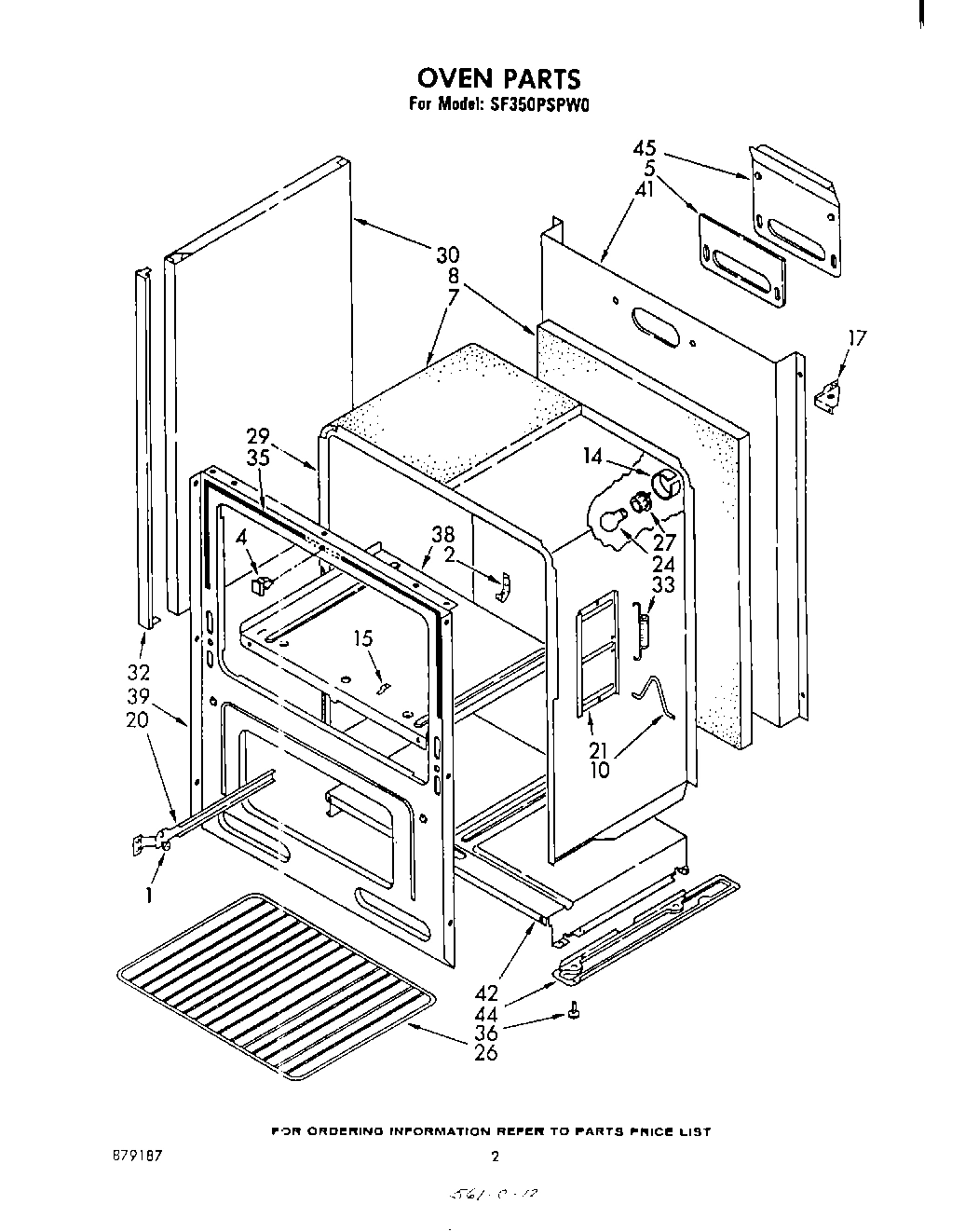

02 - OVEN , LITERATURE

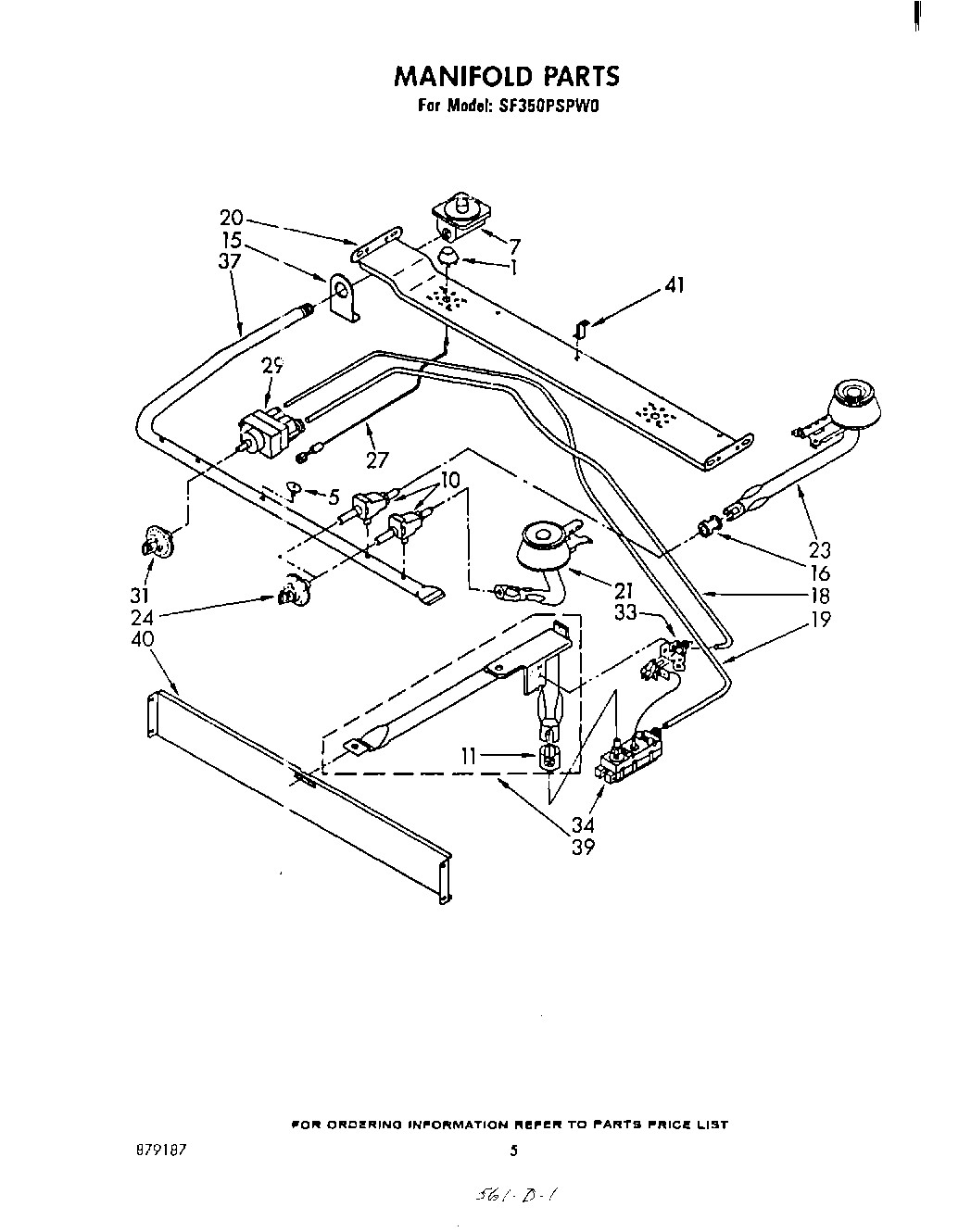

04 - MANIFOLD

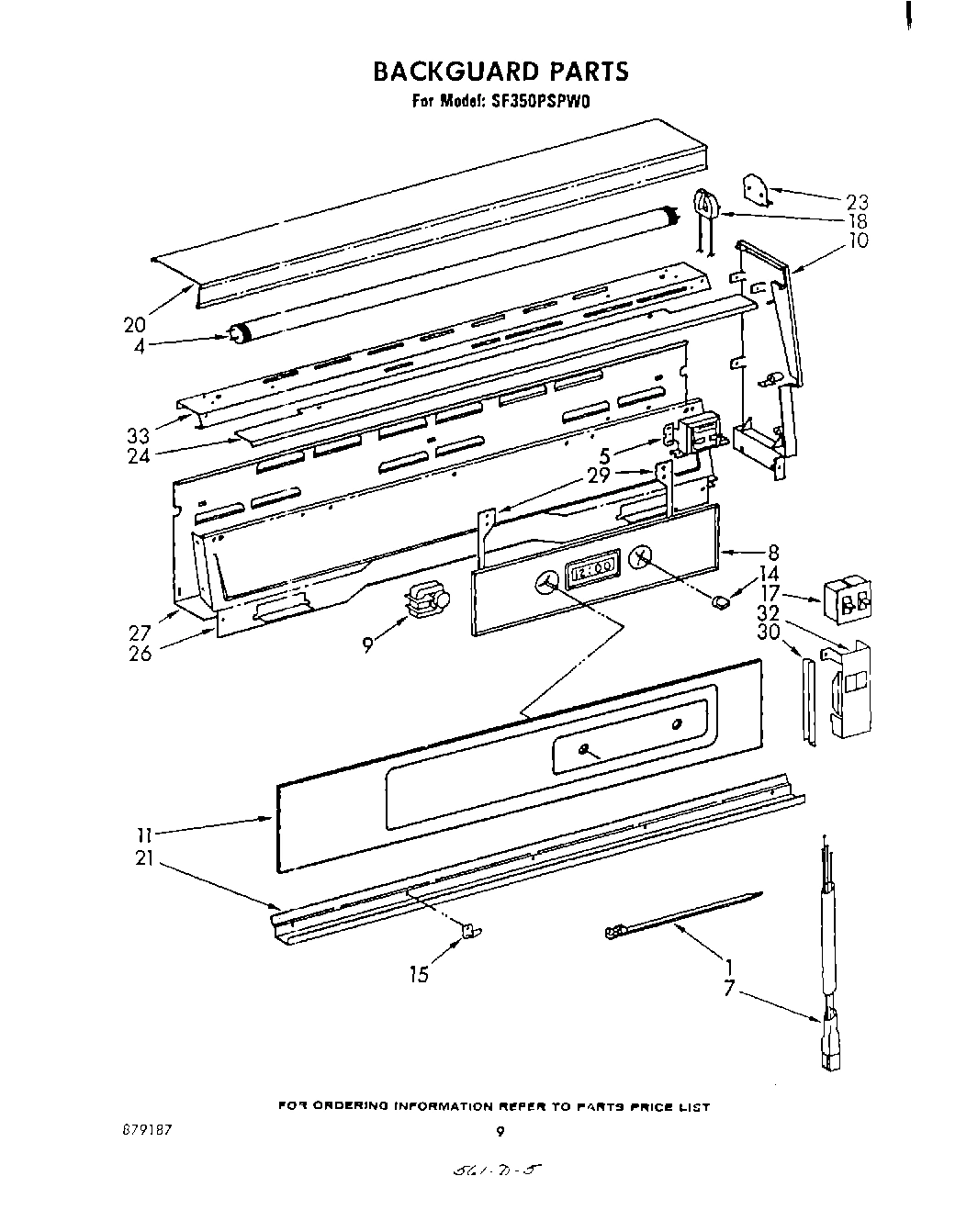

06 - BACKGUARD
Common parts from model Whirlpool SF350PSPW0 GAS RANGE
Instructions, Installation WPL LIT878063 Contact Us For Availability
Guide, Use & Care WPL LIT878072 Contact Us For Availability
Diagram, Wiring WPL LIT878926 Contact Us For Availability
Diagram, Installation Instructions WPL LIT878927 Contact Us For Availability
List, Repair Parts WPL LIT879187 Contact Us For Availability
1
Bushing, Snap (2) WPL 878364 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878079 Contact Us For Availability
1
Bearing, Roller (4) WPL 878077 Contact Us For Availability
1
Cone, Top Lighter (2) WPL 878701 Contact Us For Availability
1
Clamp Wire (2) WPL 879056 Contact Us For Availability
2
Clamp, Top Stop WPL 878083 Contact Us For Availability
2
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
3
End, Manifold Panel (Left Hand) WPL 878085 Contact Us For Availability
3
End, Manifold Panel (Right Hand) WPL 878086 Contact Us For Availability
4
Stop, Cook Top WPL 878098 Contact Us For Availability
4
Insulation, Oven Door WPL 878798 Contact Us For Availability
4
Clip, Door Seal WPL 878084 Contact Us For Availability
5
Spacer, Main Top WPL 878099 Contact Us For Availability
5
Gasket, Vent Deflector WPL 878088 Contact Us For Availability
5
Fitting, Flange WPL 878296 Contact Us For Availability
5
Ballast, Fluorescent Light WPL 878913 Contact Us For Availability
7
Cover, Wire WPL 878719 Contact Us For Availability
7
Insulation, Broiler Door WPL 878090 Contact Us For Availability
7
Regulator, Pressure WPL 878008 Contact Us For Availability
7
Block, Disconnect Pin WPL 878196 Contact Us For Availability
8
Bottom, Burner Box WPL 878126 Contact Us For Availability
8
Spacer, Door Handle (2) WPL 878097 Contact Us For Availability
8
Clock, Automatic (Includes Illus. 9) WPL 878800 Contact Us For Availability
9
Motor, Timer WPL 308594 Contact Us For Availability
10
Inlay, Manifold Panel WPL 878125 Contact Us For Availability
10
Frame, Window WPL 878106 Contact Us For Availability
10
Link, Oven Door Spring (2) WPL 878094 Contact Us For Availability
10
Valve, Top Burner (4) WPL 878012 Contact Us For Availability
10
Cap, End (Left Side) WPL 878801 Contact Us For Availability
10
Cap, End (Right Side) WPL 878802 Contact Us For Availability
11
Panel, Manifold WPL 878134 Contact Us For Availability
11
Handle, Broiler Door WPL 878132 Contact Us For Availability
11
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
11
Glass, Backguard WPL 879219 Contact Us For Availability
14
Trim, Main Top (Left Side) WPL 878135 Contact Us For Availability
14
Trim, Main Top (Right Side) WPL 878136 Contact Us For Availability
14
Handle, Oven Door WPL 878133 Contact Us For Availability
14
Sleeve, Light Hole WPL 878103 Contact Us For Availability
15
Grate, Burner (4) WPL 878940 Contact Us For Availability
15
Frame, Door WPL 878138 Contact Us For Availability
15
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
15
Support, Inlet Pipe WPL 878115 Contact Us For Availability
15
Spacer, Backguard Glass (2) WPL 878804 Contact Us For Availability
16
Cap, Top Burner Air Mixer WPL 878116 Contact Us For Availability
17
Block, Disconnect Socket WPL 878162 Contact Us For Availability
17
Glass, Oven Door Outside WPL 878139 Contact Us For Availability
17
Bracket, Corner Support (Right Side) WPL 878717 Contact Us For Availability
17
Bracket, Corner Support (Left Side) WPL 878718 Contact Us For Availability
17
Switch, Combination WPL 878001 Contact Us For Availability
18
Cord, Extension WPL 878298 Contact Us For Availability
18
Glass, Oven Door Inside WPL 878002 Contact Us For Availability
18
Tubing, Control Pilot WPL 878624 Contact Us For Availability
18
Socket, Fluorescent Light (Left Side) WPL 878661 Contact Us For Availability
18
Socket, Fluorescent Light (Right Side) WPL 878662 Contact Us For Availability
19
Tubing, Oven WPL 878120 Contact Us For Availability
20
Catch, Main Top (2) WPL 878164 Contact Us For Availability
20
Glass, Oven Door Center WPL 878141 Contact Us For Availability
20
Track, Broiler (Right Side) WPL 878113 Contact Us For Availability
20
Track, Broiler (Left Side) WPL 878114 Contact Us For Availability
20
Hanger, Top Burner WPL 878870 Contact Us For Availability
20
Trim, Backguard Top WPL 878805 Contact Us For Availability
21
Strike, Main Top (2) WPL 878499 Contact Us For Availability
21
Strip, Door Seal WPL 878472 Contact Us For Availability
21
Cover, Hinge (2) WPL 878117 Contact Us For Availability
21
Burner, Top Front (2) (Includes Illus. 16) WPL 878130 Contact Us For Availability
21
Trim, Backguard Bottom WPL 878806 Contact Us For Availability
23
Top, Main (White) WPL 878176 Contact Us For Availability
23
Top, Main (Almond) WPL 878177 Contact Us For Availability
23
Top, Main (Toast) WPL 879091 Contact Us For Availability
23
Top, Main (Platinum) WPL 879092 Contact Us For Availability
23
Lining, Oven Door WPL 878143 Contact Us For Availability
23
Burner, Top Rear (2) (Includes Illus. 16) WPL 878131 Contact Us For Availability
23
Bracket, Brackguard Lampholder (Left Side) WPL 878807 Contact Us For Availability
23
Bracket, Brackguard Lampholder (Right Side) WPL 878808 Contact Us For Availability
24
Baffle, Door WPL 878144 Contact Us For Availability
24
Handle, Top Valve (4) WPL 878151 Contact Us For Availability
24
Retainer, Glass WPL 878809 Contact Us For Availability
25
Bowel, Drip (4) WPL 878914 Contact Us For Availability
26
Shield, Heat WPL 878145 Contact Us For Availability
26
Rack, Oven (2) WPL 878123 Contact Us For Availability
26
Panel Backguard (Almond) WPL 878810 Contact Us For Availability
26
Panel Backguard (White) WPL 878812 Contact Us For Availability
26
Panel Backguard (Toast) WPL 879099 Contact Us For Availability
26
Panel Backguard (Platinum) WPL 879100 Contact Us For Availability
27
Retainer, Insulation WPL 878146 Contact Us For Availability
27
Socket, Oven Light WPL 878124 Contact Us For Availability
27
Lighter, Top Burner (2) WPL 878894 Contact Us For Availability
27
Cover, Backguard Wire WPL 878814 Contact Us For Availability
29
Panel, Broiler Door (White) WPL 878147 Contact Us For Availability
29
Panel, Broiler Door (Almond) WPL 878148 Contact Us For Availability
29
Panel, Broiler Door (Toast) WPL 879085 Contact Us For Availability
29
Panel, Broiler Door (Platinum) WPL 879086 Contact Us For Availability
29
Oven 30`` Continuous Clean (Not Serviceable) WPL ARI129991A Contact Us For Availability
29
Control, Oven WPL 878895 Contact Us For Availability
29
Support, Clock (Right Side) WPL 878815 Contact Us For Availability
29
Support, Clock (Left Side) WPL 878816 Contact Us For Availability
30
Lining, Broiler Door WPL 878149 Contact Us For Availability
30
Panel, End (2) (White) WPL 878128 Contact Us For Availability
30
Panel, End (2) (Almond) WPL 878129 Contact Us For Availability
30
Panel, End (2) (Toast) WPL 879081 Contact Us For Availability
30
Panel, End (2) (Platinum) WPL 879082 Contact Us For Availability
30
Trim, Backguard Glass (2) WPL 878817 Contact Us For Availability
31
Dial, Oven Control WPL 878158 Contact Us For Availability
32
Spring, Broiler Door (2) WPL 878165 Contact Us For Availability
32
Trim, End Panel (2) WPL 878137 Contact Us For Availability
32
Plate, Switch WPL 878818 Contact Us For Availability
33
Spring, Oven Door (2) WPL 878142 Contact Us For Availability
33
Lighter, Oven Burner WPL 878710 Contact Us For Availability
33
Brace, Backguard WPL 878819 Contact Us For Availability
34
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
34
Valve, Oven Lighter Safety WPL 878711 Contact Us For Availability
35
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
35
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
35
Seal, Oven Door (Top) WPL 878003 Contact Us For Availability
35
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
36
Screw, Leveling (4) WPL 878417 Contact Us For Availability
37
Drawer, Broiler WPL 878172 Contact Us For Availability
37
Pipe, Manifold WPL 878995 Contact Us For Availability
38
Pan, Broiler WPL 878173 Contact Us For Availability
38
Plate, Oven Bottom WPL 879039 Contact Us For Availability
39
Front, Main WPL 879053 Contact Us For Availability
39
Burner, Oven WPL 878187 Contact Us For Availability
40
Tray, Broiler Pan WPL 878174 Contact Us For Availability
40
Deflector, Heat WPL 878189 Contact Us For Availability
41
Hinge, Broiler Door (Left Side) WPL 878183 Contact Us For Availability
41
Hinge, Broiler Door (Right Side) WPL 878184 Contact Us For Availability
41
Back, Main WPL 879016 Contact Us For Availability
41
Support, Burner Hanger WPL 878542 Contact Us For Availability
42
Bottom, Main WPL 878180 Contact Us For Availability
44
Runner, Base (Left Side) WPL 878181 Contact Us For Availability
44
Runner, Base (Right Side) WPL 878182 Contact Us For Availability
45
Deflector, Vent WPL 878477 Contact Us For Availability
× ![]()
