Model LG SDM-X75F – Common Parts & Diagrams

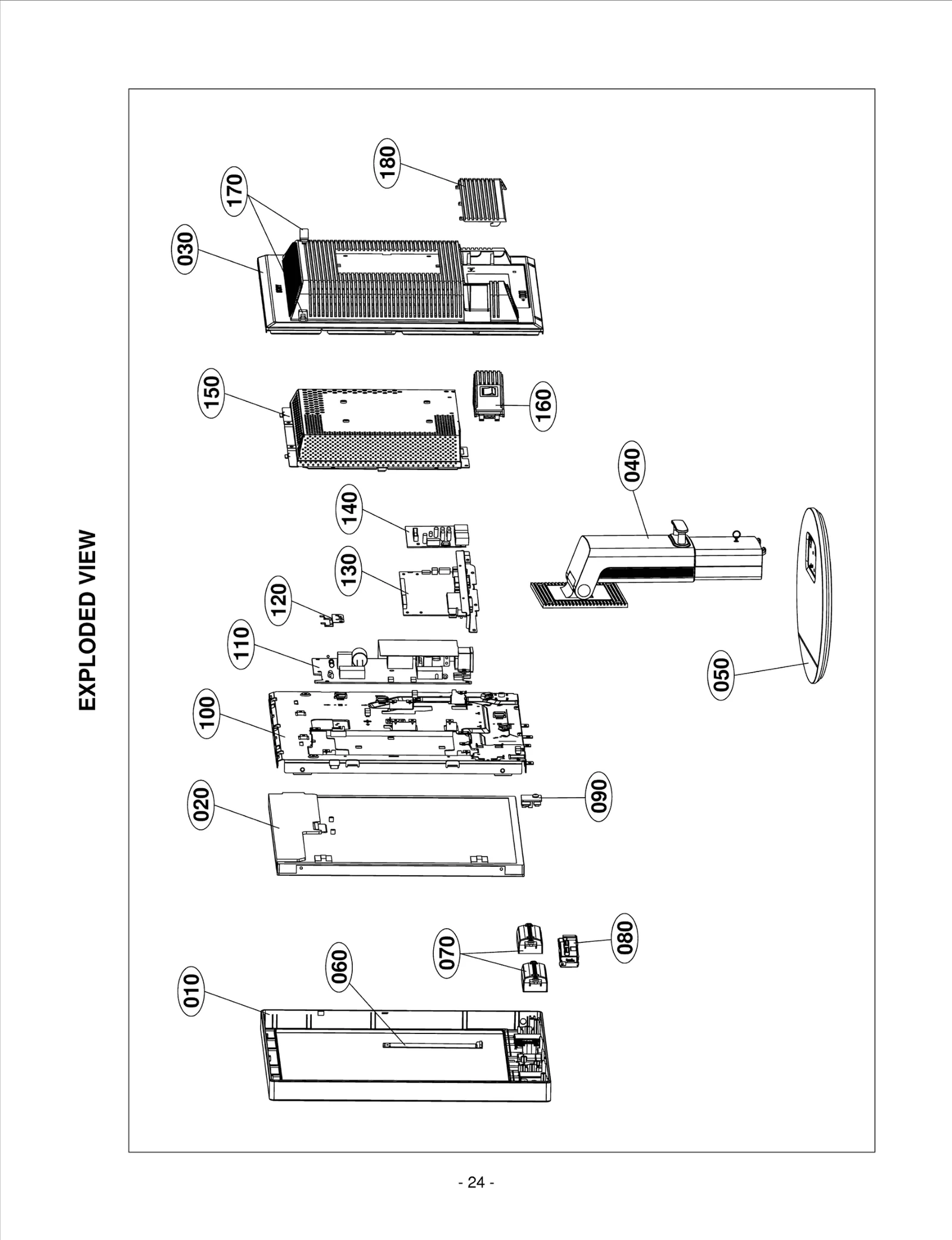

Diagram 0
Common parts from model LG SDM-X75F
0
IC,DRAWING LGE 0IZZTSZ747A Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK263C Contact Us For Availability
0
COVER LGE 3550TKK876A Contact Us For Availability
0
LABEL LGE 3850TAZ711B Contact Us For Availability
0
LABEL LGE 3850TBZ442A Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020F Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038A Contact Us For Availability
0
CARTON PLATE LGE 400-C17F Contact Us For Availability
0
LGE 4950TKK583A LGE 4950TKK583A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK257L Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1583D Contact Us For Availability
0
SCREW,DRAWING LGE 332-113V Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL117F Contact Us For Availability
0
LABEL LGE 38509R0068B Contact Us For Availability
0
LABEL LGE 3850TAZ711A Contact Us For Availability
0
PACKING LGE 3920TKP041A Contact Us For Availability
0
PACKING LGE 3920TKP041B Contact Us For Availability
0
SPRING LGE 4970TKP037D Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T10003U Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST398C Contact Us For Availability
0
SCREW, LGE 1SZZTPC002A Contact Us For Availability
0
LABEL LGE 3850TAZ159A Contact Us For Availability
0
LABEL,STREAMER LGE 3850TSZ015E Contact Us For Availability
0
CARTON PLATE LGE 3918TKK040A Contact Us For Availability
0
CARTON PLATE LGE 3918TKK040B Contact Us For Availability
0
PACKING LGE 3920900027B Contact Us For Availability
0
BRACKET LGE 4810TKK310A Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP329A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTXT001D Contact Us For Availability
0
LABEL LGE 38509R0068A Contact Us For Availability
0
BOX LGE 3890TSEA53A Contact Us For Availability
0
PACKING LGE 3920900027A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023L Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20025A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZ9PB001B Contact Us For Availability
0
SCREW,DRAWING LGE 332-112K Contact Us For Availability
0
LABEL LGE 3850TAZ037G Contact Us For Availability
0
Box LGE 3890TKD002P Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038J Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS225F Contact Us For Availability
0
SPEAKER ASSEMBLY LGE 6401TZZ031B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016W Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006P Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 68719ST074A Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL167E Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL7135C Contact Us For Availability
0
LGE 332-095K LGE 332-095K Contact Us For Availability
0
CARD LGE 3840TRL091C Contact Us For Availability
0
LABEL LGE 3850TBZ489S Contact Us For Availability
0
LGE 3880TKZ020K LGE 3880TKZ020K Contact Us For Availability
0
PACKING LGE 3920900027C Contact Us For Availability
0
SHIELD ASSEMBLY LGE 48159K0002A Contact Us For Availability
0
METAL LGE 4950TKA252A Contact Us For Availability
0
SPRING LGE 4970TKK023A Contact Us For Availability
0
LGE 6631T39003A LGE 6631T39003A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT324B Contact Us For Availability
0
FLUX LGE 7245TZZ008A Contact Us For Availability
0
LGE 967-0043 LGE 967-0043 Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
SCREW ASSEMBLY LGE 4001TKK004K Contact Us For Availability
0
POWER CORD LGE 6410TCW004A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T25005H Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004Q Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTTC002K Contact Us For Availability
0
COVER LGE 3550TKK898A Contact Us For Availability
0
CARD LGE 3840TRL091A Contact Us For Availability
0
CARTON PLATE LGE 3918TKK090A Contact Us For Availability
0
SWITCH,ROCKER LGE 6600F00001C Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
C217
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C219
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C222
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C417
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C623
Capacitor,AL,Radial LGE 0CZZTAT005D Contact Us For Availability
C625
LGE 0CZZTAT005E LGE 0CZZTAT005E Contact Us For Availability
C630
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C646
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C714
LGE 0CH5101K516 LGE 0CH5101K516 Contact Us For Availability
C727
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C743
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D719
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
L606
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L702
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q703
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q705
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R415
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R415
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R514
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R606
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R628
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R647
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R708
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R714
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R753
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R776
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R783
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R794
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R906
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018A Contact Us For Availability
U401
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSS040D Contact Us For Availability
U601
IC,SGS-THOMSON LGE 0ISG749600A Contact Us For Availability
U602
IC,STANDARD LOGIC LGE 0ISTLTI049A Contact Us For Availability
U604
IC,KEC LGE 0IKE780900H Contact Us For Availability
U605
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U701
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
U901
IC,Ambient Light Sensor LGE 0IPRPTX001A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD601
DIODE,ZENER LGE 0DZ510009EE Contact Us For Availability
ZD912
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
