Model LG SDM-S75E – Common Parts & Diagrams

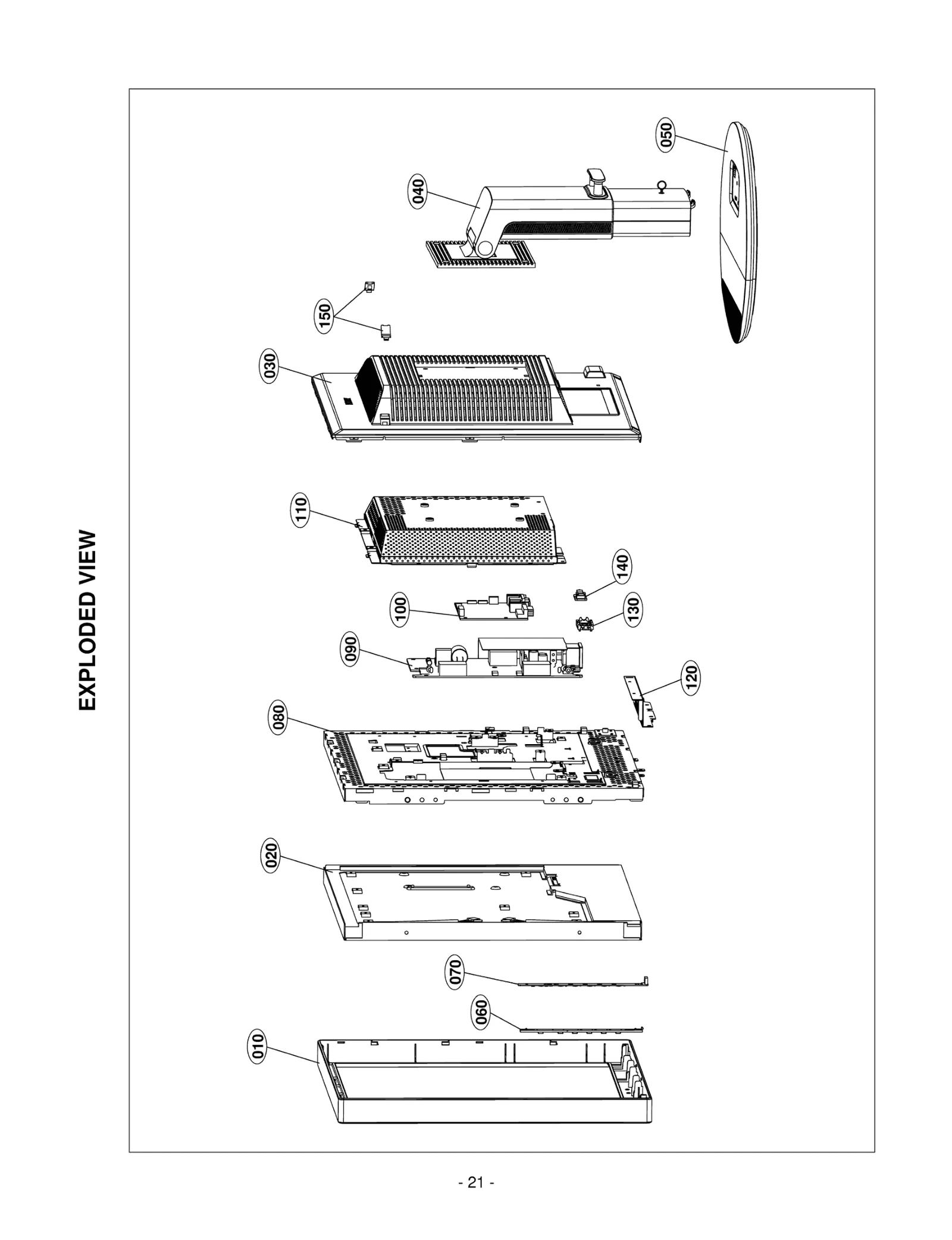

Diagram 0
Common parts from model LG SDM-S75E
0
DISKETTE ASSEMBLY LGE 3171TZ1580B Contact Us For Availability
0
SCREW ASSEMBLY LGE 4001TKK004K Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020F Contact Us For Availability
0
PACKING LGE 3920900027A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T10003T Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK257E Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL7133C Contact Us For Availability
0
KNOB LGE 4940TKT259A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTTC002K Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023L Contact Us For Availability
0
PACKING LGE 3920TKP040B Contact Us For Availability
0
SCREW,DRAWING LGE 332-113V Contact Us For Availability
0
METAL LGE 4950TKA252A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS225D Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP329A Contact Us For Availability
0
POWER CORD LGE 6410TUW004A Contact Us For Availability
0
LGE 3880TKZ020K LGE 3880TKZ020K Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZ9PB001B Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTXT001D Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL173J Contact Us For Availability
0
BRACKET LGE 4810TKK310A Contact Us For Availability
0
BRACKET LGE 4810TKK311A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT324A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA40B Contact Us For Availability
0
IC,DRAWING LGE 0IZZTSZ745A Contact Us For Availability
0
SCREW,DRAWING LGE 332-112K Contact Us For Availability
0
BOX LGE 3890TSEA44A Contact Us For Availability
0
PACKING LGE 3920900027B Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK263C Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA43C Contact Us For Availability
0
SCREW, LGE 1SZZTPC002A Contact Us For Availability
0
PACKING LGE 3920TKP040A Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL120C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016W Contact Us For Availability
0
PACKING LGE 3920900027C Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006P Contact Us For Availability
0
METAL LGE 4950TKA253A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20025A Contact Us For Availability
C226
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C410
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C417
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C503
LGE 0CH6680K416 LGE 0CH6680K416 Contact Us For Availability
C708
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C719
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C727
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C762
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D707
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D739
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
L606
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L703
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R413
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R502
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R507
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R514
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R518
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R604
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
R649
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R711
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R783
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R793
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3017A Contact Us For Availability
U401
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSS040D Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD910
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
